Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck

Export reference
MSRP N/A
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: ZF
Curb Weight:: 10.37ton
seating capacity: 2Personnel
Rated payload: 14.5ton
Drive 6X2 (8 wheels)
Cargo box type: Wing Van

Overview

The Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Wing Van cargo body, 2Personnel volume and 14.5t payload. On the powertrain side, it comes with a SinotrukMAN7L engine, 280 hp, 6X2 (8 wheels) drive and China V emissions.

China V 280 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5258XYKKC0EB0
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1800+5600mm
Box length class: 9.6m
engine: SinotrukMC07.28-50
transmission: ZFZF5S-111GP
Rear Axle Ratio: 4.875
Cab length: 11.95m
Cab width: 2.545m
Cab height: 3.98m
Front track width: 2020mm
rear track: 1860mm
Curb Weight: 10.37ton
Rated payload: 14.5ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Yong'an, Fujian
tonnage class: Heavy-duty cargo trucks
Approach angle: 18.5°
departure angle: 15°
Front/rear suspension: 1.32/3.23m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: ZFZF5S-111GP
Transmission Brand: ZF
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 9.6m
Cargo box width: 2.5m
Cargo box height: 2.7m
*Cargo box interior width: 2.5
Cab parameters
Cab: D15 high-roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 153
Front axle allowable load: 7000/7000kg
Frame Dimensions: 280/8+4mm
rear axle description: 153
rear axle allowable load: 11000kg
Axle ratio: 4.875
Leaf spring count: 10/10/10+9
Tire
Tire Size: 12R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

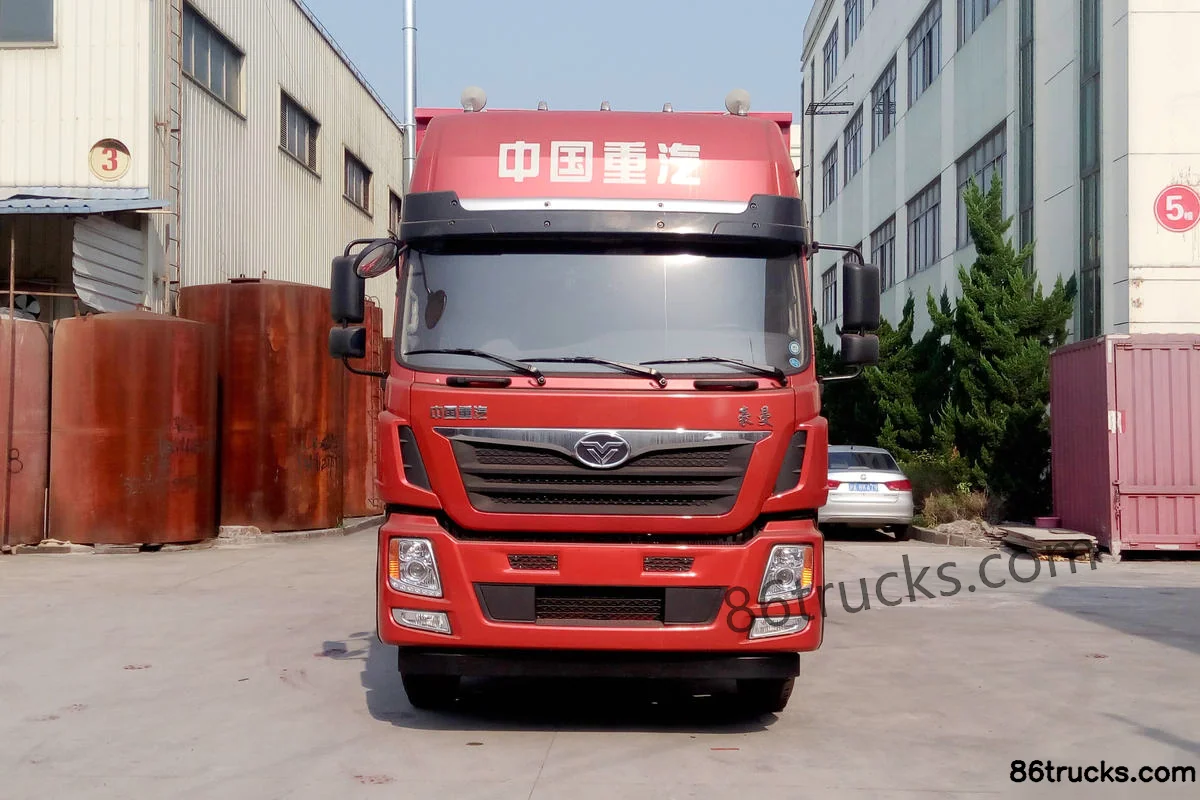

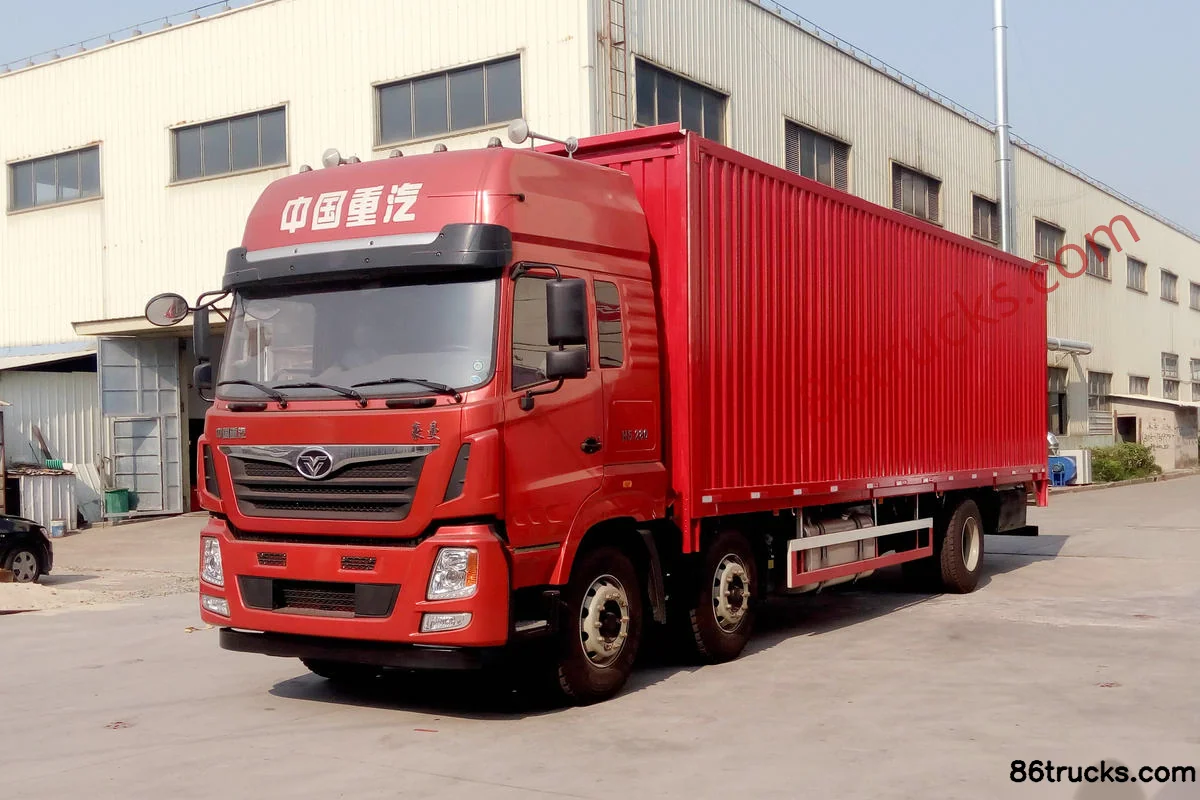

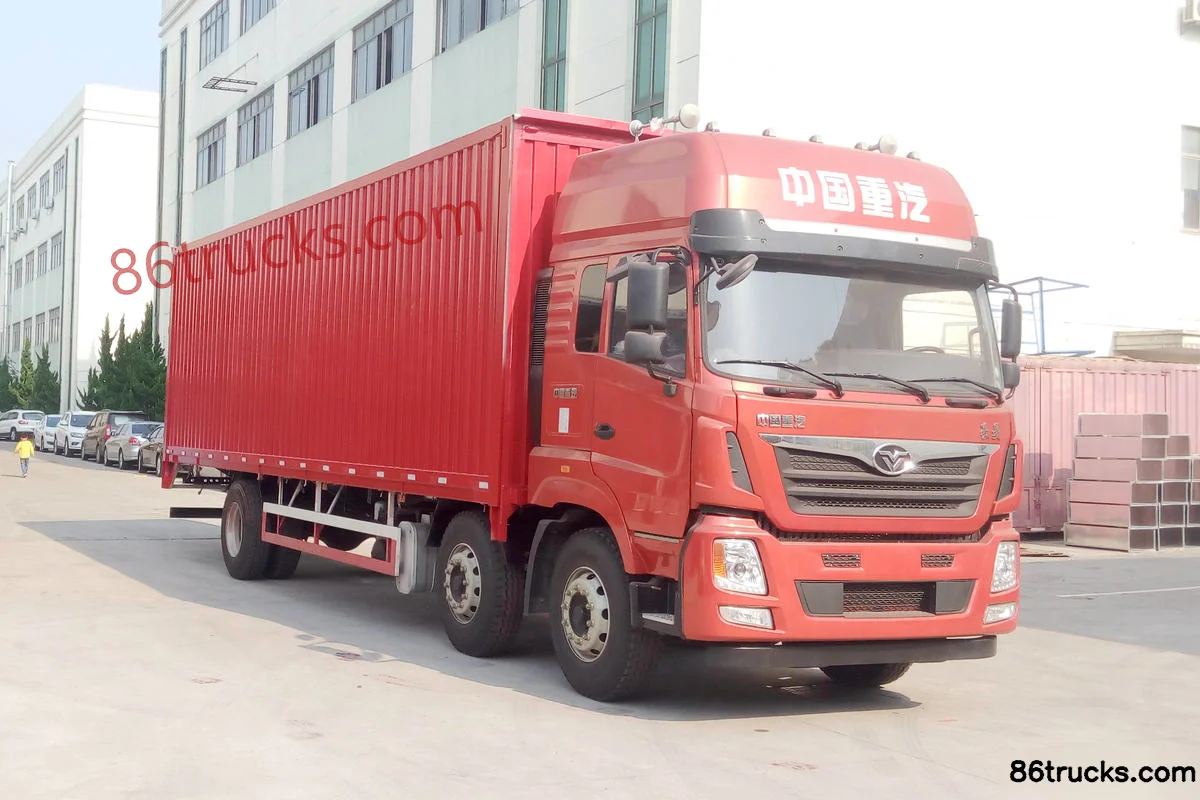

Exterior3

3 photos

FAQ

What emission standard does Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck?

Key specs of Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck: Drive: 6x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck suited for?

Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck differ from other variants in the same series?

Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck belongs to Sinotruk H5 near-heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MANH5 heavy truck 280 hp 6X2(8 wheels) 9.6m wing-opening cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
