JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck

Export reference
From $11,361
MSRP ¥8.18M CNY
Horsepower: 120
Emission: China IV
Fuel: Diesel
Engine: JAC493
Transmission: Lu'an
Curb Weight:: 2.17ton
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck is a Light Truck featuring 3.2m cargo length, stake body cargo body, 5Personnel volume and 1.495t payload. On the powertrain side, it comes with a JAC493 engine, 120 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1041R93K7C2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.2m
engine: JACHFC4DA1-2C
transmission: Lu'an LC5T28
Cab length: 5.995m
Cab width: 1.91m
Cab height: 2.25m
Front track width: 1440mm
rear track: 1425mm
Curb Weight: 2.17ton
Rated payload: 1.495ton
GVWR: 3.99ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 28°
departure angle: 11°
Front/rear suspension: 1.18/2.535m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2C
Engine info: JAC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 250N·m
Max torque speed: 1800-2800rpm
Rated speed: 3600rpm
Engine Type: Turbocharged intercooled, inline 4-cylinder
Transmission Parameters
Transmission Model: Lu'an LC5T28
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.2m
Cargo box width: 1.81m
Cargo box height: 0.4m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 4550kg
rear axle description: 2555
rear axle allowable load: 8090kg
Leaf spring count: 7/4+5
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

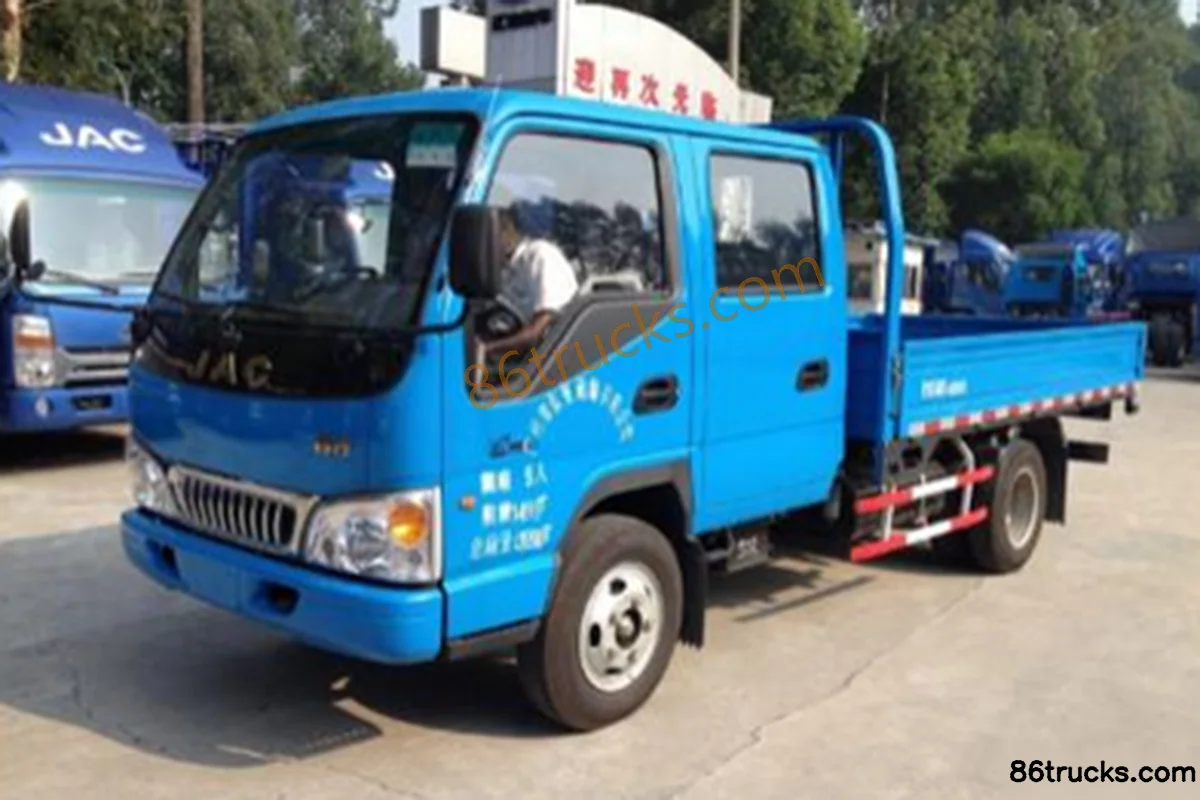

Exterior1

1 photos

FAQ

What is the export price of JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck, and what does it include?

JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck export reference is about From $11,361; MSRP is ¥8.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck?

Key specs of JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck: Drive: 4x2; Horsepower: 120 hp; Emission: China IV; Fuel: Diesel; Engine: JAC493; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck suited for?

JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck differ from other variants in the same series?

JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck belongs to JAC Q3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing K330 120 hp 4X2(6 wheels) 3.2m double-row drop-side light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
