Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck

Export reference
From $52,139
MSRP ¥37.54M CNY
Horsepower: 520
Emission: China VI
Fuel: Diesel
Curb Weight:: 12.7ton
Wheelbase:: 2050+4400+1350mm
Tire Size:: 12R22.5 18PR
Fuel tank capacity: 800L
Rated payload: 18.17ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.5×2.44×2.6m

Overview

The Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck is a Refrigerated Truck featuring 9.5×2.44×2.6m cargo body, 800L volume, 18.17t payload and H7 Pro (rear bulge 80) cab. On the powertrain side, it comes with 520 hp, 8X4 (12 wheels) drive, China VI emissions and Diesel fuel.

China VI 520 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×4m
Truck Type: Refrigerated Truck
Drive type: 8X4
Wheelbase: 2050+4400+1350mm
Vehicle origin: Liuzhou, Guangxi
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 12.7ton
Rated payload: 18.17ton
GVWR: 31ton
Max. speed: 89km/h
Front/rear suspension: 1.525/2.675m
Energy Type: Diesel
Engine parameters
Engine Model: YCK12L520-66
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.76L
Emission standard: China VI
Max output power: 382kW
Max hp: 520Horsepower
Max torque: 2400N·m
Cargo box parameters
Cargo box dimensions: 9.5×2.44×2.6m
Cargo box width: 2.44m
Cargo box height: 2.6m
Body Parameters
Vehicle certification code: LZ5313XLCH7FC1
Body Brand: Dongfeng
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: H7 pro
Chassis Model: LZ1313H7FCT
Front axle description: 2*5.5T
Frame Dimensions: 282(8)mm
rear axle description: 2*400
Axle ratio: 3.364
Leaf spring count: 3/3/4
Aluminum wheels:
clutch: Φ430
Transmission Parameters
Number of gears: 12Gear
Transmission Model: 12JSDX220TA-B
Cab parameters
Cab: H7 Pro (rear bulge 80)
fuel tank
Fuel tank capacity: 800L
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

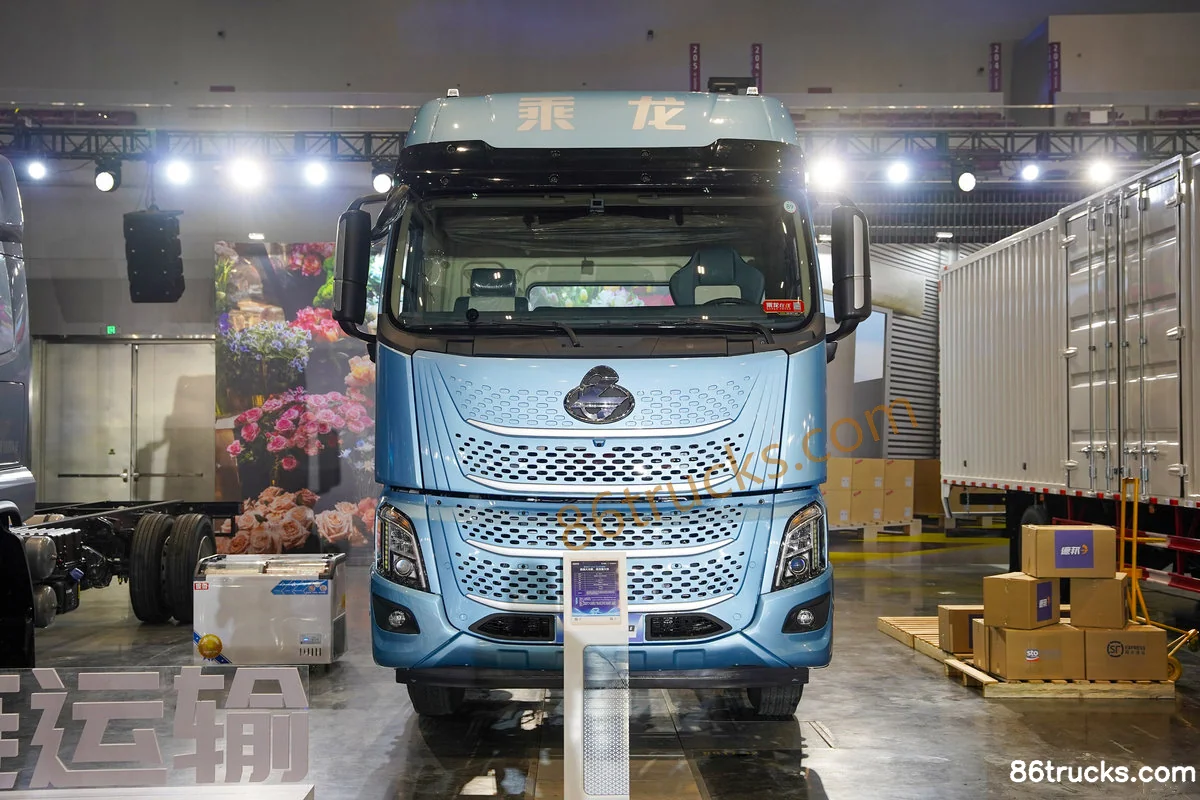

Exterior1

1 photos

FAQ

What is the export price of Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck, and what does it include?

Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck export reference is about From $52,139; MSRP is ¥37.54M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck?

Key specs of Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck: Drive: 8x4; Horsepower: 520 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck suited for?

Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck differ from other variants in the same series?

Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck belongs to Dongfeng Chenglong H7 pro heavy truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng H7 Pro 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.5m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
