FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck

Export reference
MSRP N/A
Horsepower: 220
Emission: China IV
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: FAW Jiefang
Curb Weight:: 8.6ton
FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck exterior
View more photos (3)
seating capacity: 3Personnel
Rated payload: 9.9ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck is a Medium-duty truck featuring 8.7m cargo length, Stake type cargo body, 3Personnel volume and 9.9t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 220 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 220 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5190CCYP62K1L7T3E4
Type: stake truck
Drive type: 6X2
Wheelbase: 1900+4700mm
Box length class: 8.7m
engine: DachaiBF6M2012-22E4
transmission: FAW JiefangCA7T156
Rear Axle Ratio: 4.875
Cab length: 10.9m
Cab width: 2.495m
Cab height: 3.75m
Front track width: 1900/1900mm
rear track: 1800mm
Curb Weight: 8.6ton
Rated payload: 9.9ton
GVWR: 18.695ton
Max. speed: 90km/h
Origin: Changchun, Jilin
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 9°
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: J6L semi-floating flat top small sleeper cab, manual windows, manual mirrors, mechanical suspension driver seat, Beidou compatible vehicle system, auto AC, manual hydraulic lift, iron bumper
Front/rear suspension: 1.4/2.4m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiBF6M2012-22E4
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.06L
Emission standard: China IV
Max output power: 165kW
Max hp: 220Horsepower
Max torque: 770N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: 6-cylinder inline, turbocharged intercooled, electronic unit pump
Transmission Parameters
Transmission Model: FAW JiefangCA7T156
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 8.7m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
Cab suspension: Front: rigid connection; Rear: mechanical
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Sleeper cab
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: Axle 1800 front axle
Front axle allowable load: 4420/4555kg
rear axle description: Axle Φ435 stamped-welded axle (domestic ABS)
rear axle allowable load: 9720kg
Axle ratio: 4.875
Leaf spring count: 11/11/13+7
Tire
Tire brand: Double Coin
Tire Size: 10.00R20 16-ply
Tire Type: Steel-belted tire
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
AC control type: Automatic
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Service brake
Engine brake: Exhaust butterfly valve brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:

Photos

Exterior3

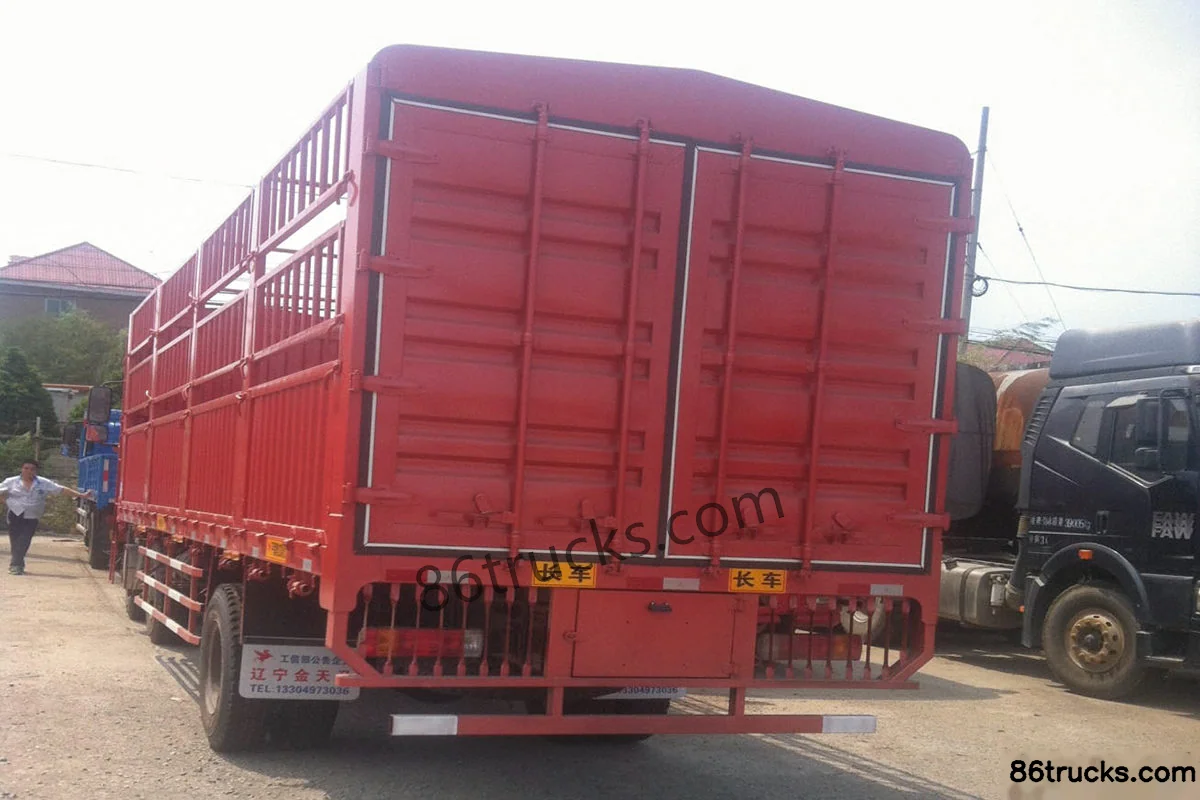

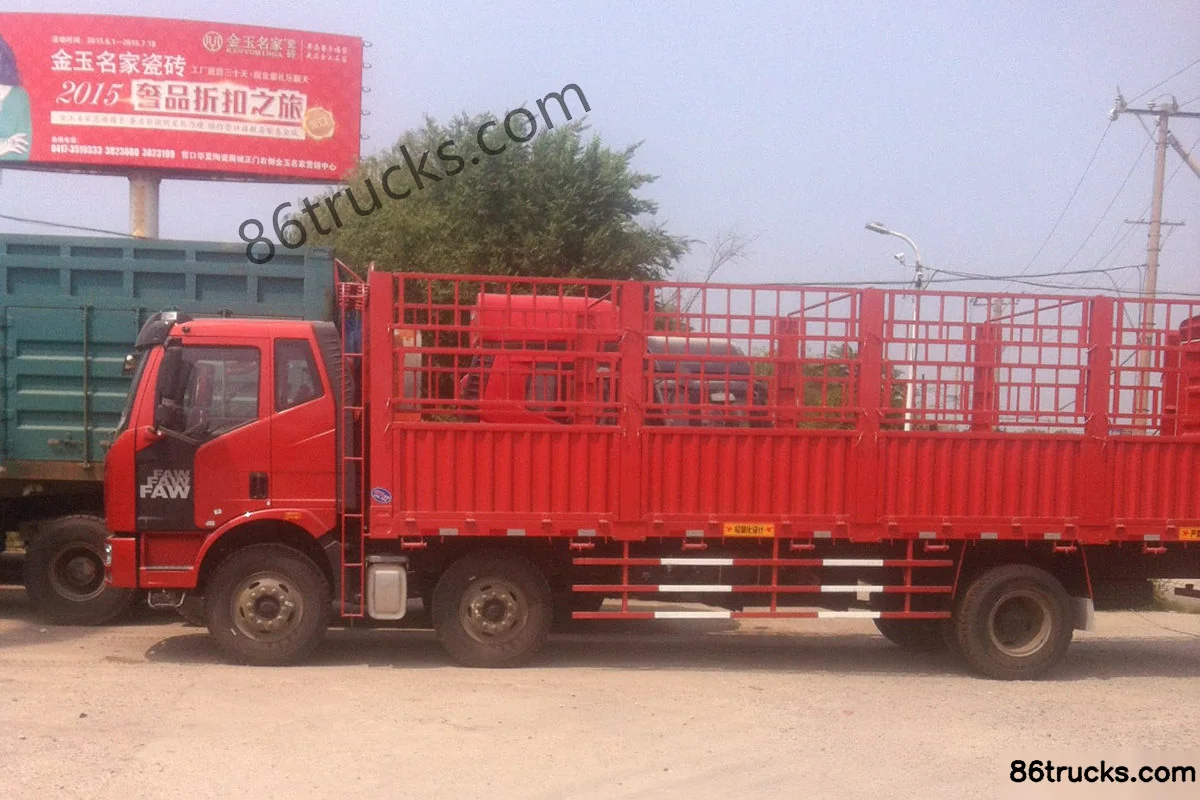

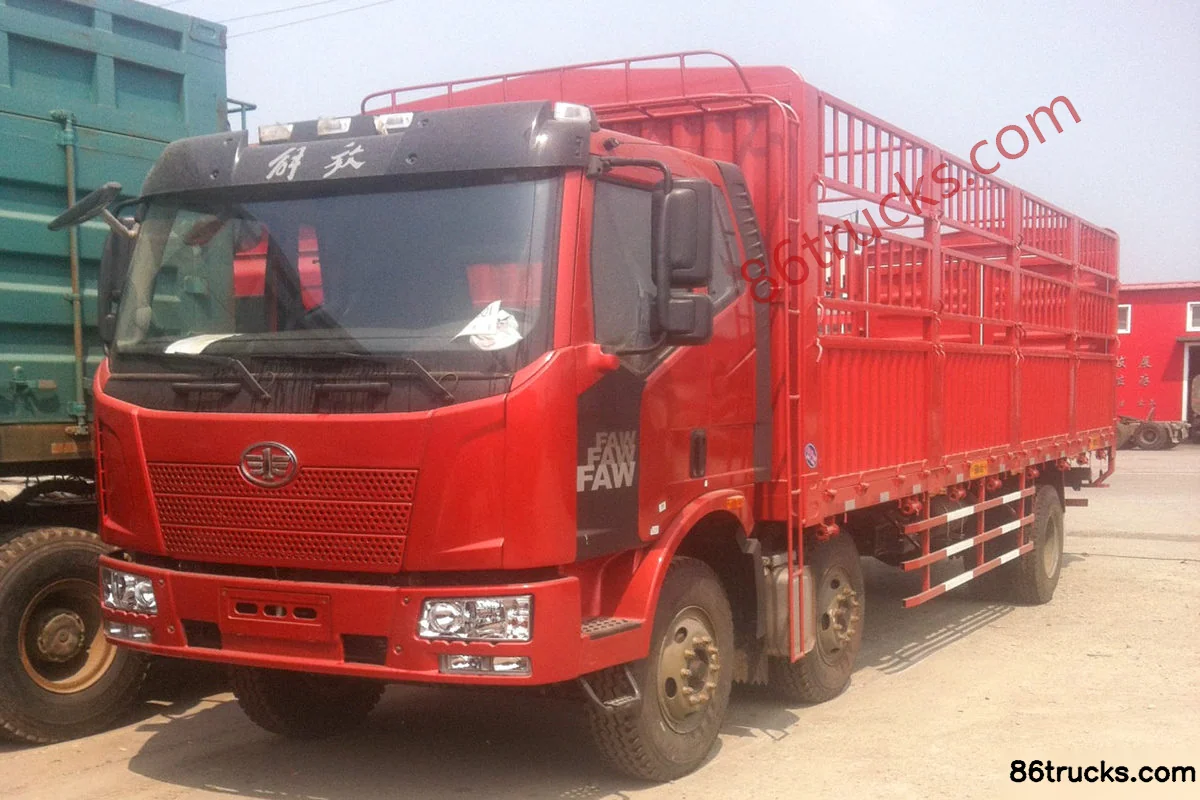

FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck Exterior (1) | 86Trucks FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck Exterior (2) | 86Trucks FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck Exterior (3) | 86Trucks

3 photos

FAQ

What emission standard does FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck?

Key specs of FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck suited for?

FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck differ from other variants in the same series?

FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Medium Truck 220 hp 6X2(8 wheels) 8.7m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
