Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck

Export reference
From $8,972
MSRP ¥6.46M CNY
Horsepower: 88
Emission: China V
Fuel: Diesel
Engine: Quanchai485
Transmission: Mengwo
Curb Weight:: 1.665ton
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck is a mini truck featuring 3.05m cargo length, stake body cargo body, 5Personnel volume and 1.495t payload. On the powertrain side, it comes with a Quanchai485 engine, 88 hp, 4X2 (6 wheels) drive and China V emissions.

China V 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1032V5AA5-AB
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3050mm
Box length class: 3.1m
engine: Quanchai4A2-88C53
transmission: Mengwo5T20
Cab length: 5.82m
Cab width: 1.72m
Cab height: 2.155m
Front track width: 1345mm
rear track: 1280mm
Curb Weight: 1.665ton
Rated payload: 1.495ton
GVWR: 3.485ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 16°
departure angle: 18°
Front/rear suspension: 1.145/1.625m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-88C53
Engine info: Quanchai485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.156L
Emission standard: China V
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 240N·m
Max torque speed: 1400-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder, inline, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: MengwoMW5T20
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.05m
Cargo box width: 1.61m
Cargo box height: 0.36m
*Cargo box interior width: 1.6100000143051
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank capacity: 60L
Chassis Specs
Front axle allowable load: 1190kg
rear axle description: 121/1022 rear axle
rear axle allowable load: 2295kg
Leaf spring count: 7/5+3
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 6.00-15LT 8PR,6.00R15LT 8PR,185R15LT 6PR
Number of tires: 6pcs

Photos

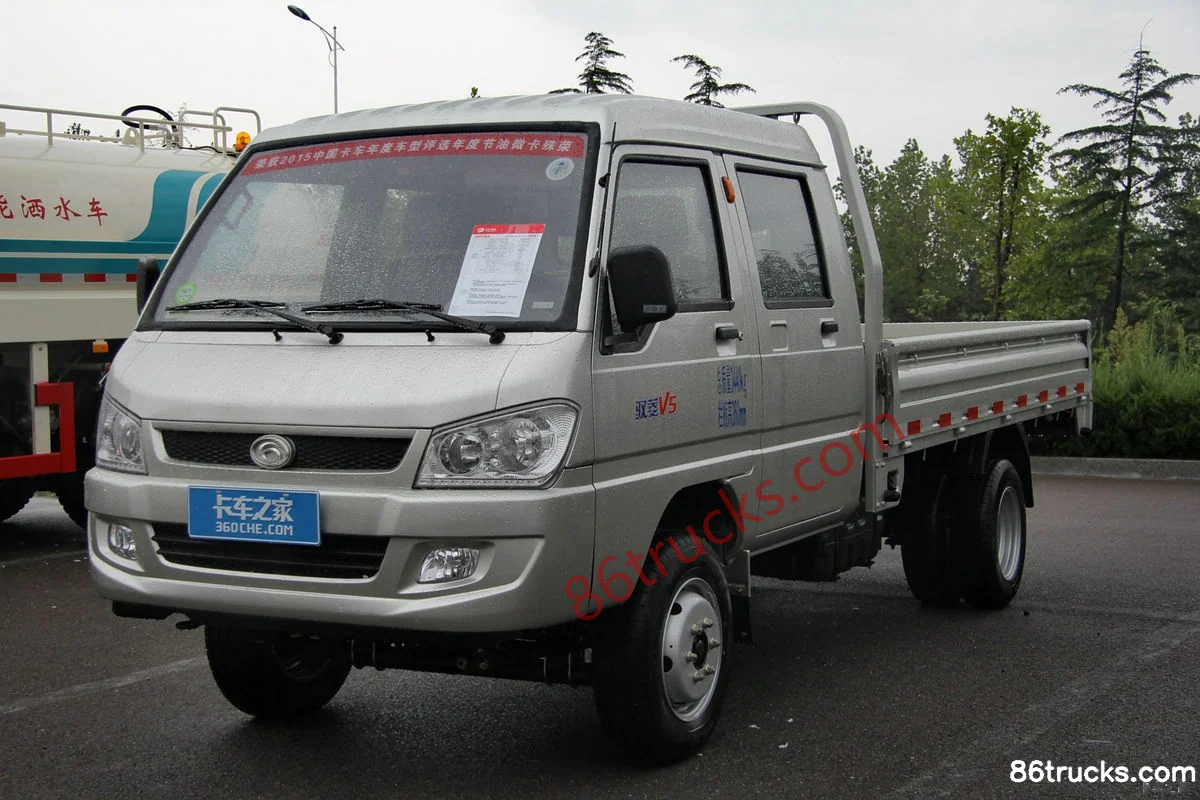

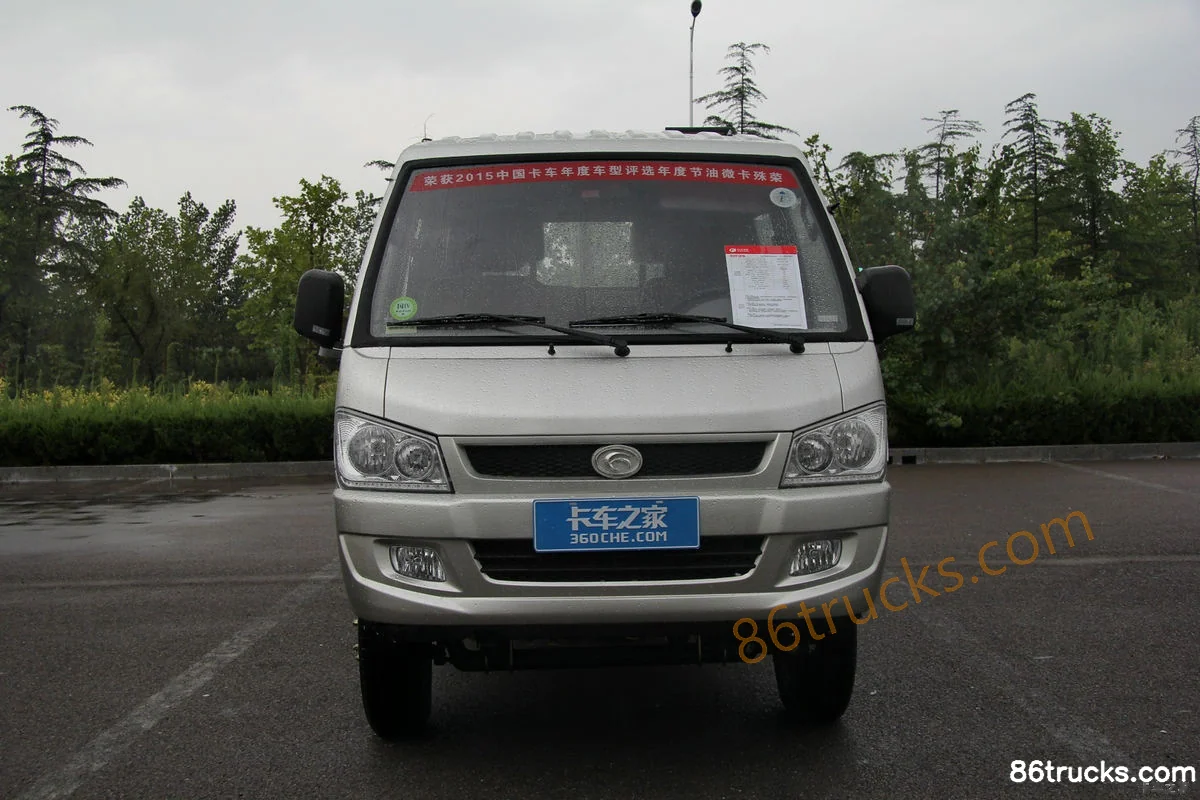

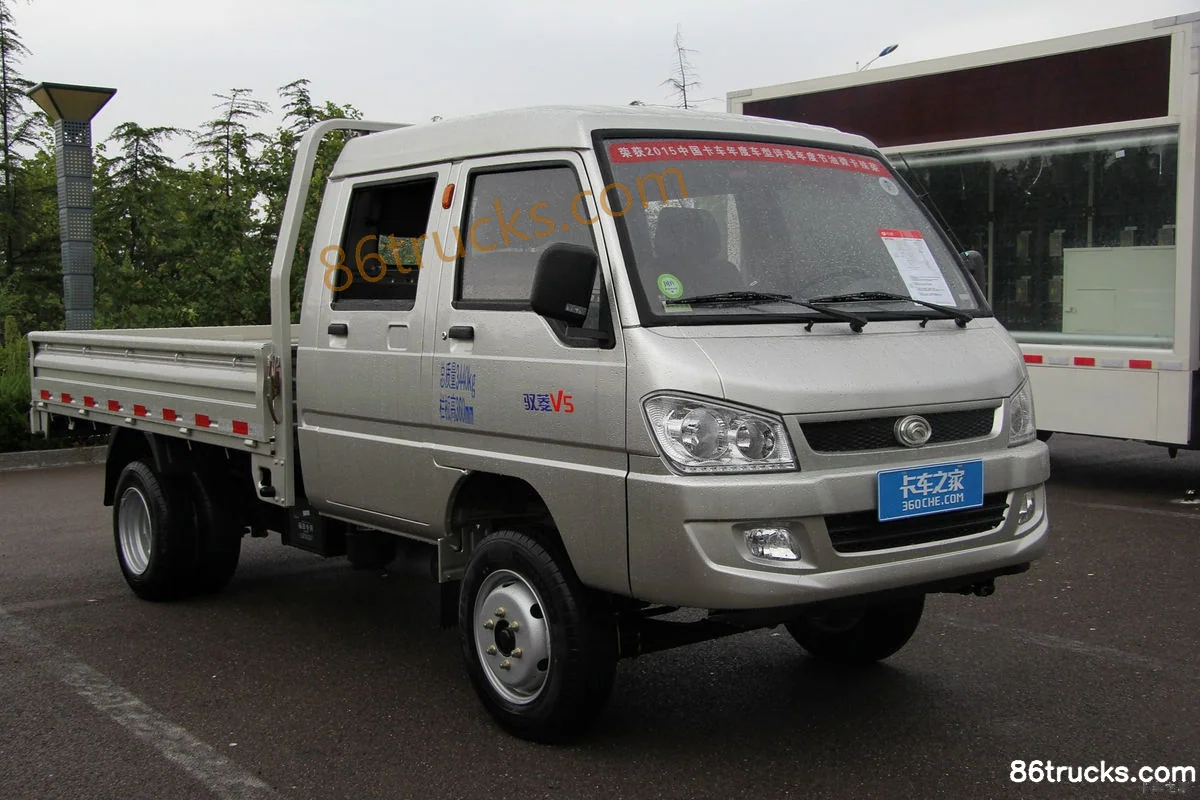

Exterior3

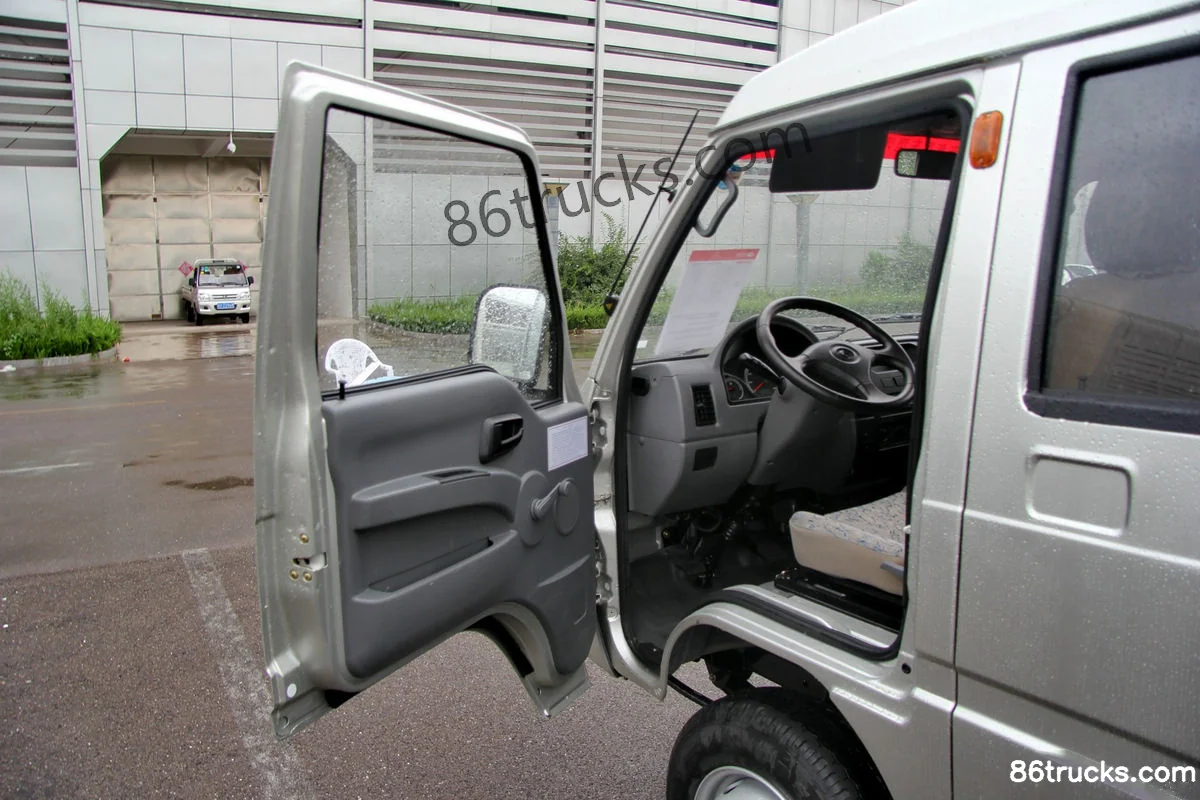

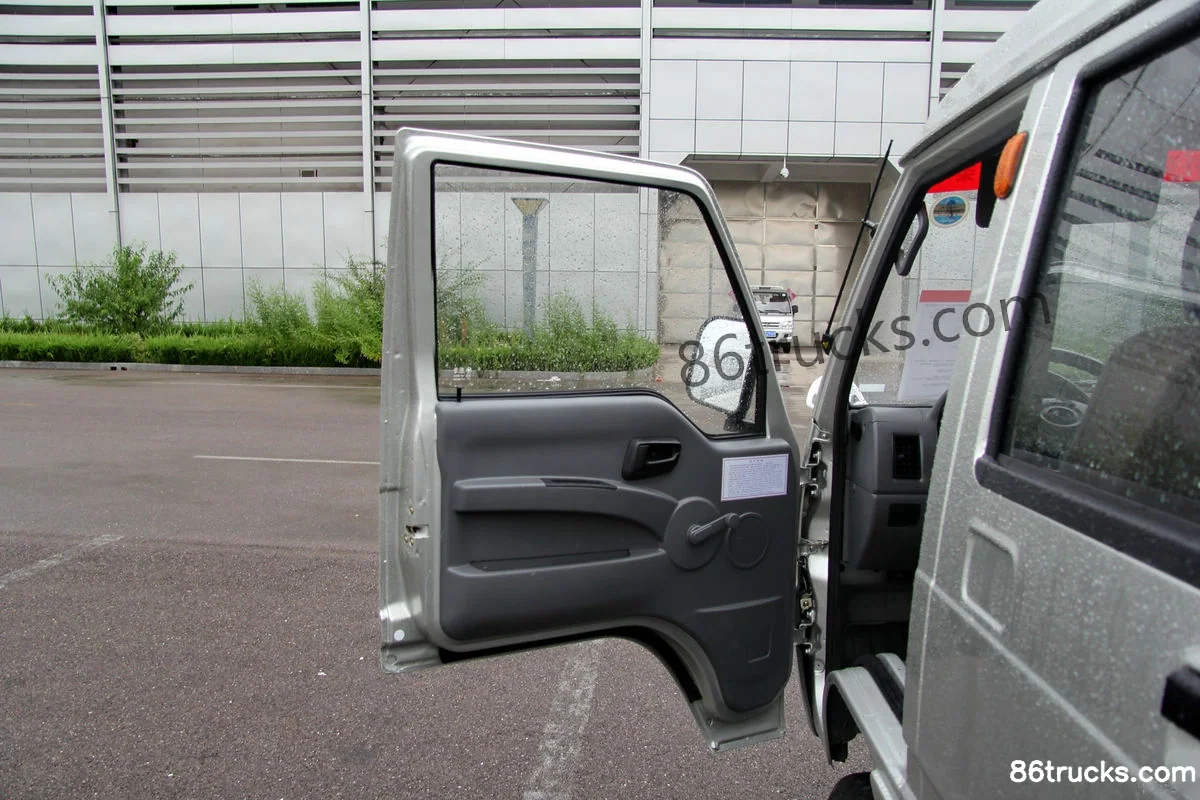

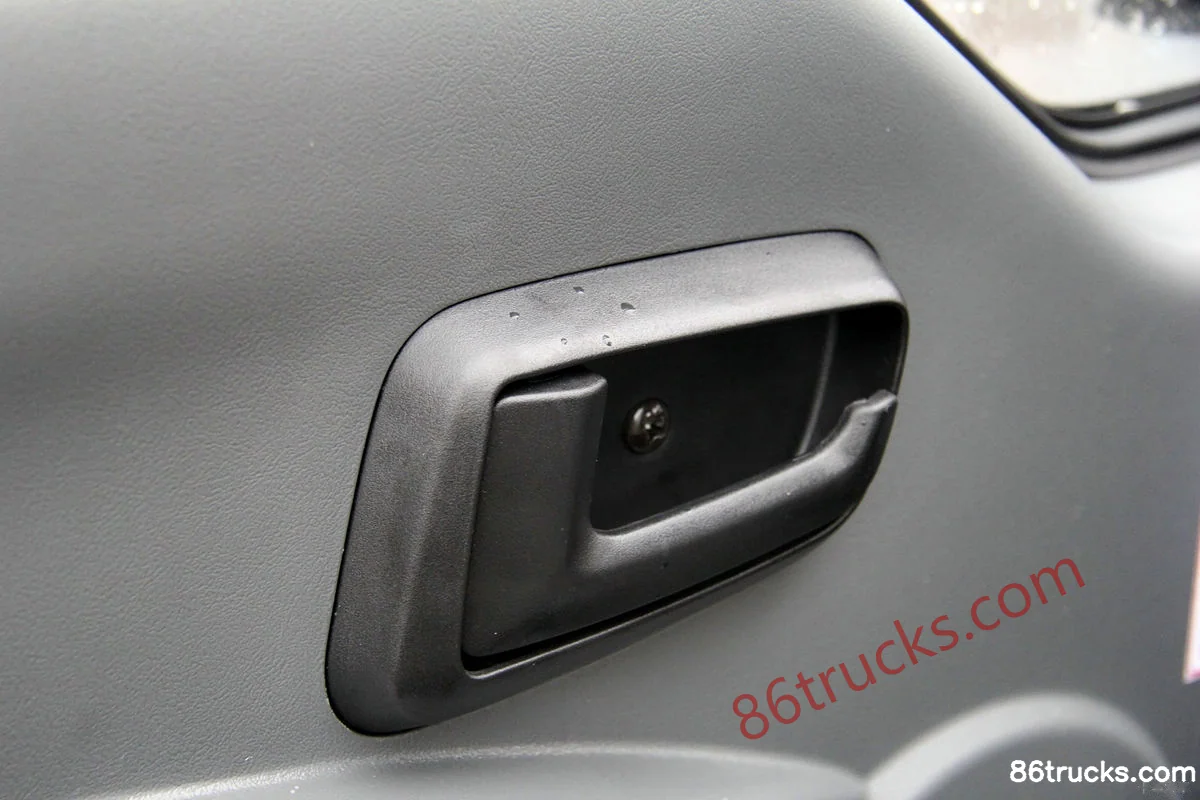

Cab3

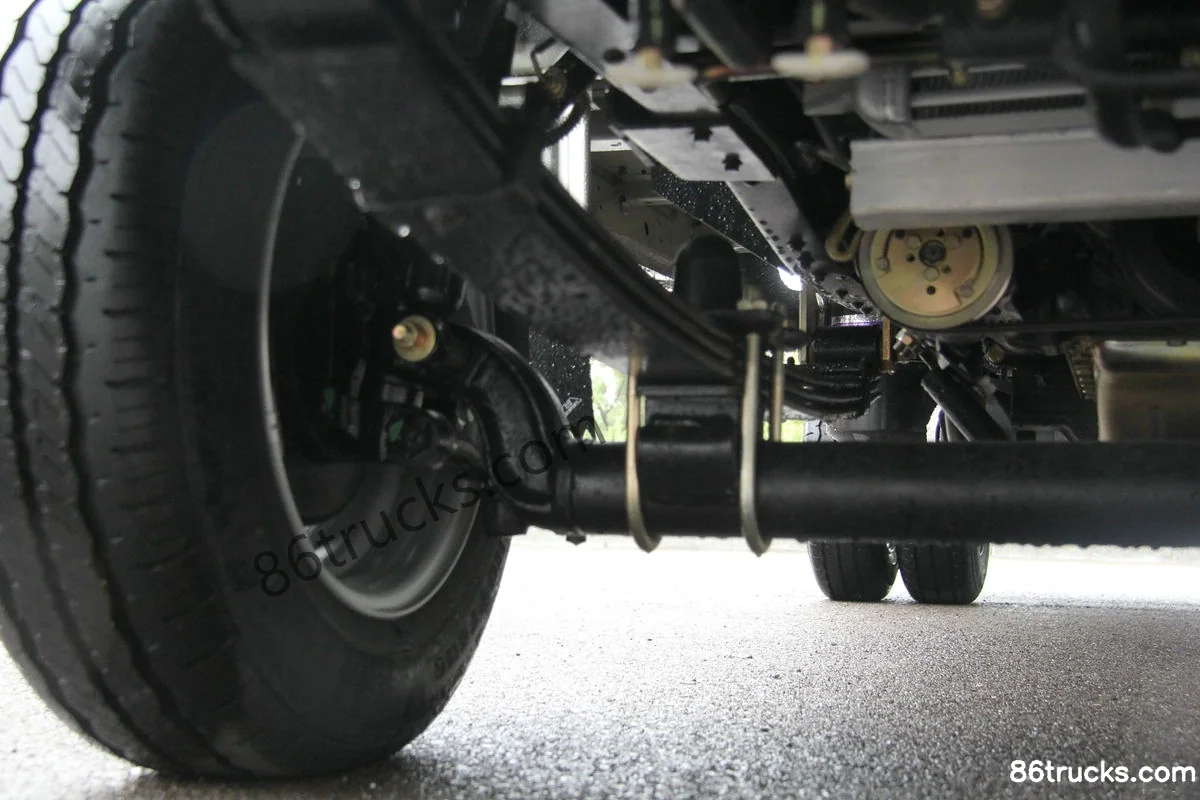

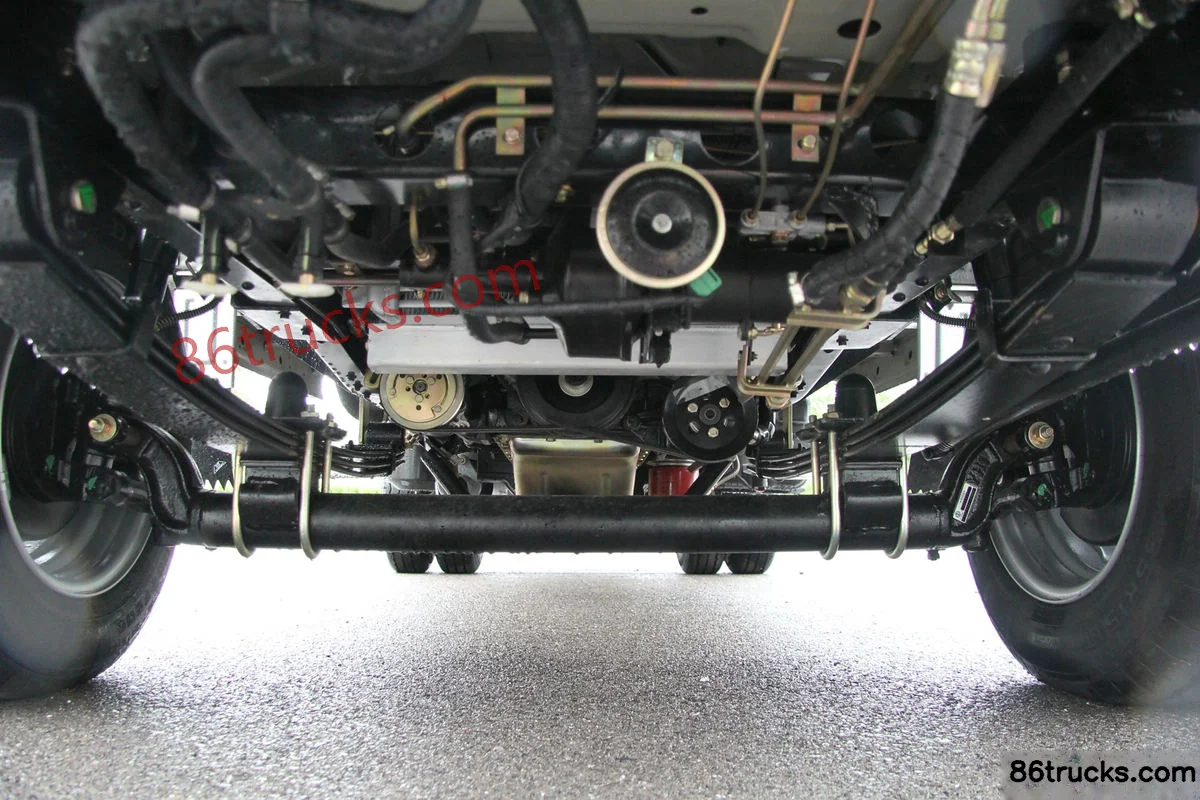

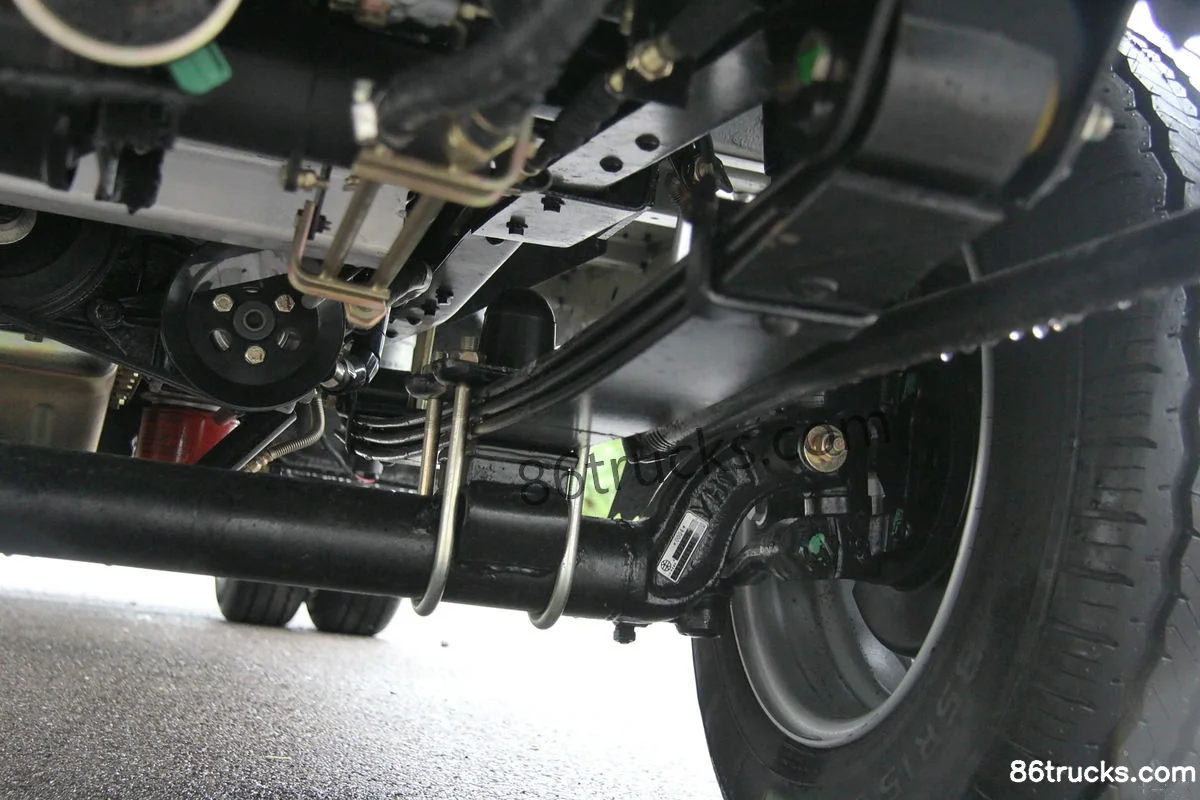

Chassis3

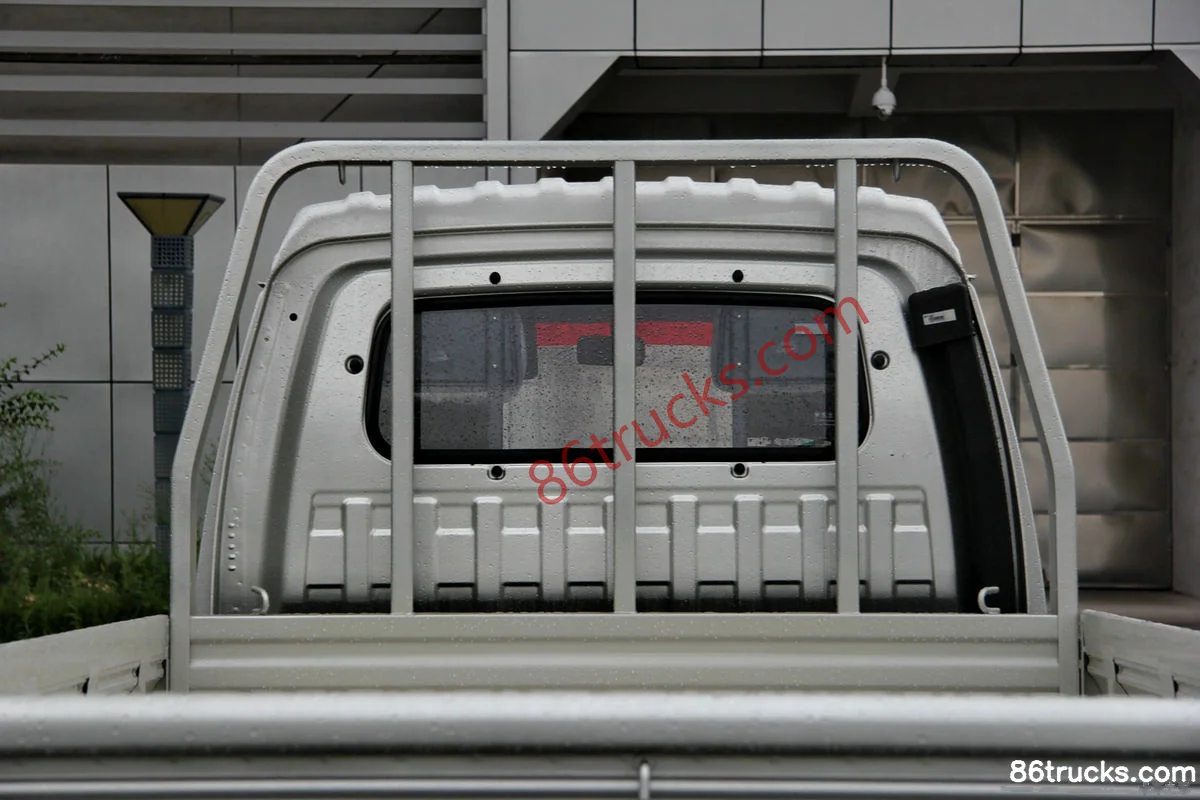

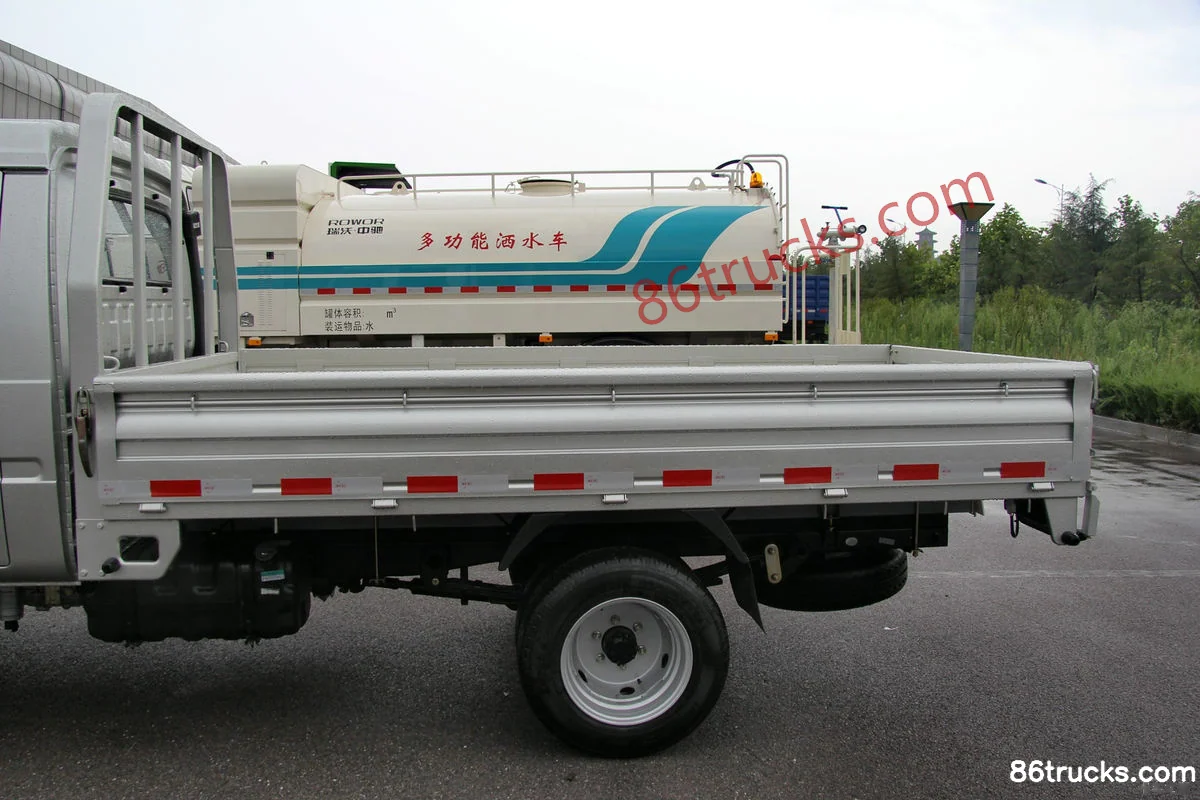

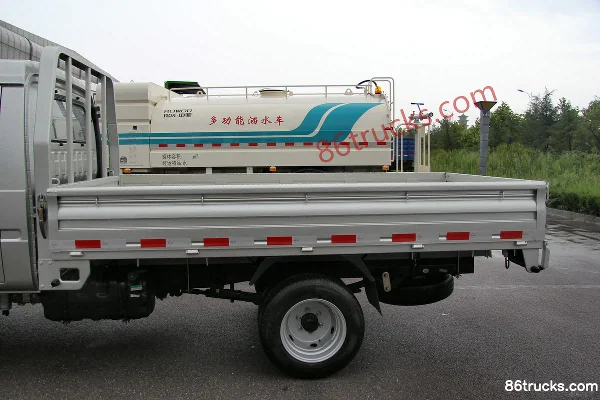

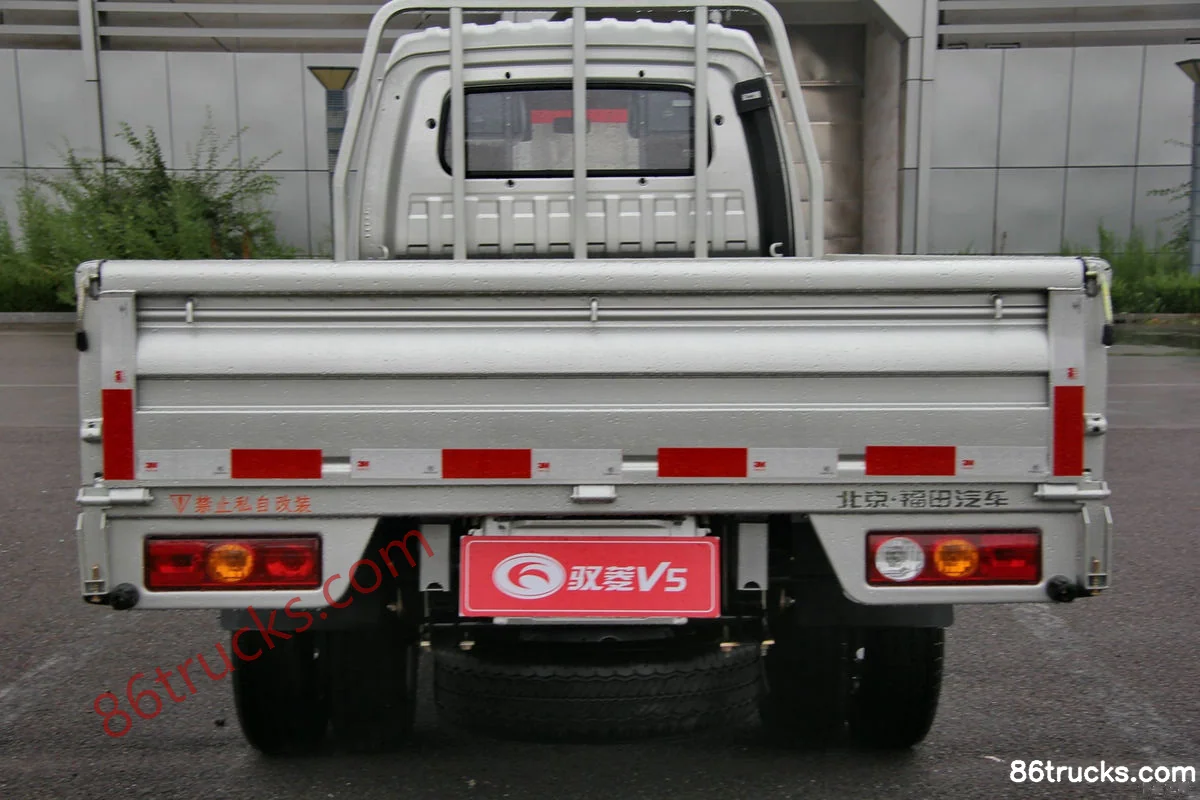

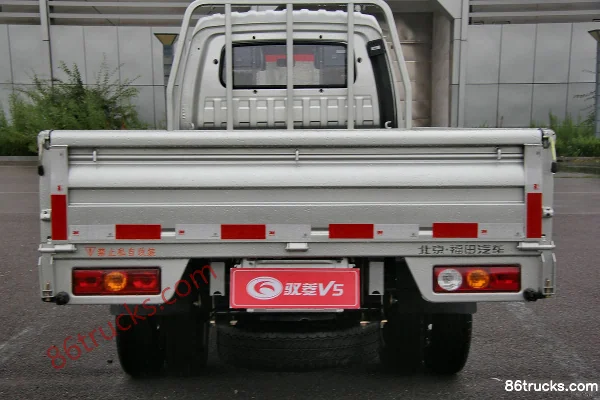

Body3

12 photos

FAQ

What is the export price of Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck, and what does it include?

Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck export reference is about From $8,972; MSRP is ¥6.46M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck?

Key specs of Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck: Drive: 4x2; Horsepower: 88 hp; Emission: China V; Fuel: Diesel; Engine: Quanchai485; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck suited for?

Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck differ from other variants in the same series?

Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck belongs to Forland Yuling Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Yuling V2 88 hp 4X2(6 wheels) 3.05m Double Row Stake Micro Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
