SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck

Export reference
MSRP N/A
Horsepower: 170
Emission: China IV
Fuel: Diesel
Engine: Dongkang 6-cyl
Transmission: Fast Gear
Curb Weight:: 5.905ton
seating capacity: 3Personnel
Rated payload: 9.9ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck is a Medium-duty truck featuring 6.75m cargo length, stake body cargo body, 3Personnel volume and 9.9t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6-cyl engine, 170 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX1168GP4
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: DongfengISB170 40
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.33
Cab length: 9m
Cab width: 2.5m
Cab height: 3.42m
Front track width: 1800,1810mm
rear track: 1830,1860mm
Curb Weight: 5.905ton
Rated payload: 9.9ton
GVWR: 16ton
Max. speed: 90km/h
Origin: Baoji, Shaanxi
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 17°
market segment: Building materials, agricultural products
Remarks: Application: Agricultural by-products, bulk goods, LTL logistics. Road surface: highway/provincial road/national road/urban and rural roads. Speed: 70-80km/105km. Optional equipment: 1. Optional 10R22.5 tubeless tires; 2. Standard ratio 4.33, optional 4.11/4.5/4.875; 3. Optional reinforced leaf springs 90*15*10/90*14*6; 4. Optional electric heating system for aftertreatment system;
Series: 6 series
Front/rear suspension: 1.45/2.5m
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB170 40
Engine info: Dongkang 6-cyl
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.9L
Emission standard: China IV
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 630N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: Inline 6-cylinder, turbocharged intercooled, electronically controlled common rail
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.75m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: TJG191
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 148
Front axle allowable load: 6000kg
Frame Dimensions: Double-layer 250/6+4mm
rear axle description: 1094
rear axle allowable load: 10000kg
Axle ratio: 4.33
Leaf spring count: 9/11+8,7/9+6,8/10+6,8/10+8,9/10+6,9/10+3,6/4+3
clutch: Φ395
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

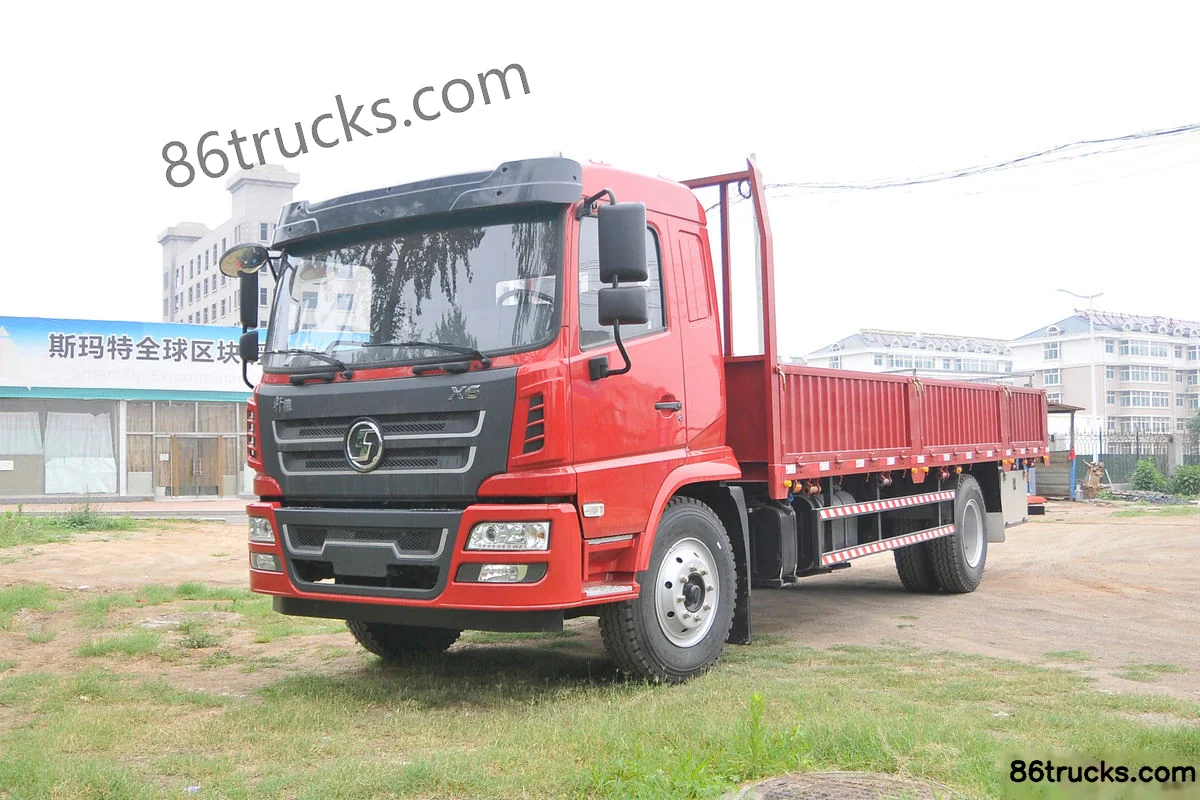

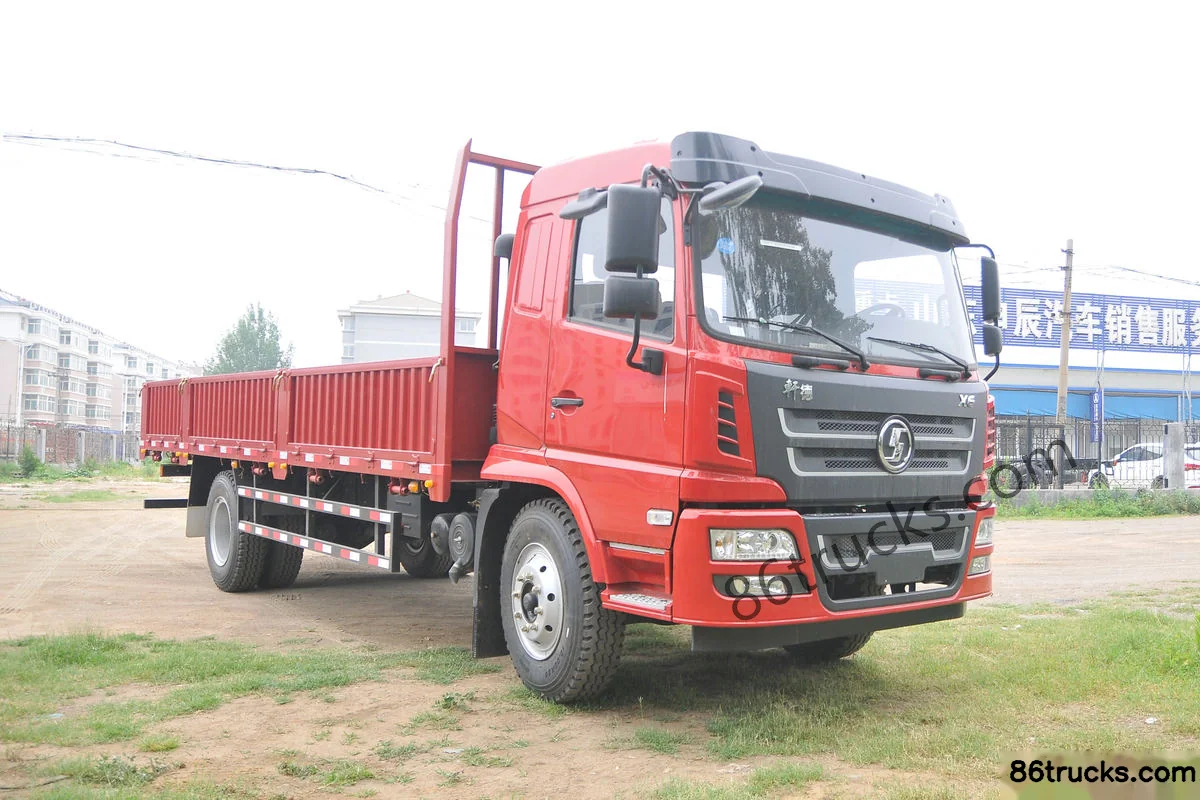

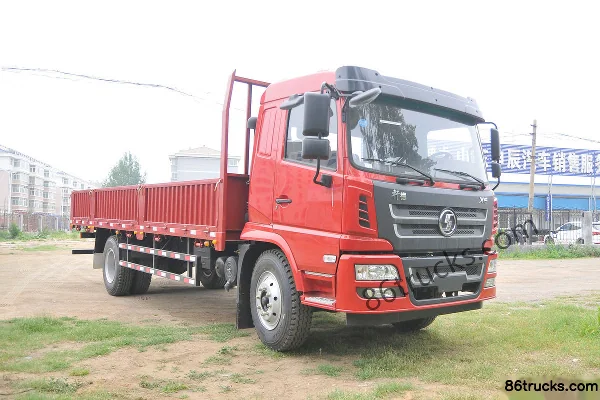

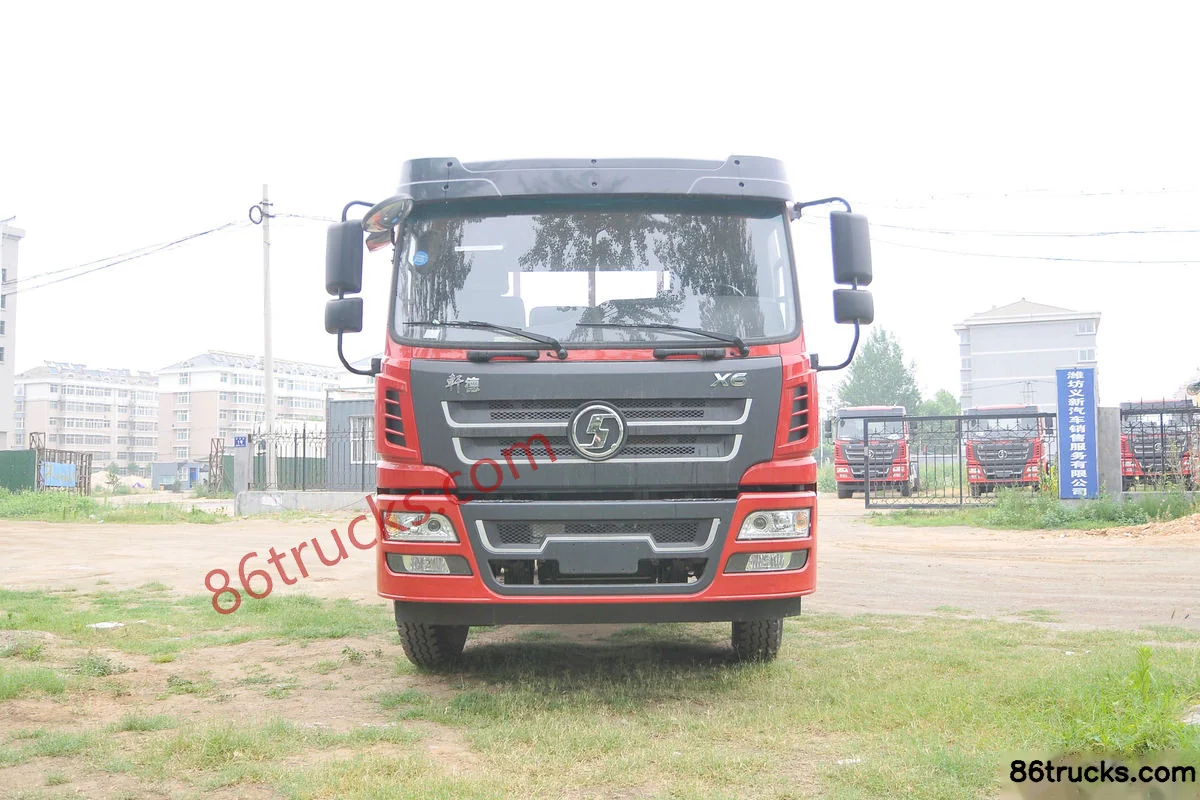

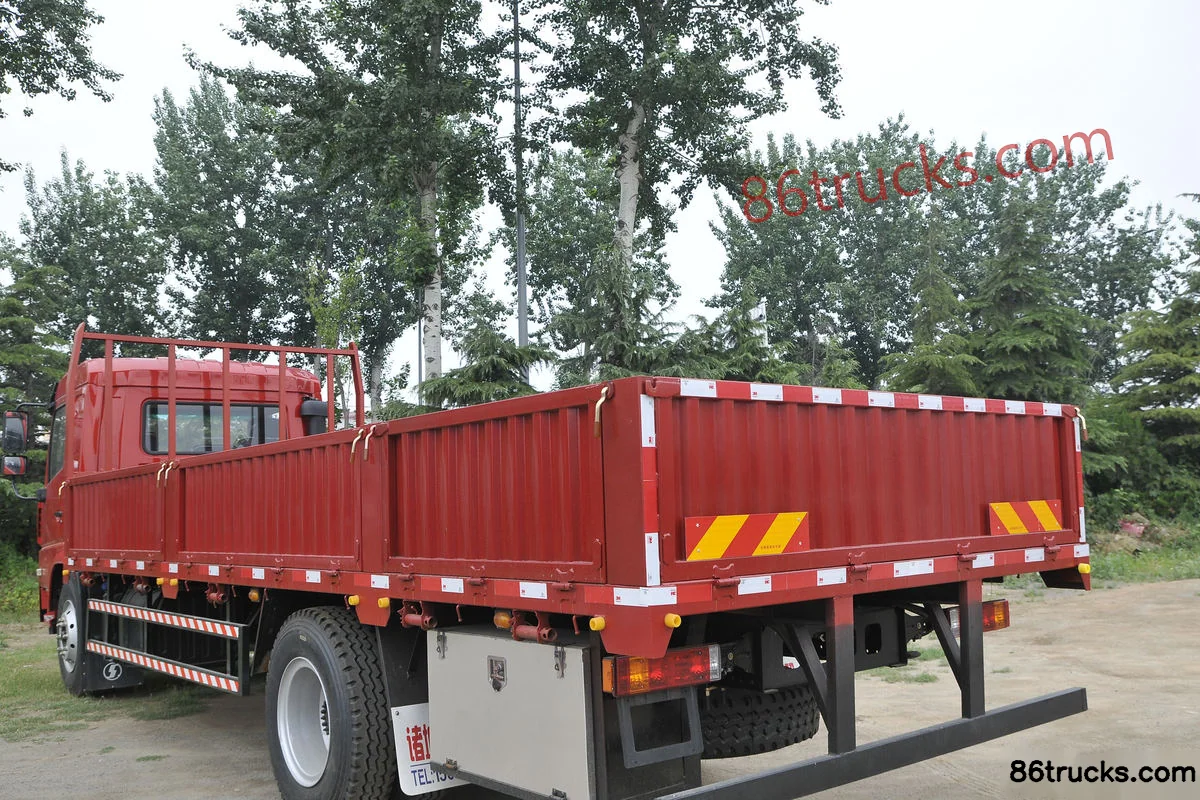

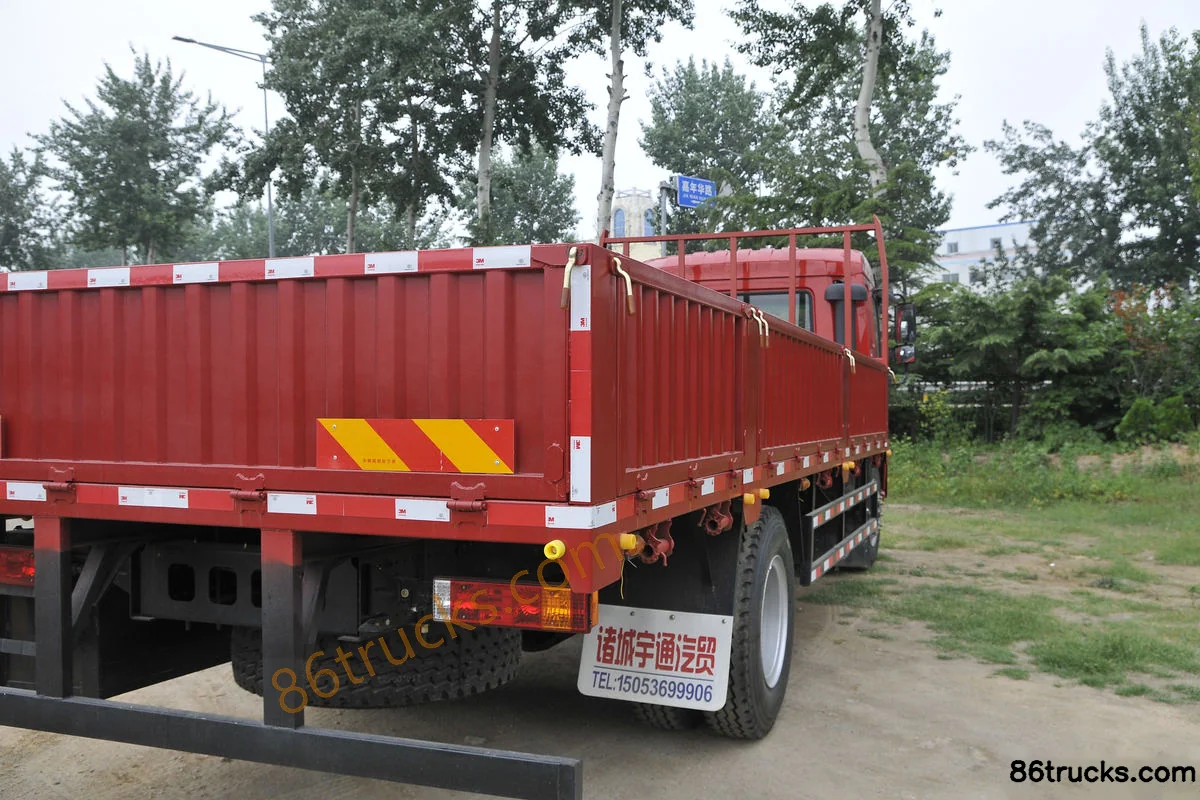

Exterior3

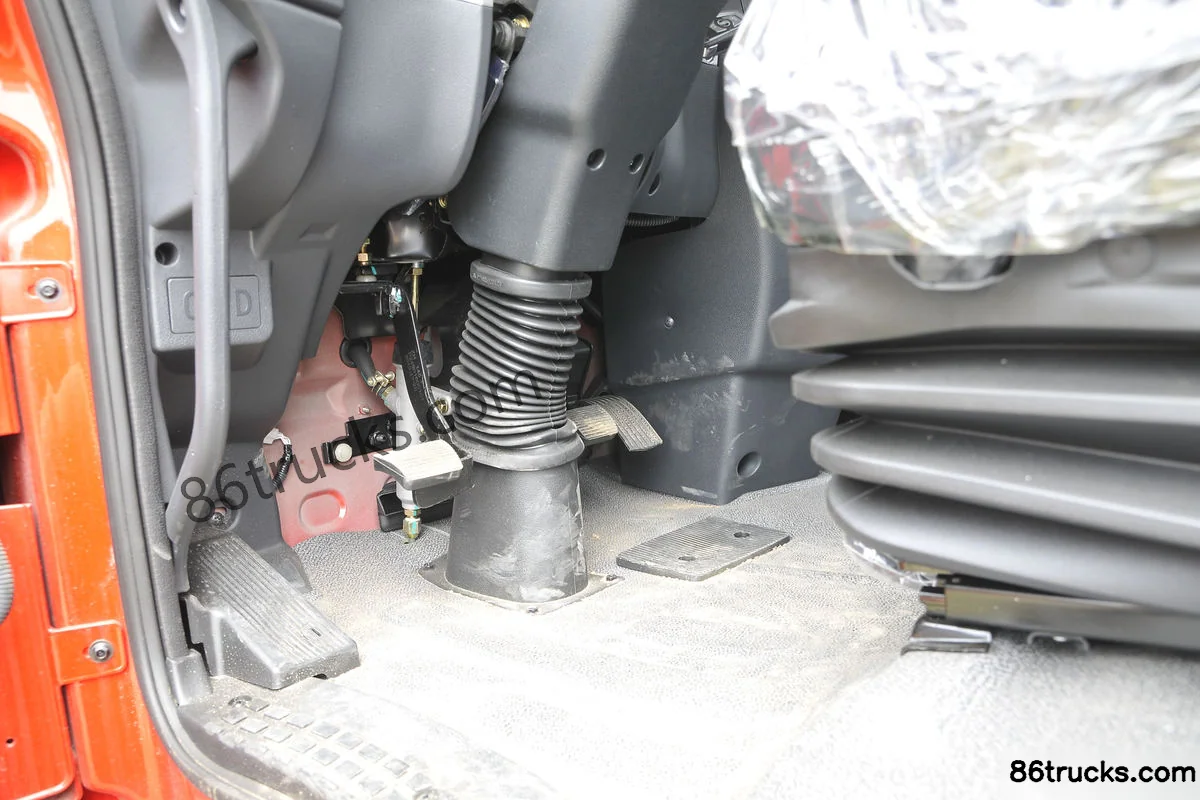

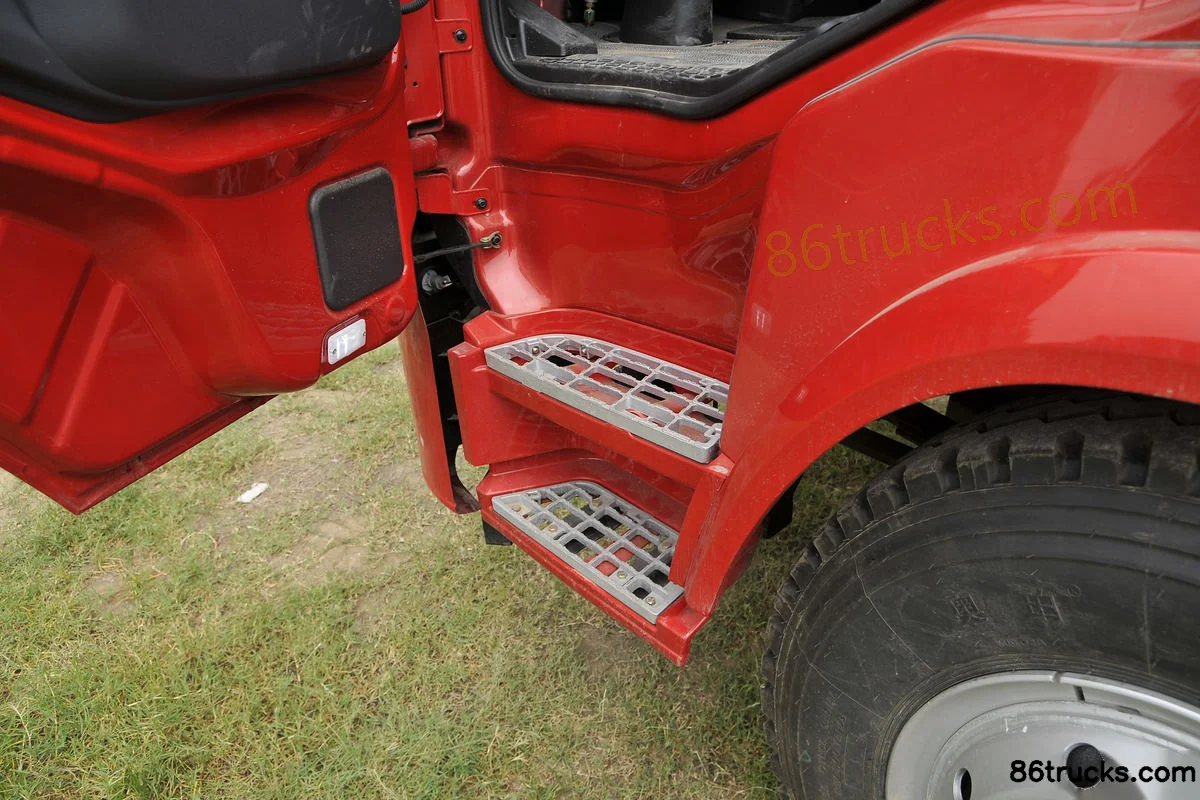

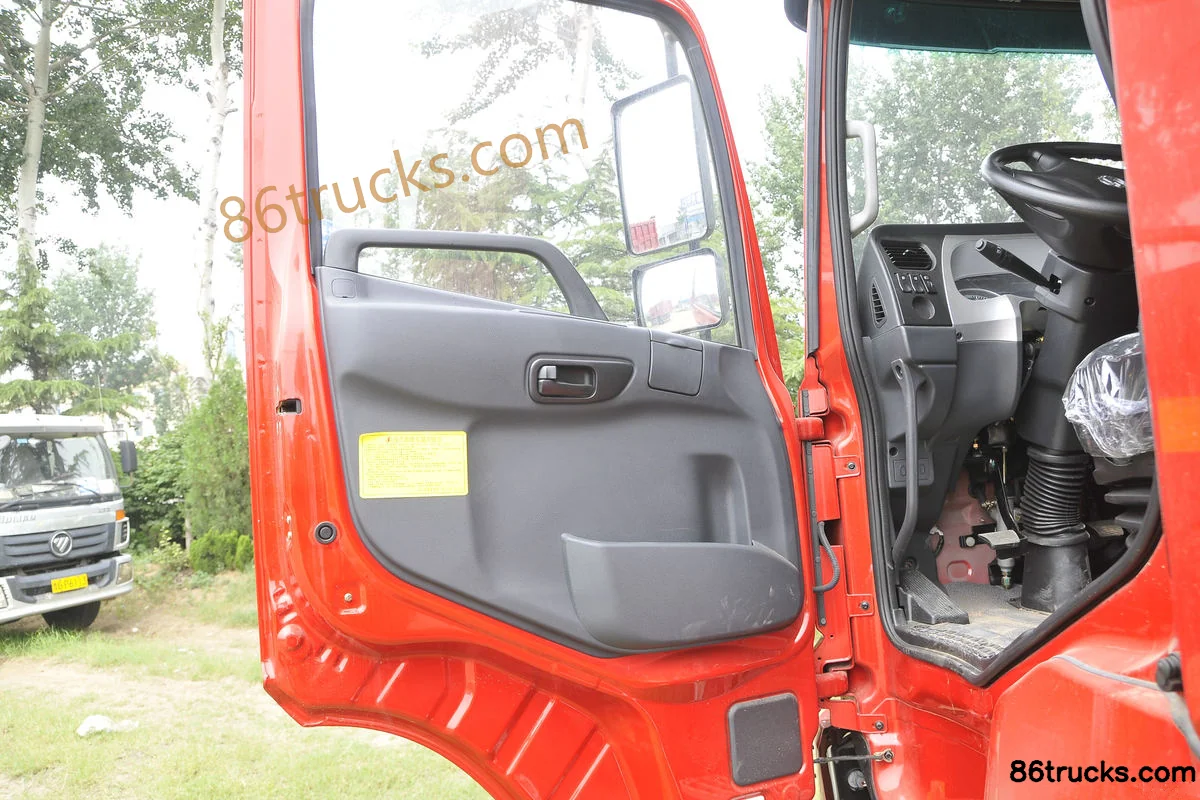

Cab3

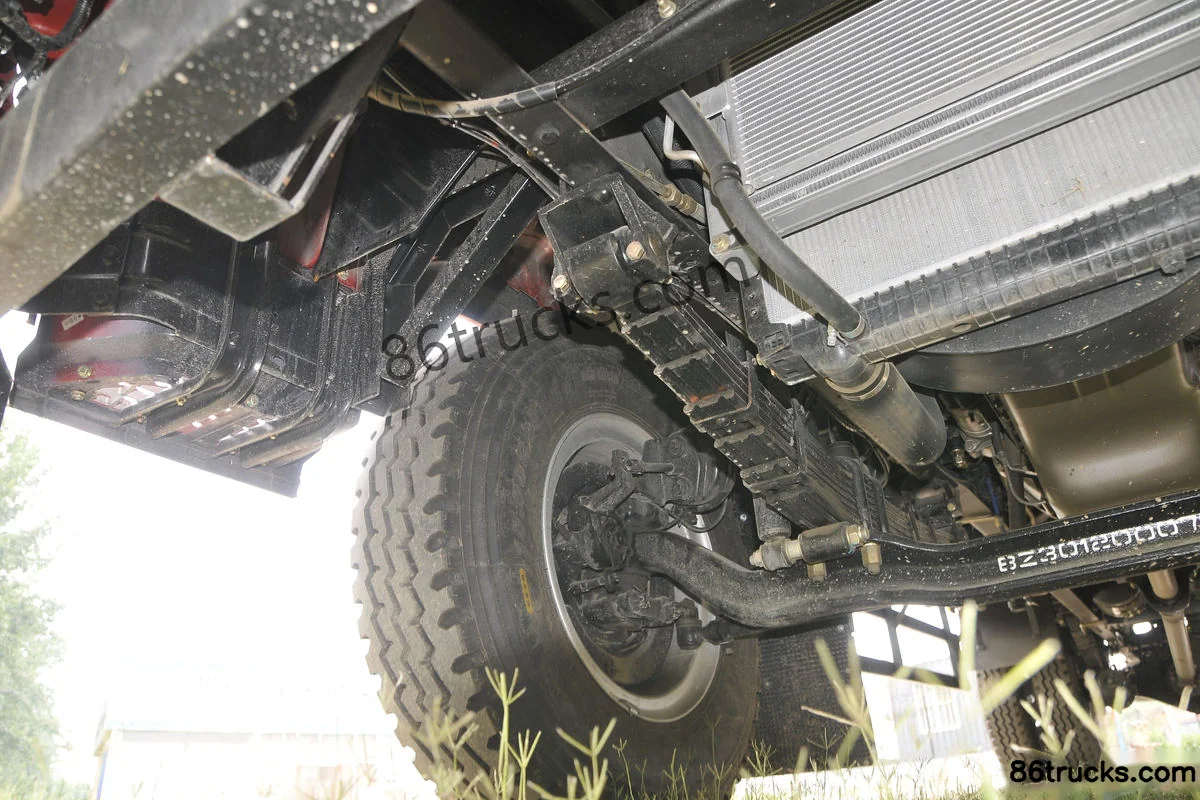

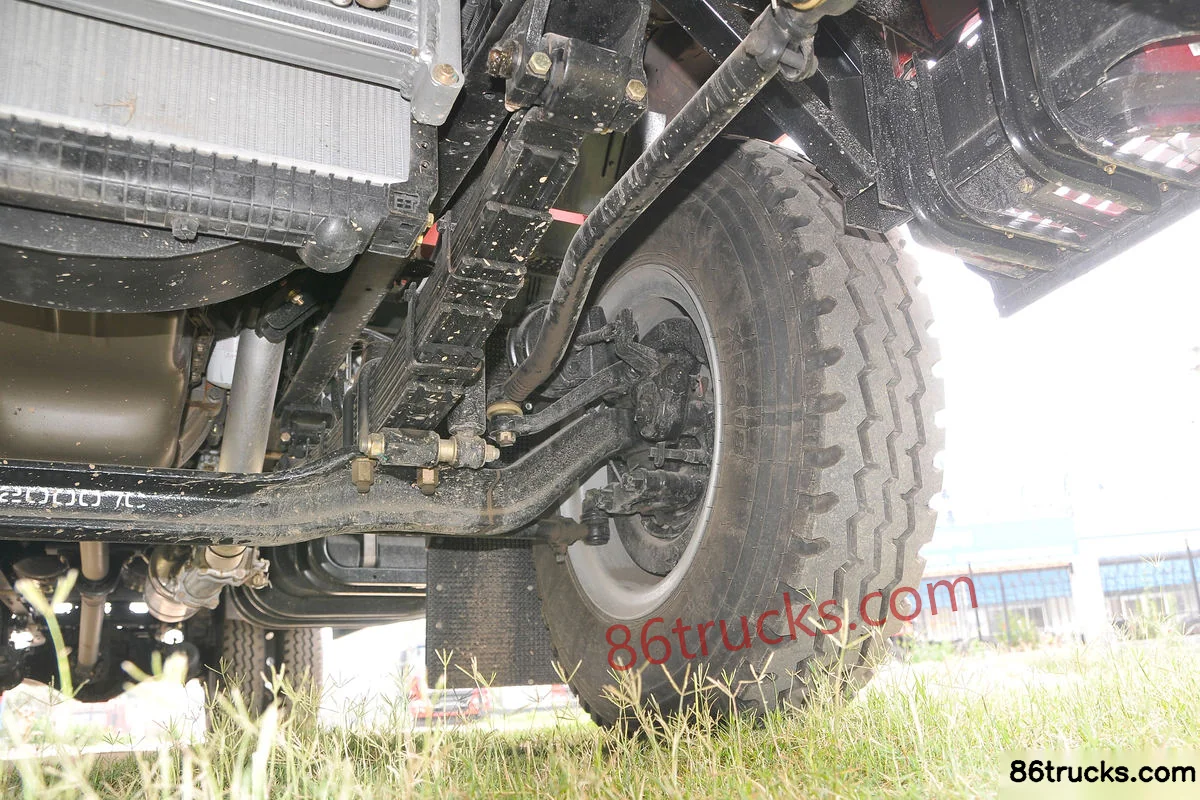

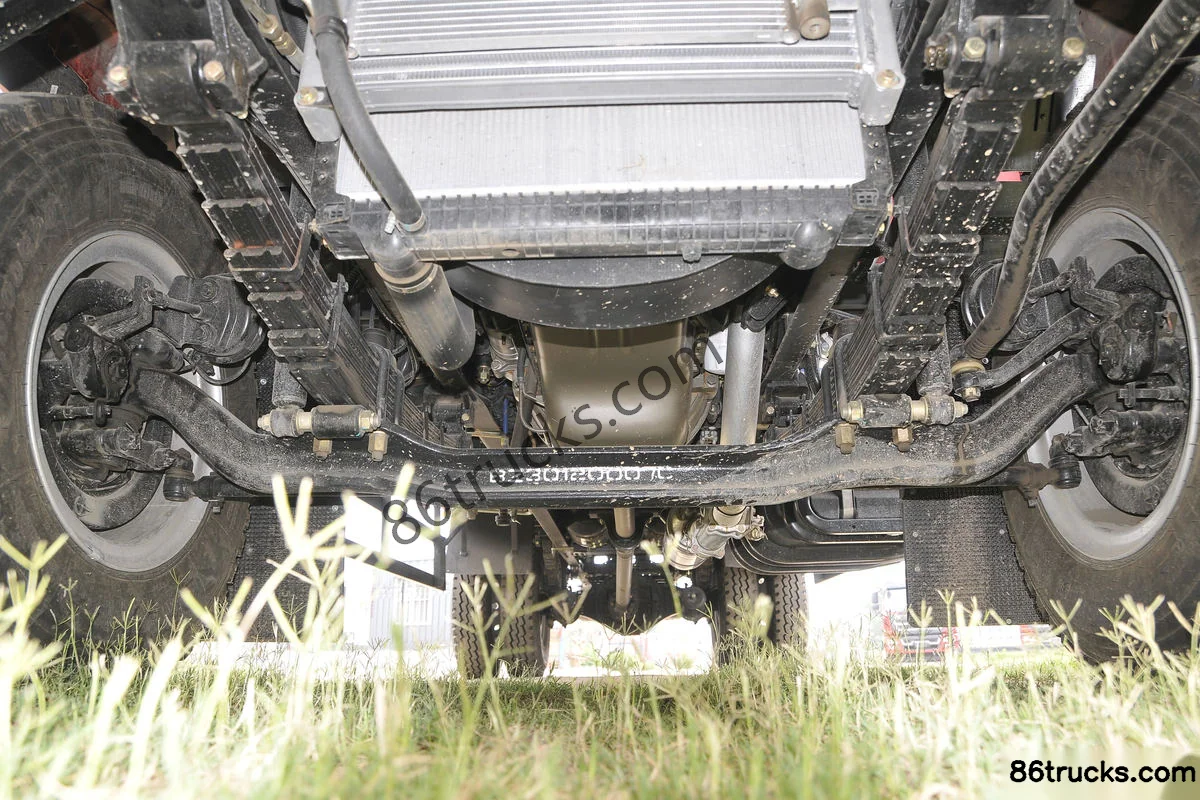

Chassis3

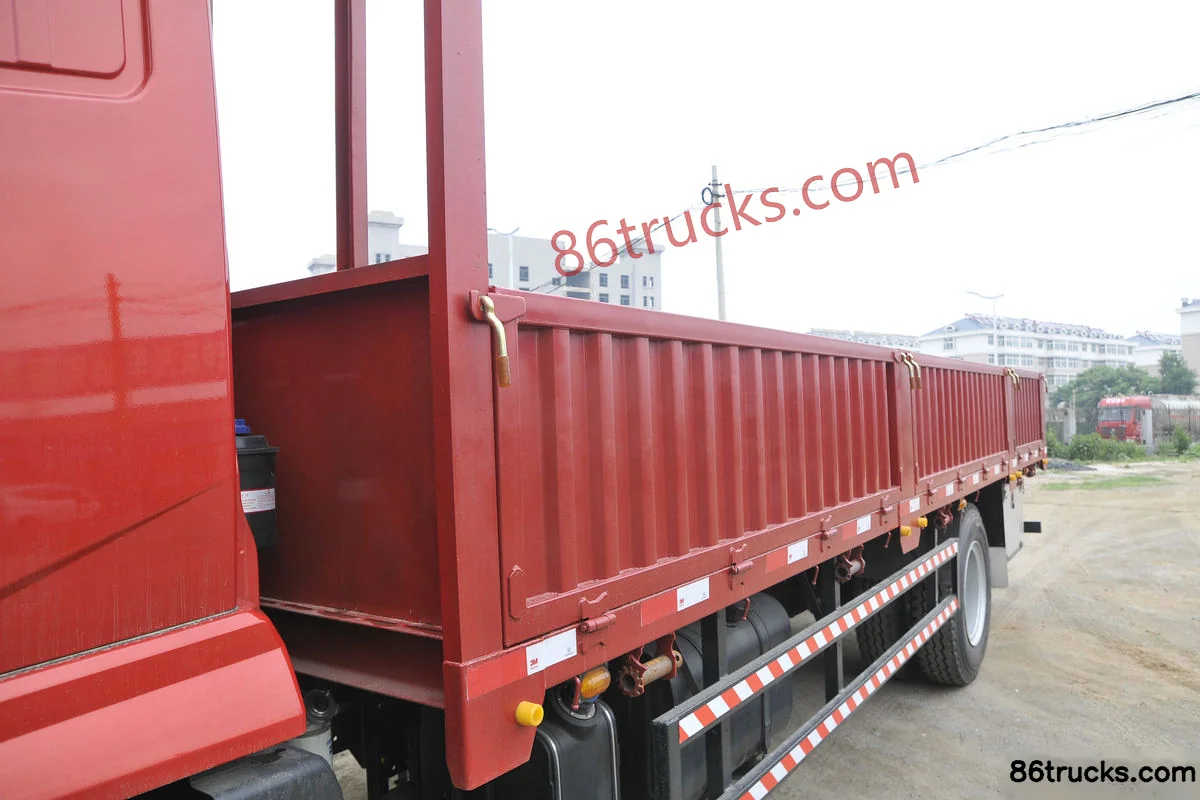

Body3

12 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck?

Key specs of SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China IV; Fuel: Diesel; Engine: Dongkang 6-cyl; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck suited for?

SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck belongs to SHACMAN Xuande X6 Heavy-Duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X6 Medium Truck Standard Load Edition 170hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
