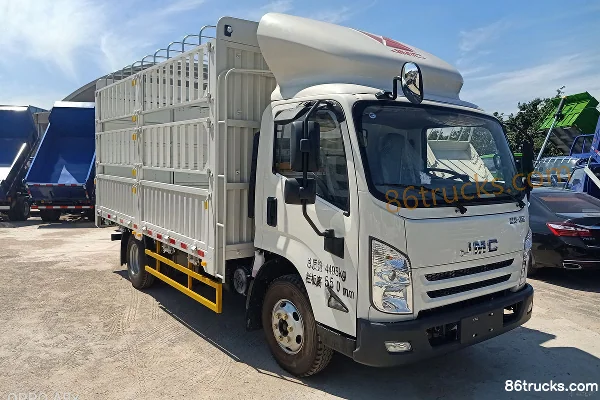

JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck

Export reference
From $18,333
MSRP ¥13.2M CNY
Horsepower: 152
Emission: China V
Fuel: Diesel
Engine: JMC493
Transmission: WLY
Curb Weight:: 2.6ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck is a Light Truck featuring 4.045m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Green Pass, matching those duty cycles. On the powertrain side, it comes with a JMC493 engine, 152 hp, 4X2 (6 wheels) drive and China V emissions.

China V 152 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5042CCYXGB2
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4m
engine: JMCJX4D30A5H
transmission: WLY 6-speed
Cab length: 5.995m
Cab width: 2.38m
Cab height: 3.175m
Front track width: 1680mm
rear track: 1605,1800mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Green Pass
Front/rear suspension: 1.15/1.485m
Version: Luxury version
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX4D30A5H
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.892L
Emission standard: China V
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 382N·m
Max torque speed: 1800-2800rpm
Rated speed: 2800rpm
Engine Type: Water-cooled, inline, 4-stroke
Transmission Parameters
Transmission Model: WLY 6-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.045m
Cargo box width: 2.1/2.3m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: Wide body
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Steel
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1860kg
rear axle allowable load: 2430kg
Leaf spring count: 7/6+5,7/5+4,8/8+7,4/5+6,5/5+6,5/8+7,6/8+7,8/3+2,8/4+2,8/4+5,5/3+2,5/4+2,5/4+5
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR,7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck, and what does it include?

JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck export reference is about From $18,333; MSRP is ¥13.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck?

Key specs of JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck: Drive: 4x2; Horsepower: 152 hp; Emission: China V; Fuel: Diesel; Engine: JMC493; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck suited for?

JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck differ from other variants in the same series?

JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck belongs to JMC Classic Kaiyun Cargo Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kaiyun Blue Whale Deluxe 152 hp 4X2(6 wheels) 4.045m Single Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
