Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 13.4ton
Wheelbase:: 1800+4700+1350mm
Tire Size:: 11.00R20,12R22.5
Cab dimensions:: 12×2.6×3.95m
Rated payload: 17.47ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.48×2.45×2.5m
Horsepower 380

Overview

The Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck is a Refrigerated Truck featuring 9.48×2.45×2.5m cargo body, 17.47t payload, GTL-2490 high roof cab and 1800+4700+1350mm wheelbase. On the powertrain side, it comes with 380 hp, 8X4 (12 wheels) drive, China V emissions and Diesel fuel.

China V 380 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×3.95m
Drive type: 8X4
Truck Type: Refrigerated Truck
Wheelbase: 1800+4700+1350mm
Vehicle origin: Beijing
Front track width: 2010/2010mm
rear track: 1860/1860mm
Curb Weight: 13.4ton
Rated payload: 17.47ton
Max. speed: 100km/h
Front/rear suspension: 1.45/2.7m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISGe5-380
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.8L
Emission standard: China V
Max output power: 279kW
Max hp: 380Horsepower
Max torque: 2000N·m
Rated speed: 1900rpm
Engine Type: Common Rail SCR
Cargo box parameters
Cargo box dimensions: 9.48×2.45×2.5m
Cargo box width: 2.45m
Cargo box height: 2.5m
Body Parameters
Vehicle certification code: BJ5319XLC-AA
Body Brand: FotonAuman
Chassis Specs
Chassis Brand: FotonAuman
Chassis Series: AumanGTL
Chassis Model: BJ1319VNPKJ-AA
Axle ratio: 4.444
Leaf spring count: 3/3/5
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD180TA
Cab parameters
Cab: GTL-2490 high roof
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 12pcs

Photos

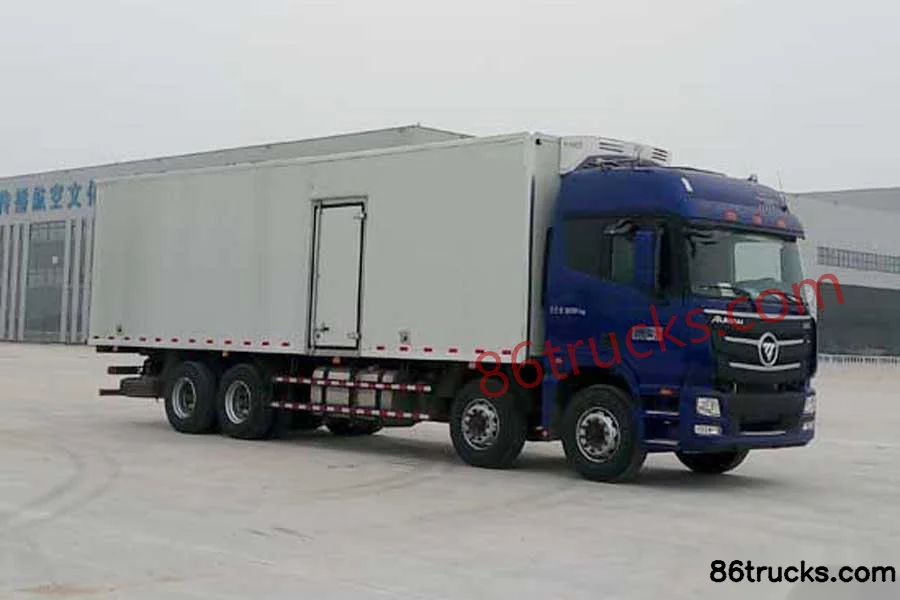

Exterior1

1 photos

FAQ

What emission standard does Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck?

Key specs of Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck: Drive: 8x4; Horsepower: 380 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck suited for?

Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck differ from other variants in the same series?

Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck belongs to Foton Auman GTL Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton AumanGTL 6 Series Heavy Truck 380 hp 8X4(12 wheels) 9.48m refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
