Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis

Export reference
MSRP N/A
Wheelbase:: 4600+1400mm
Cab dimensions:: 9.775x2.496x3.21m
Type:: Fire truck chassis
Front/rear track width:: Front track: 2022mm; Rear track: 1830/1830
GVWR:: 35ton
Front/rear suspension:: 1.475/2.3m
Drive 6X4 (10 wheels)
Horsepower 400
Emission China V
Fuel Diesel

Overview

The Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis is a fire truck featuring 35t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SinotrukMC11.40-50 engine, 400 hp, China V emissions and Diesel fuel.

China V 400 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.775x2.496x3.21m
Type: Fire truck chassis
Drive type: 6X4
Front/rear track width: Front track: 2022mm; Rear track: 1830/1830
Wheelbase: 4600+1400mm
GVWR: 35ton
Front/rear suspension: 1.475/2.3m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC11.40-50
fuel type: Diesel
Displacement: 10.518L
Emission standard: China V
Max output power: 294kW
Max hp: 400Horsepower
Rated speed: 1900rpm
Body Parameters
Body Brand: Sitrak
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SitrakSITRAK C7H
rear axle description: MCY13Q dual axle
Leaf spring count: 3/5,3/12,4/5,4/12,10/12
clutch: Φ430
Transmission Parameters
Number of gears: 16Gear
Transmission Model: ZF 16S2222 TO (with NMV221 full-power PTO)
Cab parameters
Cab: C7H-S
Tire
Tire Size: 315/80R22.5
Number of tires: 10pcs

Photos

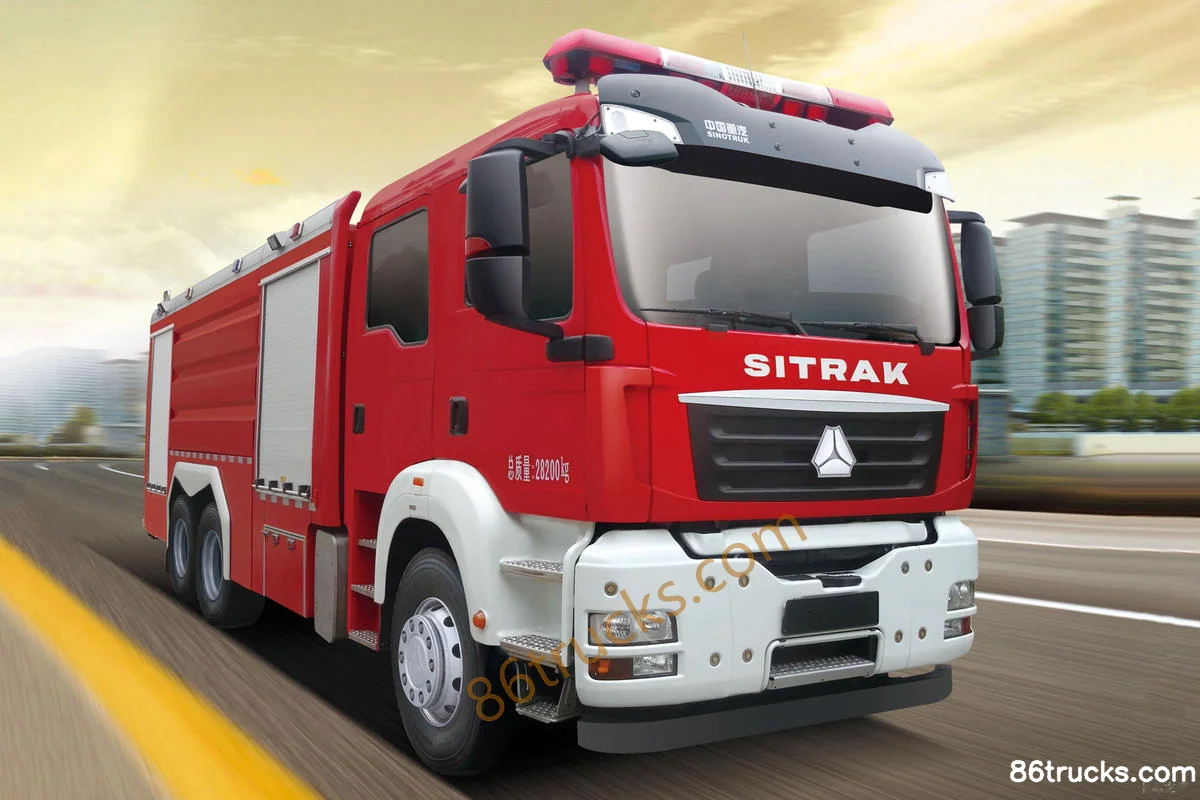

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis?

Key specs of Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis: Drive: 6x4; Horsepower: 400 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis suited for?

Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis is a fire truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis differ from other variants in the same series?

Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis belongs to Sitrak SITRAK C7H heavy truck (fire truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C7H Heavy Truck 400 hp 6X4(10 wheels) Foam Fire Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
