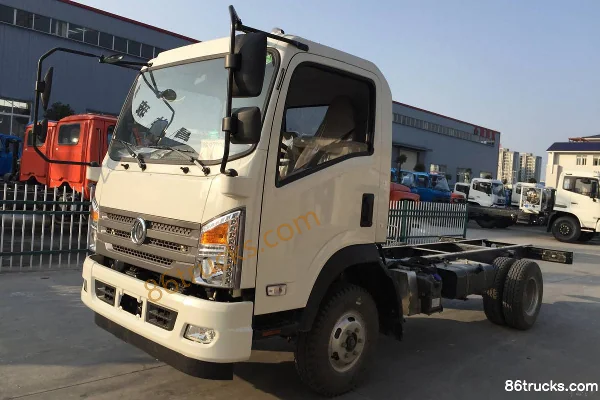

Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Engine: Yuchai496
Transmission: WLY
Curb Weight:: 3.4ton
Wheelbase:: 3800mm
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 115

Overview

The Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume, D530 flat-front single-row cab cab and 3800mm wheelbase. On the powertrain side, it comes with a Yuchai496 engine, 115 hp, 4X2 (6 wheels) drive and China V emissions.

China V 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ1070GD5DJ
Type: Chassis
Drive type: 4X2
Wheelbase: 3800mm
engine: YuchaiYC4FA115-50
transmission: WLYWLY535
Rear Axle Ratio: 4.33
Cab length: 6.56m
Cab width: 1.9m
Cab height: 2.44m
Front track width: 1630mm
rear track: 1500mm
Curb Weight: 3.4ton
GVWR: 7.45ton
Max. speed: 80km/h
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 20°
departure angle: 15°
Front/rear suspension: 1.25/1.51m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4FA115-50
Engine info: Yuchai496
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.982L
Emission standard: China V
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 300N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: WLYWLY535
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: D530 flat-front single-row cab
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 30Q02-00005Q6, end-punch I-beam
Front axle allowable load: 2700kg
rear axle description: 24Q54-00005Q6, stamped-welded axle housing
Steering gear: Domestic
rear axle allowable load: 4750kg
Axle ratio: 4.33
Leaf spring count: 9/11+8
Tire
Tire Size: 8.25R16 14PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Engine brake: air dual-circuit brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

0 photos

FAQ

What emission standard does Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis?

Key specs of Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis: Drive: 4x2; Horsepower: 115 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai496; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis suited for?

Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis differ from other variants in the same series?

Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis belongs to Dongfeng Jincheng (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng (Original Special Chassis) Jincheng 115 hp 4X2(6 wheels) 3800mm Wheelbase Light Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
