JAC Shuailing H330 130 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body)

Export reference
From $15,333
MSRP ¥11.04M CNY
Horsepower: 130
Emission: China IV
Fuel: Diesel
Engine: WeichaiVM494
Transmission: Lu'an
Curb Weight:: 2.5ton
seating capacity: 3Personnel
Rated payload: 1.795ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Shuailing H330 130 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body) is a Light Truck featuring 4.18m cargo length, stake body cargo body, 3Personnel volume and 1.795t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a WeichaiVM494 engine, 130 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1043P71K1C2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: WeichaiWP3Q130E401
transmission: Lu'an LC6T450
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.17m
Cab height: 2.39m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 2.5ton
Rated payload: 1.795ton
GVWR: 4.49ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 15°
market segment: Building materials, agricultural products
Front/rear suspension: 1.11/1.577m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3Q130E401
Engine info: WeichaiVM494
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.97L
Emission standard: China IV
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 350N·m
Max torque speed: 1400-1800rpm
Rated speed: 3000rpm
Engine Type: Common Rail EGR DOC POC
Transmission Parameters
Transmission Model: Lu'an LC6T450
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 2.08m
Cargo box height: 0.4m
*Cargo box interior width: 2.0799999237061
Cab parameters
Cab: Wide body
Cab width: 1990mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank capacity: 110L
Chassis Specs
Front axle allowable load: 1615kg
rear axle description: 2875
rear axle allowable load: 2875kg
Axle ratio: 4.33
Leaf spring count: 12/8+6

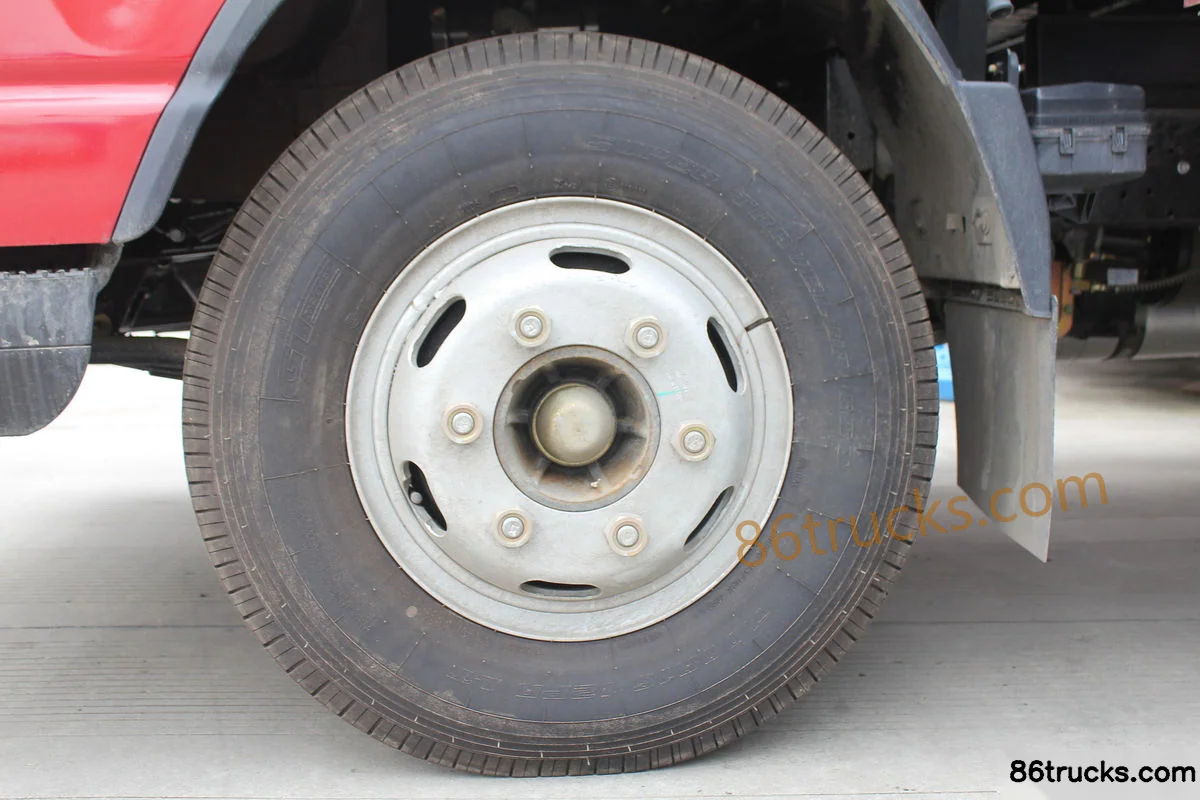

Tire
Tire brand: Wanli
Tire Size: 7.50R16LT
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

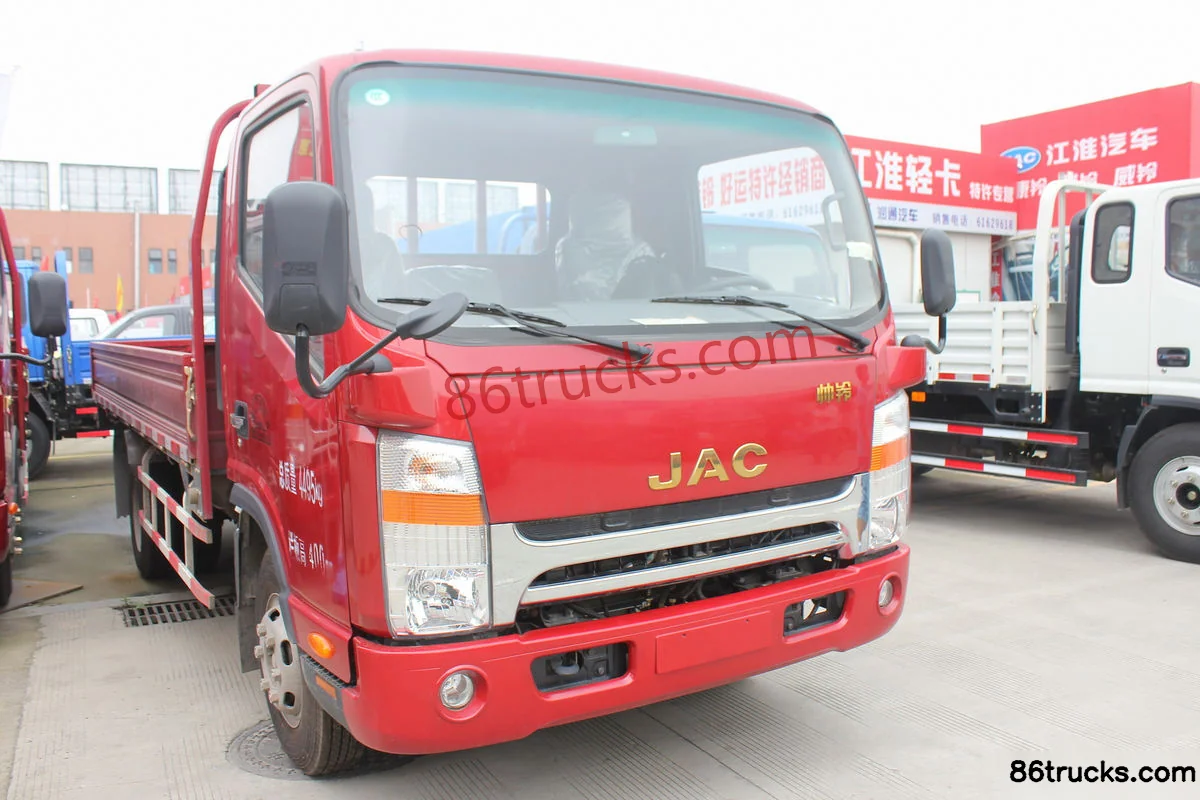

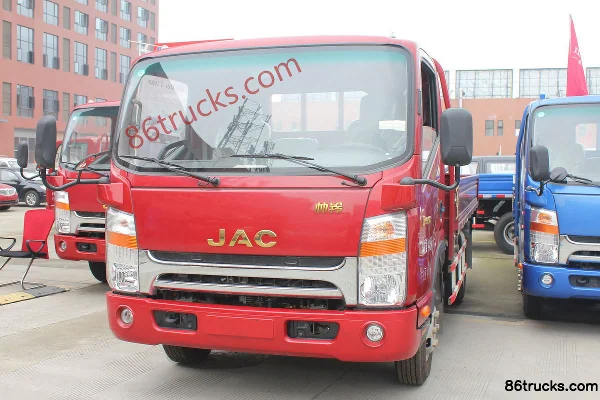

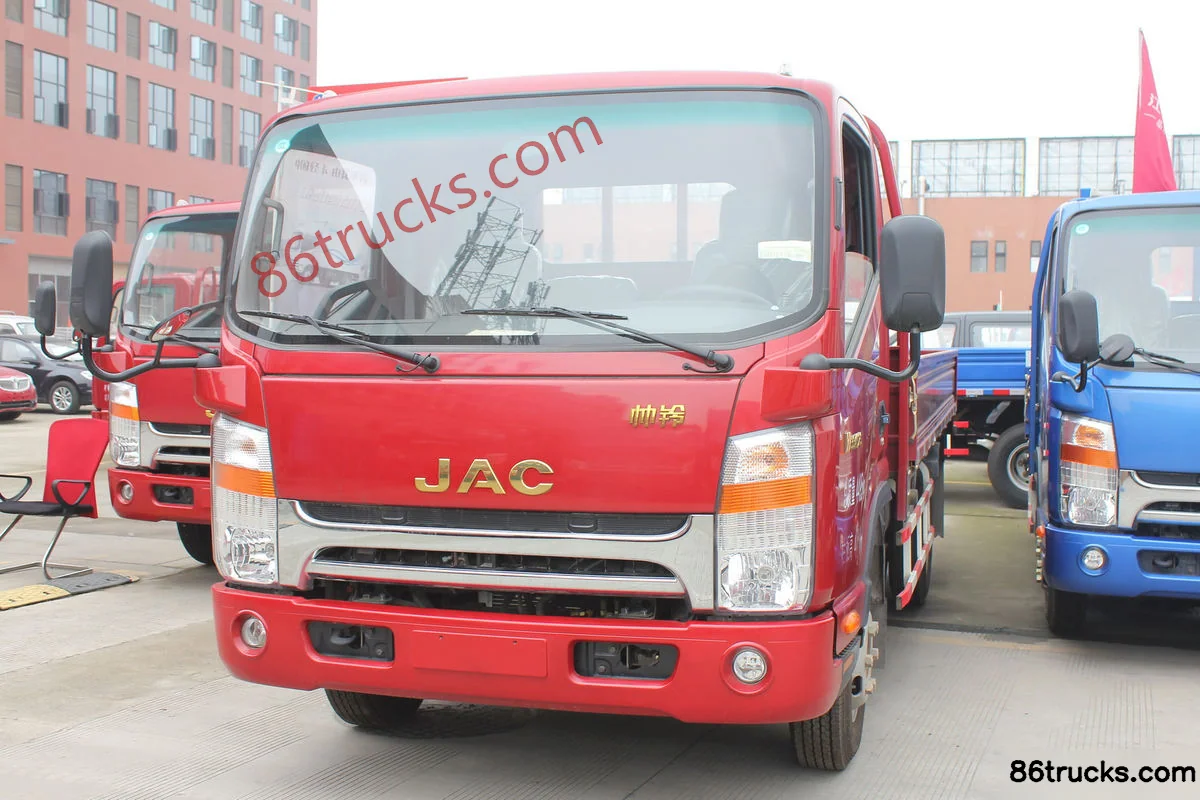

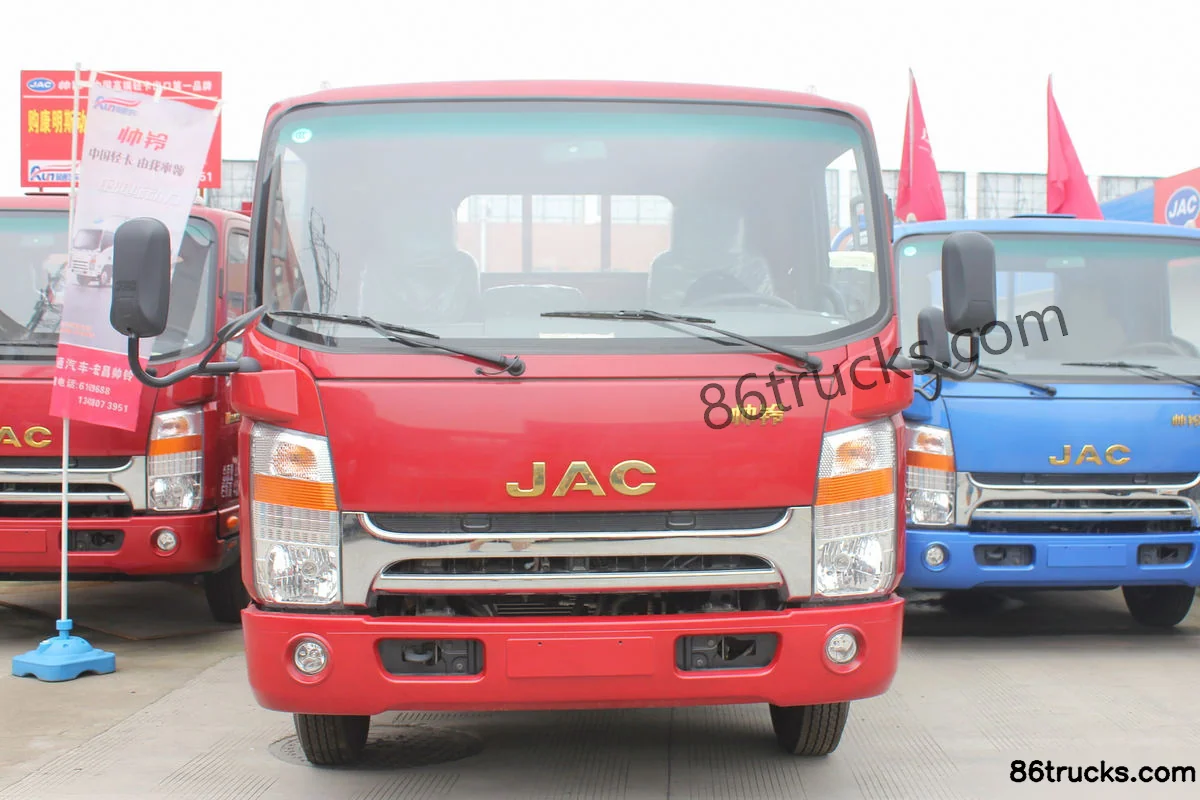

Exterior3

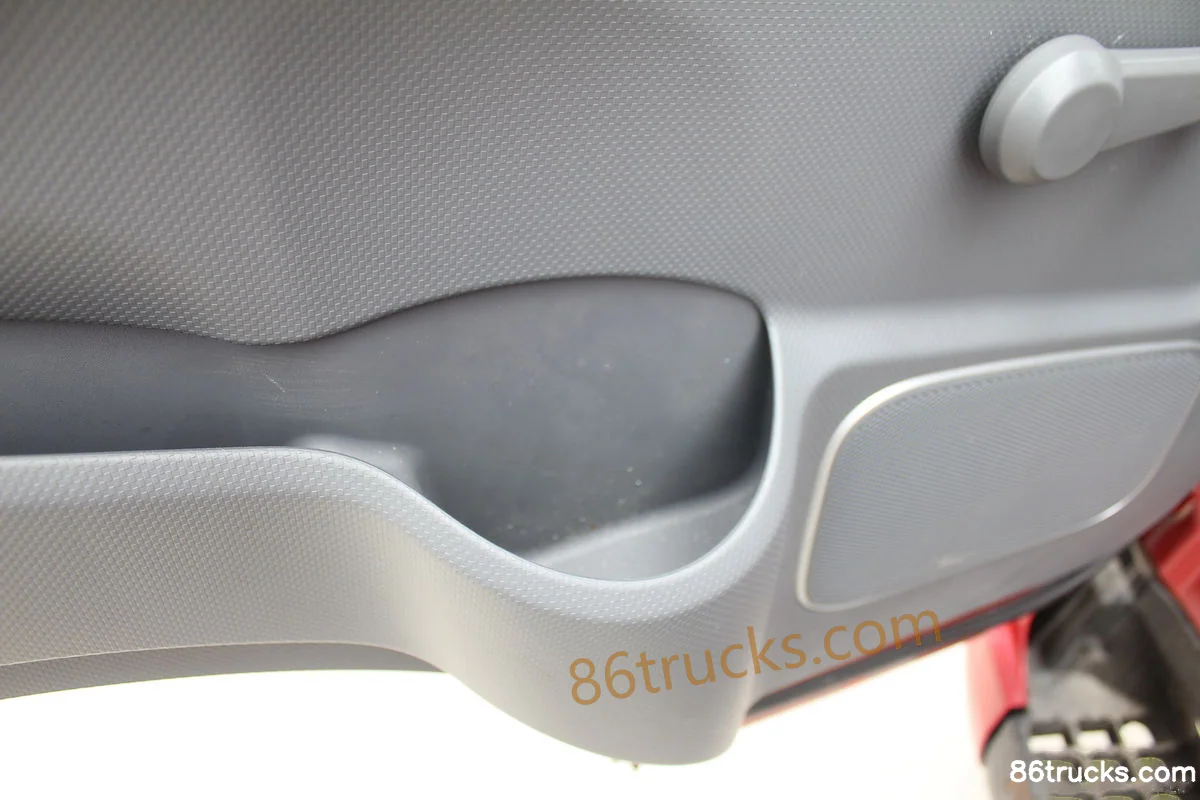

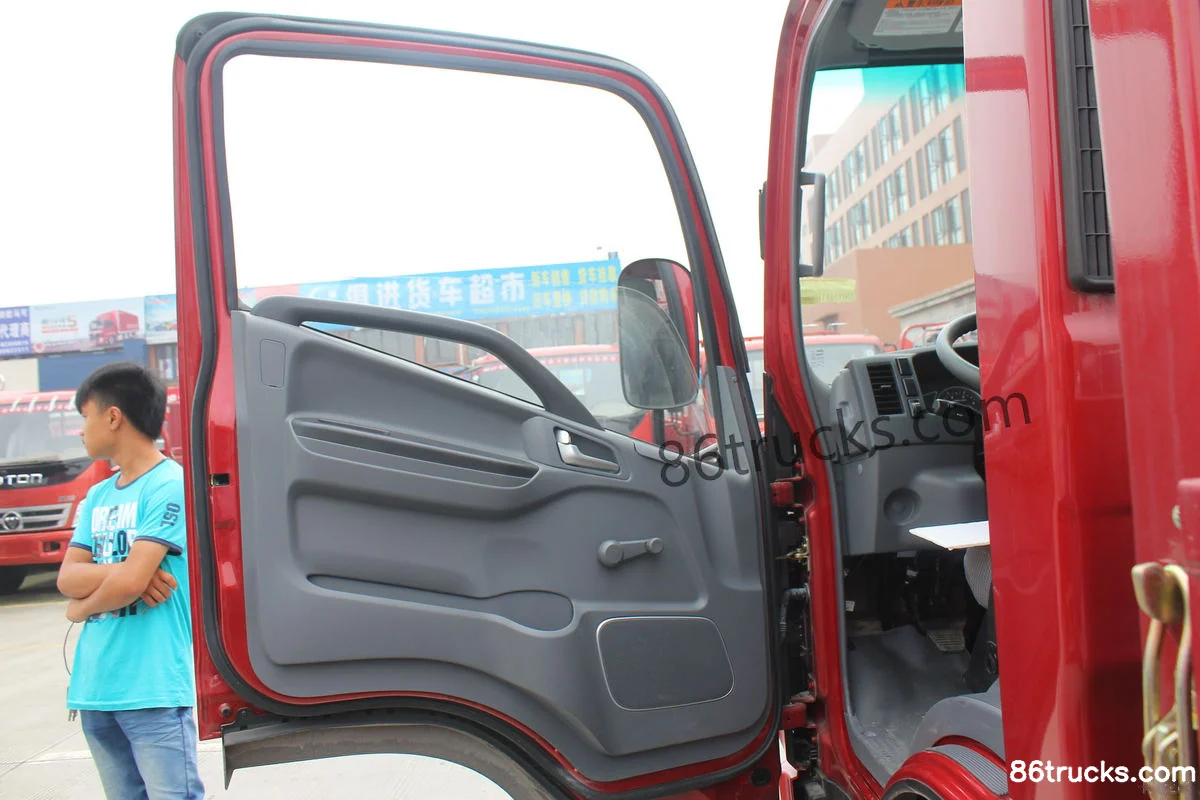

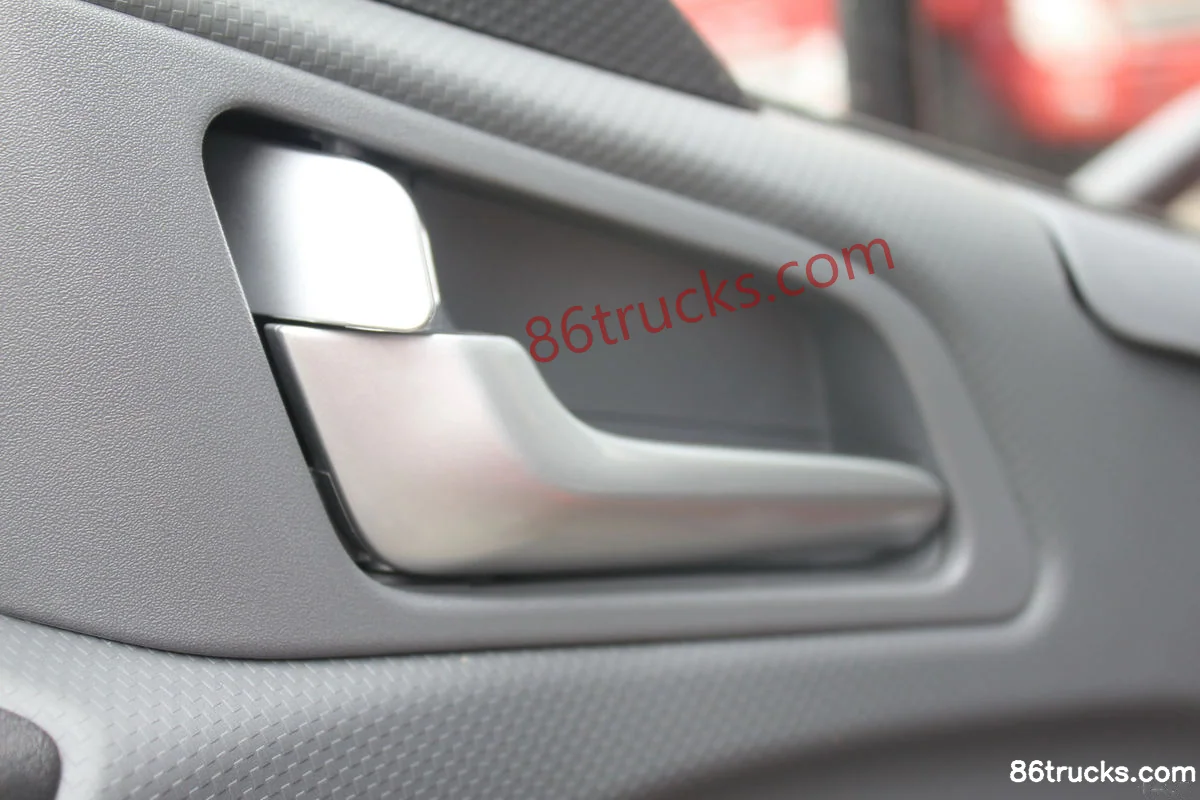

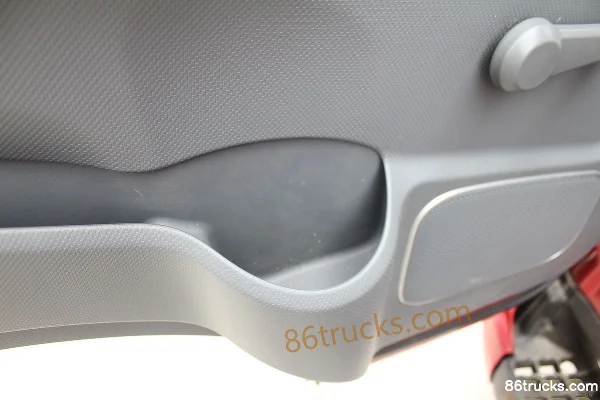

Cab3

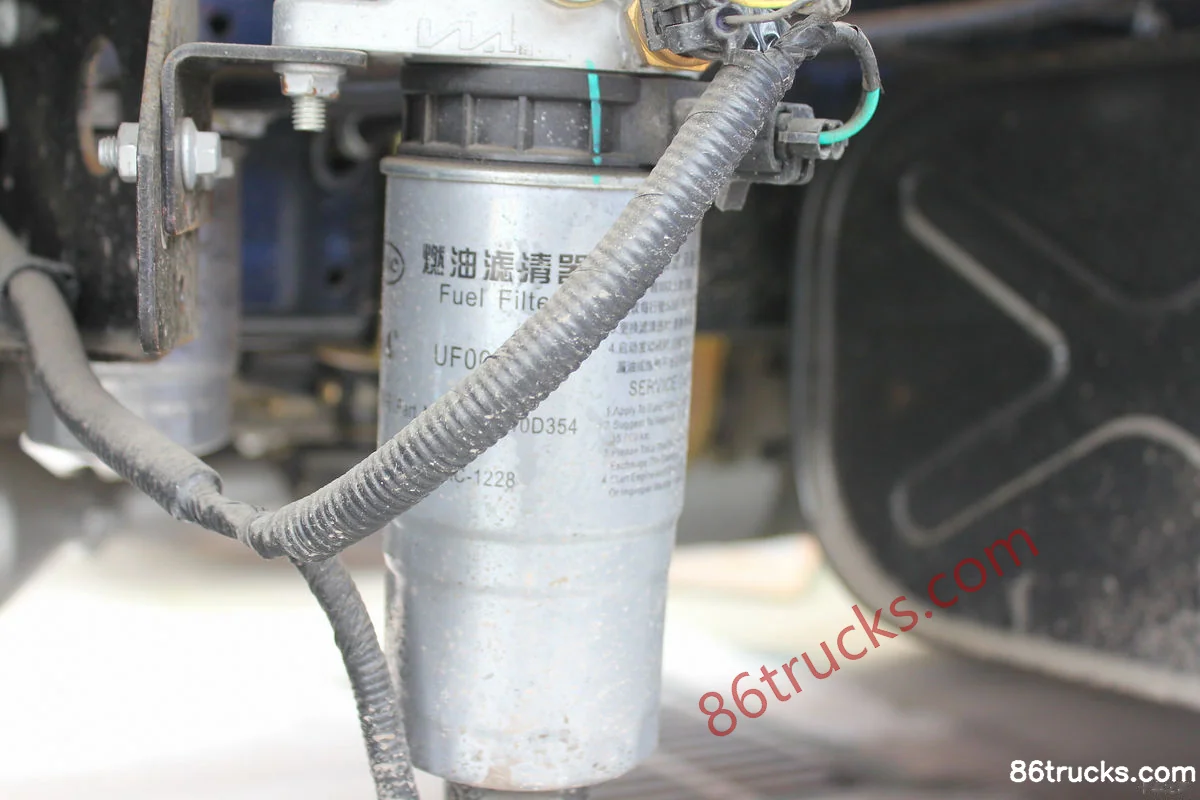

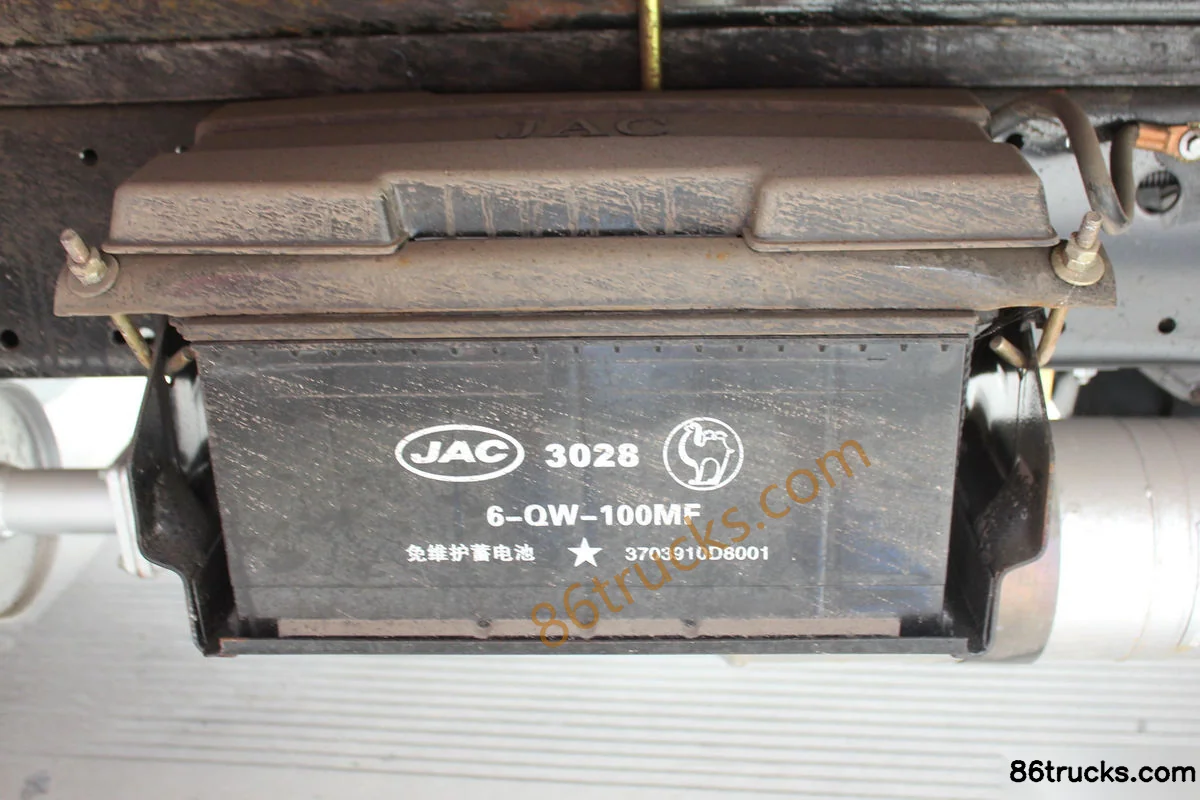

Chassis3

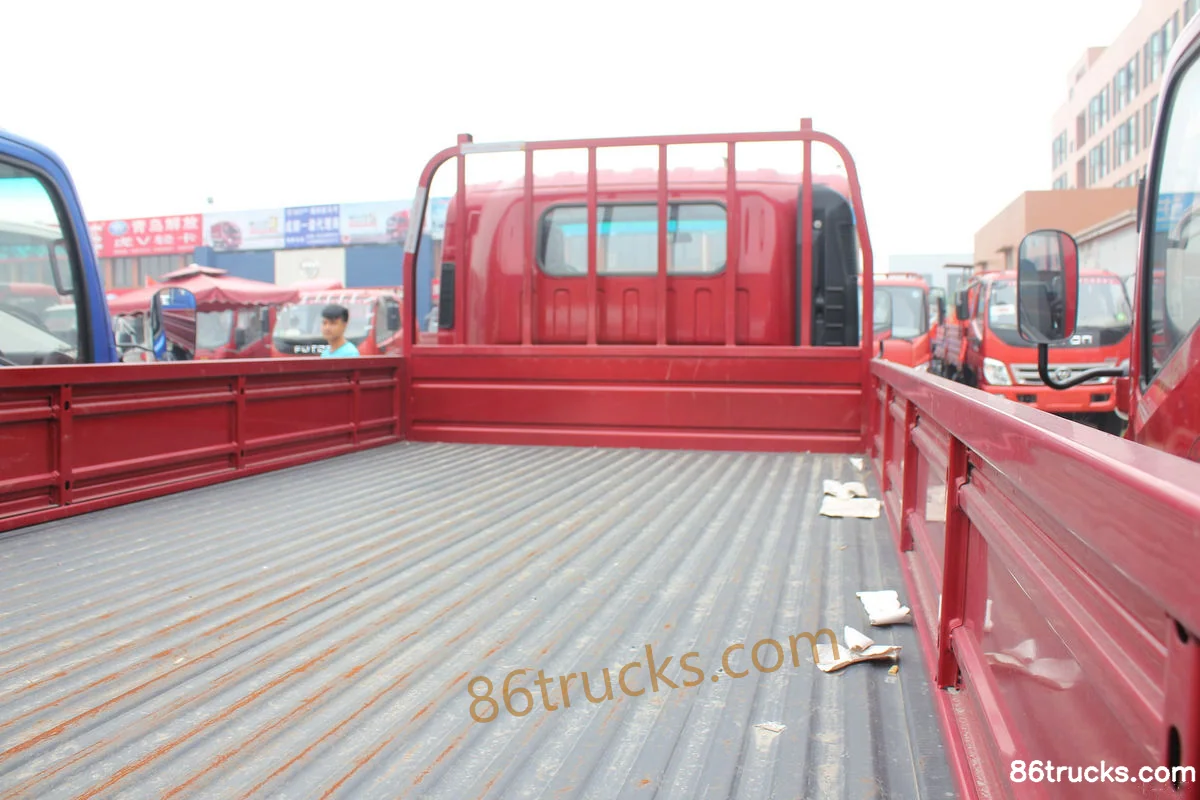

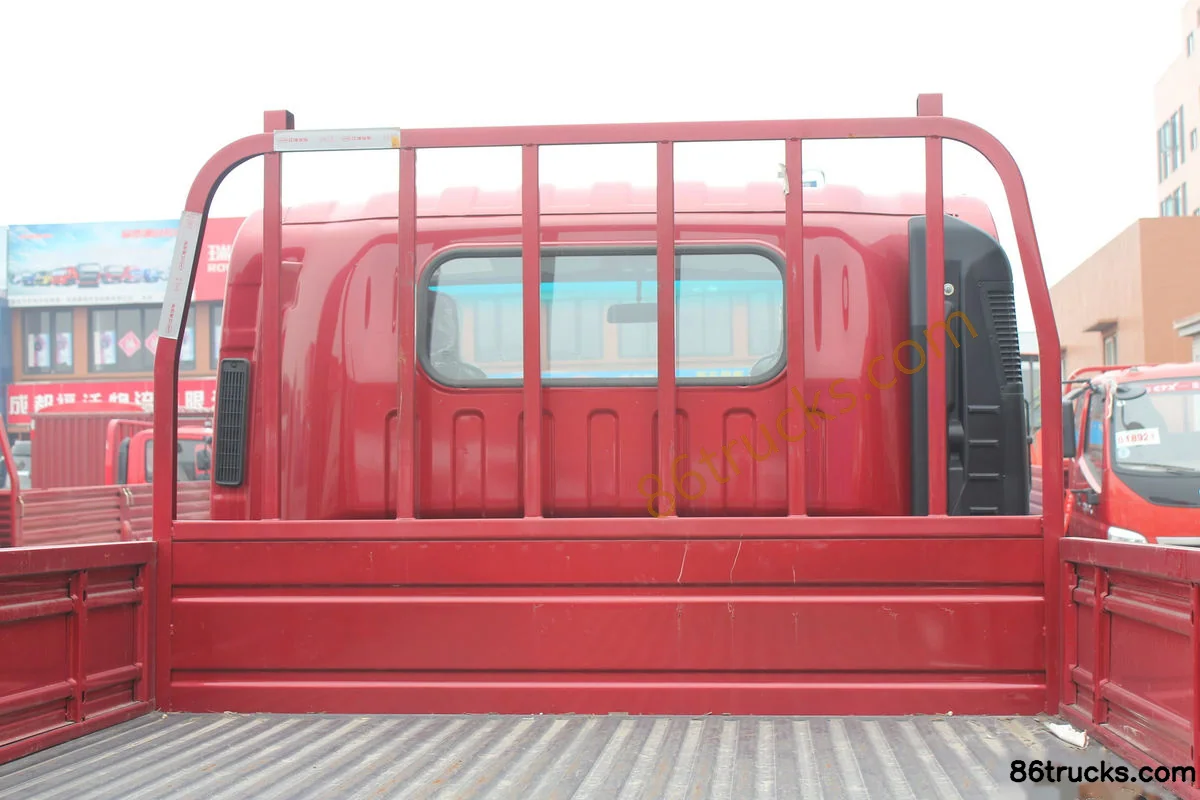

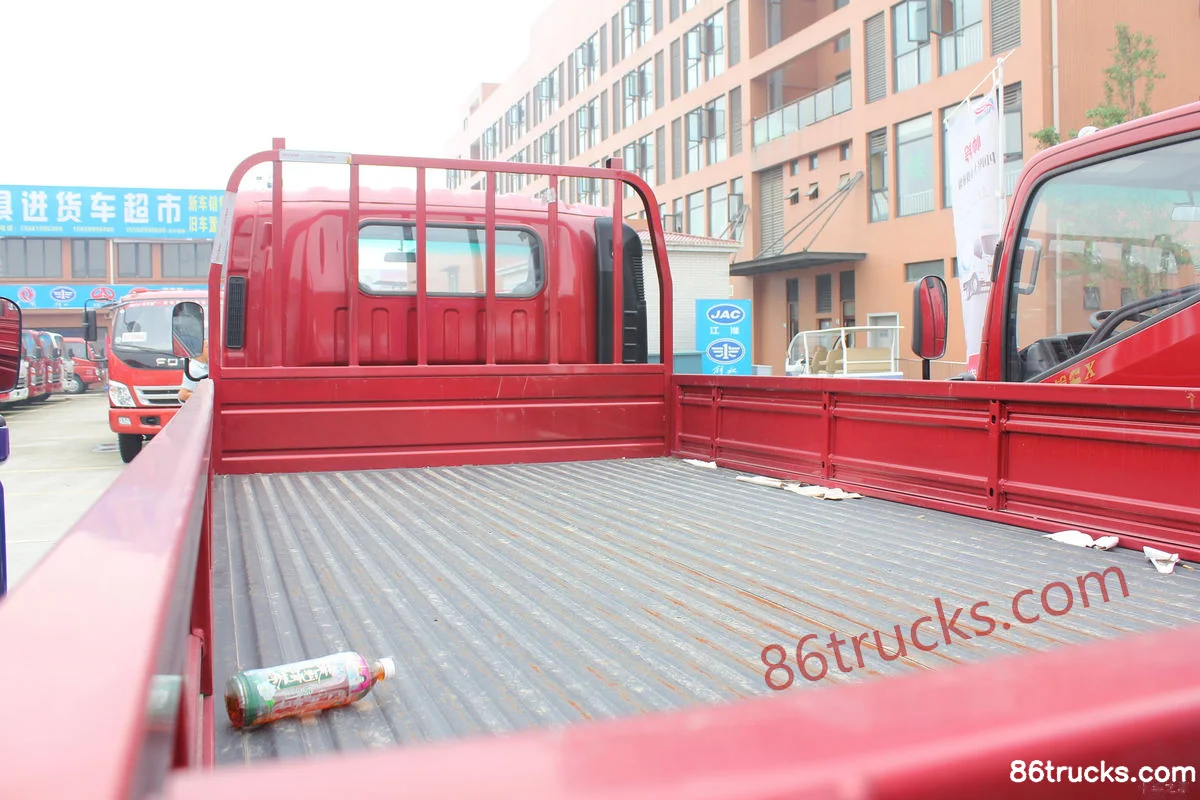

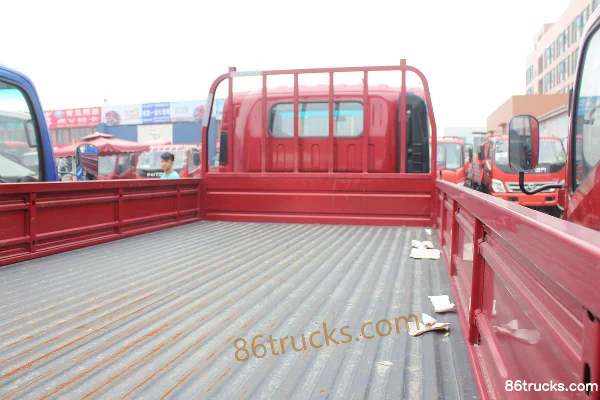

Body3

12 photos
