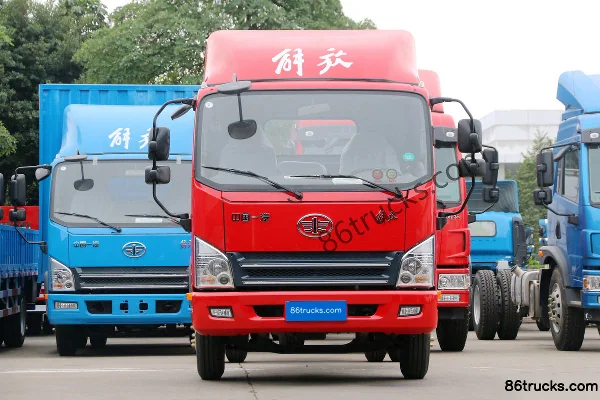

FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck

Export reference
From $19,167
MSRP ¥13.8M CNY
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: WeichaiWP4.1
Transmission: Fast Gear
Curb Weight:: 5.4ton
seating capacity: 3Personnel
Rated payload: 8.465ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck is a Light Truck featuring 6.2m cargo length, Stake type cargo body, 3Personnel volume and 8.465t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and green channel, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP4.1 engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5145CCYP40K2L5E5A85
Type: stake truck
Drive type: 4X2
Wheelbase: 4700mm
Box length class: 6.2m
engine: WeichaiWP4.1Q160E50
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 8.395m
Cab width: 2.42m
Cab height: 3.465m
Front track width: 1820mm
rear track: 1740mm
Curb Weight: 5.4ton
Rated payload: 8.465ton
GVWR: 14.06ton
Max. speed: 115km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 13°
market segment: Daily industrial goods transport, agricultural and sideline products transport, green channel
Remarks: air dryer, maintenance-free battery, full interior trim, front underrun protection, anti-splash mudguard, optional 200L aluminum fuel tank.
Front/rear suspension: 1.2/2.495m
Version: King Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1Q160E50
Engine info: WeichaiWP4.1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.088L
Emission standard: China V
Max output power: 115kW
Max hp: 160Horsepower
Max torque: 520N·m
Max torque speed: 1400-1800rpm
Rated speed: 2600rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.2m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Hu VH
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 4860kg
Frame Dimensions: 216*865mm
rear axle description: 8 tons
rear axle allowable load: 9200kg
Axle ratio: 4.875
Leaf spring count: 7/10+3,3/3+4,3/7+9
Aluminum wheels:
Tire
Tire Size: 8.25R20
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster: none
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

0 photos

FAQ

What is the export price of FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck, and what does it include?

FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck export reference is about From $19,167; MSRP is ¥13.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck?

Key specs of FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP4.1; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck suited for?

FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck differ from other variants in the same series?

FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH King Edition 160 hp 4X2(6 wheels) 6.2m Cab Chassis Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
