JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142)

Export reference
From $13,444
MSRP ¥9.68M CNY
Horsepower: 127
Emission: China VI
Fuel: Diesel
Engine: De Wei D20
Transmission: WLY
Curb Weight:: 2.805ton
seating capacity: 5Personnel
Rated payload: 1.36ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142) is a Light Truck featuring 3.32m cargo length, Van body cargo body, 5Personnel volume and 1.36t payload. On the powertrain side, it comes with a De Wei D20 engine, 127 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 127 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5041XXYTSGC26
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: Yunnei PowerD20TCIF11
transmission: WLYWLY5G32C
Rear Axle Ratio: 6.142
Cab length: 5.99m
Cab width: 1.97m
Cab height: 2.99m
Front track width: 1370mm
rear track: 1425mm
Curb Weight: 2.805ton
Rated payload: 1.36ton
GVWR: 4.49ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 23°
departure angle: 17°
Front/rear suspension: 1.095/1.535m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD20TCIF11
Engine info: De Wei D20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2L
Emission standard: China VI
Max output power: 93kW
Max hp: 127Horsepower
Transmission Parameters
Transmission Model: WLYWLY5G32C
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.32m
Cargo box width: 1.89m
Cargo box height: 2m
*Cargo box interior width: 1.8899999856949
Cab parameters
Cab: Narrow double-row cab
Cab width: 1695mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1720kg
rear axle allowable load: 2770kg
Axle ratio: 6.142
Leaf spring count: 4/4+2
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Power steering:
EBS electronic braking system:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Wiper type: Frameless wiper
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster: none
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

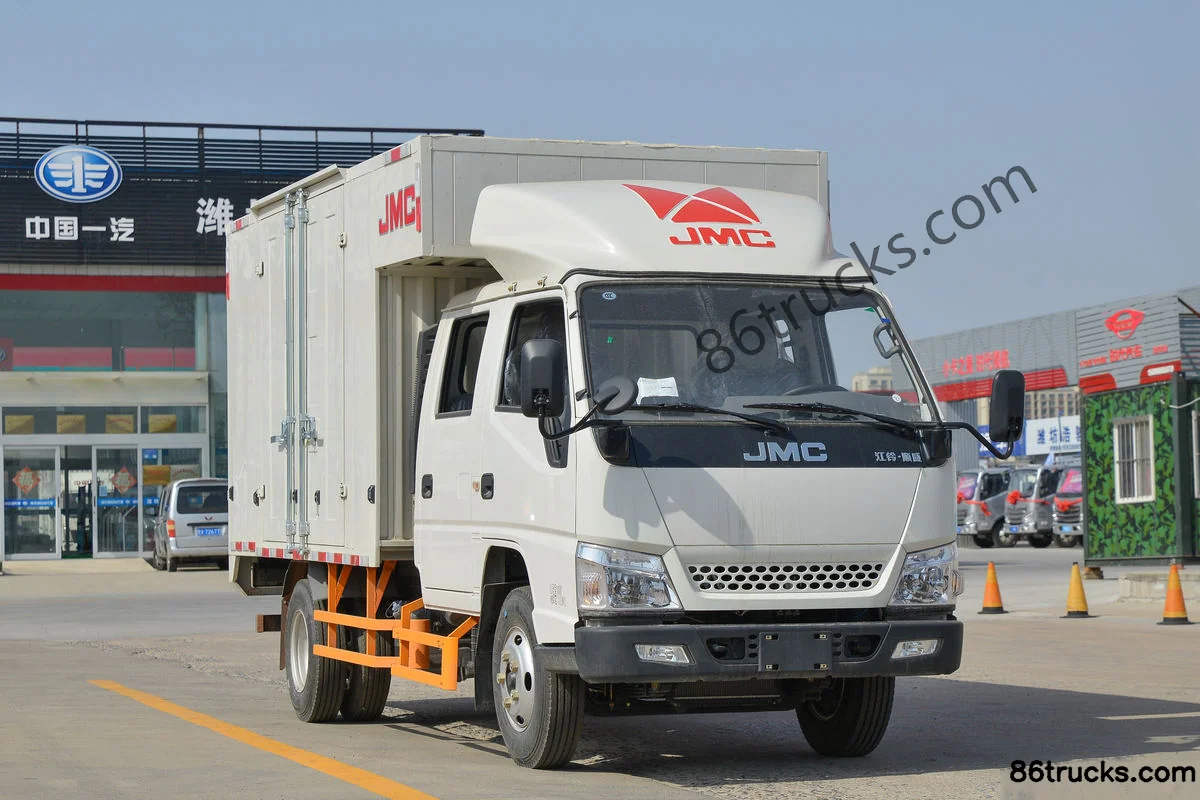

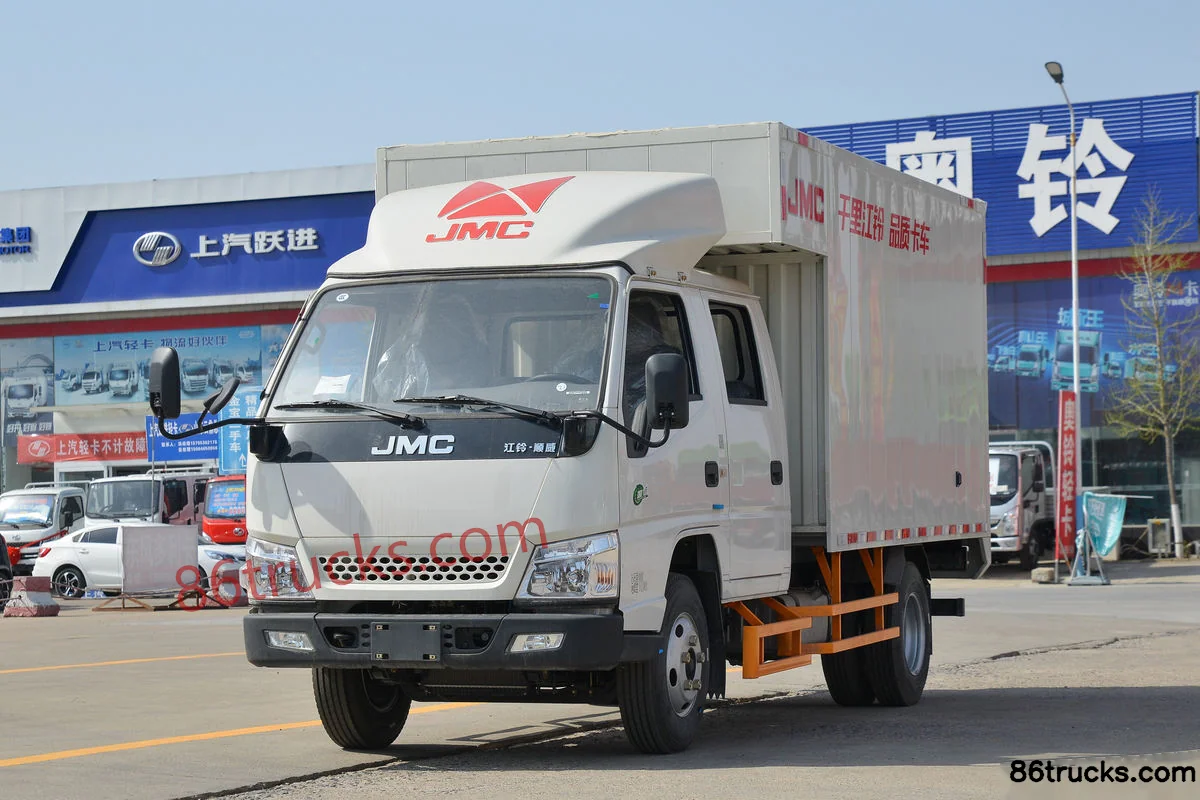

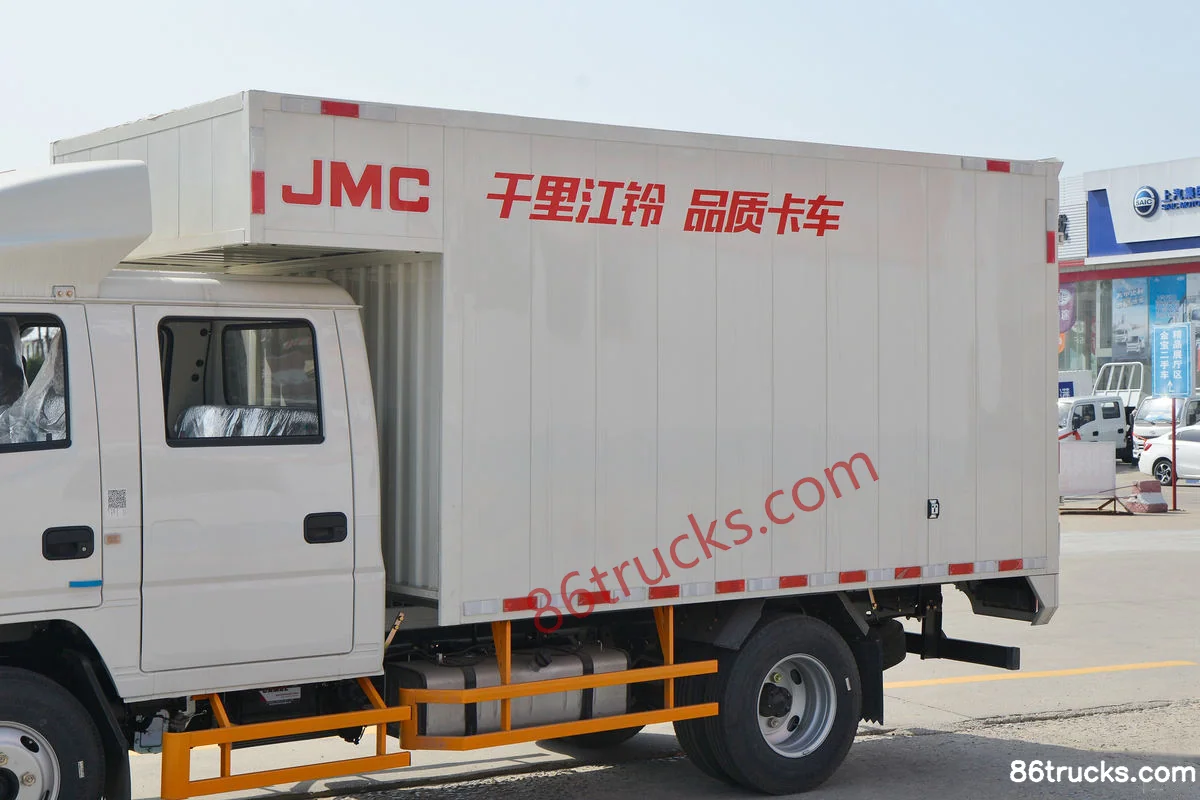

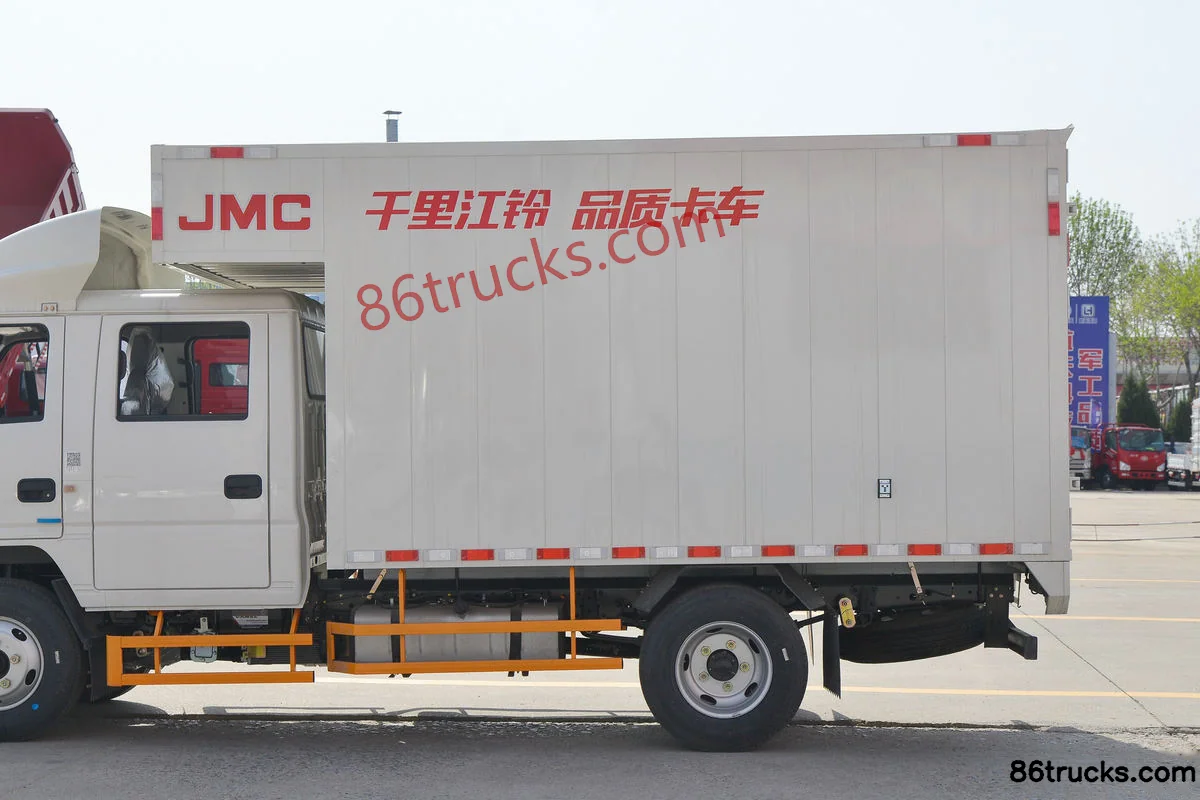

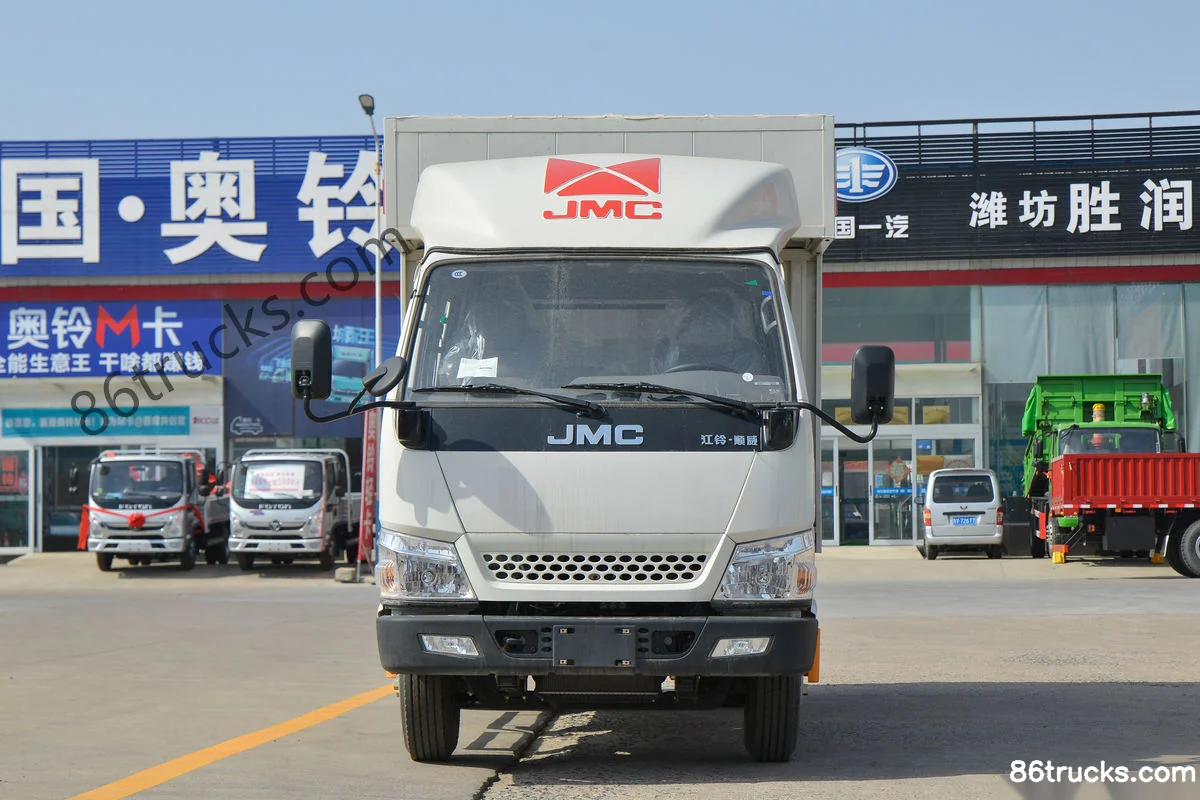

Exterior3

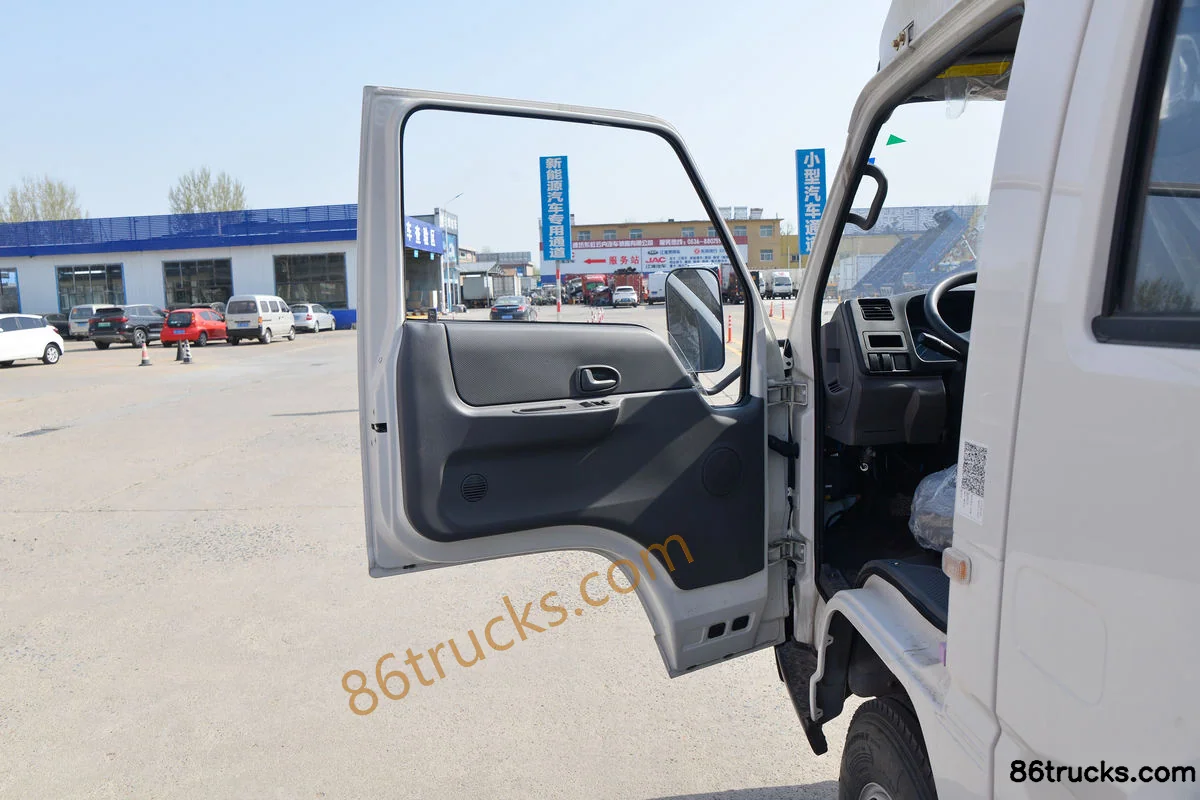

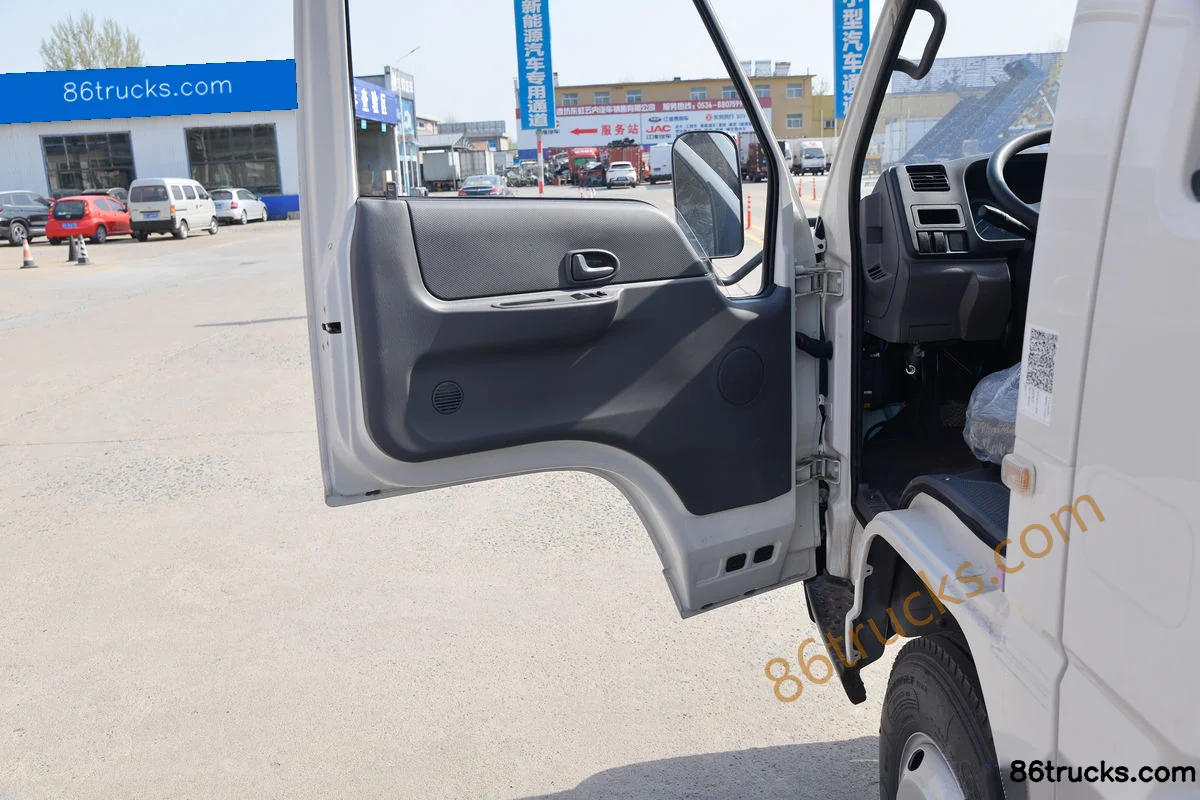

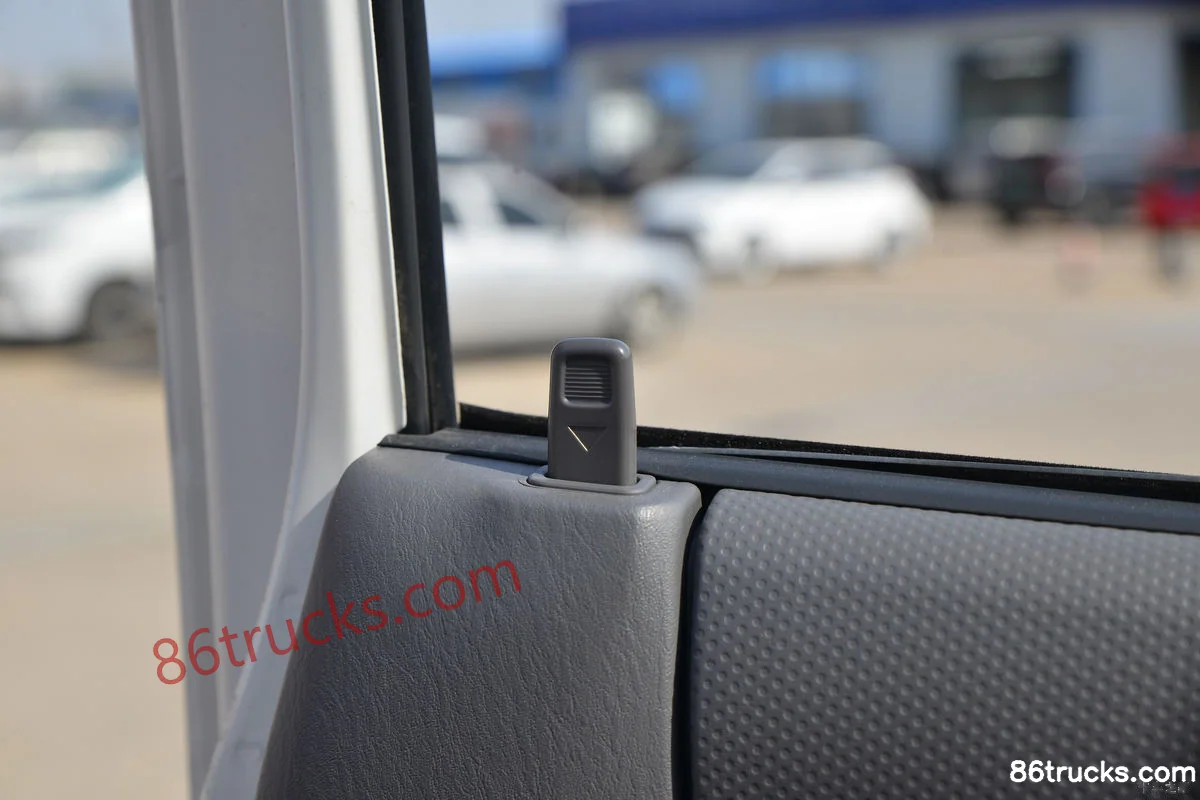

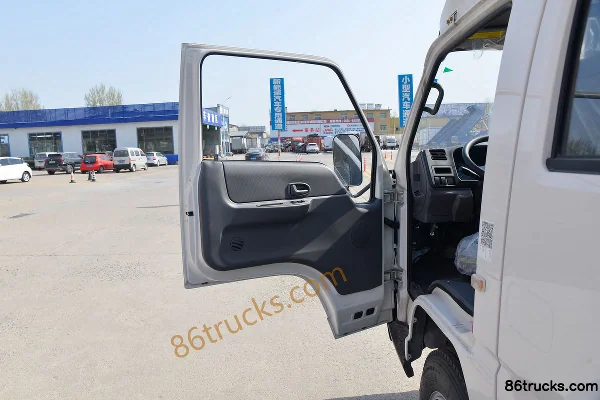

Cab3

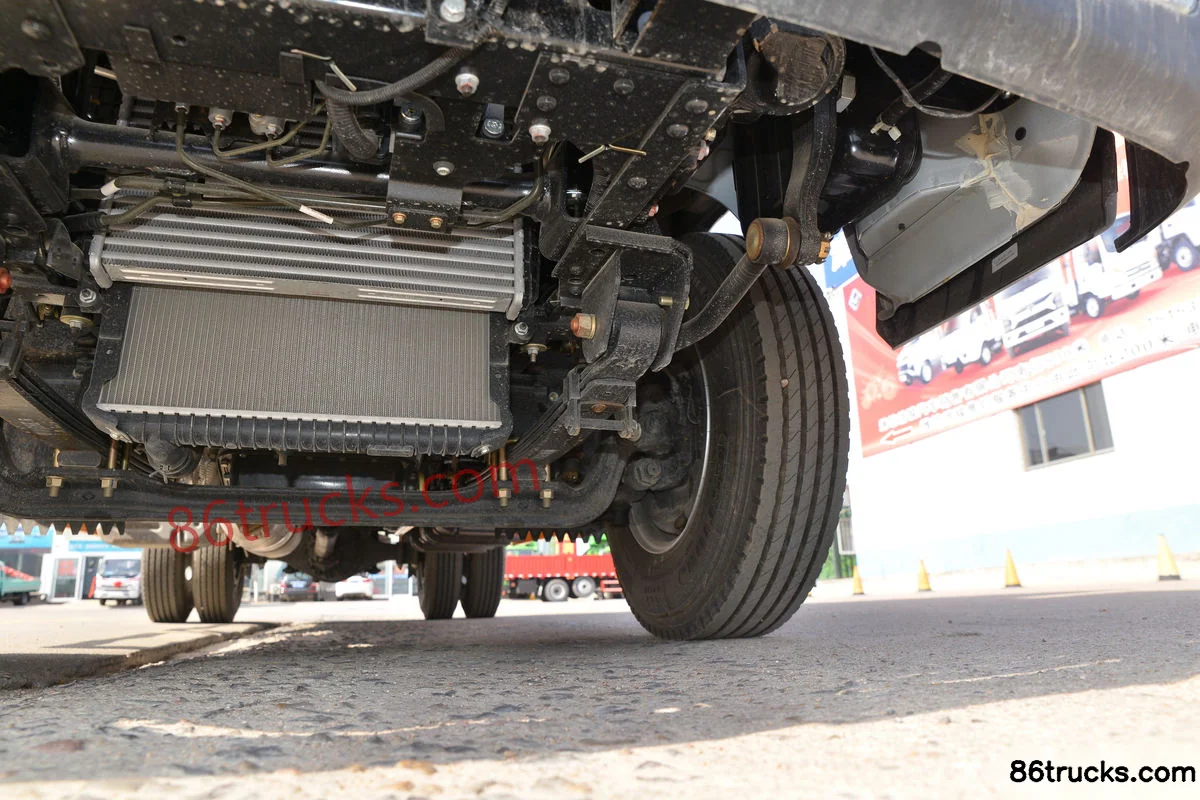

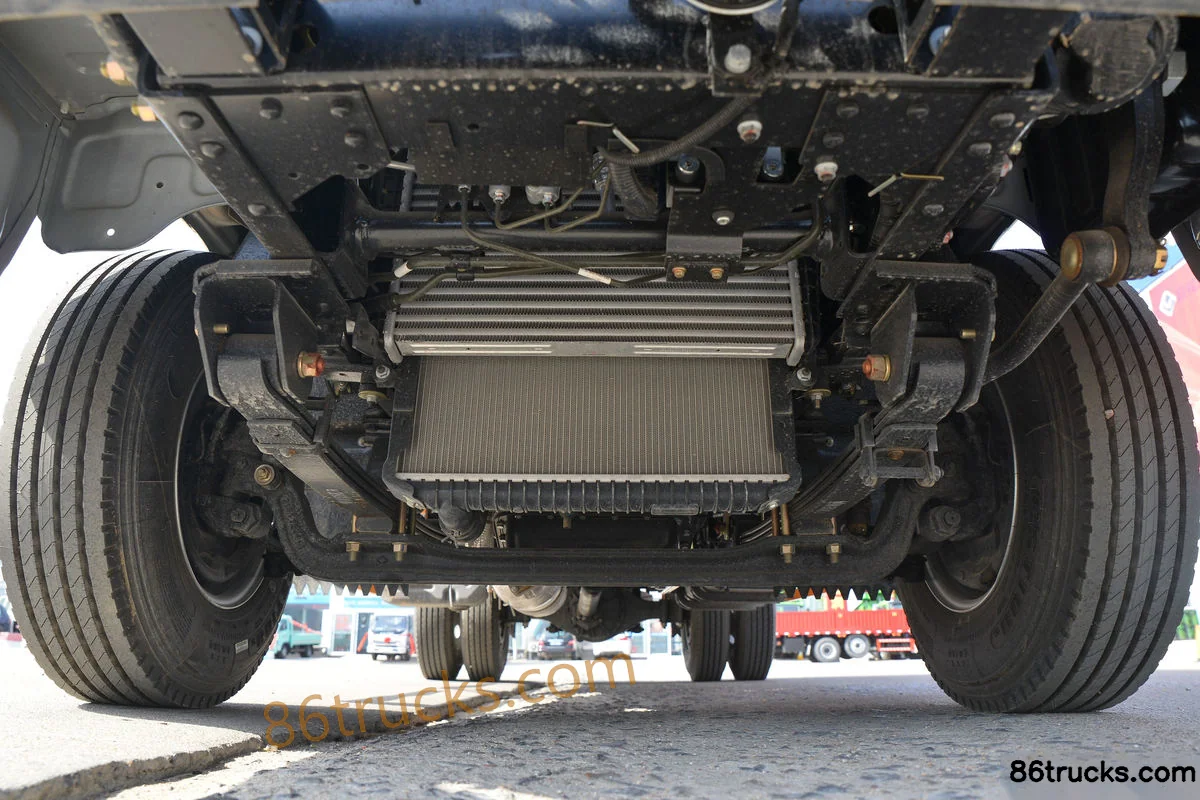

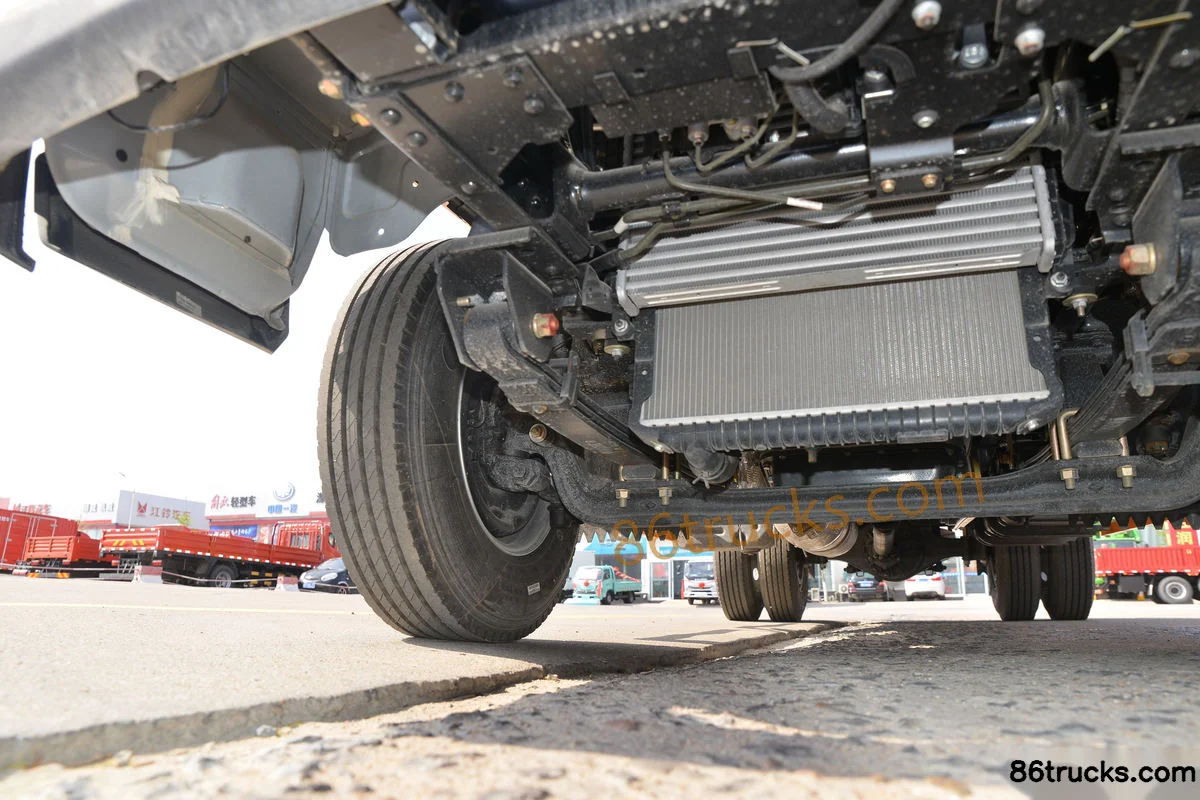

Chassis3

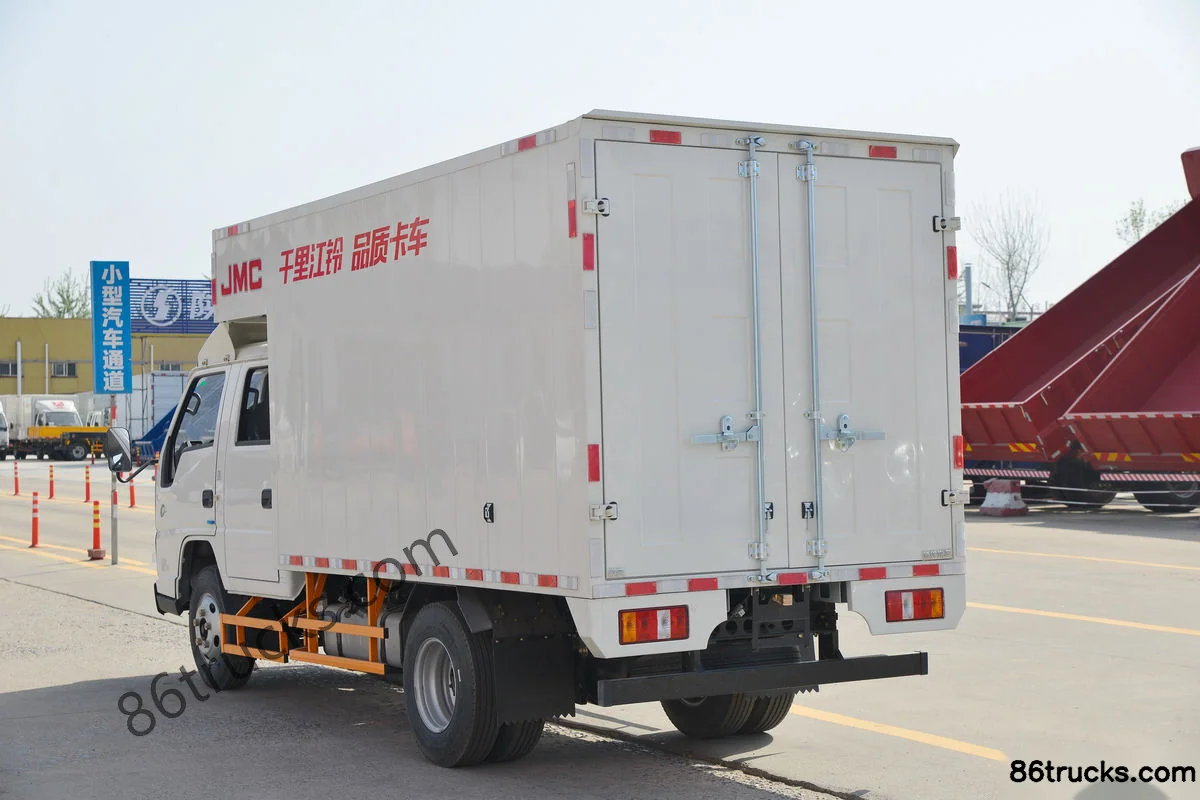

Body3

12 photos

FAQ

What is the export price of JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142), and what does it include?

JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142) export reference is about From $13,444; MSRP is ¥9.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142)?

Key specs of JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142): Drive: 4x2; Horsepower: 127 hp; Emission: China VI; Fuel: Diesel; Engine: De Wei D20; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142) suited for?

JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142) differ from other variants in the same series?

JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142) belongs to JMC Shunwei Cargo Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunwei Narrow Body 127hp 4X2(6 wheels) 3.32m Double Row Van Light Truck (China VI)(Hydraulic Brake)(Ratio 6.142)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
