JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck

Export reference
From $12,500
MSRP ¥9M CNY
Horsepower: 109
Emission: China IV
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 2.59ton
seating capacity: 2Personnel
Rated payload: 1.775ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck is a Light Truck featuring 4.22m cargo length, Van body cargo body, 2Personnel volume and 1.775t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a JMC493 engine, 109 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5044XXYXG2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Nanchang JMC JX493ZLQ4
transmission: JMCJC528T8
Cab length: 5.955m
Cab width: 1.88m
Cab height: 2.75m
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.59ton
Rated payload: 1.775ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 27°
departure angle: 15.3°
market segment: Urban Distribution
Front/rear suspension: 1.065/1.57m
Version: High-spec version
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: Nanchang JMC JX493ZLQ4
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 1800-2000rpm
Rated speed: 3800rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: JMCJC528T8
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.22m
Cargo box width: 1.76m
Cargo box height: 1.73m
*Cargo box interior width: 1.7599999904633
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1950kg
rear axle allowable load: 2545kg
Leaf spring count: 7/4+5
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
lighting configuration
Front fog lamp:

Photos

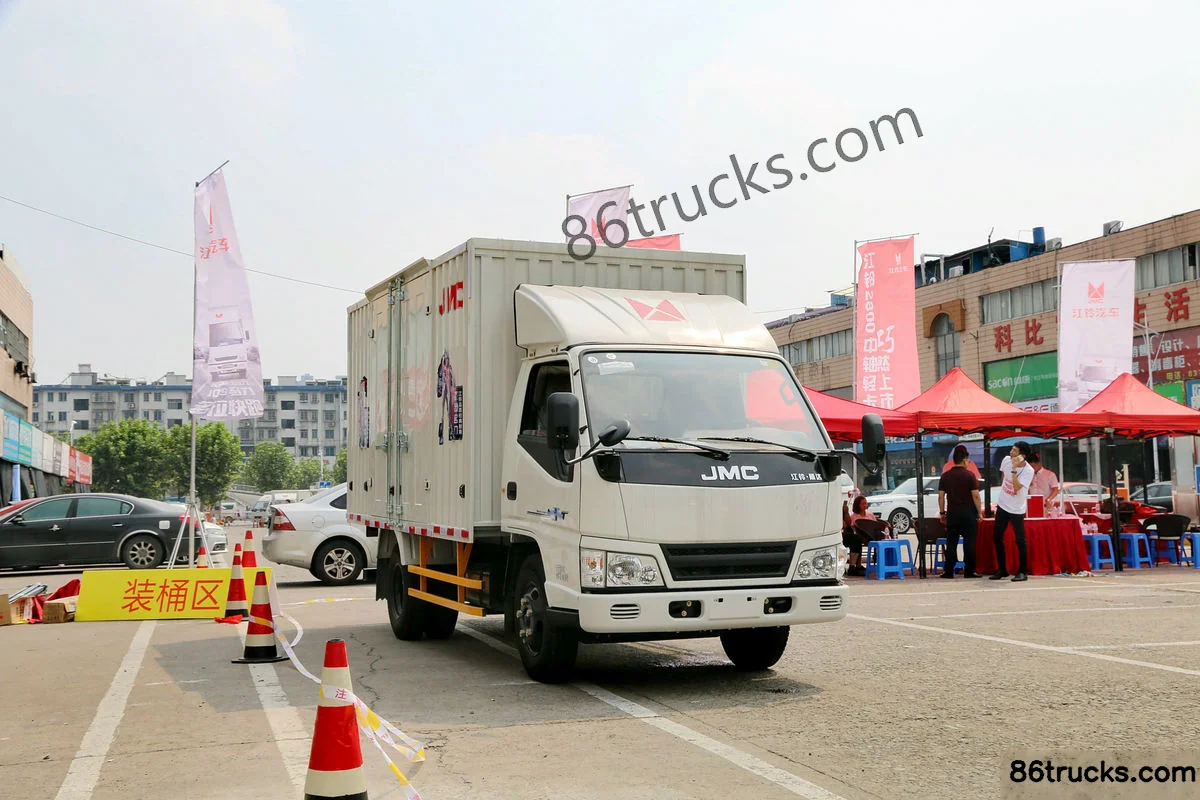

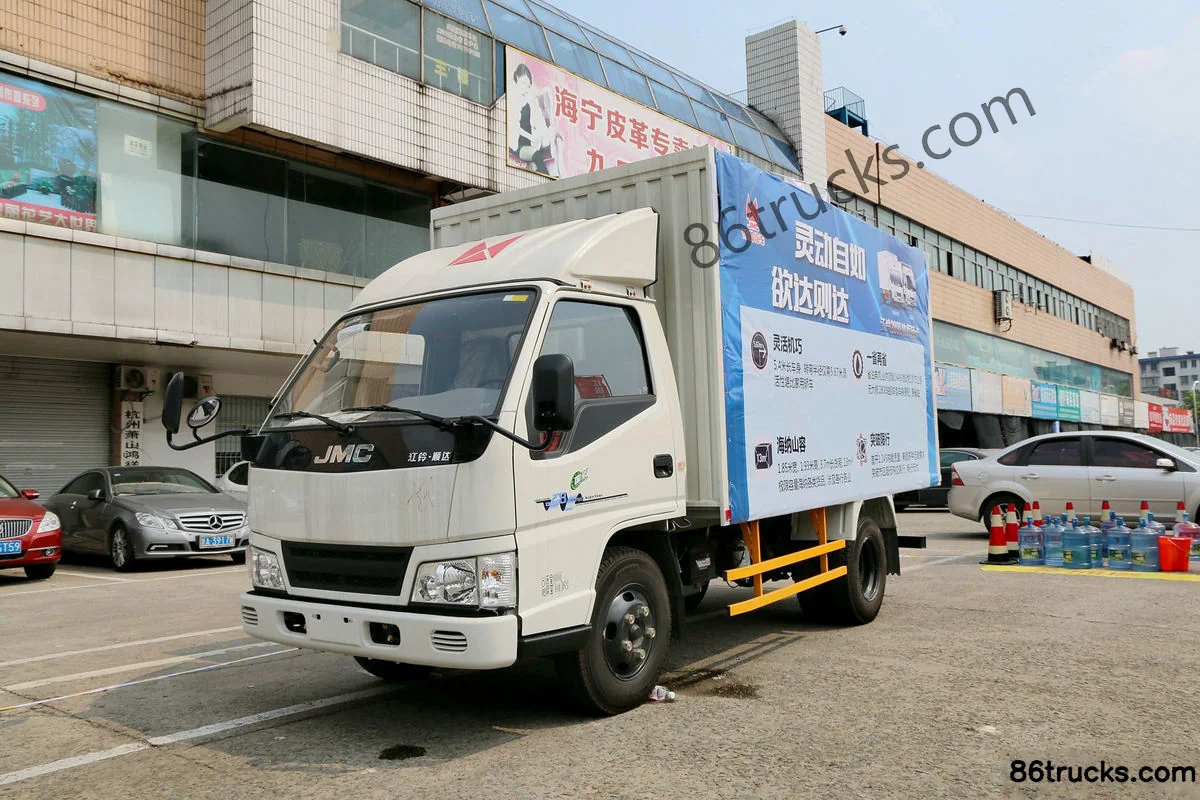

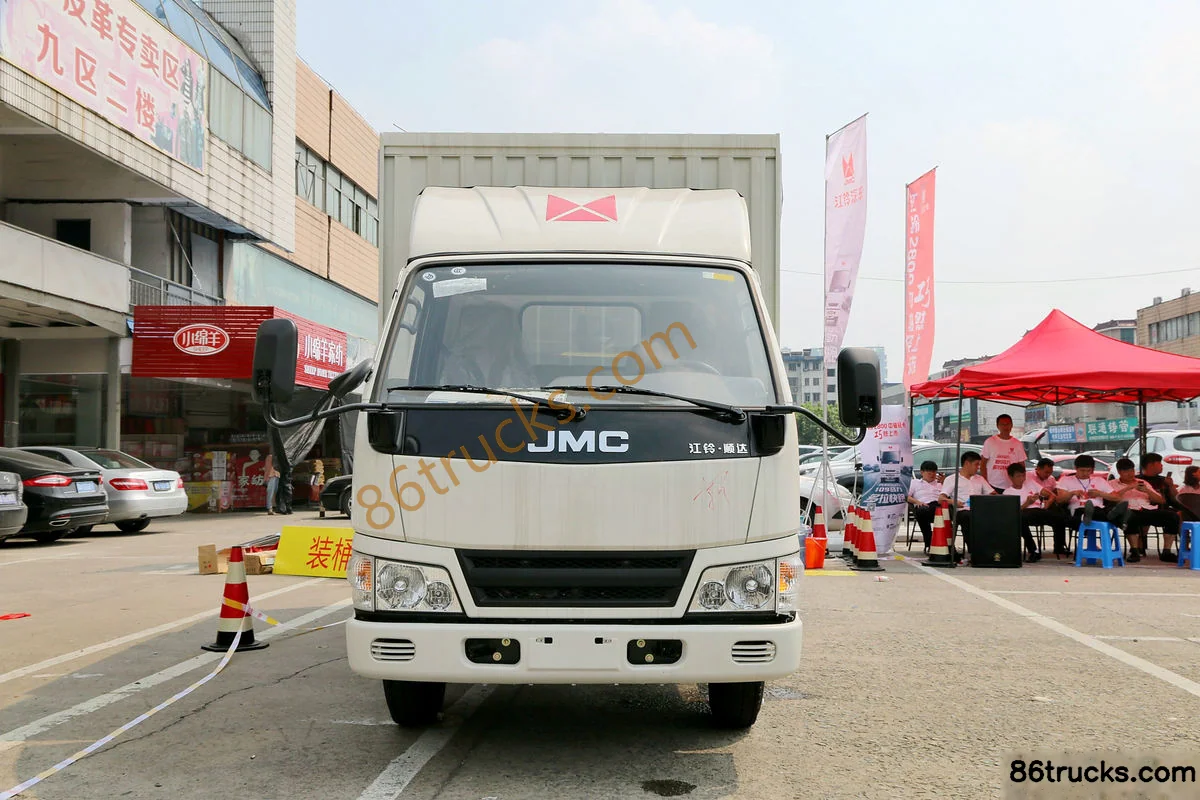

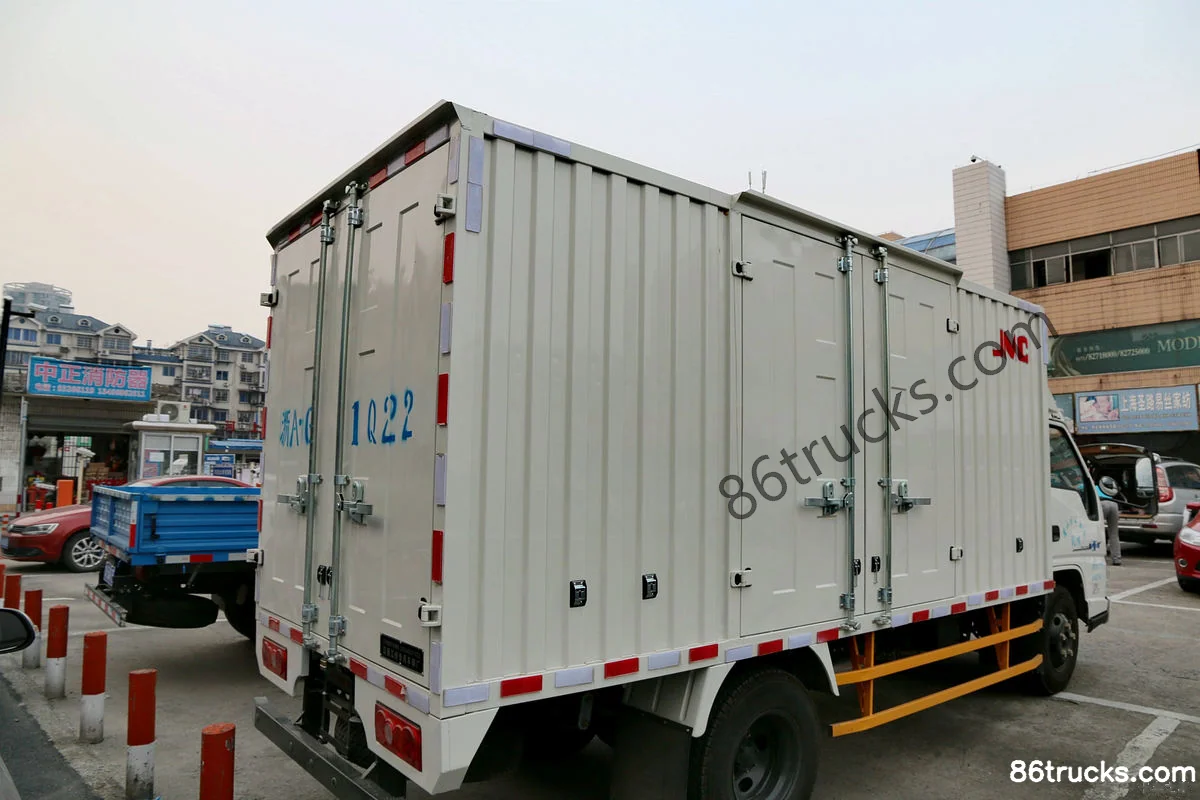

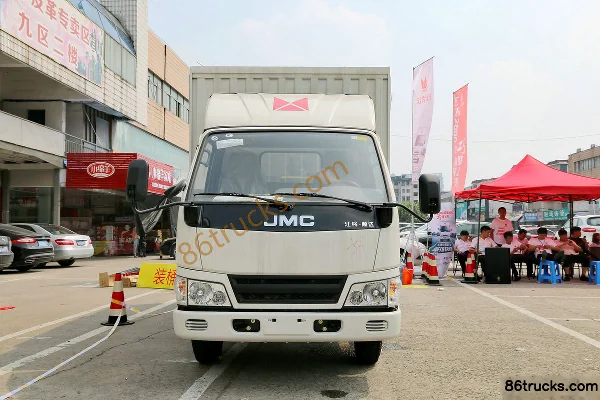

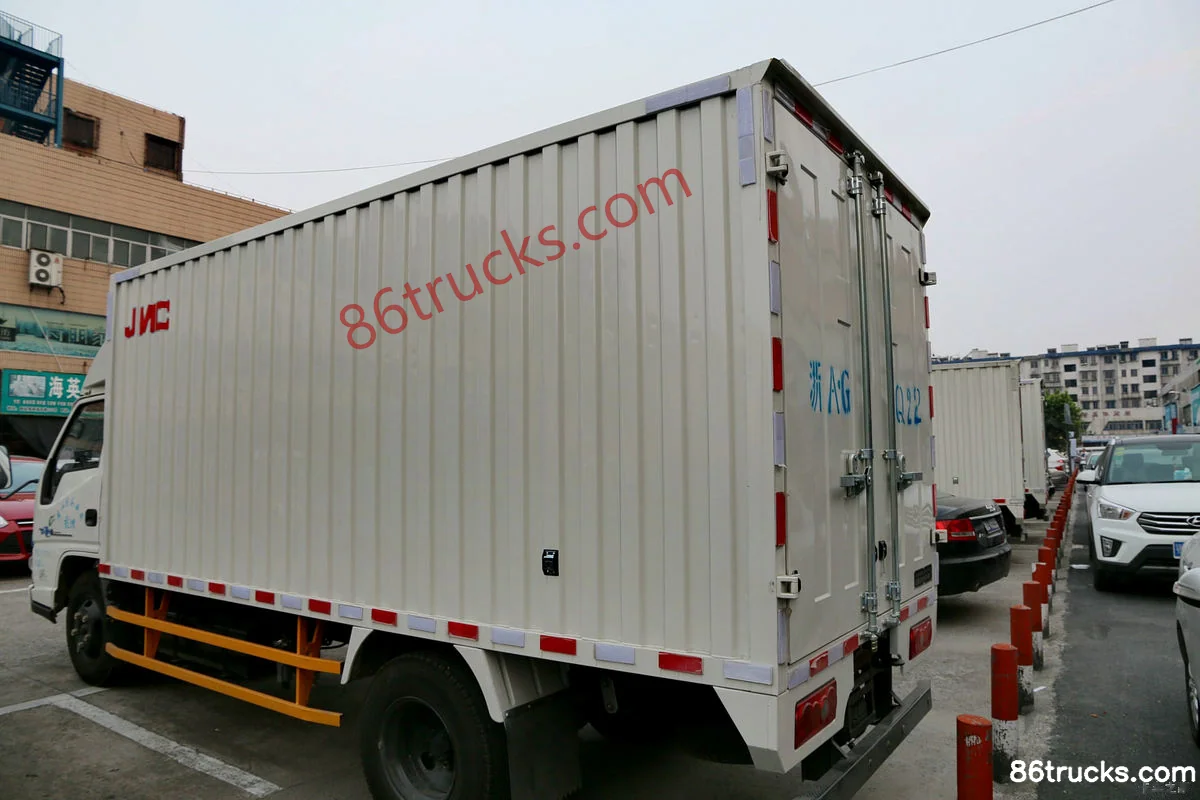

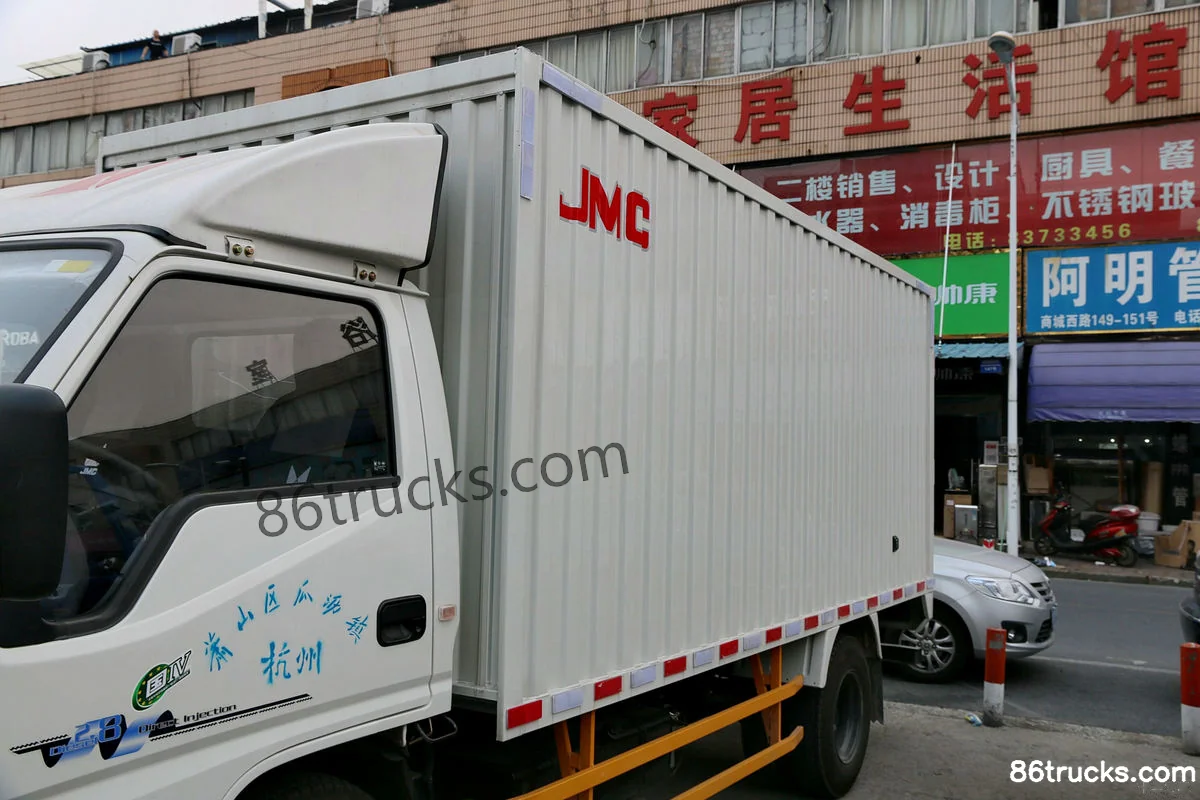

Exterior3

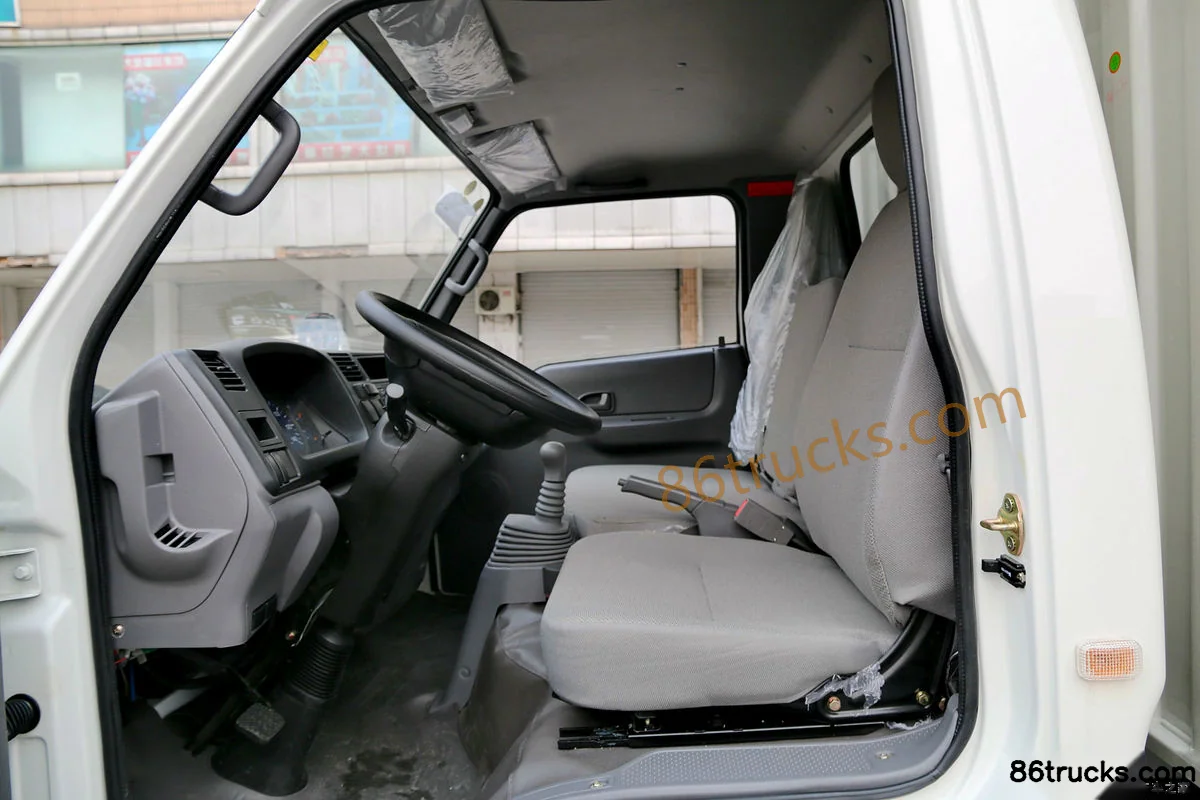

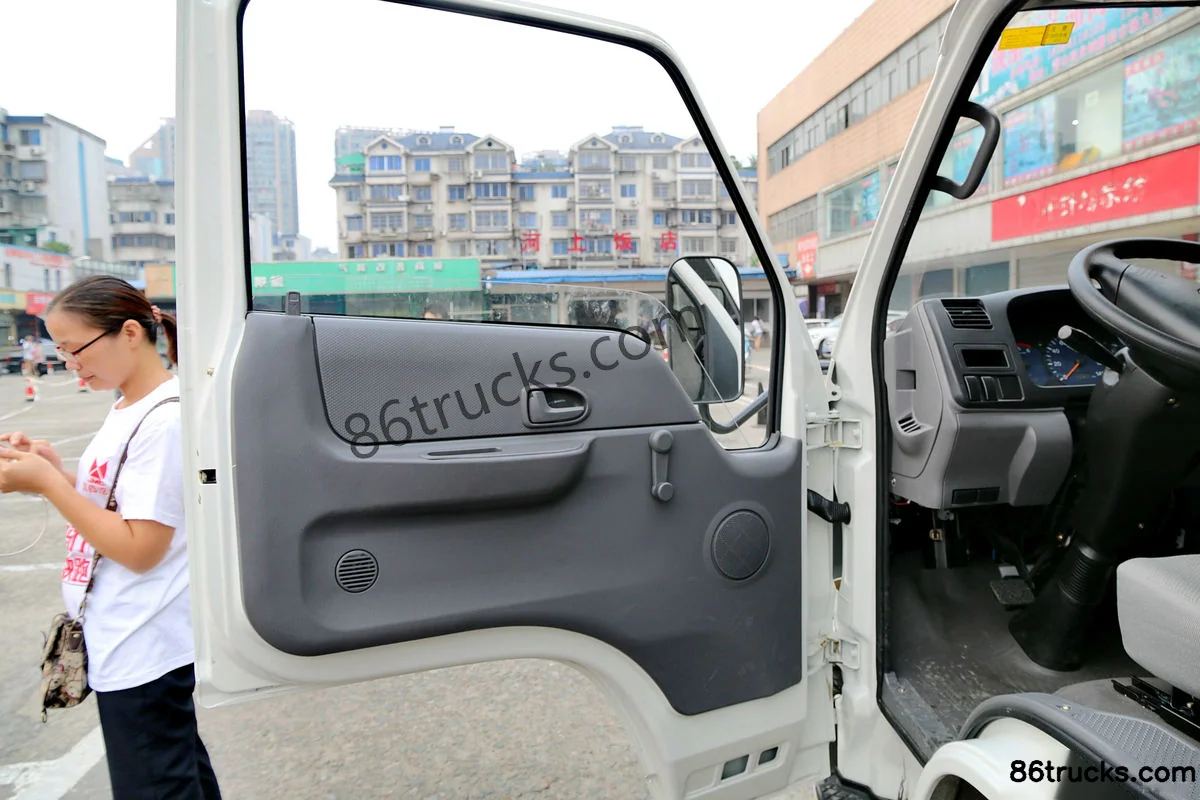

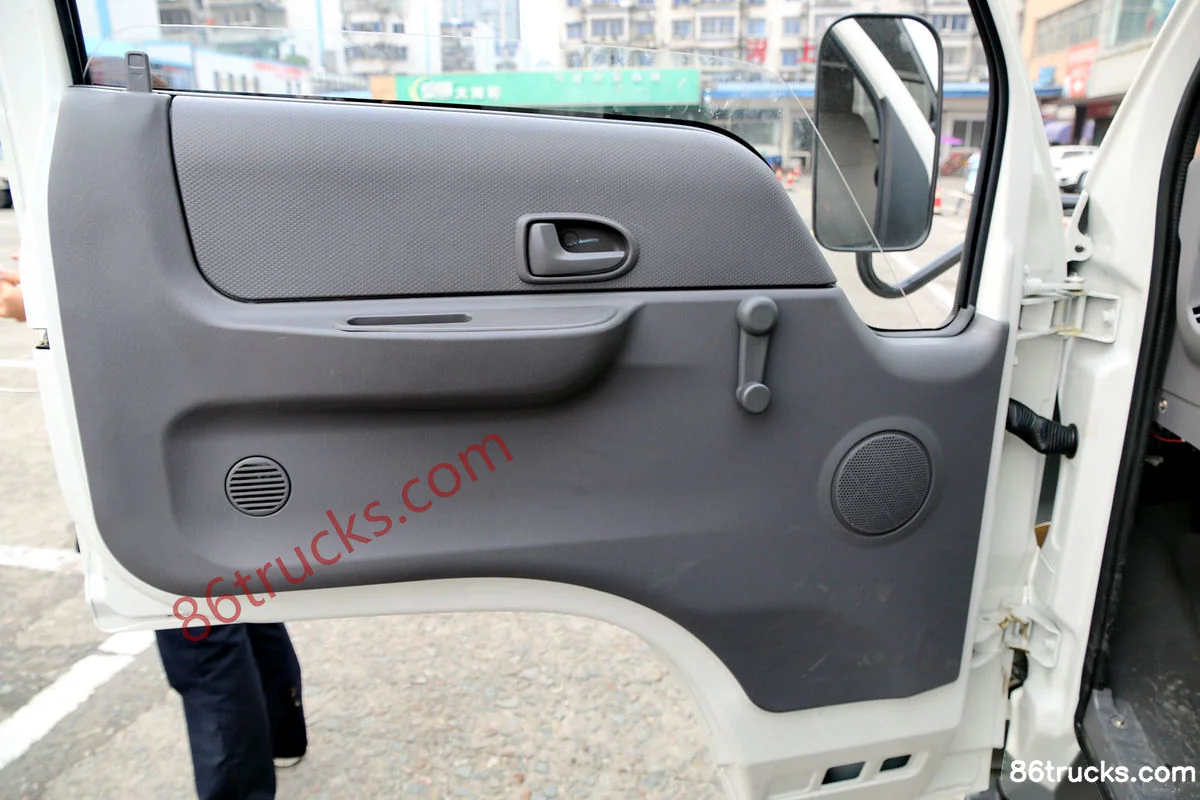

Cab3

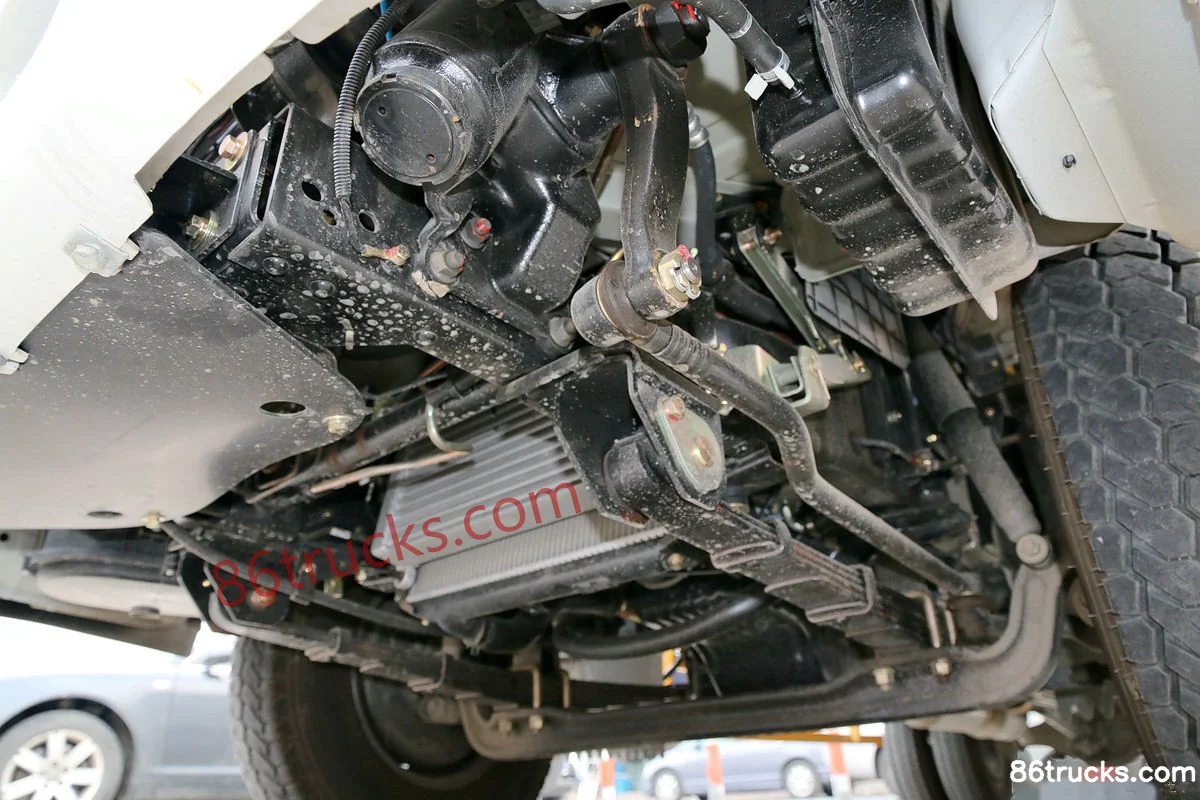

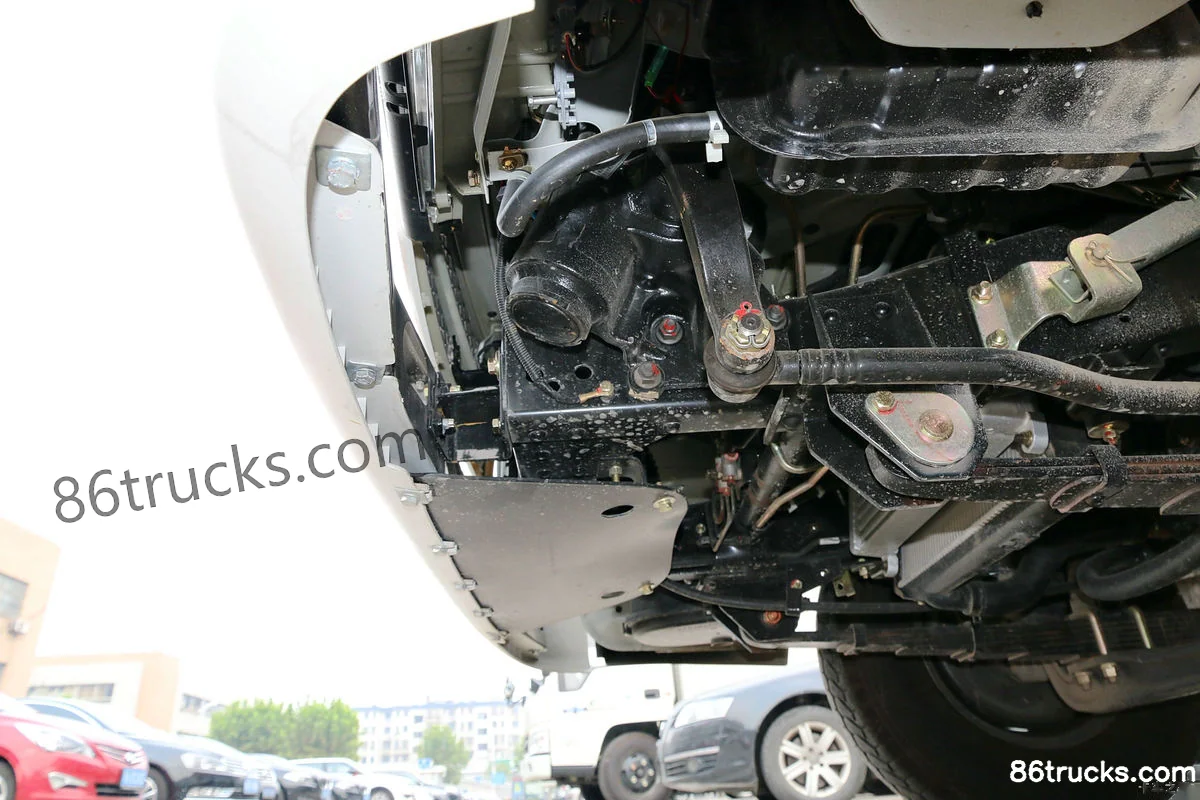

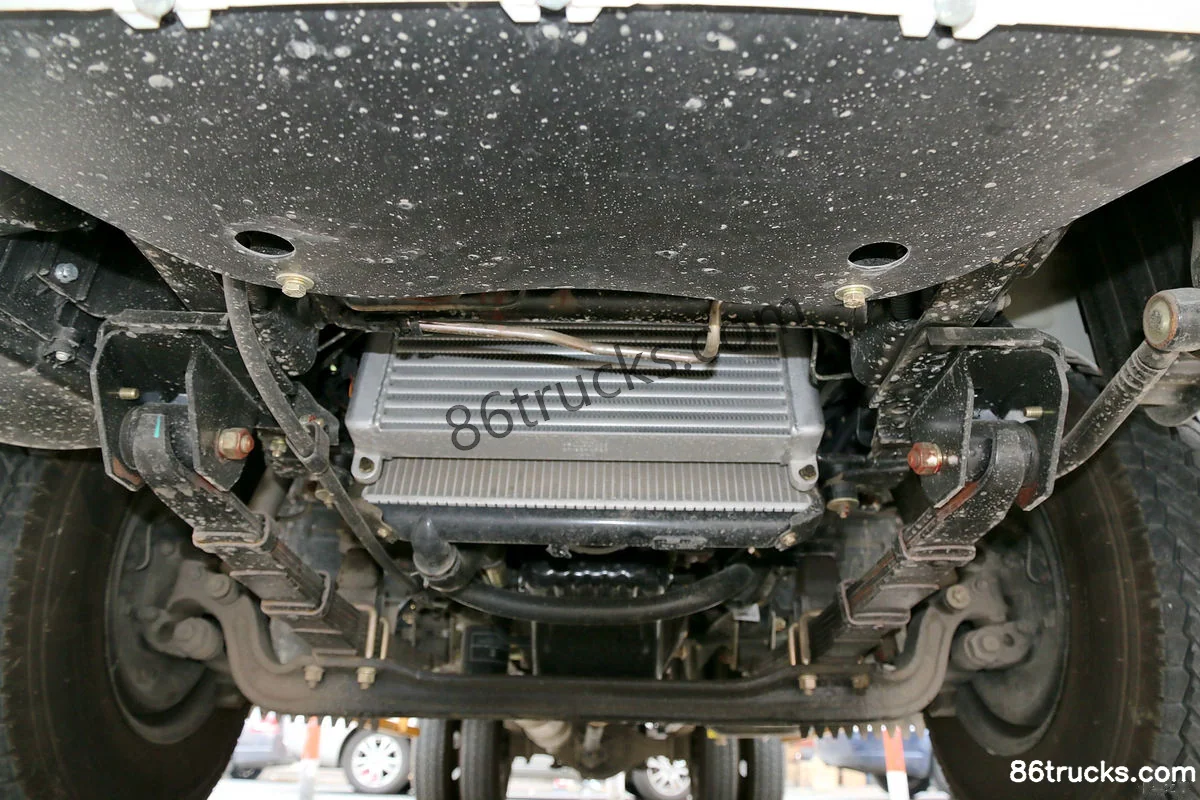

Chassis3

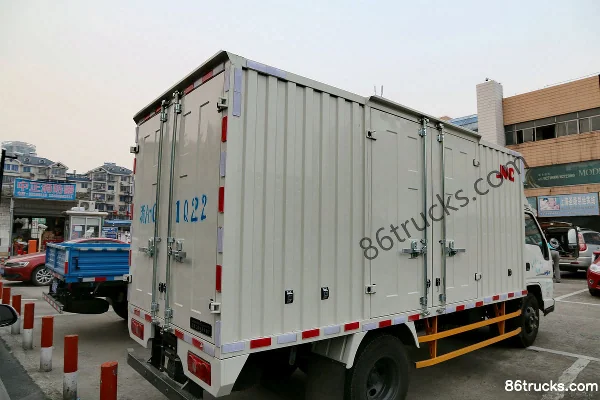

Body3

12 photos

FAQ

What is the export price of JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck, and what does it include?

JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck export reference is about From $12,500; MSRP is ¥9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck?

Key specs of JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck: Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck suited for?

JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck differ from other variants in the same series?

JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck belongs to JMC Shunda narrow-body light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda High-spec 109 hp 4X2(6 wheels) 4.22m single-row van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
