Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck

Export reference
From $16,736
MSRP ¥12.05M CNY
Horsepower: 154
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 3.8ton
seating capacity: 3Personnel
Rated payload: 4.285ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck is a Medium-duty truck featuring 5.15m cargo length, stake body cargo body, 3Personnel volume and 4.285t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 154 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1085VEPEA-2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3800mm
Box length class: 5.2m
engine: FotonISF3.8S4R154
transmission: WLYWLY6T53
Rear Axle Ratio: 4.333
Cab length: 6.999m
Cab width: 2.25m
Cab height: 2.4m
Front track width: 1665mm
rear track: 1615mm
Curb Weight: 3.8ton
Rated payload: 4.285ton
GVWR: 8.28ton
Max. speed: 100km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 14°
market segment: Building materials, agricultural products
Front/rear suspension: 1.135/2.064m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8S4R154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 500N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection
Transmission Parameters
Transmission Model: WLYWLY6T53
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.15m
Cargo box width: 2.05m
Cargo box height: 0.55m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Sunroof: Manual sunroof
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 2610kg
rear axle description: NPR
rear axle allowable load: 5670kg
Axle ratio: 4.333
Leaf spring count: 9/11+7

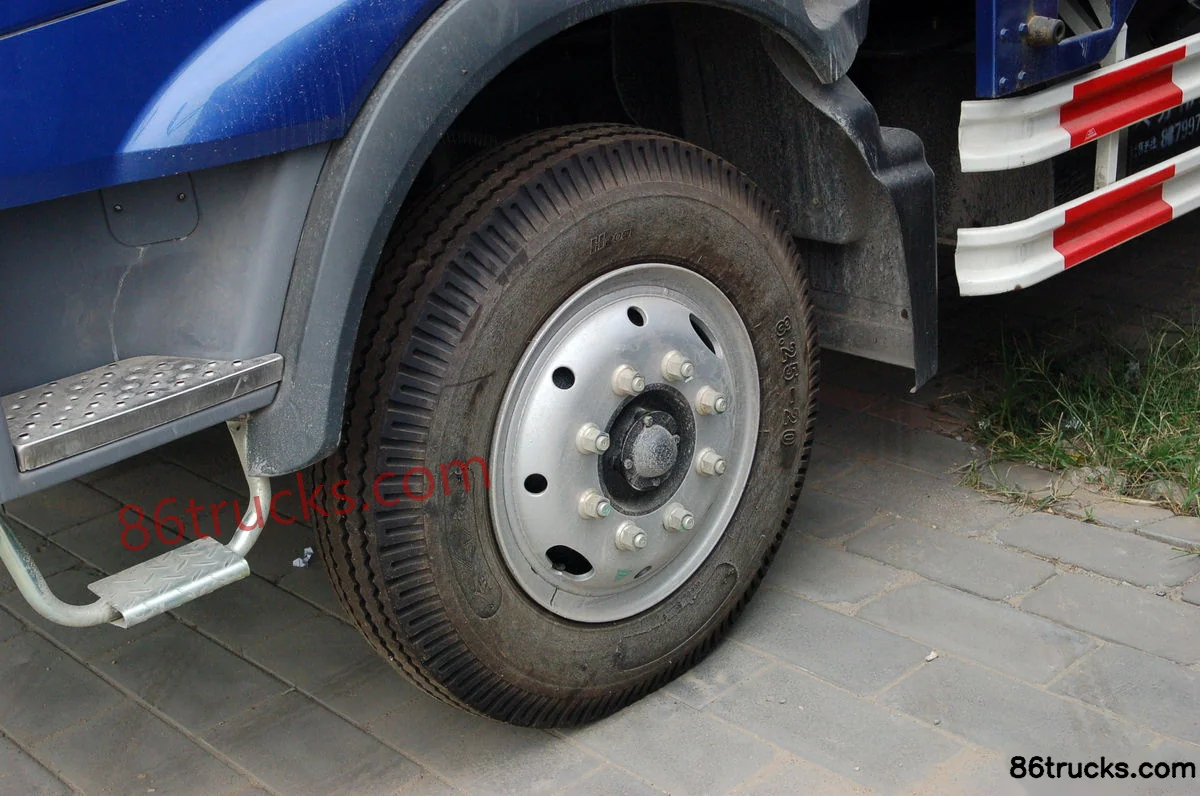

Tire
Tire Size: 8.25R16 (optional 7.50R16)
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Independent Heater:
Power Windows:
Service brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

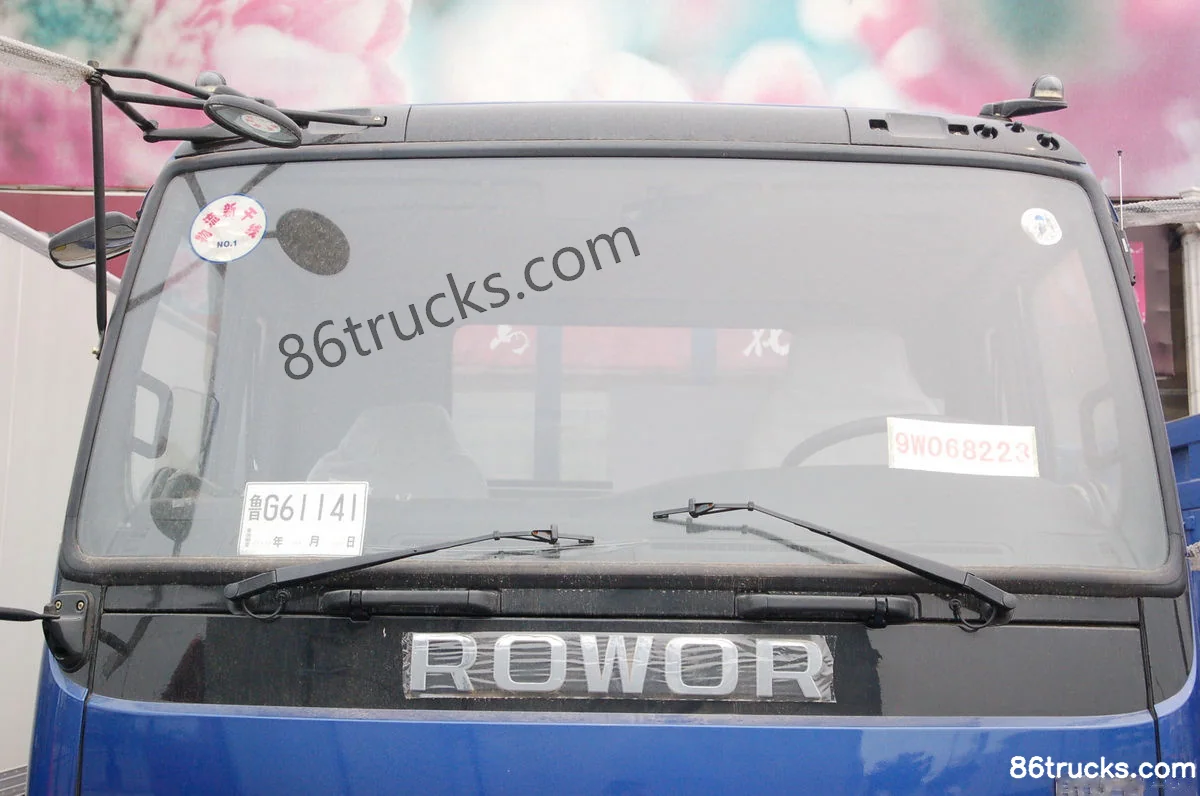

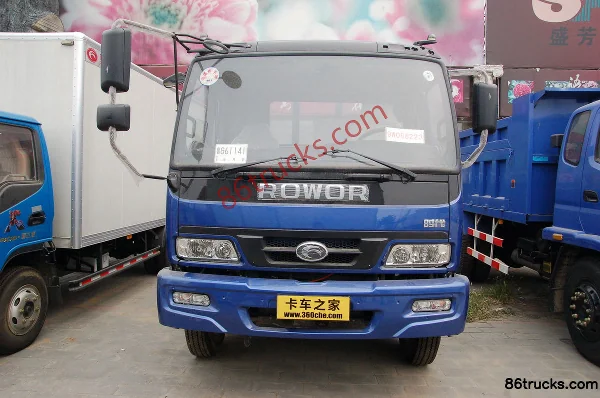

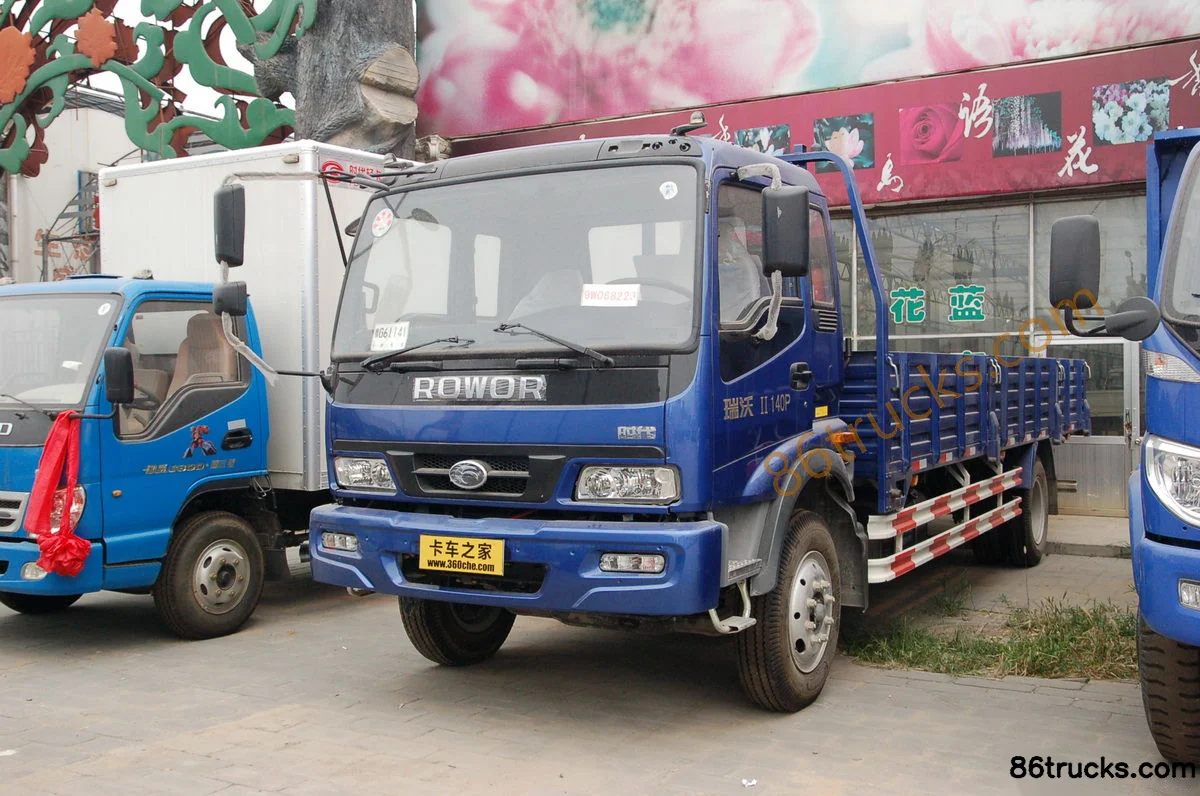

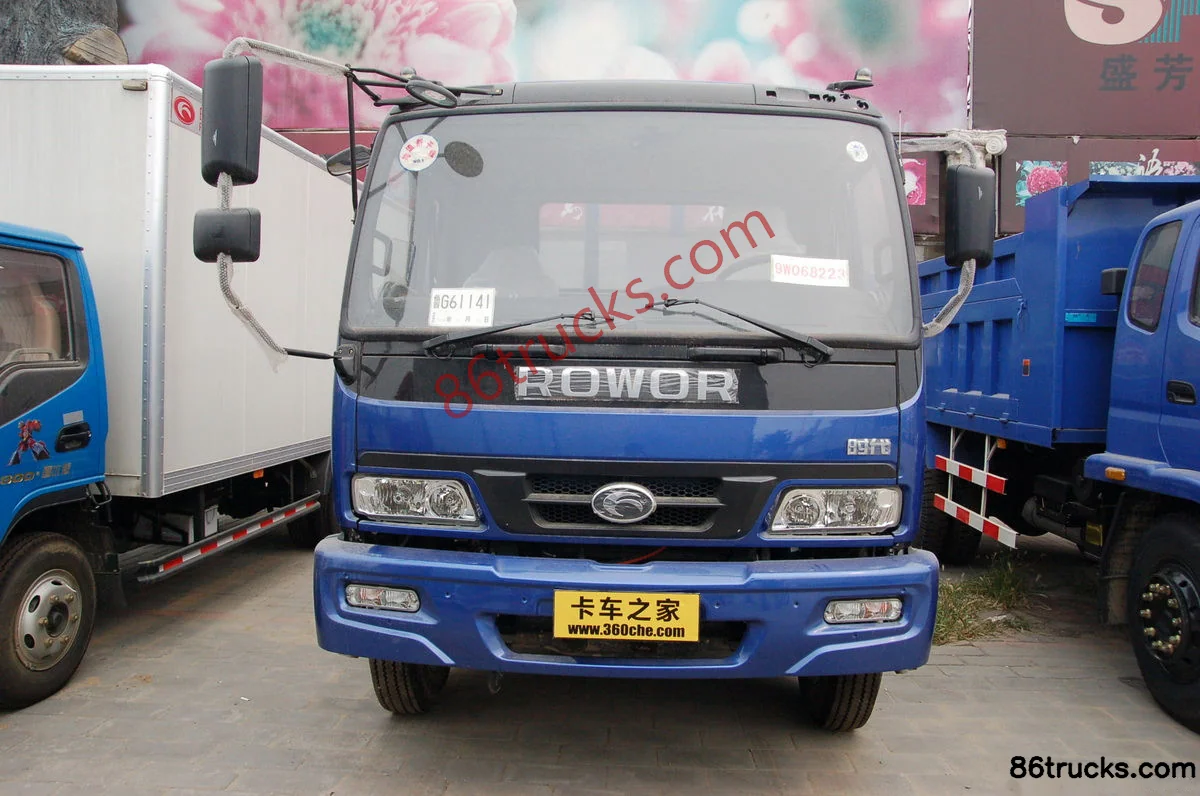

Exterior3

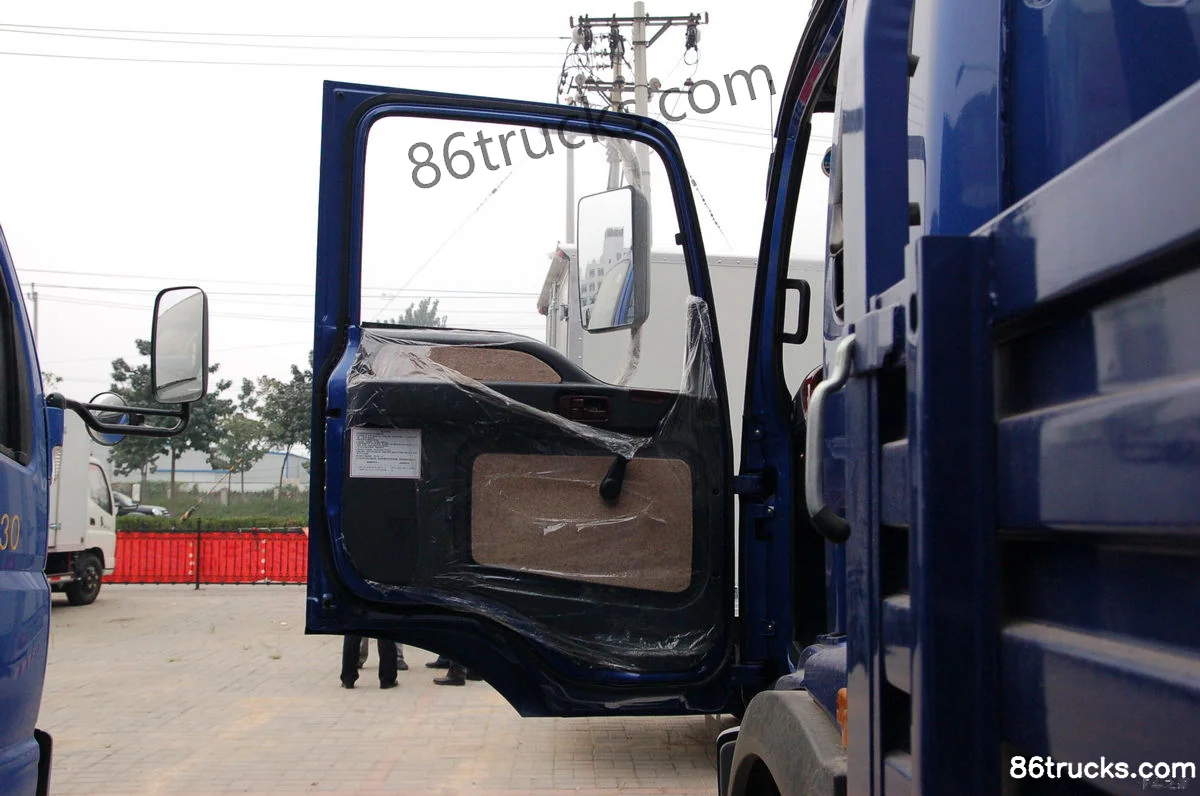

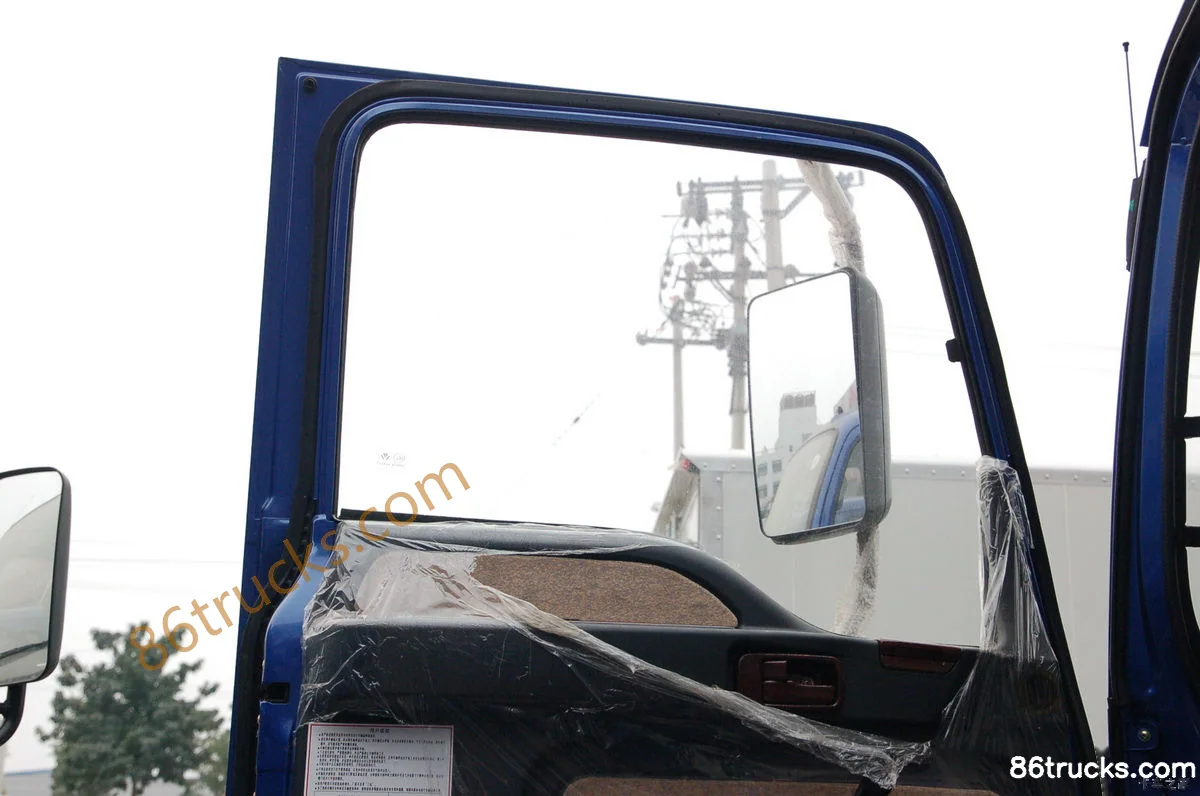

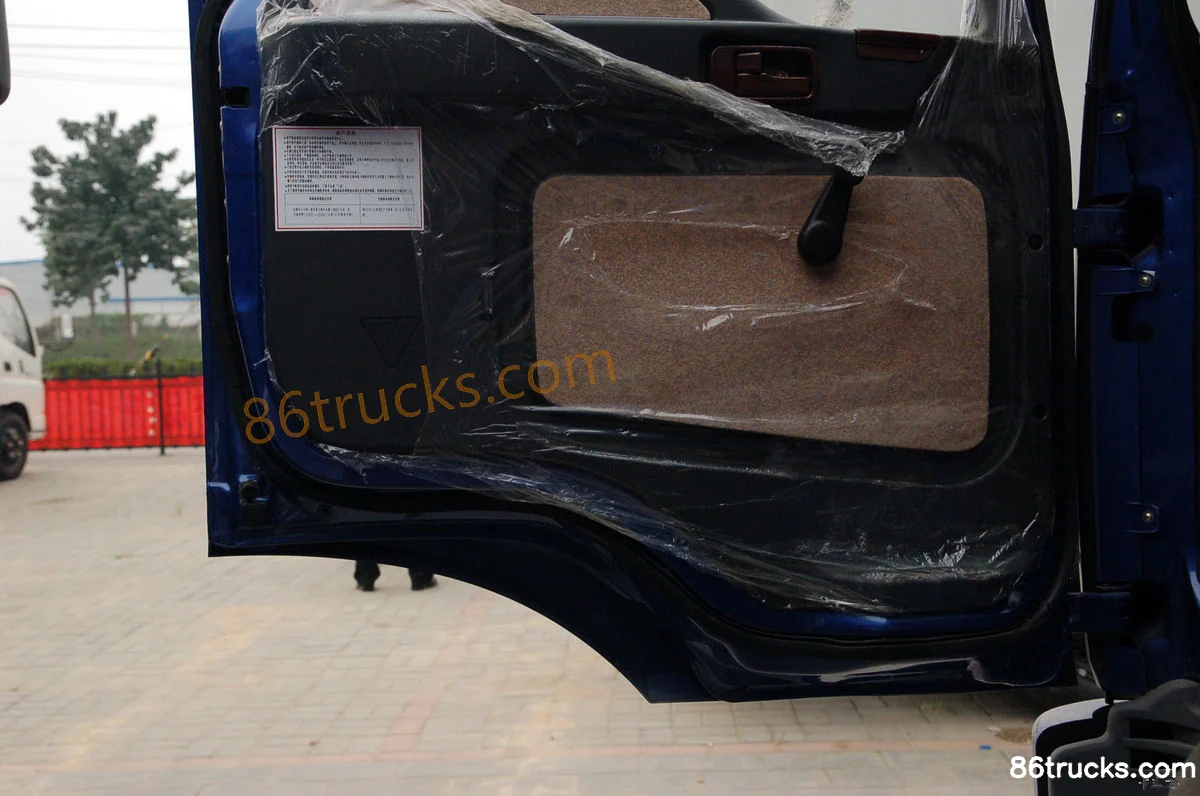

Cab3

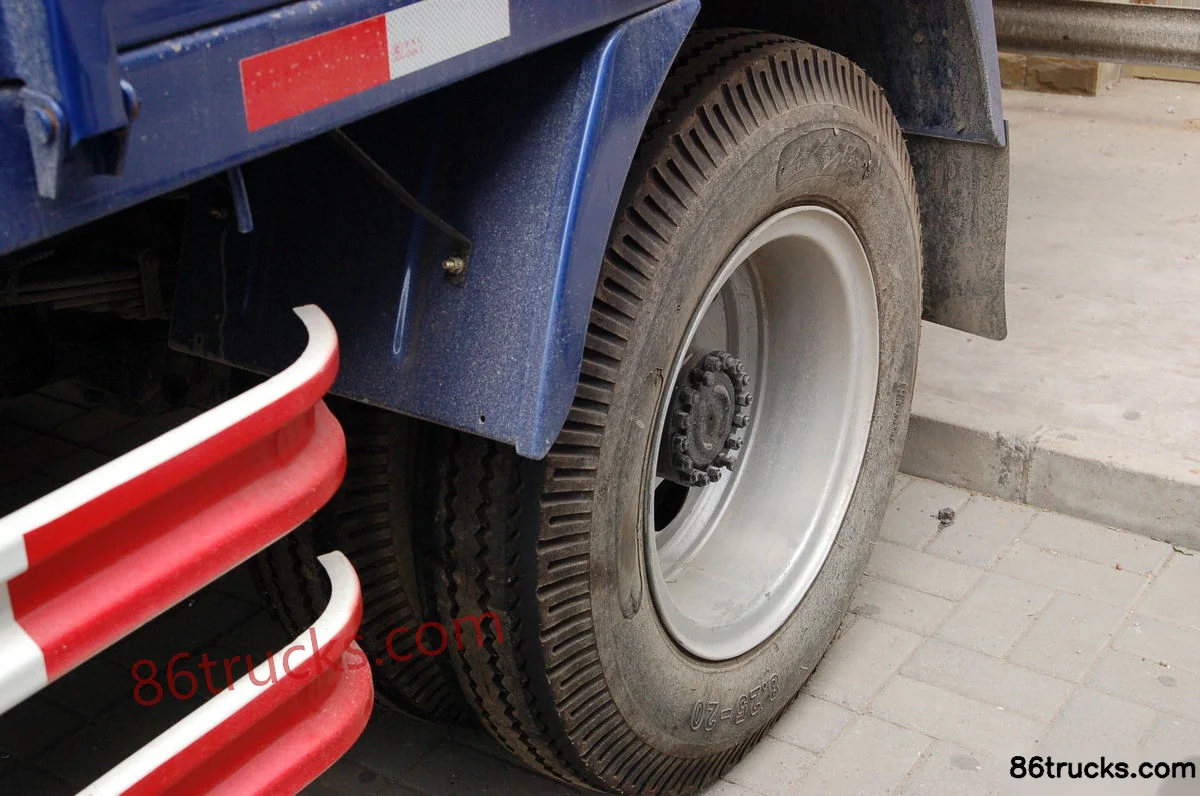

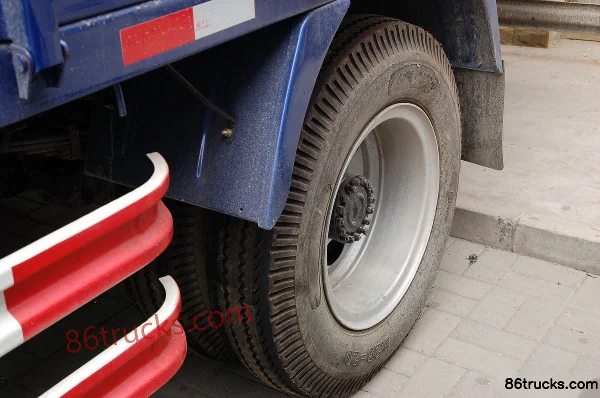

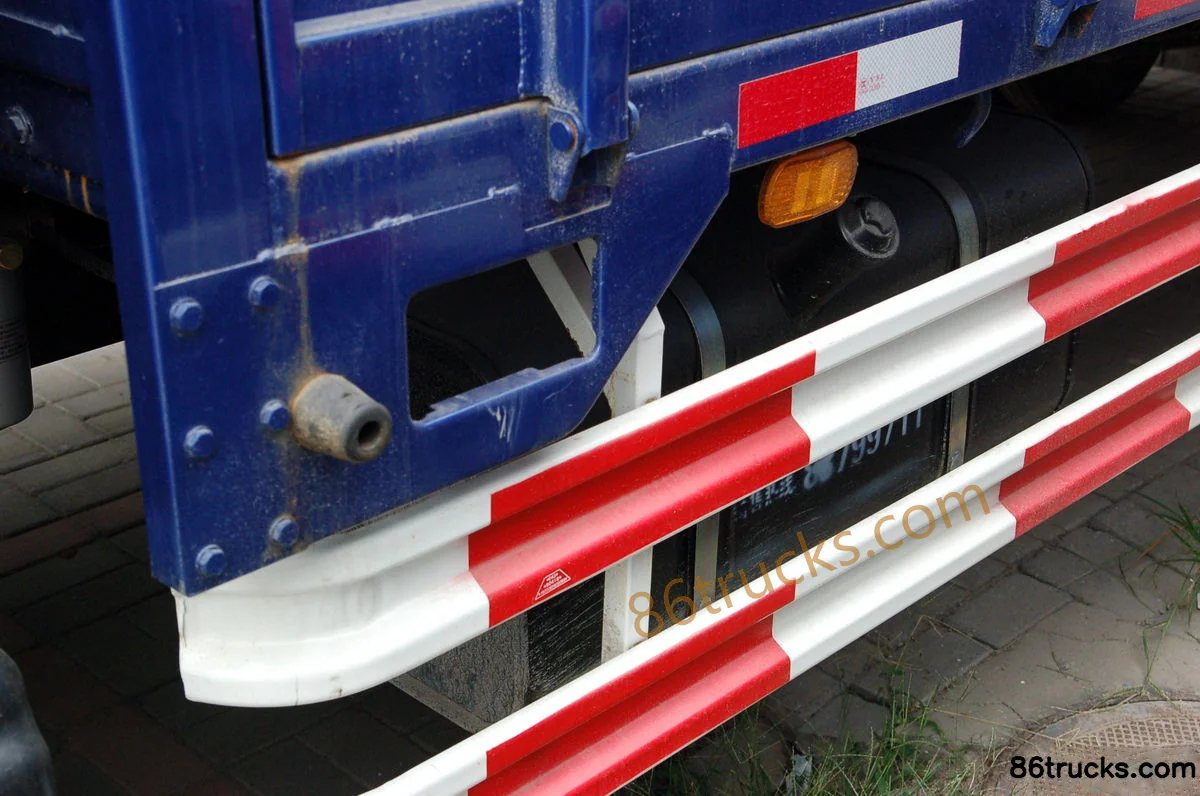

Chassis3

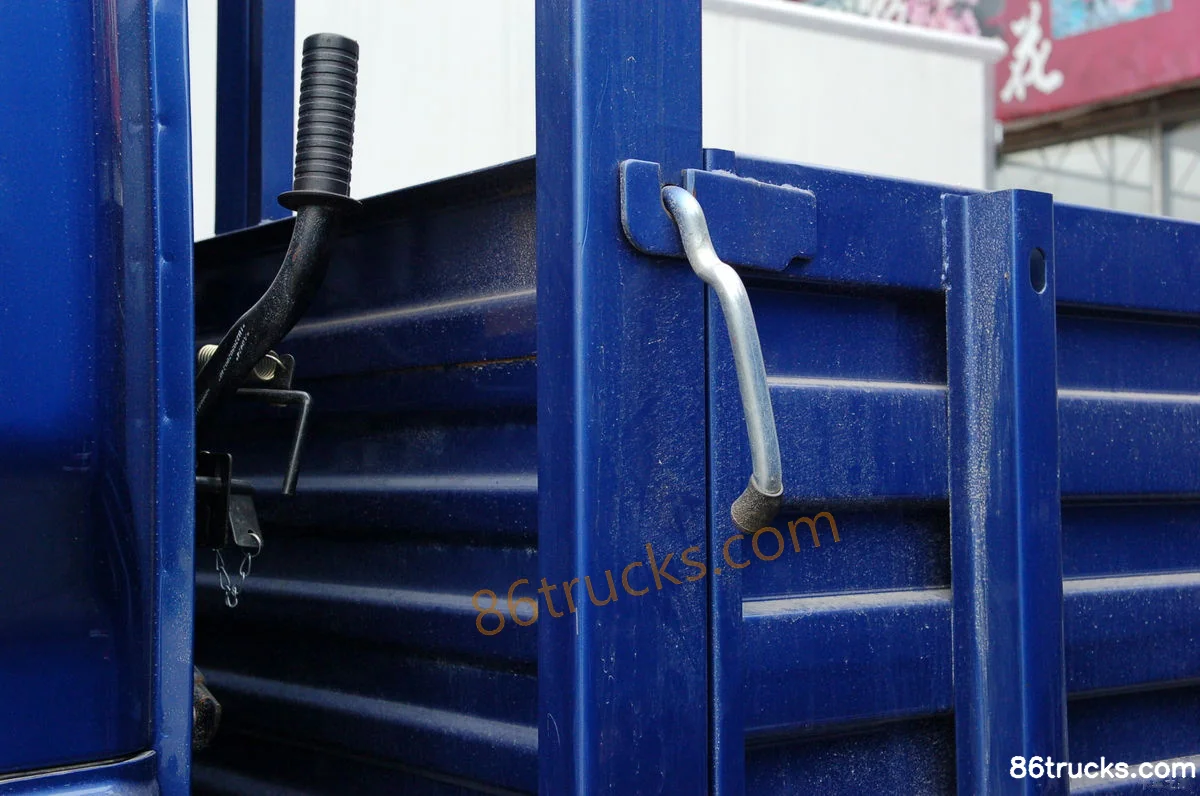

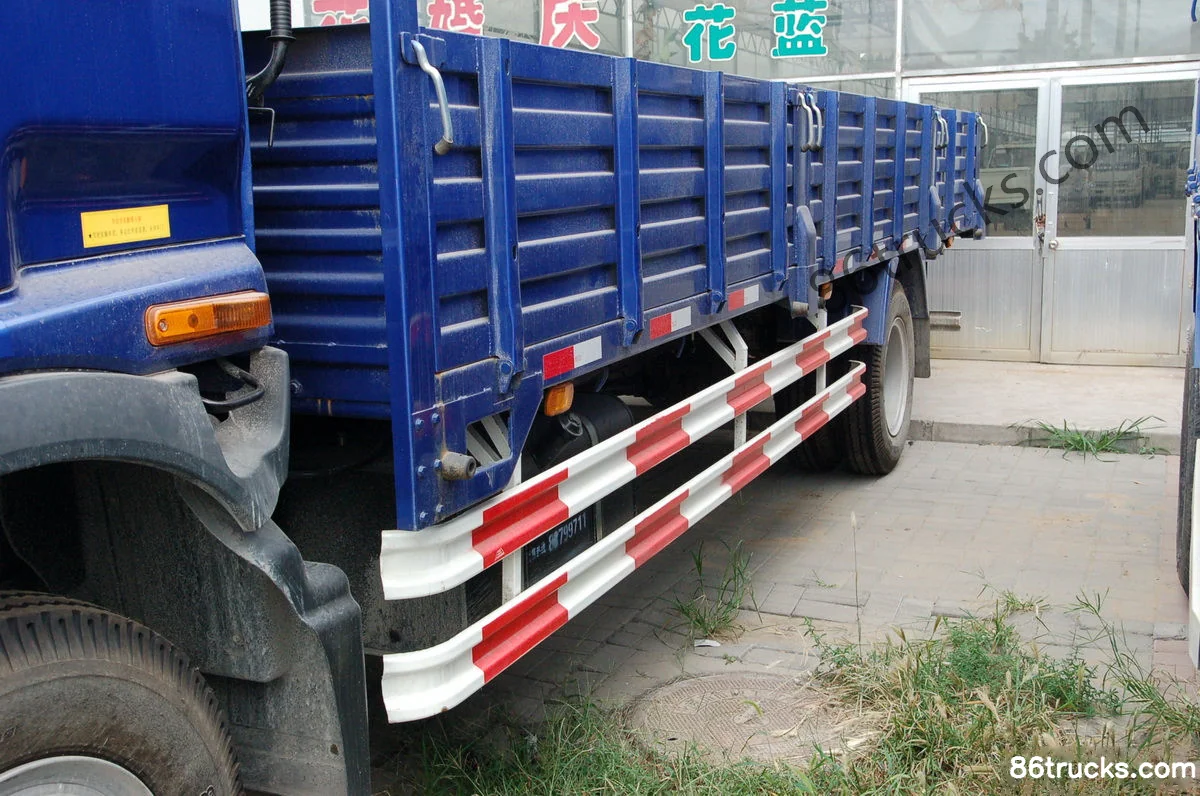

Body3

12 photos

FAQ

What is the export price of Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck, and what does it include?

Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck export reference is about From $16,736; MSRP is ¥12.05M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck?

Key specs of Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck: Drive: 4x2; Horsepower: 154 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck suited for?

Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck differ from other variants in the same series?

Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruizhong Medium Truck 154 hp 4X2(6 wheels) 5.2m single-row flatbed cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
