Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track)

Export reference
From $8,917
MSRP ¥6.42M CNY
Horsepower: 102
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D19
Transmission: Mengwo
Curb Weight:: 2.12ton
seating capacity: 2Personnel
Rated payload: 1.91ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track) is a mini truck featuring 3.51m cargo length, stake body cargo body, 2Personnel volume and 1.91t payload. On the powertrain side, it comes with a Yunnei Dewei D19 engine, 102 hp, 4X2 (6 wheels) drive and China V emissions.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ1040S6BDB
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.5m
engine: Yunnei PowerD19TCIE1
transmission: Mengwo5T28S2Q05
Cab length: 5.99m
Cab width: 1.84m
Cab height: 2.1m
Front track width: 1420mm
rear track: 1440mm
Curb Weight: 2.12ton
Rated payload: 1.91ton
GVWR: 4.16ton
Max. speed: 95km/h
Origin: Xiangyang, Hubei
tonnage class: mini truck
Approach angle: 19°
departure angle: 14°
Front/rear suspension: 1.2/1.61m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Engine info: Yunnei Dewei D19
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Mengwo5T28S2Q05
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.51m
Cargo box width: 1.86m
Cargo box height: 0.4m
*Cargo box interior width: 1.8600000143051
Cab parameters
Cab width: 1750mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1664kg
Frame Dimensions: 140mm
rear axle description: 3T
rear axle allowable load: 2496kg
Leaf spring count: 3/5+3,9/8+4
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
daytime running lights:

Photos

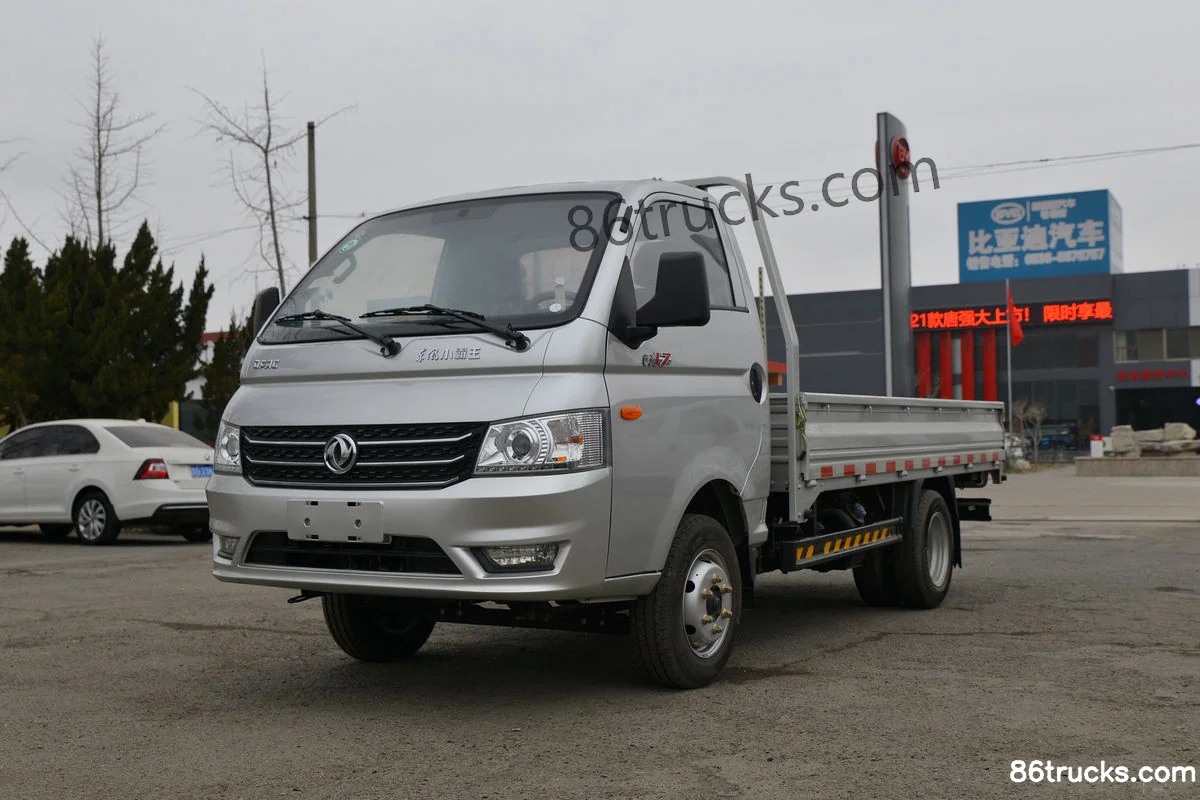

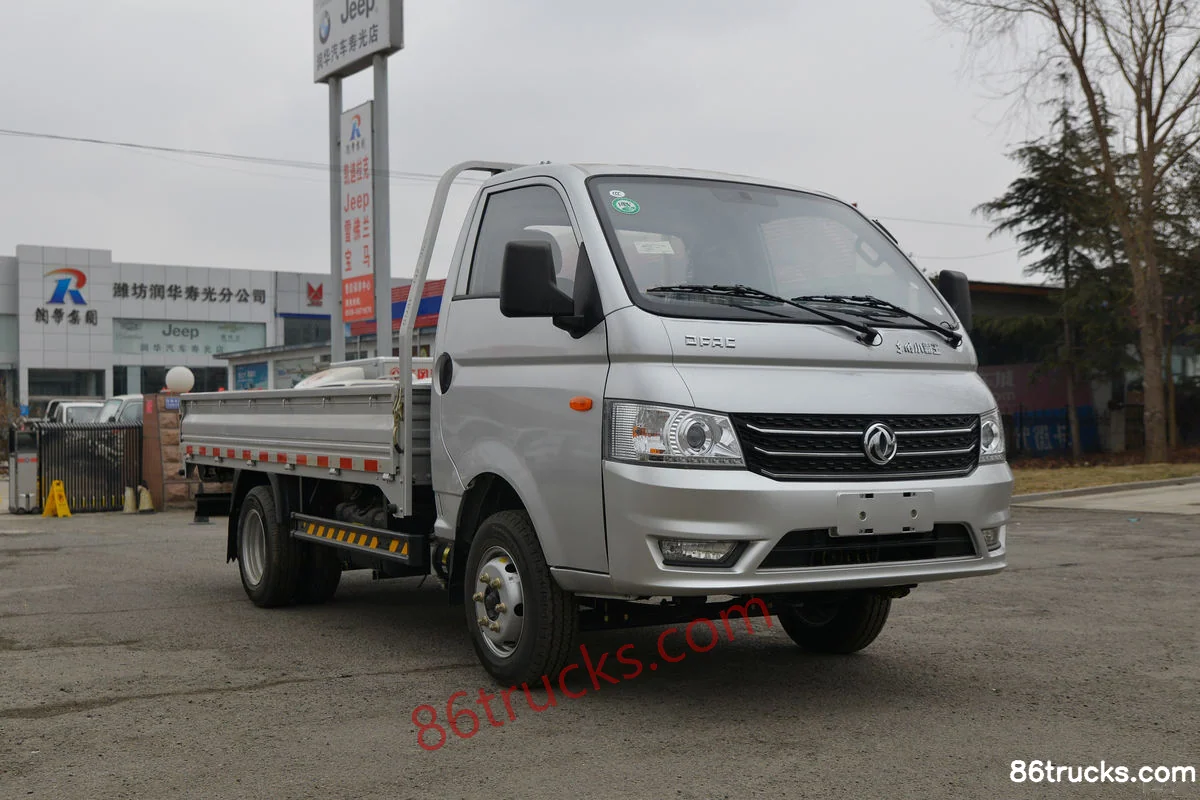

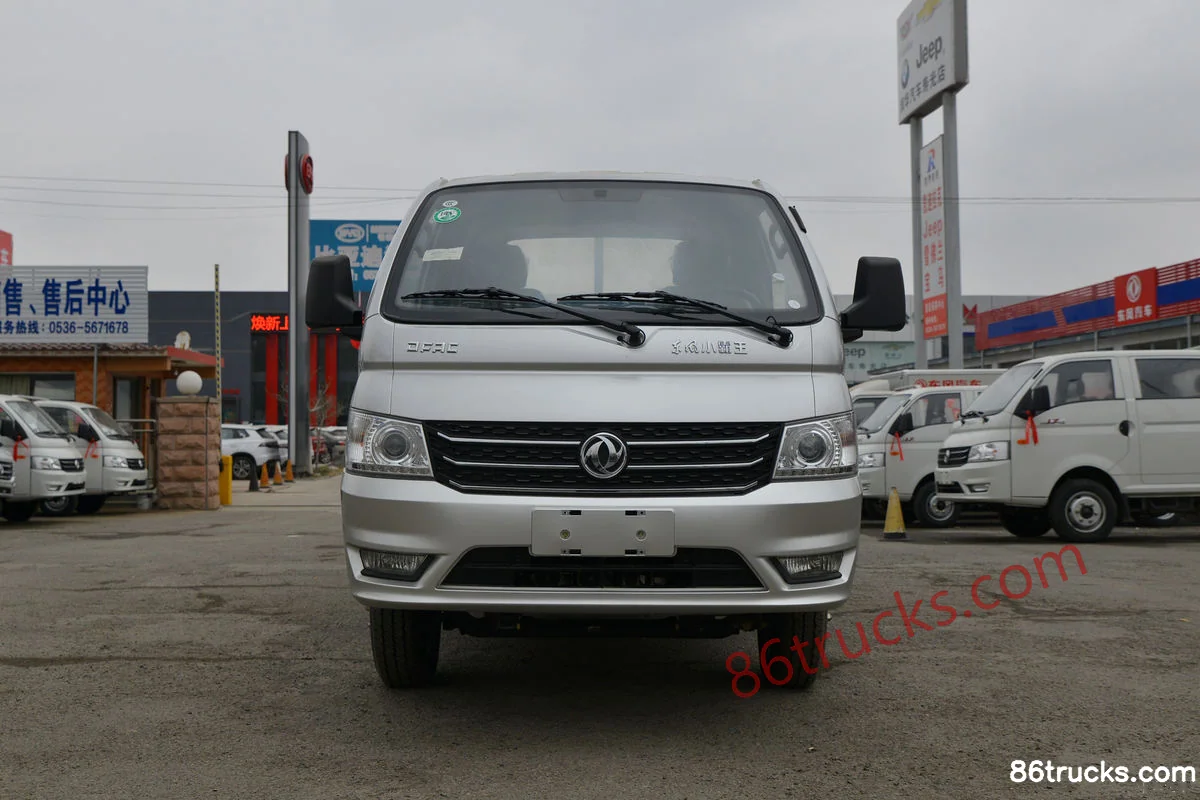

Exterior3

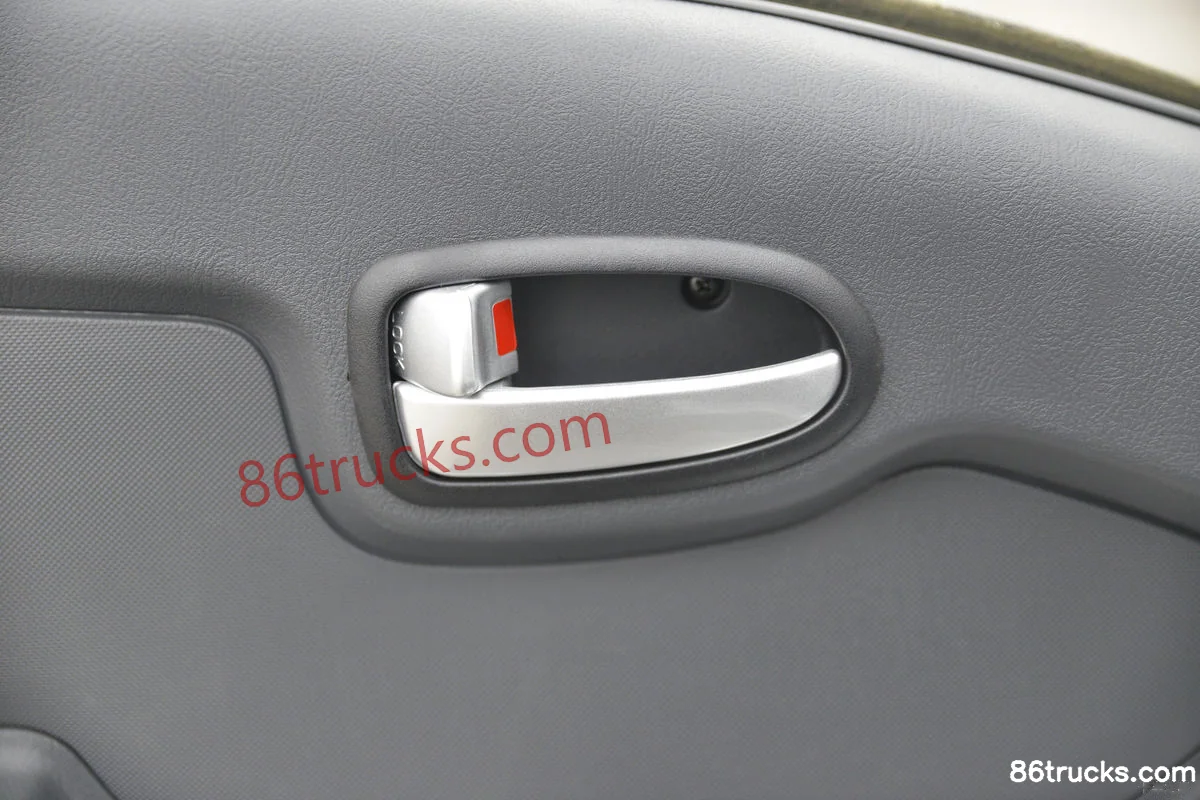

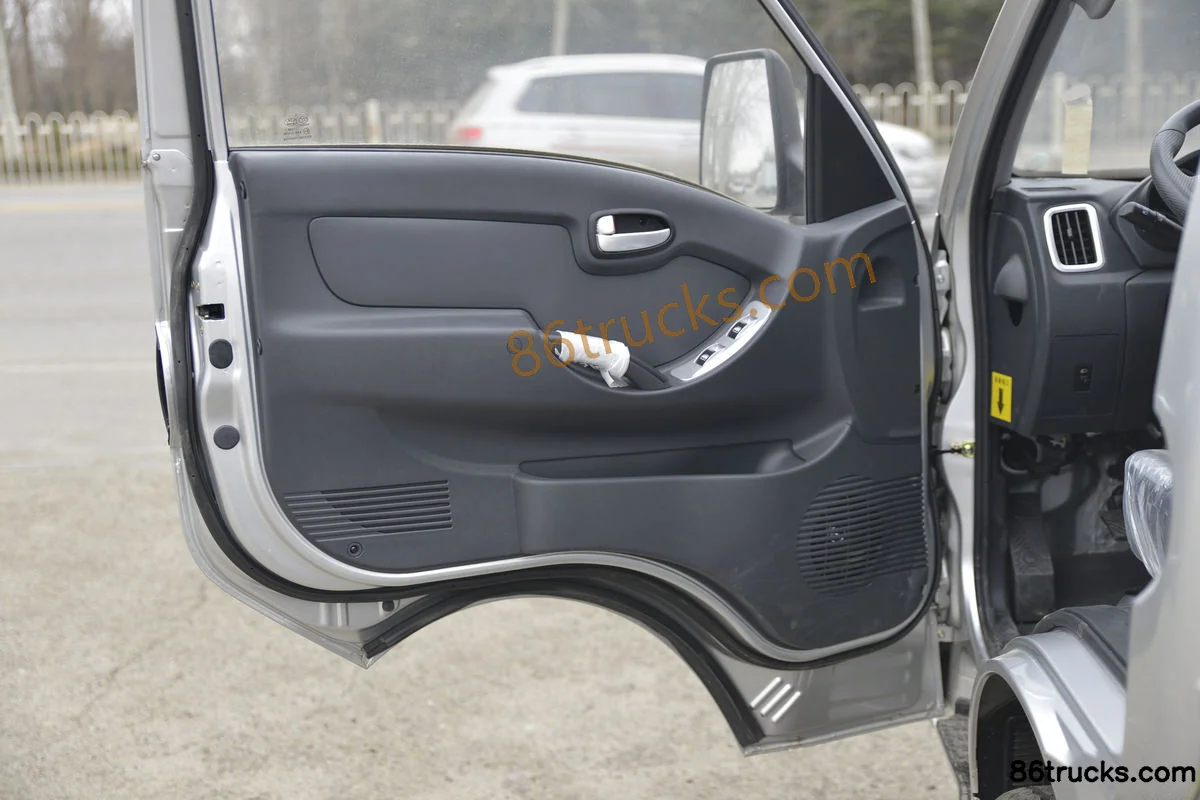

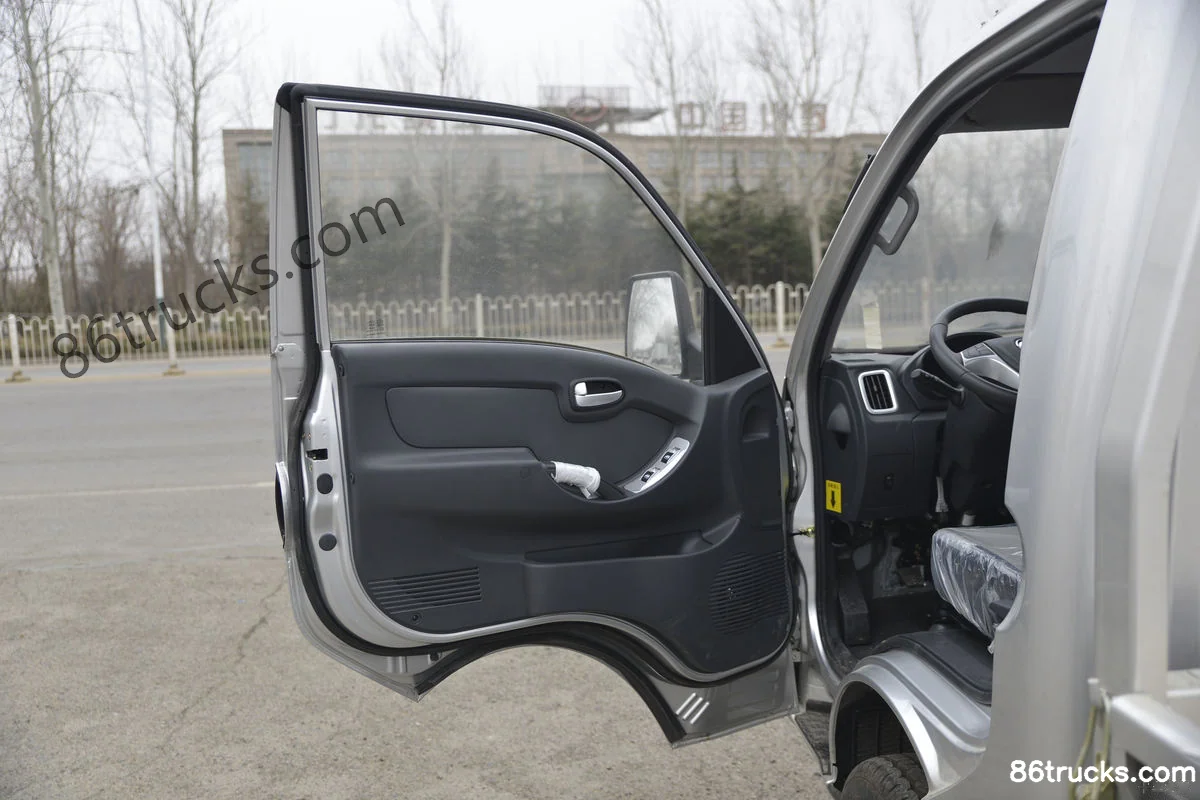

Cab3

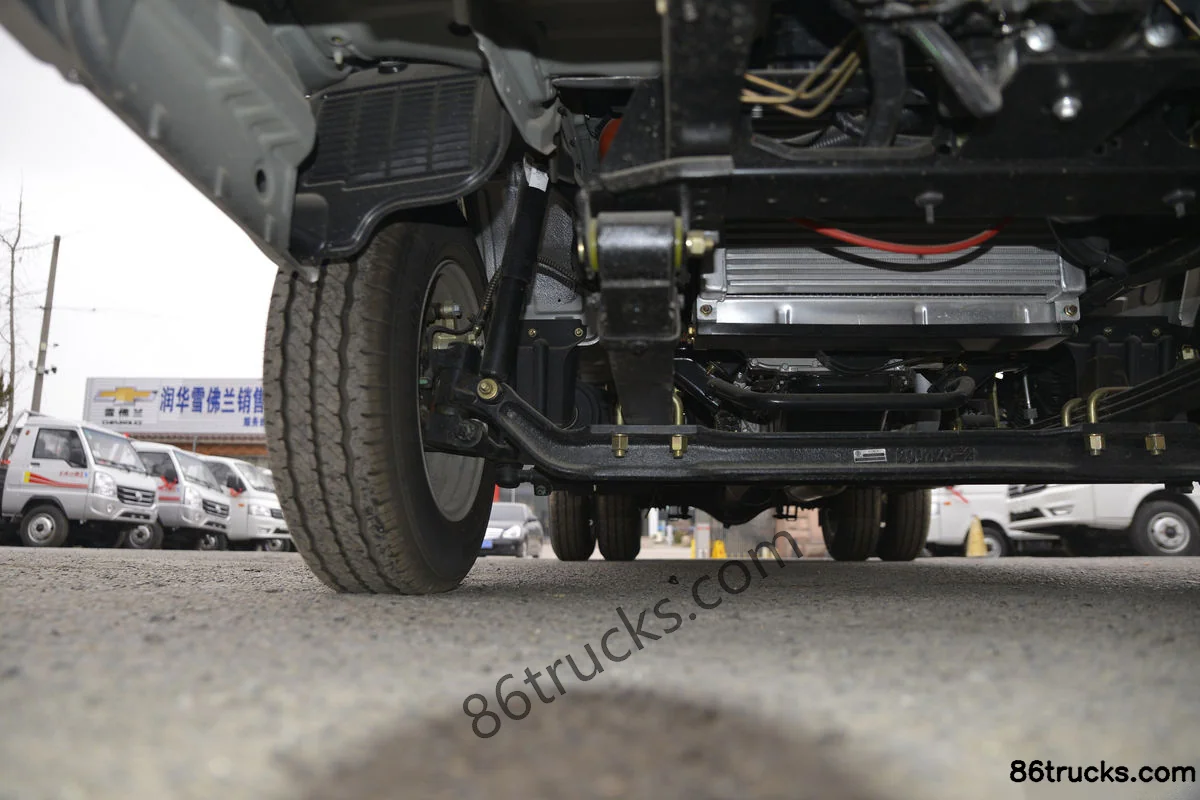

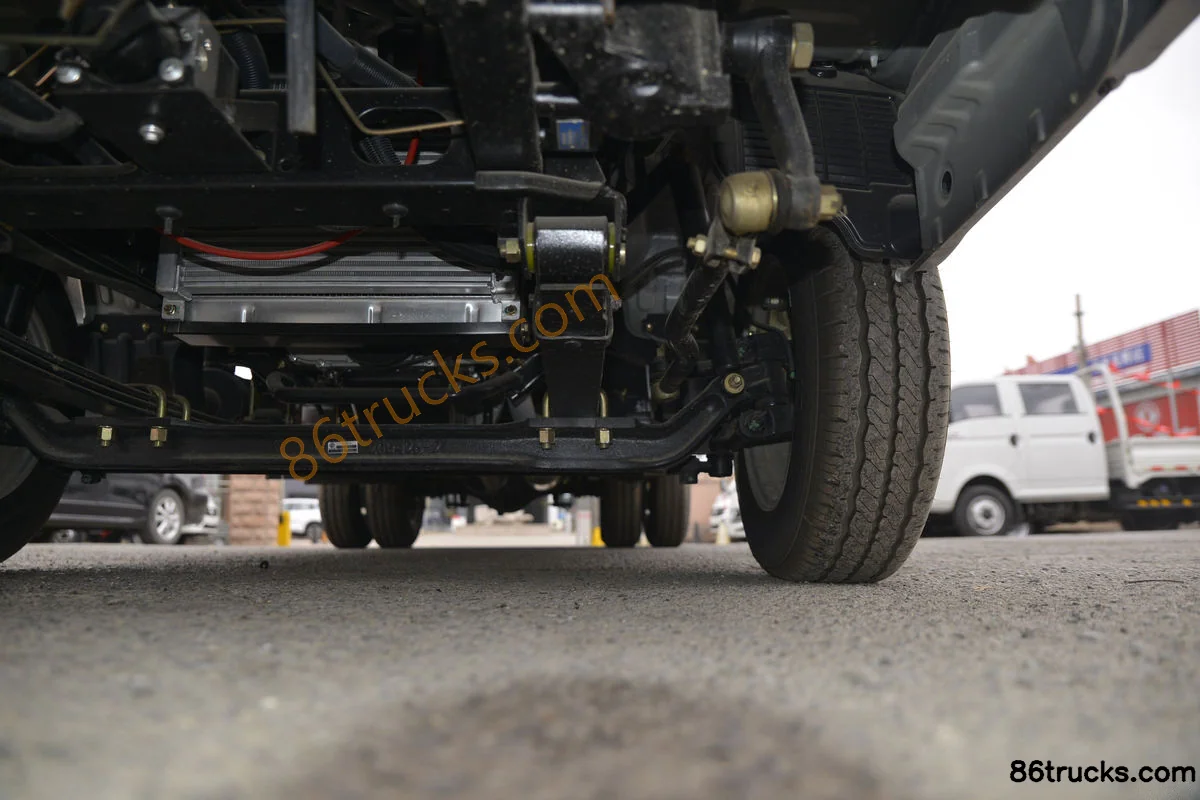

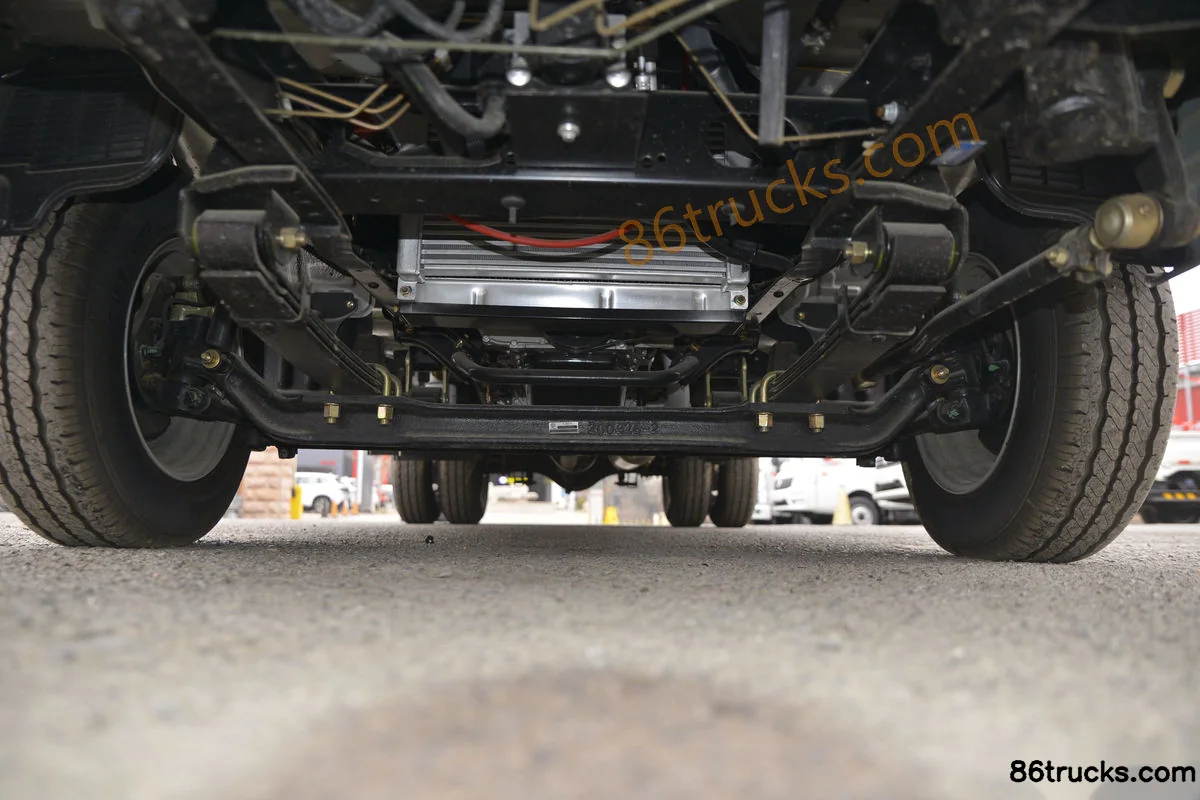

Chassis3

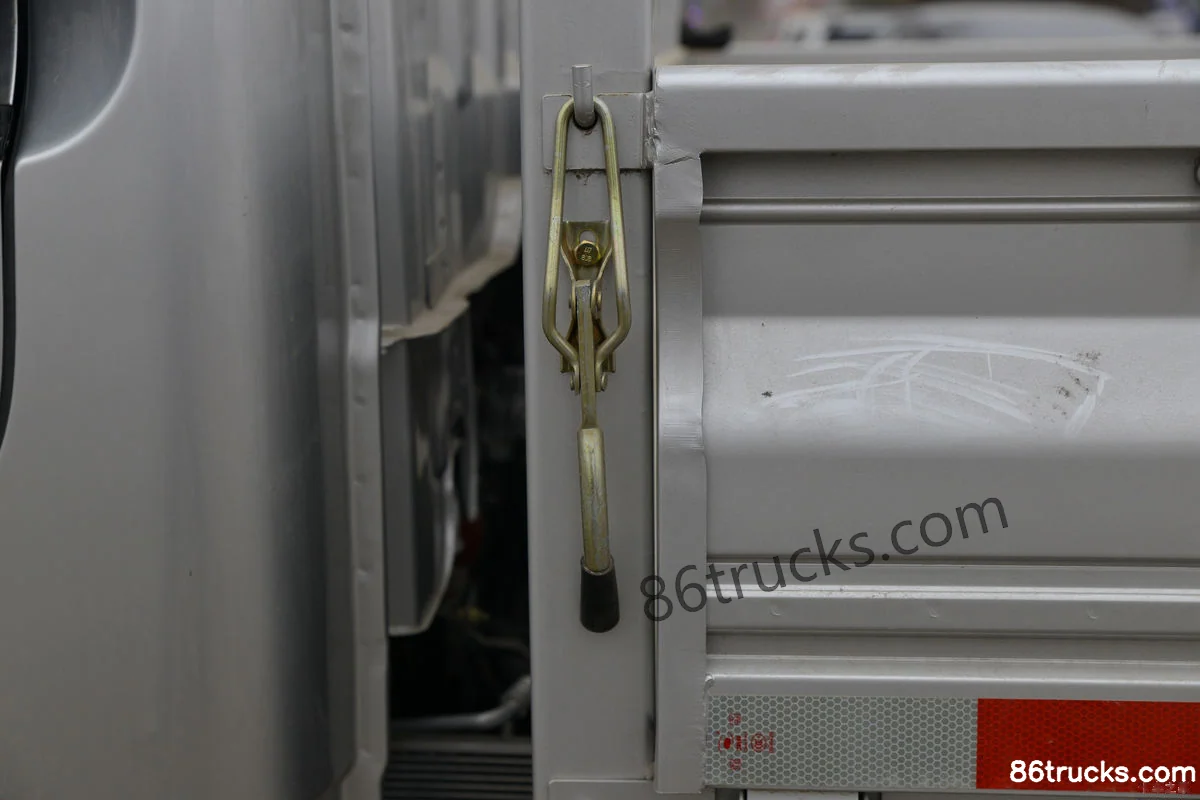

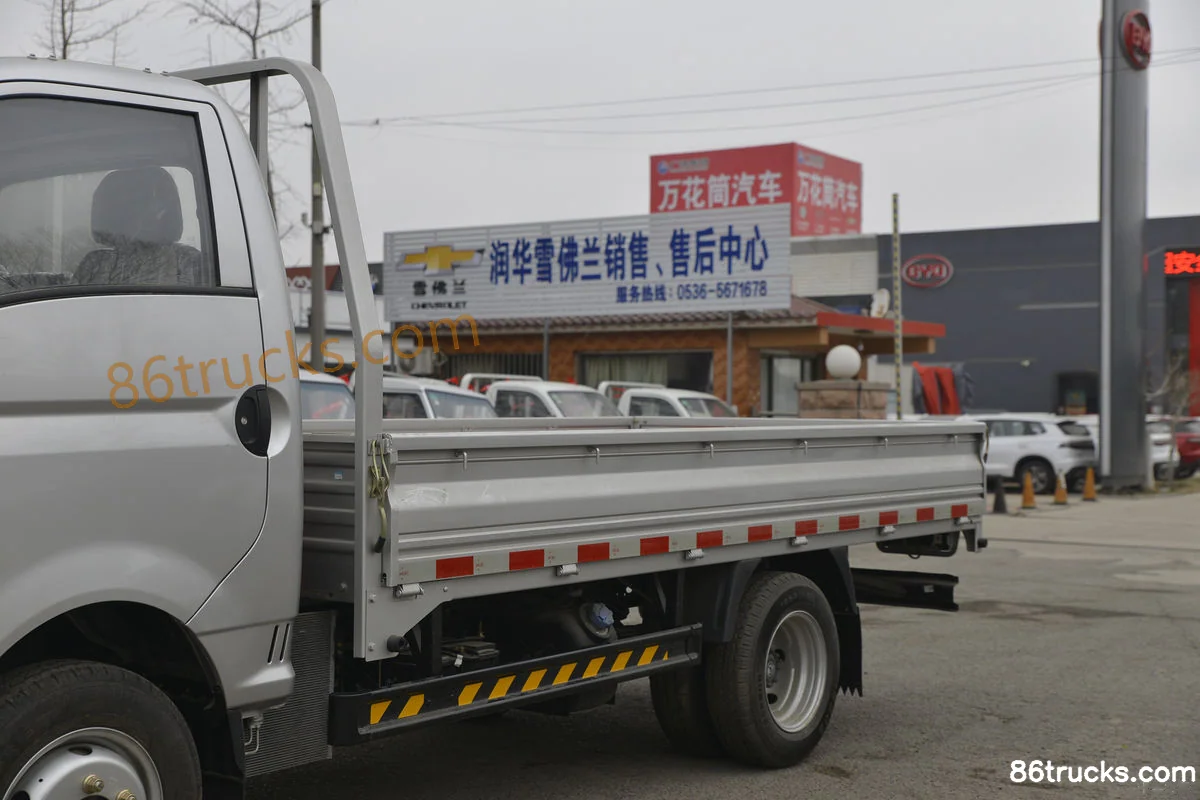

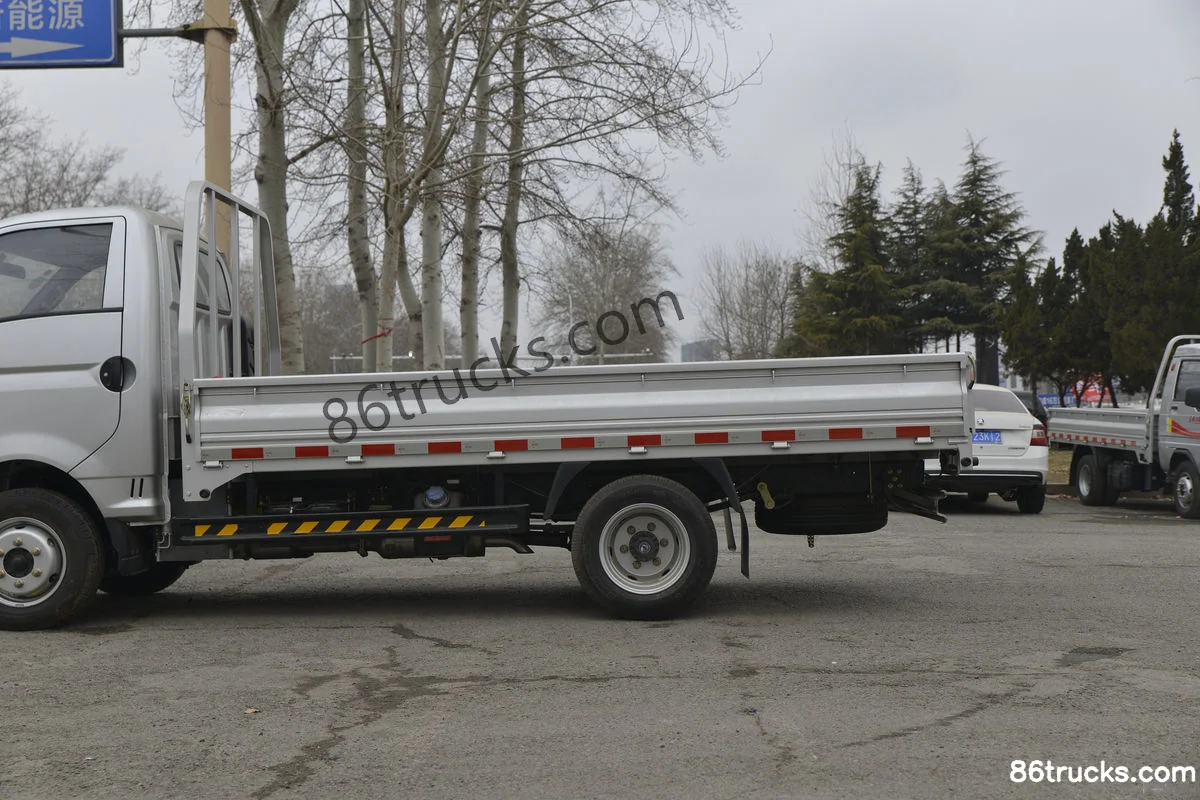

Body3

12 photos

FAQ

What is the export price of Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track), and what does it include?

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track) export reference is about From $8,917; MSRP is ¥6.42M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track)?

Key specs of Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track): Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D19; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track) suited for?

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track) differ from other variants in the same series?

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track) belongs to Dongfeng W17 micro truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 3.51m Single Row Flatbed Micro Truck (Wide Track)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
