Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI)

Export reference
MSRP N/A
Horsepower: 115
Emission: China VI
Fuel: gasoline
Engine: Dongan gasoline 1.5L
Transmission: Dongan
Curb Weight:: 1.325ton
seating capacity: 5Personnel
Rated payload: 1.2ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI) is a mini truck featuring 2.3m cargo length, stake body cargo body, 5Personnel volume and 1.2t payload. Its segment focus covers General dry cargo, matching those duty cycles. On the powertrain side, it comes with a Dongan gasoline 1.5L engine, 115 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 115 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1030V4AV6-01
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3170mm
Box length class: 2.3m
engine: DonganDAM15KR
transmission: DonganDAT18R
Rear Axle Ratio: 4.778
Cab length: 5.12m
Cab width: 1.68m
Cab height: 1.92m
Front track width: 1338mm
rear track: 1375mm
Curb Weight: 1.325ton
Rated payload: 1.2ton
GVWR: 2.85ton
Max. speed: 100km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 34°
departure angle: 26°
market segment: General dry cargo
Remarks: Optional air conditioning
Front/rear suspension: 0.65/1.345m
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAM15KR
Engine info: Dongan gasoline 1.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.498L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Transmission Parameters
Transmission Model: DonganDAT18R
Transmission Brand: Dongan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.3m
Cargo box width: 1.56m
Cargo box height: 0.36m
*Cargo box interior width: 1.5599999427795
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1305kg
rear axle description: 102
rear axle allowable load: 1545kg
Axle ratio: 4.778
Leaf spring count: -/5
Tire
Tire Size: 175R14LT 8PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Optional manual.
Power Windows:
Reverse Camera:
Electronic Central Lock:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

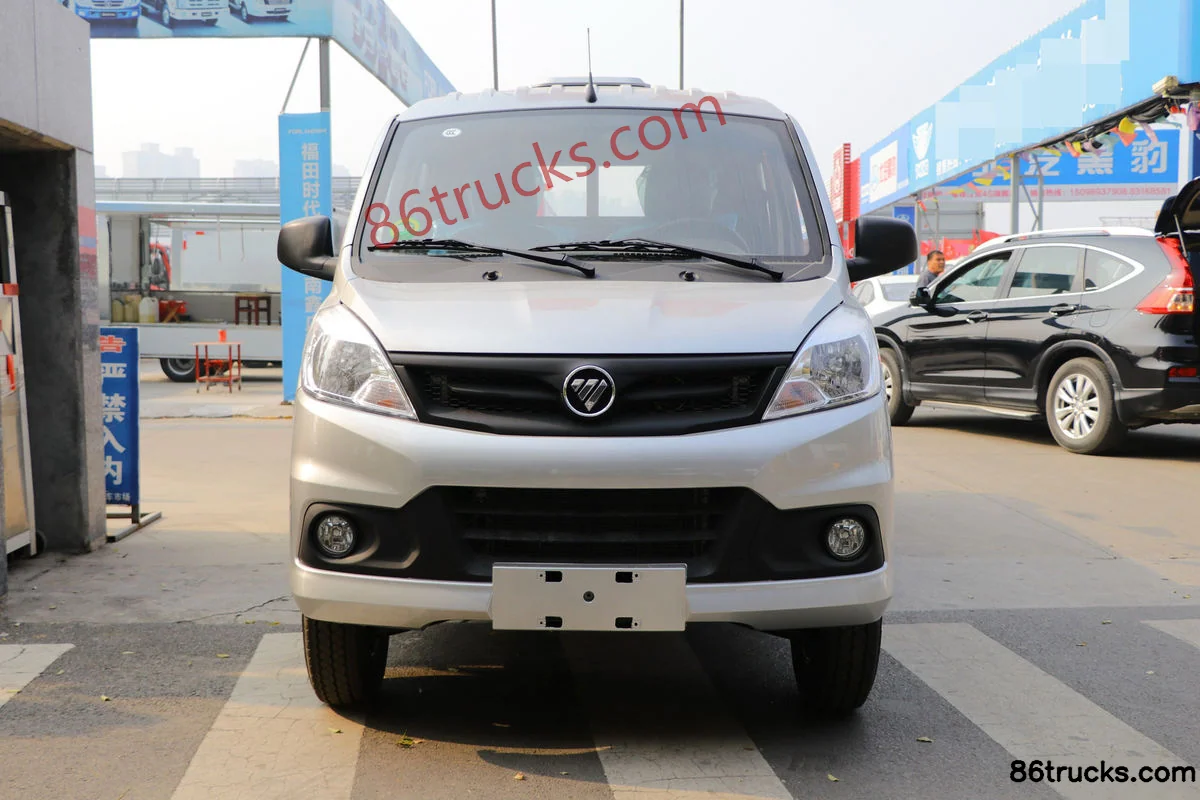

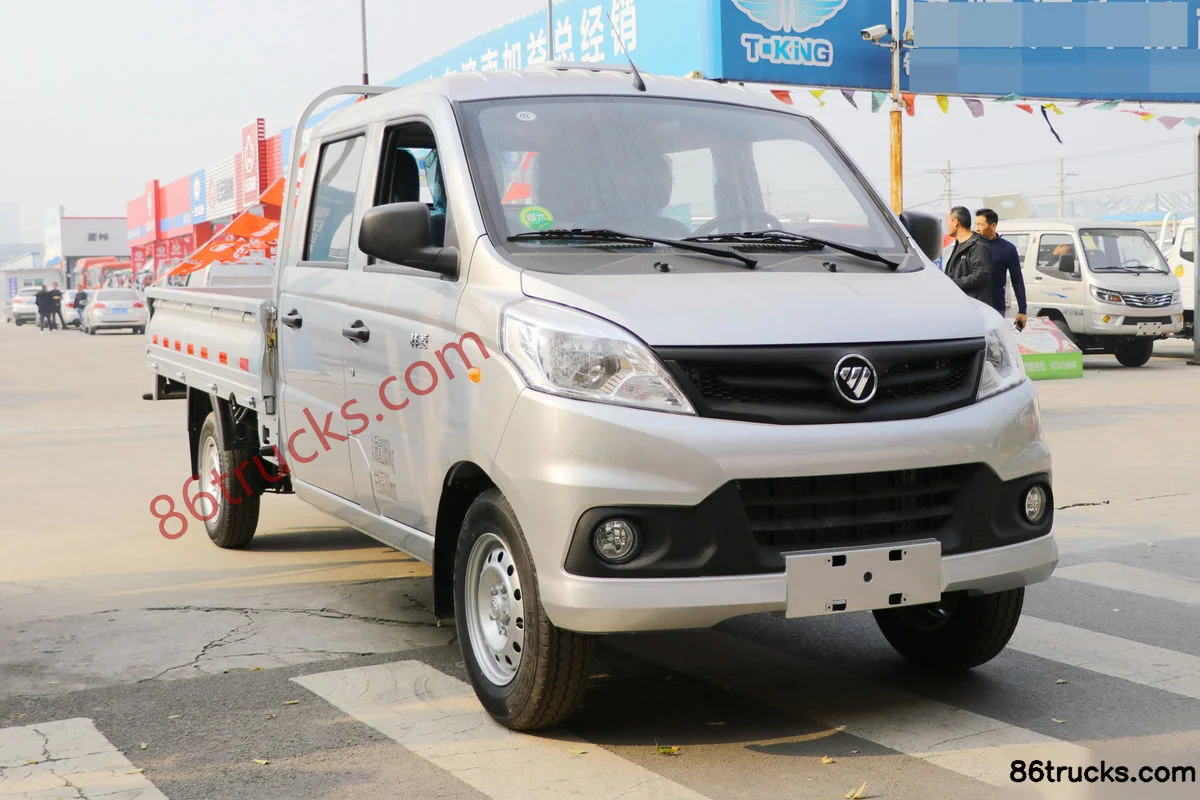

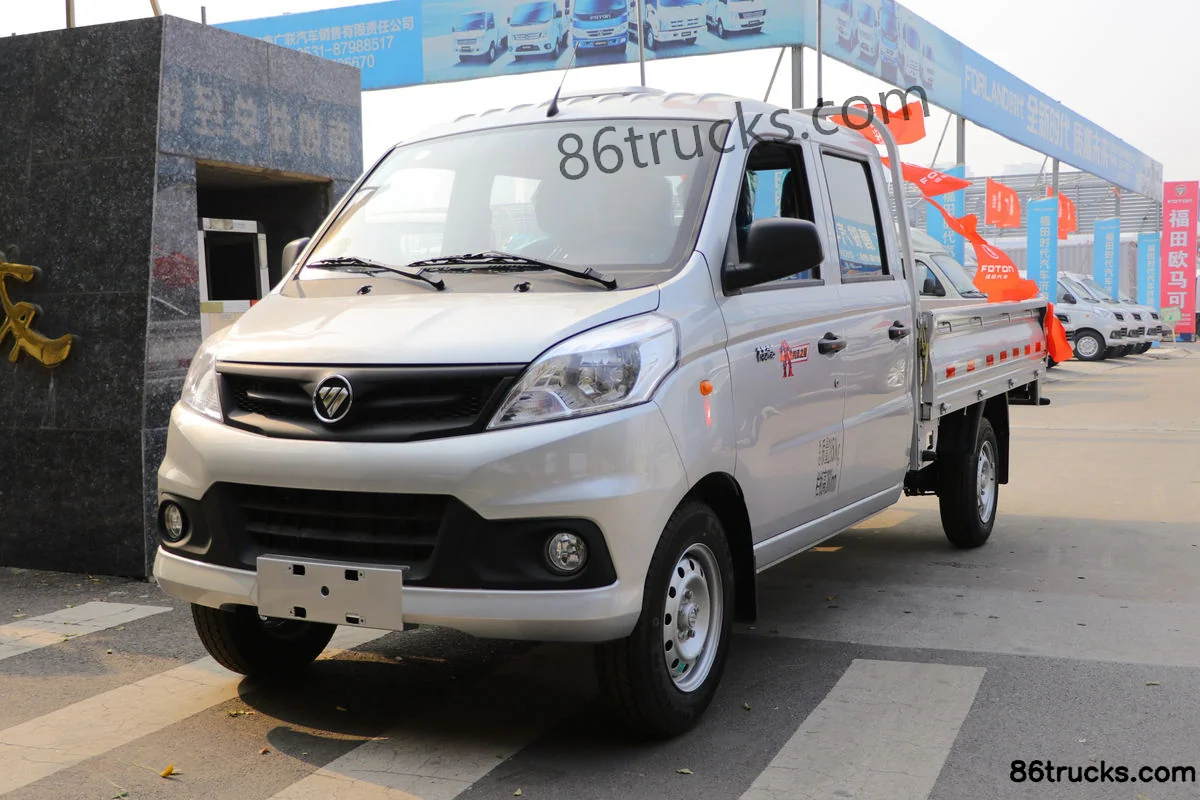

Exterior3

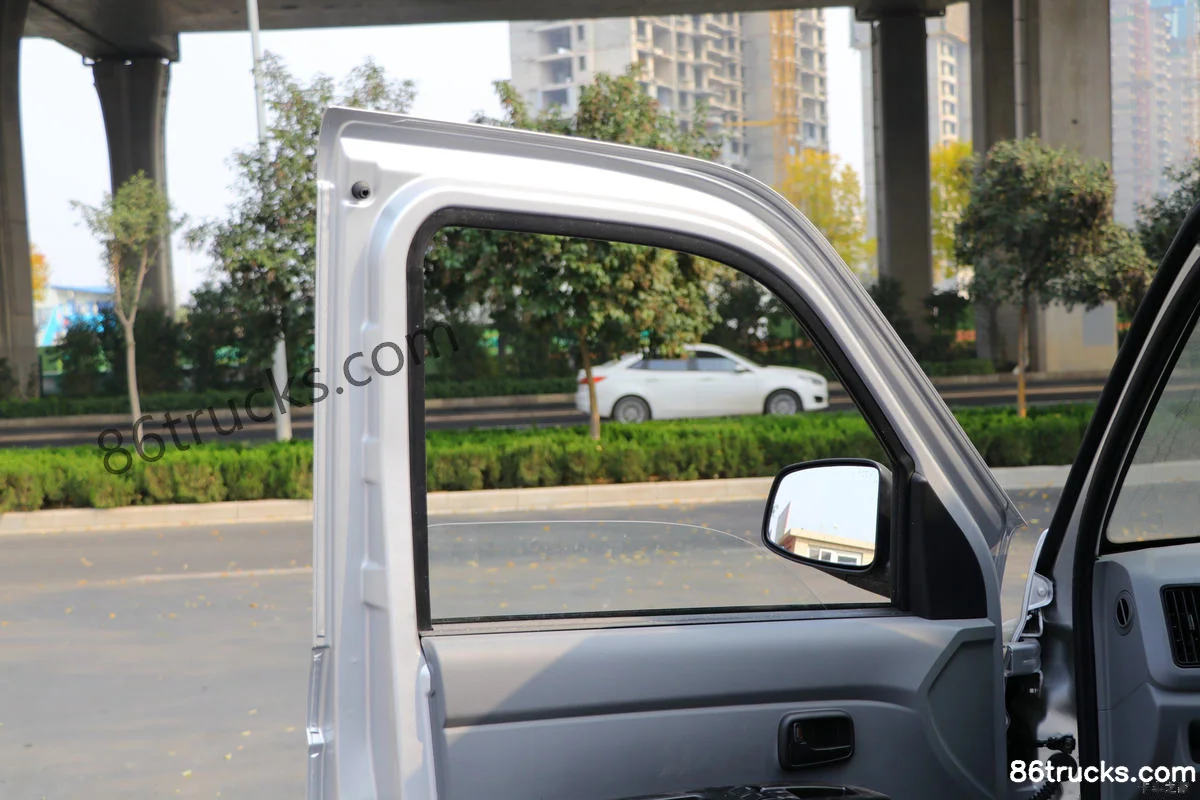

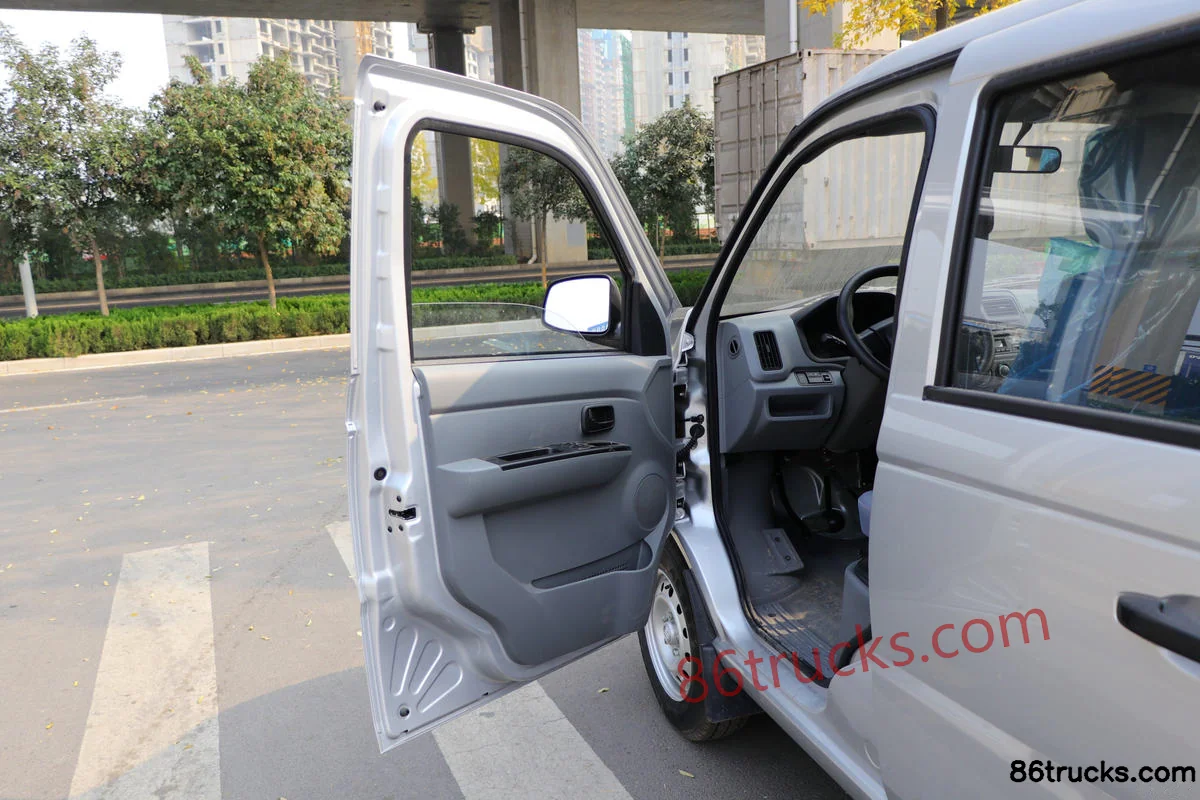

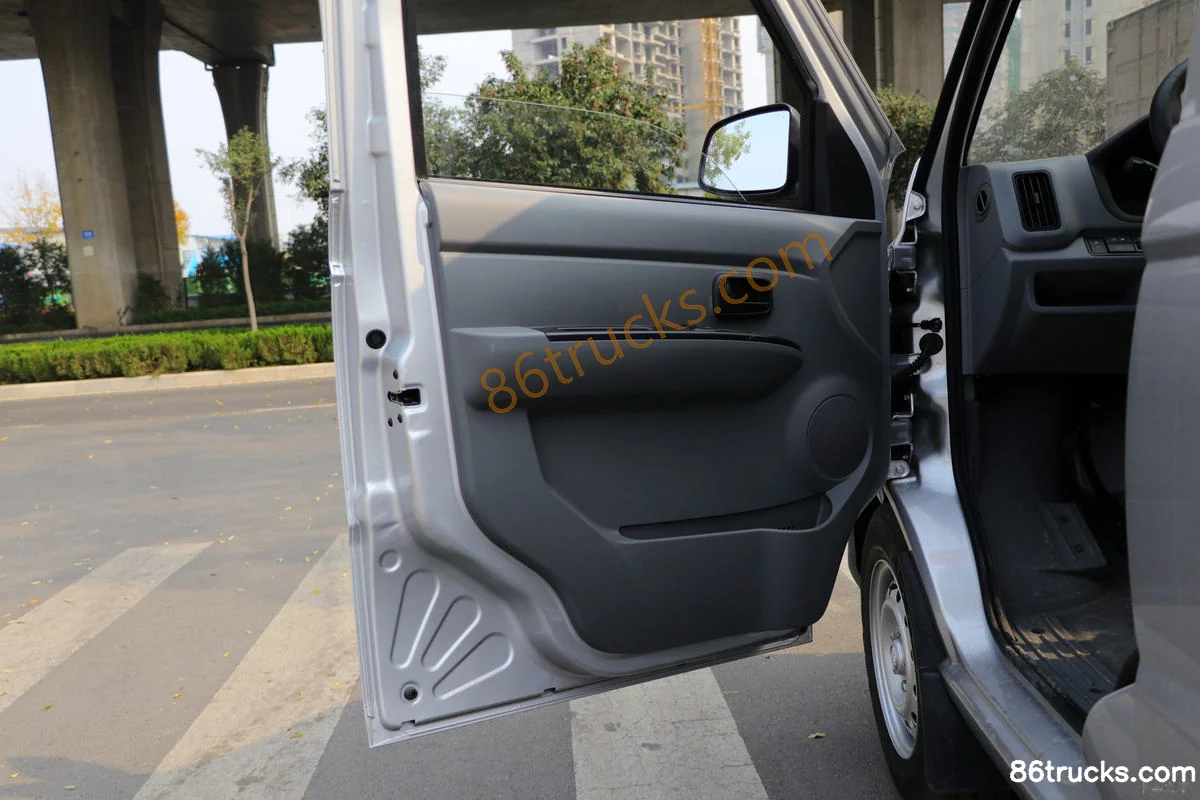

Cab3

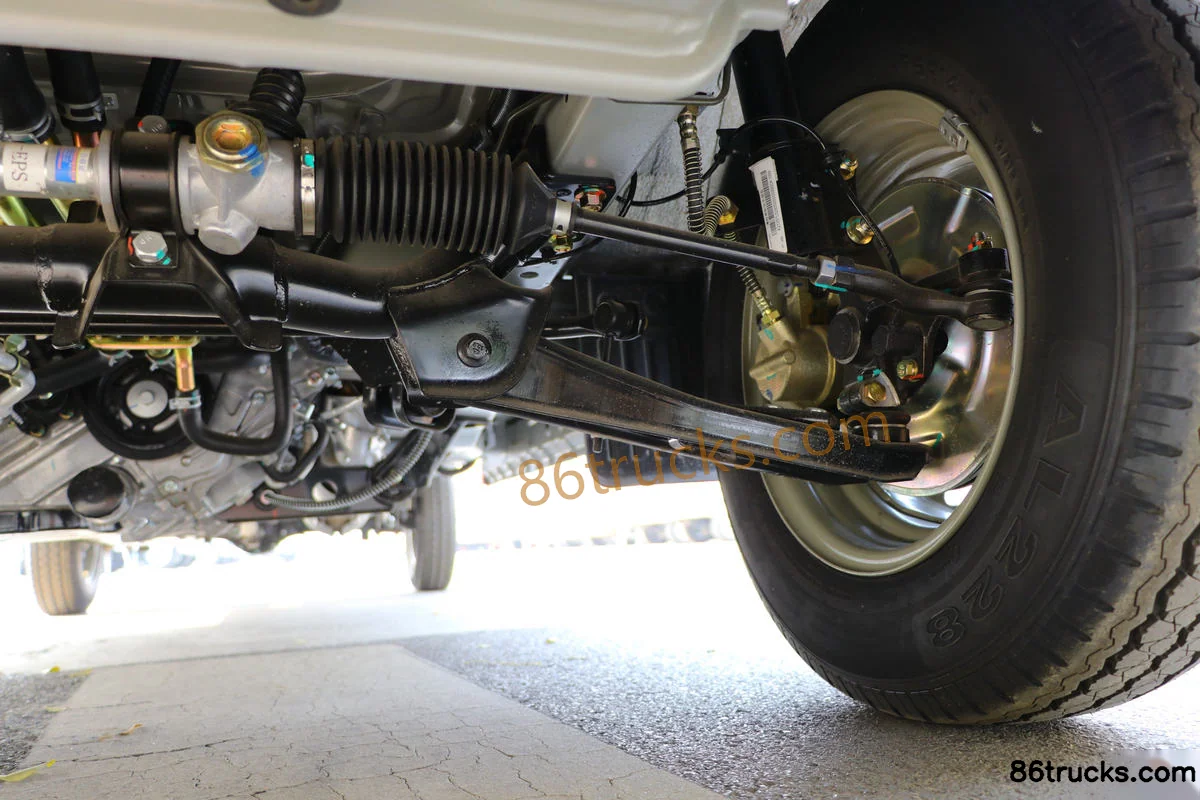

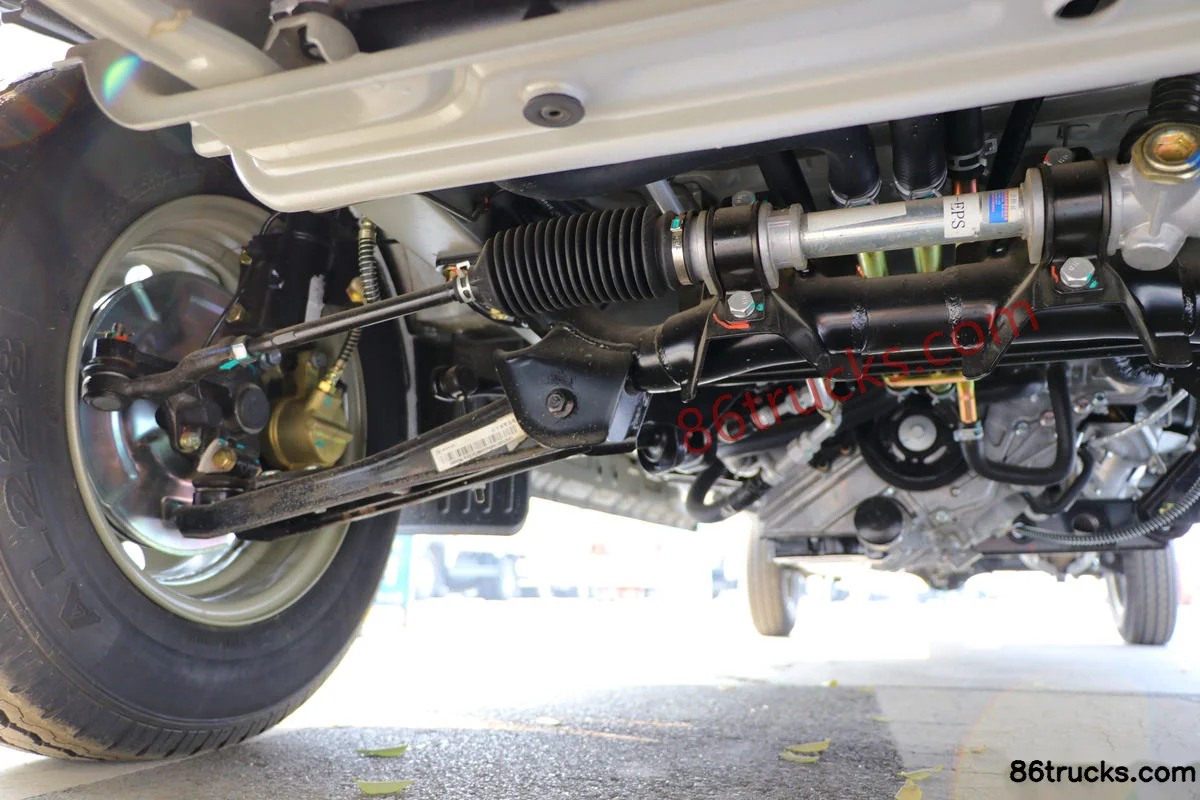

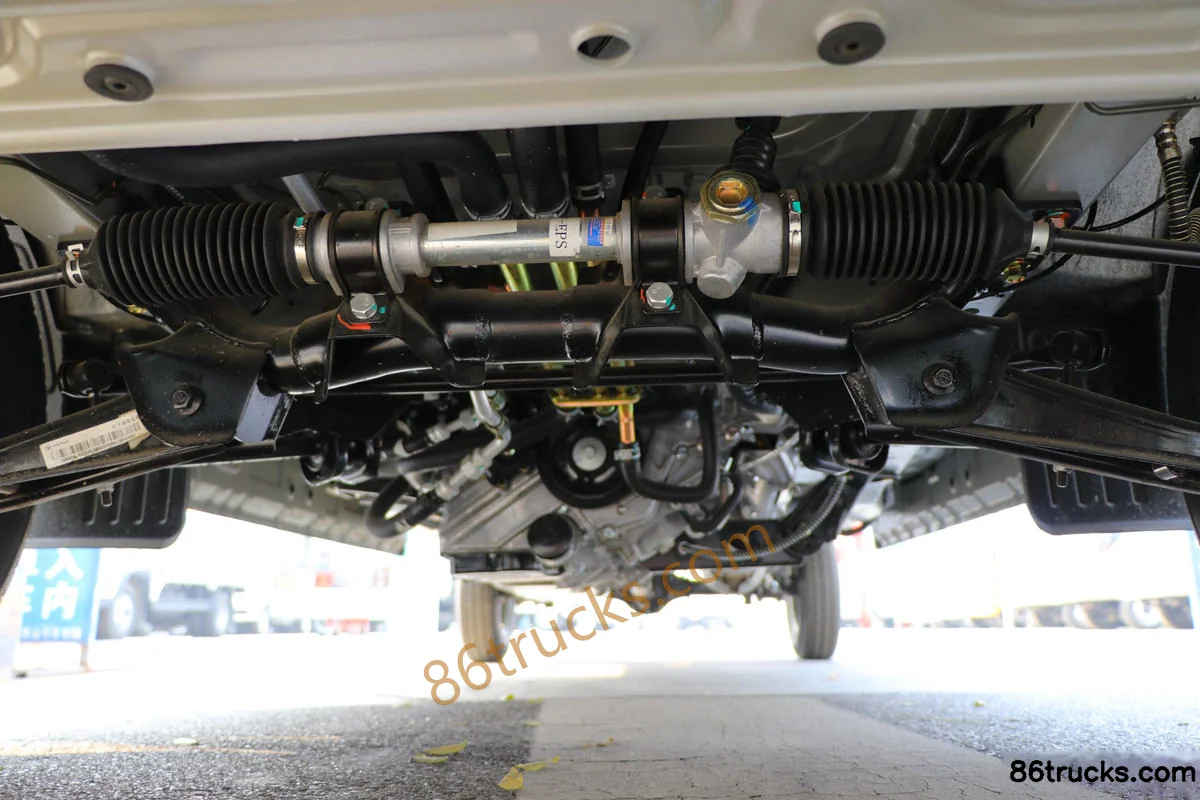

Chassis3

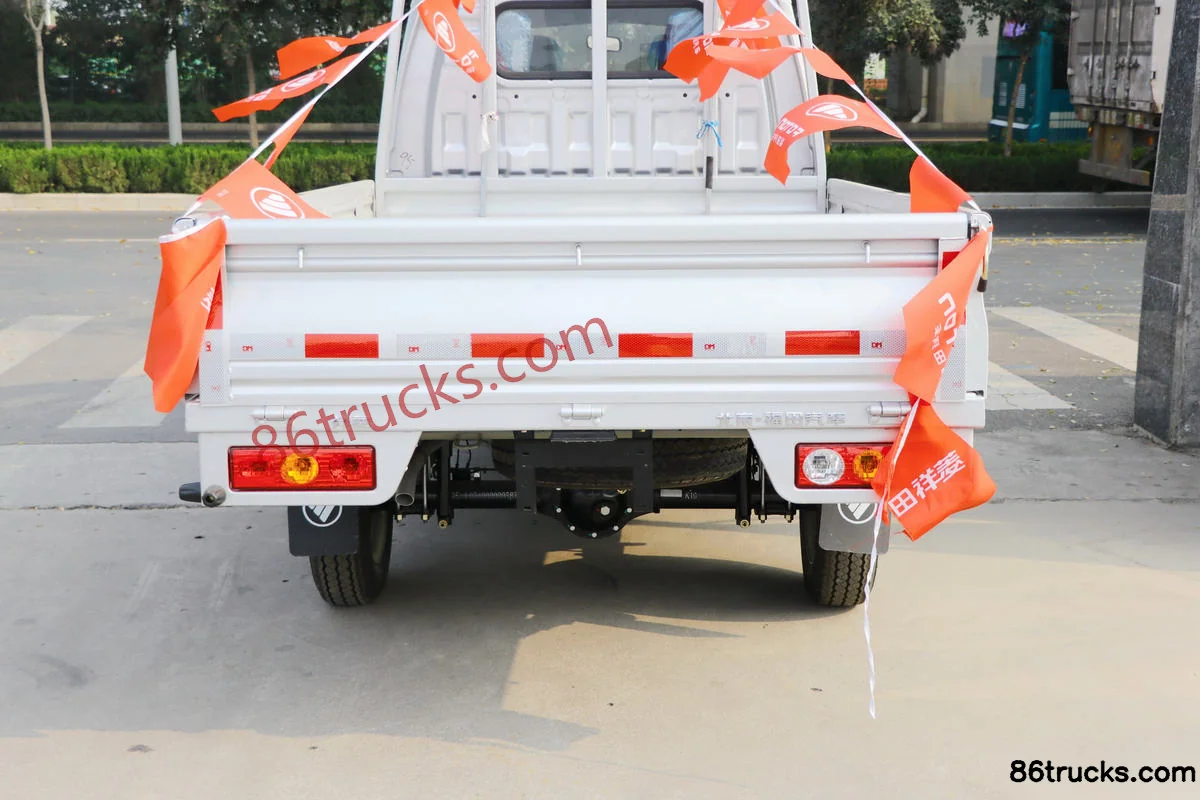

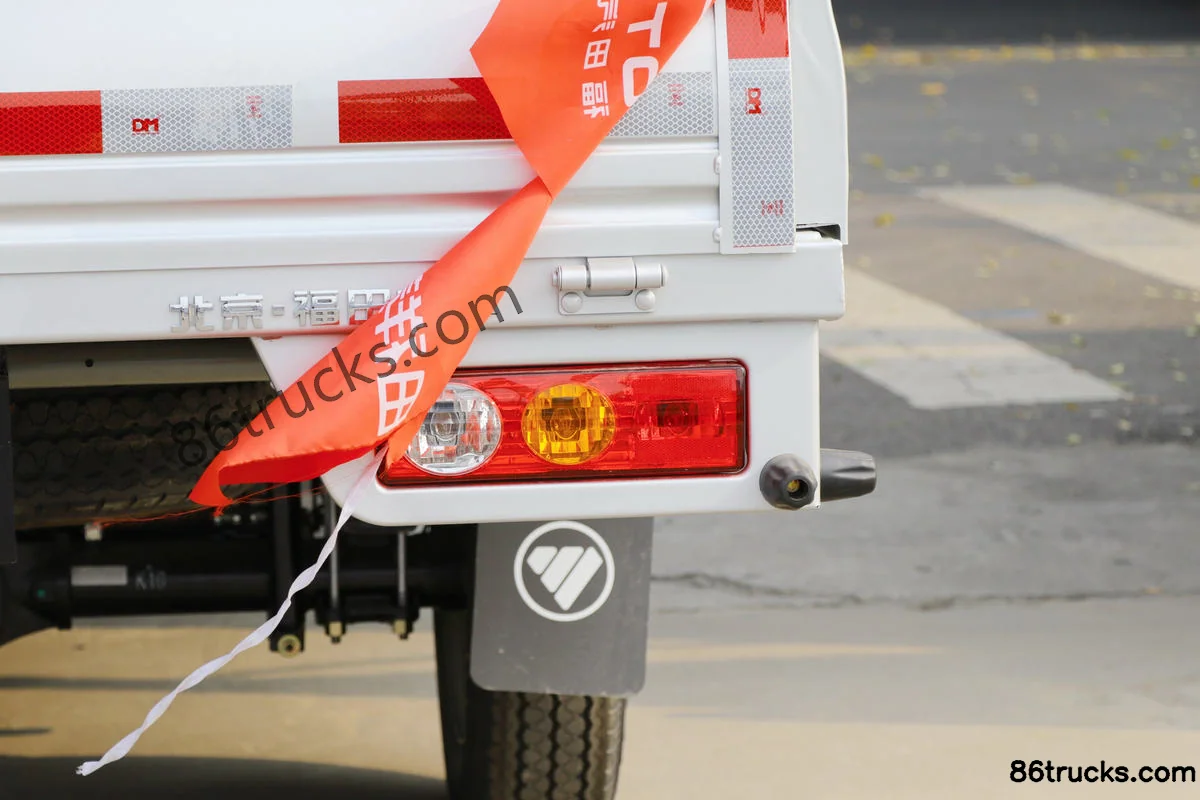

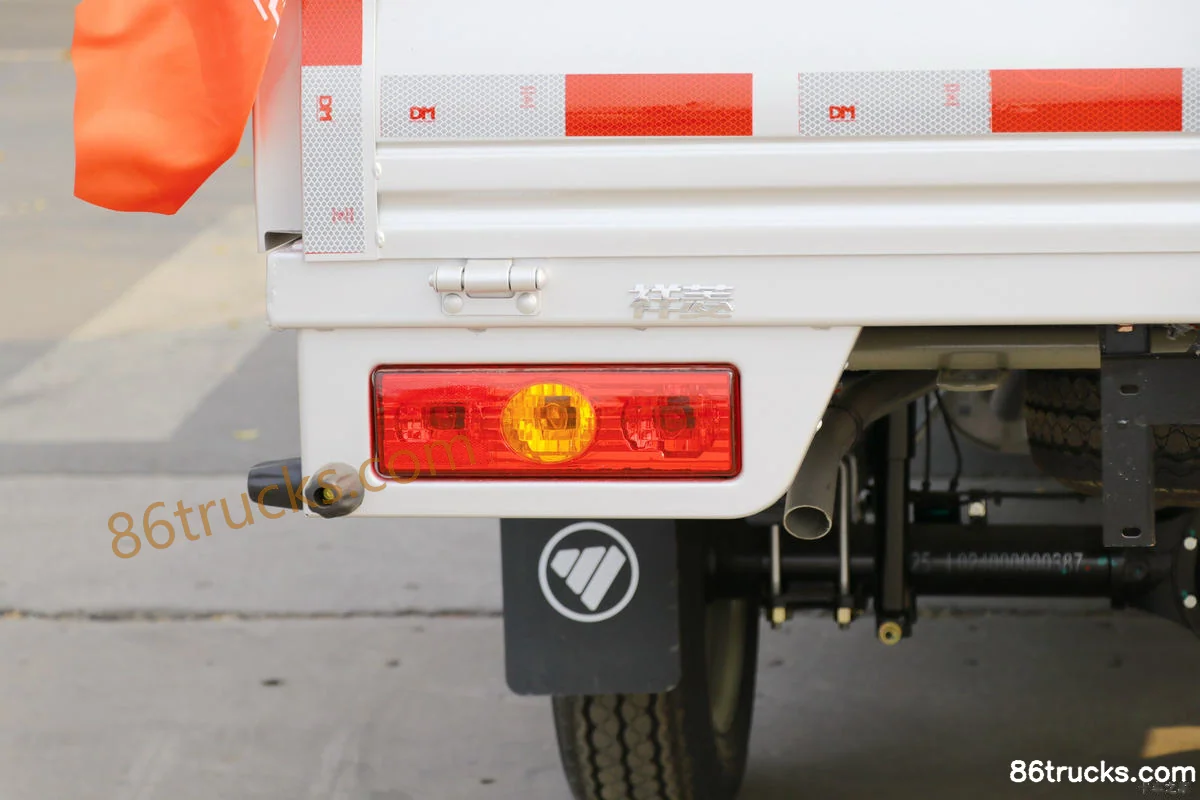

Body3

12 photos

FAQ

What emission standard does Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI)?

Key specs of Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI): Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: gasoline; Engine: Dongan gasoline 1.5L; Transmission: Dongan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI) suited for?

Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI) differ from other variants in the same series?

Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI) belongs to Foton V1 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiangling V 1.5L 115 hp 4X2(6 wheels) gasoline 2.3m double-row flatbed micro truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
