Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis

Export reference
MSRP N/A
Horsepower: 129
Emission: China V
Fuel: Diesel
Engine: Yunnei 4102
Transmission: WLY
Curb Weight:: 2.25ton
seating capacity: 3Personnel
Rated payload: 1.56ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume, 1.56t payload and Flat roof cab. On the powertrain side, it comes with a Yunnei 4102 engine, 129 hp, 4X2 (6 wheels) drive and China V emissions.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1048E3315E145
Type: Chassis
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerYN38CRE1
transmission: WLYWLY6T50C
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.42m
Cab height: 2.52m
Front track width: 1625mm
rear track: 1540mm
Curb Weight: 2.25ton
Rated payload: 1.56ton
GVWR: 3.94ton
Max. speed: 90km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.175/1.52m
Energy Type: Diesel

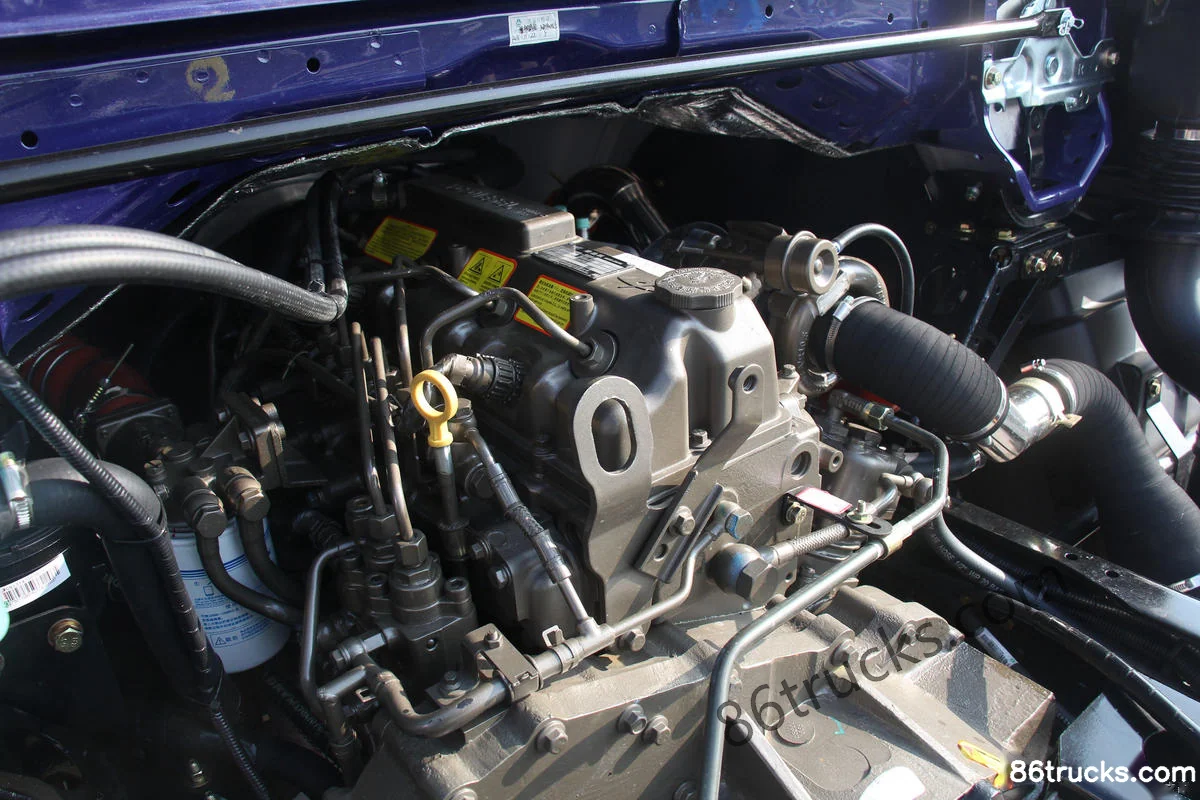

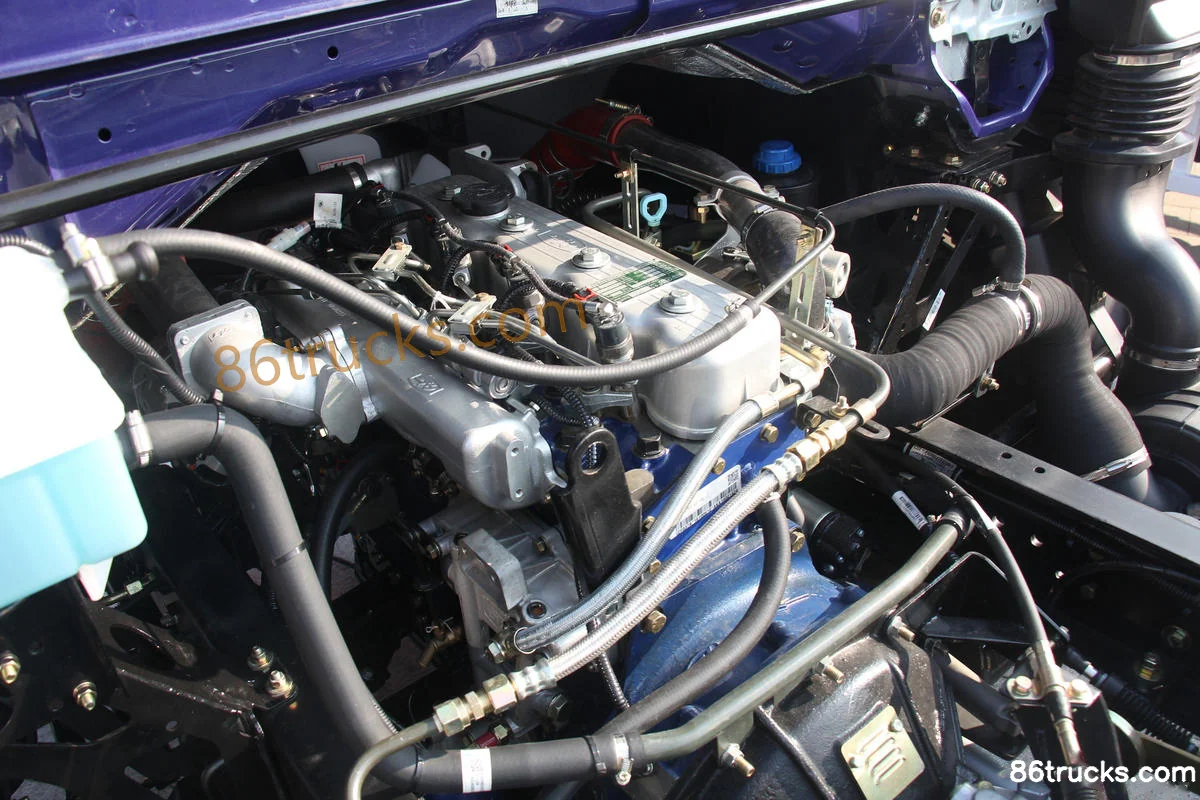

Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRE1
Engine info: Yunnei 4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 365N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY6T50C
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: Flat roof
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2.4T
Front axle allowable load: 1420kg
Frame Dimensions: 196 single-layermm
rear axle description: 4.5T rear axle
rear axle allowable load: 2520kg
Axle ratio: 4.875
Leaf spring count: 4/6+7
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.50R16
Number of tires: 6pcs
Control configuration
ABS:
clutch booster:
Service brake
Parking brake: Spring brake
Exhaust brake:

Photos

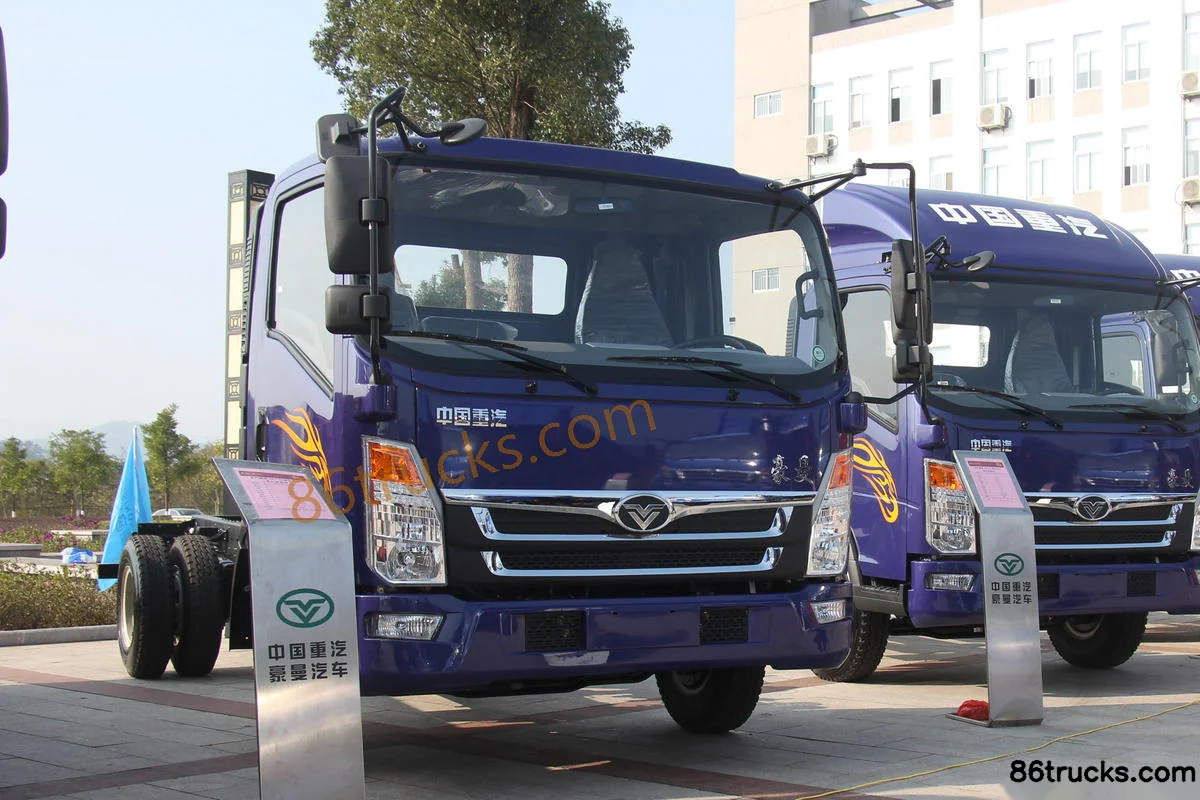

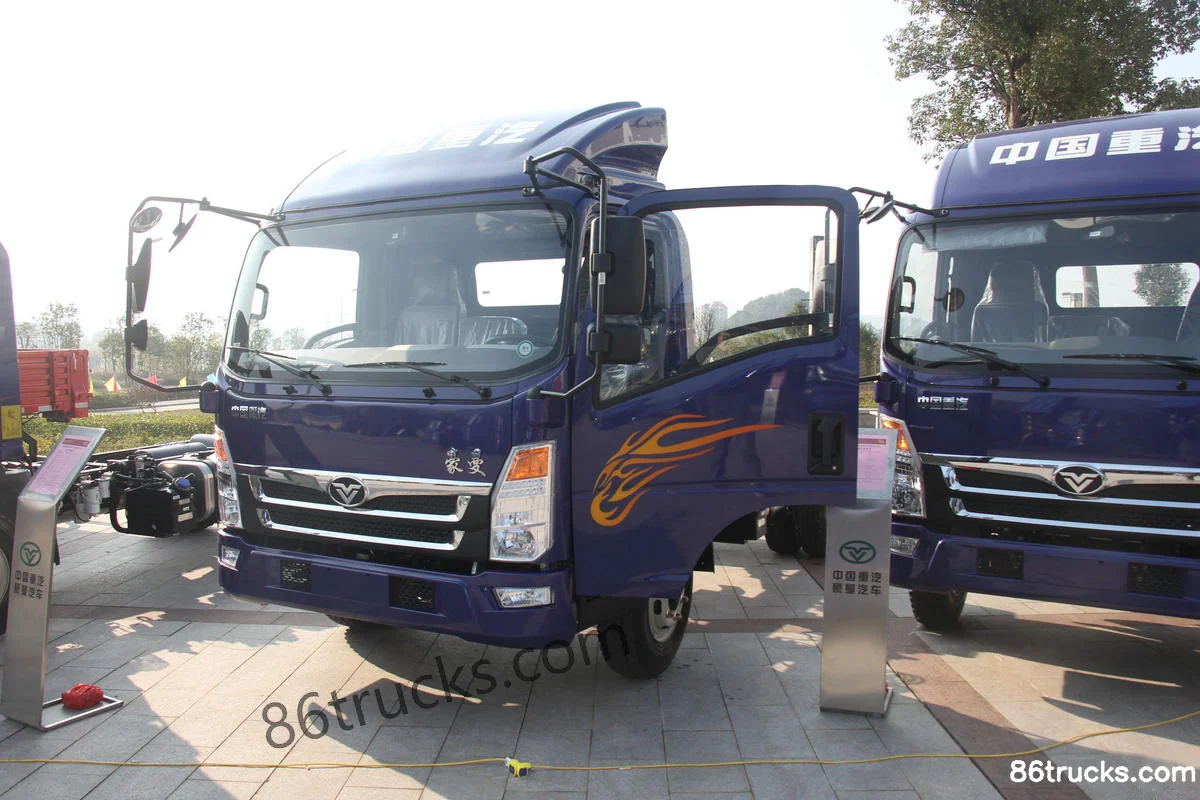

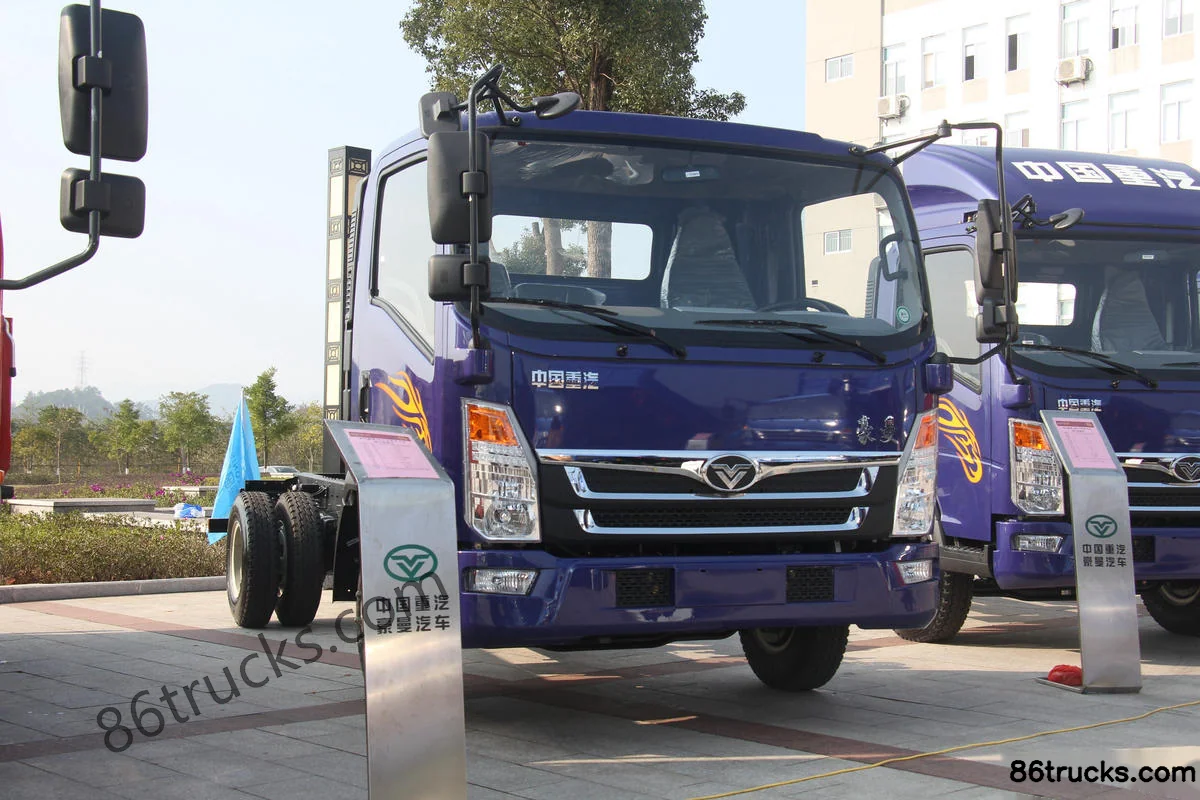

Exterior3

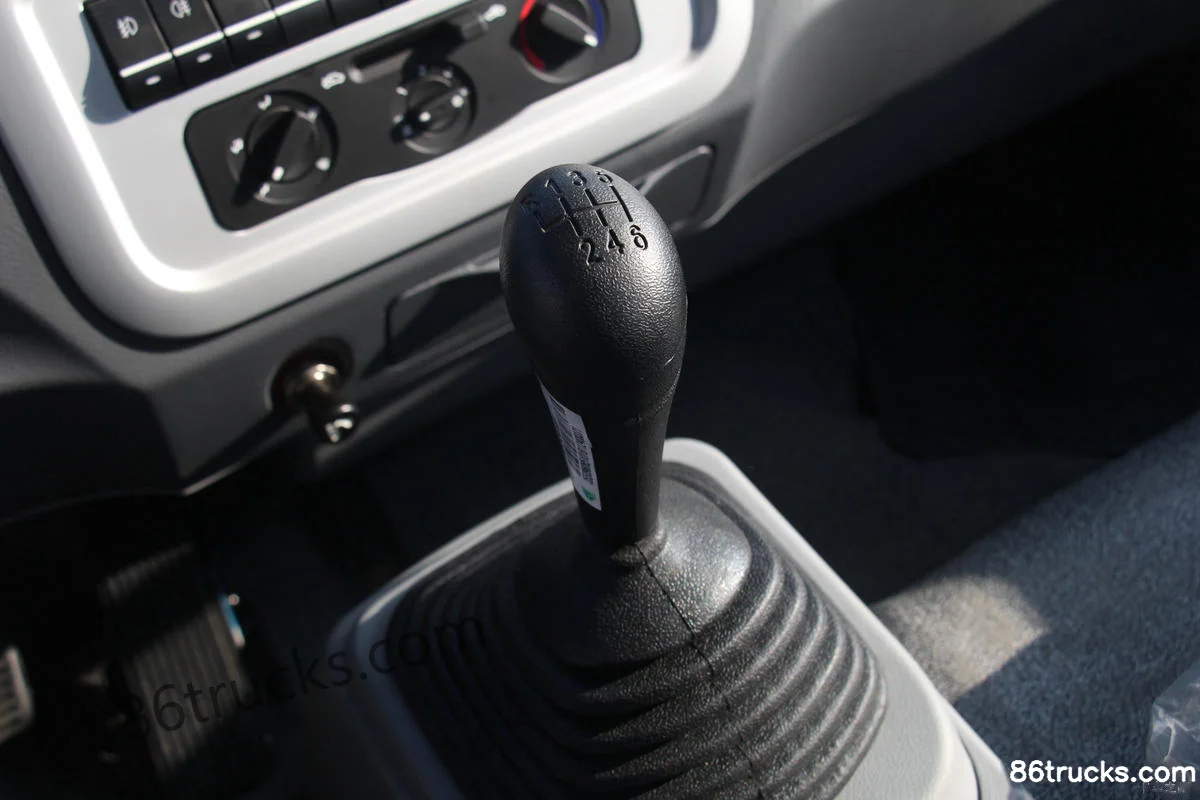

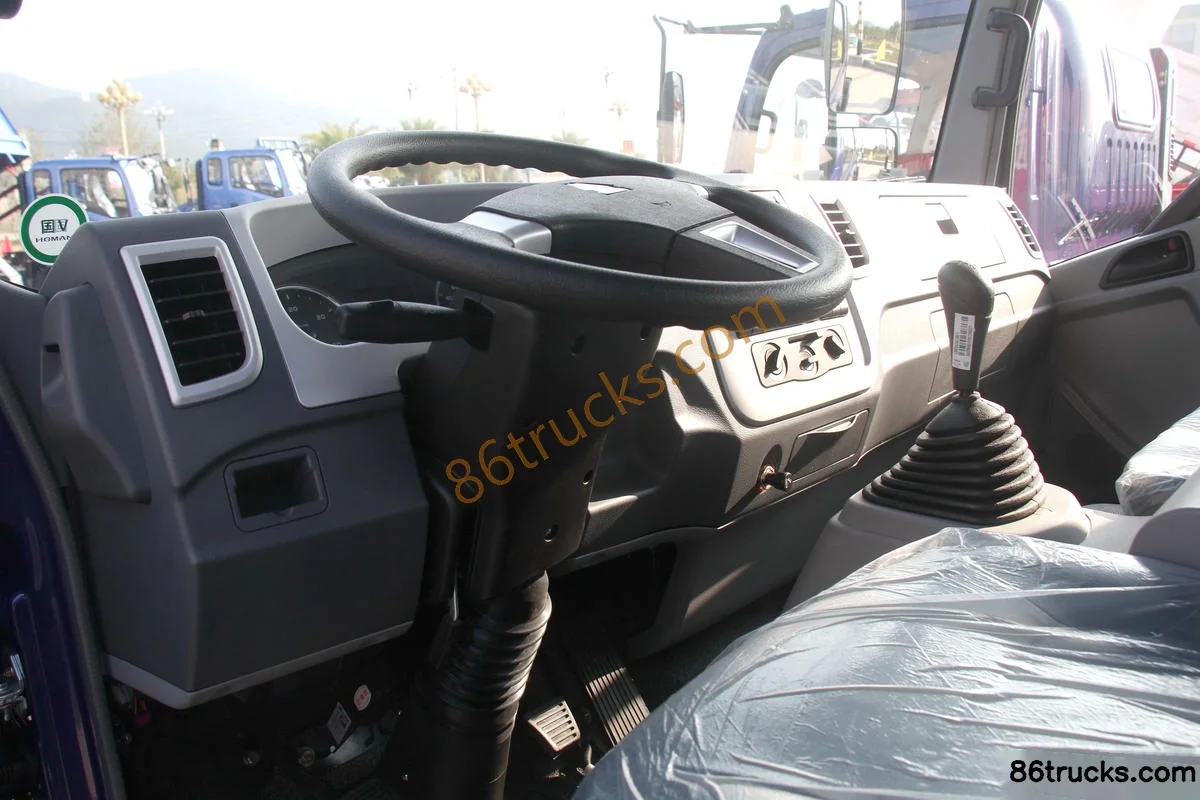

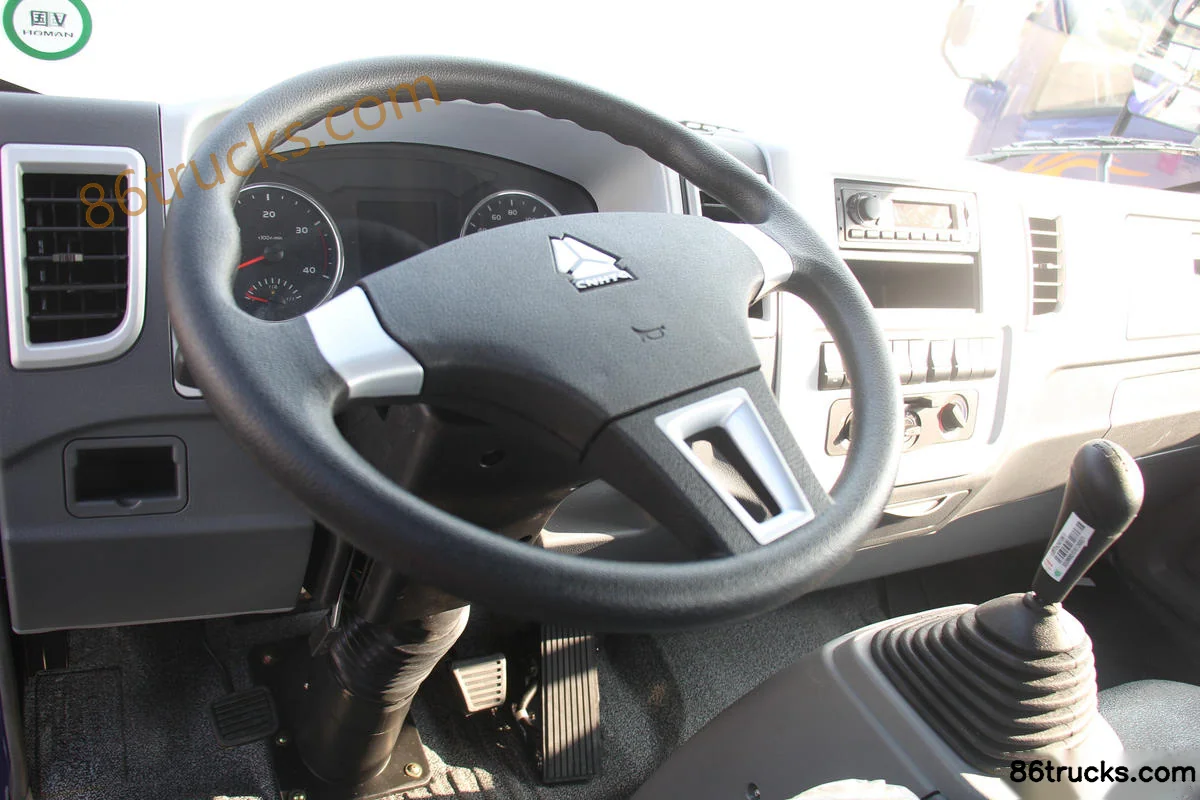

Cab3

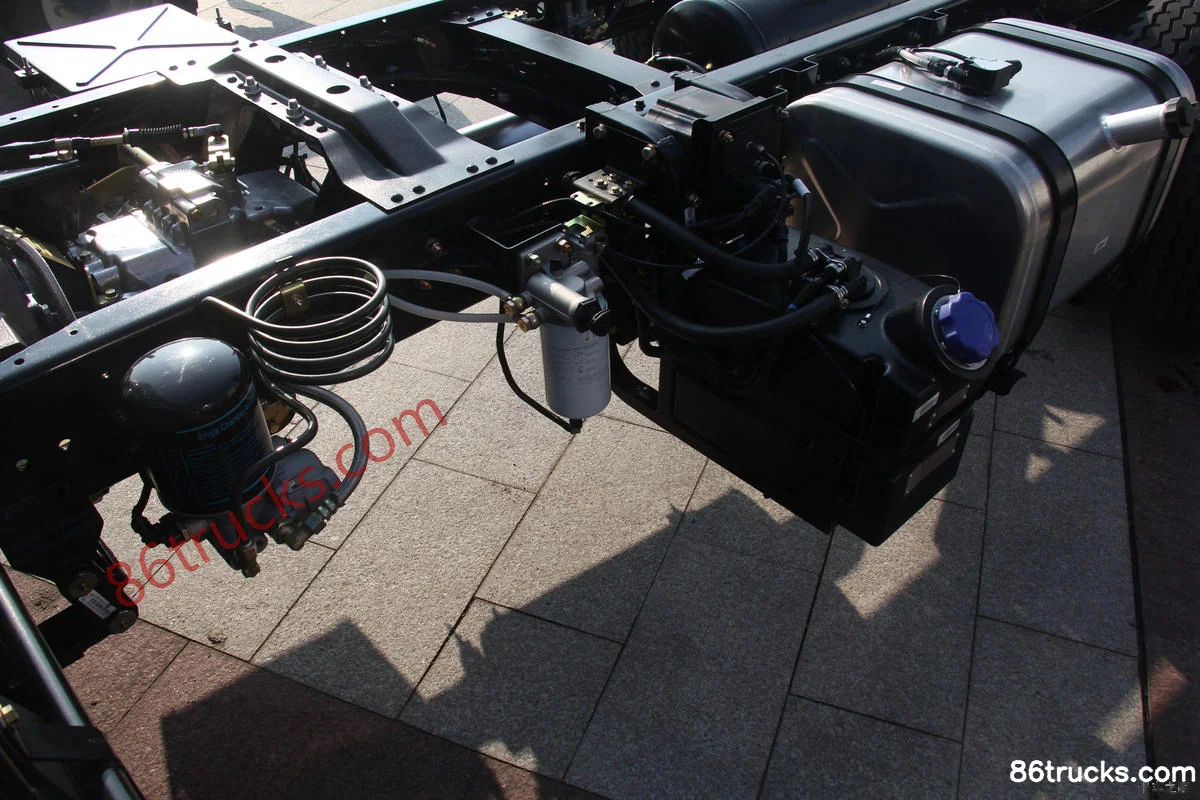

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis?

Key specs of Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis: Drive: 4x2; Horsepower: 129 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei 4102; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis suited for?

Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis differ from other variants in the same series?

Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO H3 129 hp 4X2(6 wheels) 3300mm wheelbase single-row light truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
