Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck

Export reference
From $62,333
MSRP ¥44.88M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3400+1400mm
Tire brand:: Chaoyang
Front axle allowable load:: 7000kg
Displacement:: 12.419L
Drive 6X4 (10 wheels)
Horsepower 480
Emission China V
Transmission ZF

Overview

The Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck is a Heavy truck featuring 6X4 (10 wheels) drive, 480 hp, 25t GVW and China V emissions. Its segment focus covers Logistics distribution, coal transport and sand & gravel transport, matching those duty cycles. On the powertrain side, it comes with a SinotrukMC13.48-50 engine, ZF transmission and Diesel fuel.

China V 480 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ4256V324HE1B
Drive type: 6X4
Wheelbase: 3400+1400mm
engine: SinotrukMC13.48-50
transmission: ZFZF16S2530 TO
Rear Axle Ratio: 3.08
Cab length: 6.895m
Cab width: 2.496m
Cab height: 3.62m
Front track width: 2041mm
rear track: 1830/1830mm
Gross Trailer Weight: 40ton
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 101km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy truck
market segment: Logistics distribution, coal transport, sand & gravel transport, express & courier, bulk material transport, daily industrial goods transport, cold chain transport
Remarks: Trailer ABS spiral cable harness assembly, automatic slack adjuster, front underrun protection, power-adjustable headlights, turn-signal mirrors, anti-spray device, reflective vest, Triangle warning triangle and wheel chocks, TGA-B; options: rear tow hook, fire extinguisher, selectable ratios 3.7/4.11, JOST 50# fifth wheel
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC13.48-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.419L
Emission standard: China V
Max output power: 356kW
Max hp: 480Horsepower
Max torque: 2300N·m
Max torque speed: 1050-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZFZF16S2530TO
Transmission Brand: ZF
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
Cab tilting: Electric
seating capacity: 3Personnel
Seat rows: Sleeper cab
Lower Bunk Width: 800mm
Chassis Specs
Suspension type: Front and rear leaf springs (few) / front leaf springs (few) with rear air suspension / full air suspension
Front axle description: HR7 disc 22.5
Front axle allowable load: 7000kg
Fifth wheel: JOST 90# fifth wheel
rear axle description: MCY13Q
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 3.08
Leaf spring count: 9/12,3/5,3/12,3/-,9/-,3/-/-,3/2+-/2+-,3/4,2/4
Aluminum wheels:
clutch: Φ430
fuel tank
Fuel tank capacity: 600L
Tire
Tire brand: Chaoyang
Tire Size: 295/80R22.5,315/80R22.5
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

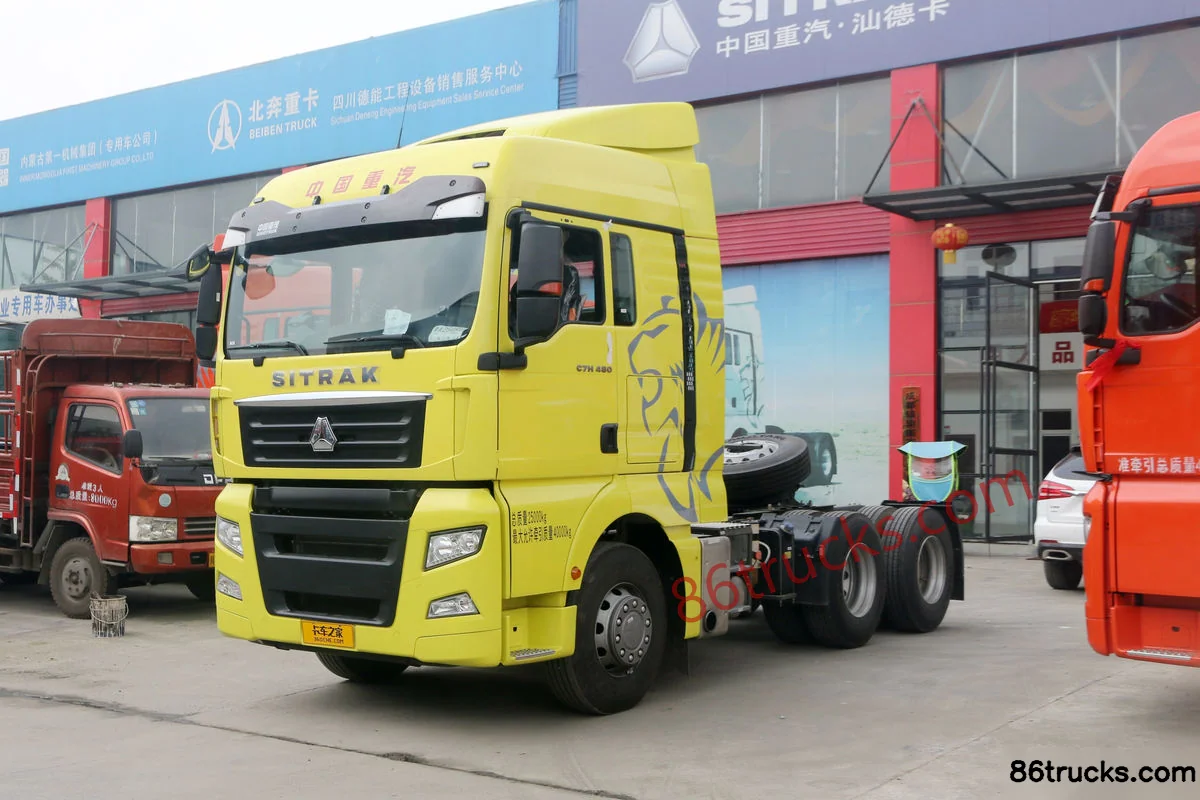

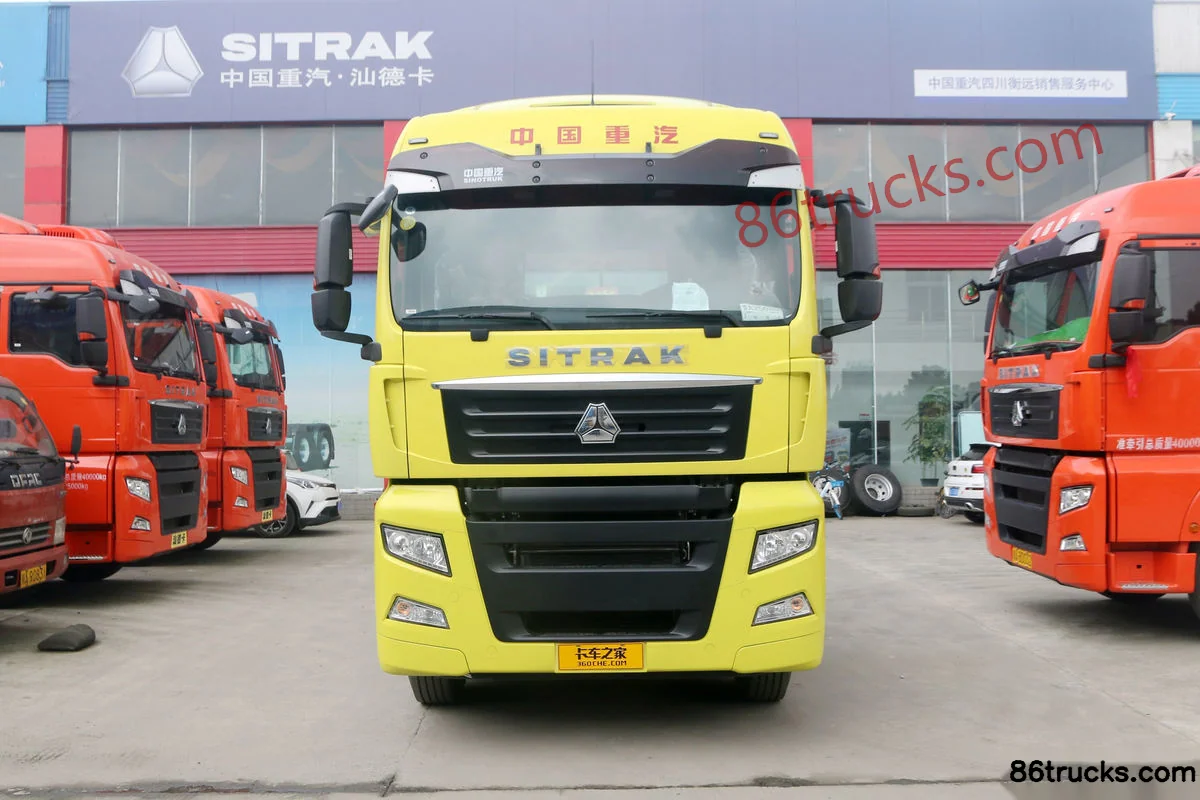

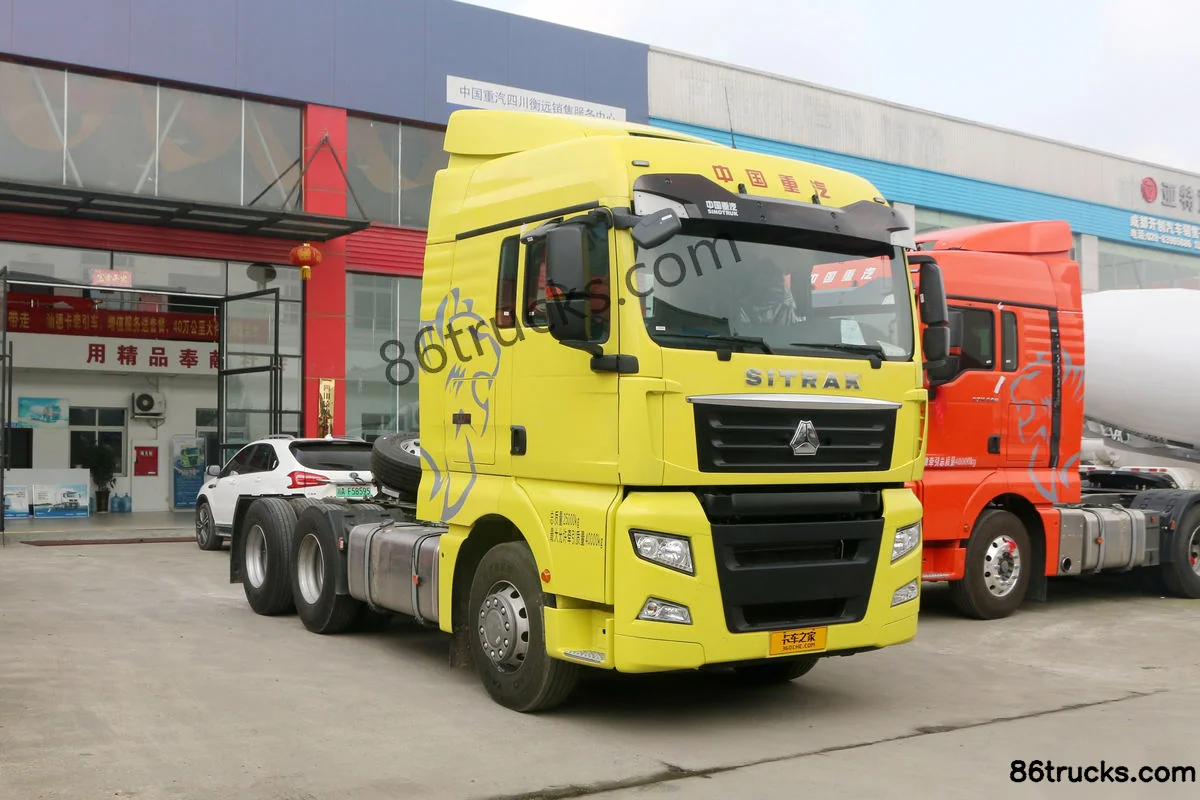

Exterior3

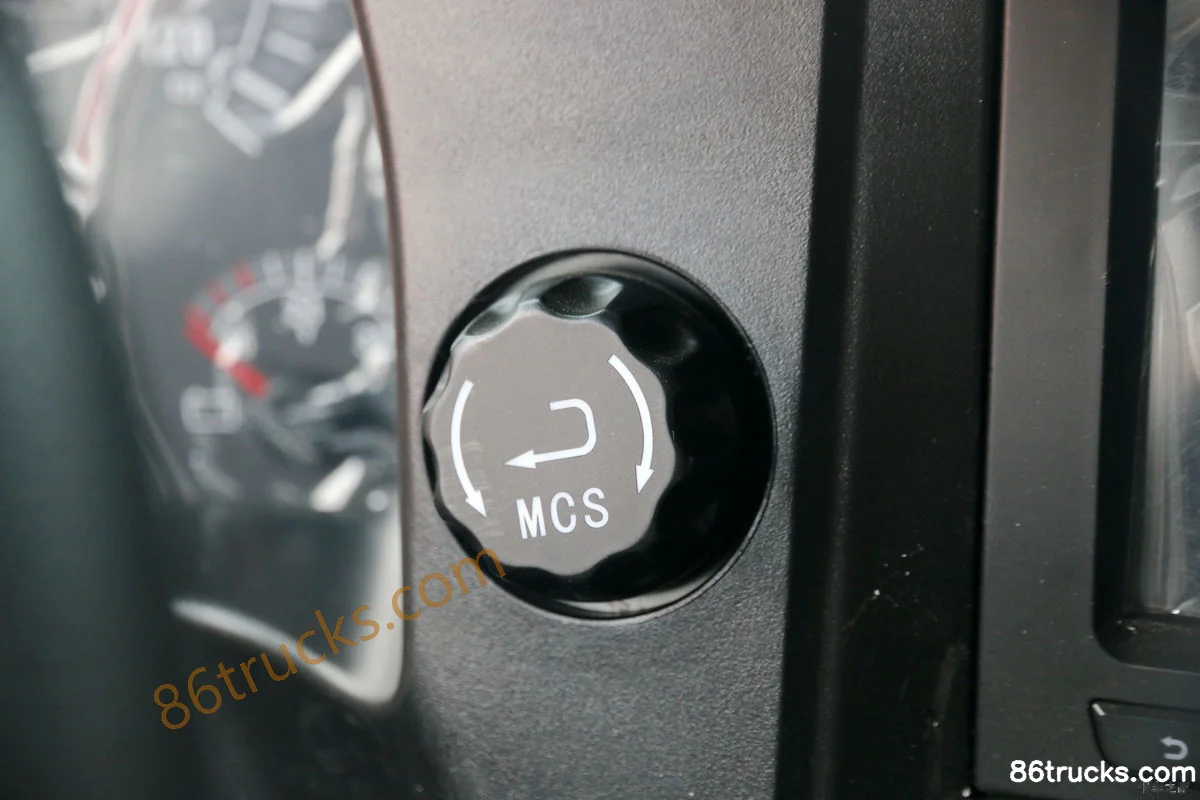

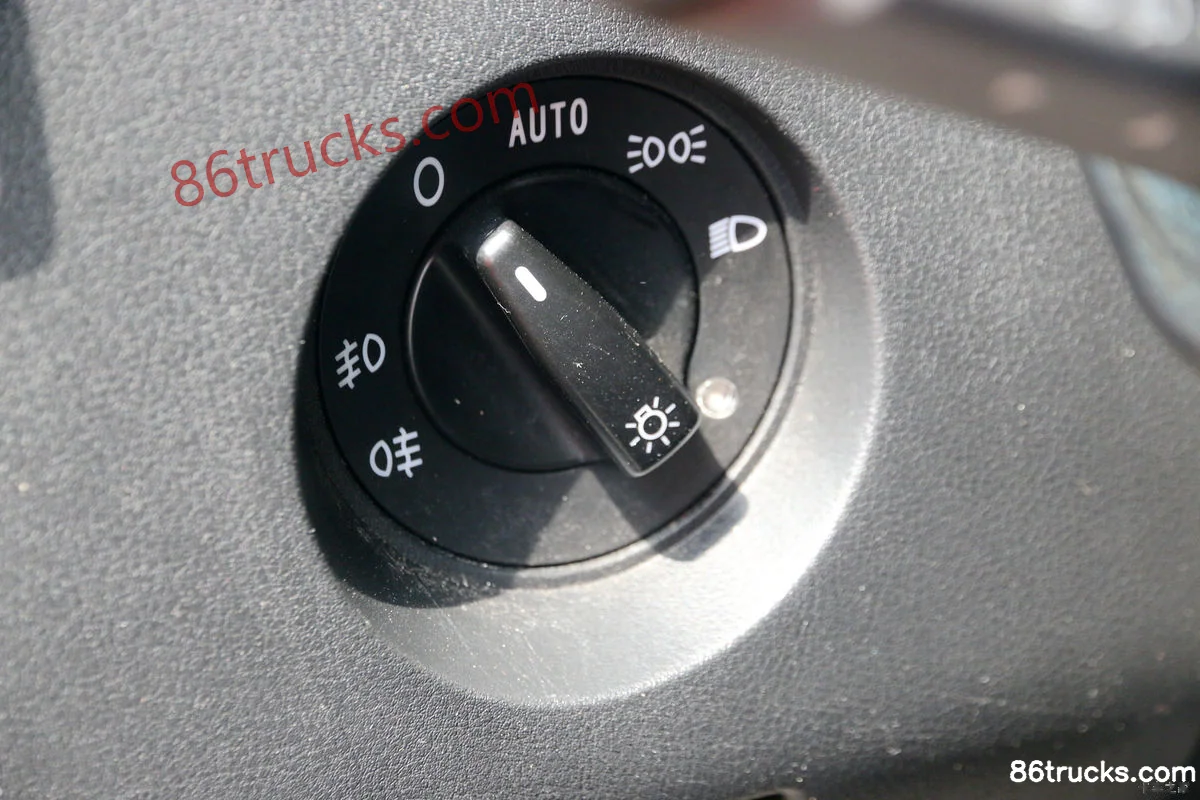

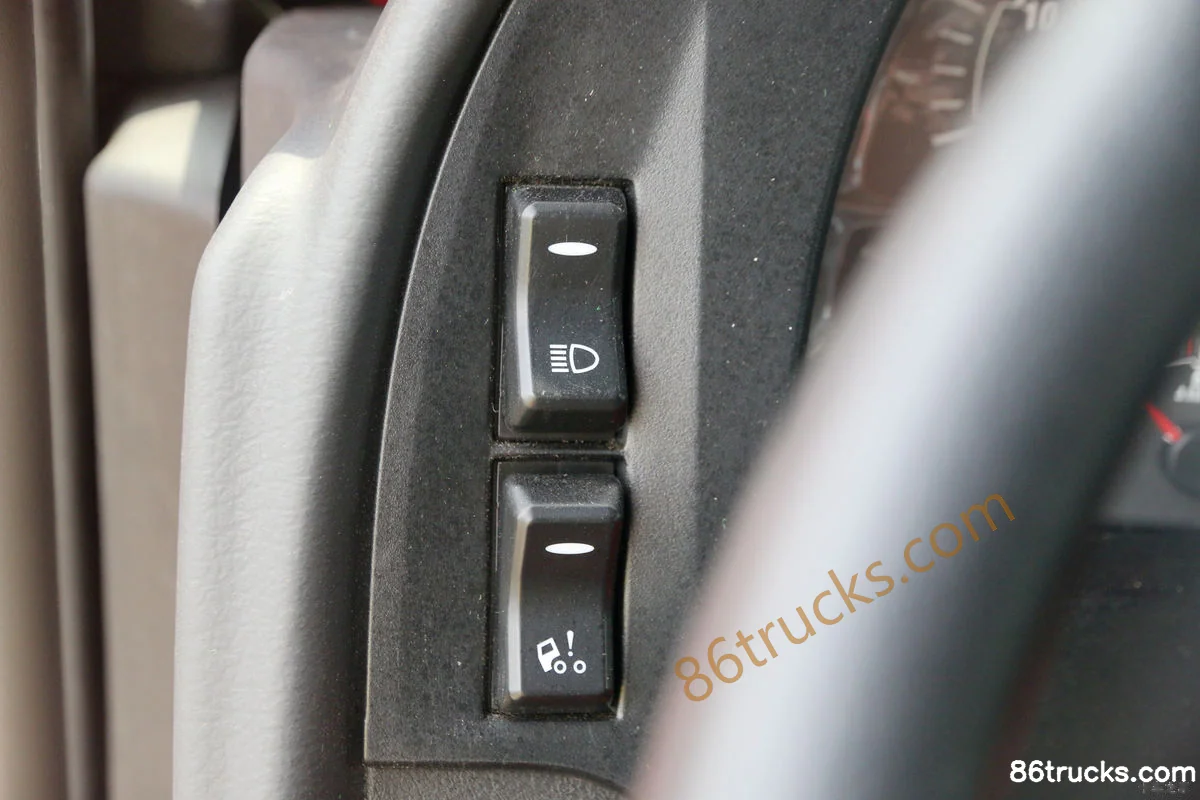

Cab3

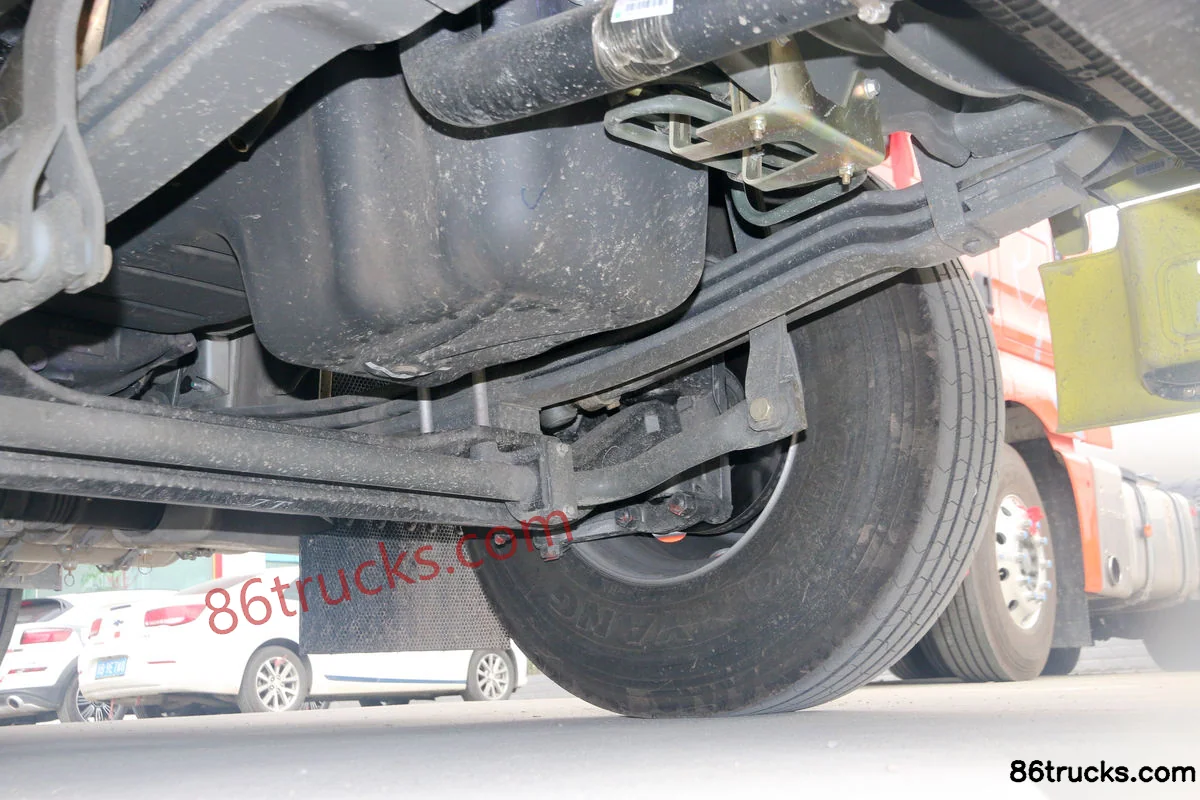

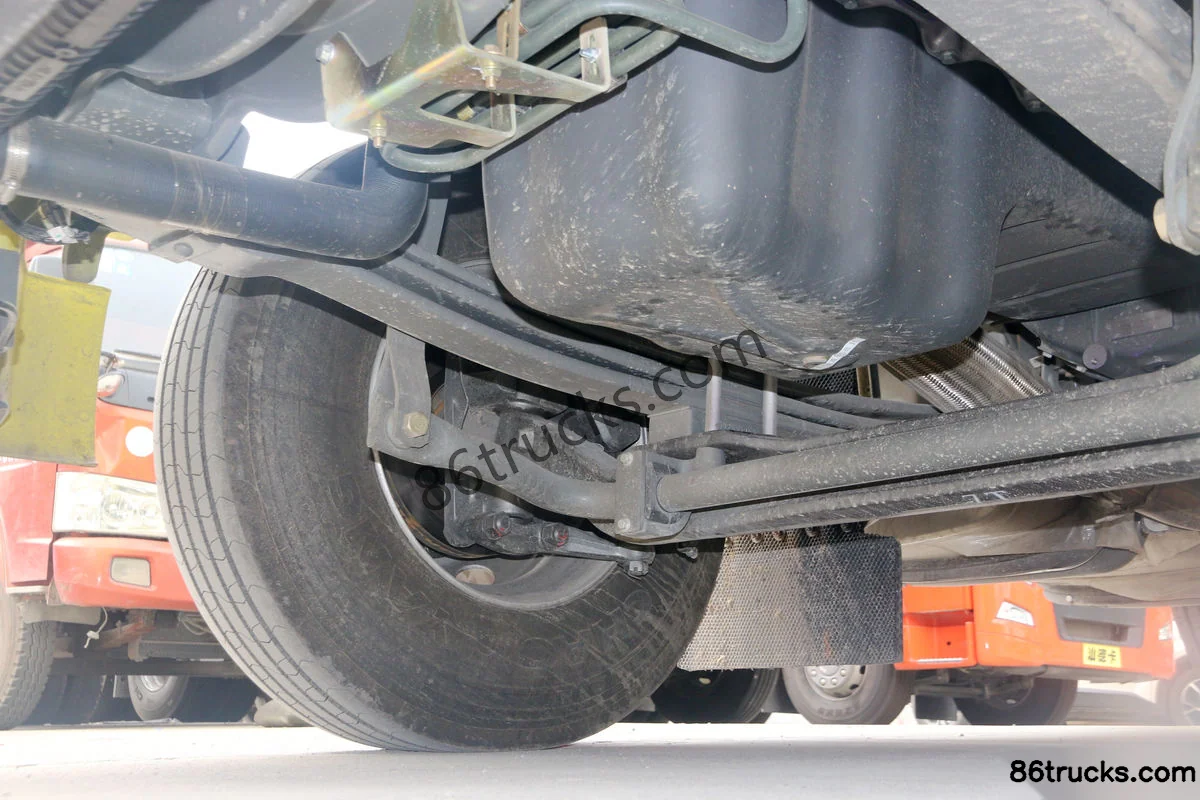

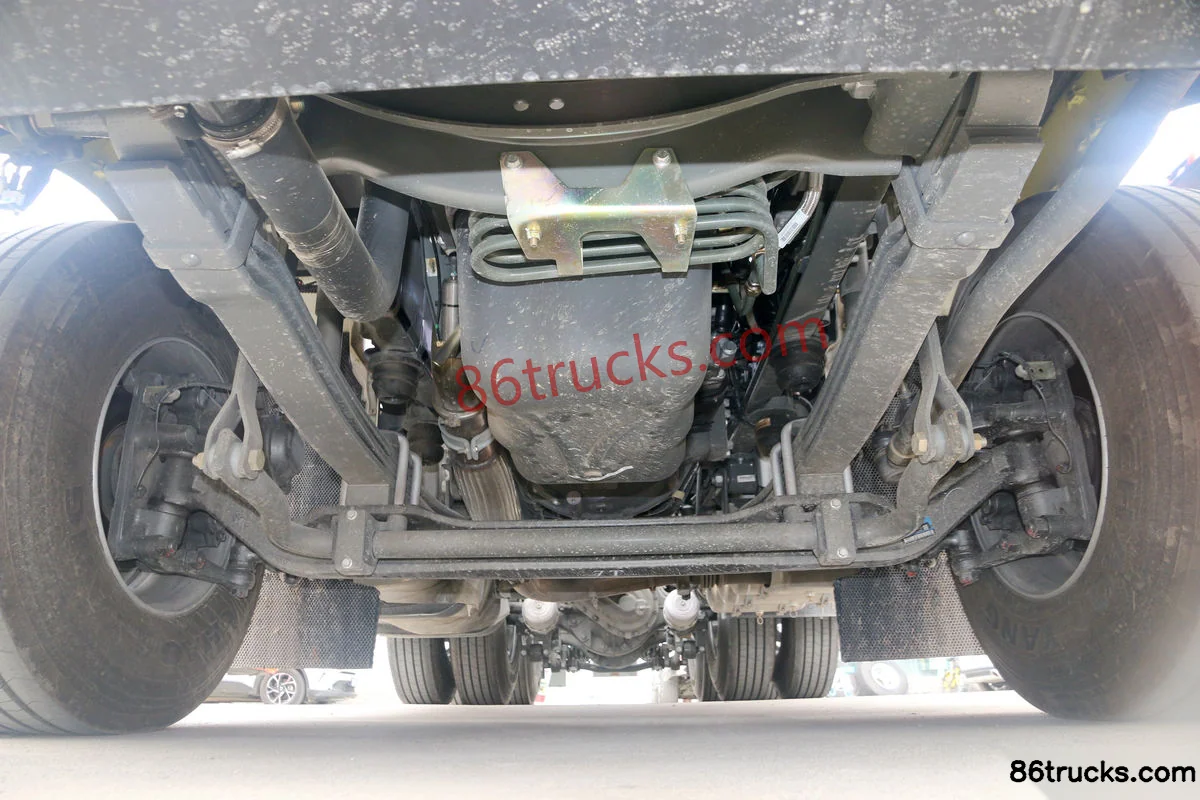

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck, and what does it include?

Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck export reference is about From $62,333; MSRP is ¥44.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck?

Key specs of Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck: Drive: 6x4; Horsepower: 480 hp; Emission: China V; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck suited for?

Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck differ from other variants in the same series?

Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck belongs to Sitrak SITRAK C7H heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C7H heavy truck 480 hp 6X4(10 wheels) tractor truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
