Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels)

Export reference
From $17,333
MSRP ¥12.48M CNY
Rated payload:: 1.06ton
Wheelbase:: 2900mm
Cargo box type:: Stake type
Model code (announced):: SXC5030CCYBEVR
Type:: stake truck
Box length class:: 2.8m
Drive 4X2 (6 wheels)
CLTC range: 230km
Motor 1 Brand: Jingjin
Curb Weight: 1.38ton

Overview

The Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels) is a mini truck featuring 230km battery/range, Jingjin motor, 4X2 (6 wheels) drive and 1.06t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SXC5030CCYBEVR
Type: stake truck
Drive type: 4X2
Wheelbase: 2900mm
Box length class: 2.8m
Cab length: 4.655m
Cab width: 1.655m
Cab height: 2.44m
CLTC range: 230km
Curb Weight: 1.38ton
Rated payload: 1.06ton
GVWR: 2.57ton
Max. speed: 90km/h
Origin: Shanghai
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ180XSA08
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
total peak torque: 230N·m
total rated torque: 80N·m
Electronic Control
ECU Brand: Shenzhen Yisipulin
Battery/Charging
Battery Brand: Jiangxi Anchi
Charging method: DC fast charge / slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 38.016kWh
Battery Model: M2PCS9MB
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 2.81m
Cargo box width: 1.52m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1200kg
rear axle allowable load: 1370kg
Tire
Tire Size: 165R14LT 8PR
Number of tires: 4pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Steering Wheel Material: Plastic
AC control type: Manual
lighting configuration
Front fog lamp:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

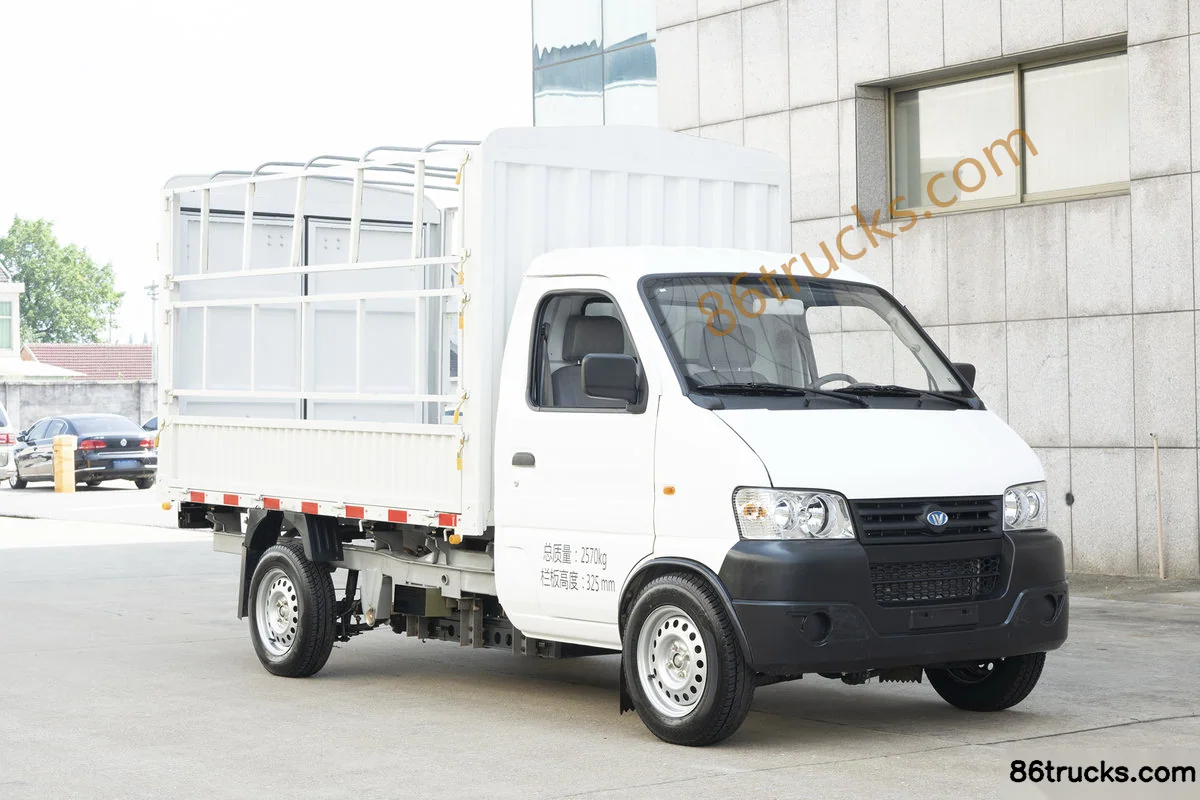

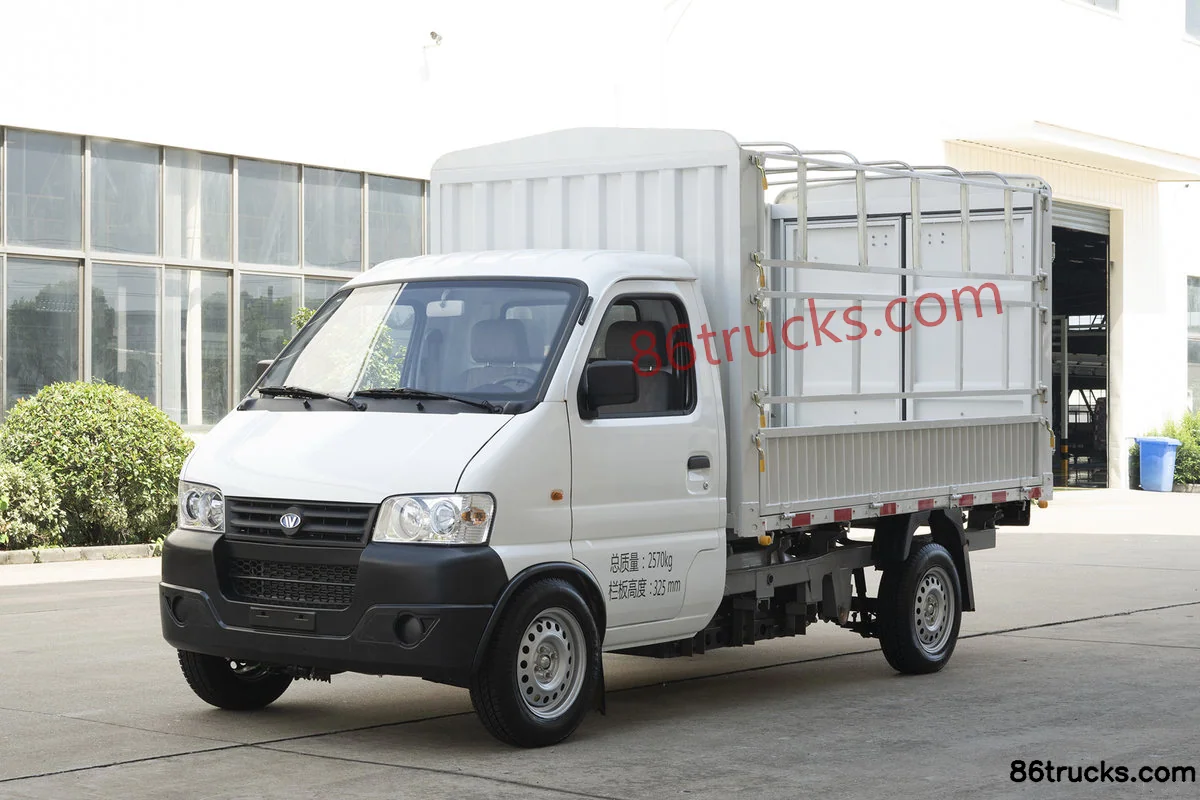

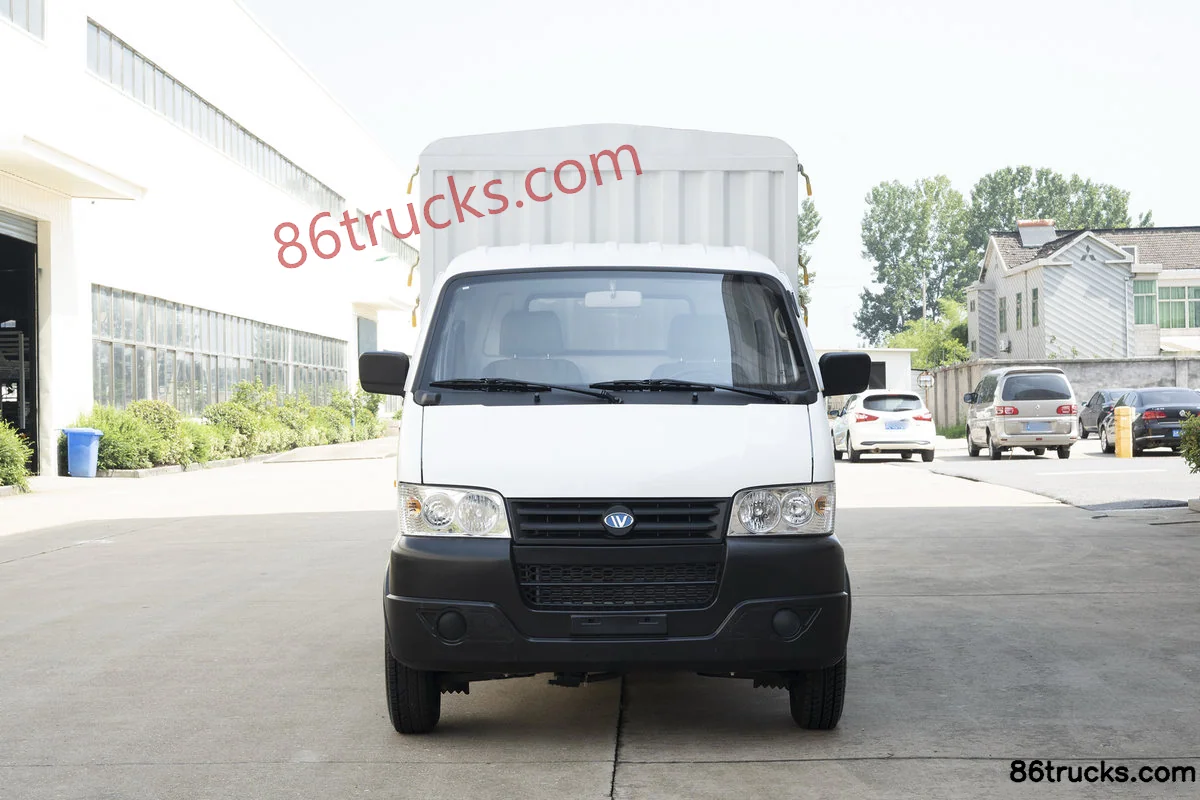

Exterior3

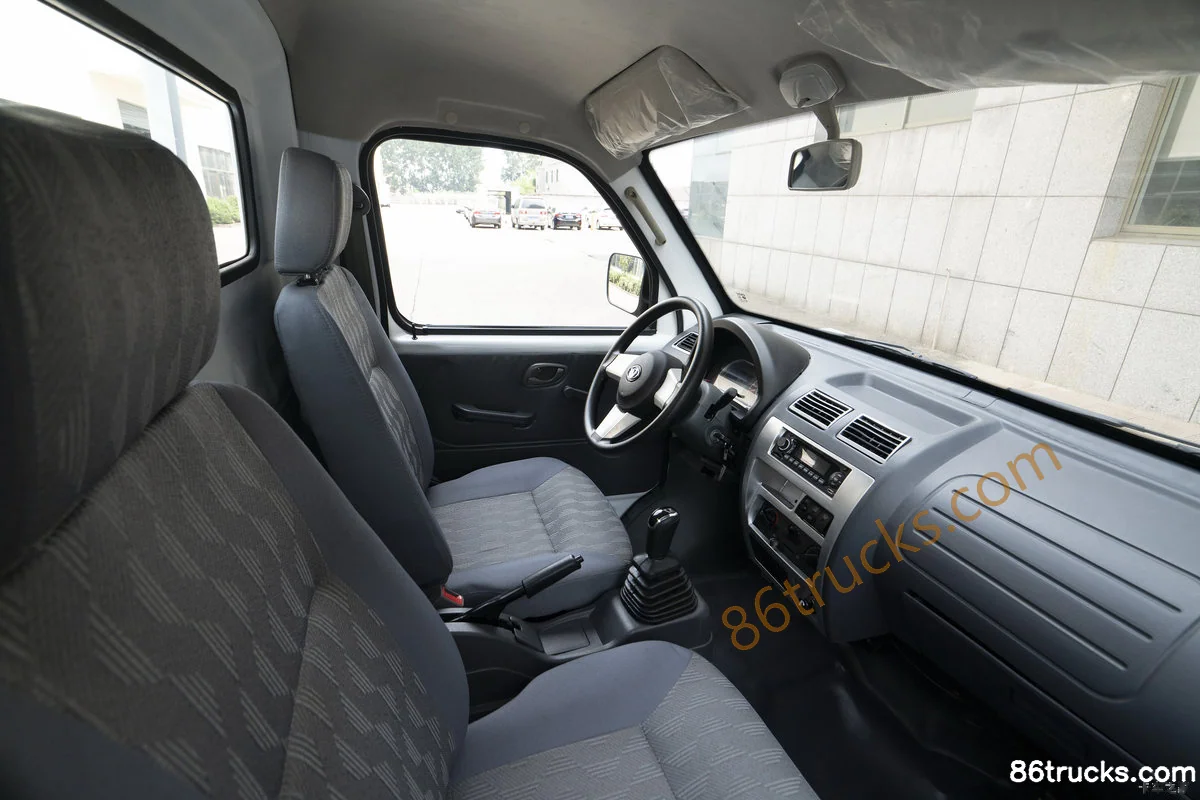

Cab1

4 photos

FAQ

What is the export price of Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels), and what does it include?

Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels) export reference is about From $17,333; MSRP is ¥12.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels)?

Key specs of Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels) suited for?

Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels) differ from other variants in the same series?

Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels) belongs to Wanxiang AutoK01 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Wanxiang Auto K01 2.57T 2.81m Single Row Pure Electric Cage Micro Truck 38.016kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
