FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis

Export reference
From $17,222
MSRP ¥12.4M CNY
Horsepower: 140
Emission: China IV
Fuel: Diesel
Engine: Dachai 4-cylinder
Transmission: FAW Jiefang
Curb Weight:: 5.175ton
seating capacity: 3Personnel
Rated payload: 4.63ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis is a Medium-duty truck featuring 5.75m cargo length, Chassis cargo body, 3Personnel volume and 4.63t payload. On the powertrain side, it comes with a Dachai 4-cylinder engine, 140 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1100PK2E4A80
Type: Chassis
Drive type: 4X2
Wheelbase: 4520mm
Box length class: 5.8m
engine: DachaiBF4M2012-14E4
transmission: FAW JiefangCA6T123
Rear Axle Ratio: 4.875
Cab length: 7.998m
Cab width: 2.496m
Cab height: 2.9m
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 5.175ton
Rated payload: 4.63ton
GVWR: 10ton
Max. speed: 98km/h
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 14°
Front/rear suspension: 1.312/2.166m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiBF4M2012-14E4
Engine info: Dachai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.04L
Emission standard: China IV
Max output power: 106kW
Max hp: 140Horsepower
Max torque: 530N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: 4-cylinder inline, turbocharged & intercooled, electronic unit pump
Transmission Parameters
Transmission Model: FAW JiefangCA6T123
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 5.75m
Cargo box width: 2.3m
Cargo box height: 0.4m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 3000kg
rear axle description: 1092 cast axle
rear axle allowable load: 7000kg
Axle ratio: 4.875
Leaf spring count: 4/4+3
Tire
Tire Size: 8.25R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

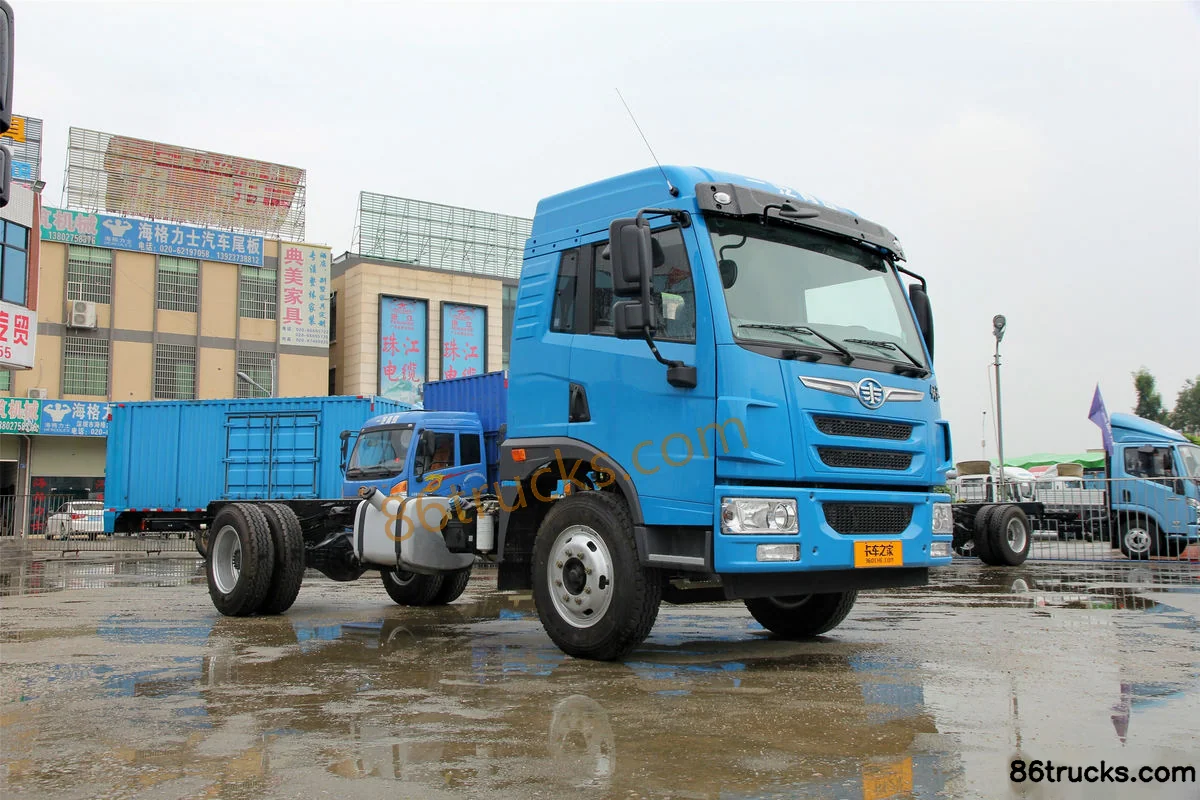

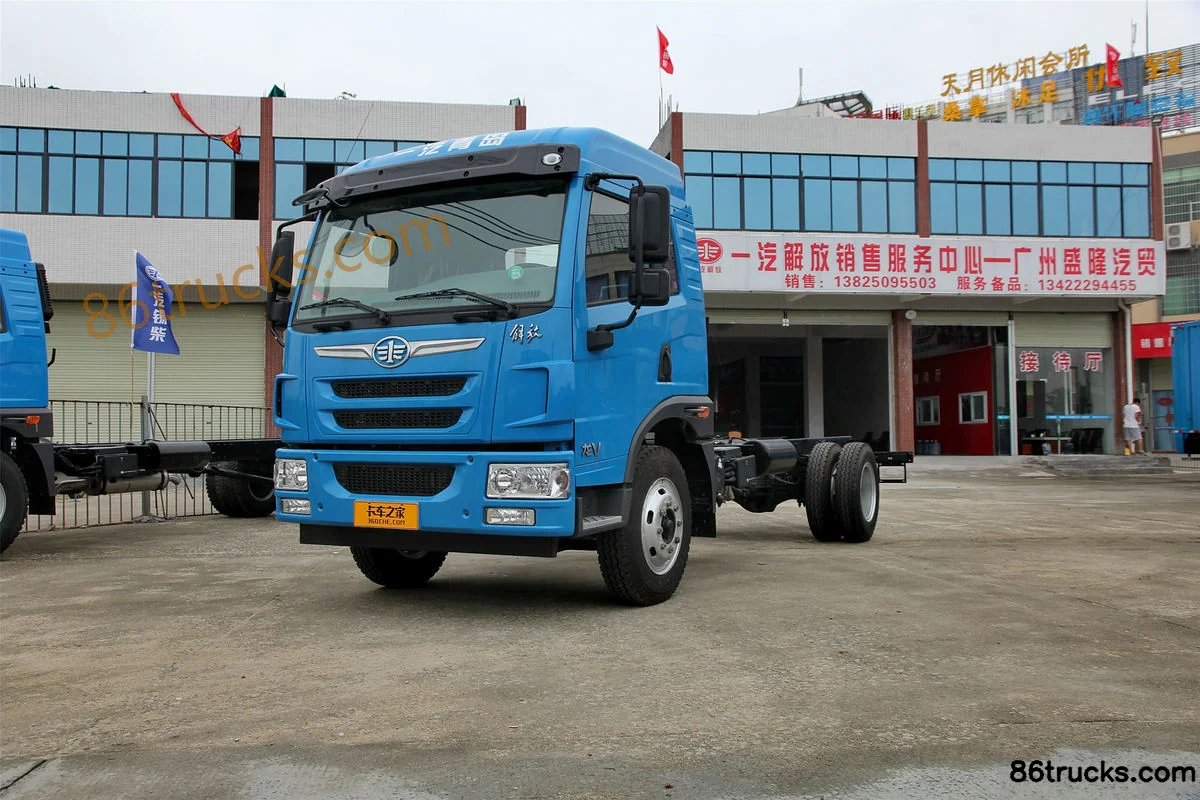

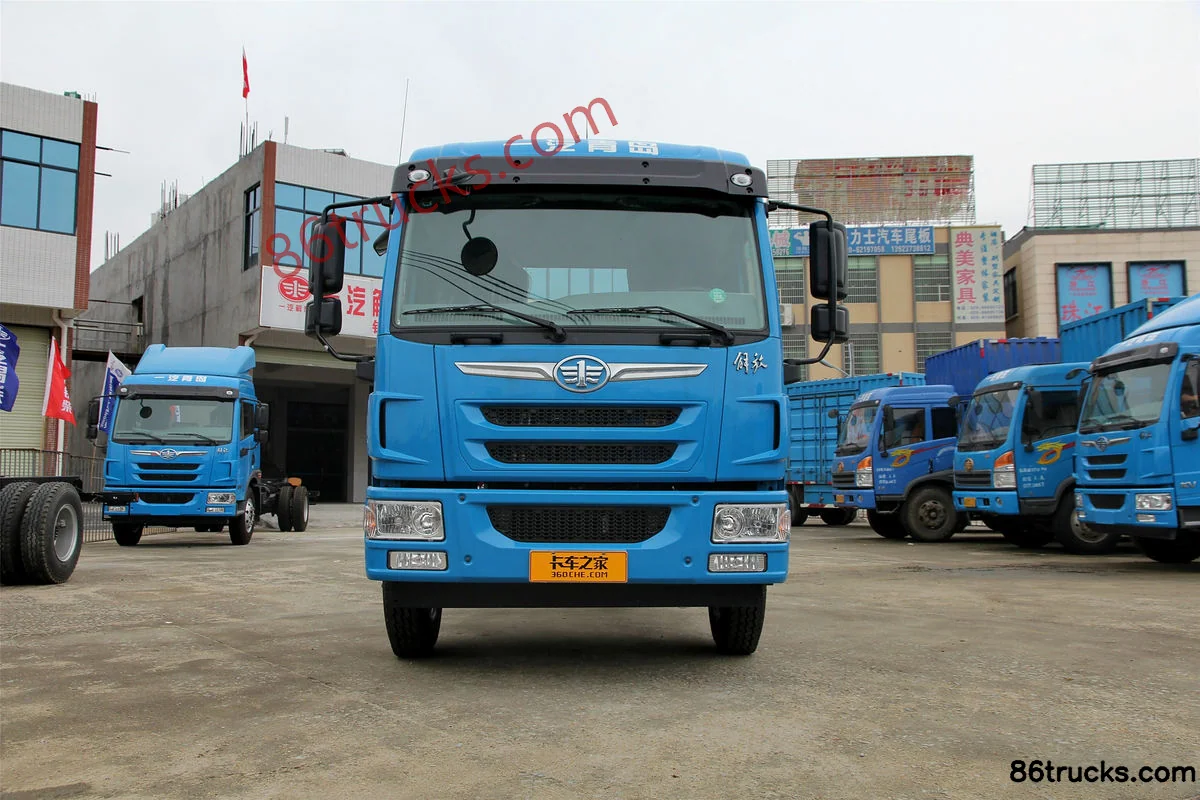

Exterior3

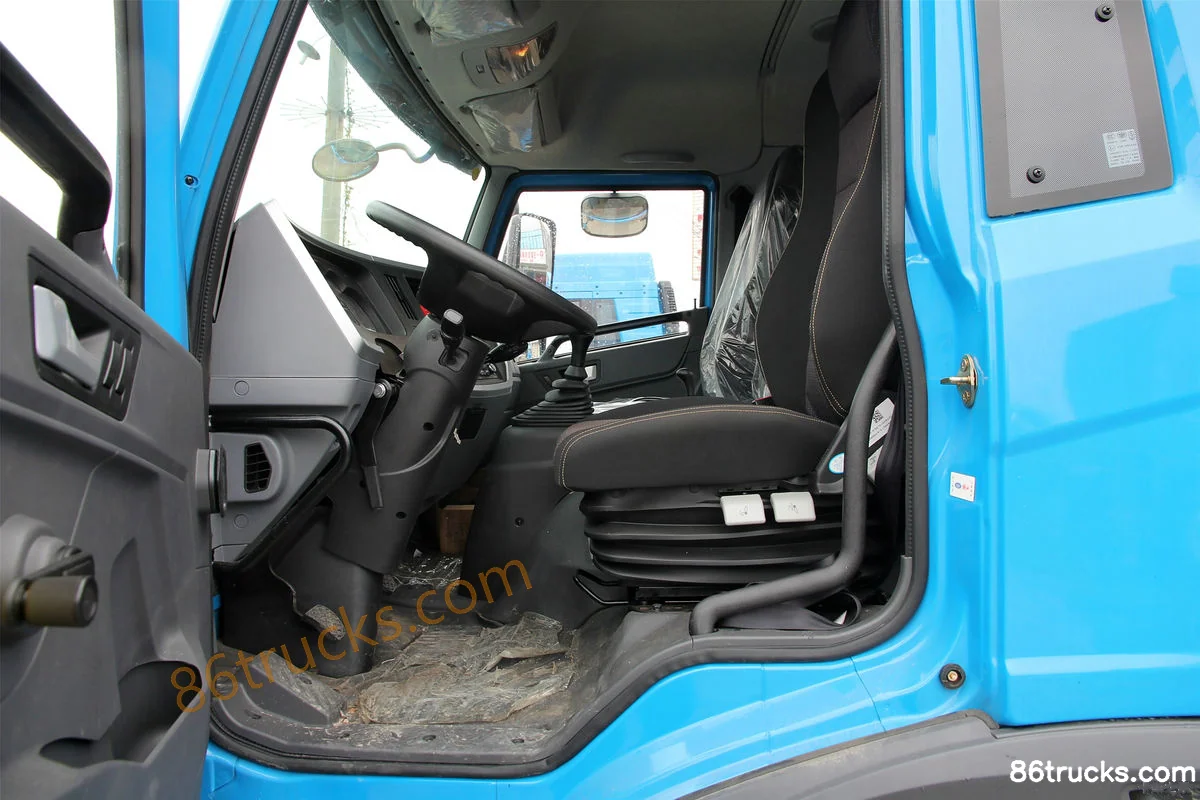

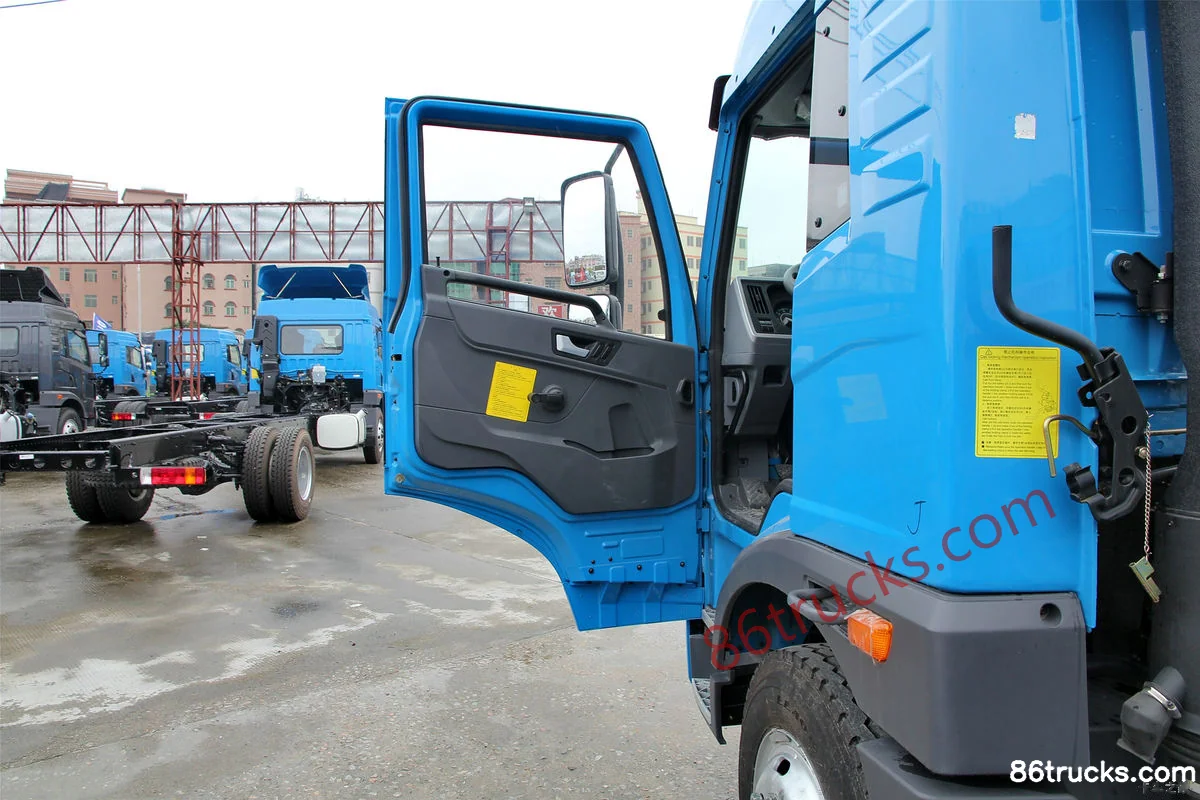

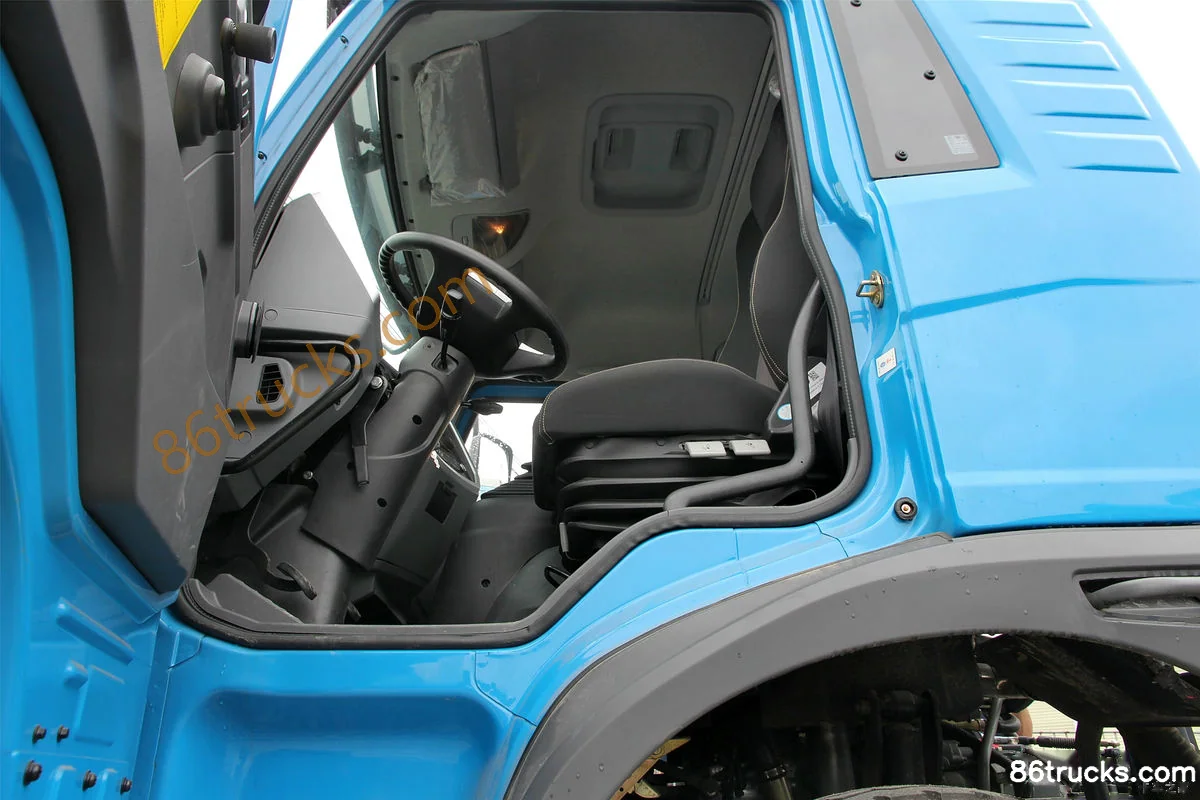

Cab3

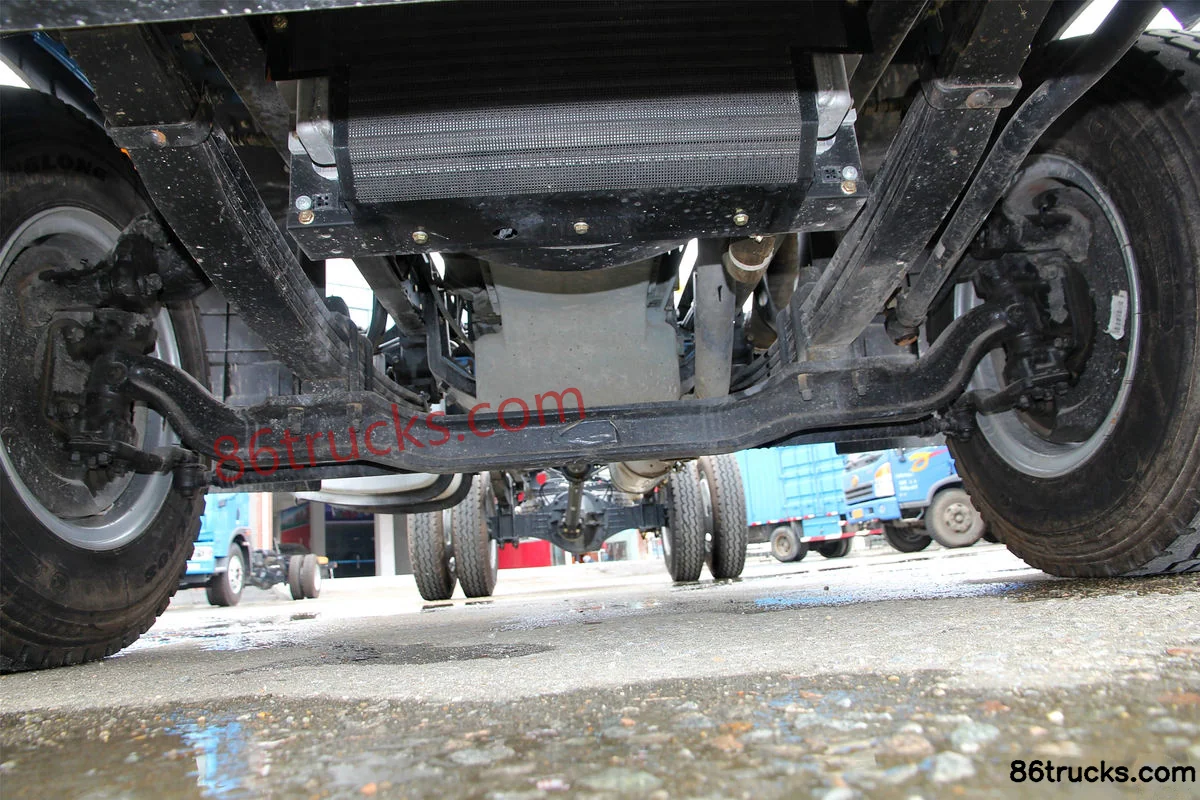

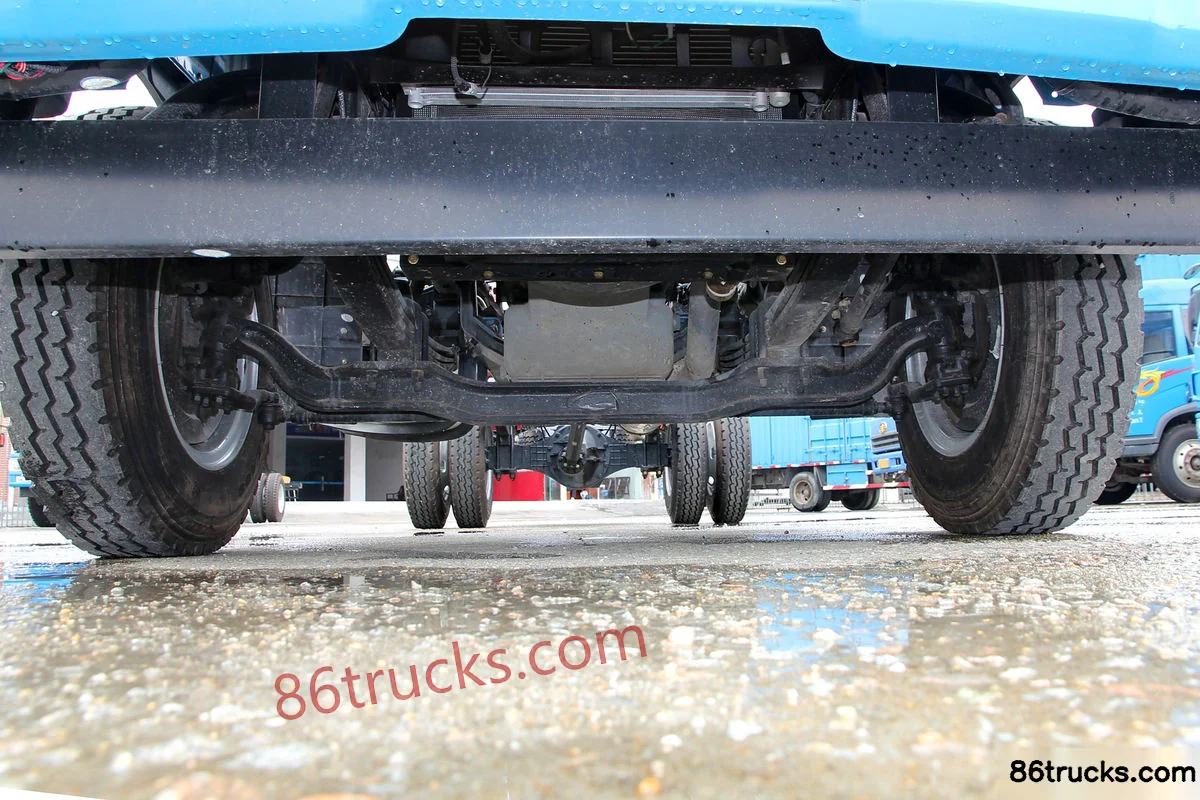

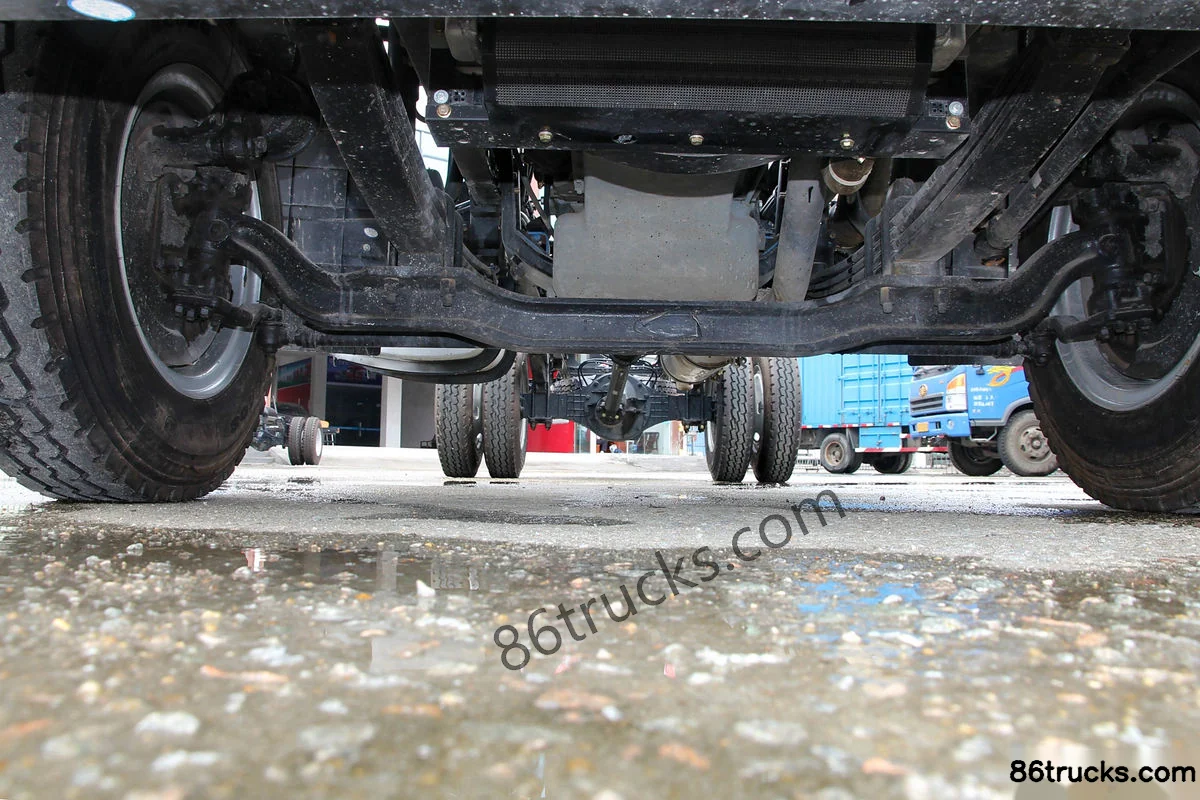

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis, and what does it include?

FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis export reference is about From $17,222; MSRP is ¥12.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis?

Key specs of FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis: Drive: 4x2; Horsepower: 140 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai 4-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis suited for?

FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis differ from other variants in the same series?

FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis belongs to FAW Jiefang Qingdao Long V Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Long V Medium Truck 140 hp 4X2(6 wheels) 5.8m Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
