FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai)

Export reference
From $20,833
MSRP ¥15M CNY
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Dachai4DH
Transmission: Fast Gear
Curb Weight:: 6.35ton
seating capacity: 3Personnel
Rated payload: 9.455ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai) is a Medium-duty truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 9.455t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Dachai4DH engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5169CCYP40K2L6E5A85
Type: stake truck
Drive type: 4X2
Wheelbase: 5250mm
Box length class: 6.8m
engine: DachaiCA4DH1-16E5
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.55m
Cab height: 3.97m
Front track width: 1800mm
rear track: 1800,1740mm
Curb Weight: 6.35ton
Rated payload: 9.455ton
GVWR: 16ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
market segment: Daily industrial goods transport, agricultural and sideline products transport, green channel
Front/rear suspension: 1.332/2.417m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DH1-16E5
Engine info: Dachai4DH
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.8L
Emission standard: China V
Max output power: 121kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: Lin VH
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10400kg
Axle ratio: 4.875
Leaf spring count: 7/10+3
Tire
Tire Size: 9.00R20,10R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

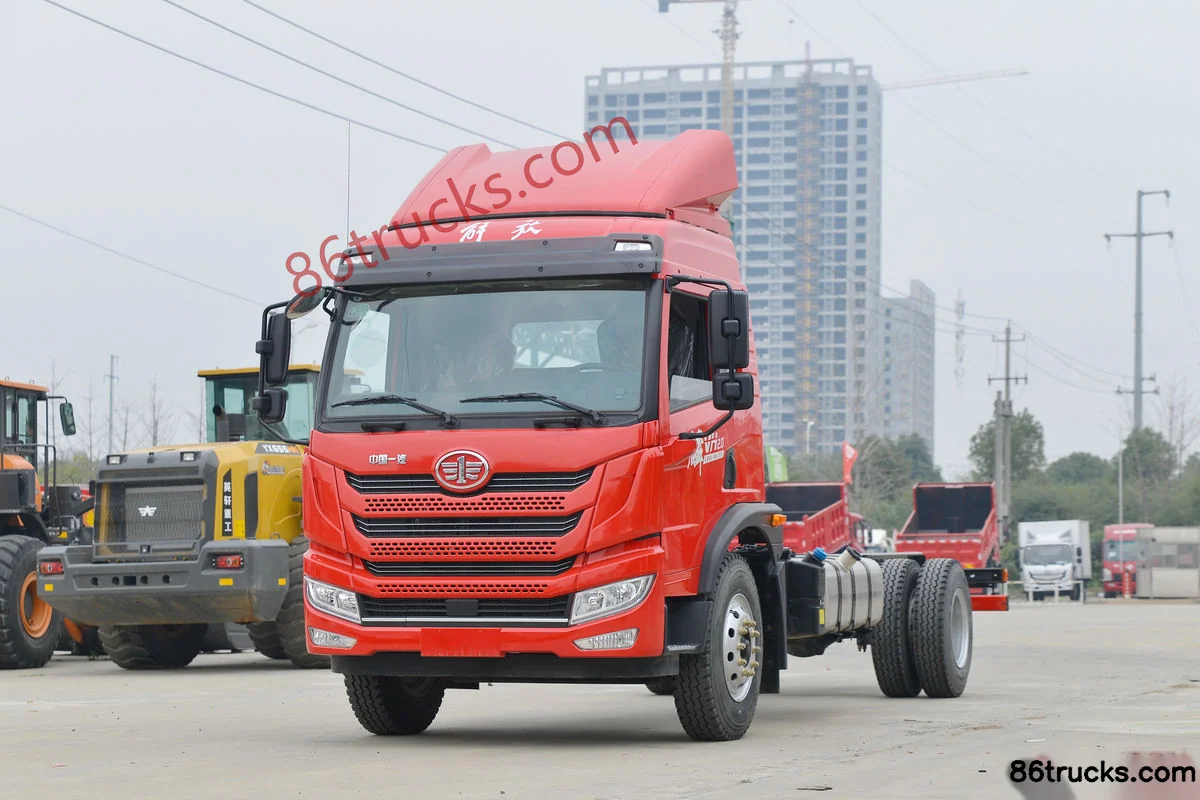

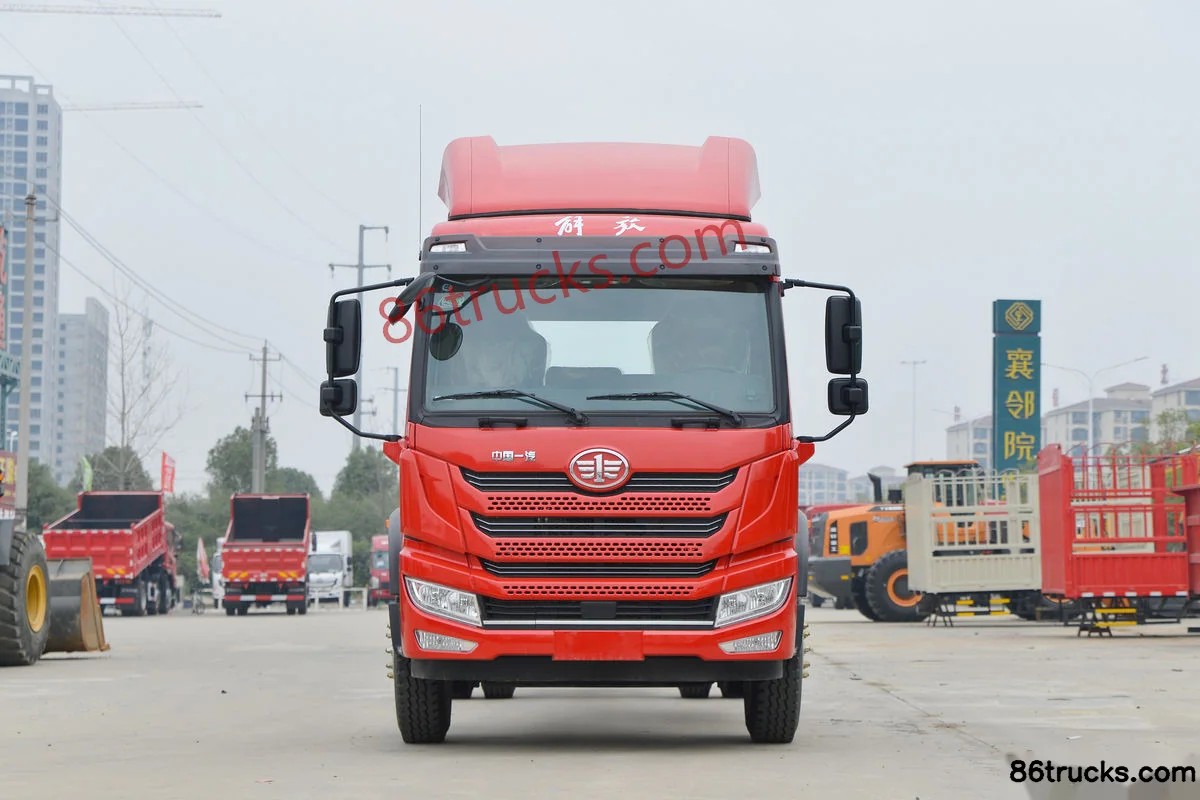

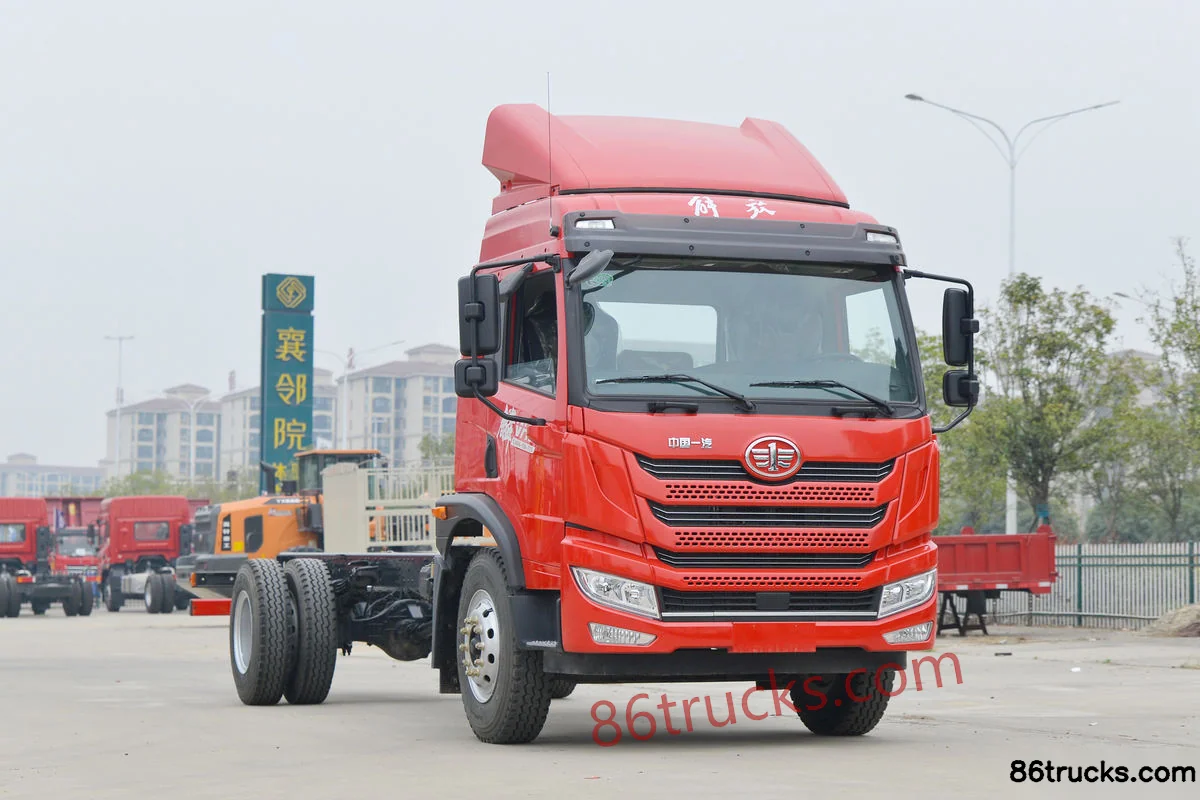

Exterior3

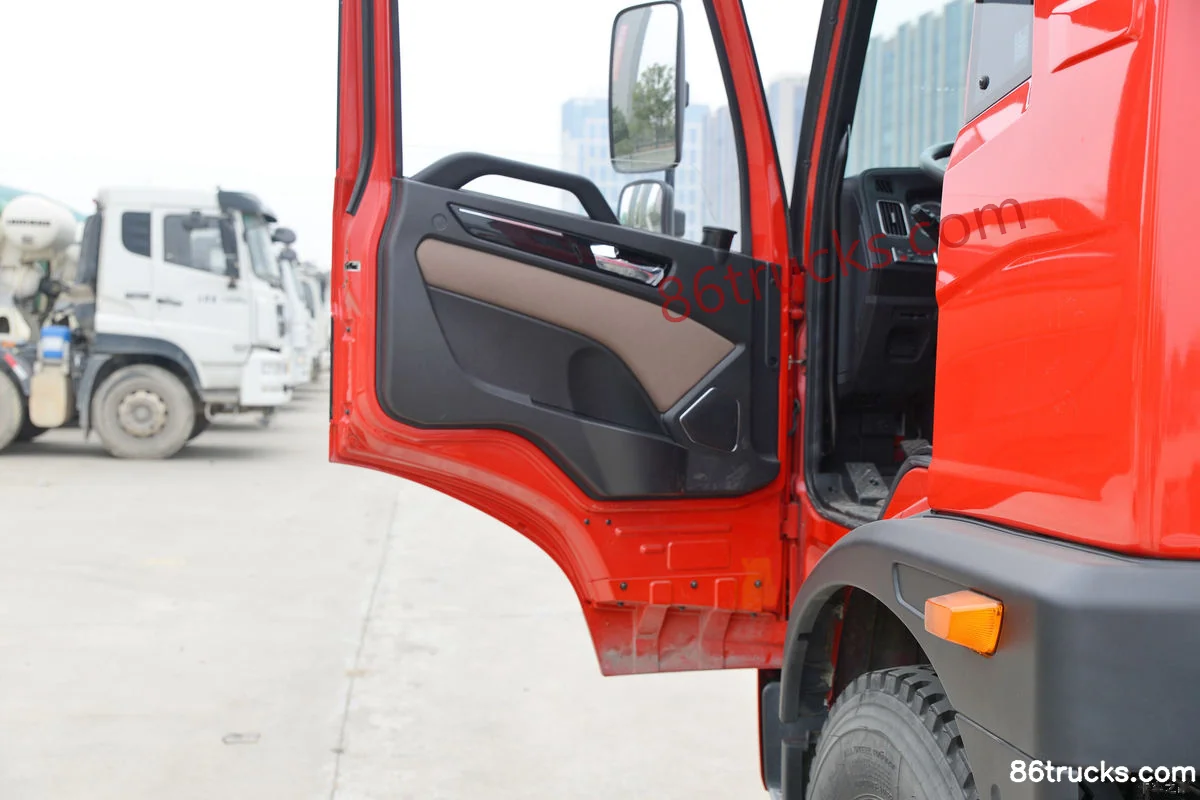

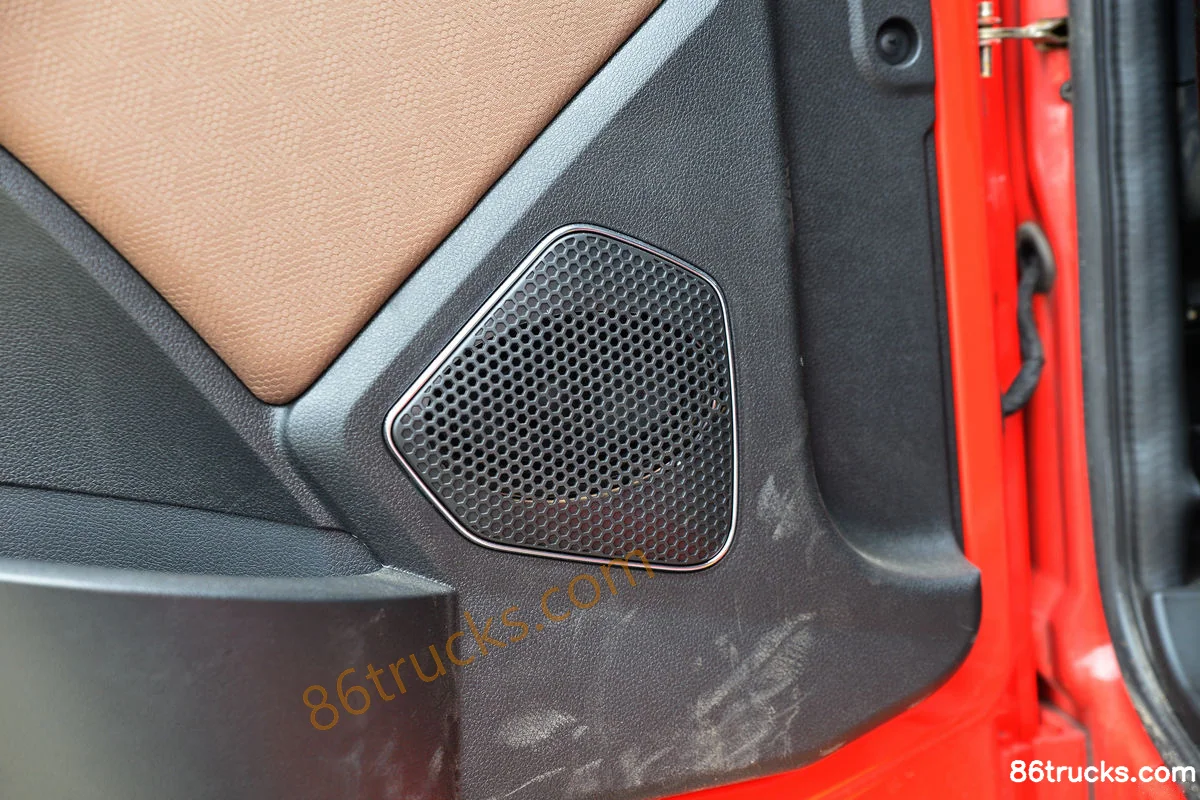

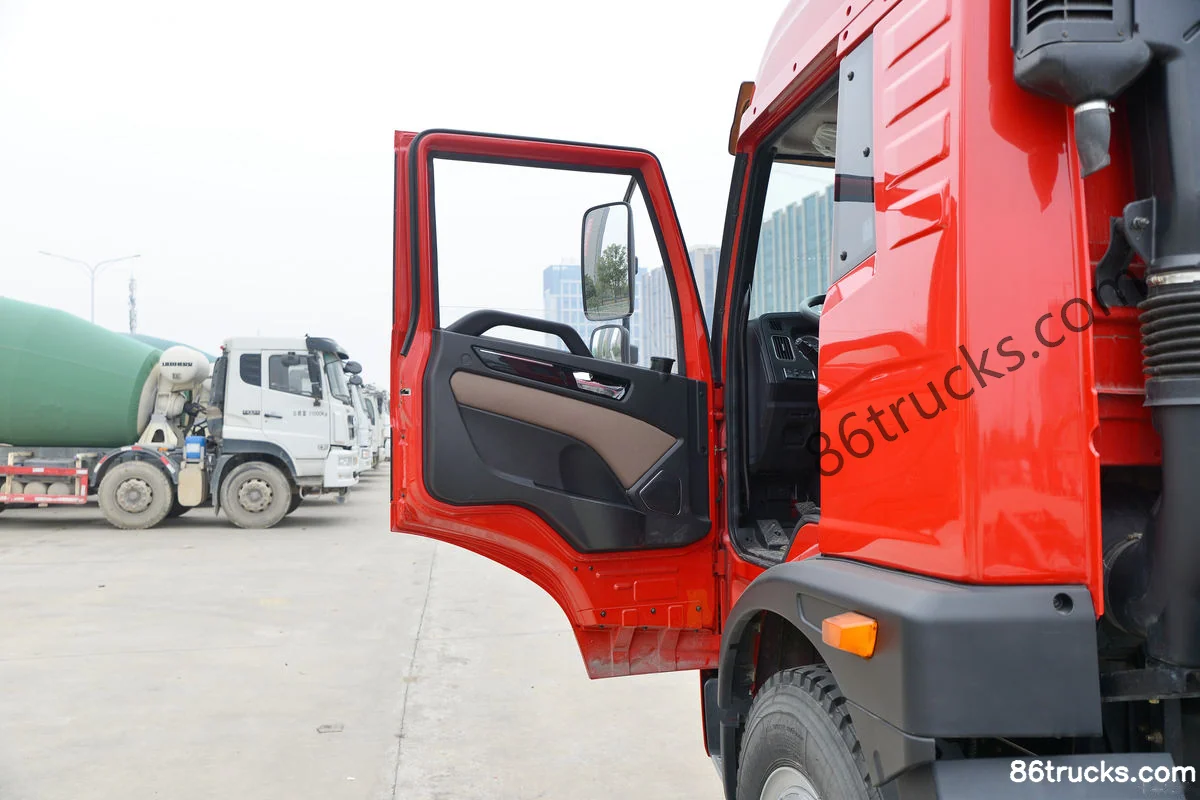

Cab3

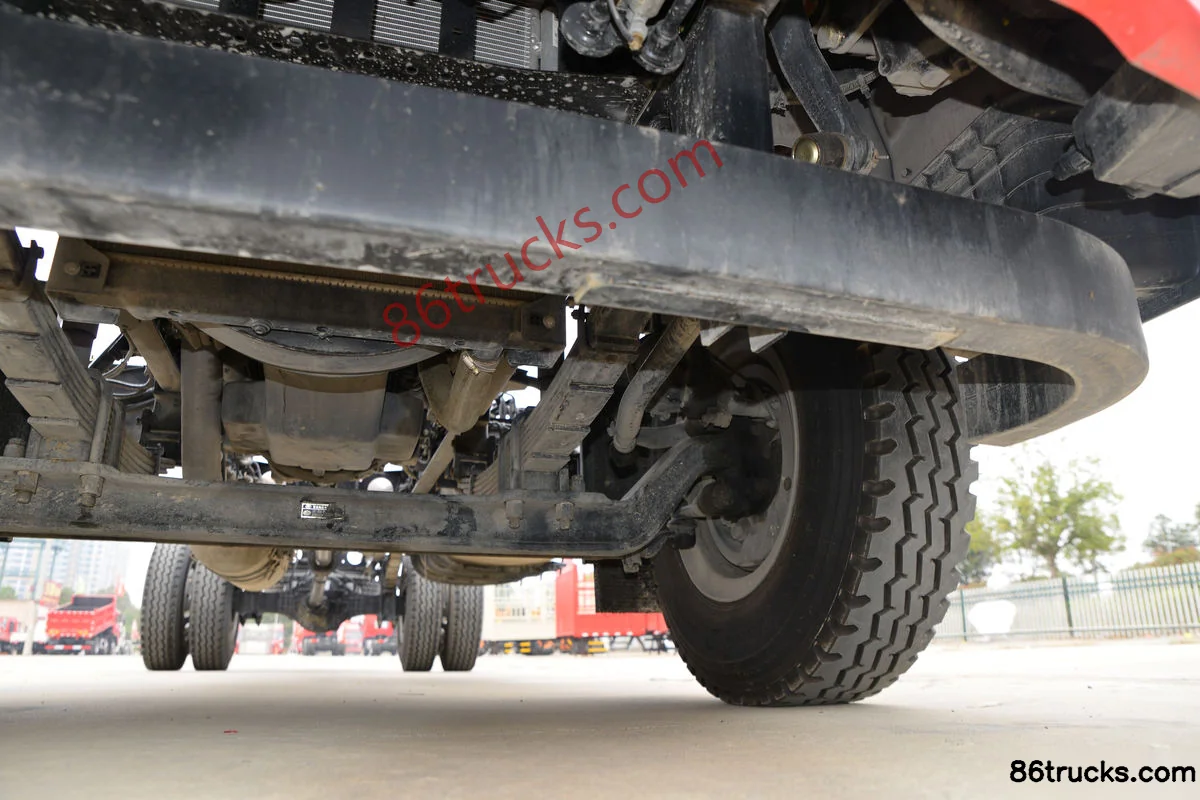

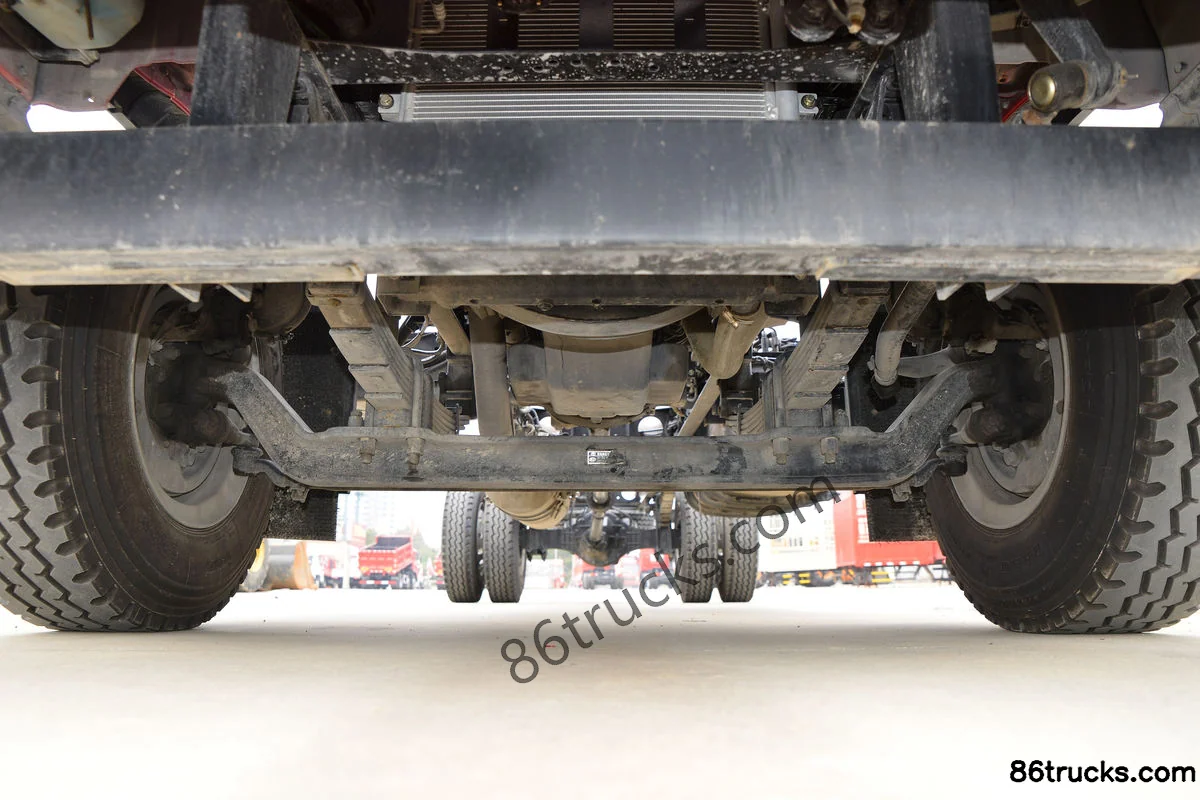

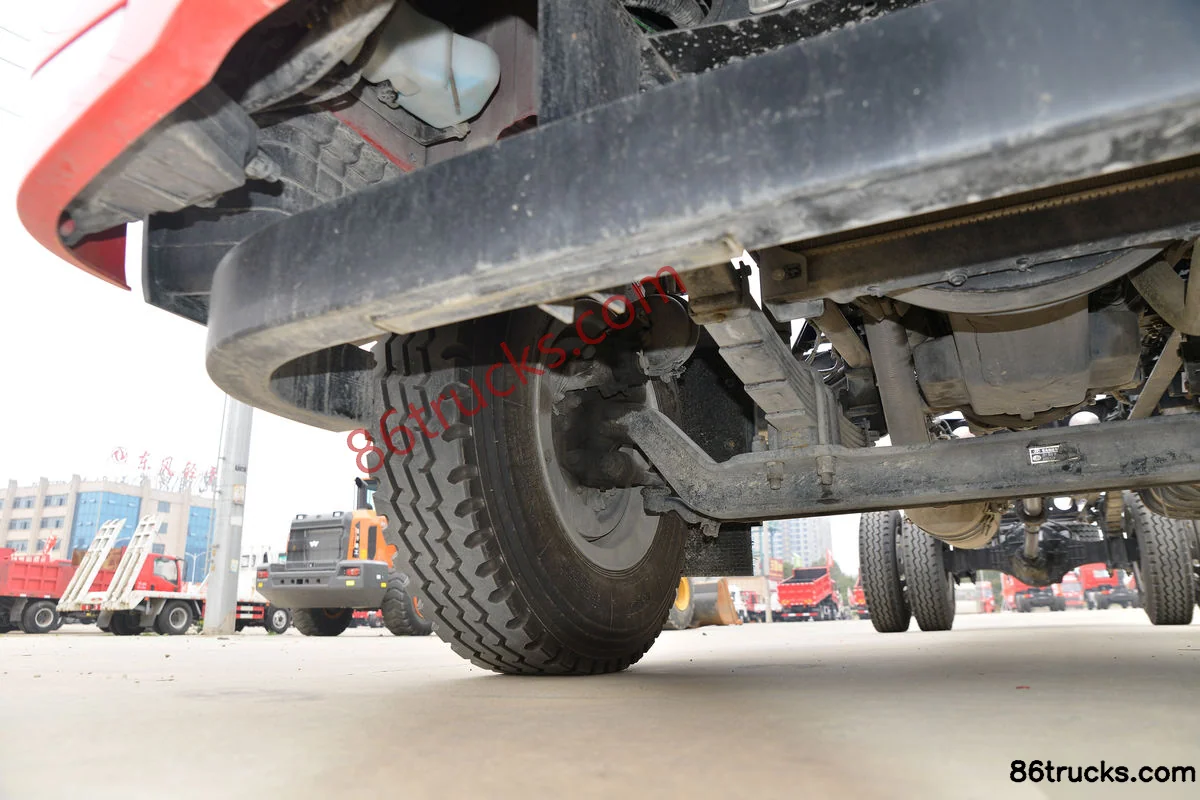

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai), and what does it include?

FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai) export reference is about From $20,833; MSRP is ¥15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai)?

Key specs of FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Dachai4DH; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai) suited for?

FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai) differ from other variants in the same series?

FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai) belongs to FAW Jiefang Lin VH medium-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Lin VH 160 hp 4X2(6 wheels) 6.76m semi-pitch barn-door cargo truck (Dachai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
