XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck

Export reference
MSRP N/A
Horsepower: 300
Emission: China IV
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 13.35ton
seating capacity: 2Personnel
Rated payload: 17.515ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 2Personnel volume and 17.515t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10 engine, 300 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 300 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NXG5310CCYK4
Type: stake truck
Drive type: 8X4
Wheelbase: 2100+4500+1350mm
Box length class: 9.5m
engine: WeichaiWP10.300E40
transmission: Fast Gear10JSD140B
Rear Axle Ratio: 4.875
Cab length: 12m
Cab width: 2.495m
Cab height: 3.8m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 13.35ton
Rated payload: 17.515ton
GVWR: 30.995ton
Max. speed: 80km/h
Origin: Nanjing, Jiangsu
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 11°
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Remarks: High roof hydraulic
Front/rear suspension: 1.485/2.565m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.300E40
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1390N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear10JSD140B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.4m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 6.5T dual front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280mm
rear axle description: 457
rear axle allowable load: 17995 (tandem axle)kg
Axle ratio: 4.875
Leaf spring count: 10/10/13
Tire
Tire Size: 11.00R20 16PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

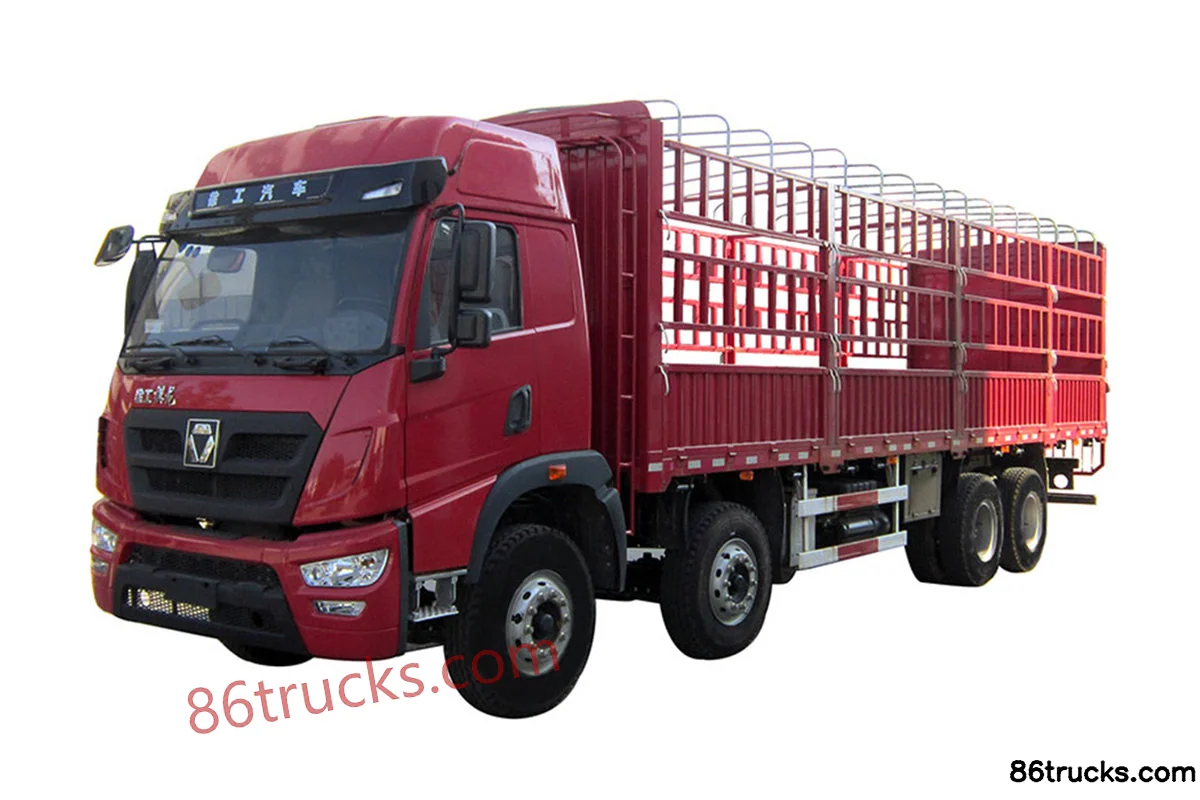

Exterior1

1 photos

FAQ

What emission standard does XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck?

Key specs of XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck: Drive: 8x4; Horsepower: 300 hp; Emission: China IV; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck suited for?

XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck differ from other variants in the same series?

XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck belongs to XCMG Truck Qilong T Series (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG T-Series Heavy Truck 300hp 8X4(12 wheels) 9.5m Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
