JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand)

Export reference
MSRP N/A
Wheelbase:: 3360mm
Cab dimensions:: 7.4×1.99×2.99m
Type:: aerial work truck
Front/rear track width:: Front track: 1385, Rear track: 1425mm
GVWR:: 6.725ton
Front/rear suspension:: 1.015/1.855m
Drive 4X2 (6 wheels)
Horsepower 115
Curb Weight: 6.25ton
Emission China III / Euro III

Overview

The JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand) is a aerial work truck featuring 6.725t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 115 hp and China III / Euro III emissions.

China III / Euro III 115 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.4×1.99×2.99m
Type: aerial work truck
Drive type: 4X2
Wheelbase: 3360mm
Front/rear track width: Front track: 1385, Rear track: 1425mm
Curb Weight: 6.25ton
GVWR: 6.725ton
Front/rear suspension: 1.015/1.855m
Body Parameters
Max working height: 10-18m
max working radius: 16m
Swing Angle: 360°
Front/rear overhang: 750/260mm
Vehicle certification code: JDF5060JGKJ
Body Brand: Jiangte Brand
Engine parameters
Engine Model: JMC JX493ZLQ3
Displacement: 2.771L
Emission standard: China III / Euro III
Max output power: 85kW
Max hp: 115Horsepower
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda
Chassis Model: NKR77LLLWCJAY
Leaf spring count: 8/6+5
Transmission Parameters
Number of gears: 5Gear
Tire
Tire Size: 7.00R16
Number of tires: 6pcs

Photos

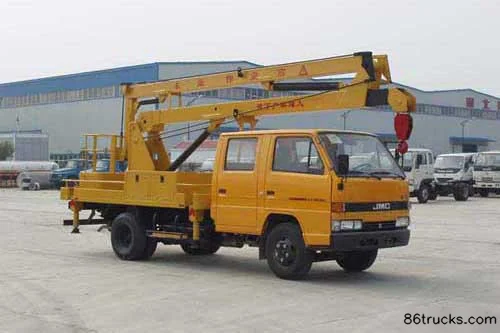

Exterior1

1 photos

FAQ

What emission standard does JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand)?

Key specs of JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand): Drive: 4x2; Horsepower: 115 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand) suited for?

JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand) is a aerial work truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand) differ from other variants in the same series?

JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand) belongs to Jiangte JMC chassis (aerial work truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda 115hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
