JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck

Export reference
From $51,944
MSRP ¥37.4M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 11.8L
Drive 6X4 (10 wheels)
Horsepower 510
Emission China V
Transmission Fast Gear

Overview

The JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 510 hp, 25t GVW and China V emissions. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a FotonISGe5-510 engine, Fast Gear transmission and Diesel fuel.

China V 510 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4251P12K7E33S8V
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: FotonISGe5-510
transmission: Fast Gear12JSDX240TA
Rear Axle Ratio: 3.7
Cab length: 7.025m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2050mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
market segment: Logistics Freight
Remarks: A5W III High Roof Flat Floor New Interior (Long-Haul Home)
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISGe5-510
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.8L
Emission standard: China V
Max output power: 375kW
Max hp: 510Horsepower
Max torque: 2300N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSDX240TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 700L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 6.5T
Front axle allowable load: 7000kg
Fifth wheel: 50#,90#
rear axle description: 459
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 3/4,2/3,10/12,2/1+-/1+-,2/2+-/2+-,3/-,2/-
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Remote key:
Electronic Central Lock:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

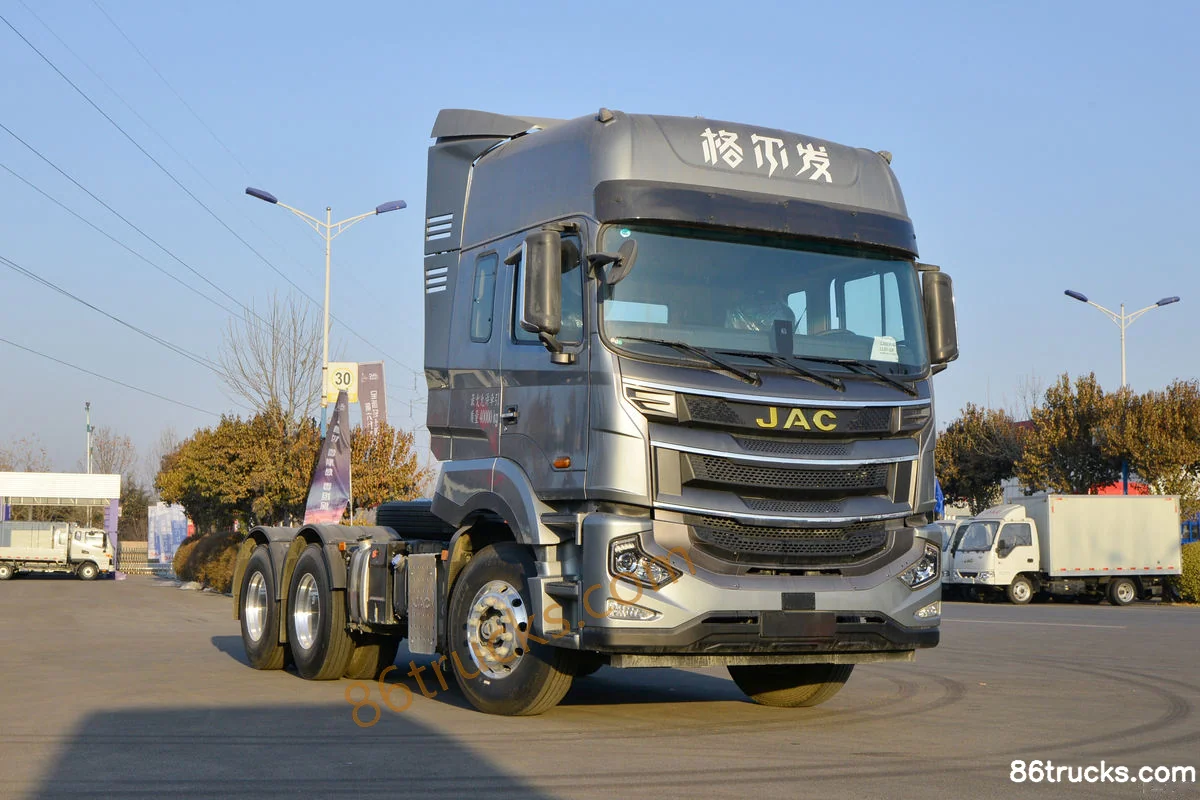

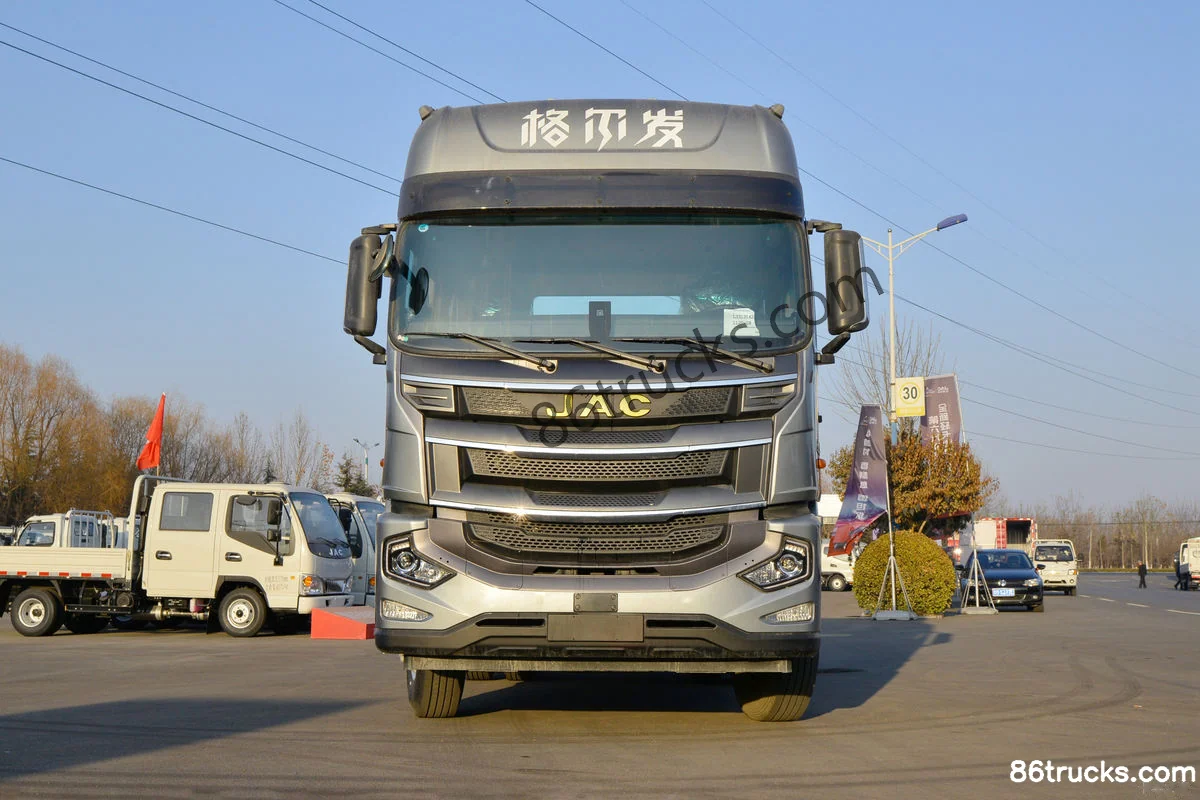

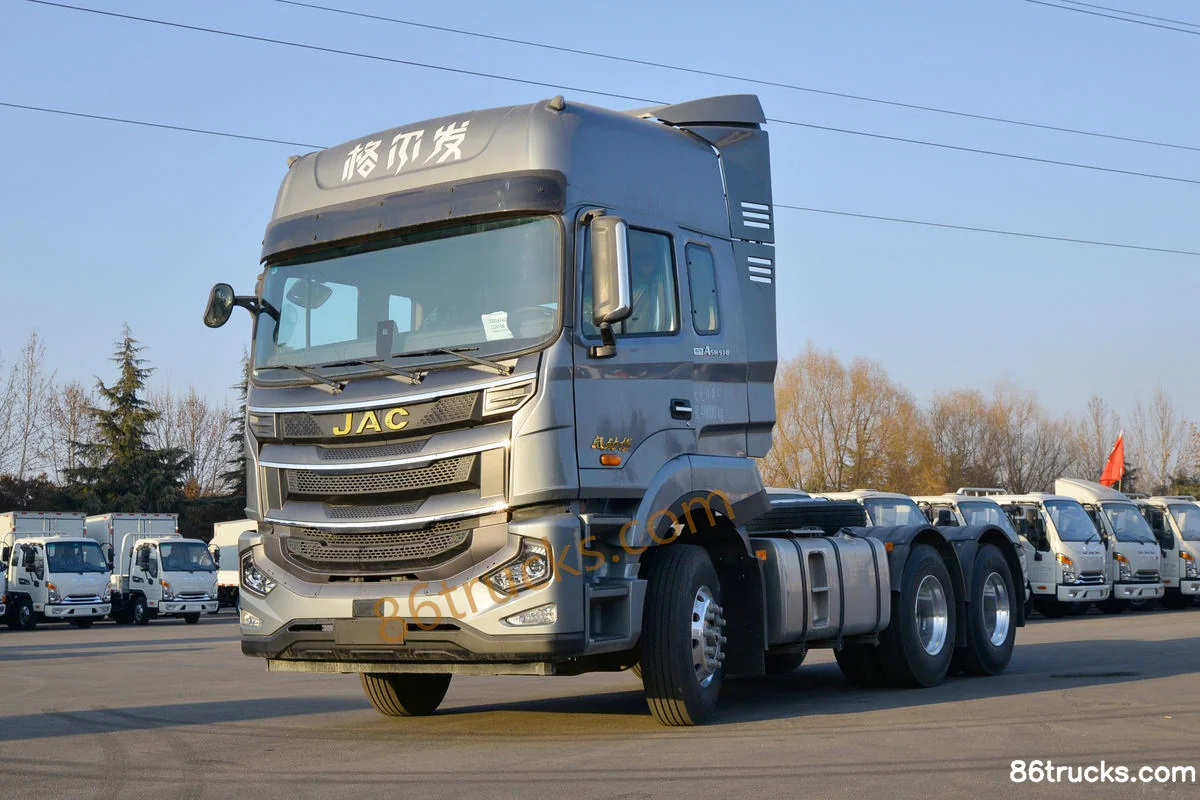

Exterior3

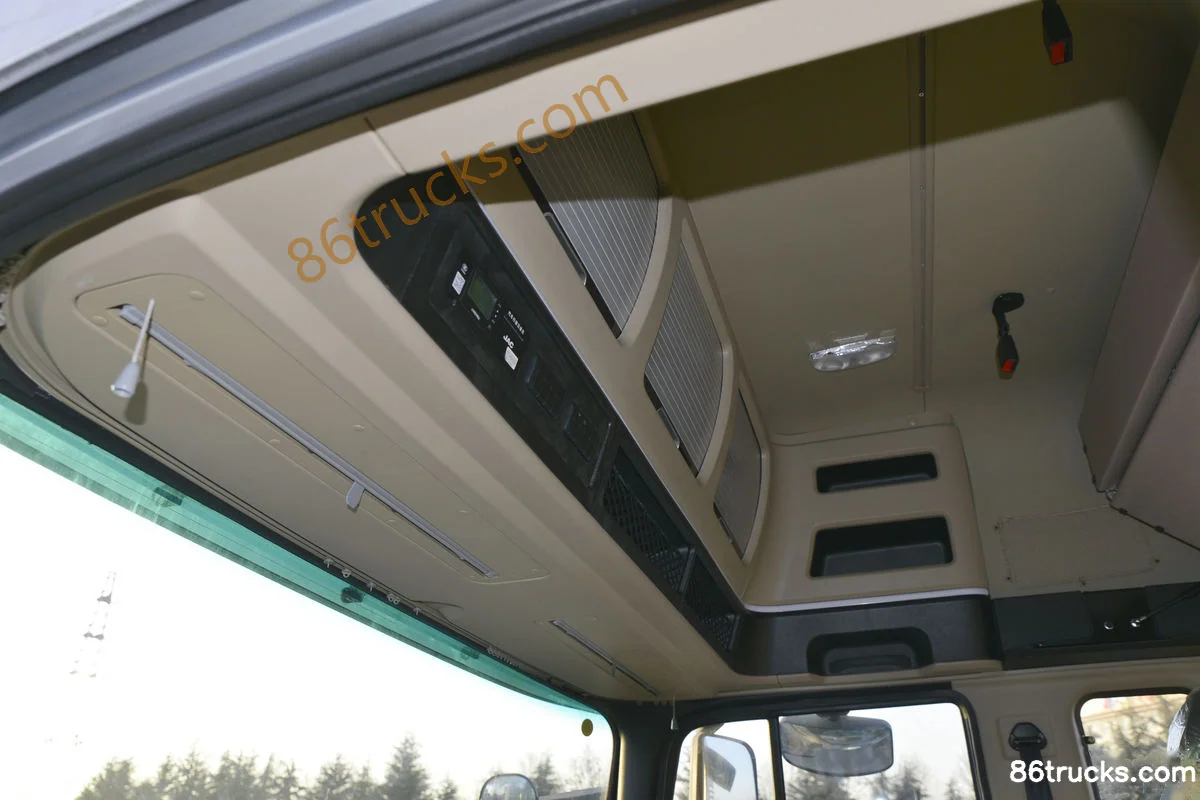

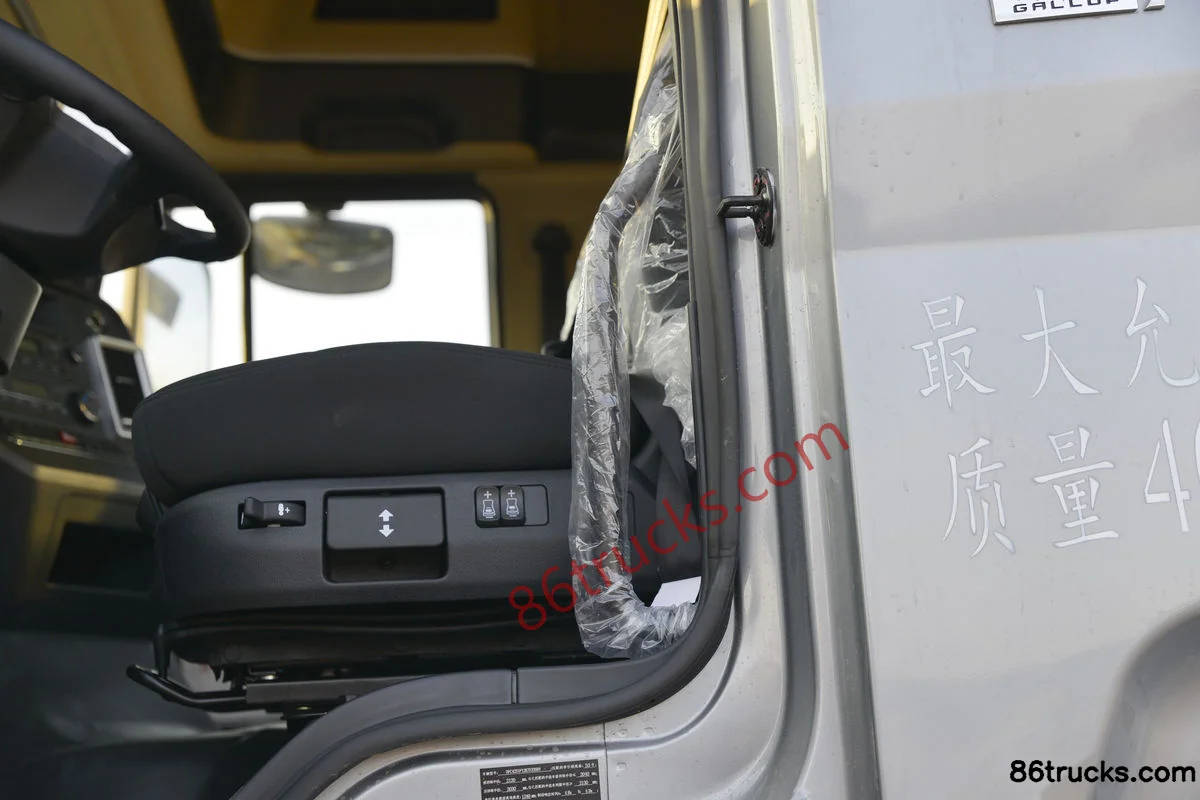

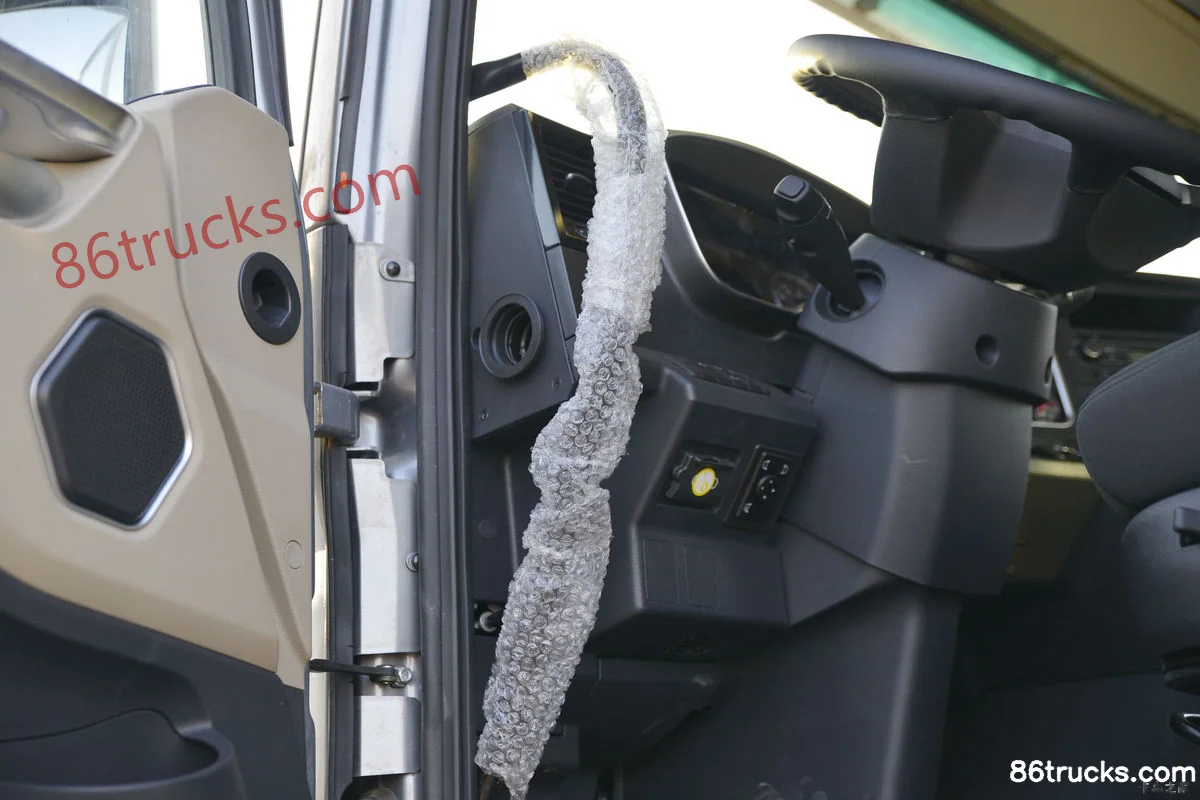

Cab3

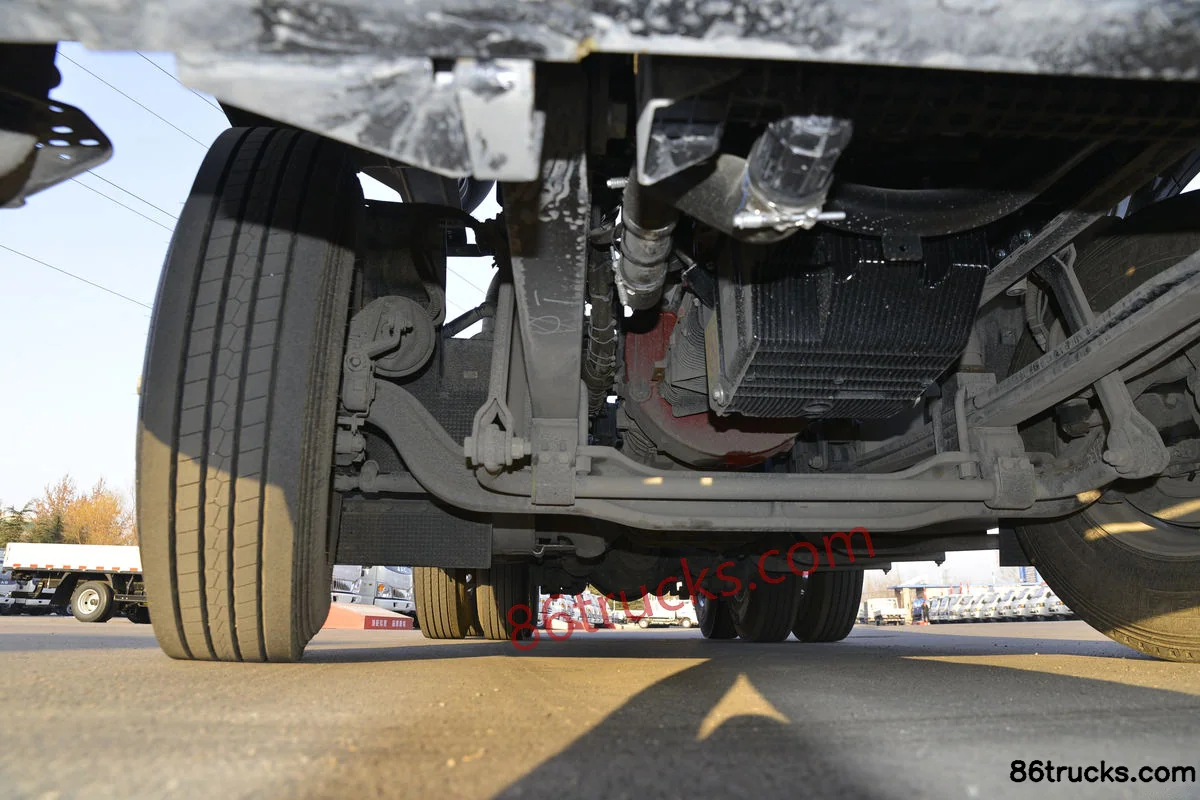

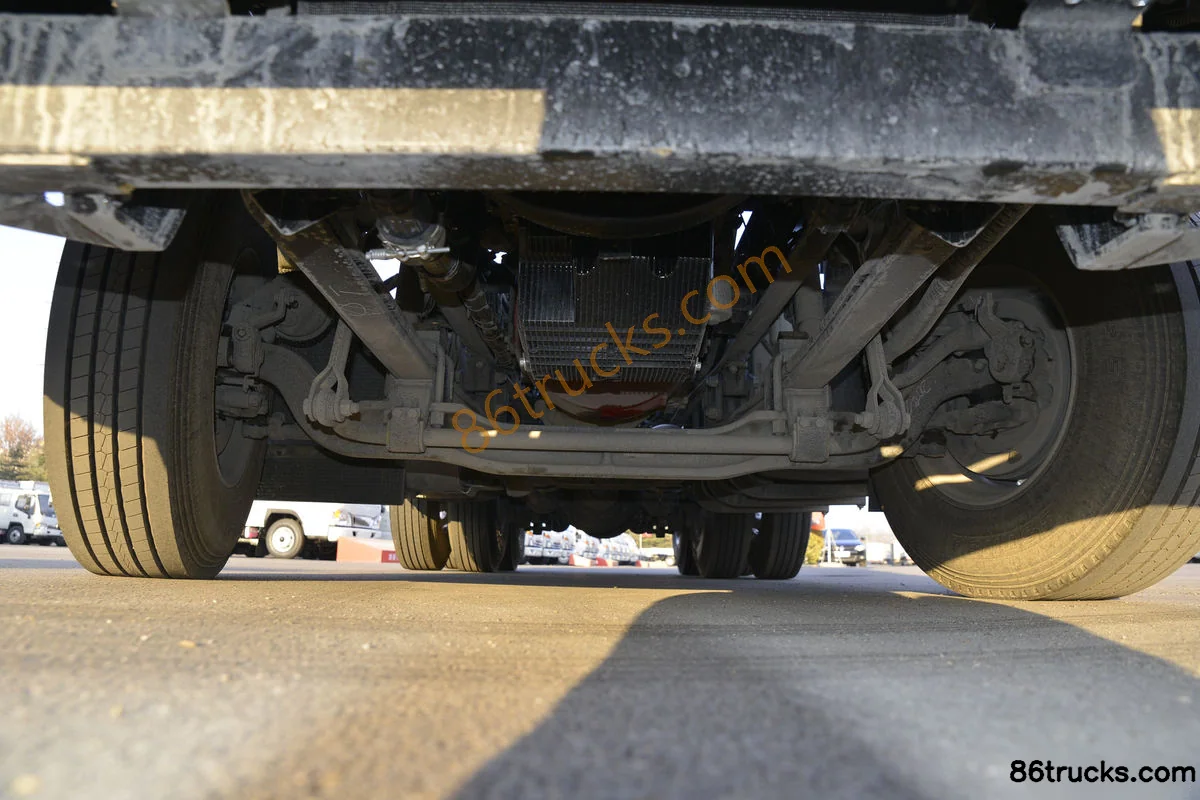

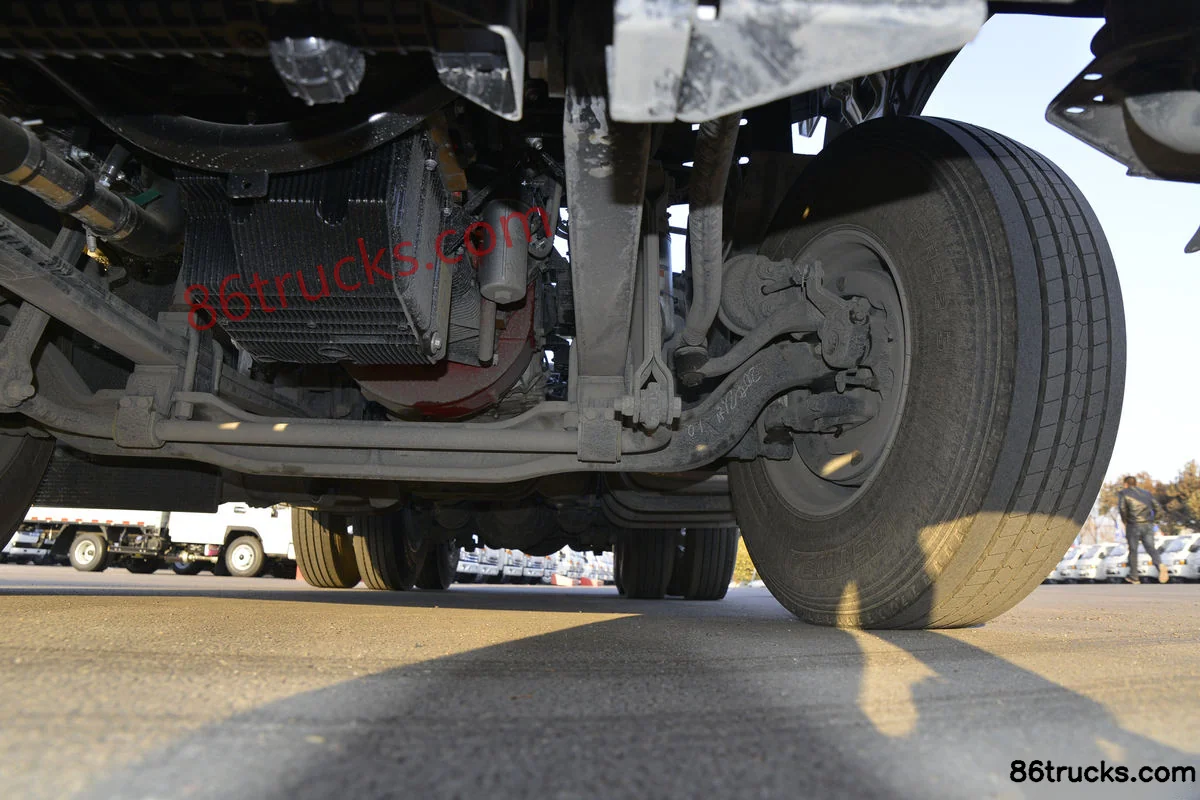

Chassis3

9 photos

FAQ

What is the export price of JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck, and what does it include?

JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck export reference is about From $51,944; MSRP is ¥37.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck?

Key specs of JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck: Drive: 6x4; Horsepower: 510 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck suited for?

JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck differ from other variants in the same series?

JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck belongs to JAC Gallop A5 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5W III Heavy Truck Standard Load Edition 510hp 6X4(10 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
