FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model)

Export reference
From $34,722
MSRP ¥25M CNY
Fuel: Diesel
Gross Trailer Weight:: 36.6ton
Wheelbase:: 3150+1350mm
Tire Size:: 11.00-20 12.00-20 11.00R20 12.00R20
rear axle allowable load:: 18000kg
Displacement:: 7.7L
Drive 6X4 (10 wheels)
Horsepower 320
Emission China III / Euro III
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model) is a Heavy truck featuring 6X4 (10 wheels) drive, 320 hp, 25t GVW and China III / Euro III emissions. On the powertrain side, it comes with Fast Gear transmission and Diesel fuel.

China III / Euro III 320 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4257P2K2T1EA82
Drive type: 6X4
Wheelbase: 3150+1350mm
Cab length: 6.8m
Cab width: 2.5m
Cab height: 3.35m
Front track width: 1939,2020mm
Gross Trailer Weight: 36.6ton
rear track: 1800/1800,1830/1830mm
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 107km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Remarks: Optional flat-top cab and deflector. Height with flat-top cab 2990 mm, with deflector 3570 mm. Engine net power: WP10.336N (245 kW), WP10.300N (219 kW), CA6DL1-29E3 (213 kW), BF6M1013-30E3 (220 kW), WP12.336N (245 kW), WP10.336NE31 (243 kW), WP10.310NE31 (224 kW), WP10.300NE31 (217 kW), WP10.290NE31 (209 kW), CA6DL2-31E3F (228 kW), CA6DL2-33E3F (246 kW), WP10.310E32 (224 kW), WP10.290E32 (209 kW). GTW vs engine: WP10.336N 40000 kg, WP10.300N 34855 kg, BF6M1013-30E3 35055 kg, CA6DL1-29E3 33655 kg, WP12.336N 40000 kg, WP10.336NE31 39655 kg, WP10.310NE31 35855 kg, WP10.300NE31 34455 kg, WP10.290NE31 33655 kg, CA6DL2-31E3F 36655 kg, CA6DL2-33E3F 40000 kg, WP10.310E32 35855 kg, WP10.290E32 32855 kg. Optional high-top cab. Trailer mass (kg) also: 35055, 33655, 40000, 39655, 35855, 34455, 33655, 36655, 40000, 35855, 32855. Rear axle optional rubber suspension: 9/-, 4/-.
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-32E3
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China III / Euro III
Max output power: 235kW
Max hp: 320Horsepower
Max torque: 1250N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 350L
Cab parameters
Cab: Semi-high roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring or front leaf + rear air suspension
rear axle allowable load: 18000kg
Leaf spring count: 9/12,9/-
Tire
Tire Size: 11.00-20 12.00-20 11.00R20 12.00R20
Number of tires: 10pcs

Photos

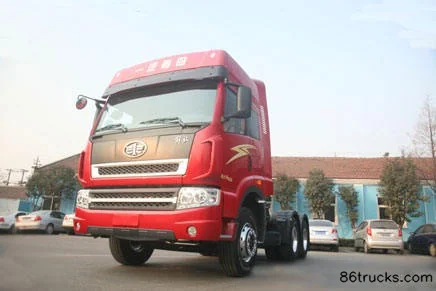

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model), and what does it include?

FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model) export reference is about From $34,722; MSRP is ¥25M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model)?

Key specs of FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model): Drive: 6x4; Horsepower: 320 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model) suited for?

FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model) differ from other variants in the same series?

FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model) belongs to FAW Jiefang Qingdao New Dawei Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Xindawei Heavy Truck 320 hp 6X4(10 wheels) Tractor Truck (2010 Model)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
