Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI)

Export reference
MSRP N/A
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: Foton Cummins F4.5
Transmission: Fast Gear
Curb Weight:: 8.075ton
seating capacity: 3Personnel
Rated payload: 9.795ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI) is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and 9.795t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Foton Cummins F4.5 engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5186CCY-1M
Type: stake truck
Drive type: 4X2
Wheelbase: 5150mm
Box length class: 6.8m
engine: FotonF4.5NS6B220
transmission: Fast Gear8JS86TE
Rear Axle Ratio: 4.33
Cab length: 8.99m
Cab width: 2.55m
Cab height: 3.85/3.95m
Front track width: 1922,1960mm
rear track: 1800mm
Curb Weight: 8.075ton
Rated payload: 9.795ton
GVWR: 18ton
Max. speed: 100km/h
Origin: Beijing Changping
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 12°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.27/2.38m
Version: Home version
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonF4.5NS6B220
Engine info: Foton Cummins F4.5
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Max torque speed: 1300-1500rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JS86TE
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab width: 2200mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 260L
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 385 stamped-welded integral axle housing
rear axle allowable load: 11500kg
Axle ratio: 4.33
Leaf spring count: 10/10+8,3/4+3,10/8+8
Tire
Tire Size: 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

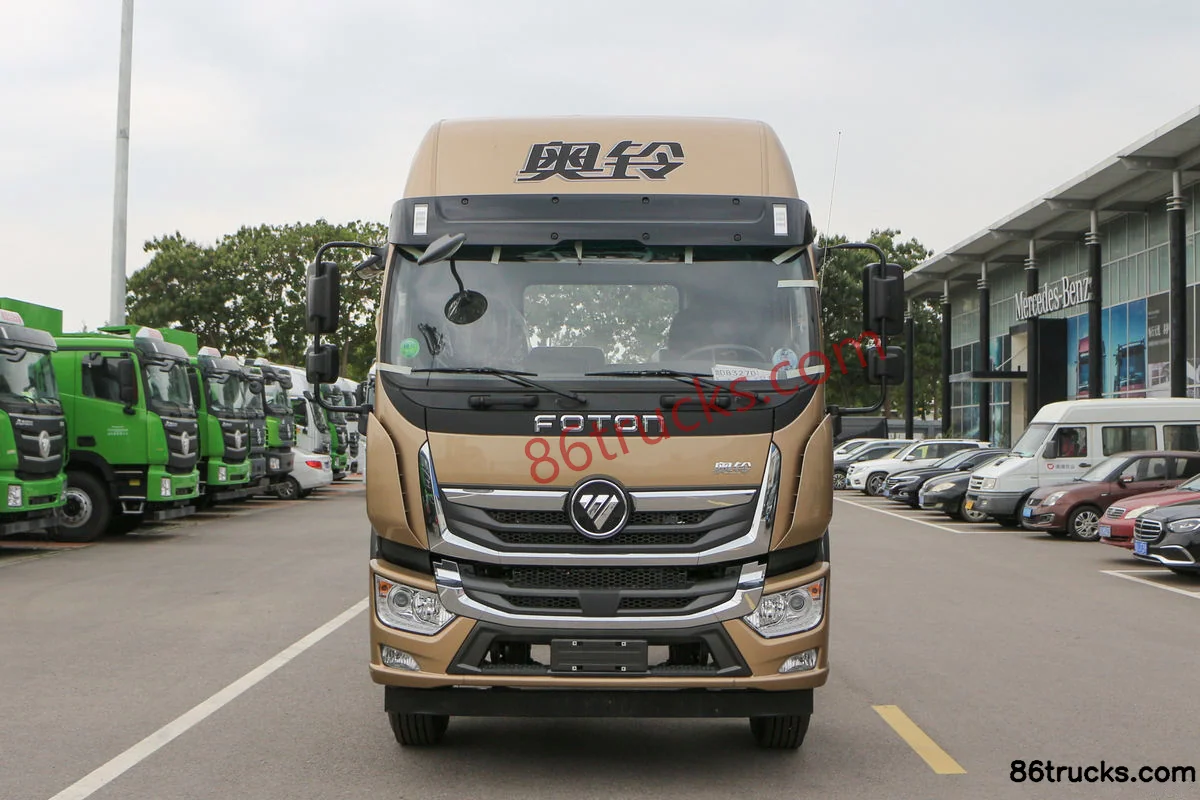

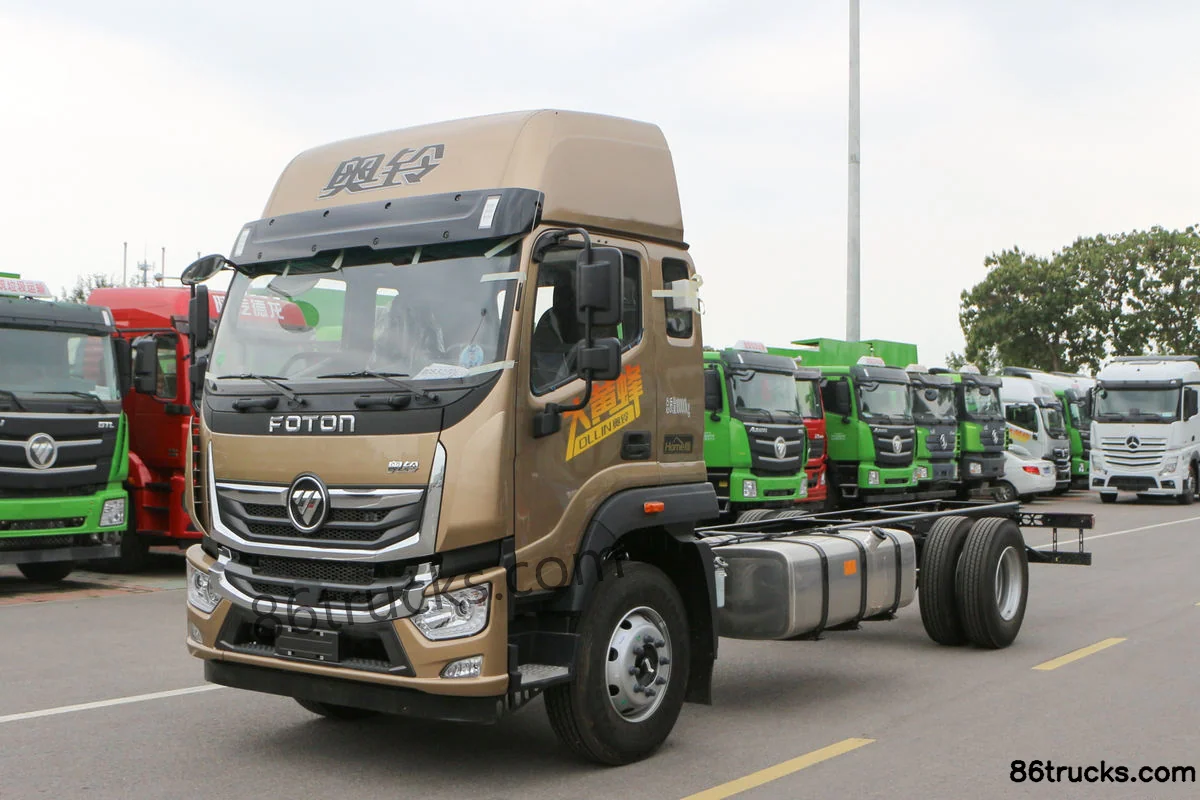

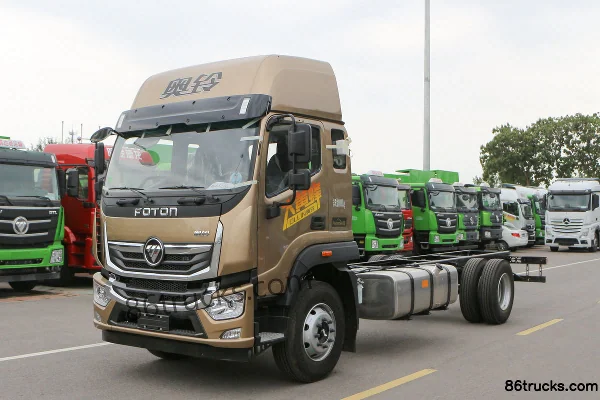

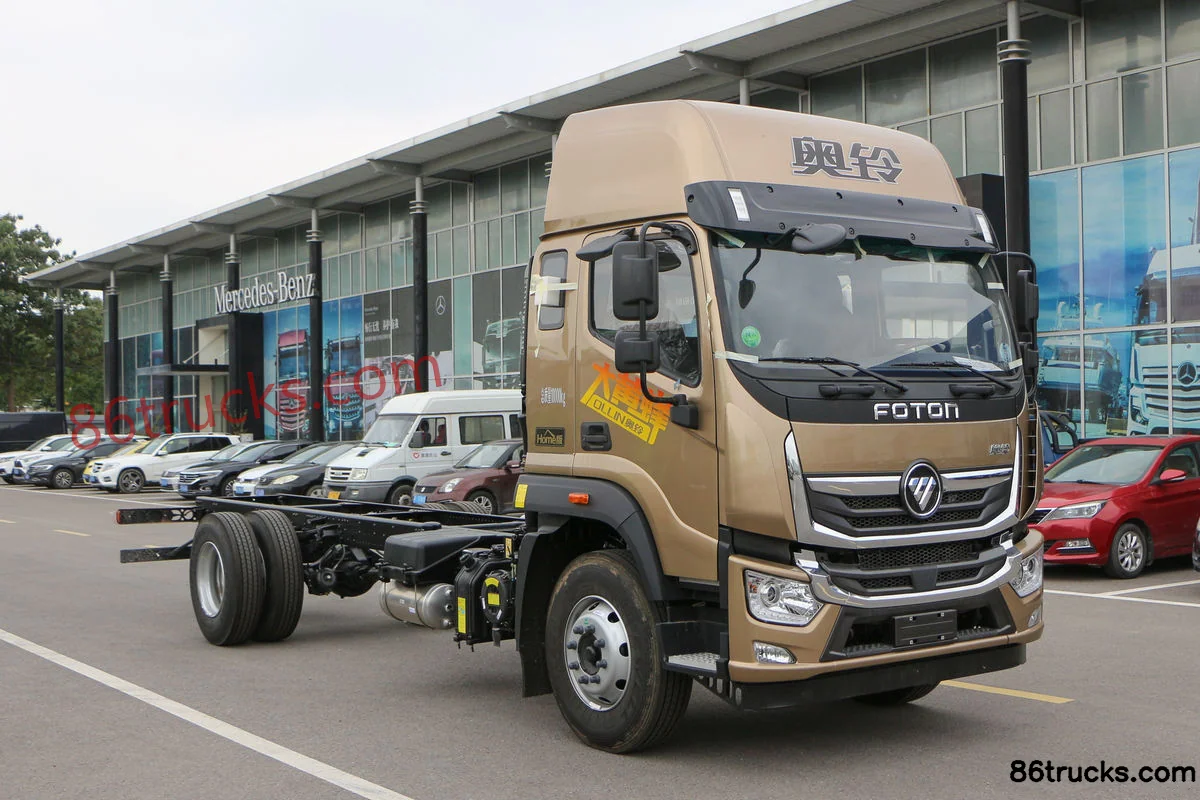

Exterior3

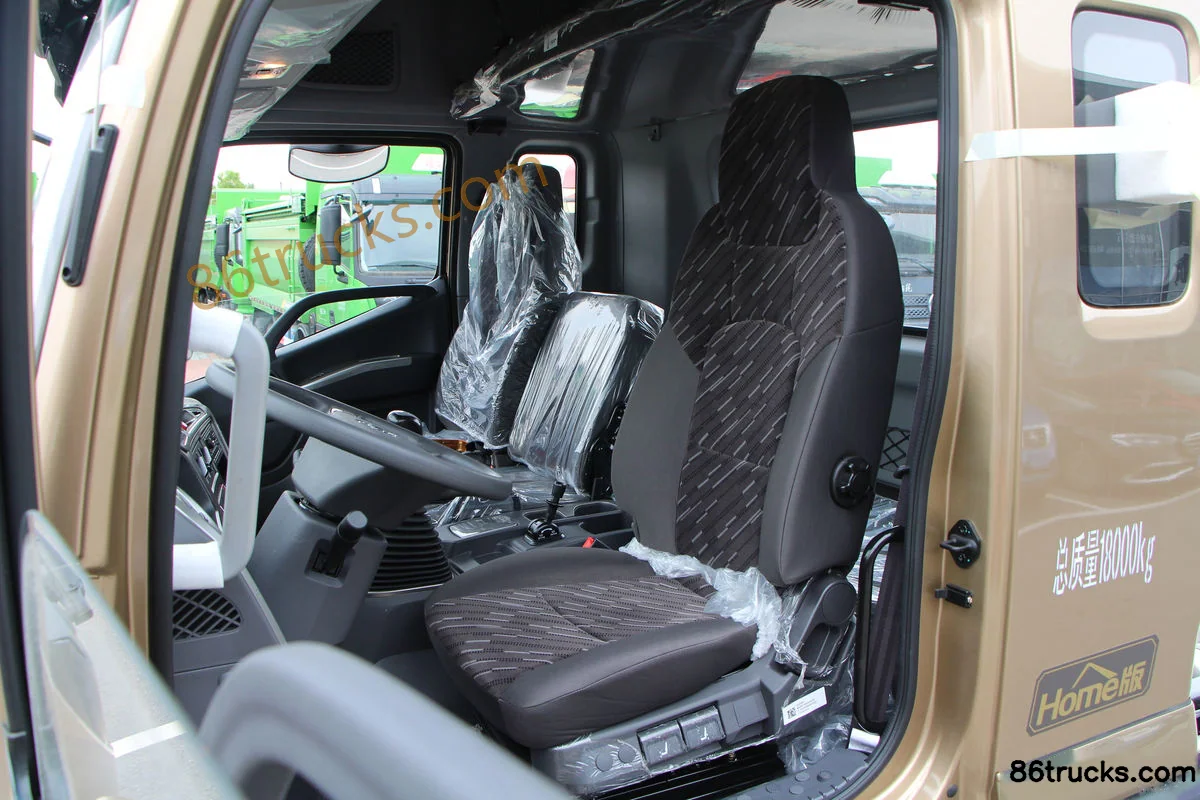

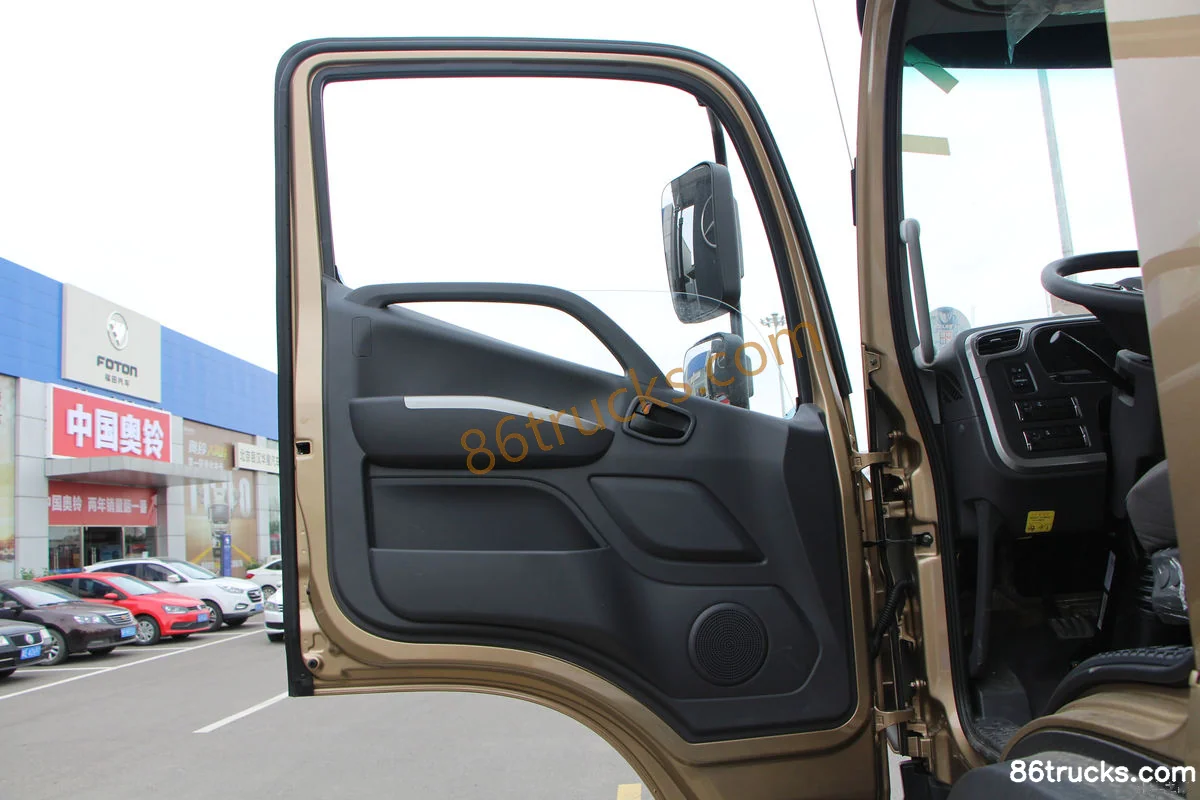

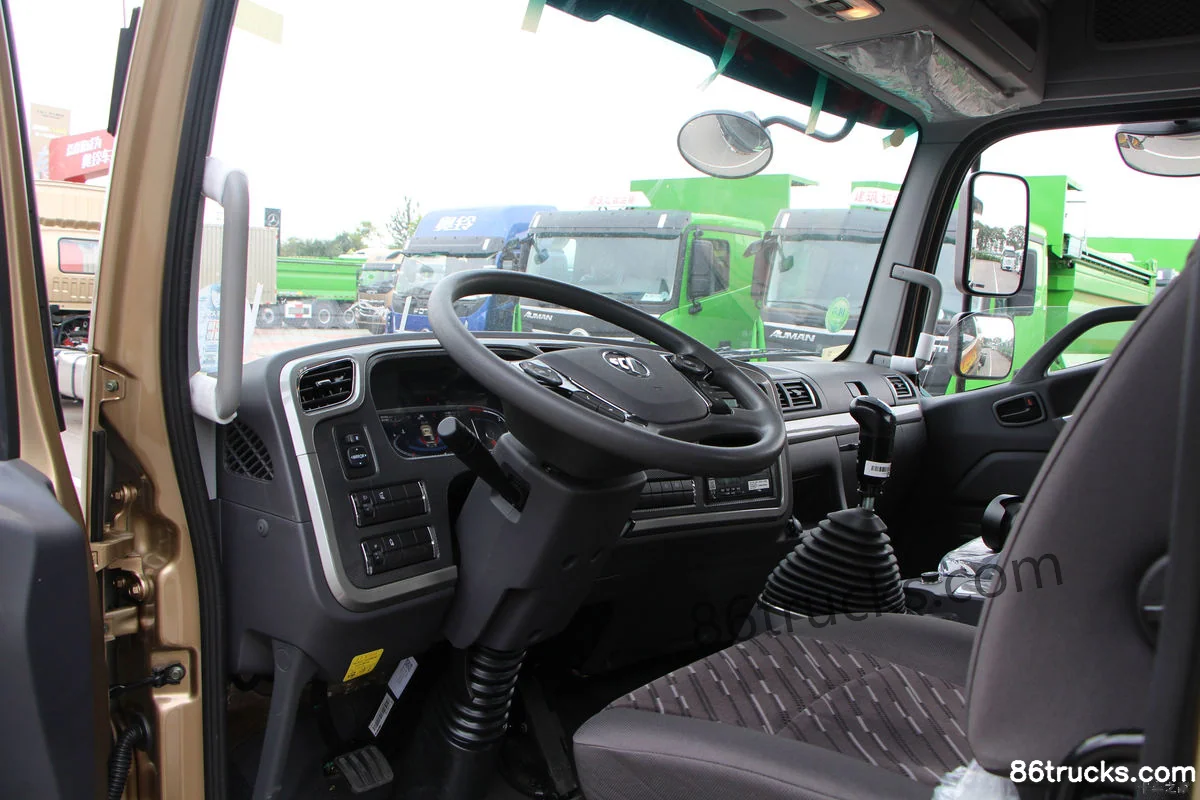

Cab3

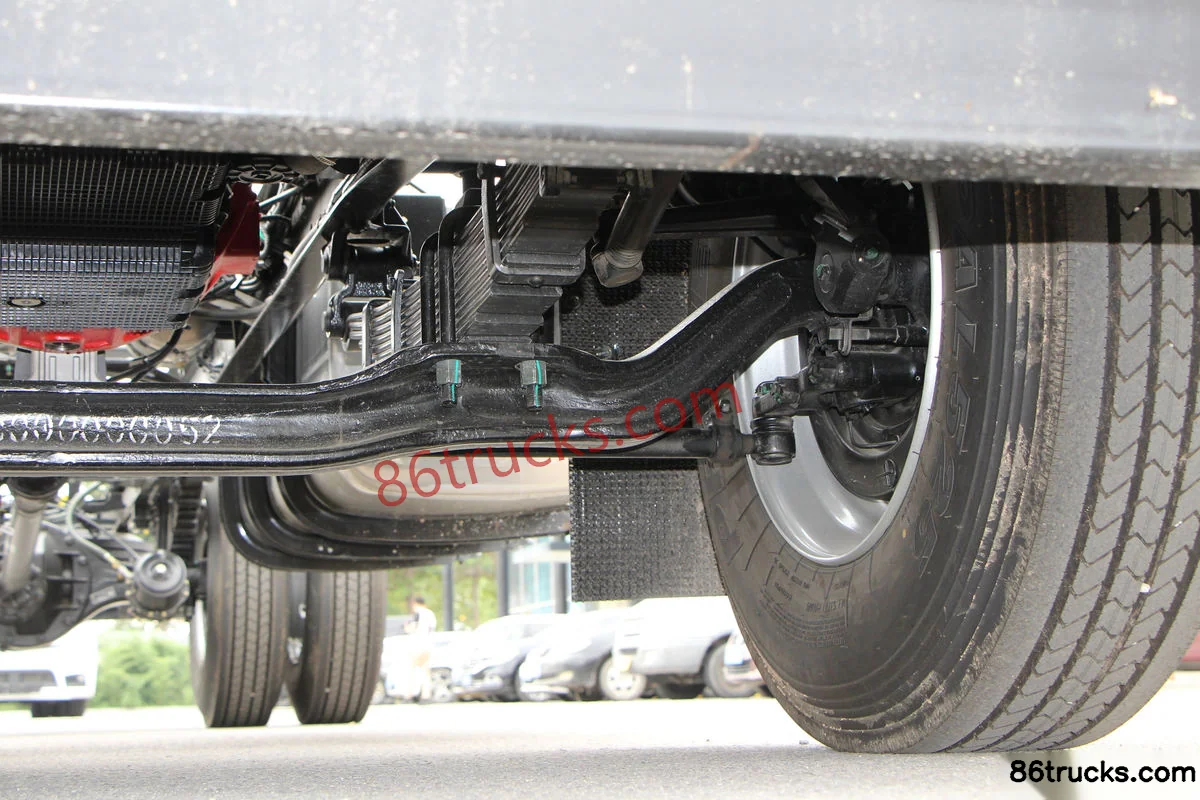

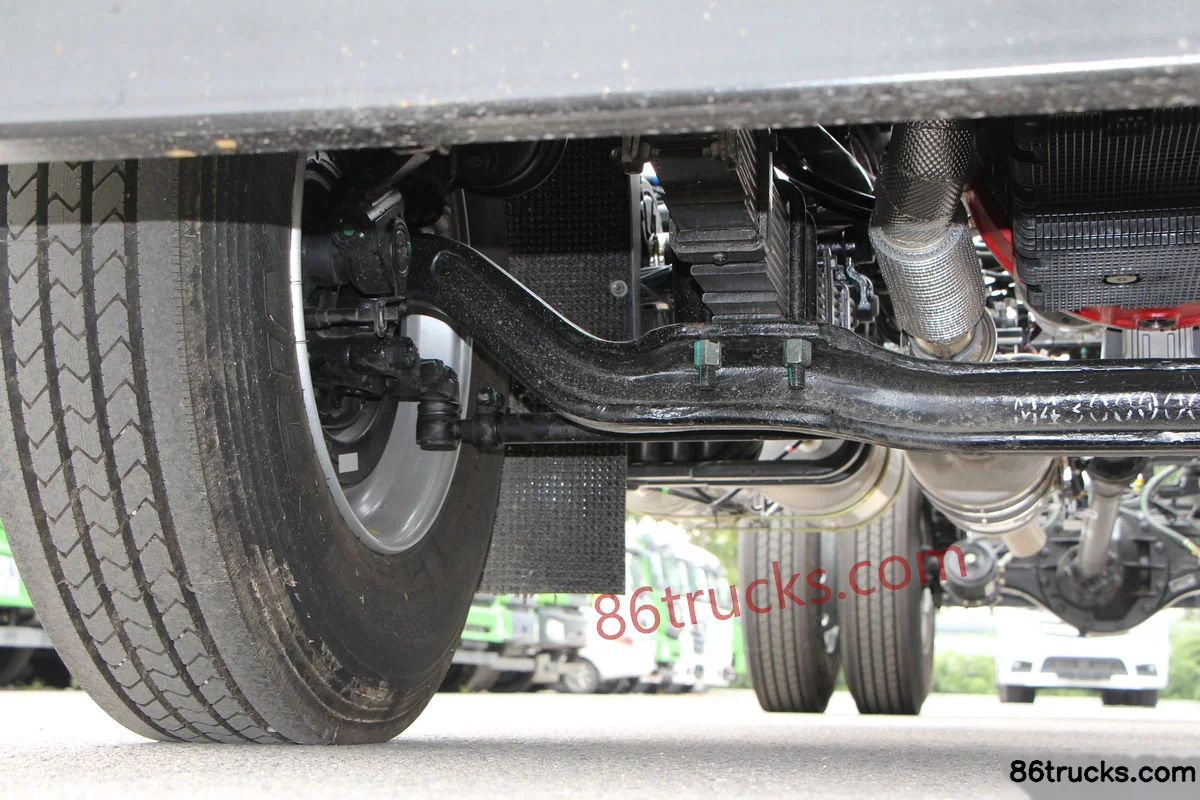

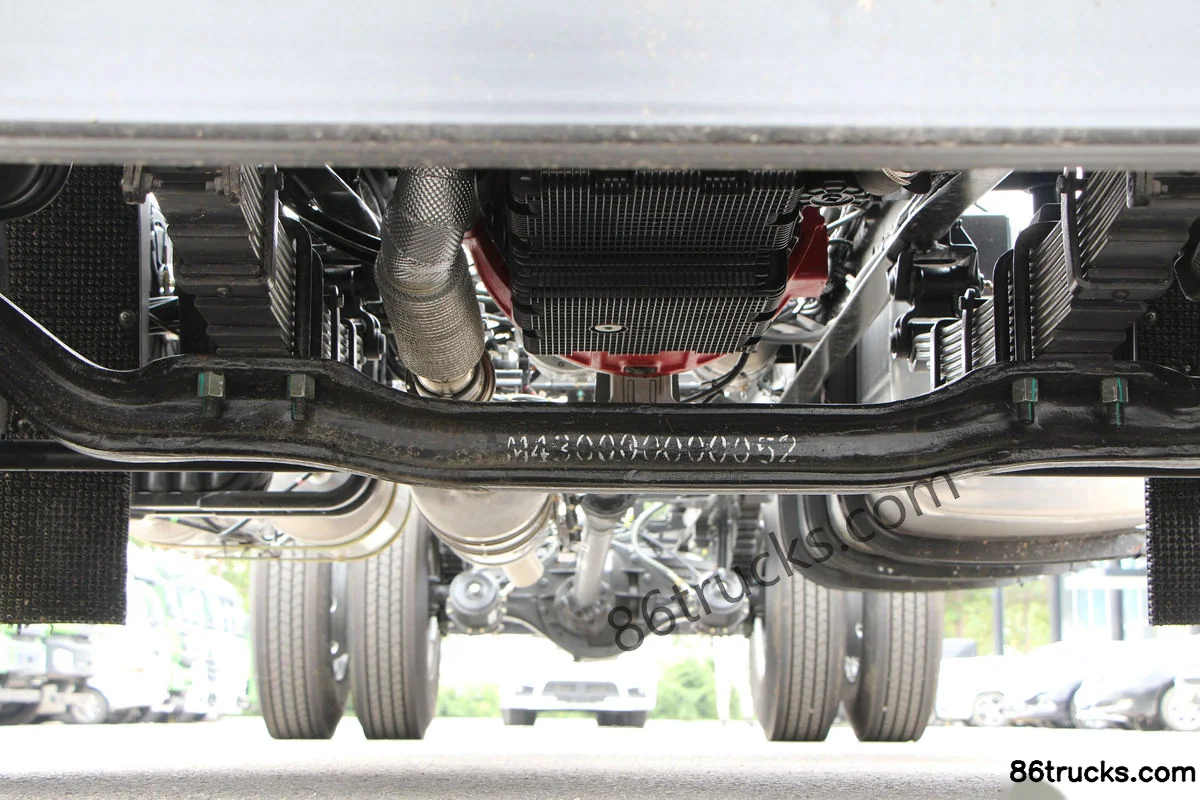

Chassis3

9 photos

FAQ

What emission standard does Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI)?

Key specs of Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI): Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: Foton Cummins F4.5; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI) suited for?

Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI) differ from other variants in the same series?

Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI) belongs to Foton Bumblebee Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.8m Sleeper Cab Stake Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
