Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck

Export reference
MSRP N/A
Horsepower: 245
Emission: China IV
Fuel: Diesel
Engine: Dongkang 6.7L
Transmission: Fast Gear
Curb Weight:: 12.28ton
seating capacity: 2Personnel
Rated payload: 12.325ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, stake body cargo body, 2Personnel volume and 12.325t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6.7L engine, 245 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 245 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL1253AX1A
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1950+5350mm
Box length class: 9.6m
engine: DongfengISDe245 40
transmission: Fast Gear9JS119TB
Rear Axle Ratio: 4.44
Cab length: 11.99m
Cab width: 2.5m
Cab height: 3.76m
Front track width: 1980/1980mm
rear track: 1860mm
Curb Weight: 12.28ton
Rated payload: 12.325ton
GVWR: 24.8ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Heavy-duty cargo trucks
Approach angle: 30°
departure angle: 18°
market segment: Building materials, agricultural products
Front/rear suspension: 1.5/3.19m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISDe245 40
Engine info: Dongkang 6.7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.7L
Emission standard: China IV
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 950N·m
Max torque speed: 1400rpm
Rated speed: 2500rpm
Engine Type: Electronically controlled
Technology route: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear9JS119TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.6m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof high floor / high roof high floor
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: all-steel
Fuel tank capacity: 400L
Chassis Specs
Front axle description: DF501S front axle/5 ton
Front axle allowable load: 6900/6900kg
Frame Dimensions: 300×90×[8+4]mm
rear axle description: Dongfeng460 rear axle
rear axle allowable load: 11000kg
Axle ratio: 4.44
Leaf spring count: 8/8/9+9
Tire
Tire Size: 295/80 R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

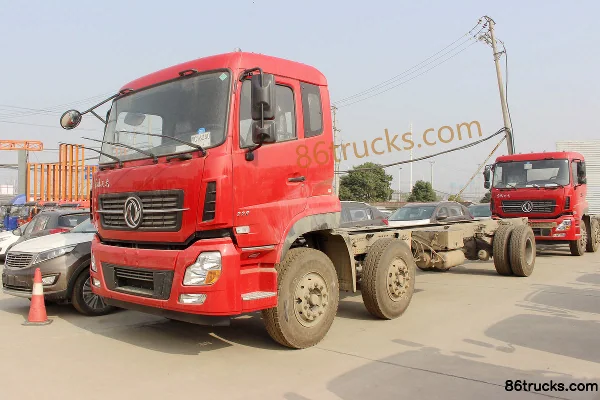

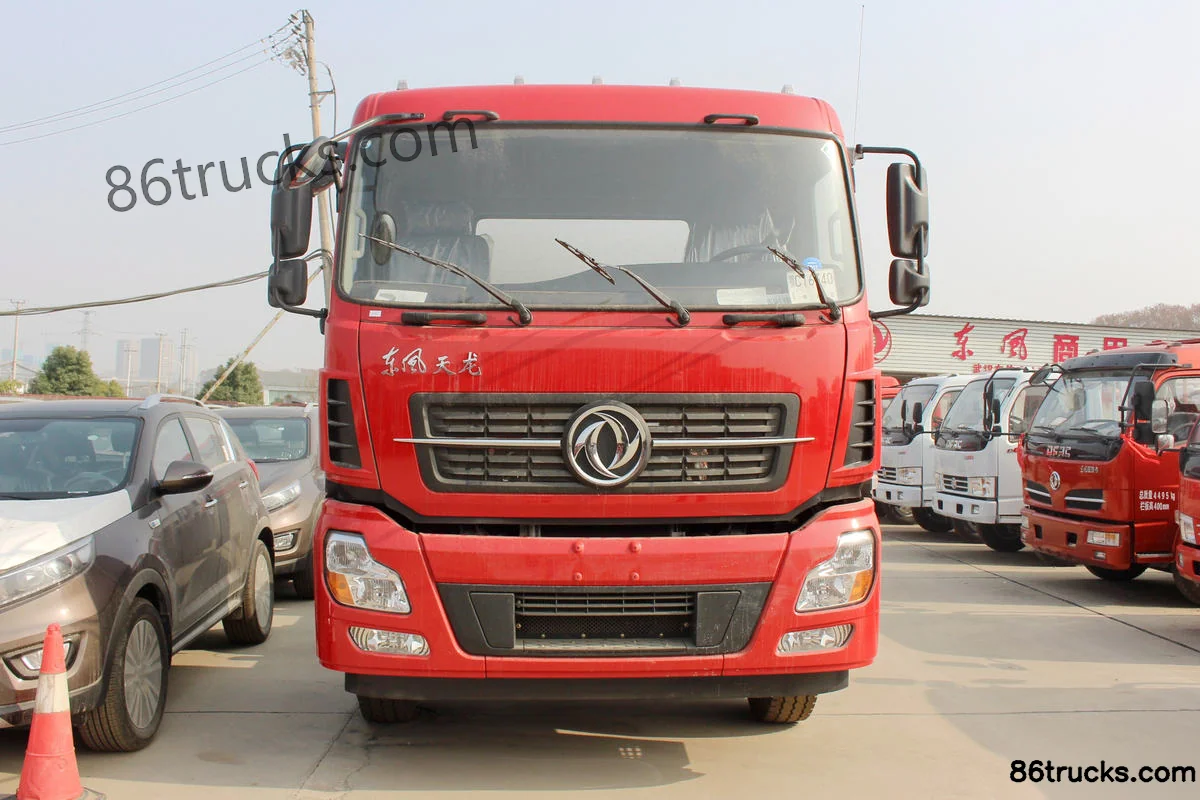

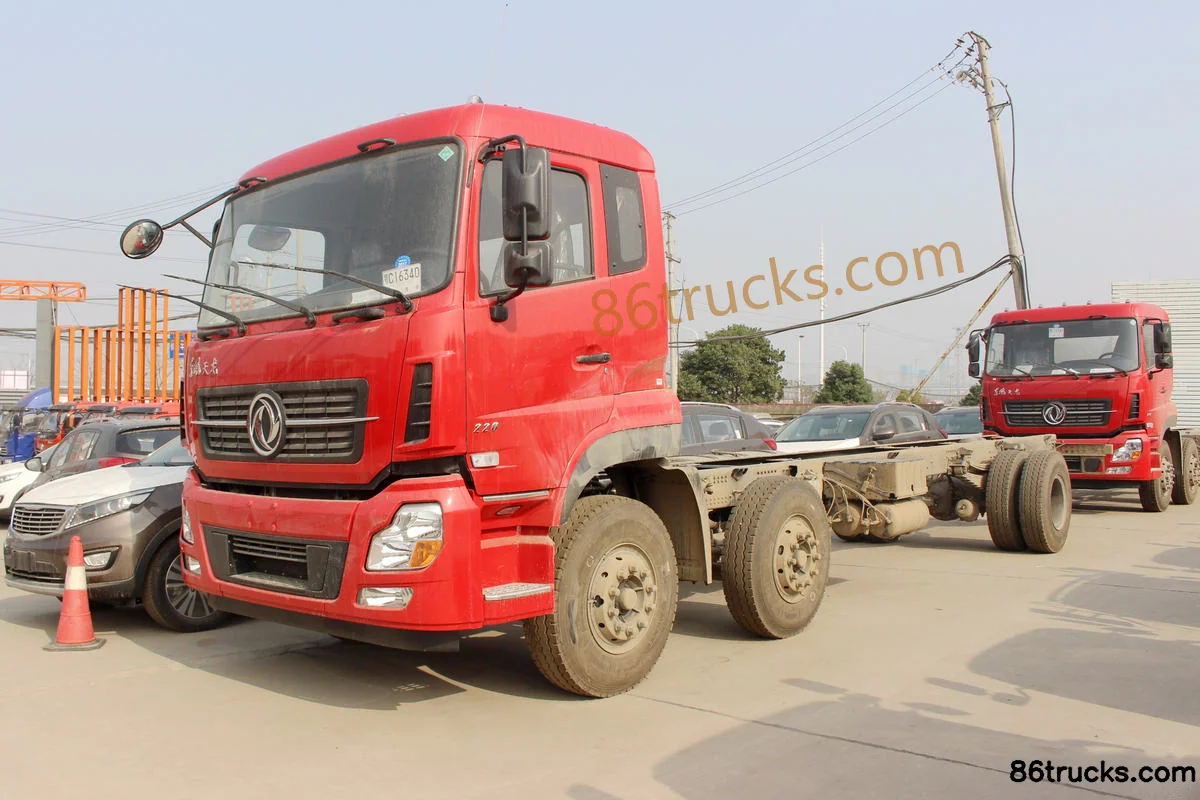

Exterior3

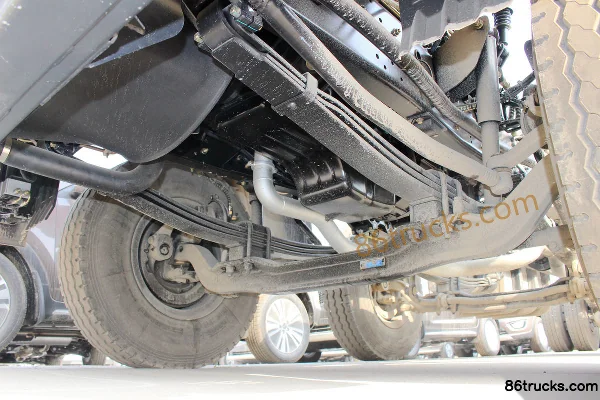

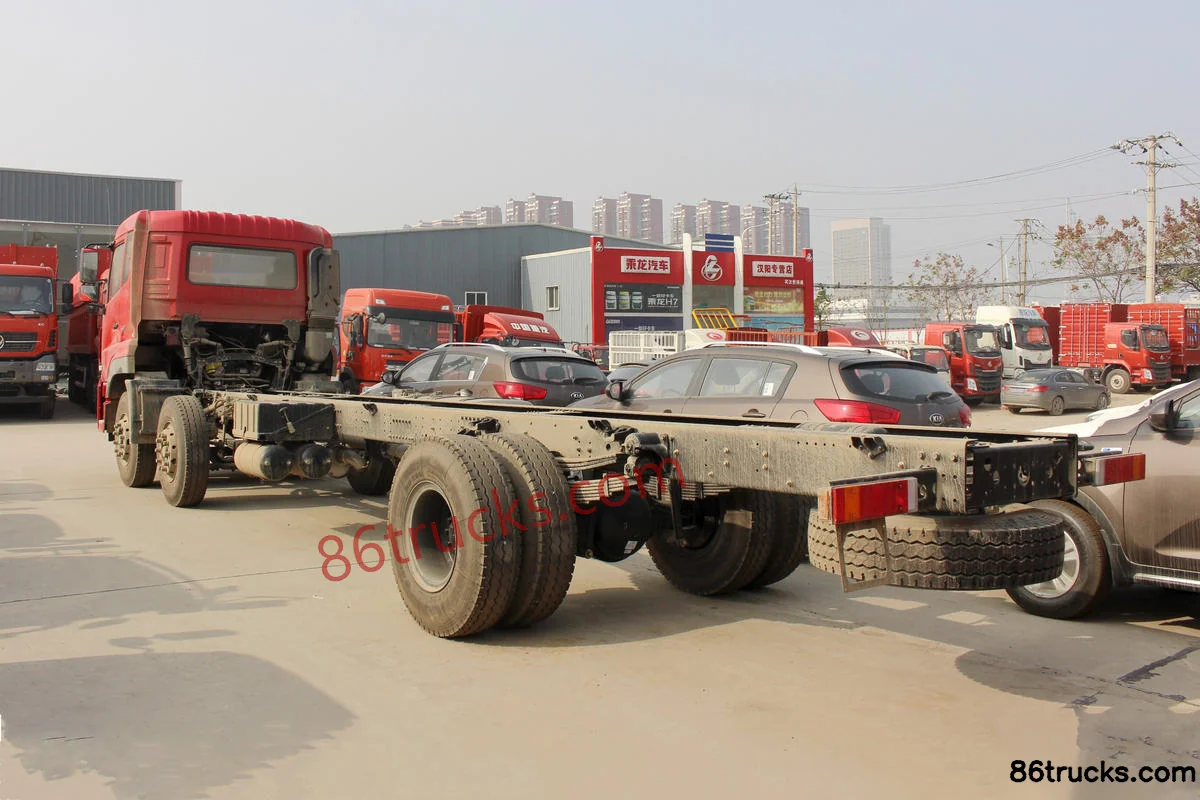

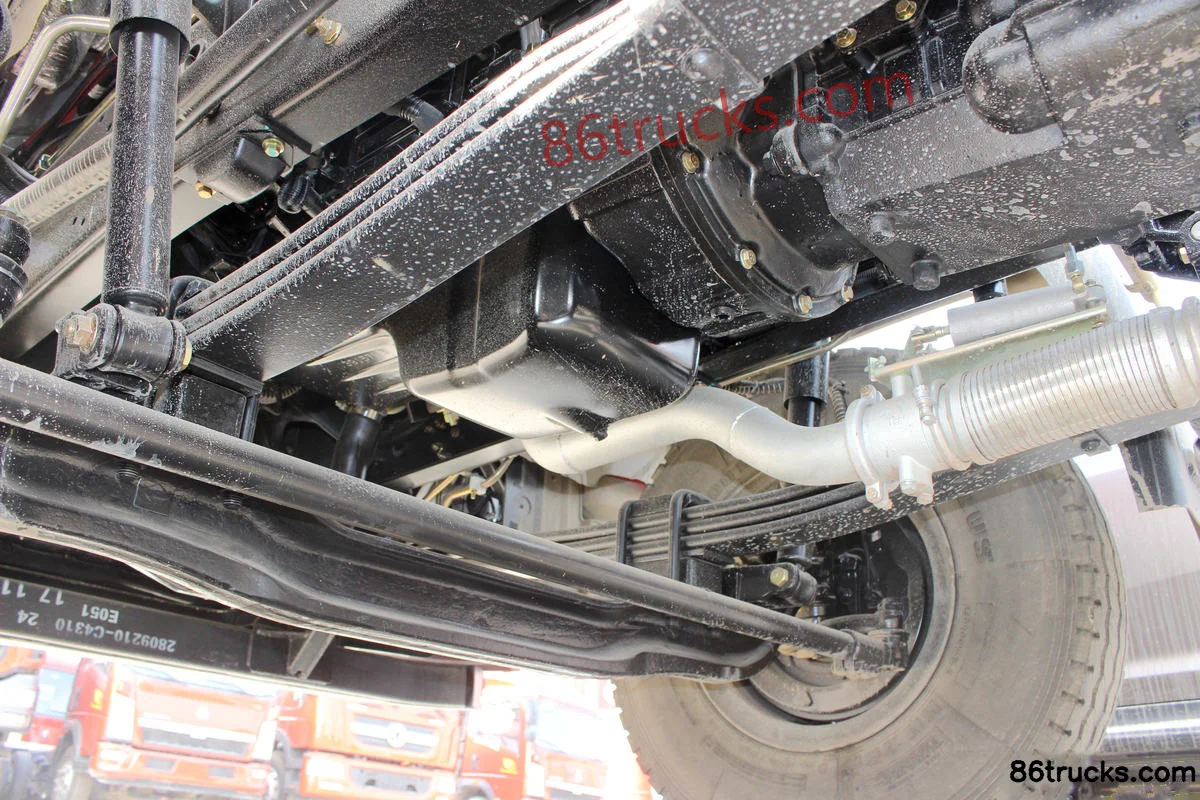

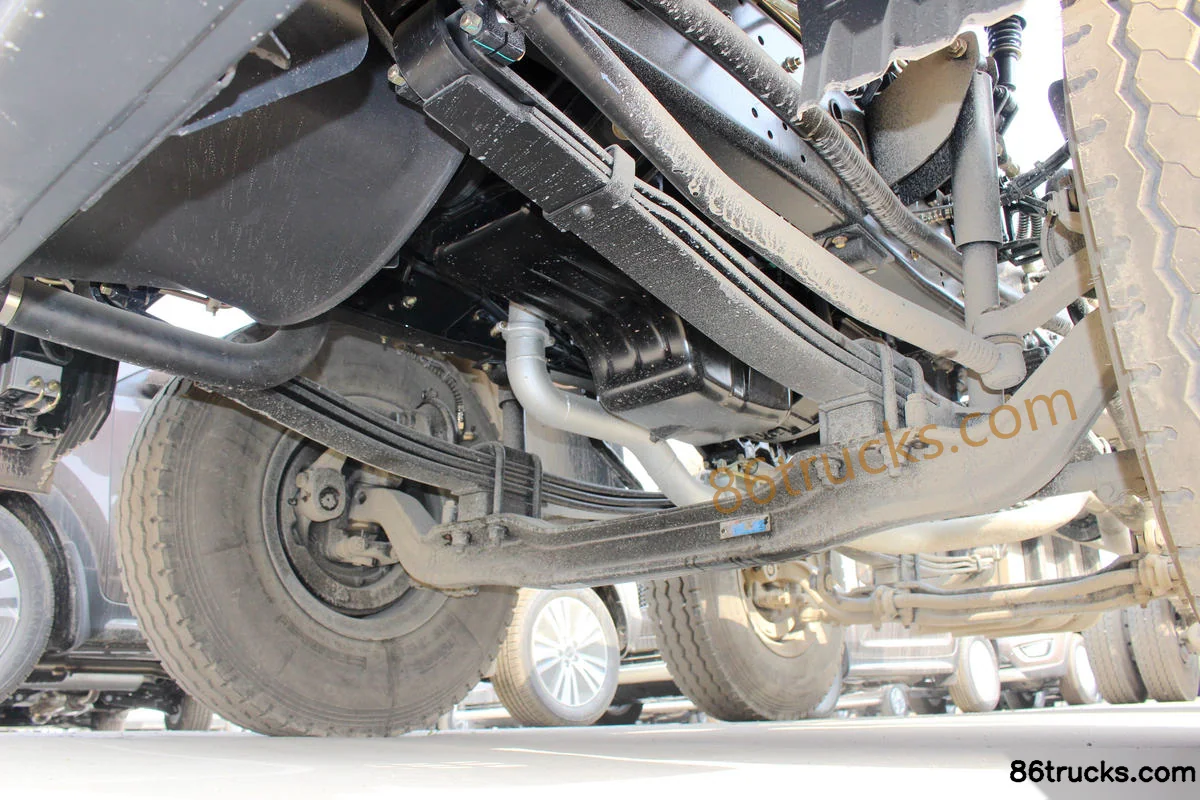

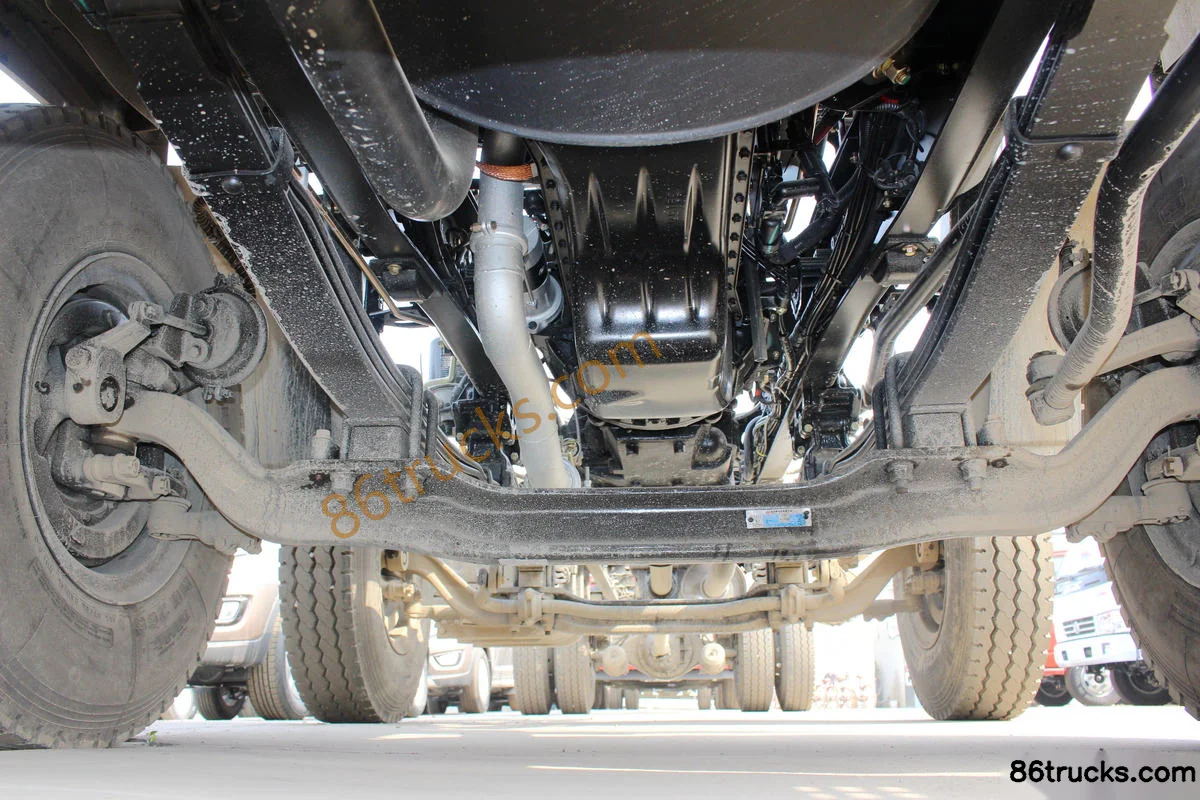

Chassis3

6 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck?

Key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck: Drive: 6x2; Horsepower: 245 hp; Emission: China IV; Fuel: Diesel; Engine: Dongkang 6.7L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck suited for?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck belongs to Dongfeng Tianlong (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianlong Heavy Truck 245 hp 6X2(8 wheels) 9.6m Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
