Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck

Export reference
From $18,028
MSRP ¥12.98M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.72ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 14PR
Rated payload: 1.575ton
Drive 4X2 (6 wheels)
Horsepower 155
Cargo box type: Rear dump

Overview

The Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck is a Light Truck featuring 1.575t payload, 4.49t GVW, Rear dump cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCY24155-61A engine, 155 hp, China VI emissions and Fast Gear transmission.

China VI 155 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3040S2EDF
Drive type: 4X2
Wheelbase: 2800mm
engine: YuchaiYCY24155-61A
transmission: Fast Gear 8-speed
Rear Axle Ratio: 6.33
Cab length: 4.97m
Cab width: 1.94m
Cab height: 2.22m
Front track width: 1516mm
rear track: 1566mm
Curb Weight: 2.72ton
Rated payload: 1.575ton
GVWR: 4.49ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 20°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCY24155-61A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.36L
Emission standard: China VI
Max output power: 113kW
Max hp: 155Horsepower
Transmission Parameters
Transmission Model: 8-speed gearbox
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear dump
Cargo box type: Rear dump
Cargo box length: 3.1m
Cargo box width: 1.8m
Cargo box height: 0.55m
Cab parameters
Cab width: 1730mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 1800kg
rear axle allowable load: 2690kg
Axle ratio: 6.33
Leaf spring count: 7/10+7
Tire
Tire Size: 7.00R16LT 14PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Service brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

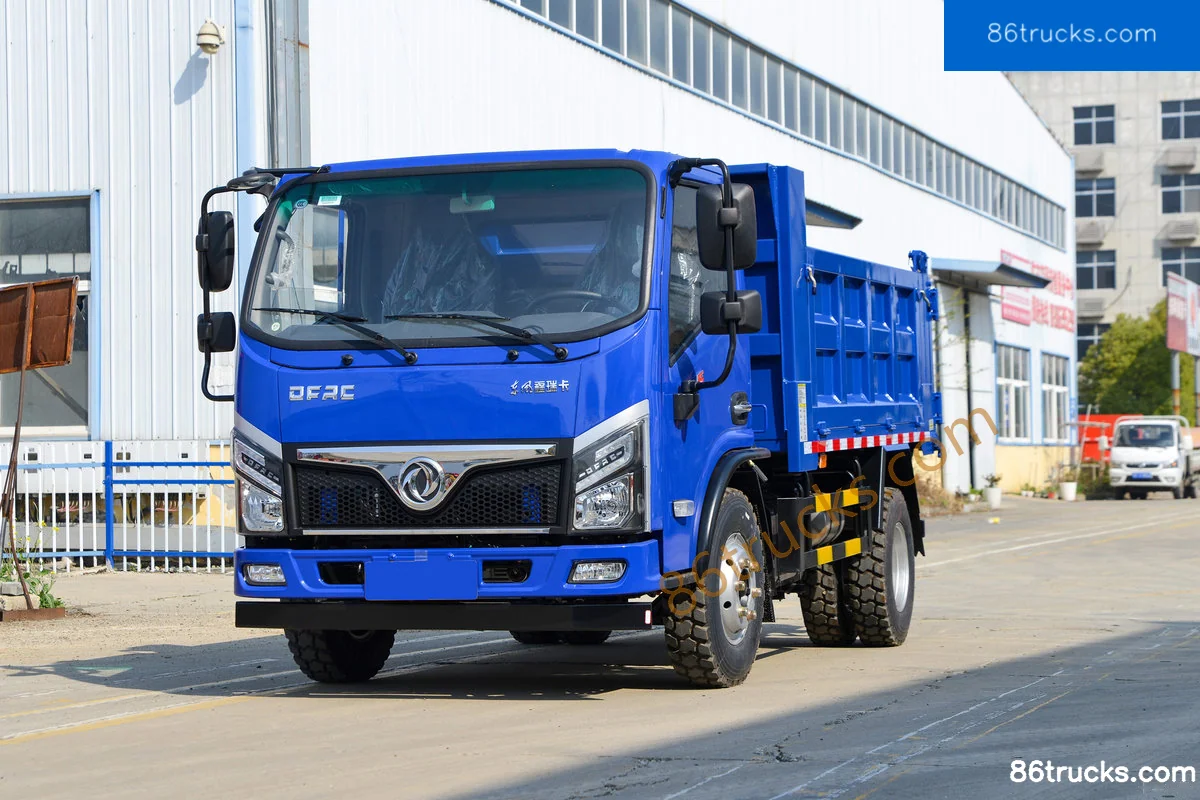

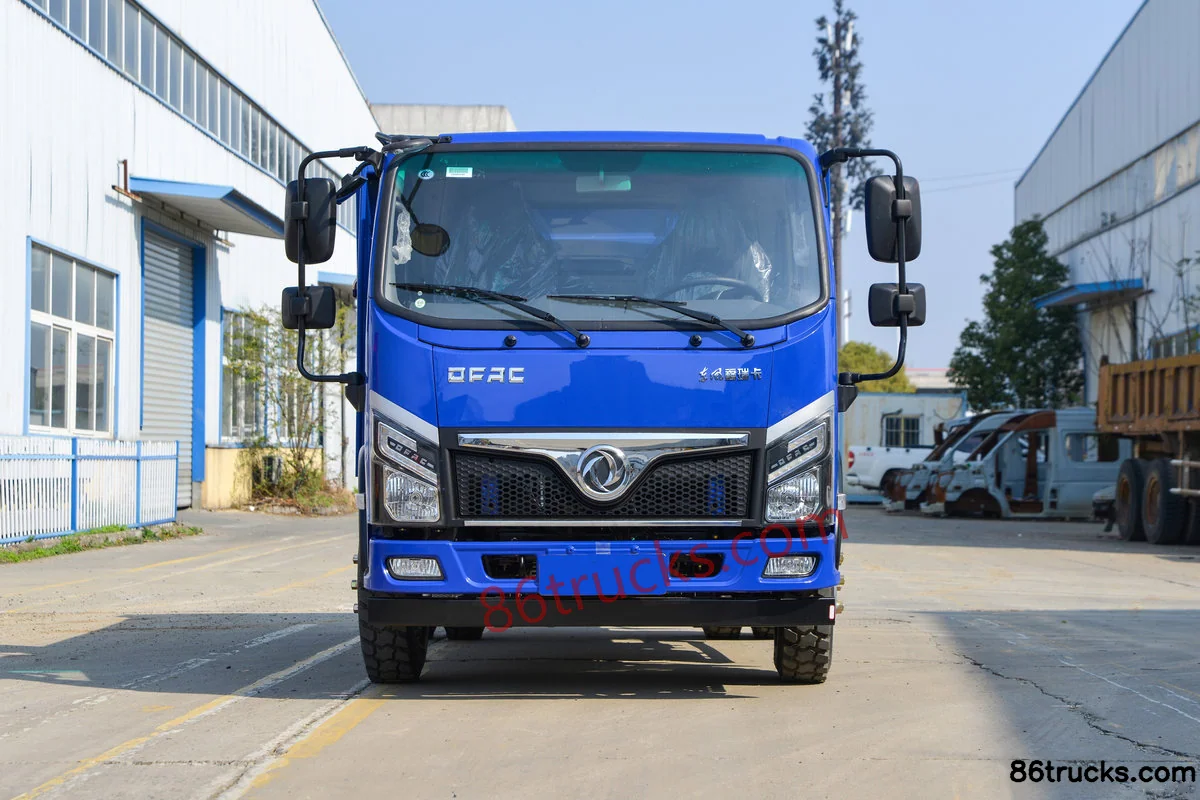

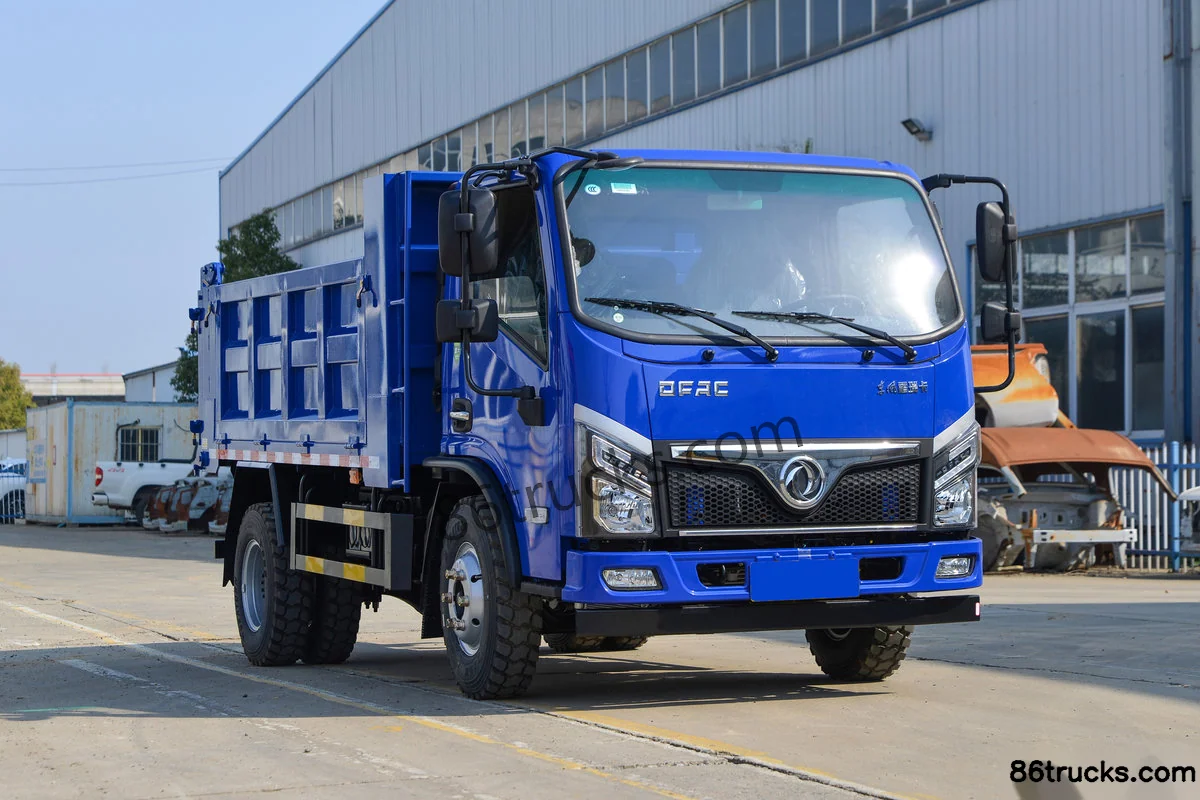

Exterior3

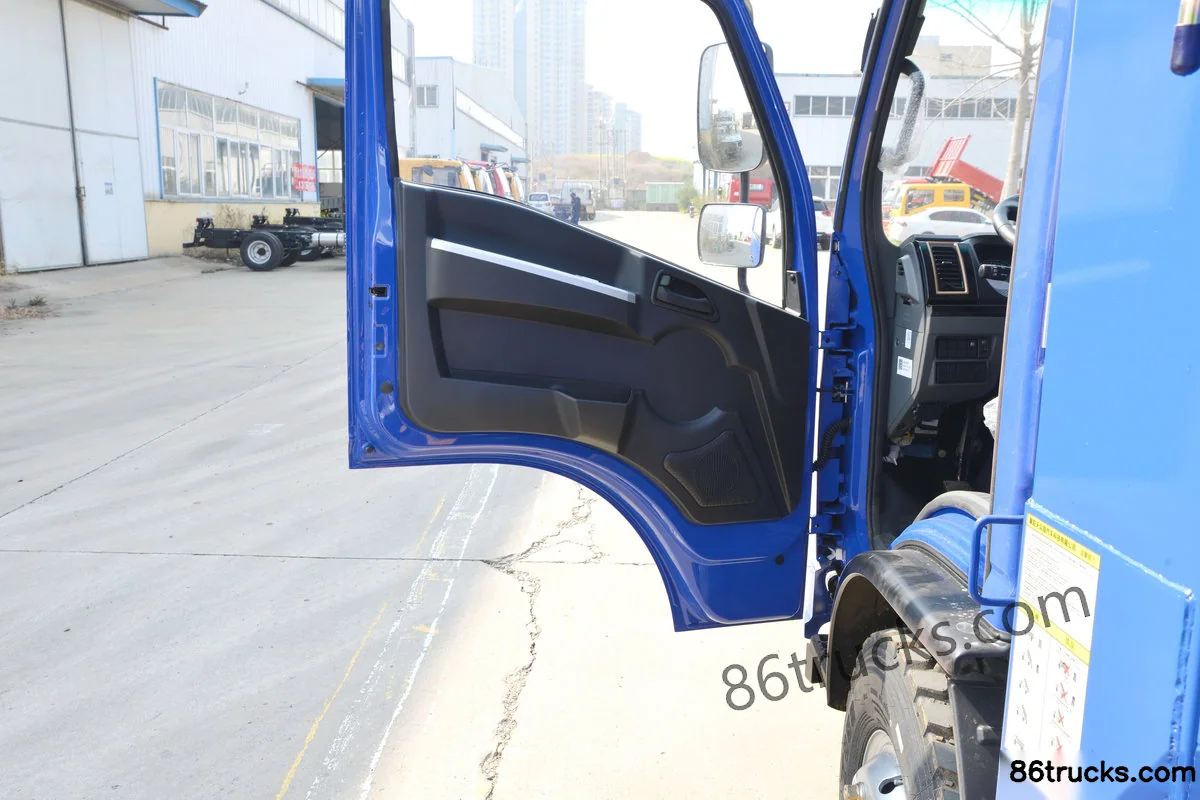

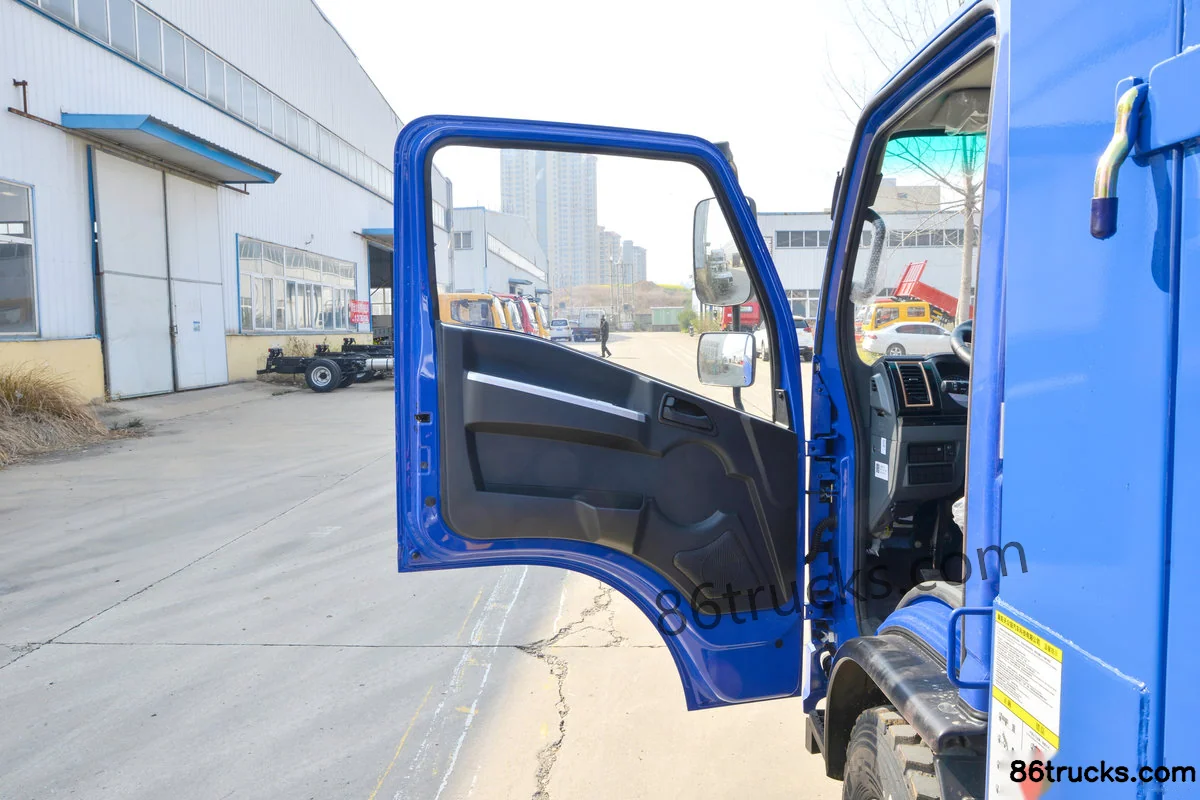

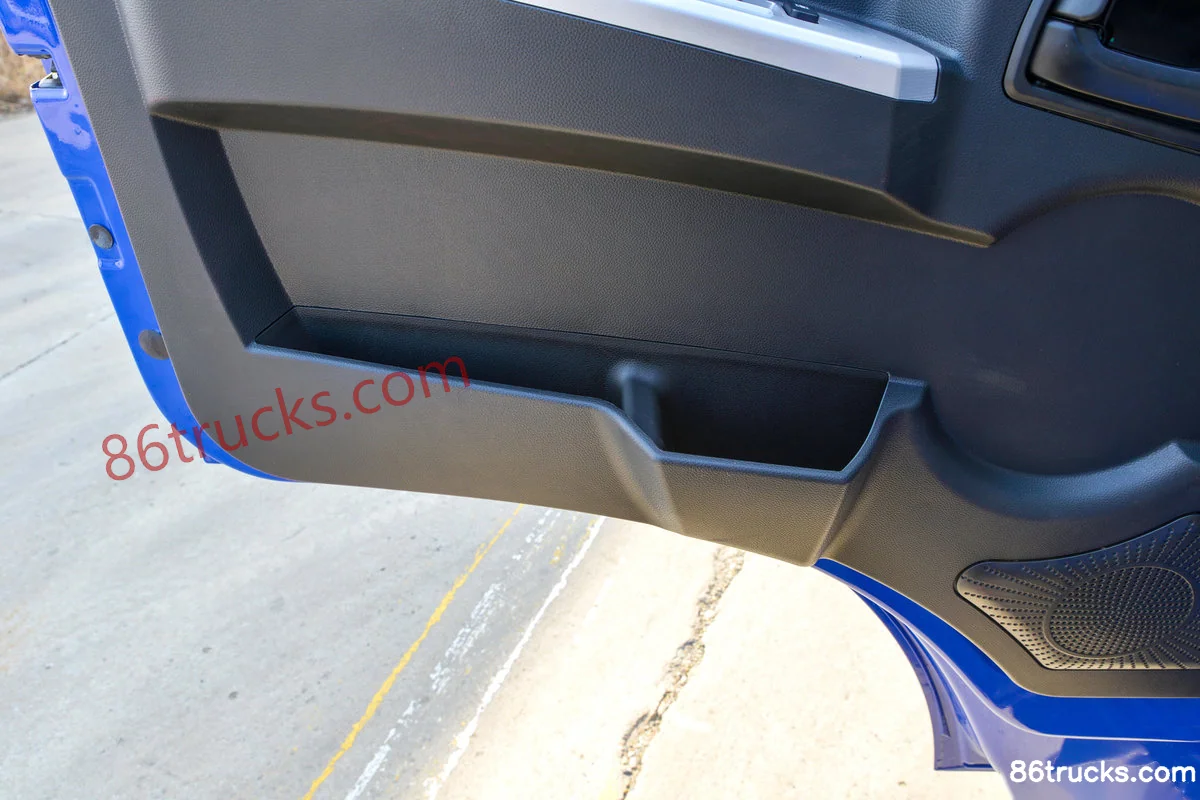

Cab3

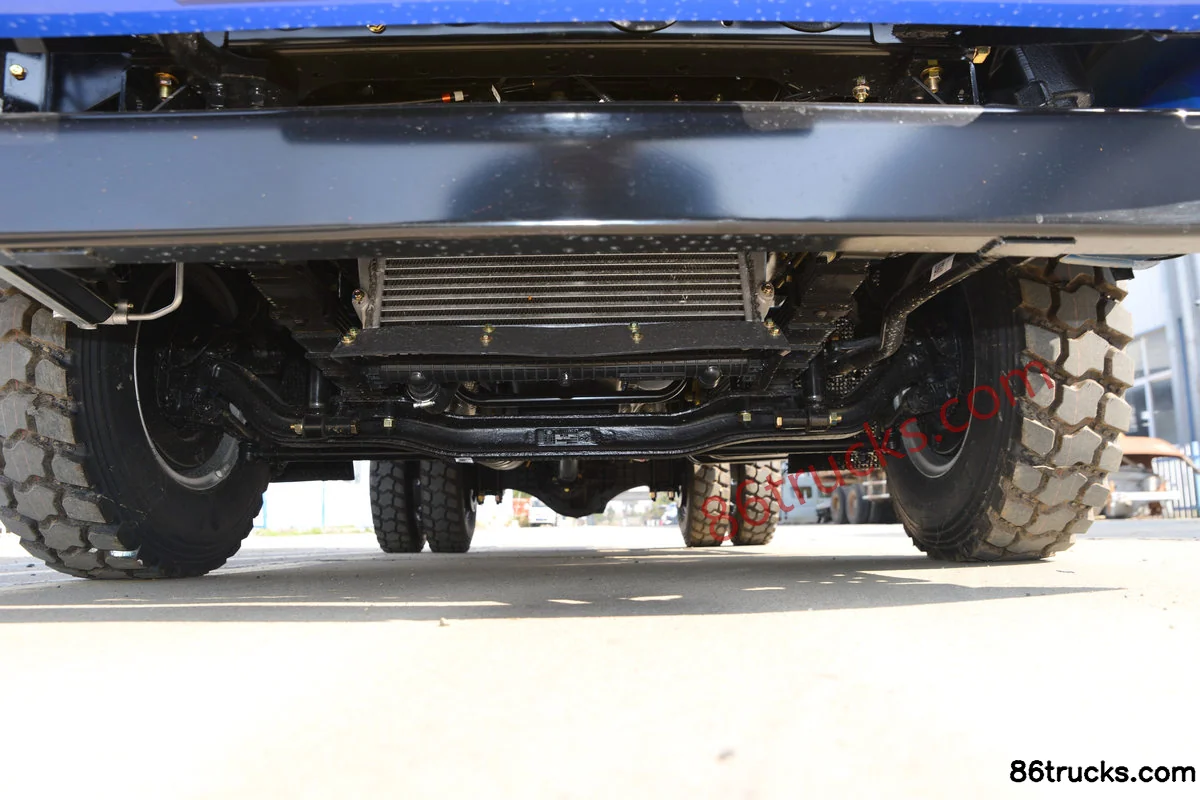

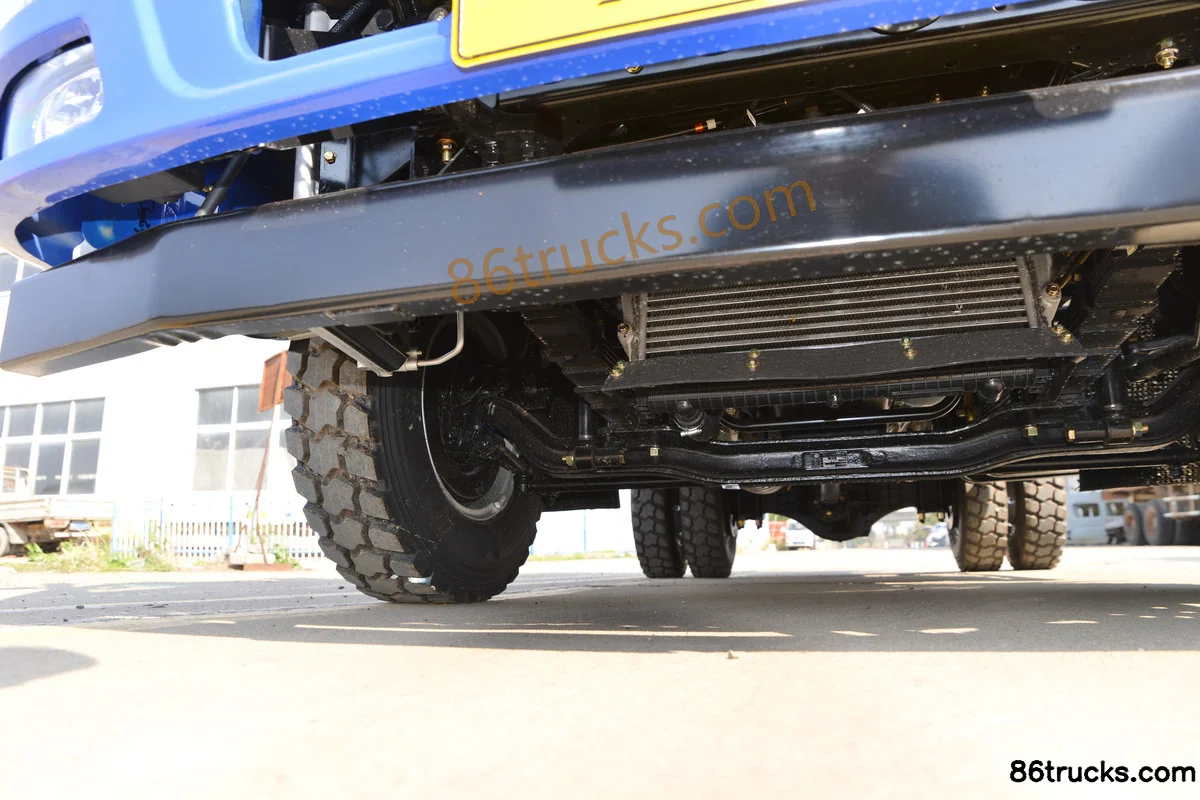

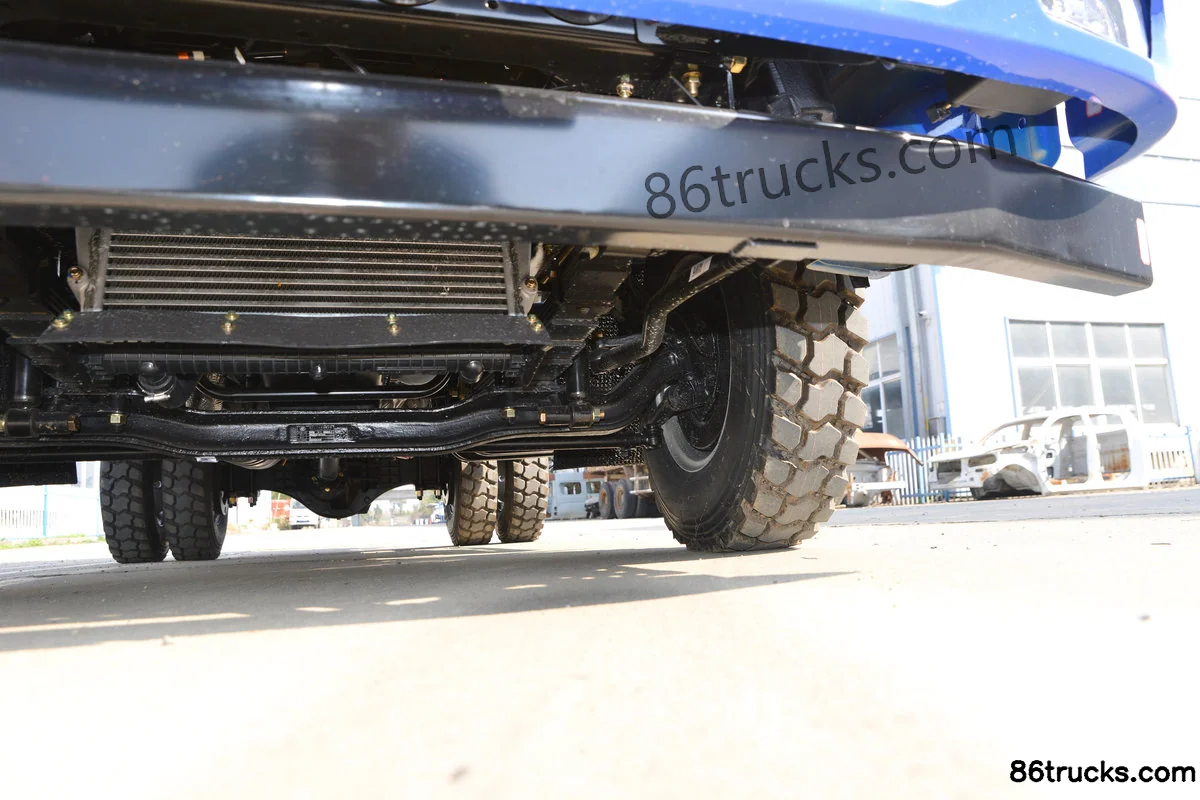

Chassis3

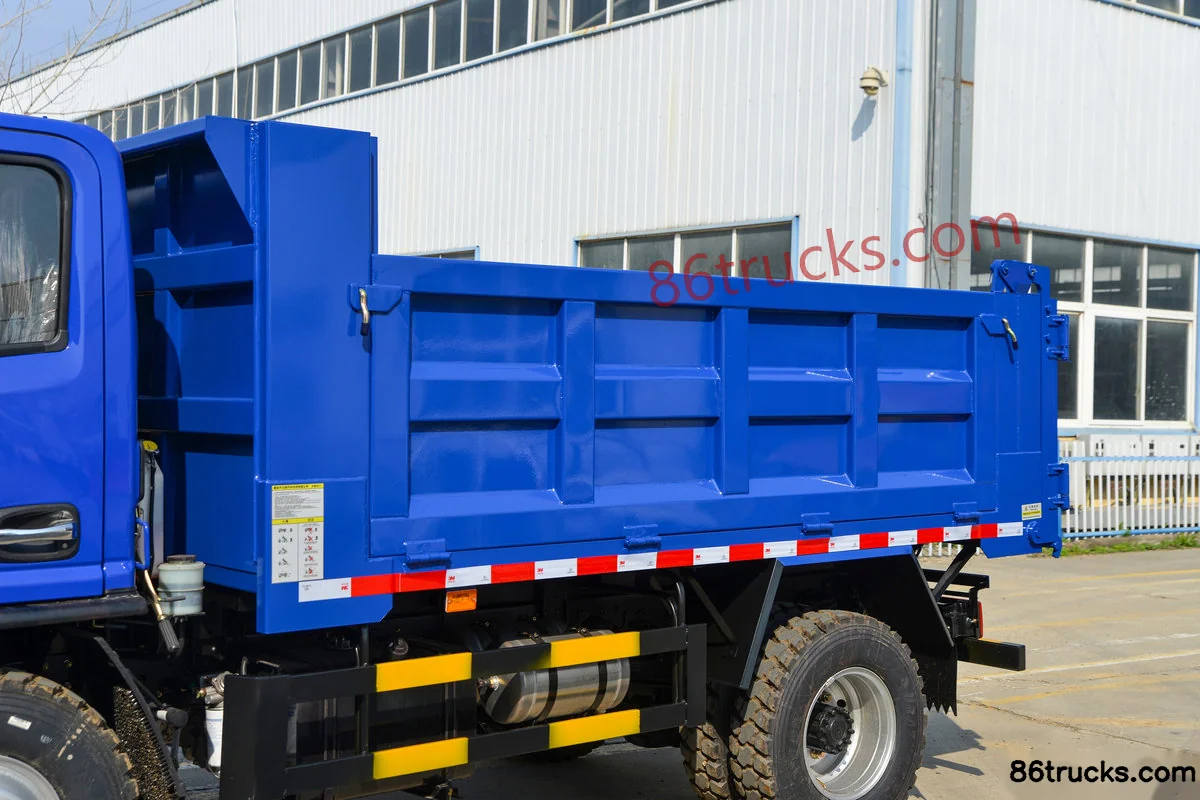

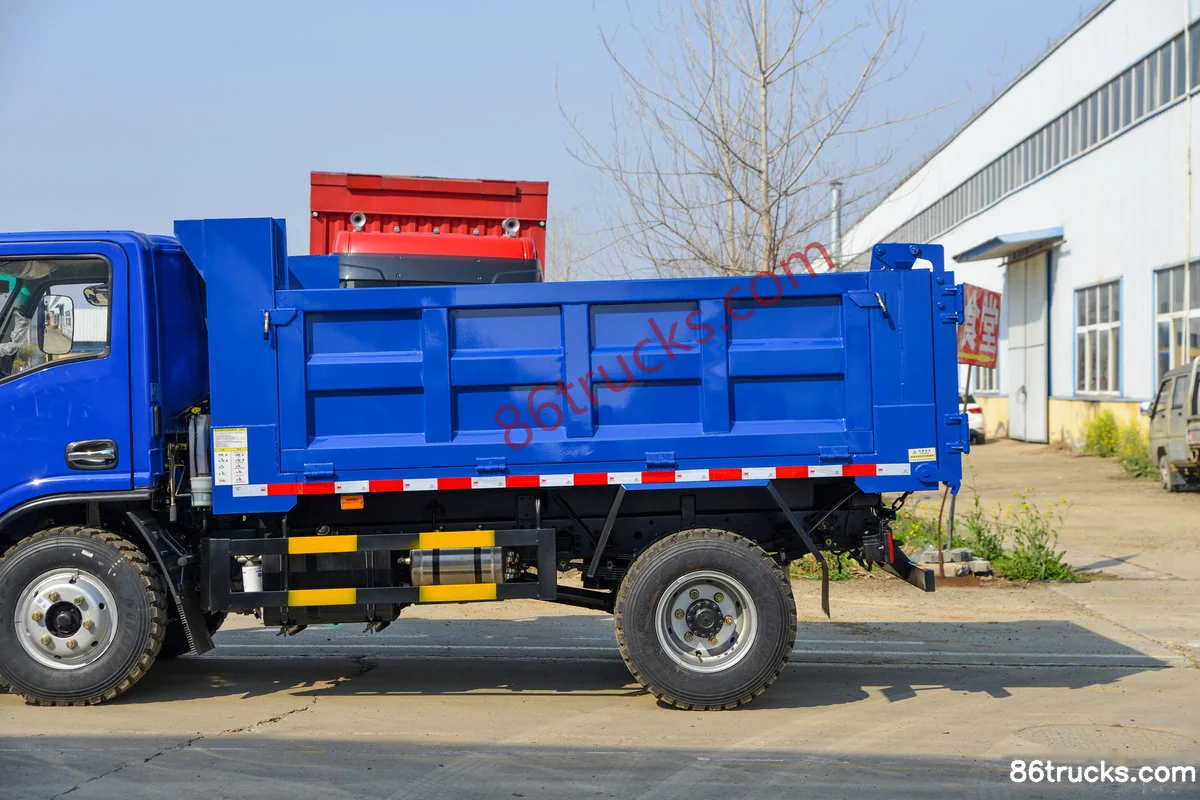

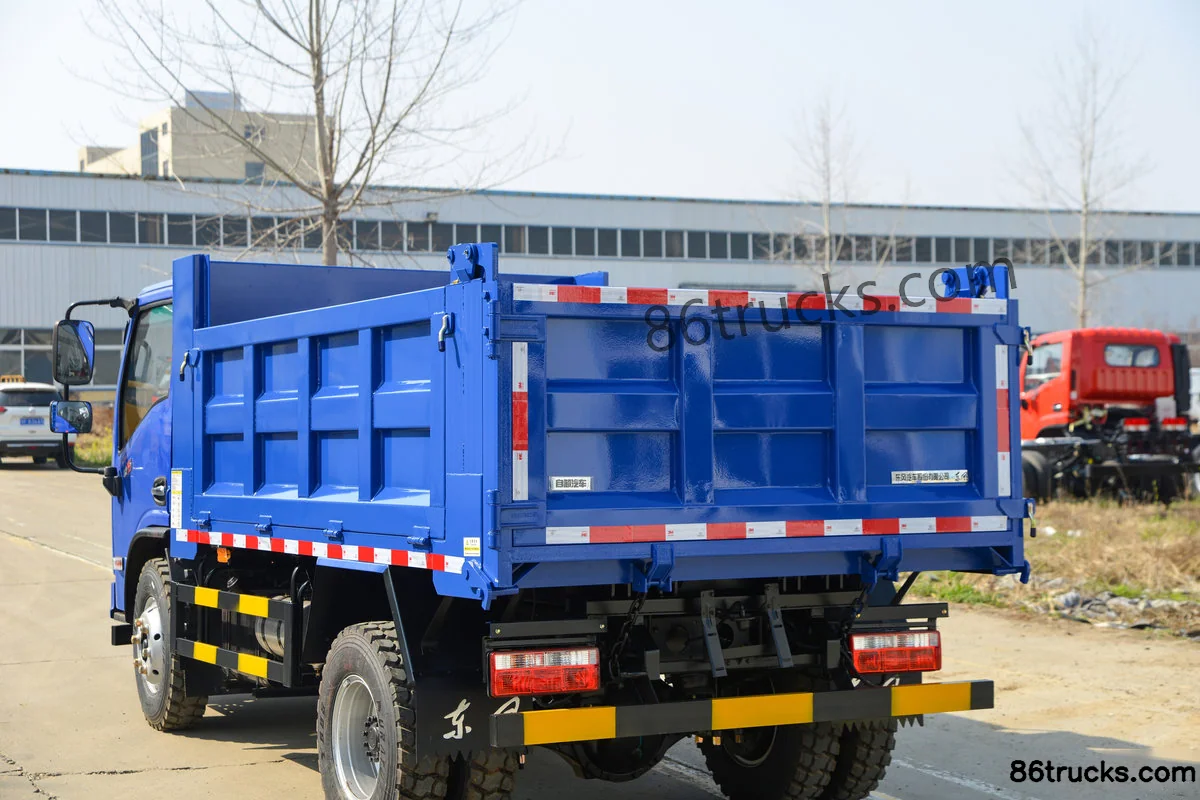

Body3

12 photos

FAQ

What is the export price of Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck, and what does it include?

Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck export reference is about From $18,028; MSRP is ¥12.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck?

Key specs of Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck: Drive: 4x2; Horsepower: 155 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck suited for?

Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck differ from other variants in the same series?

Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck belongs to DongfengR5 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng R5 2.4L Diesel 155 hp 4X2(6 wheels) Fast Gear 8-speed 3.1m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
