JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh

Export reference
From $25,000
MSRP ¥18M CNY
Rated payload:: 1.79ton
Wheelbase:: 2950mm
Cargo box width:: 1.9m
Model code (announced):: HFC5041XLCEV20
Cab length:: 5.72m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 200km
Motor 1 Brand: Prestolite
Curb Weight: 2.575ton

Overview

The JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh is a Electric Refrigerated Truck featuring 200km battery/range, Prestolite motor, 4X2 (6 wheels) drive and 1.79t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041XLCEV20
Drive type: 4X2
Wheelbase: 2950mm
Cab length: 5.72m
Cab width: 2.06m
Cab height: 3.04m
CLTC range: 200km
Curb Weight: 2.575ton
Rated payload: 1.79ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
Energy Type: Electric
electric motor
Motor 1 Brand: Prestolite
Motor 1 Model: TZ180XSWF3-1
Motor Type: Permanent magnet synchronous motor
total rated power: 50kW
Peak power: 100kW
Battery/Charging
Battery Brand: EVE
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 61.66kWh
Chassis Specs
Chassis Series: Shuailing EV3
Chassis Model: HFC1041EV20
Leaf spring count: 3/4+2,3/3+2
Cargo box parameters
Cargo box width: 1.9m
Cargo box height: 2m
Tire
Tire Size: 195/65R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake

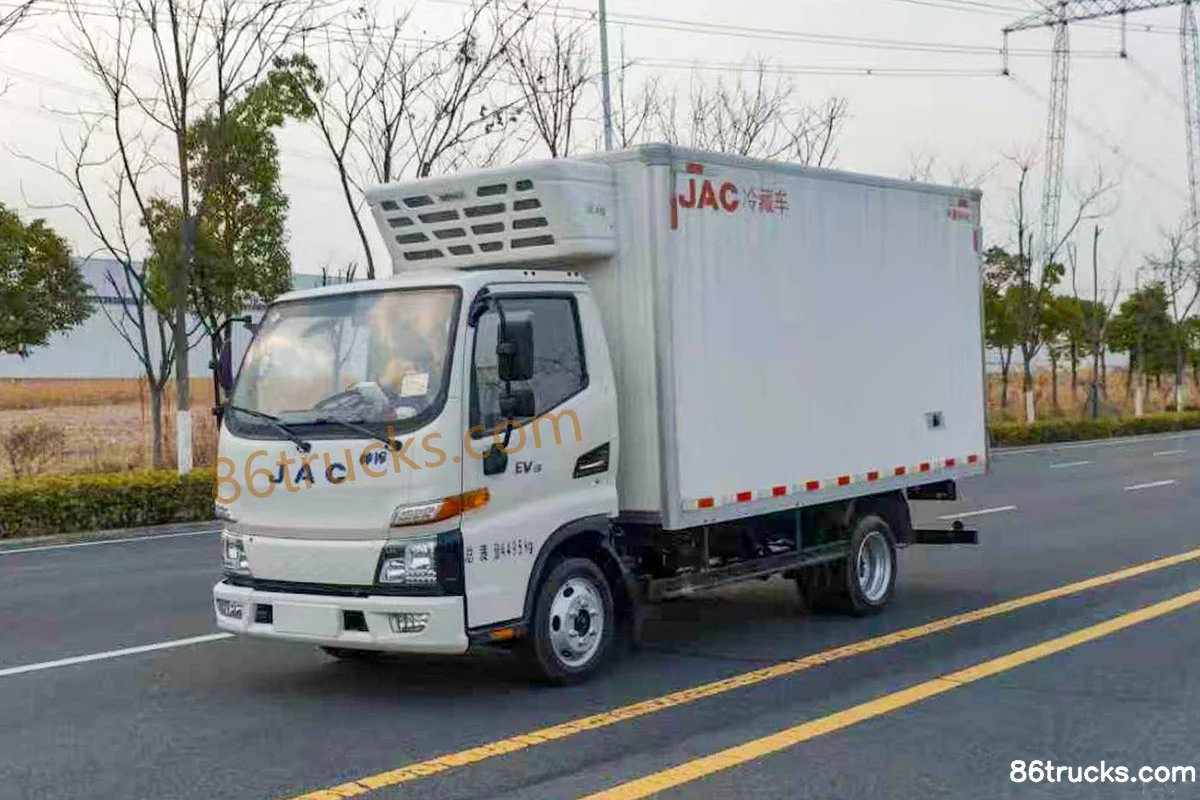

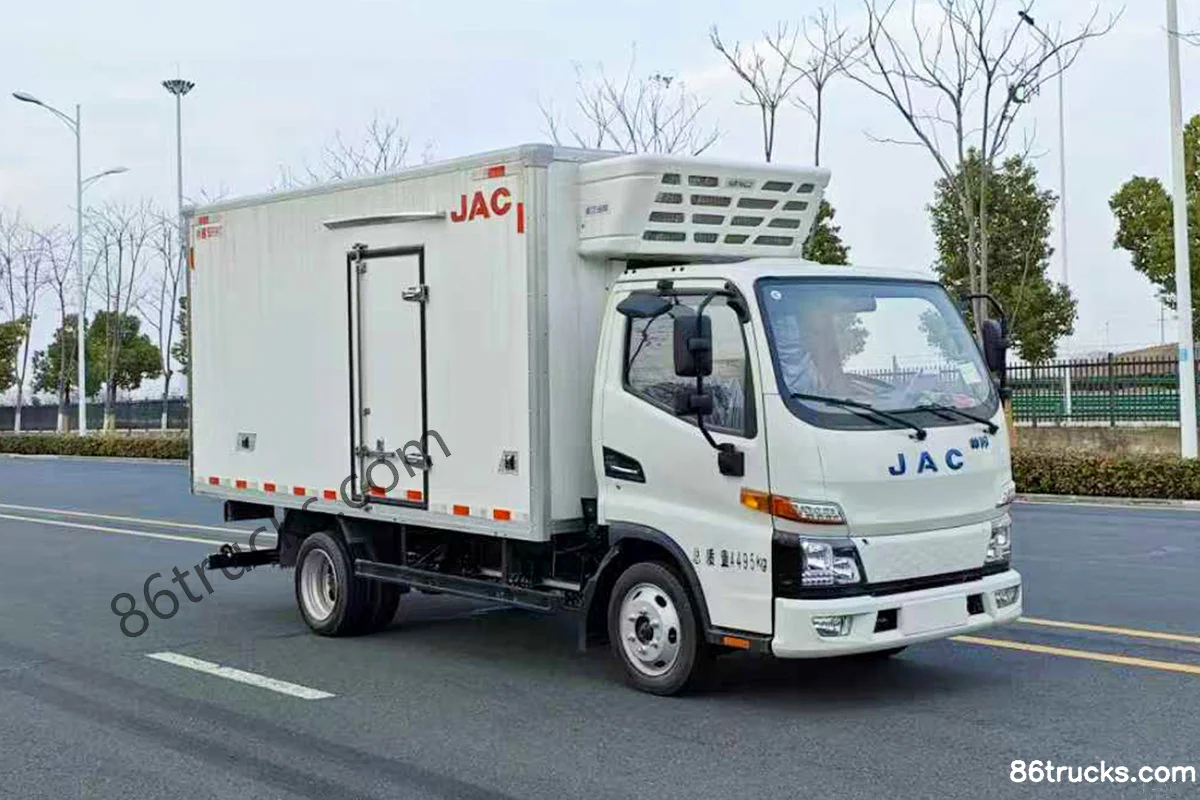

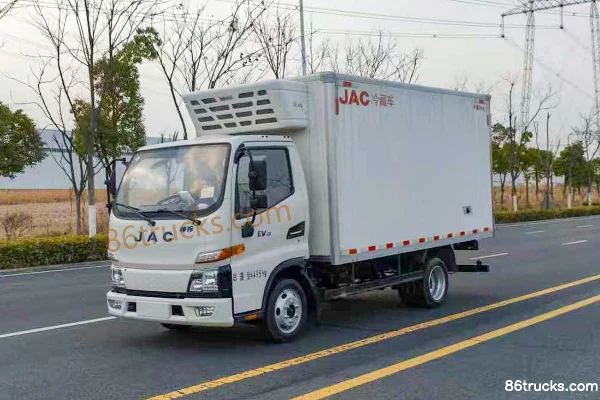

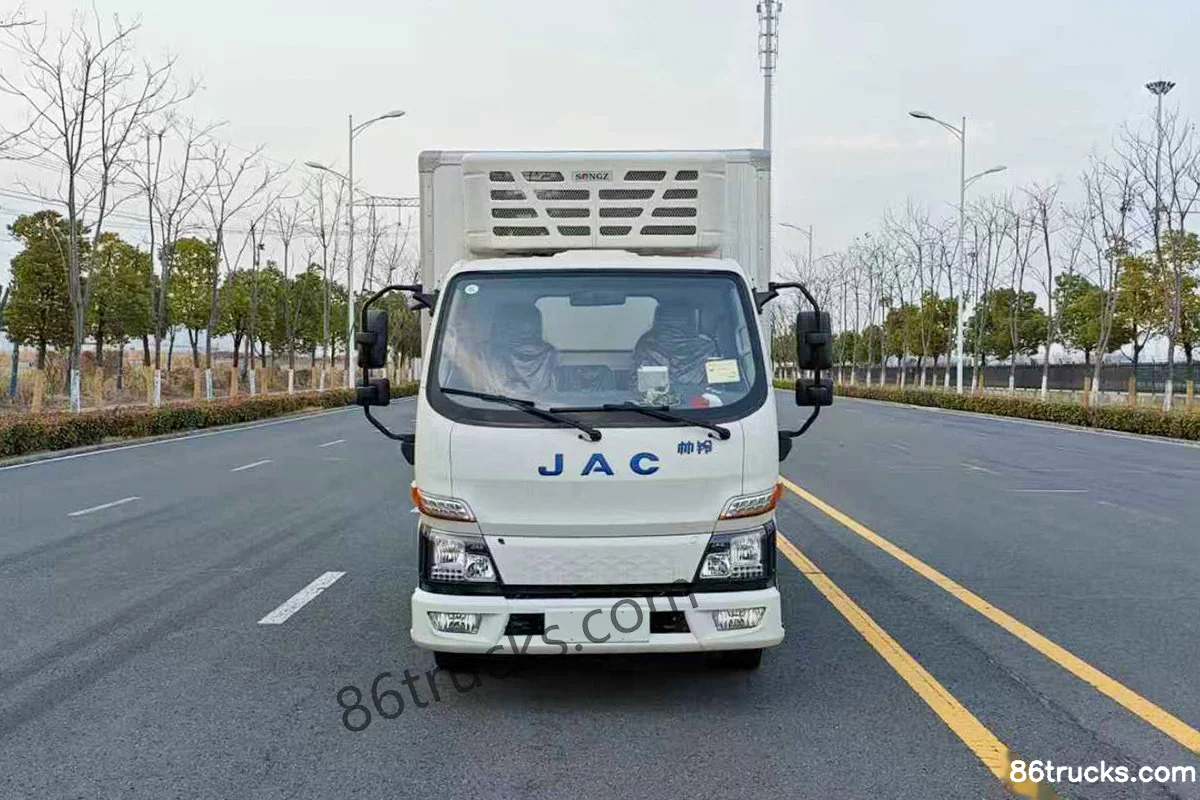

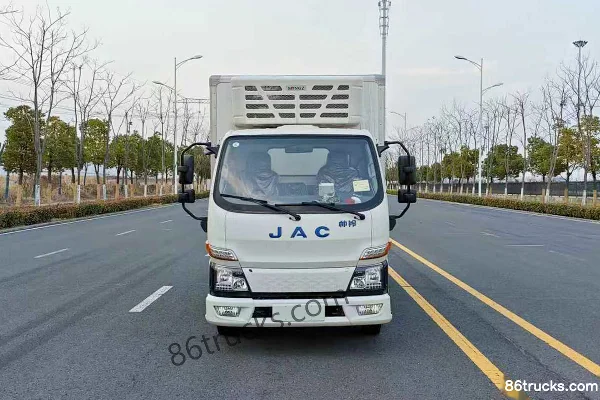

Photos

Exterior3

3 photos

FAQ

What is the export price of JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh, and what does it include?

JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh export reference is about From $25,000; MSRP is ¥18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh?

Key specs of JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh suited for?

JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh differ from other variants in the same series?

JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh belongs to JAC Shuailing EV3 Mini Truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC EV3 4X2(6 wheels) 3.89m Single Row Electric Refrigerated Truck 61.66kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
