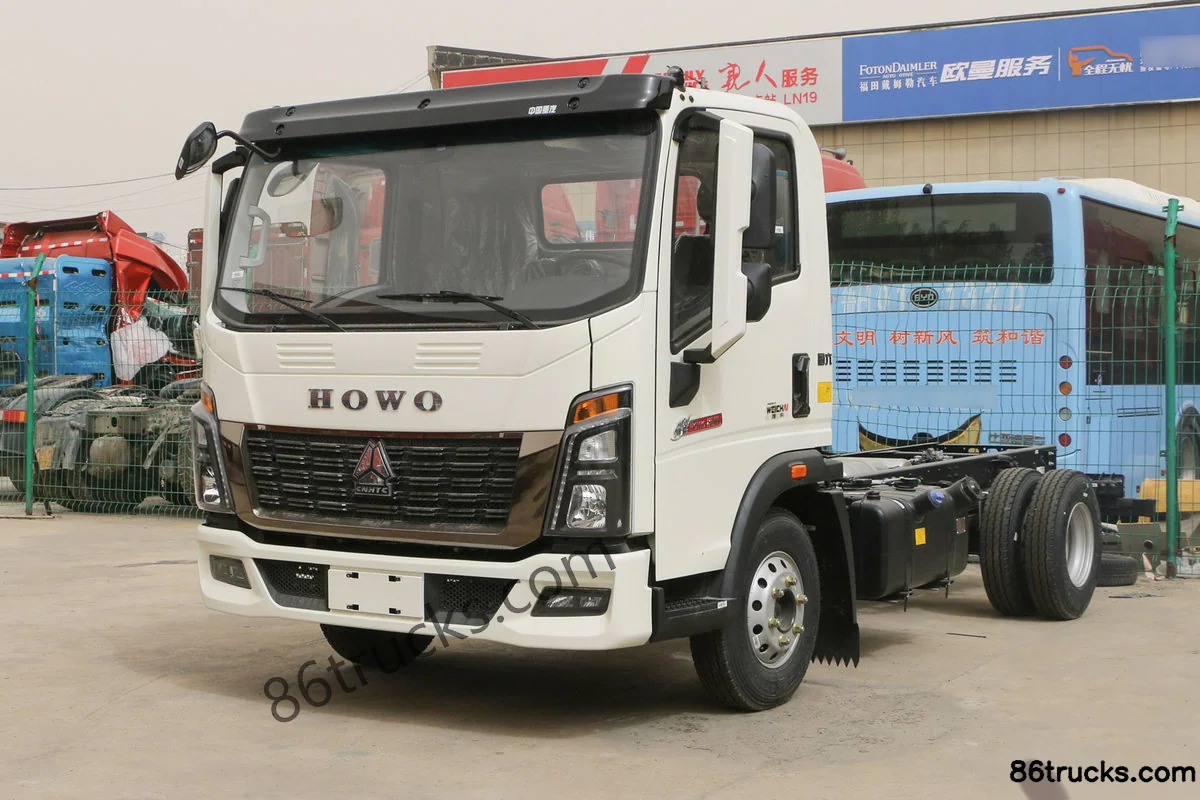

Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI)

Export reference
MSRP N/A
Horsepower: 190
Emission: China VI
Fuel: Diesel
Engine: Fukang F3.8
Transmission: Sinotruk
Curb Weight:: 6.01ton
seating capacity: 3Personnel
Rated payload: 5.06ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI) is a Light Truck featuring 3.85m cargo length, Van body cargo body, 3Personnel volume and 5.06t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Fukang F3.8 engine, 190 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5117XXYH3315F1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3600mm
Box length class: 3.8m
engine: FotonF3.8NS6B190
transmission: SinotrukHW90510C
Cab length: 5.995m
Cab width: 2.55m
Cab height: 3.4m
Front track width: 1815mm
rear track: 1795mm
Curb Weight: 6.01ton
Rated payload: 5.06ton
GVWR: 11.2ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 18°
departure angle: 16°
market segment: Urban Distribution
Remarks: Metallic paint, leather seats
Front/rear suspension: 1.18/1.535m
Version: 2019 model
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonF3.8NS6B190
Engine info: Fukang F3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.8L
Emission standard: China VI
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 700N·m
Max torque speed: 1300-1700rpm
Rated speed: 2600rpm
Engine Oil Change Interval: 50,000 km
Transmission Parameters
Transmission Model: SinotrukHW90510C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.85m
Cargo box width: 2.44m
Cargo box height: 2.3m
*Cargo box interior width: 2.4400000572205
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 4030kg
rear axle allowable load: 7170kg
Leaf spring count: 3/4+3
Aluminum wheels:
Tire
Tire Size: 8.25R16LT
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
ASR traction control:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: flat wiper blades
Service brake
Engine brake: engine brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Standard drum brake, optional disc brake
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
LCD instrument cluster:
Roadside assistance call:
lighting configuration
Headlight brand: Sinotruk light truck genuine parts
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Emergency Brake Assist (EBA):
Tire Pressure Monitoring System (TPMS):
maintenance service
24-hour service hotline: 400-188-8666
Rescue service:

Photos

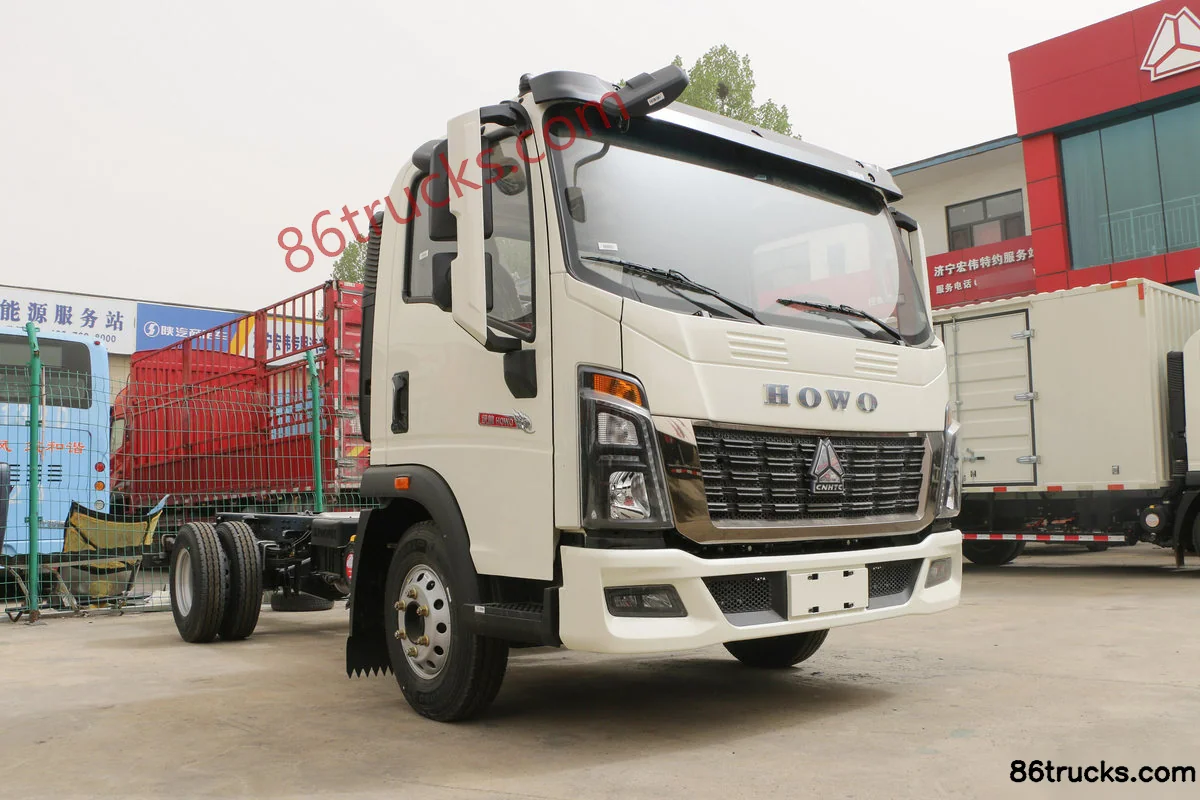

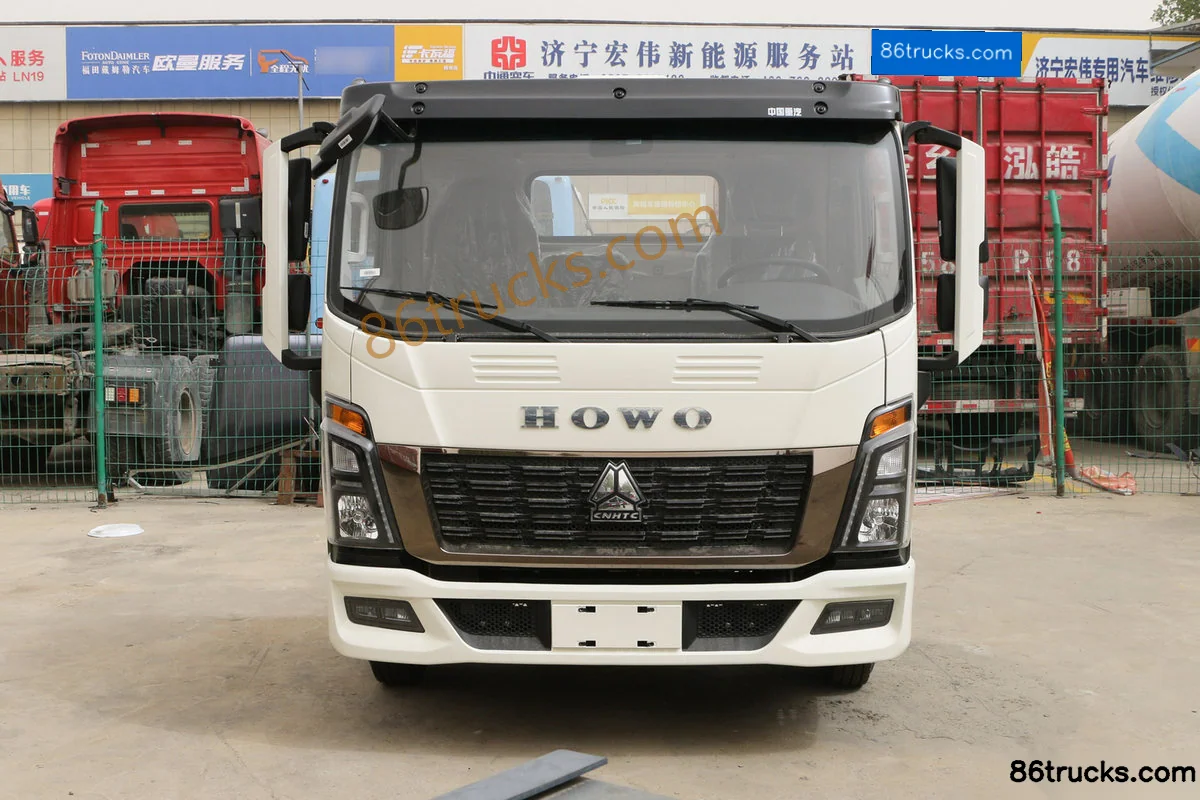

Exterior3

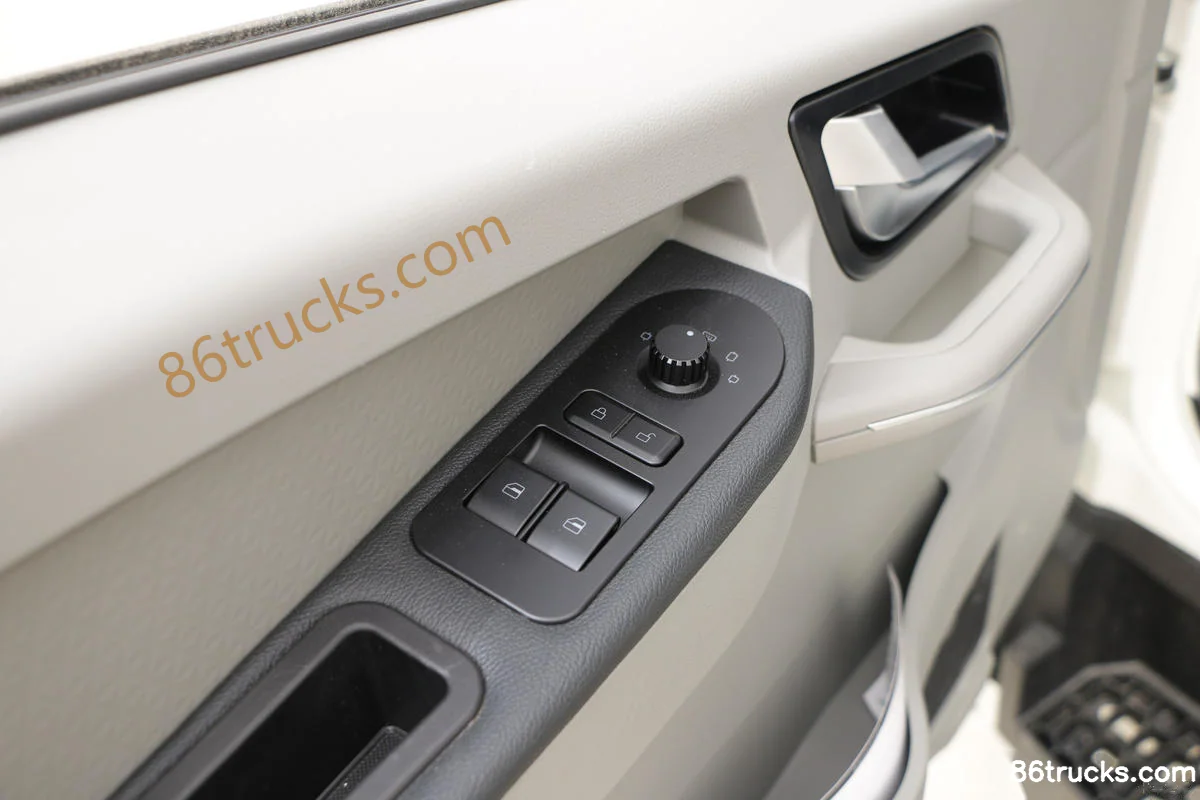

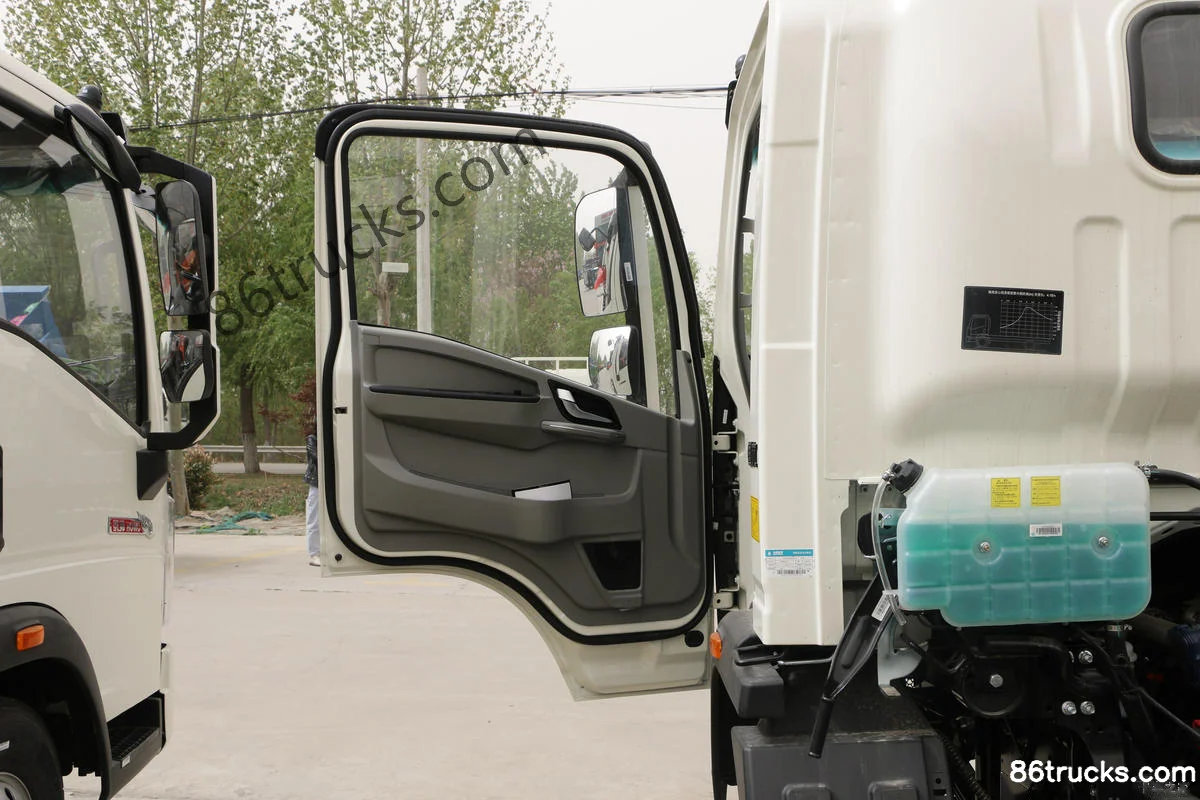

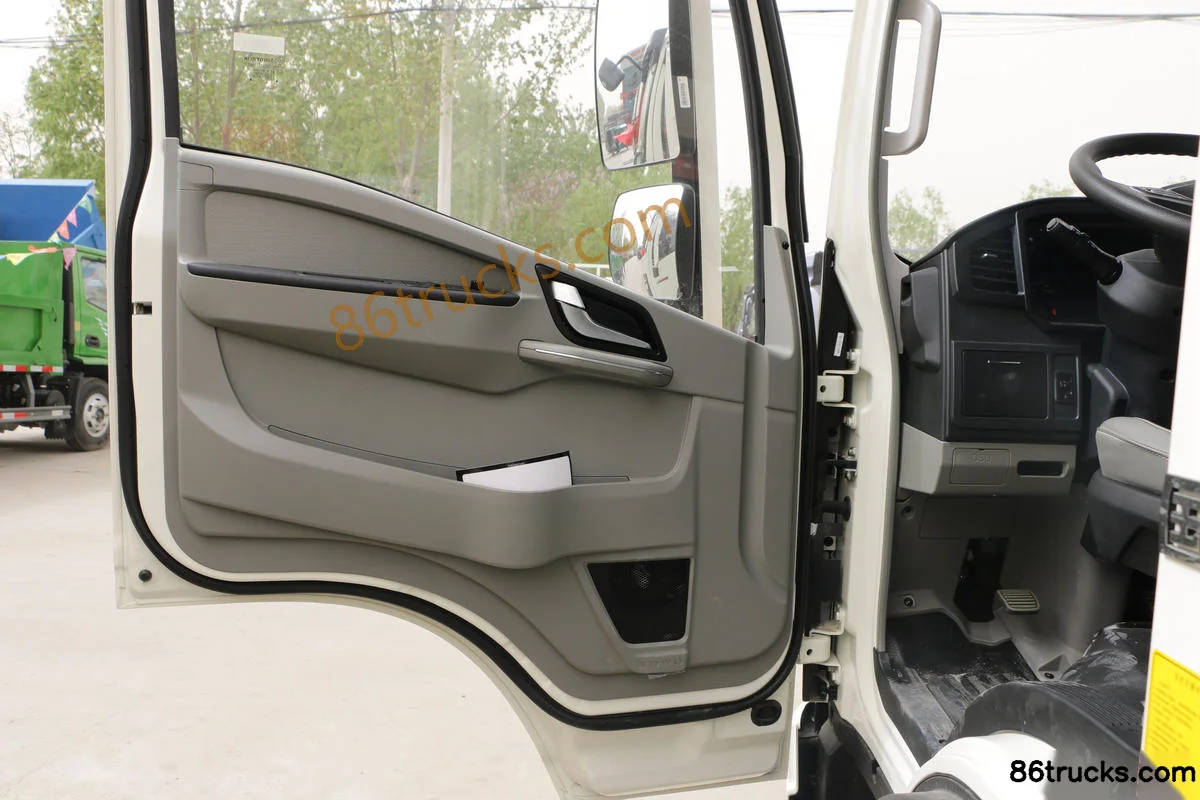

Cab3

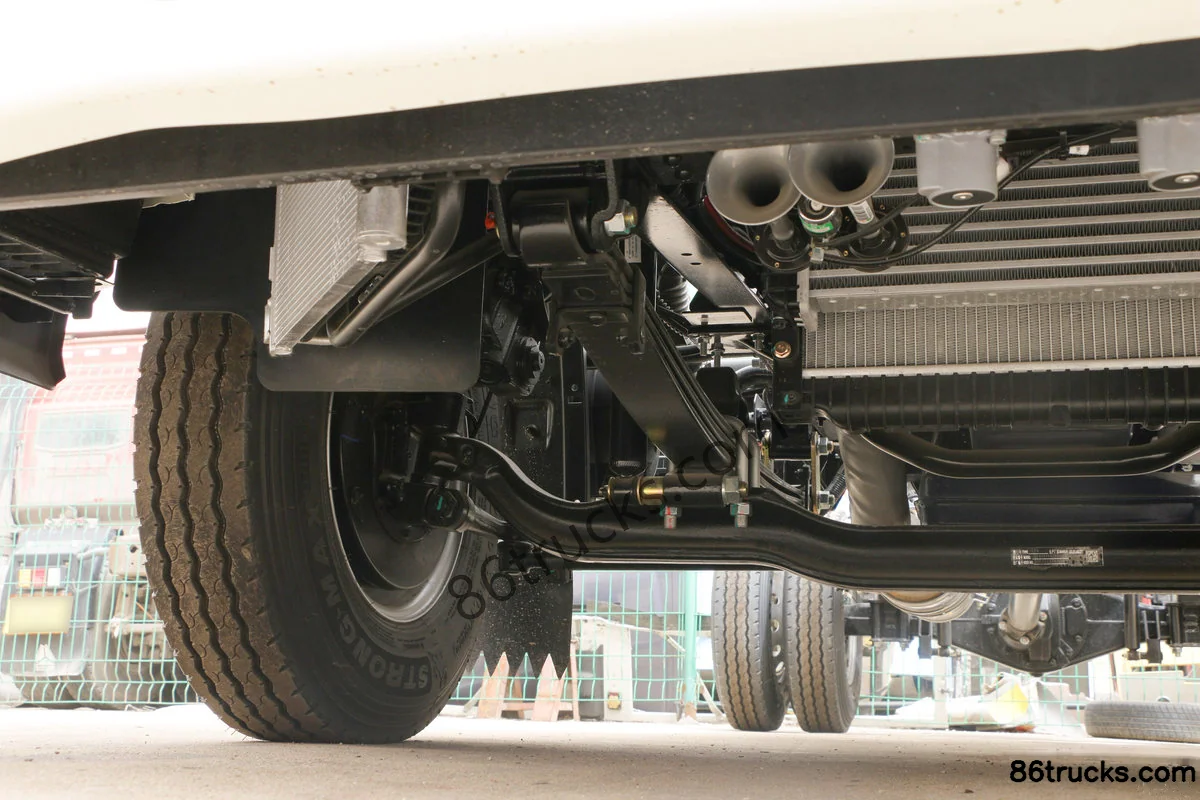

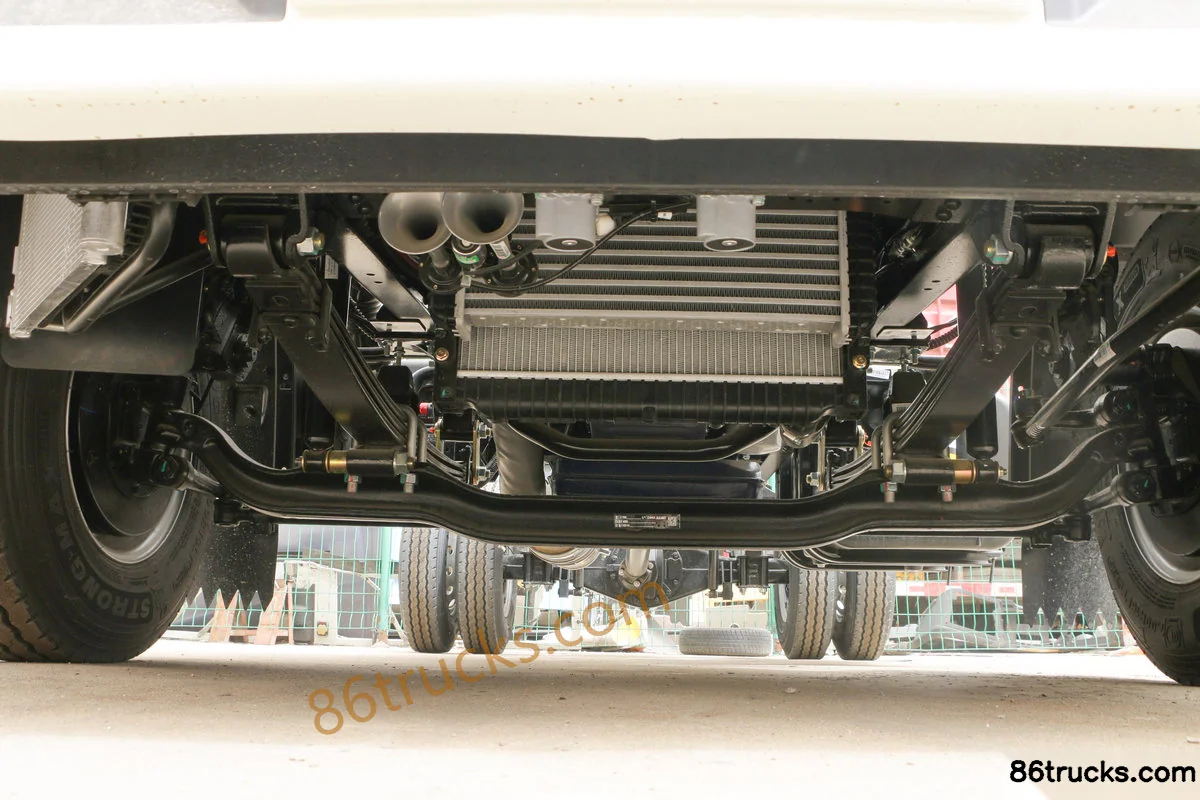

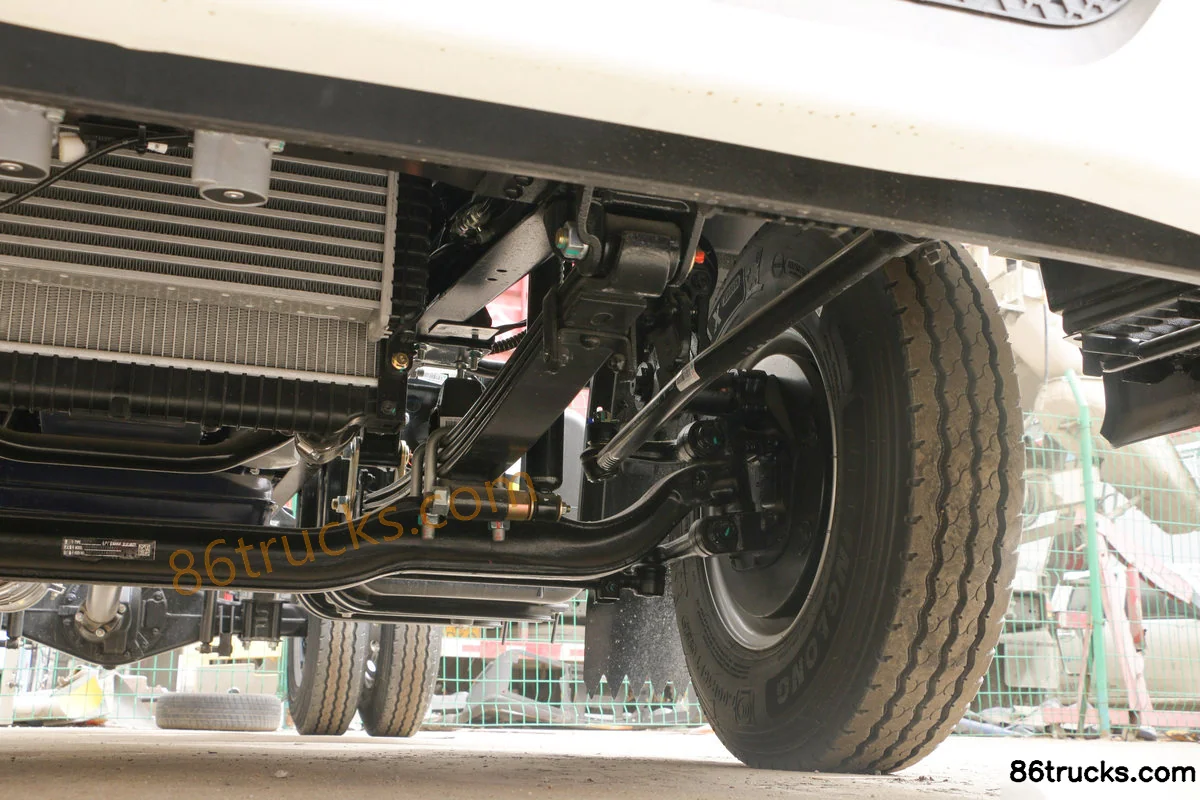

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI)?

Key specs of Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI): Drive: 4x2; Horsepower: 190 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang F3.8; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI) suited for?

Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI) differ from other variants in the same series?

Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI) belongs to Sinotruk Tongshuai Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Tongshuai 2019 190hp 4X2(6 wheels) 3.85m cab-to-deck van light truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
