Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 2.995ton
Wheelbase:: 3380mm
Cargo box width:: 2.04m
Model code (announced):: STQ5078XLCNBEV
Cab length:: 5.995m
GVWR:: 7.495ton
Drive 4X2 (6 wheels)
CLTC range: 255km
Motor 1 Brand: INVT
Curb Weight: 4.305ton

Overview

The Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring 255km battery/range, INVT motor, 4X2 (6 wheels) drive and 2.995t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ5078XLCNBEV
Drive type: 4X2
Wheelbase: 3380mm
Cab length: 5.995m
Cab width: 2.22m
Cab height: 2.96m
CLTC range: 255km
Curb Weight: 4.305ton
Rated payload: 2.995ton
GVWR: 7.495ton
Max. speed: 80km/h
Origin: Shiyan, Hubei
Energy Type: Electric
electric motor
Motor 1 Brand: INVT
Motor 1 Model: TZ327XS-INVT60G01
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
total rated torque: 900N·m
Battery/Charging
Battery Brand: Penghui
Battery type: multi-element composite lithium battery
Battery capacity: 118.71kWh
Energy Density: 140.28
Body Parameters
Others: Cargo top closed, non-opening
Chassis Specs
Chassis Series: Chuangke
Chassis Model: STQ1078L02Y1NBEV
Leaf spring count: 8/10+7,3/3
Cargo box parameters
Cargo box width: 2.04m
Cargo box height: 1.85m
Tire
Tire Size: 7.50R16LT 14PR
Number of tires: 6pcs

Photos

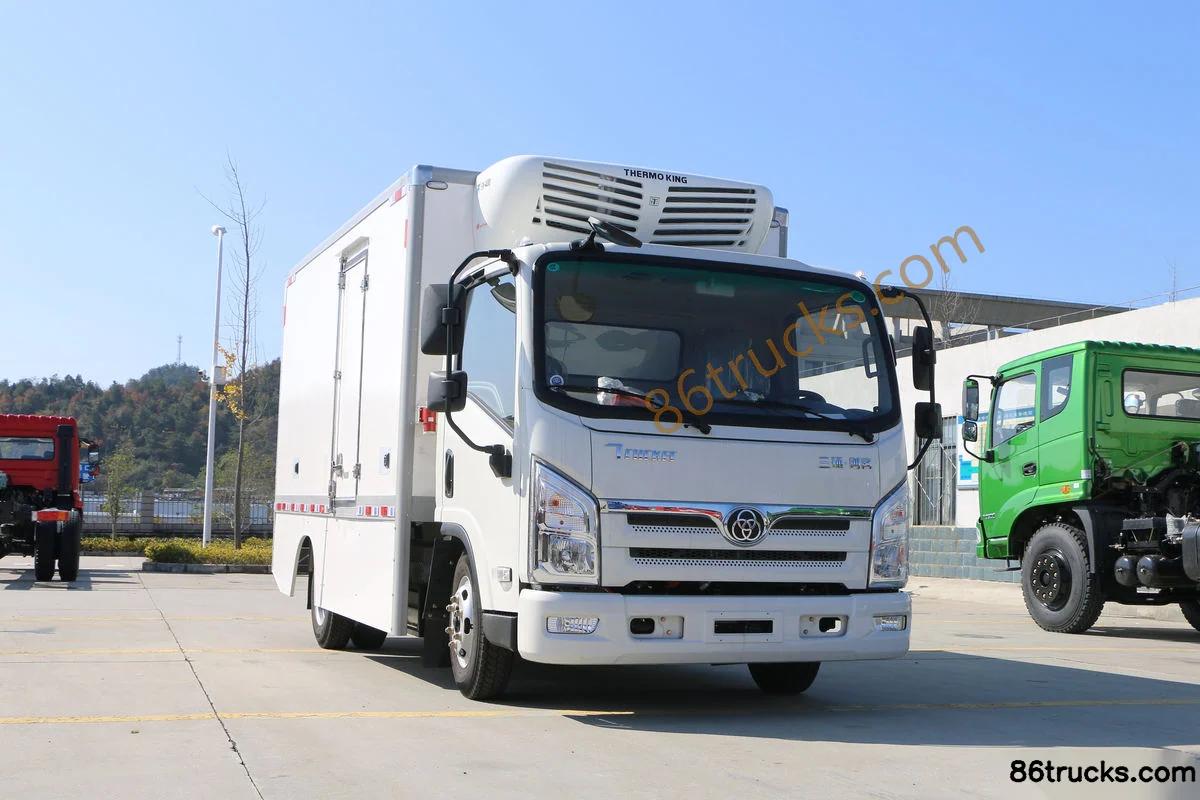

Exterior1

1 photos

FAQ

What are the key specs of Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels)?

Key specs of Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels) suited for?

Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels) differ from other variants in the same series?

Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels) belongs to Sanhuan Shitong Chuanke Light Truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Chuangke 7.5T 4.1m Single Row Pure Electric Refrigerated Truck 118.71kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
