Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang)

Export reference
From $42,500
MSRP ¥30.6M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 12.98ton
Wheelbase:: 1800+3800+1350mm
Tire Size:: 295/80R22.5
Cab dimensions:: 11.998×2.55×3.998m
Rated payload: 17.825ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.43×2.45×2.378m
Horsepower 340

Overview

The Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang) is a Refrigerated Truck featuring 9.43×2.45×2.378m cargo body, 17.825t payload, Flat roof cab and 1800+3800+1350mm wheelbase. On the powertrain side, it comes with 340 hp, 8X4 (12 wheels) drive, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.998×2.55×3.998m
Drive type: 8X4
Truck Type: Refrigerated Truck
Wheelbase: 1800+3800+1350mm
Vehicle origin: Qingdao, Shandong
Front track width: 2015/2015mm
rear track: 1830/1830mm
Curb Weight: 12.98ton
Rated payload: 17.825ton
Max. speed: 110km/h
Front/rear suspension: 1.43/2.793m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Cargo box parameters
Cargo box dimensions: 9.43×2.45×2.378m
Cargo box width: 2.45m
Cargo box height: 2.378m
Body Parameters
Vehicle certification code: QYK5311XLC5
Body Brand: Binglingfang
Chassis Specs
Chassis Brand: Sinotruk HOWO
Chassis Series: HOWO T5G
Chassis Model: ZZ1317N466GE1
Axle ratio: 4.444
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW10C
Cab parameters
Cab: Flat roof
Tire
Tire Size: 295/80R22.5
Number of tires: 12pcs

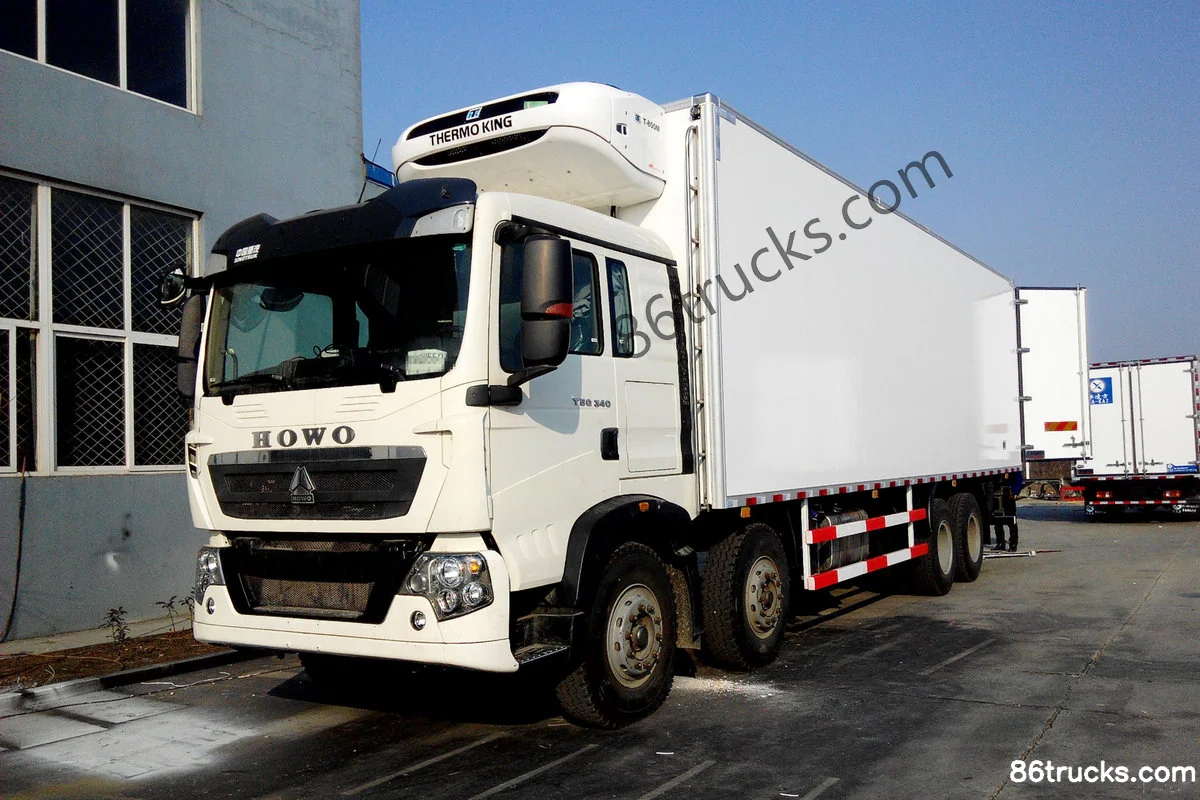

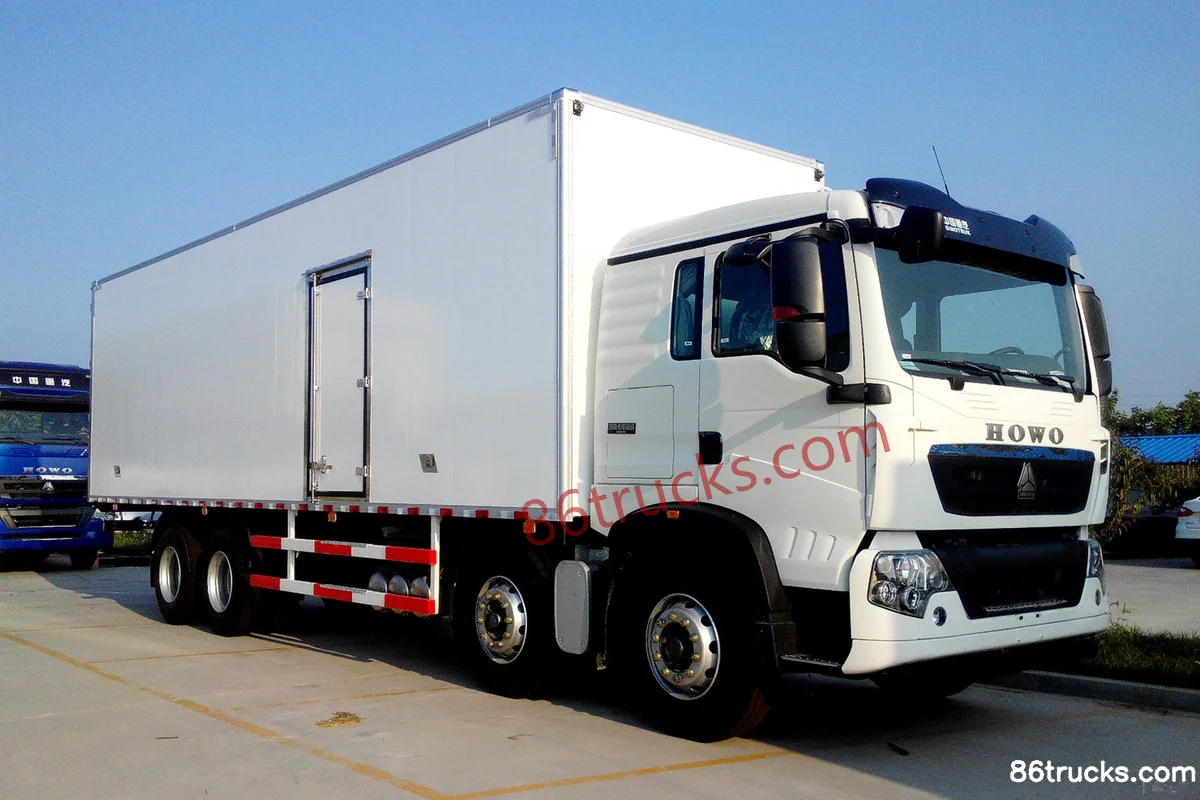

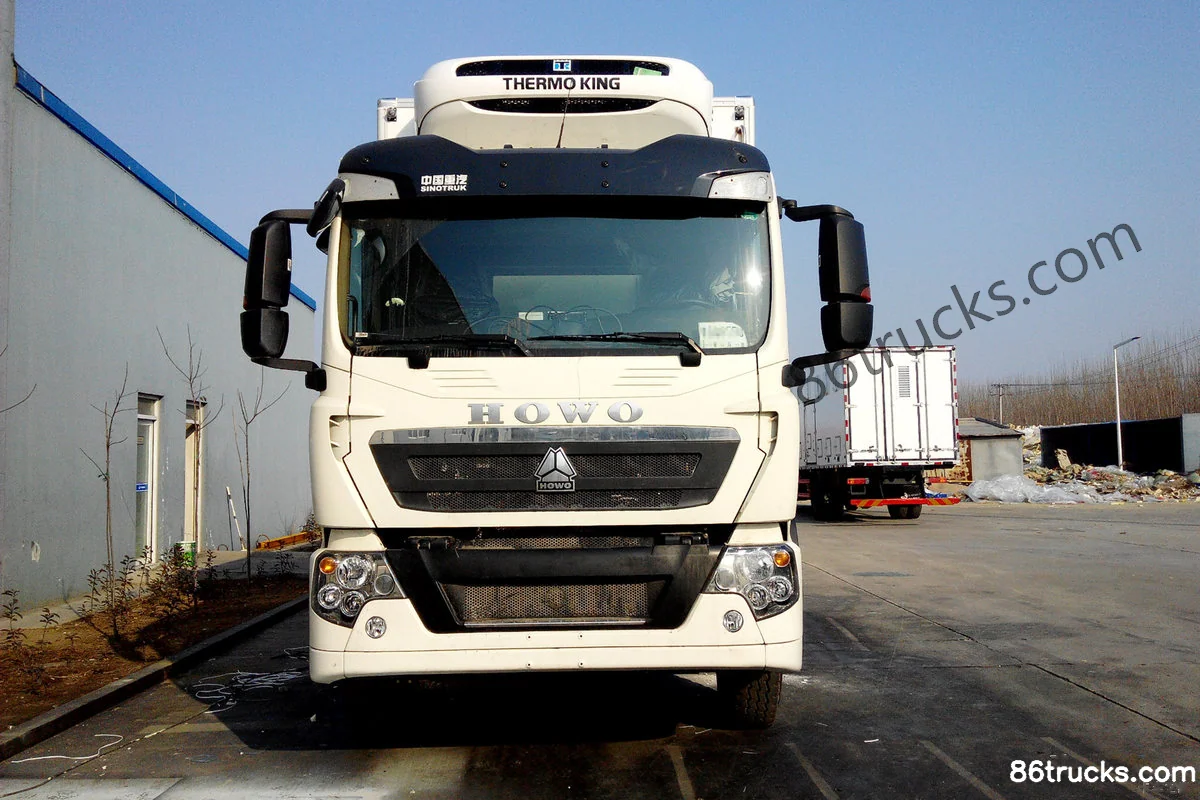

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang), and what does it include?

Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang) export reference is about From $42,500; MSRP is ¥30.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang)?

Key specs of Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang): Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang) suited for?

Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang) differ from other variants in the same series?

Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang) belongs to Binglingfang Sinotruk HOWO chassis (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G 340hp 8X4(12 wheels) refrigerated truck (Binglingfang)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
