JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels)

Export reference
From $19,583
MSRP ¥14.1M CNY
Curb Weight:: 2.83ton
Rated payload:: 1.535ton
Wheelbase:: 3360mm
Cargo box volume:: 15.5m³
Emission: China IV
Model code (announced):: JX5041XXYTG2SHEV
Drive 4X2 (6 wheels)
CLTC range: 50km
Motor 1 Brand: Inovance
Horsepower 90

Overview

The JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels) is a Light Truck featuring 50km battery/range, Inovance motor, 4X2 (6 wheels) drive and 1.535t payload. On the powertrain side, it comes with 90 hp.

China IV 90 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5041XXYTG2SHEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.965m
Cab width: 2.02m
Cab height: 2.935m
CLTC range: 50km
Curb Weight: 2.83ton
Rated payload: 1.535ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ210XS102
Motor Type: Permanent magnet synchronous motor
total rated power: 50kW
Peak power: 105kW
total rated torque: 140N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 18.43kWh
Engine parameters
Engine Model: Sokon PowerH15R
Number of cylinders: 4cylinder
Displacement: 1.499L
Emission standard: China IV
Max output power: 66kW
Max hp: 90Horsepower
Cargo box parameters
Cargo box volume: 15.5m³
Cargo box type: Van body
Cargo box length: 4.155m
Cargo box width: 1.94m
Cargo box height: 1.93m
Cab parameters
Cab width: 1695mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1735kg
rear axle allowable load: 2760kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

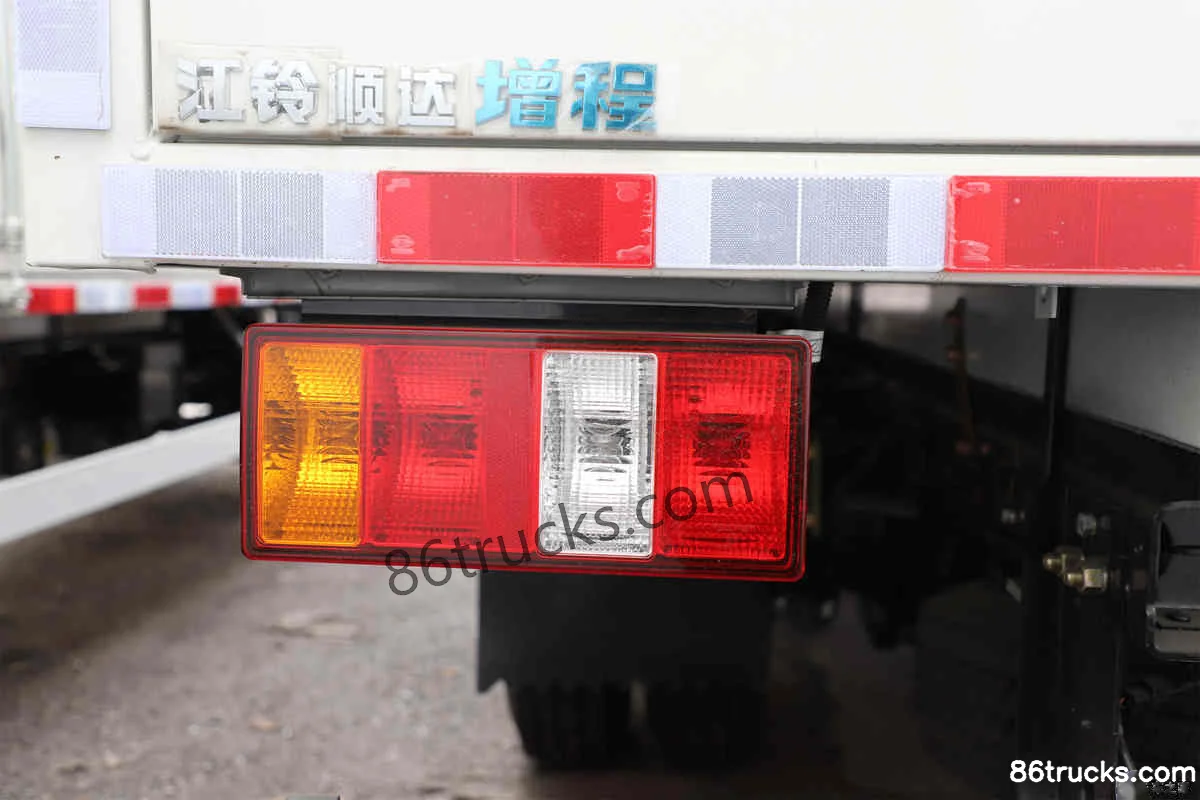

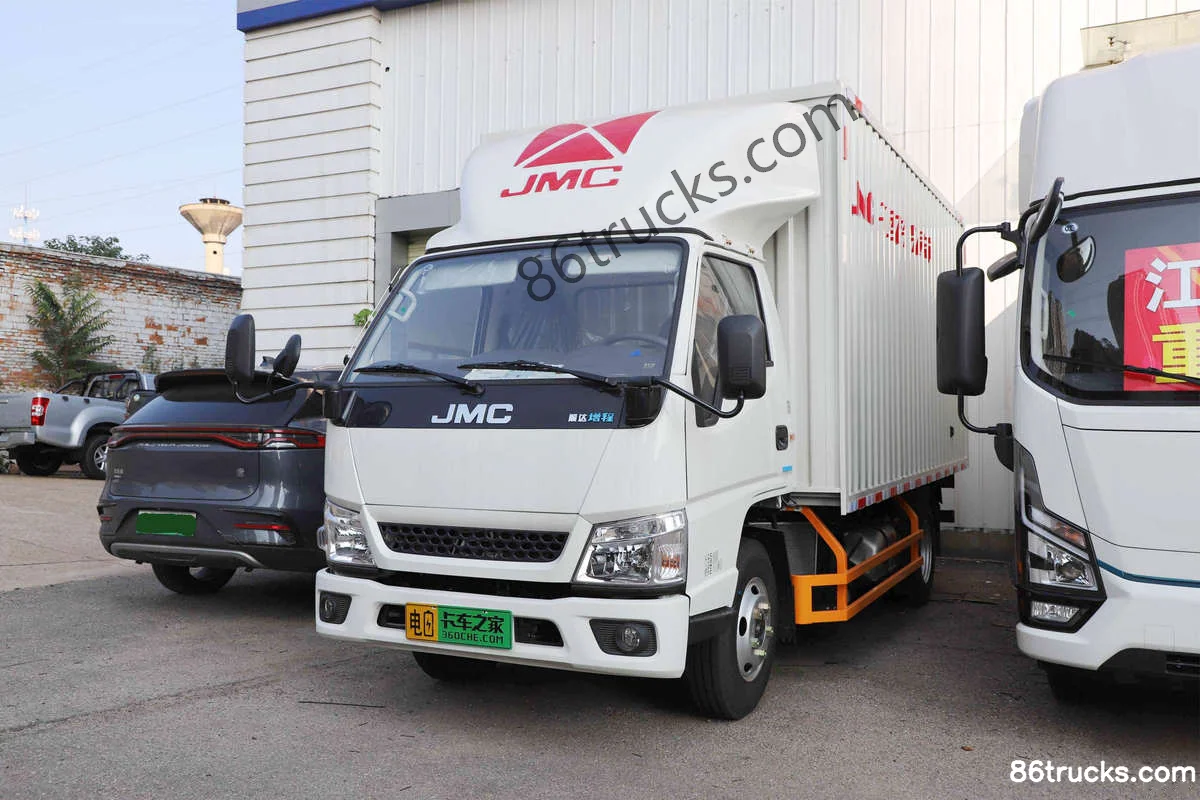

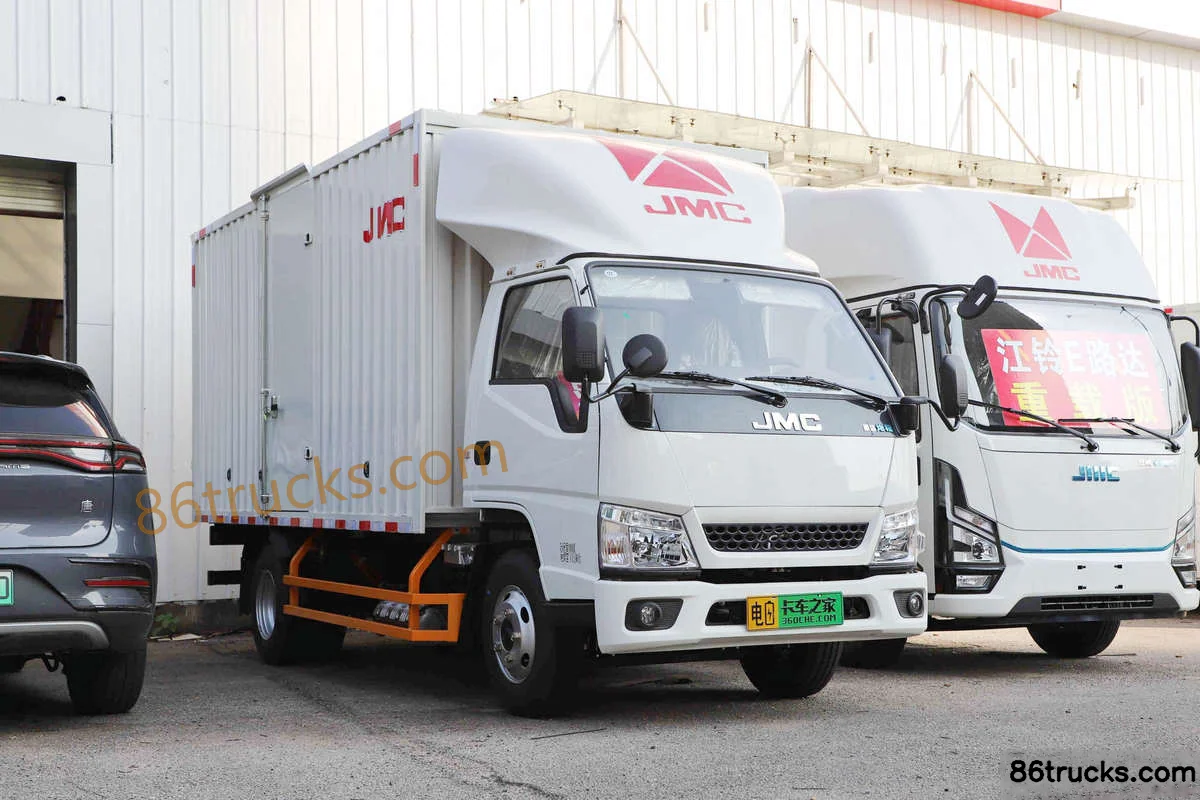

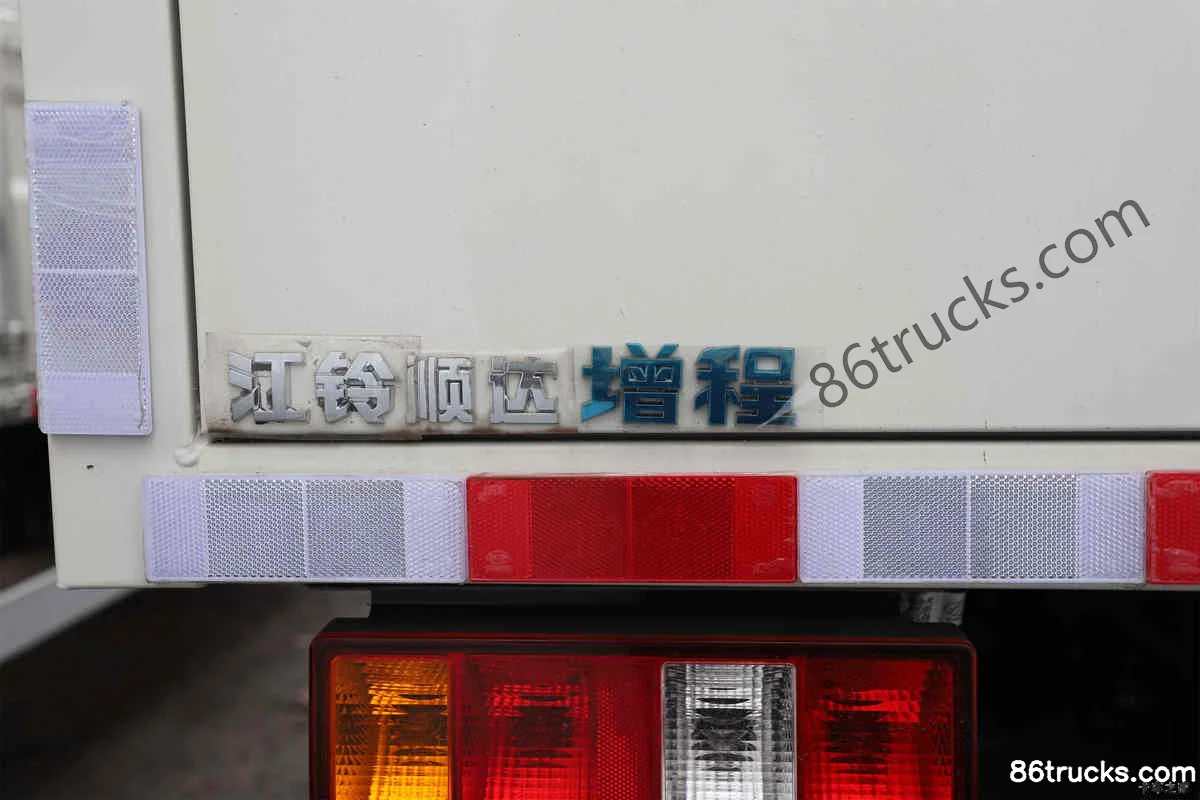

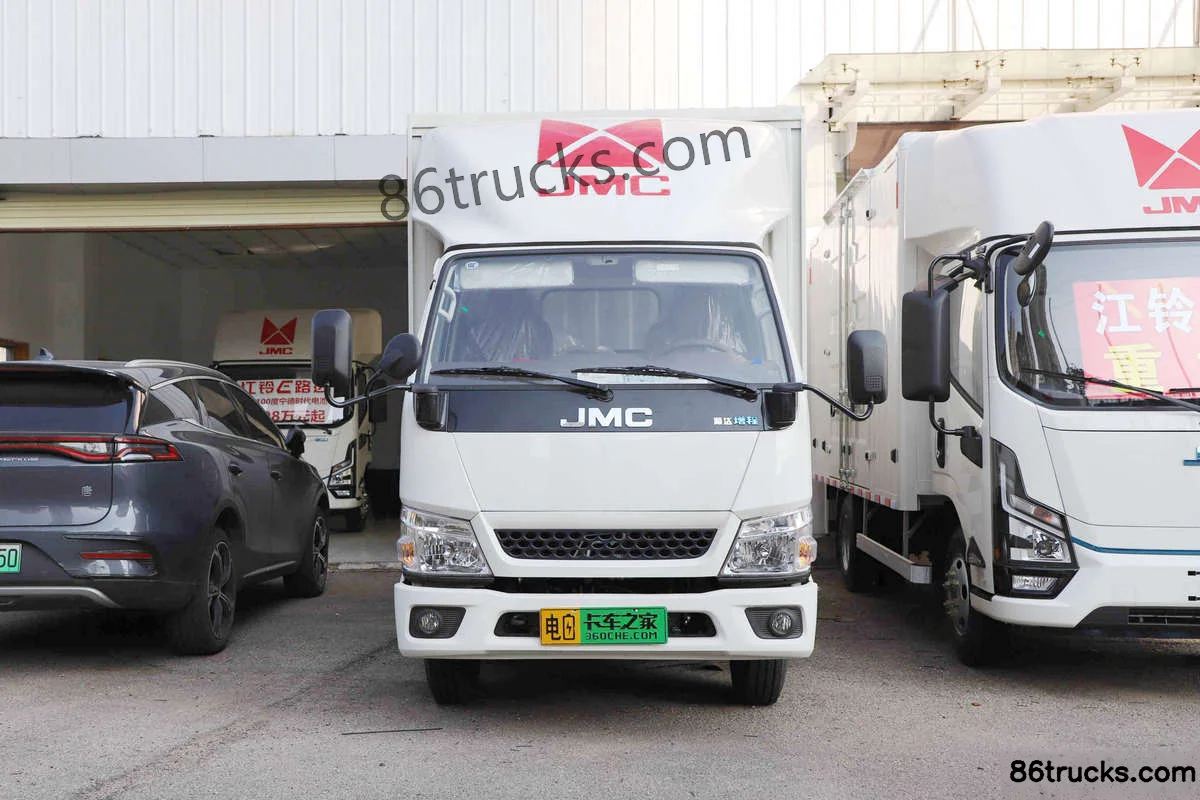

Exterior3

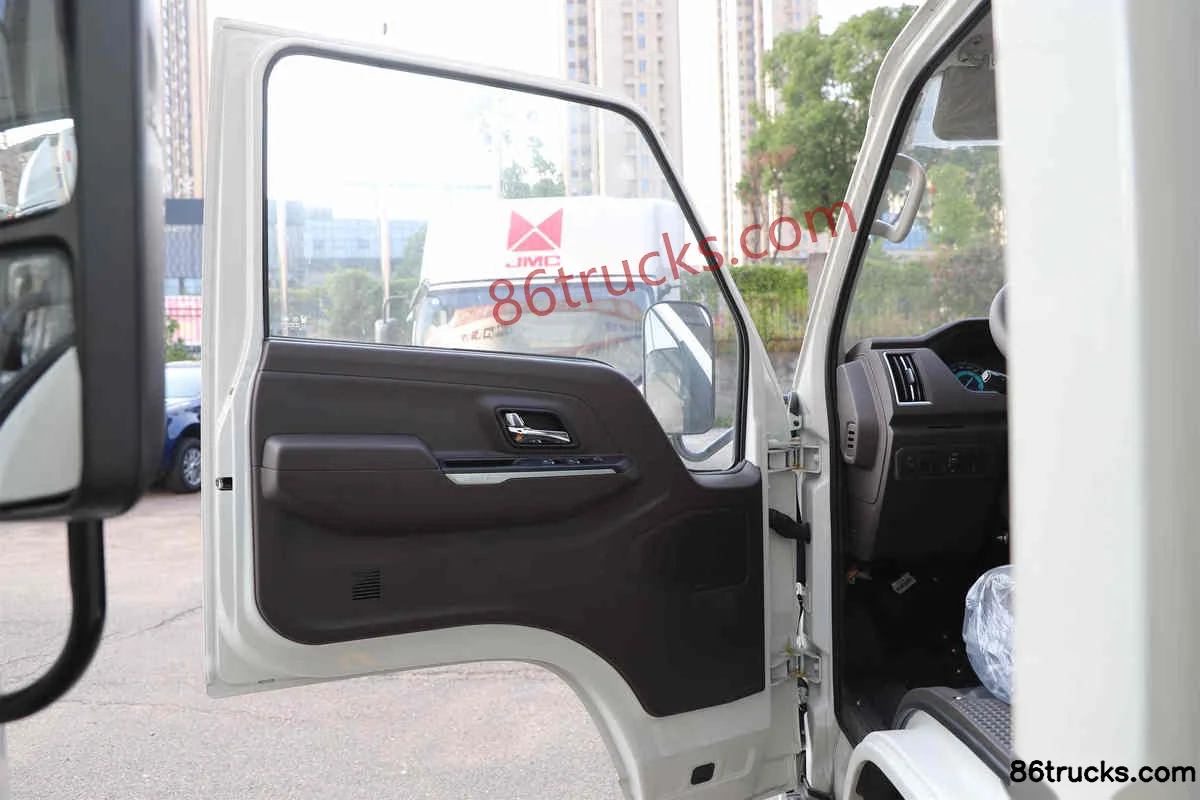

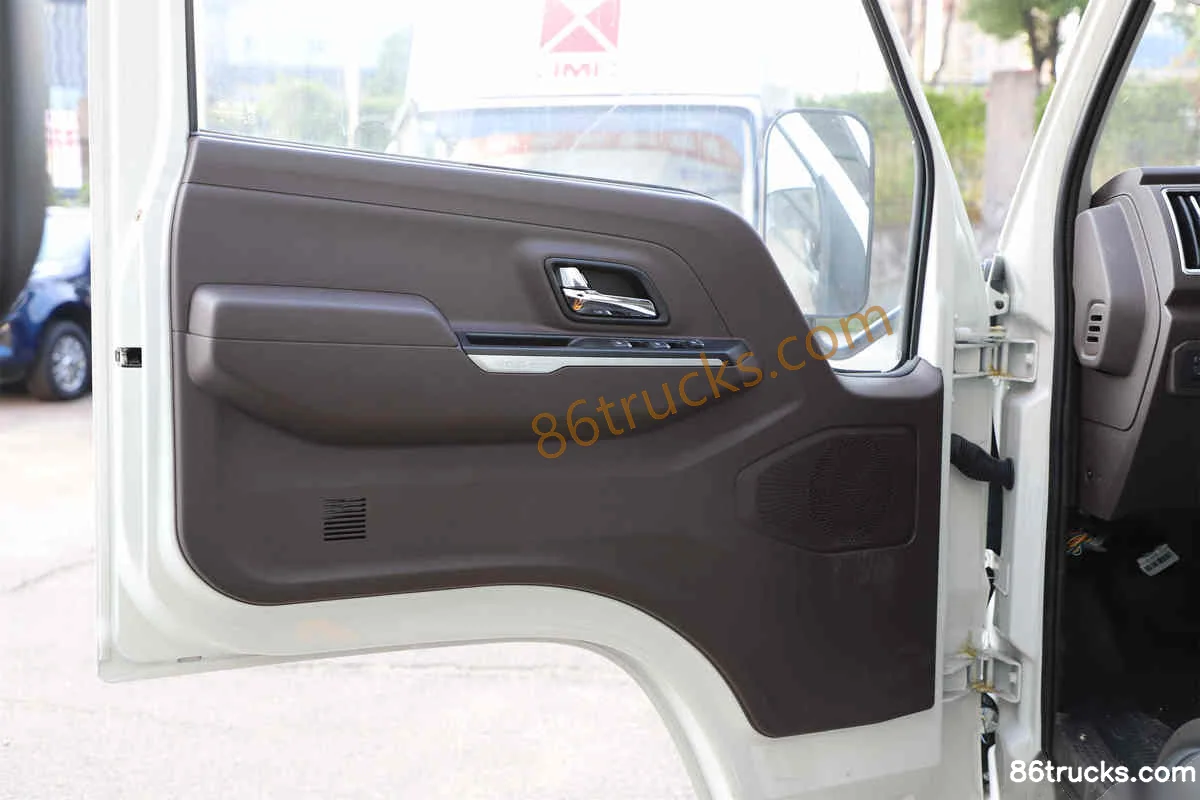

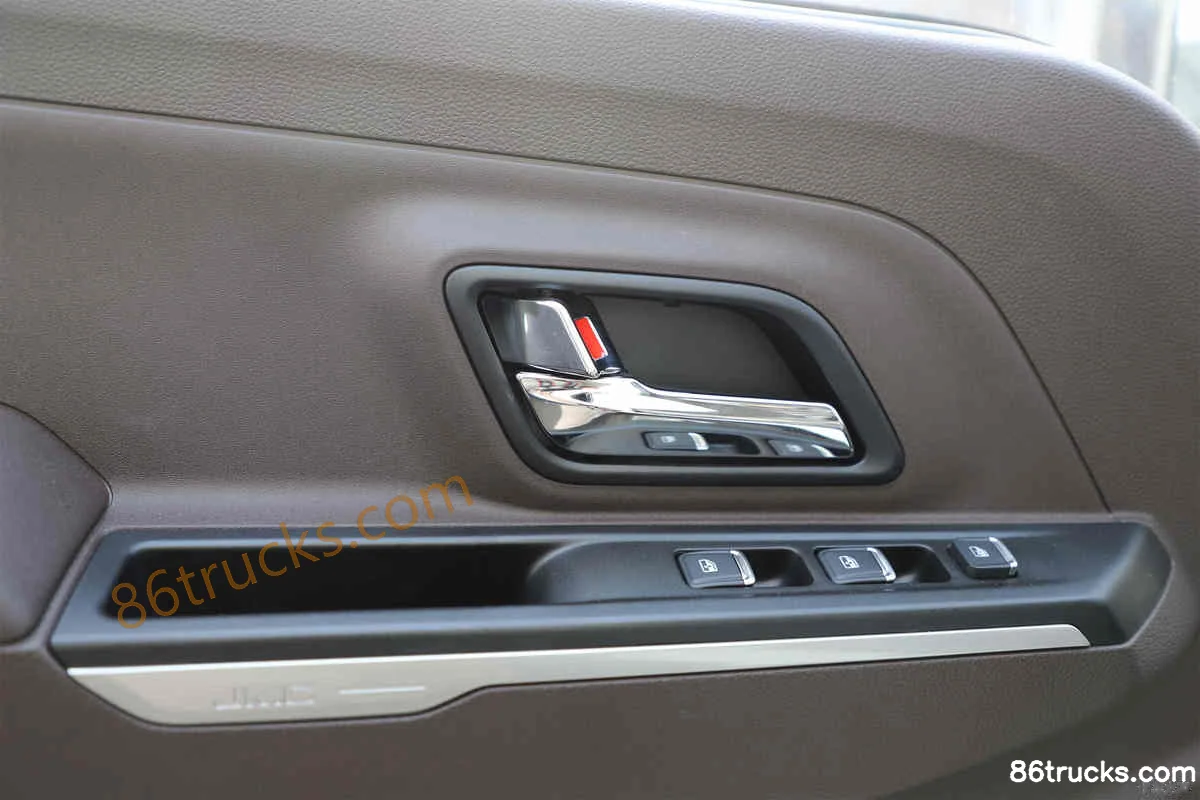

Interior3

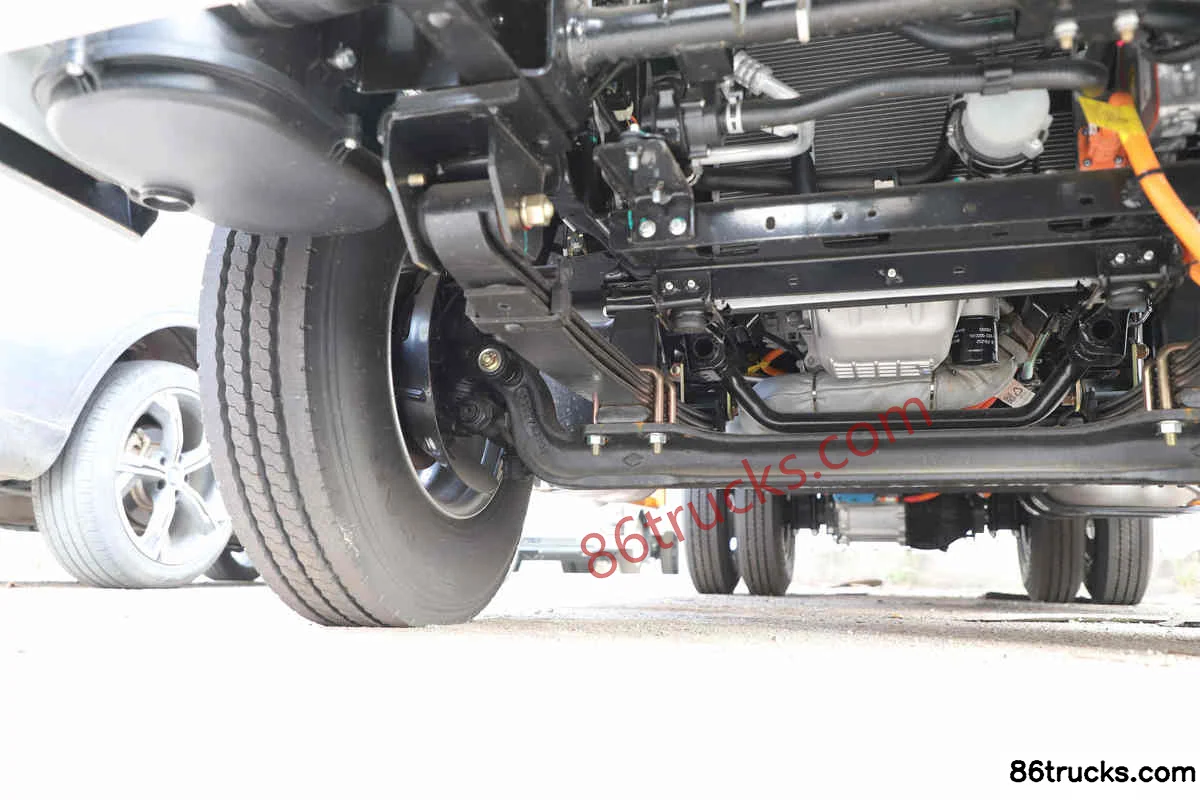

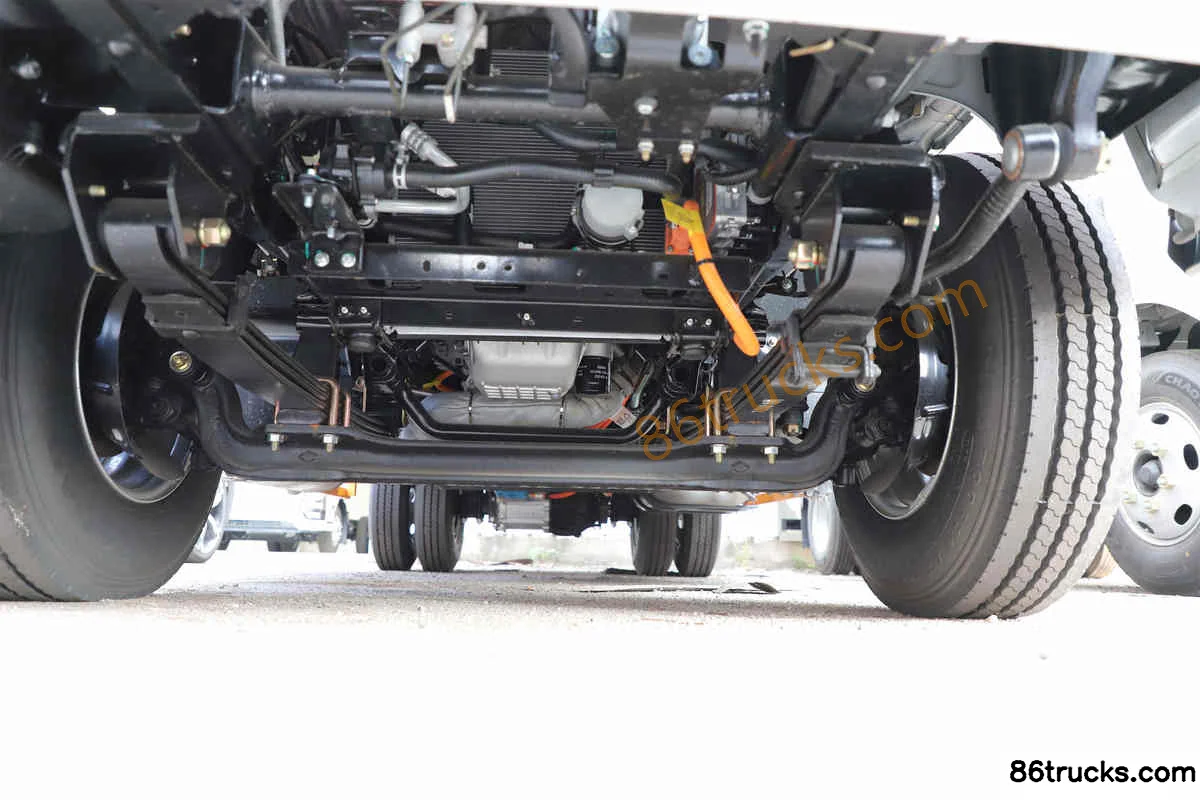

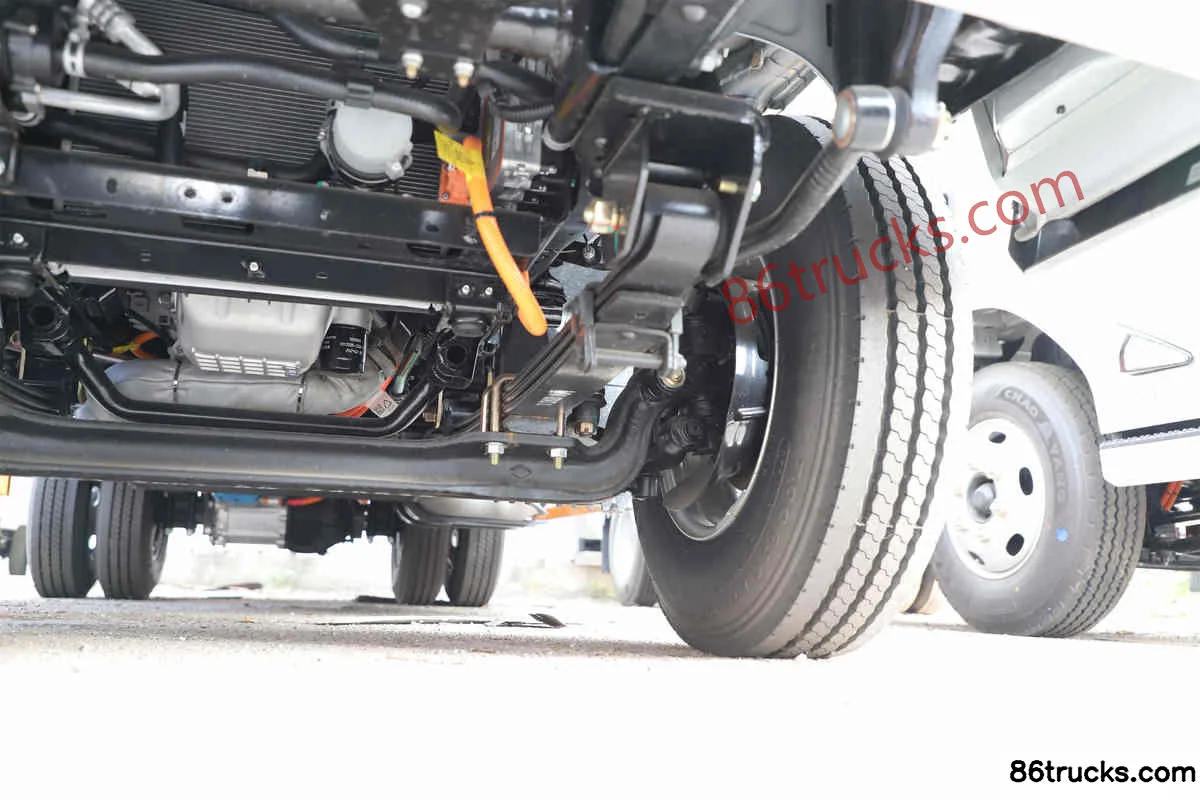

Chassis3

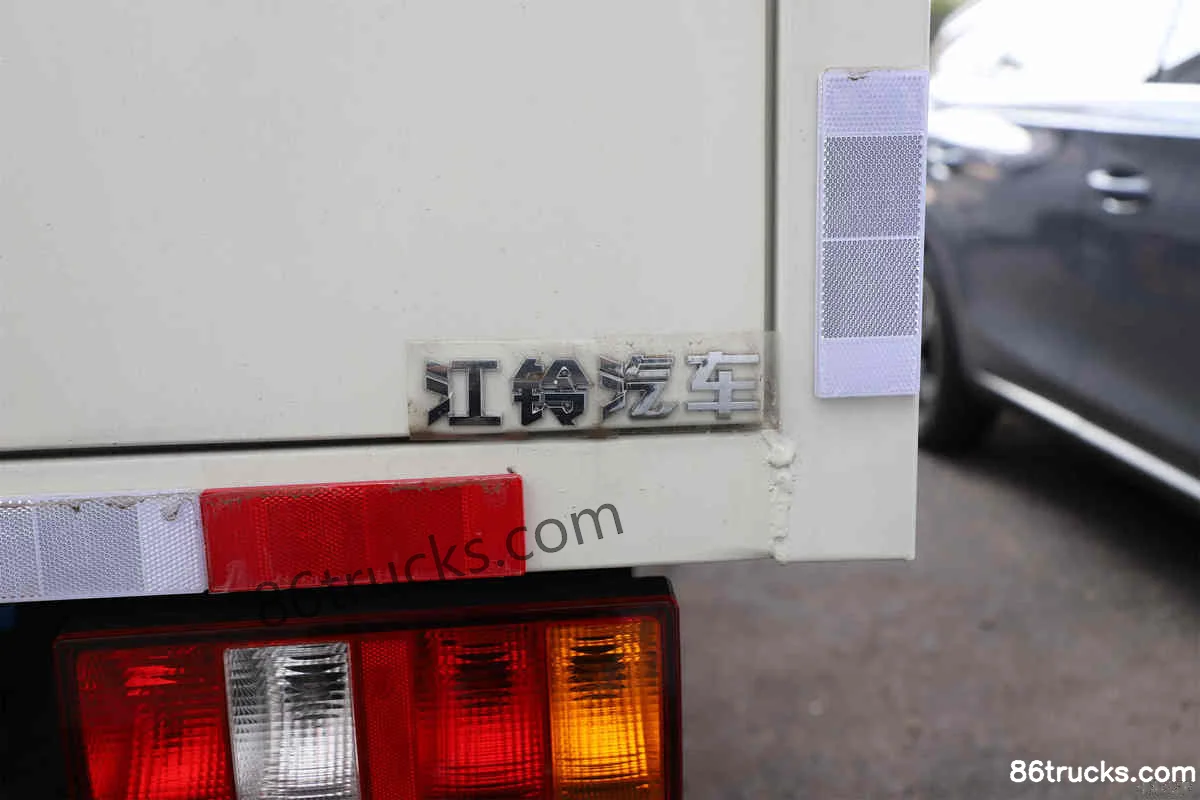

Body3

12 photos

FAQ

What is the export price of JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels), and what does it include?

JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels) export reference is about From $19,583; MSRP is ¥14.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels)?

Key specs of JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 90 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels) suited for?

JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels) differ from other variants in the same series?

JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels) belongs to JMC Shunda EV Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda EV 4.5T 4.155m Single Row Plug-in Hybrid Van Light Truck 18.43kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
