Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine

Export reference
MSRP N/A
Intake type:: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load:: 185g/kW.h
Compression ratio:: 11.5:1

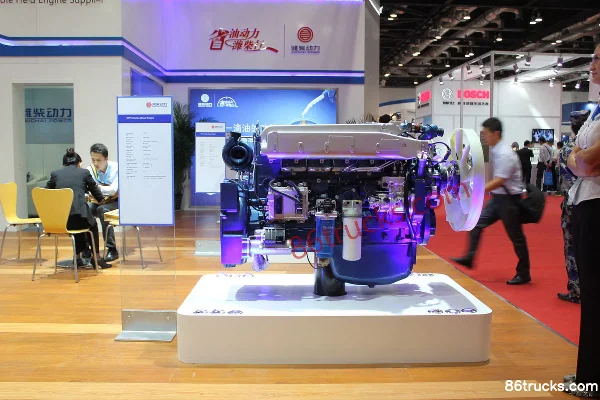

Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine exterior
Suitable Range: Heavy truck
Engine Model: WP10NG336E40
Engine Series: WP10NG Series

Overview

The Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine is a parts product with fit for Heavy truck and spec WP10NG336E40.

China IV 336 Natural gas (LNG/CNG)

Model Specs

Legend: ● Standard　○ Optional　- N/A

Engine parameters
Engine Series: WP10NG Series
Engine manufacturer: Weifang Weichai Peixin Gas Engine Co., Ltd.
Suitable Range: Heavy truck
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 185g/kW.h
Engine net weight: 870kg
Engine Dimensions: 1560×610×1040mm
Compression ratio: 11.5:1
Bore × Stroke: 126×155mm
Valves per cylinder: 2pcs
firing order: 1-5-3-6-2-4
Engine Brand: Weichai
Engine Model: WP10NG336E40
Number of cylinders: 6cylinder
fuel type: Natural gas (LNG/CNG)
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1350N·m
Max torque speed: 1400-1600rpm
Rated speed: 2200rpm
Engine Type: Wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn

Photos

0 photos

FAQ

What emission standard does Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine?

Key specs of Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine: Horsepower: 336 hp; Emission: China IV; Fuel: Natural gas (LNG/CNG). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine suited for?

Match Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine differ from other variants in the same series?

Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine belongs to Weichai WP10NG Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Weichai WP10NG336E40 336 hp 10L China IV Natural Gas Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
