Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.78ton
Wheelbase:: 3360mm
Cargo box volume:: 18.5m³
Model code (announced):: ZKH5045XXYBEV1300
Type:: enclosed cargo truck
Box length class:: 4.2m

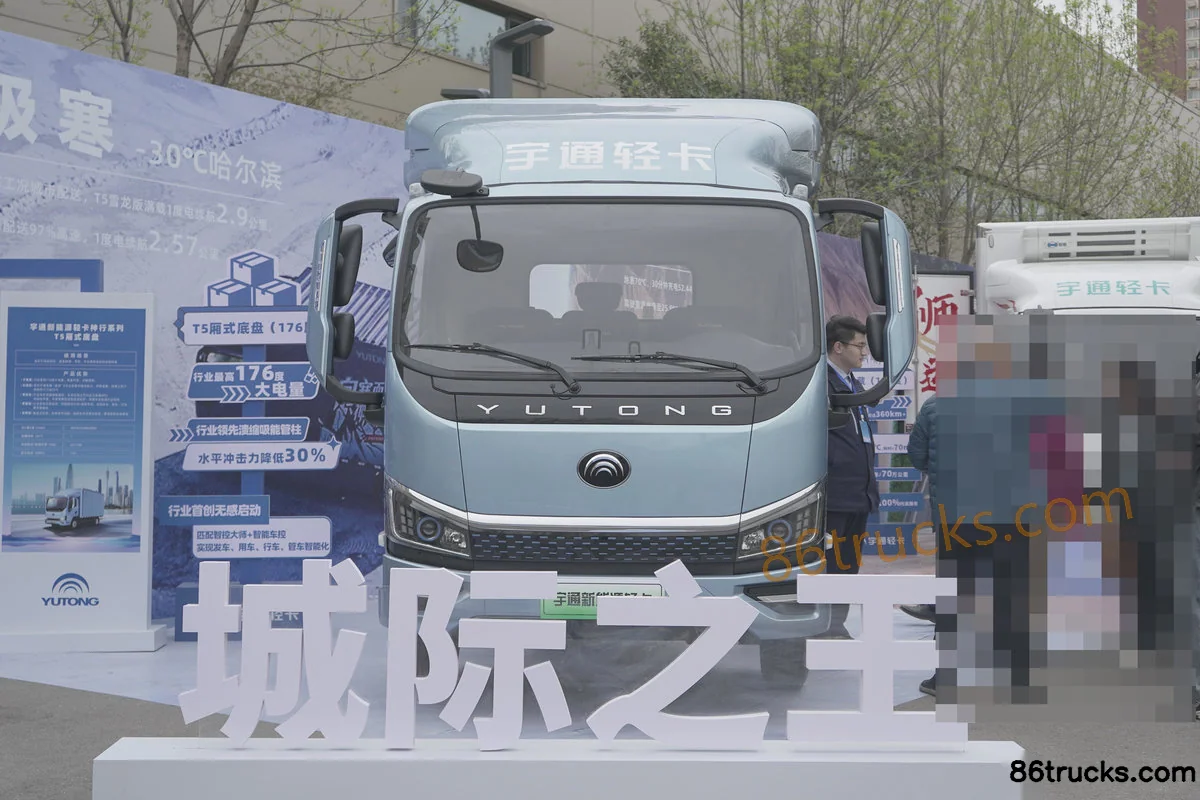

Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) exterior
View more photos (9)
Drive 4X2 (6 wheels)
CLTC range: 500km
Motor 1 Brand: Yutong
Curb Weight: 3.52ton

Overview

The Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) is a Light Truck featuring 500km battery/range, Yutong motor, 4X2 (6 wheels) drive and 0.78t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZKH5045XXYBEV1300
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.1m
Cab height: 2.85m
CLTC range: 500km
Curb Weight: 3.52ton
Rated payload: 0.78ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Zhengzhou, Henan
tonnage class: Light Truck
Version: Shenxing Series
Energy Type: Electric
electric motor
Motor 1 Brand: Yutong
Motor 1 Model: TZ210XSYTC41
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 120kW
total rated torque: 170N·m
total peak torque: 355N·m
Electronic Control
ECU Brand: Yutong
Battery/Charging
Charging method: Fast Charge
Battery Brand: Zhengzhou Shenlan
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 176kWh
Cargo box parameters
Cargo box volume: 18.5m³
Cargo box type: Van body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 1900mm
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1920kg
rear axle description: Electric Drive Axle
rear axle allowable load: 2575kg
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Power steering: Electric Power Steering
EBS electronic braking system:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:

Photos

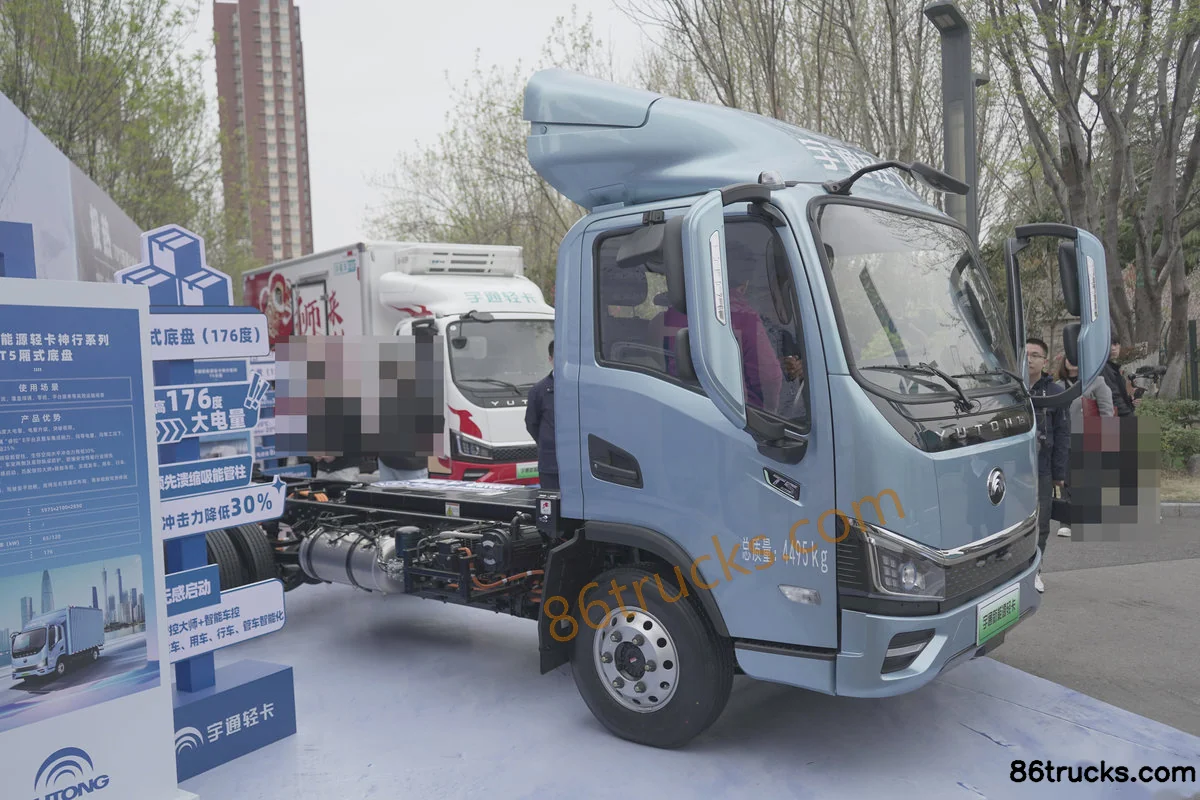

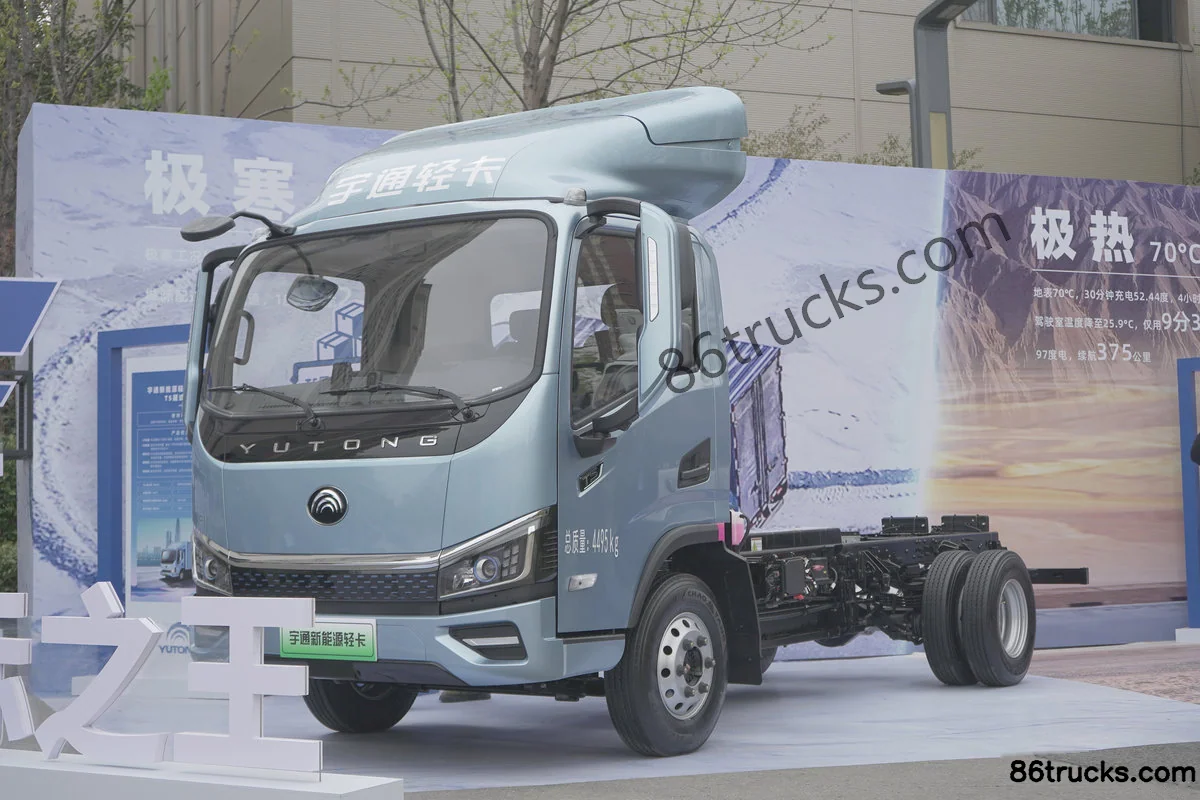

Exterior3

Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) Exterior (1) | 86Trucks Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) Exterior (2) | 86Trucks Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) Exterior (3) | 86Trucks

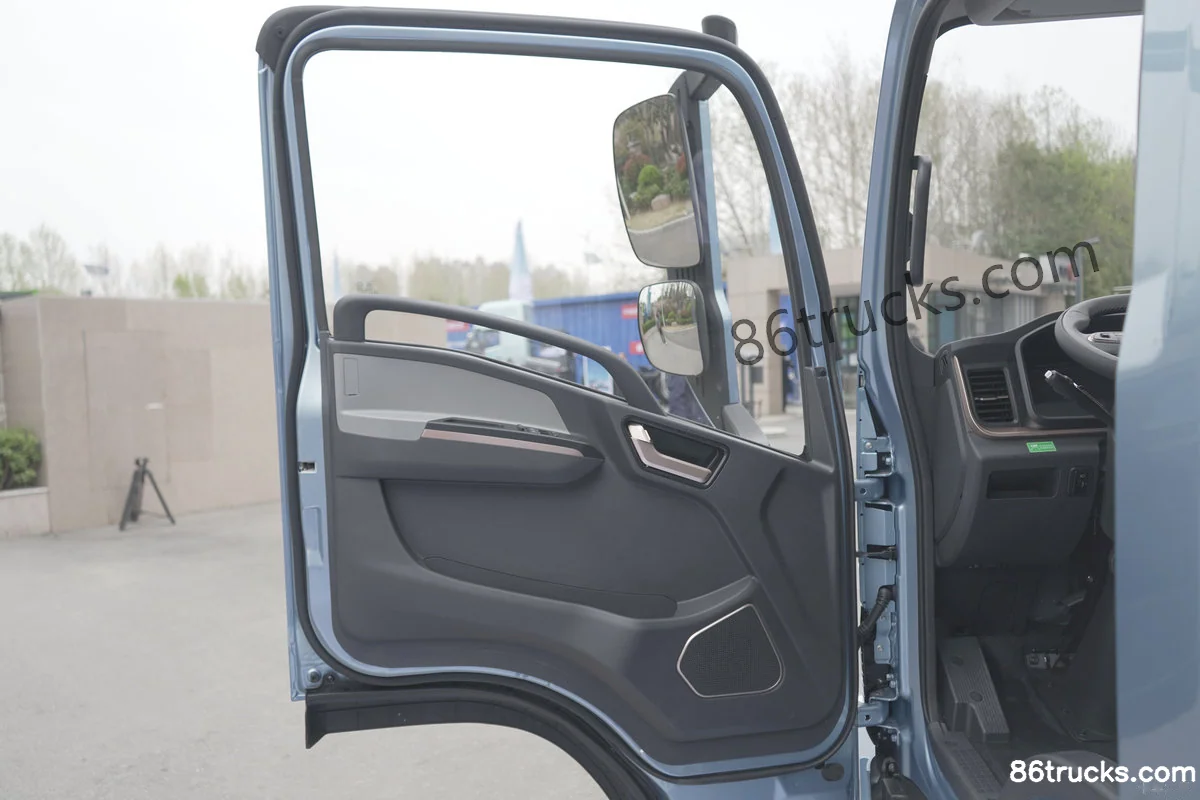

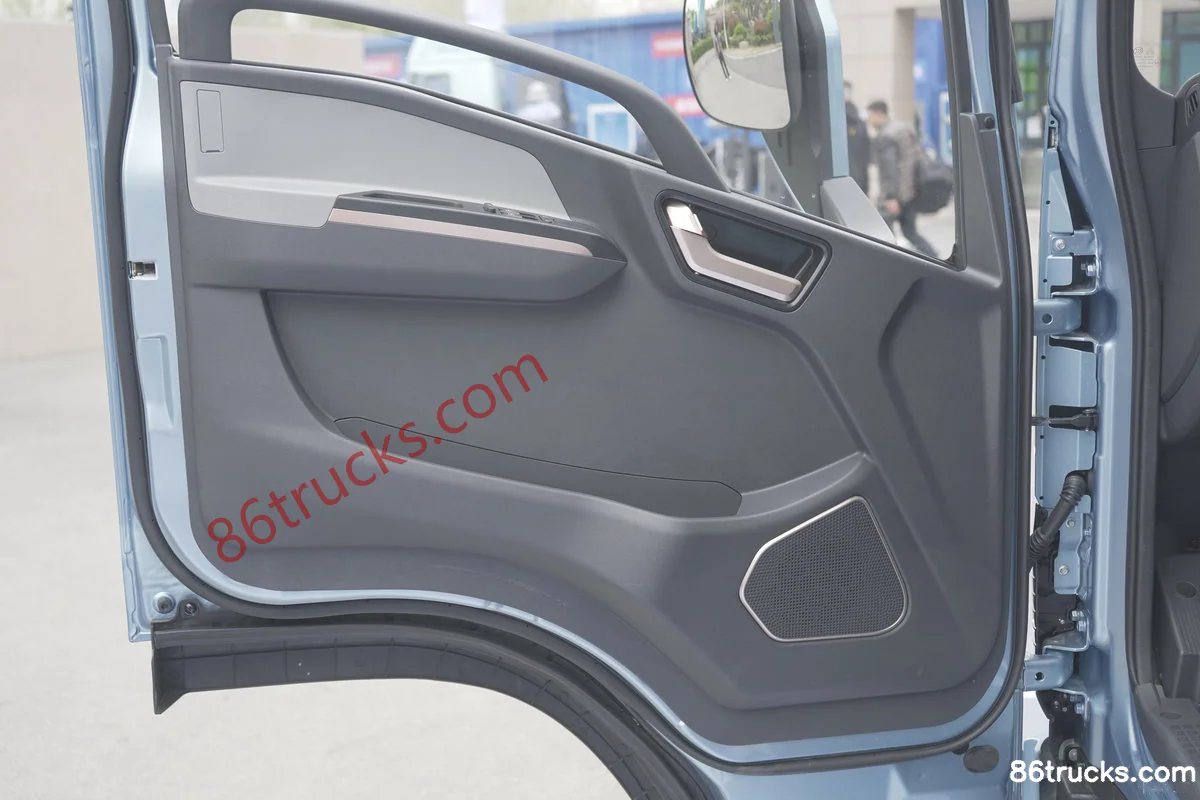

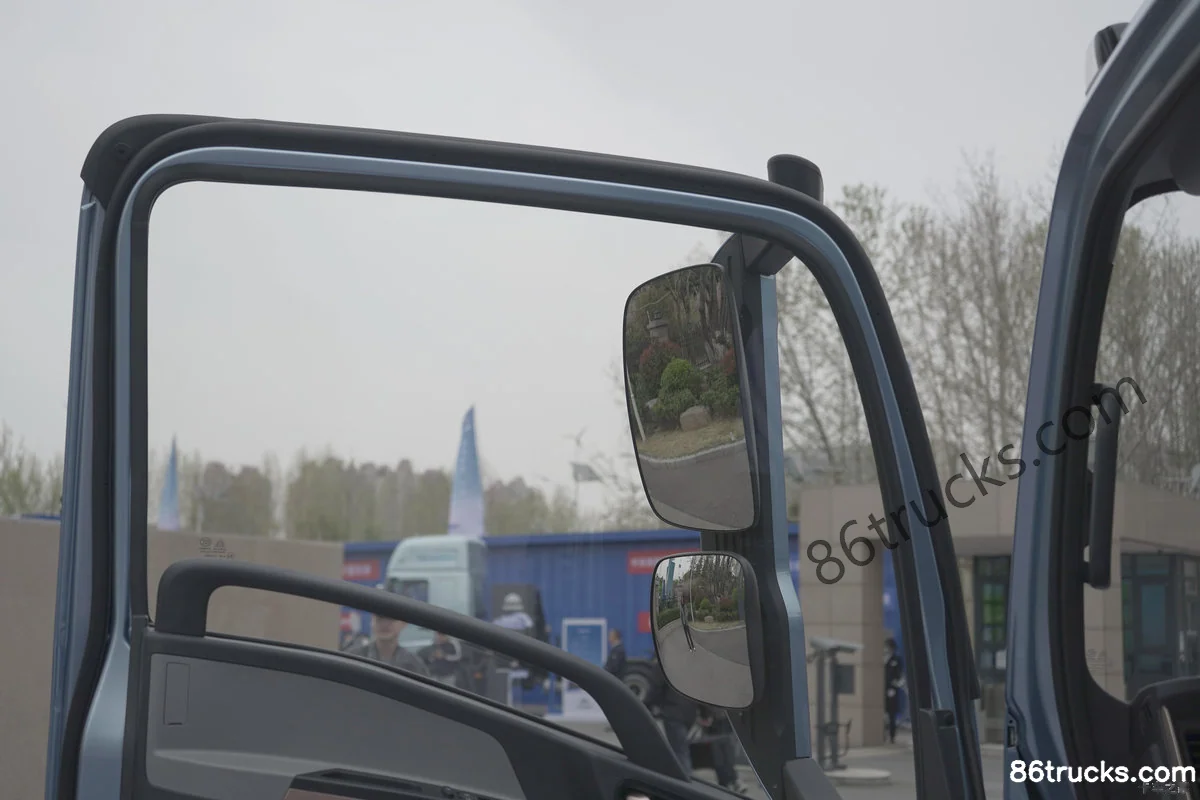

Cab3

Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) Cab (1) | 86Trucks Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) Cab (2) | 86Trucks Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) Cab (3) | 86Trucks

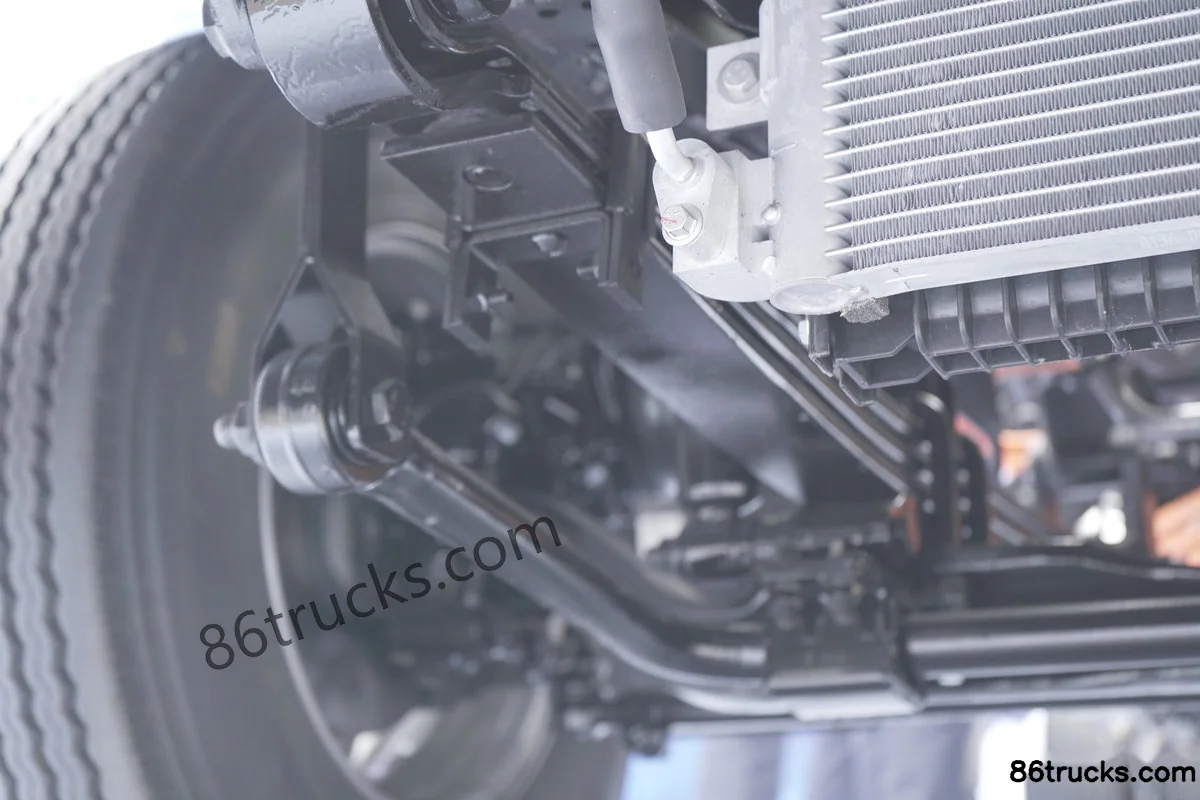

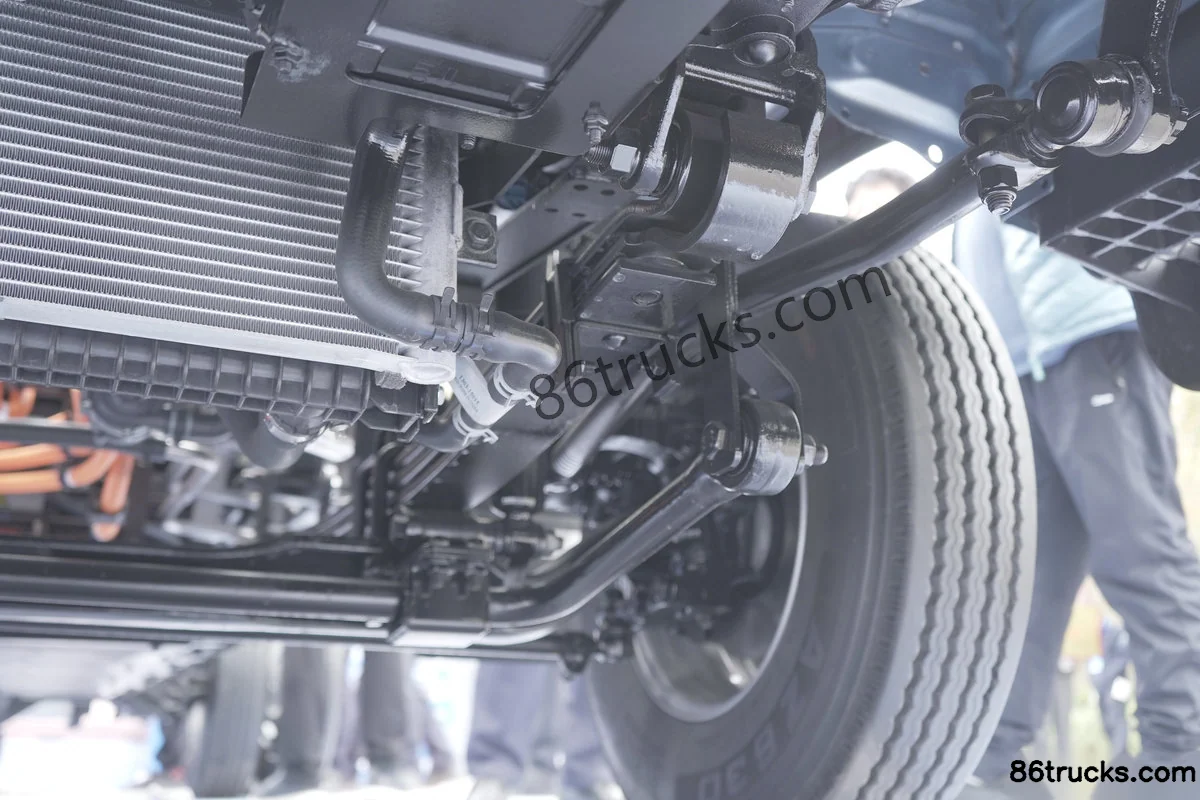

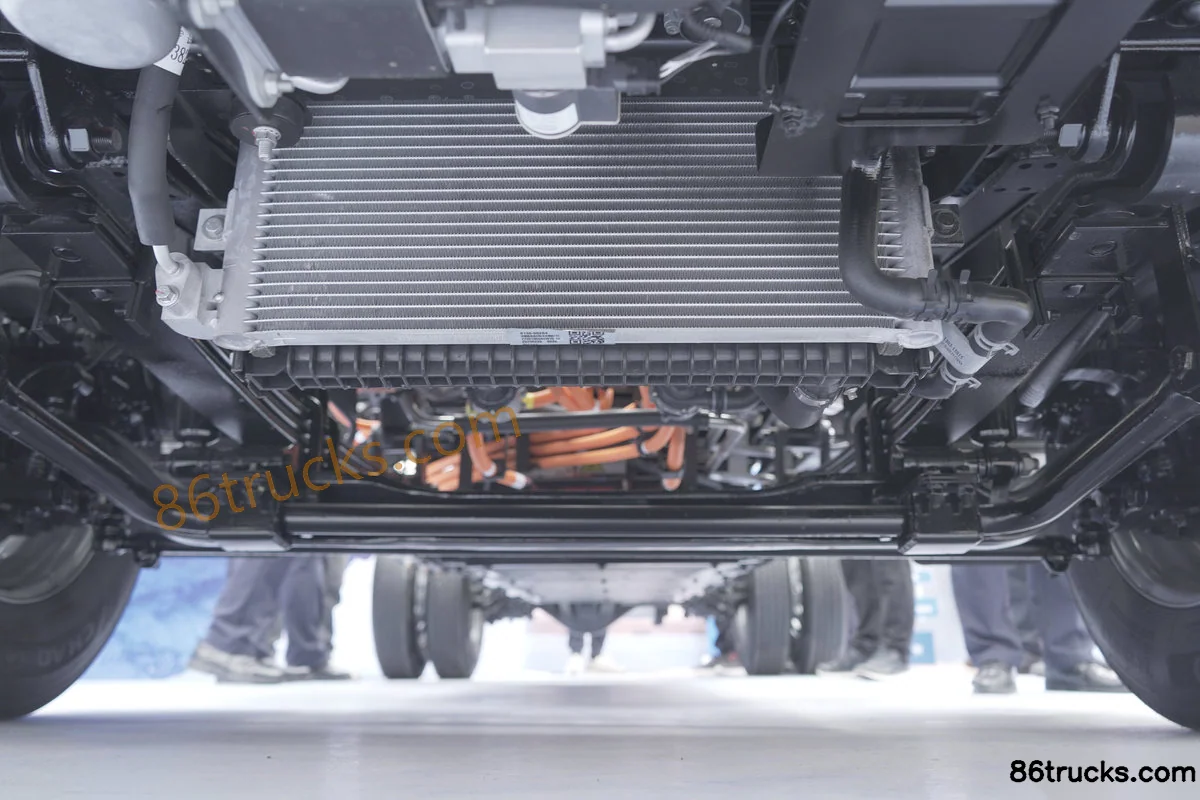

Chassis3

Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) Chassis (1) | 86Trucks Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) Chassis (2) | 86Trucks Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels)?

Key specs of Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) suited for?

Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) differ from other variants in the same series?

Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels) belongs to Yutong T5 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yutong T5 Shenxing Series 4.2m Single-Row Electric Panel Van 176kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
