Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck

Export reference
From $12,514
MSRP ¥9.01M CNY
Horsepower: 142
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.3L
Transmission: WLY
Curb Weight:: 2.495ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck is a mini truck featuring 3.7m cargo length, Stake type cargo body, 2Personnel volume and 1.495t payload. On the powertrain side, it comes with a Quanchai2.3L engine, 142 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 142 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5044CCY8JBA-AB1
Type: stake truck
Drive type: 4X2
Wheelbase: 2900mm
Box length class: 3.7m
engine: QuanchaiQ23A-142E60
transmission: WLYWLY5G32
Rear Axle Ratio: 4.33
Cab length: 5.48m
Cab width: 1.95m
Cab height: 2.865m
Front track width: 1500mm
rear track: 1455mm
Curb Weight: 2.495ton
Rated payload: 1.495ton
GVWR: 4.12ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 18°
departure angle: 17°
Front/rear suspension: 1.115/1.465m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23A-142E60
Engine info: Quanchai2.3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 103kW
Max hp: 142Horsepower
Transmission Parameters
Transmission Model: WLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.7m
Cargo box width: 1.85m
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 70L
Chassis Specs
Front axle description: 1.5t front axle
Front axle allowable load: 1650kg
Frame Dimensions: 714/760-140×50×4mm
rear axle description: 2.85t/220 single reduction drive axle
rear axle allowable load: 2470kg
Axle ratio: 4.33
Leaf spring count: 3/5+3
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

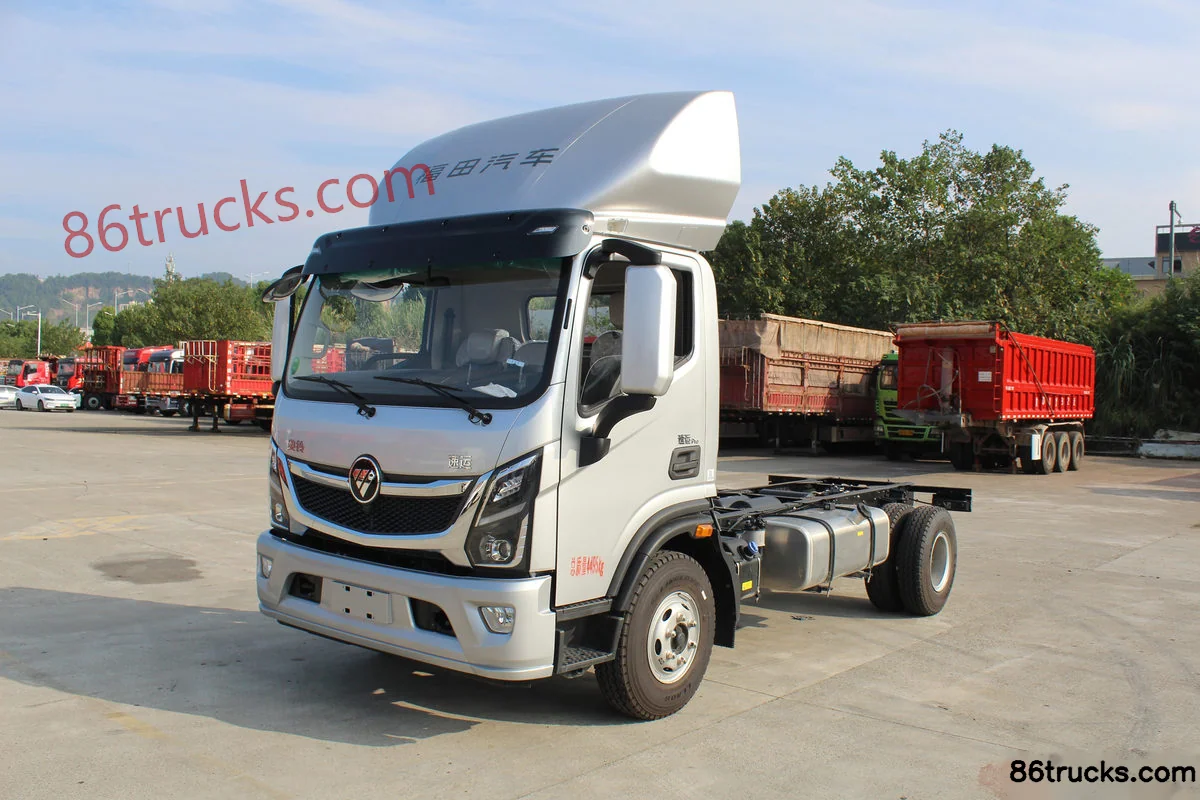

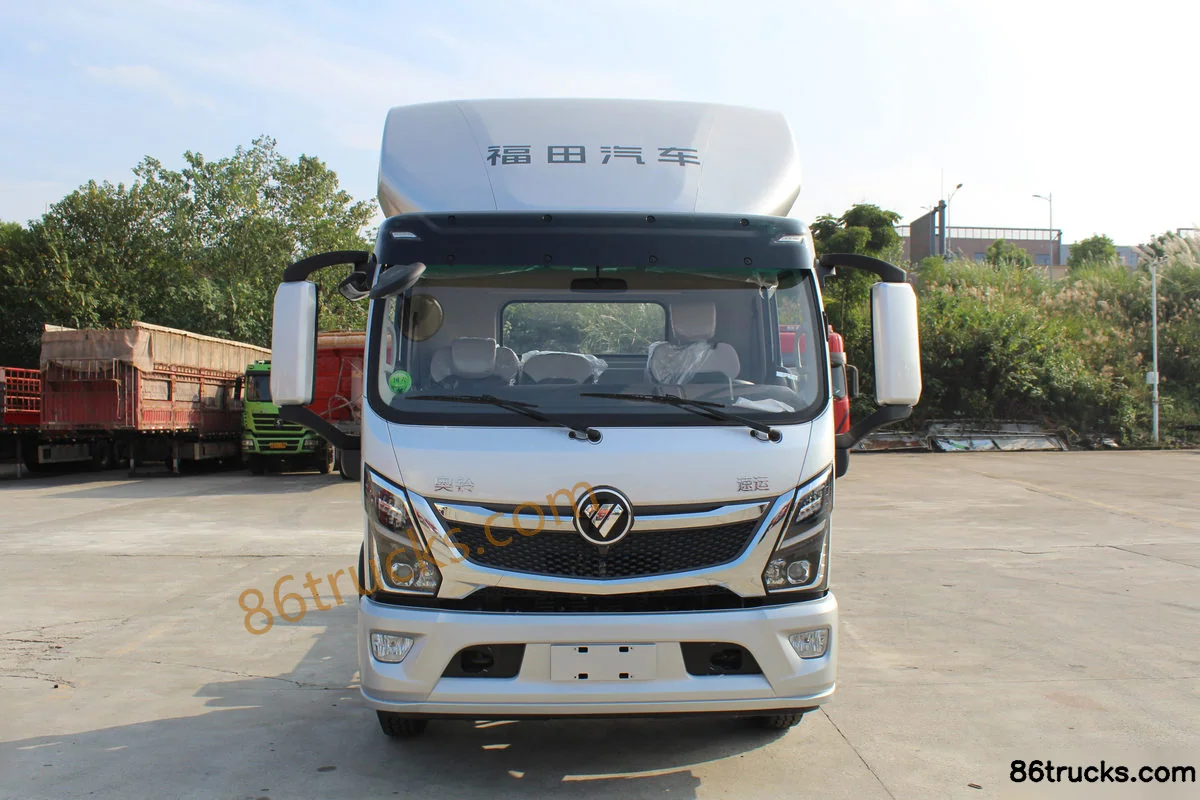

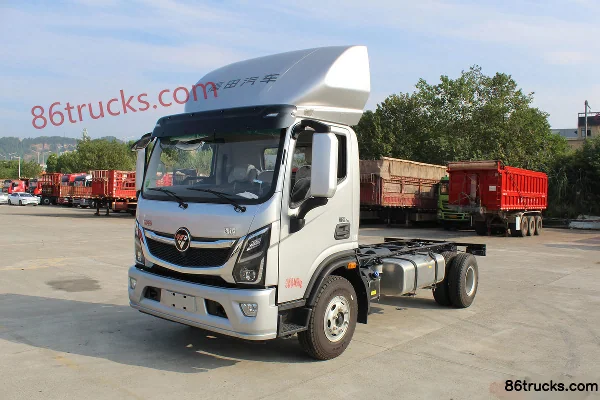

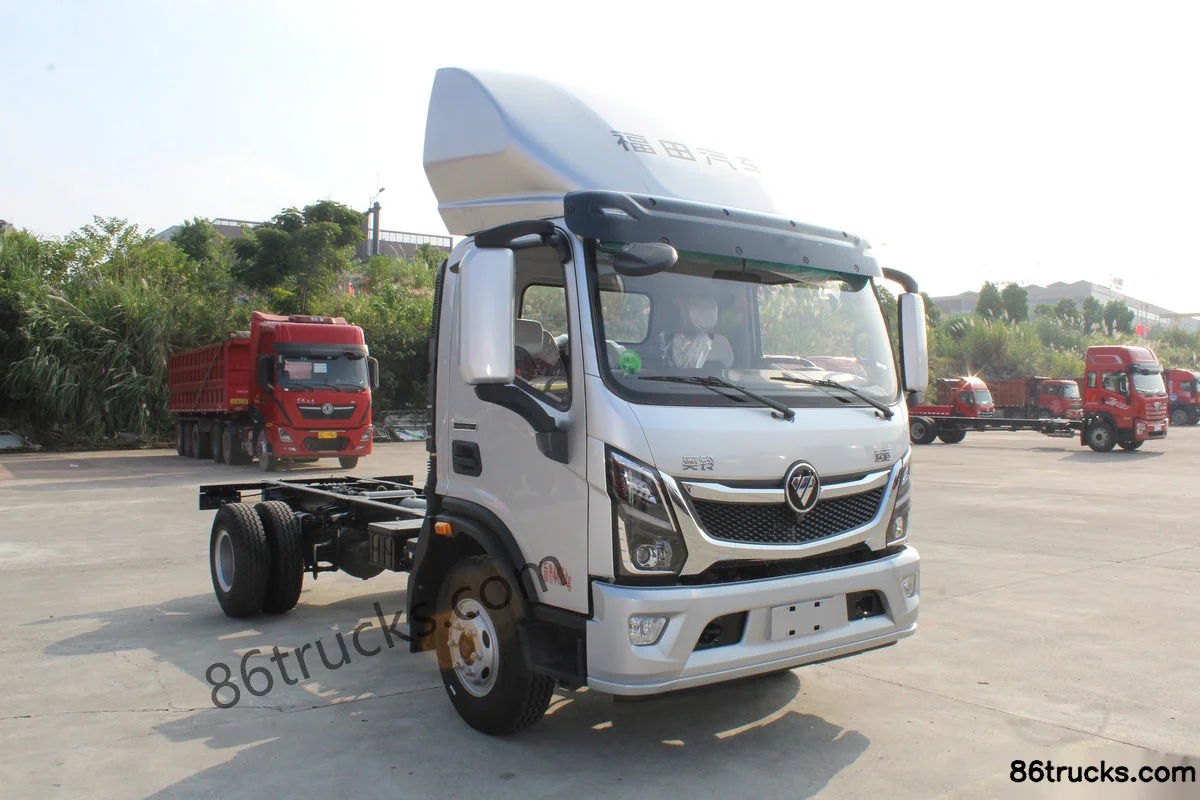

Exterior3

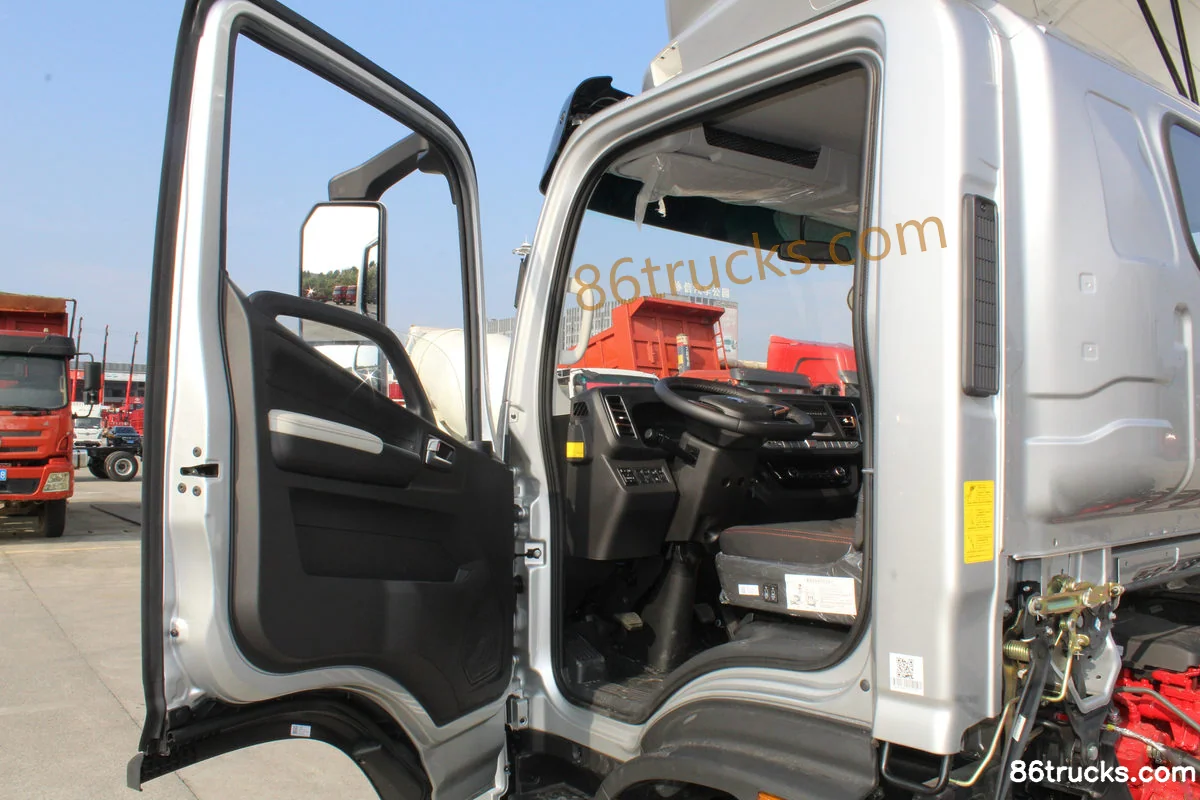

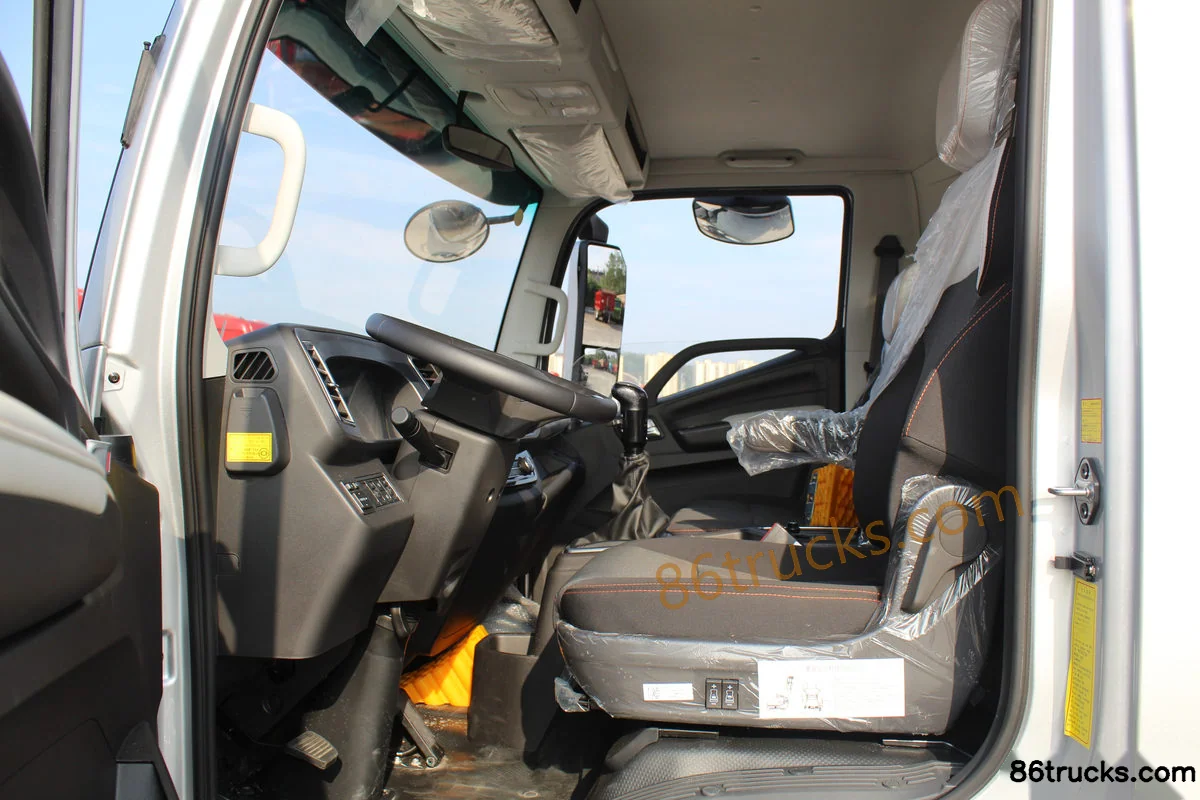

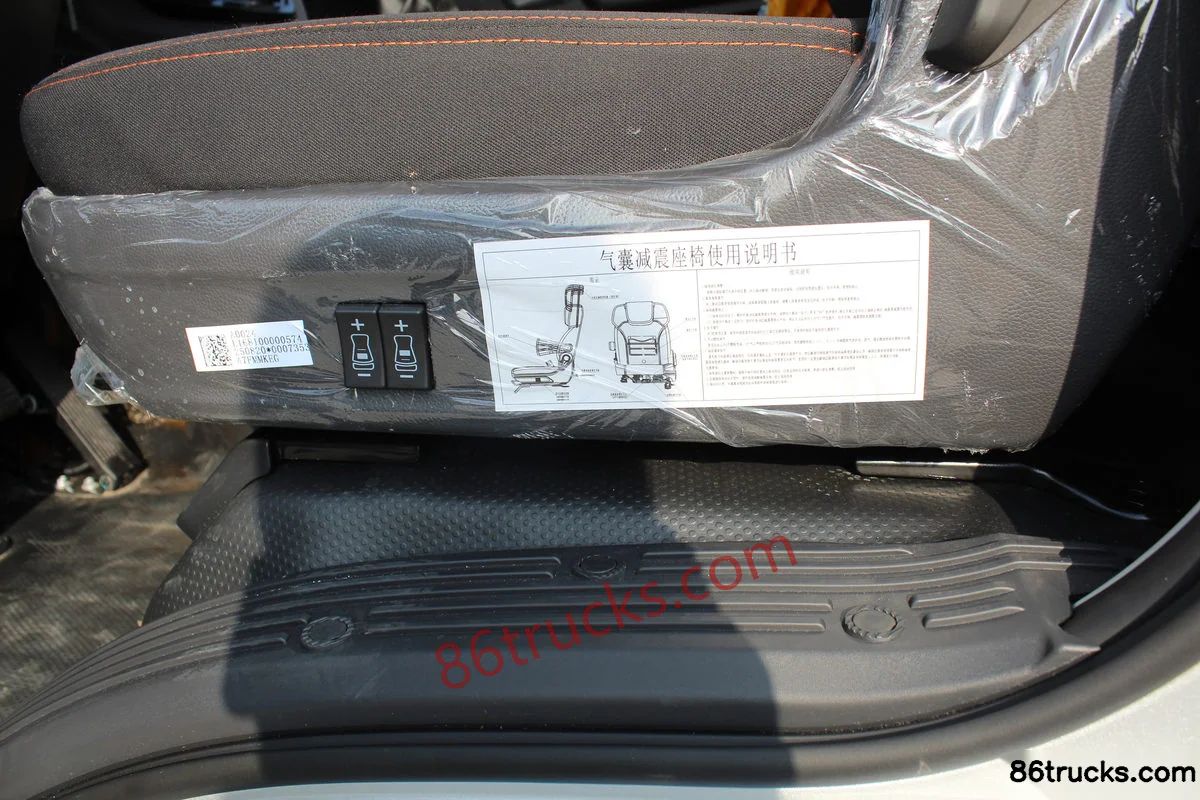

Cab3

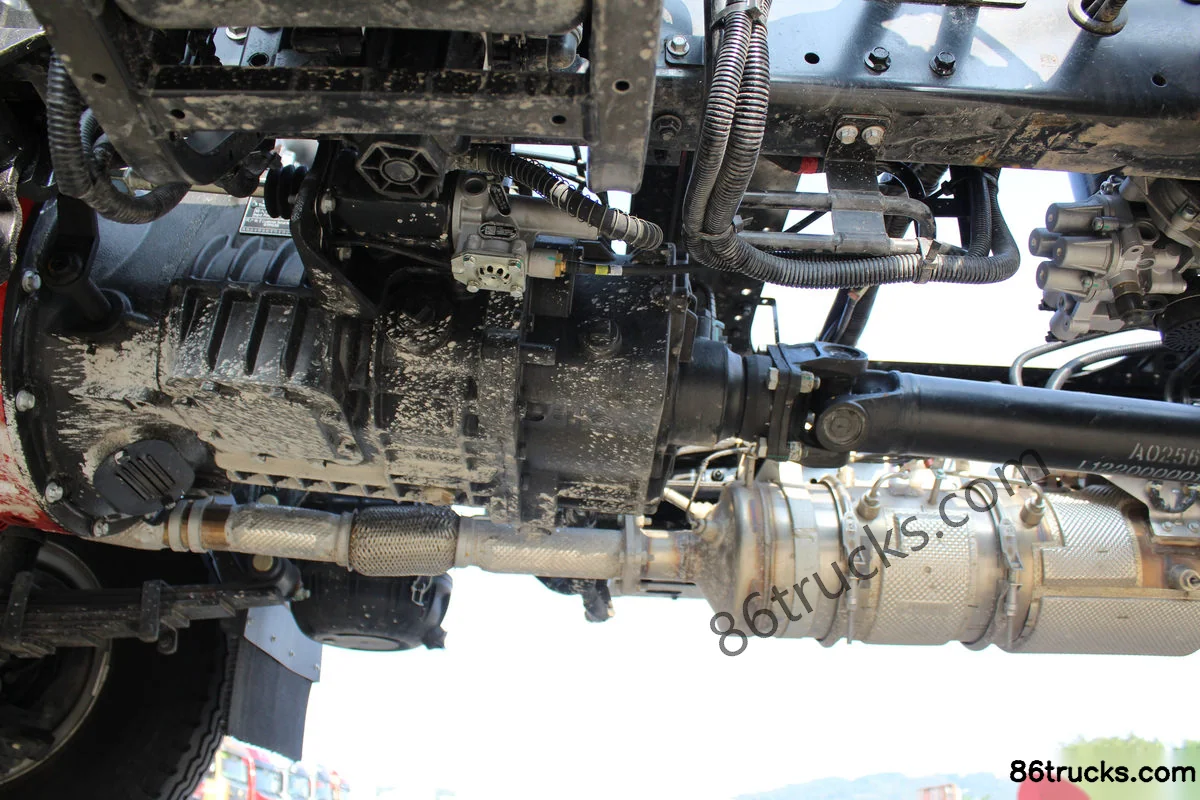

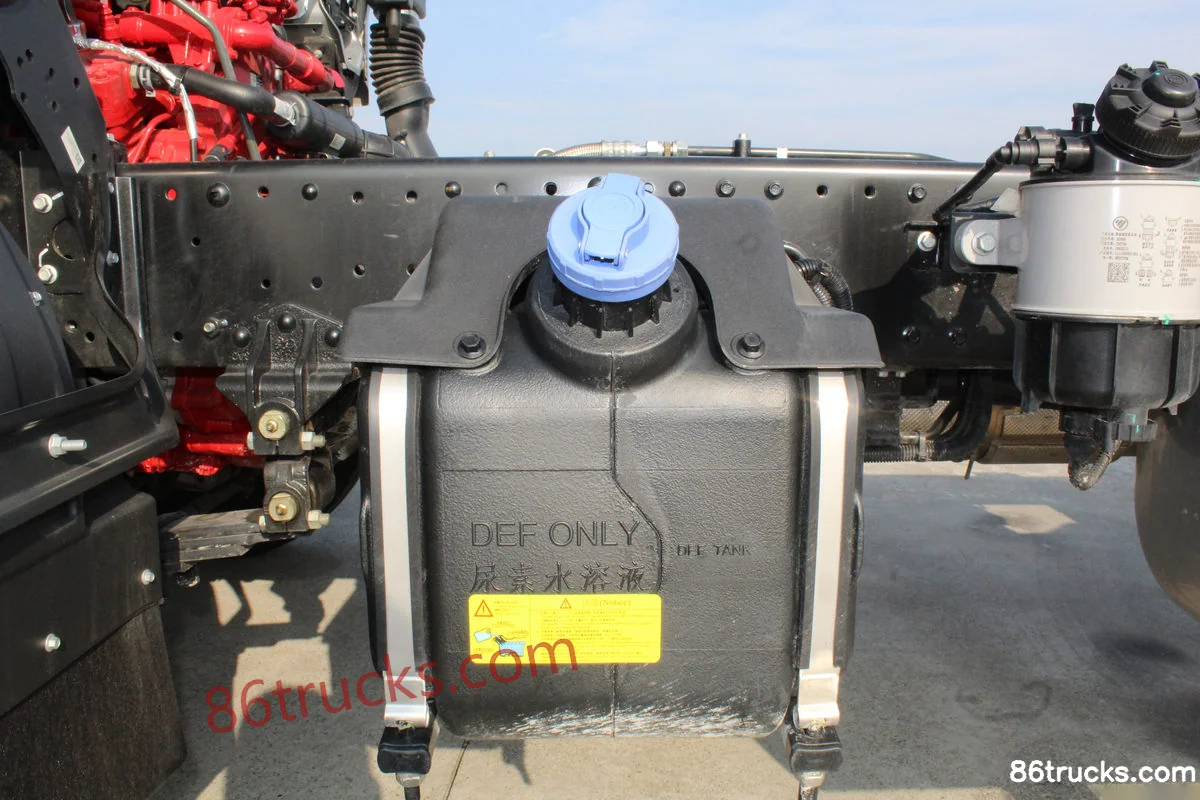

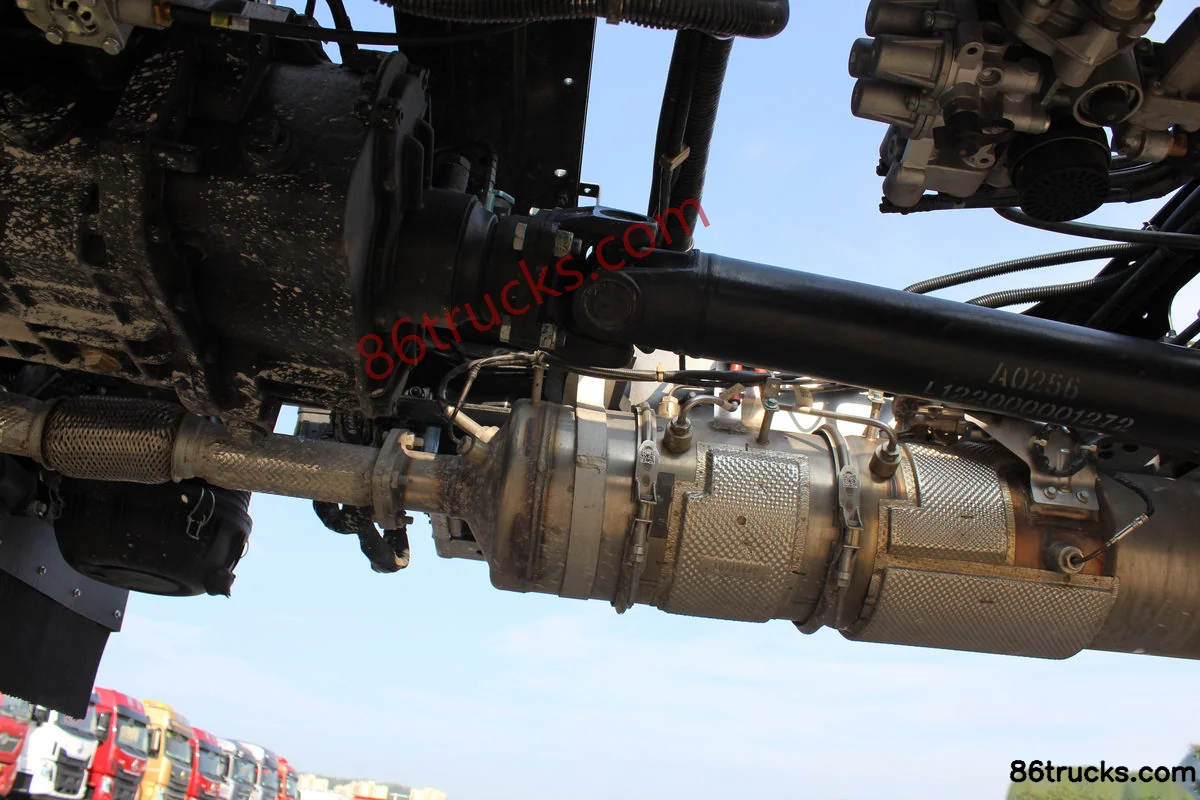

Chassis3

9 photos

FAQ

What is the export price of Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck, and what does it include?

Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck export reference is about From $12,514; MSRP is ¥9.01M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck?

Key specs of Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck: Drive: 4x2; Horsepower: 142 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.3L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck suited for?

Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck differ from other variants in the same series?

Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck belongs to Foton M Card Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton M Card 2.3L Diesel 142hp 4X2(6 wheels) WLY 5-Speed Hydraulic Brake 3.7m Single Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
