Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck

Export reference
From $42,028
MSRP ¥30.26M CNY
Horsepower: 360
Emission: China VI
Fuel: Diesel
Engine: Fukang 8.5L
Transmission: ZF
Curb Weight:: 10.6ton
seating capacity: 2Personnel
Rated payload: 14.27ton
Drive 6X2 (8 wheels)
Cargo box type: Wing Van

Overview

The Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck is a Heavy truck featuring 9.58m cargo length, Wing Van cargo body, 2Personnel volume and 14.27t payload. On the powertrain side, it comes with a Fukang 8.5L engine, 360 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 360 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5259XYKY6HPL-01
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 2100+5400mm
Box length class: 9.6m
engine: FotonA8.5NS6B360
transmission: ZF9AS1517TO
Rear Axle Ratio: 2.533
Cab length: 12m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 2080/2080mm
rear track: 1865mm
Curb Weight: 10.6ton
Rated payload: 14.27ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Huairou, Beijing
tonnage class: Heavy truck
Approach angle: 17°
departure angle:
Remarks: Optional ratio 2.643, 2.389
Front/rear suspension: 1.46/3.04m
Version: Pro Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: A8.5NS6B360
Engine info: Fukang 8.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.5L
Emission standard: China VI
Max output power: 264kW
Max hp: 360Horsepower
Max torque: 1500N·m
Max torque speed: 900-1600rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZF9AS1517TO
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 9Gear
Number of Reverse Gears:
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 9.58m
Cargo box width: 2.45m
Cargo box height: 2.6m
*Cargo box interior width: 2.45
Cab parameters
Cab width: 2500mm
Cab suspension: Four-point air suspension
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
upper bunk width: 580mm
Lower Bunk Width: 880mm
Sunroof: Manual sunroof
fuel tank
Fuel tank capacity: 850L
Chassis Specs
Front axle description: AM5
Front axle allowable load: 6750/6750kg
Frame Dimensions: 286×80×8mm
rear axle description: New 440 single reduction axle
rear axle allowable load: 11500kg
Axle ratio: 2.533
Leaf spring count: 2/2/3+2
Aluminum wheels:
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Manual
Independent Heater:
Power Windows:
Power Mirrors:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Rear Wheel Brake: Drum Brake
smart configuration
Telematics System:
Cruise control (CCS):

Photos

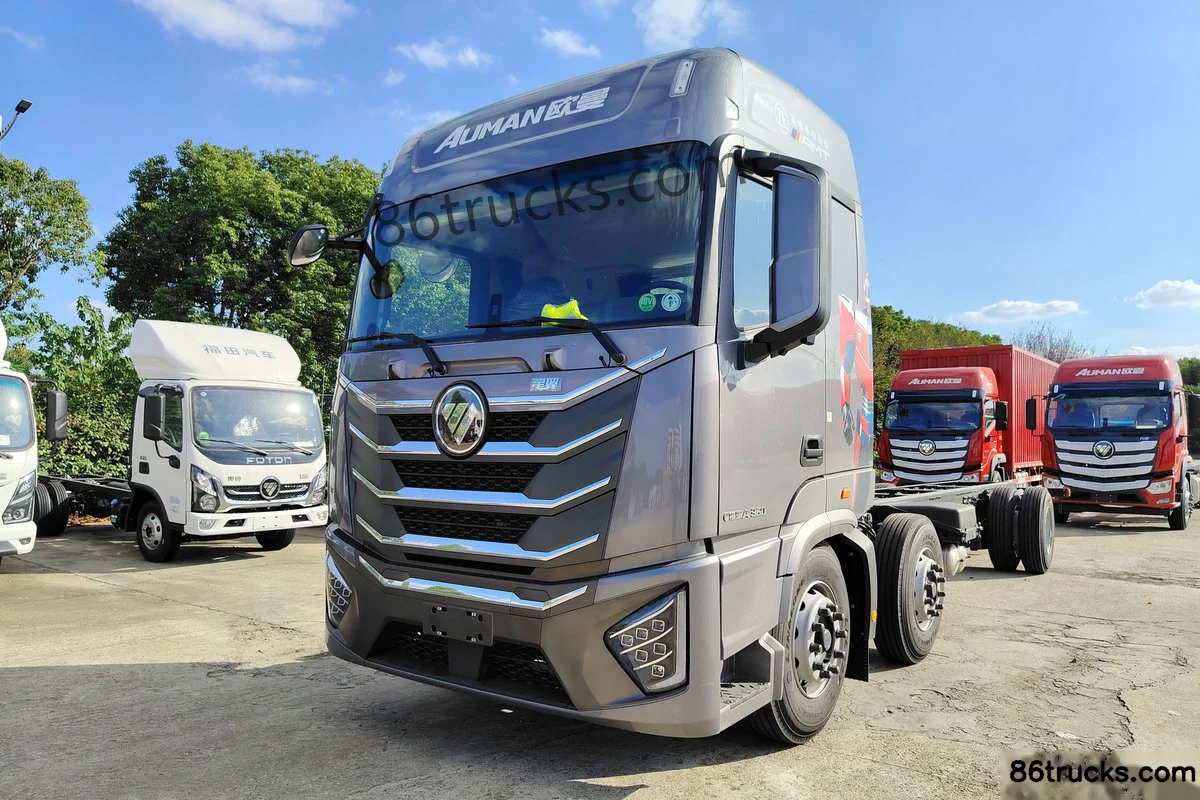

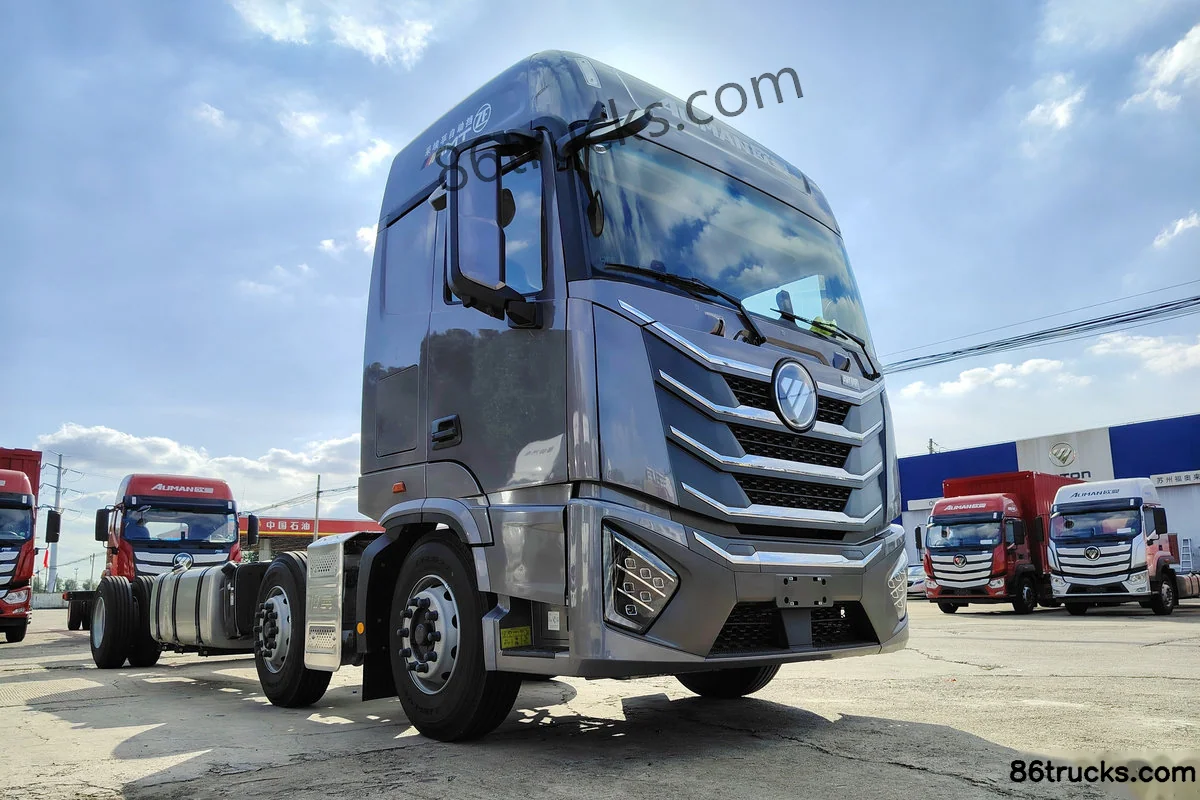

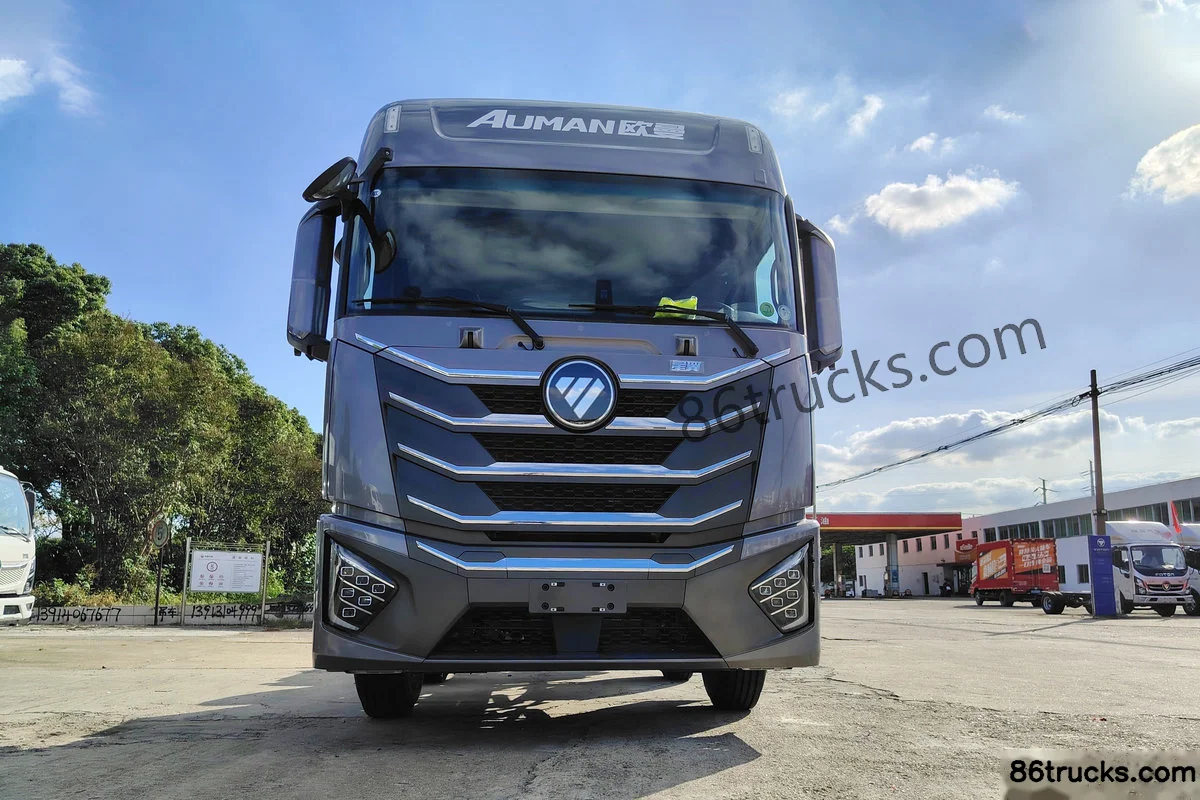

Exterior3

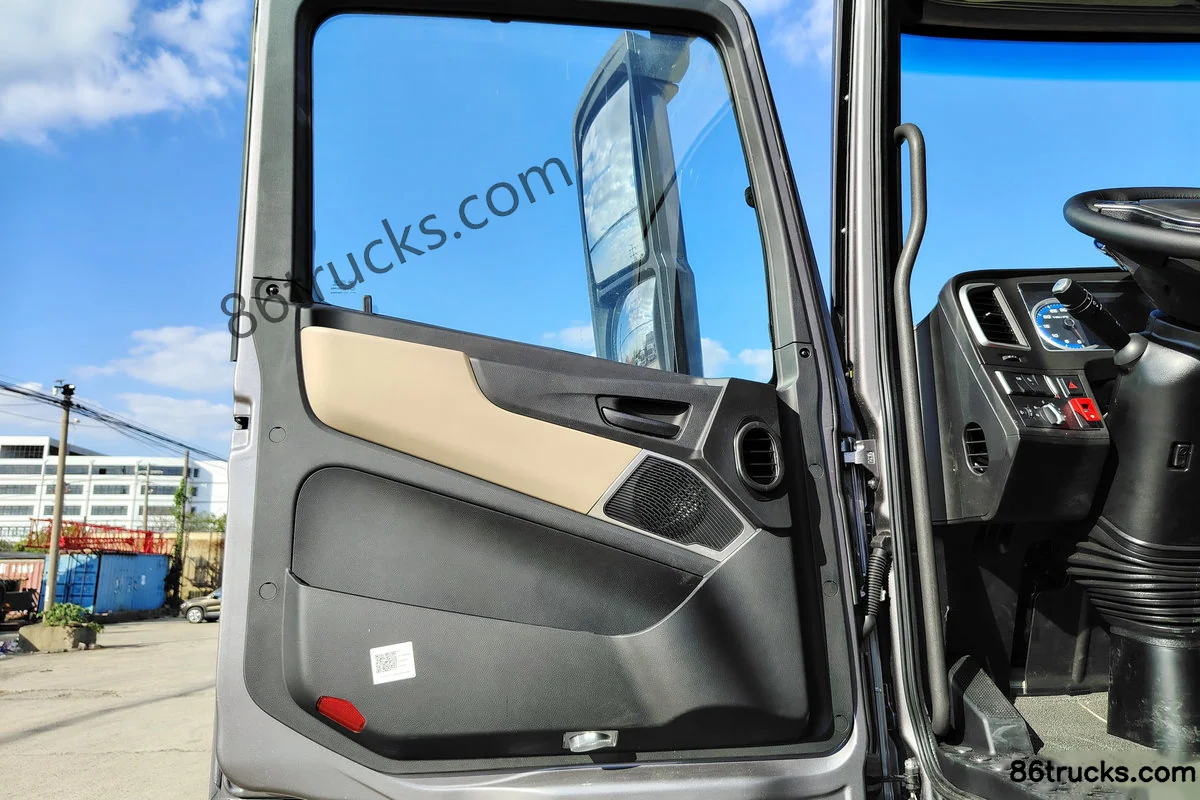

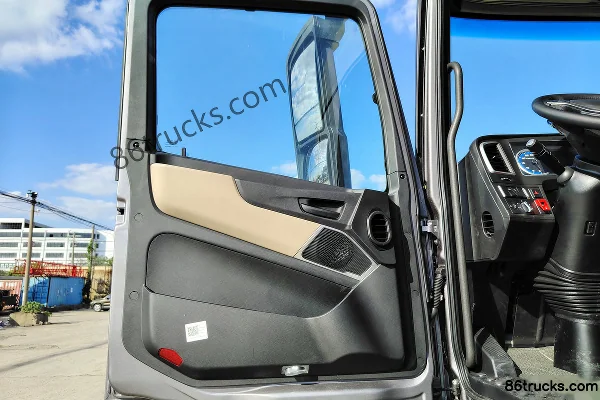

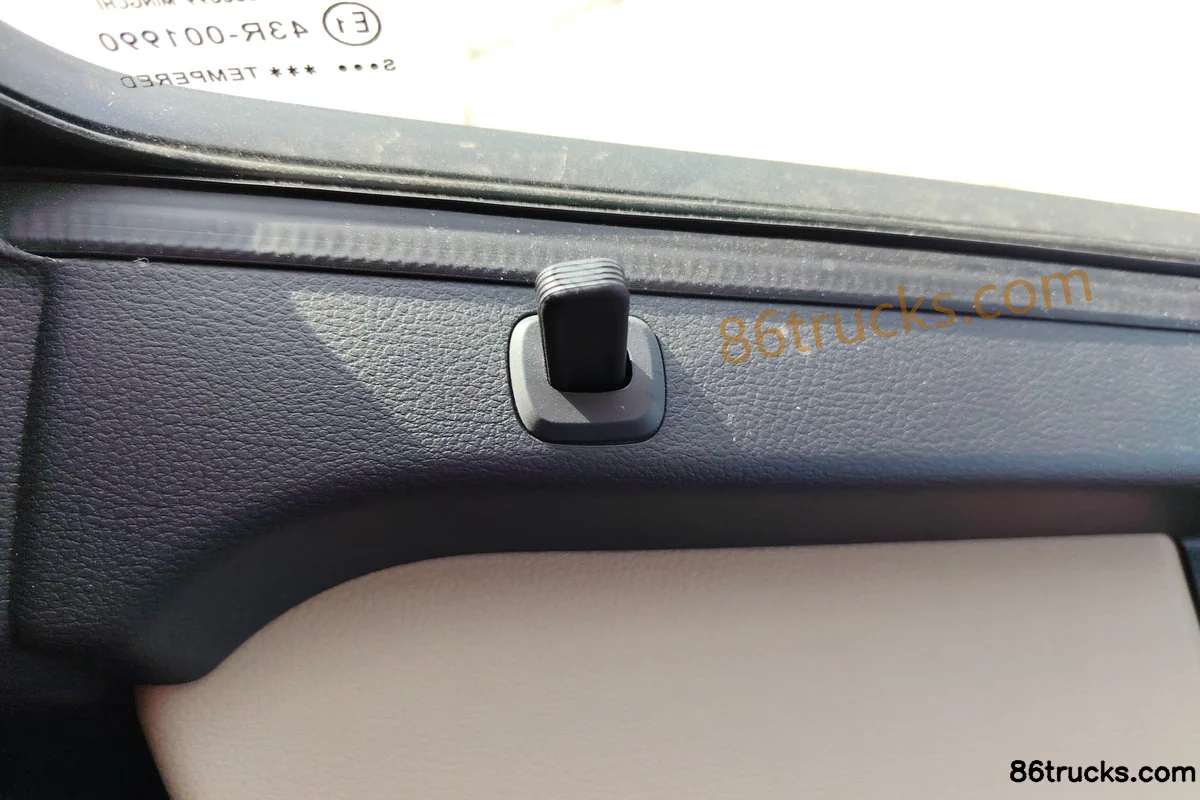

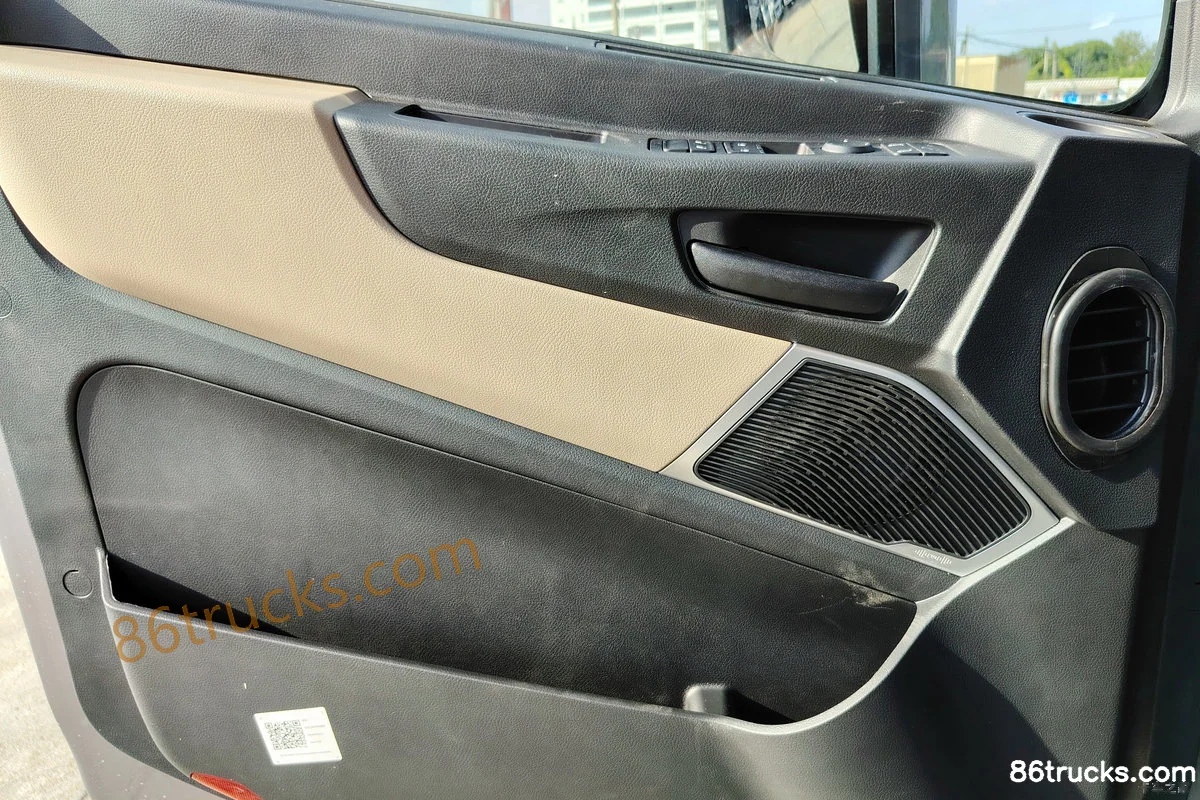

Cab3

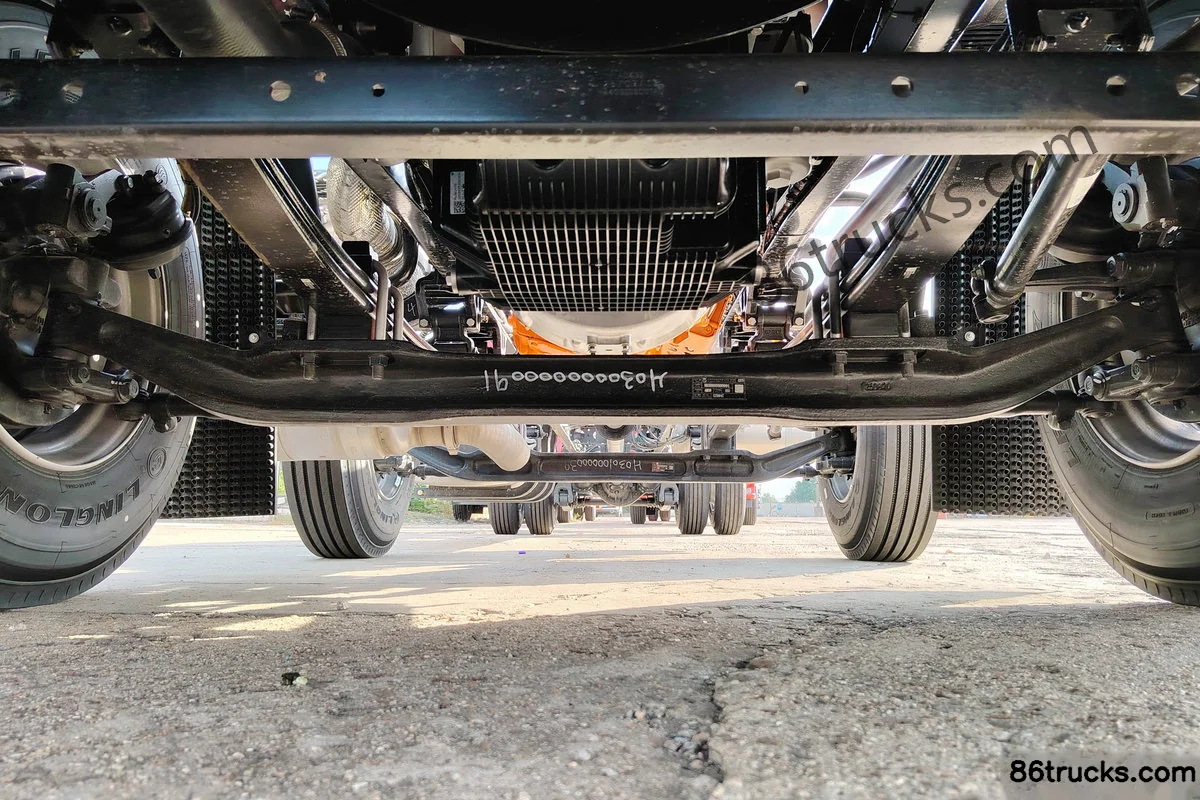

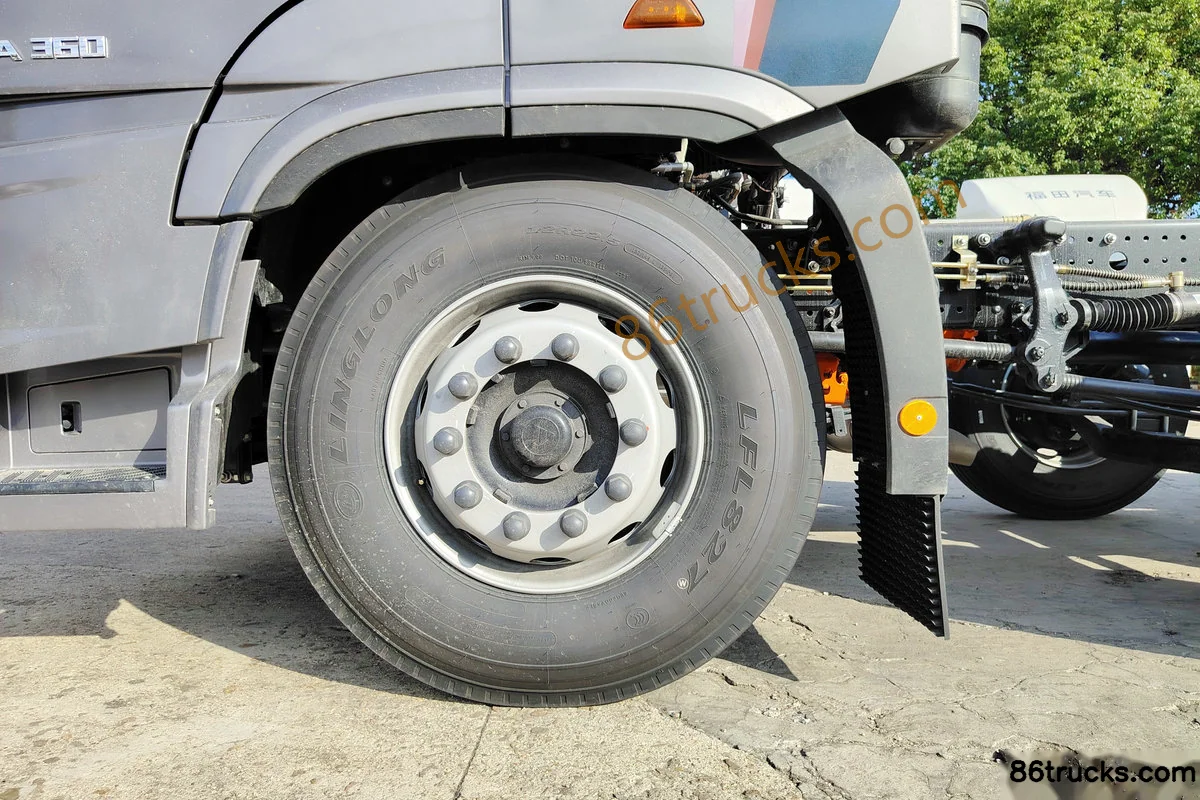

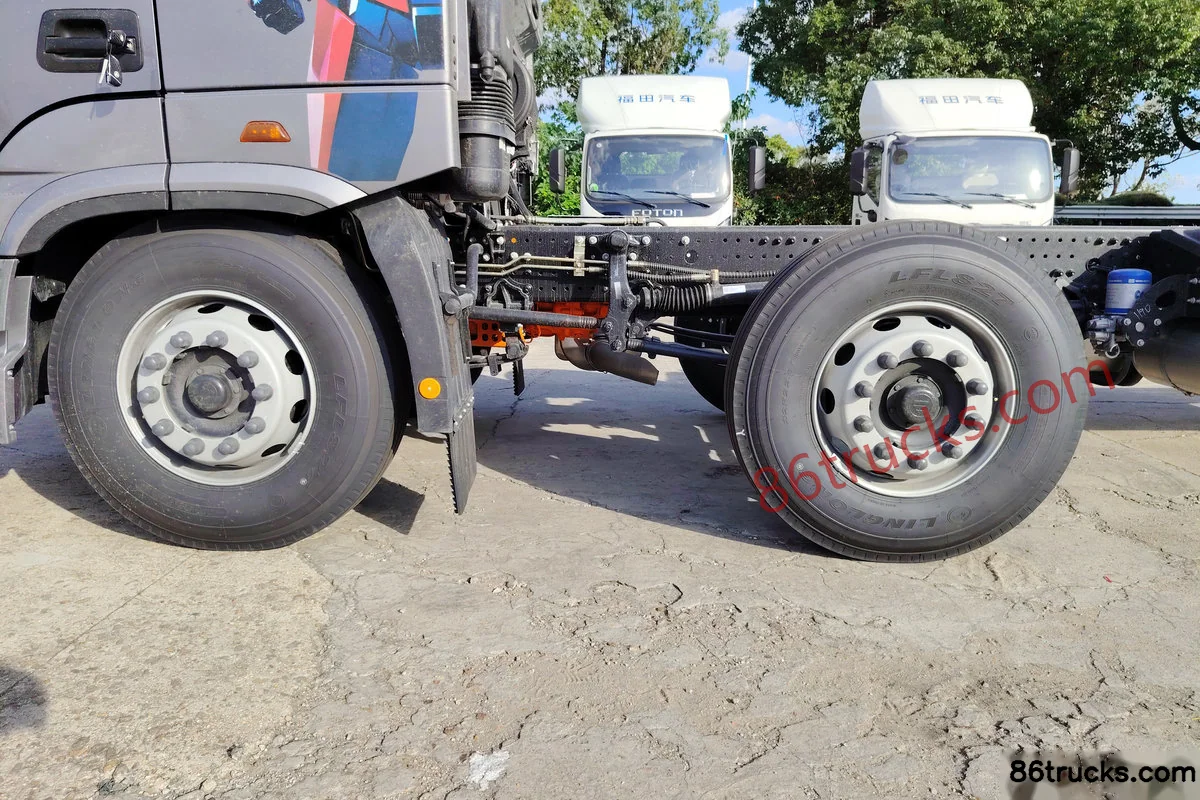

Chassis3

9 photos

FAQ

What is the export price of Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck, and what does it include?

Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck export reference is about From $42,028; MSRP is ¥30.26M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck?

Key specs of Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck: Drive: 6x2; Horsepower: 360 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang 8.5L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck suited for?

Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck differ from other variants in the same series?

Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck belongs to Foton Auman GTL Star Wing Edition (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman GTL Star Wing Pro Edition 8.5L Diesel 360hp 6X2(8 wheels) ZF 9-Speed AMT Automatic 9.58m Wing Opening Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
