Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder)

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3975+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 14.5L
Drive 6X4 (10 wheels)
Horsepower 580
Emission China VI
Transmission ZF

Overview

The Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder) is a Heavy truck featuring 6X4 (10 wheels) drive, 580 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a FotonA15NNS6B580 engine, ZF transmission and LNG (liquefied natural gas) fuel.

China VI 580 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ4259L6DLL-05
Drive type: 6X4
Wheelbase: 3975+1350mm
engine: FotonA15NNS6B580
transmission: ZF12TX2621TD
Rear Axle Ratio: 2.846
Cab length: 7.64m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 2050mm
Gross Trailer Weight: 40ton
rear track: 1865/1865mm
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Huairou, Beijing
tonnage class: Heavy truck
Version: Southern Version
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Foton
Engine Model: FotonA15NNS6B580
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 14.5L
Emission standard: China VI
Max output power: 427kW
Max hp: 580Horsepower
Transmission Parameters
Transmission Model: ZF12TX2621TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 4pcs
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.846
Leaf spring count: 2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Power Windows:
Remote key:
Electronic Central Lock:
Independent AC:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Service brake
hydraulic retarder:

Photos

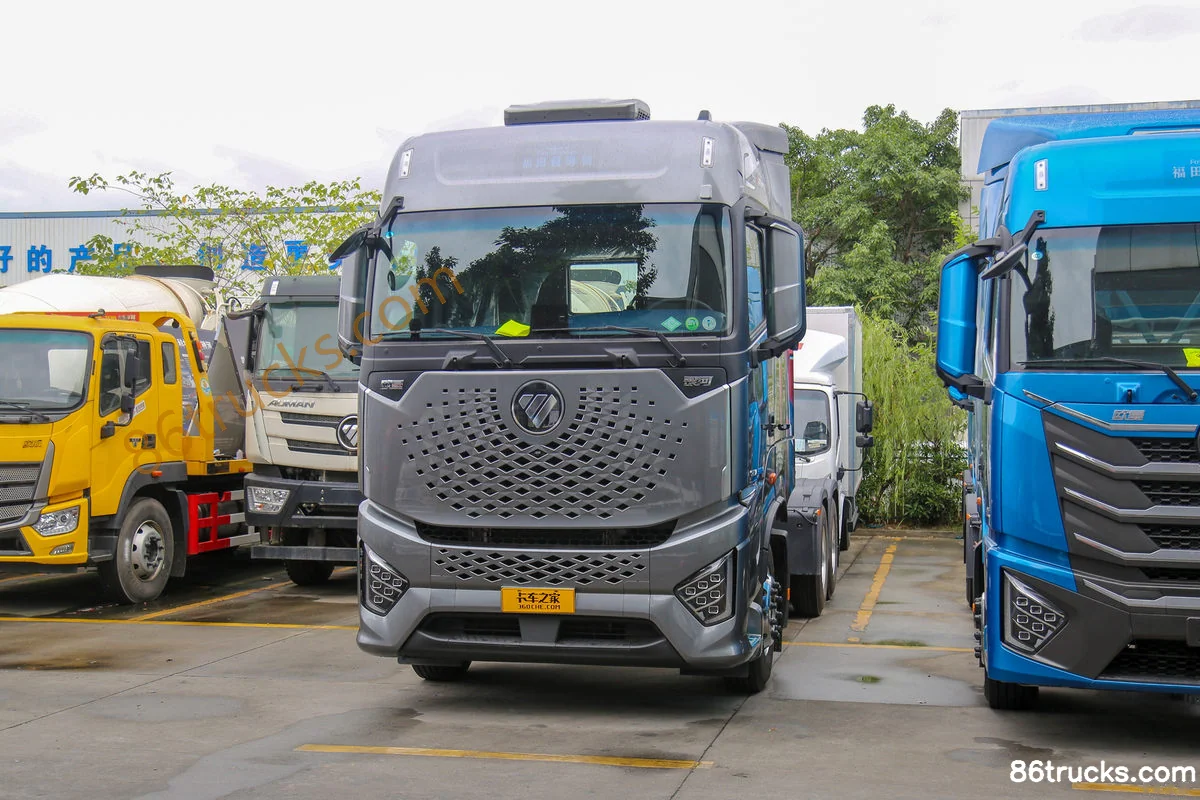

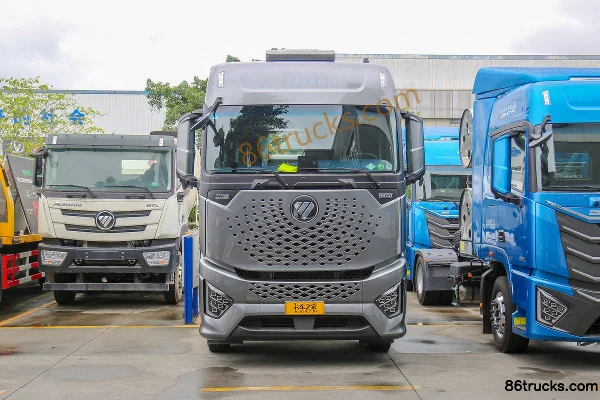

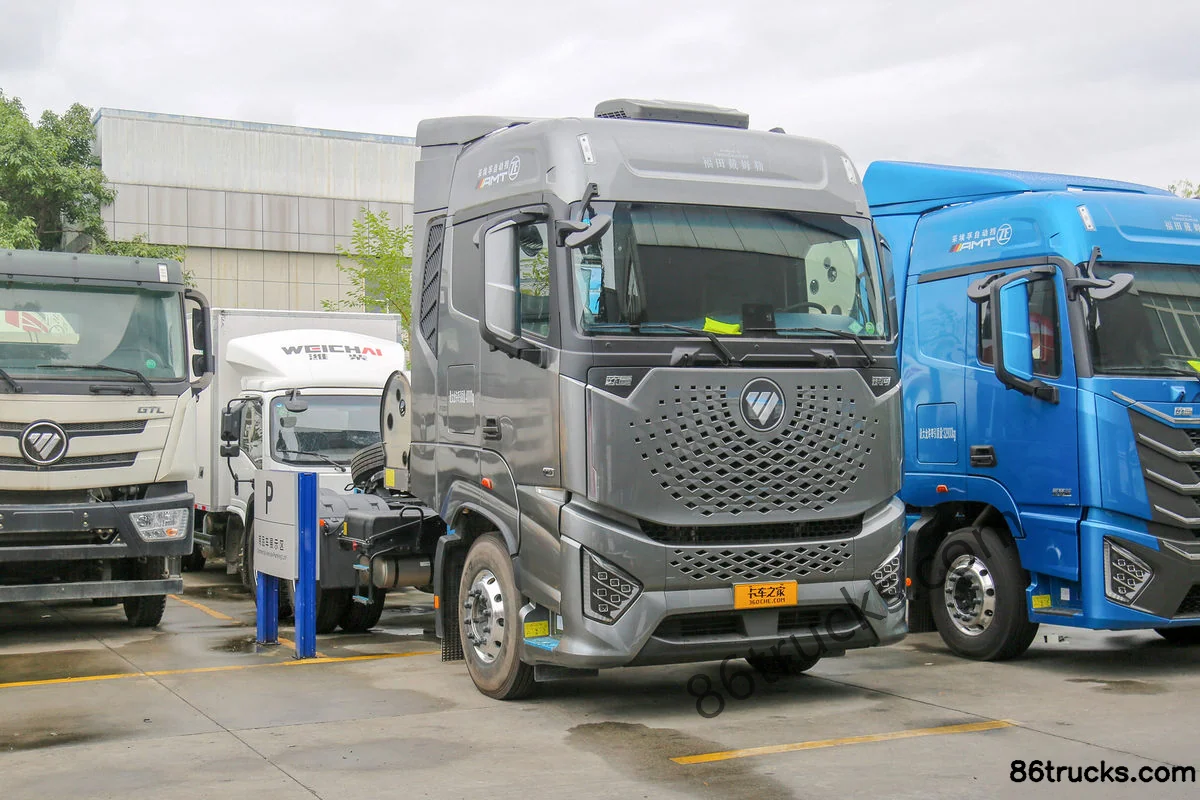

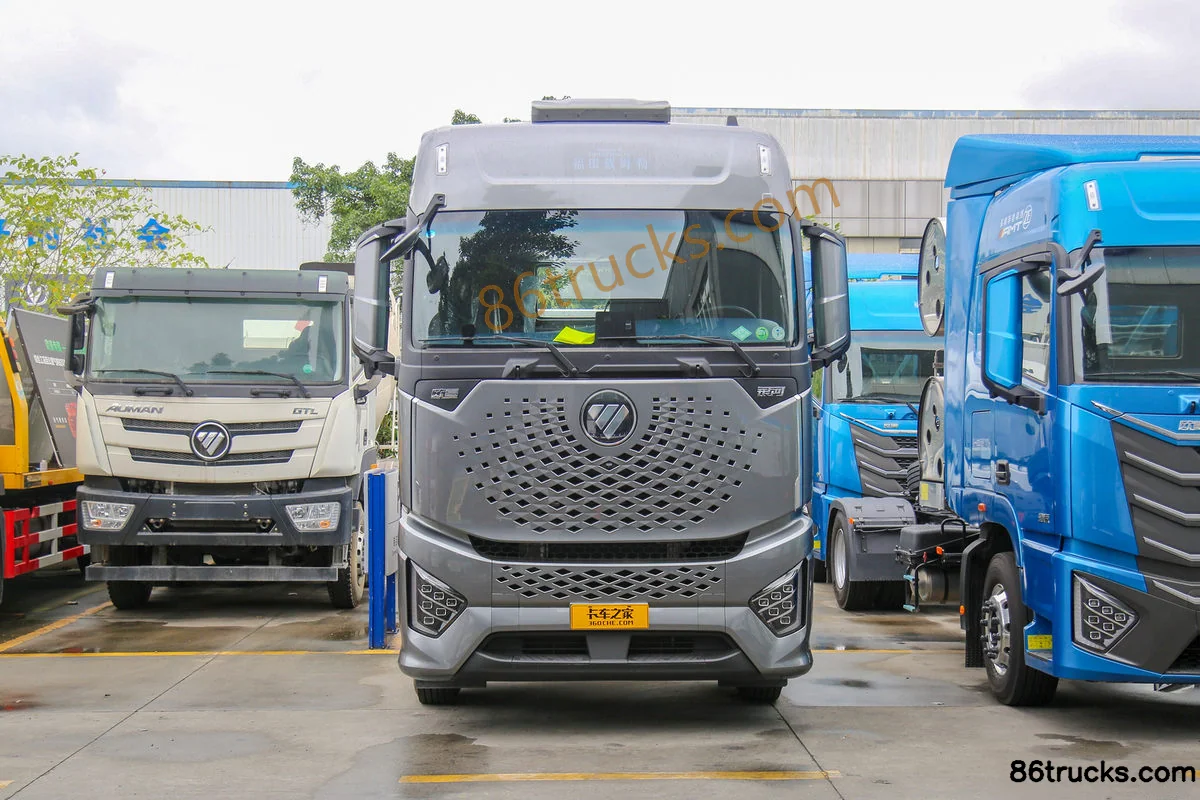

Exterior3

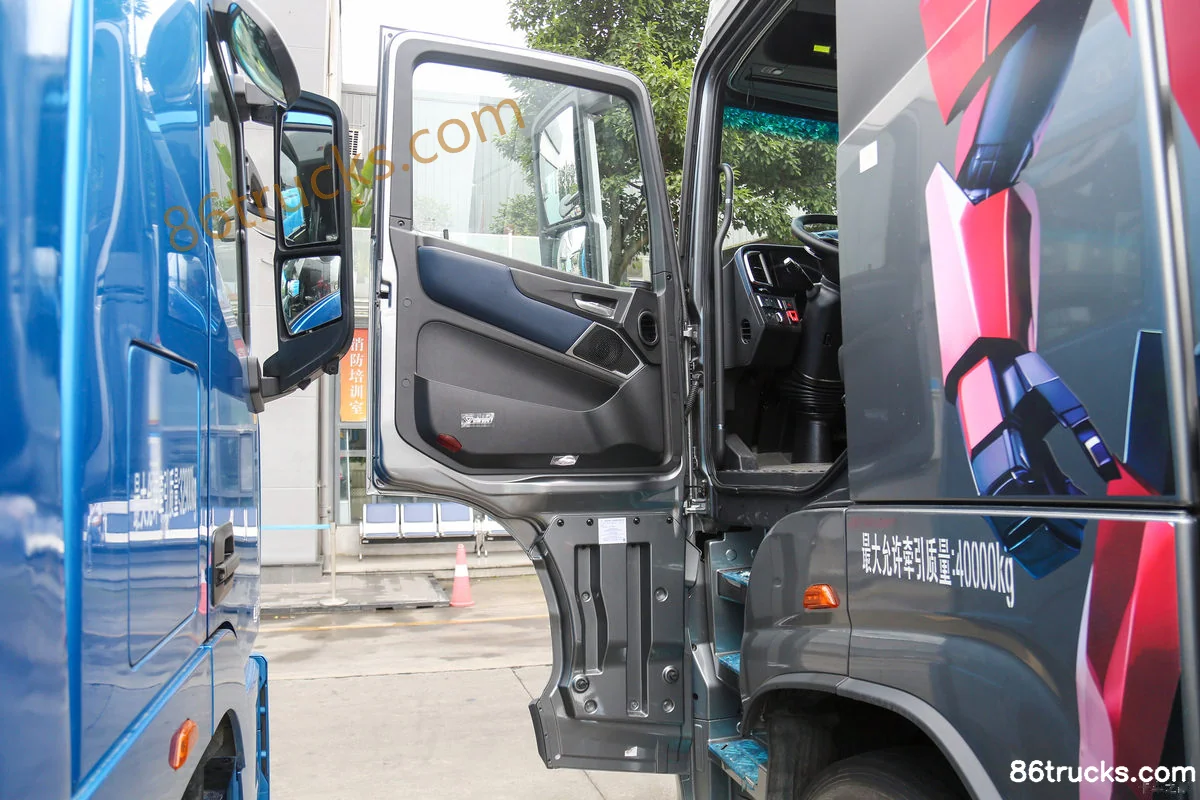

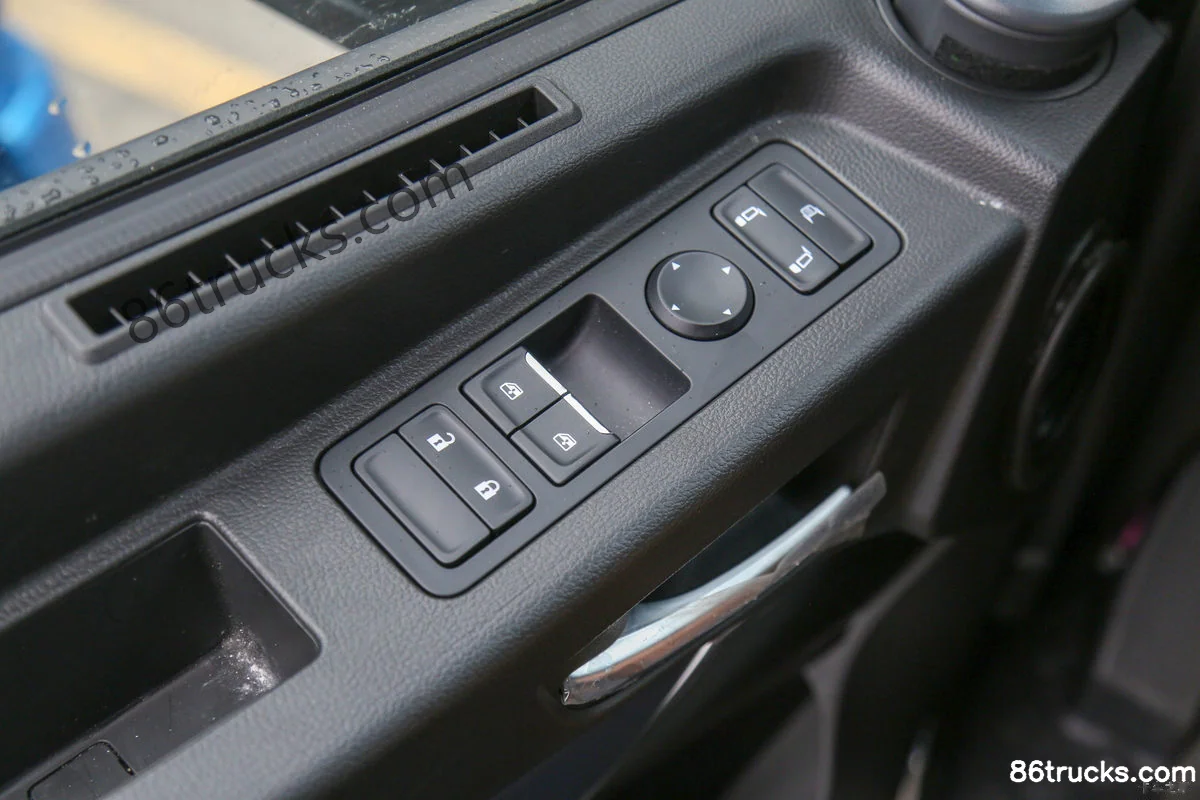

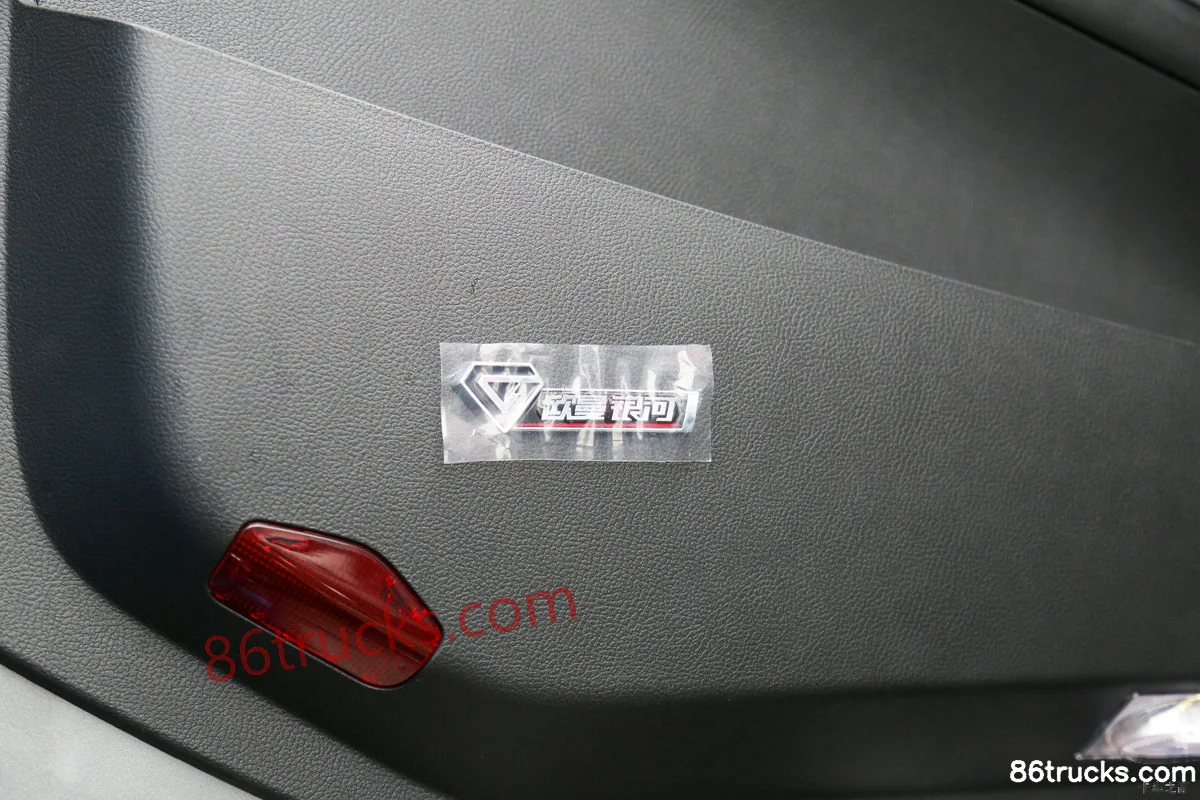

Cab3

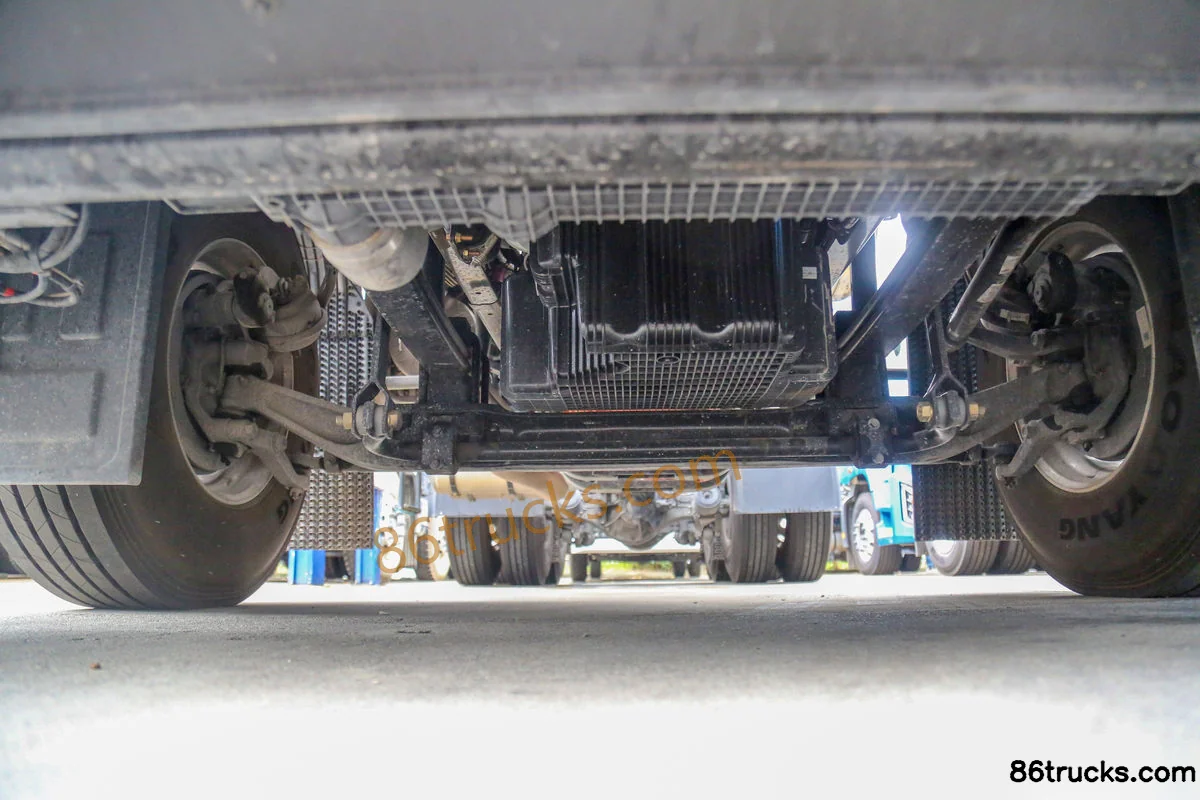

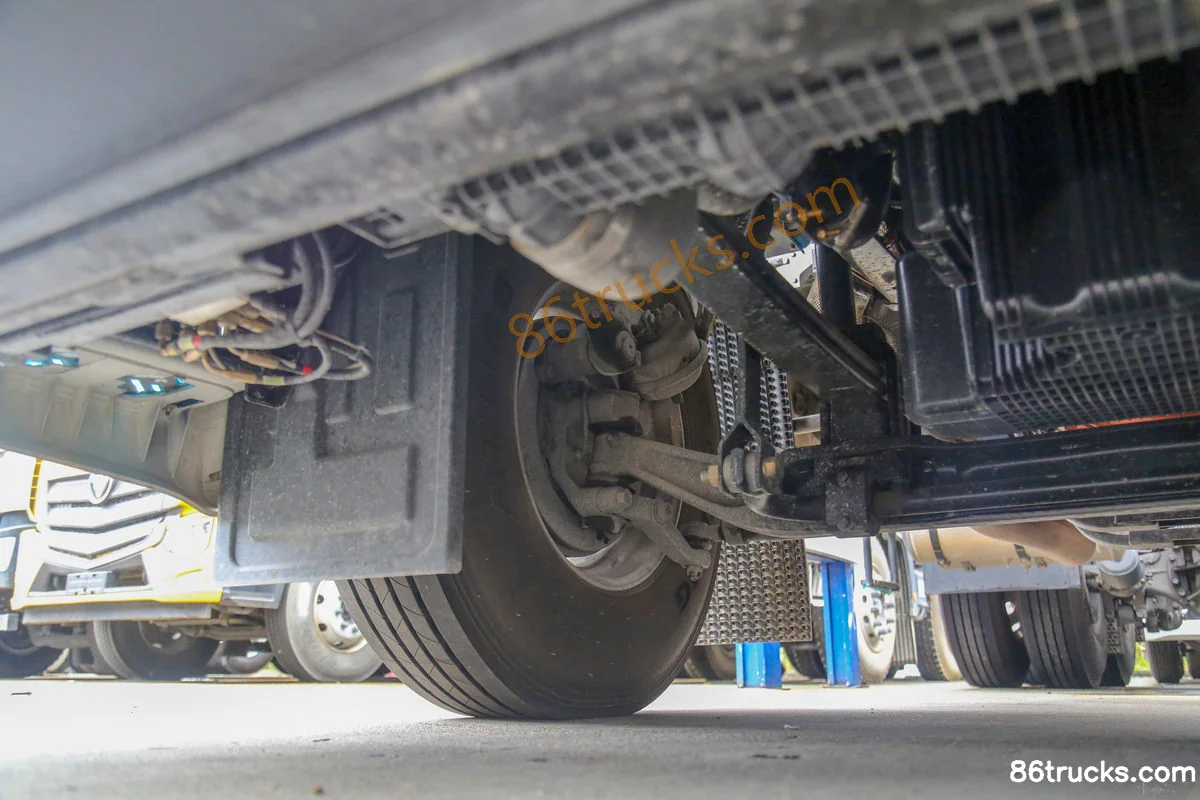

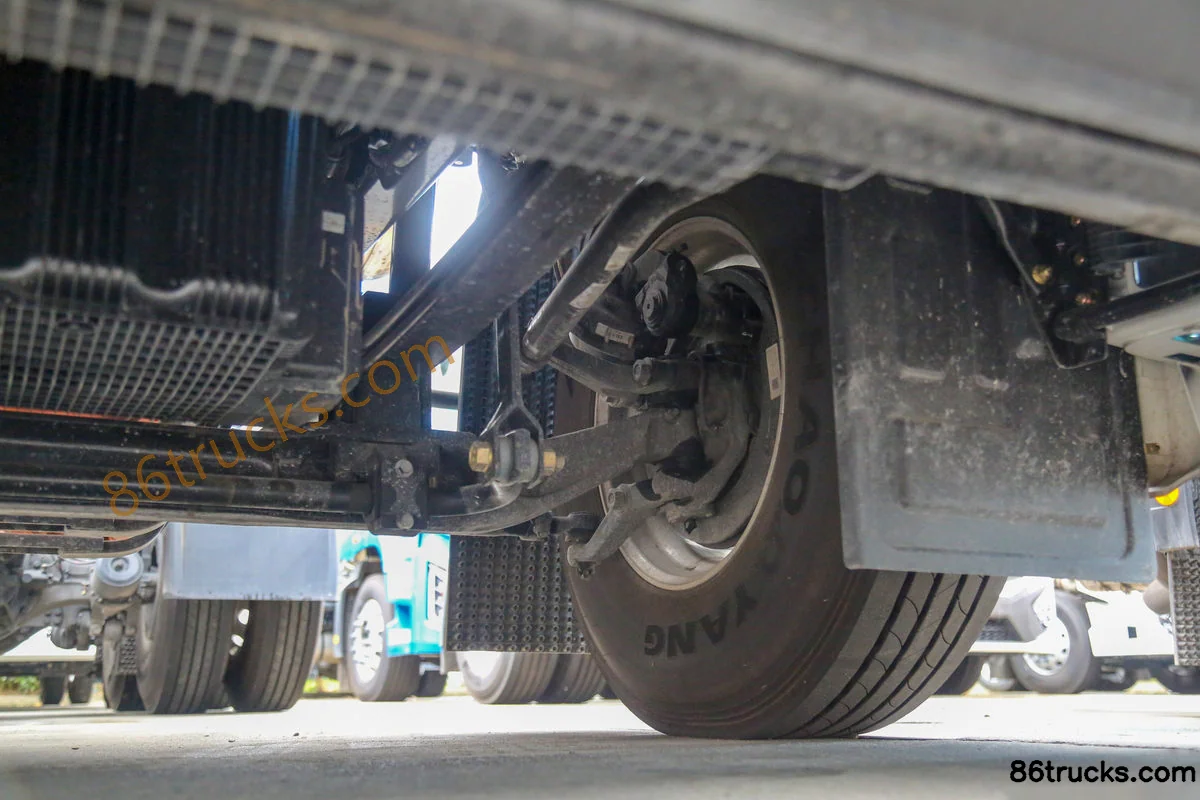

Chassis3

9 photos

FAQ

What emission standard does Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder)?

Key specs of Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder): Drive: 6x4; Horsepower: 580 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder) suited for?

Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder) differ from other variants in the same series?

Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder) belongs to Foton Auman Galaxy Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman Galaxy Southern Version 580hp 6X4(10 wheels) LNG Automatic Tractor Truck (Hydraulic Retarder)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
