Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels))

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 37.07ton
Wheelbase:: 3350+1300mm
Tire brand:: Michelin
Displacement:: 13L
Model code (announced):: R 500 6x2
Drive 6X2R (8 wheels)
Horsepower 500
Emission China VI
Transmission Scania

Overview

The Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels)) is a Heavy truck featuring 6X2R (8 wheels) drive, 500 hp, 37.07ton GVW and China VI emissions. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a ScaniaDC13 155 500 engine, Scania transmission and Diesel fuel.

China VI 500 Diesel 6X2R

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): R 500 6x2
Drive type: 6X2R
Wheelbase: 3350+1300mm
engine: ScaniaDC13 155 500
transmission: ScaniaGRS905
Rear Axle Ratio: 2.71
Cab length: 6.86m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 2067mm
Gross Trailer Weight: 37.07ton
rear track: 1830/1830mm
Curb Weight: 8.8ton
tonnage class: Heavy truck
market segment: Logistics Freight
Energy Type: Diesel
Engine parameters
Engine Brand: Scania
Engine Model: ScaniaDC13 155 500
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13L
Emission standard: China VI
Max output power: 368kW
Max hp: 500Horsepower
Max torque: 2550N·m
Max torque speed: 1000-1300rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: ScaniaGRS905
Transmission Brand: Scania
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1050L
Cab parameters
Cab suspension: Four-point air suspension
Cab tilting: Manual
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
upper bunk width: 800mm
Lower Bunk Width: 80mm
Sunroof: Manual sunroof
Chassis Specs
Suspension type: Front steel leaf springs + rear air suspension
Front axle description: AM420S
Fifth wheel: JOST JSK37C-Z 150
rear axle description: AD400SA
Axle ratio: 2.71
Leaf spring count: 2/-/-
Suspension (front/rear): Steel/Air/Air
Tire
Tire brand: Michelin
Tire Size: 295/80R22.5
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
Rear Axle Lift:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
hydraulic retarder:
Front wheel brake: Disc
Rear Wheel Brake: Disc brake
smart configuration
Cruise control (CCS):
adaptive cruise control (ACC):
Lane Departure Warning System (LDWS):

Photos

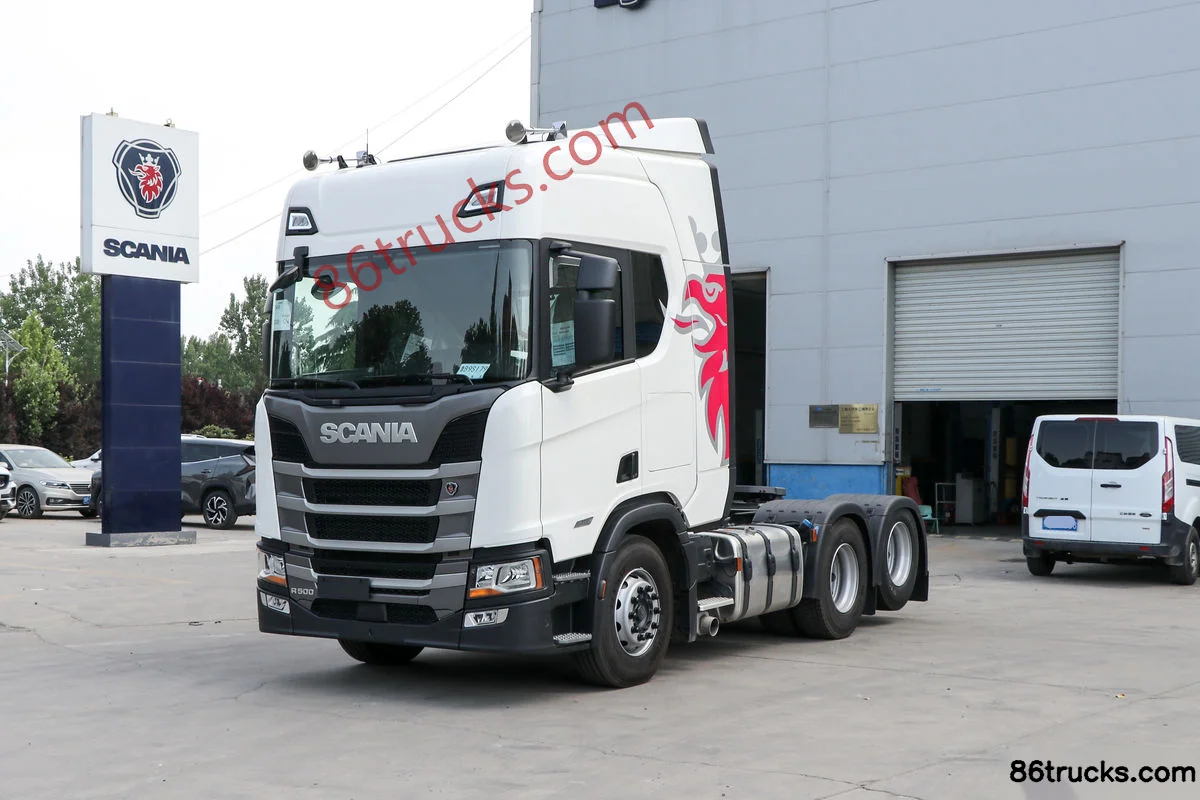

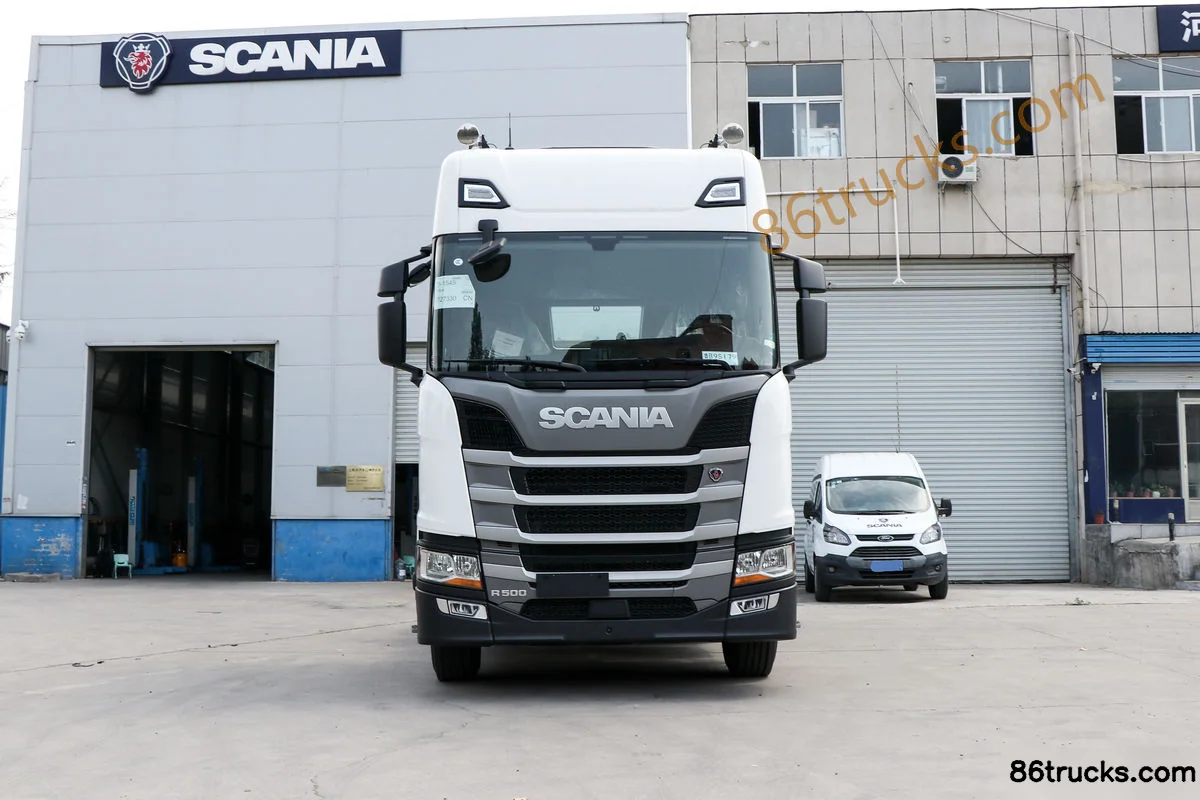

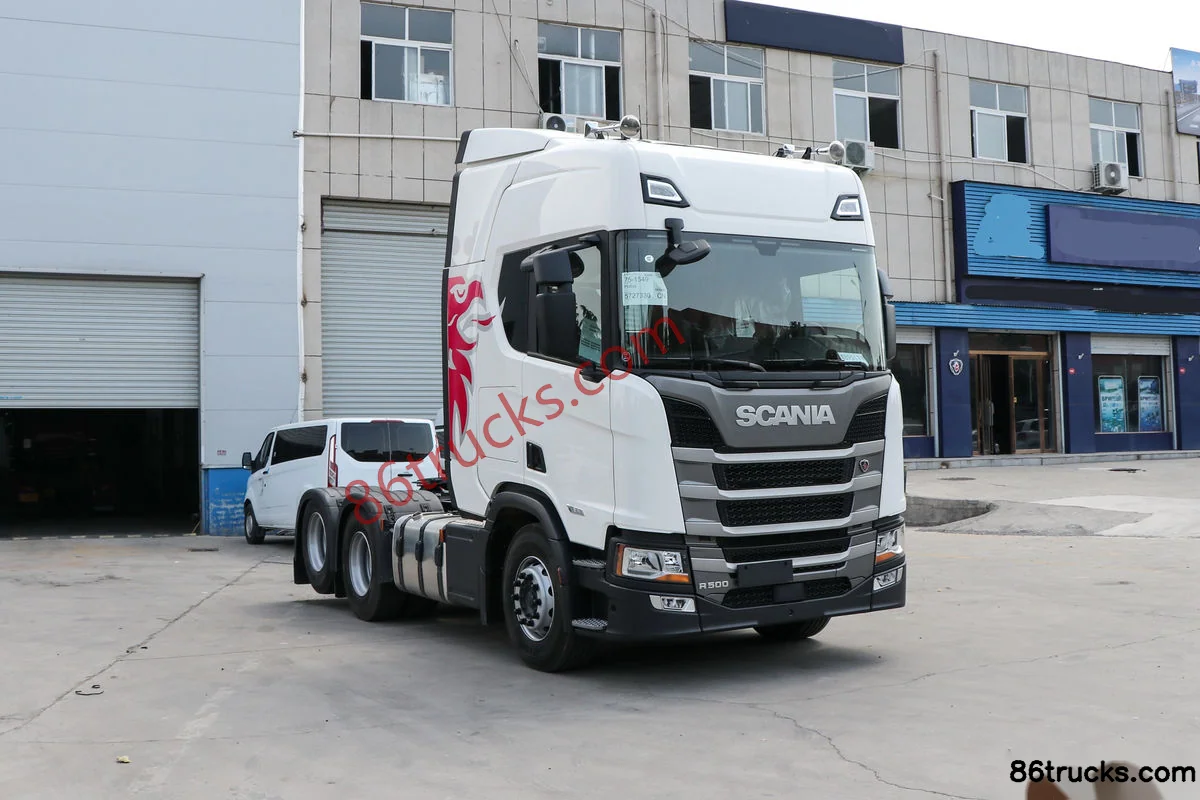

Exterior3

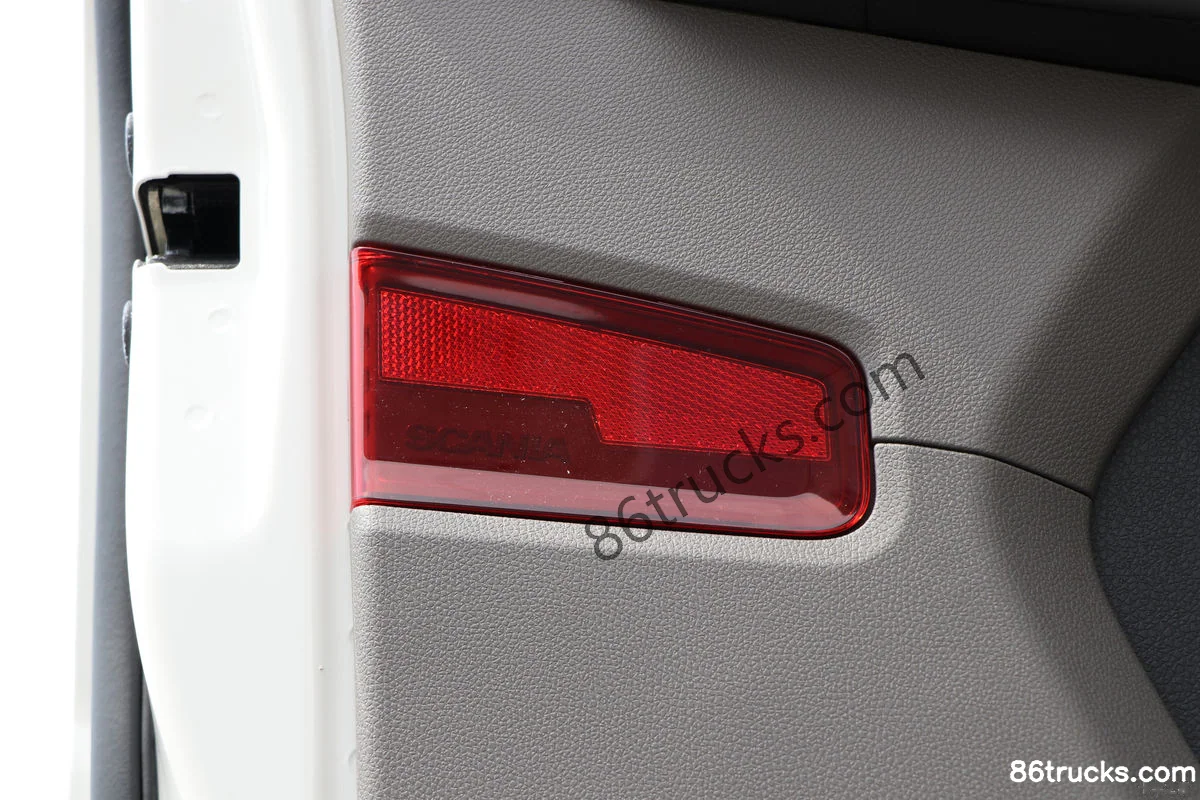

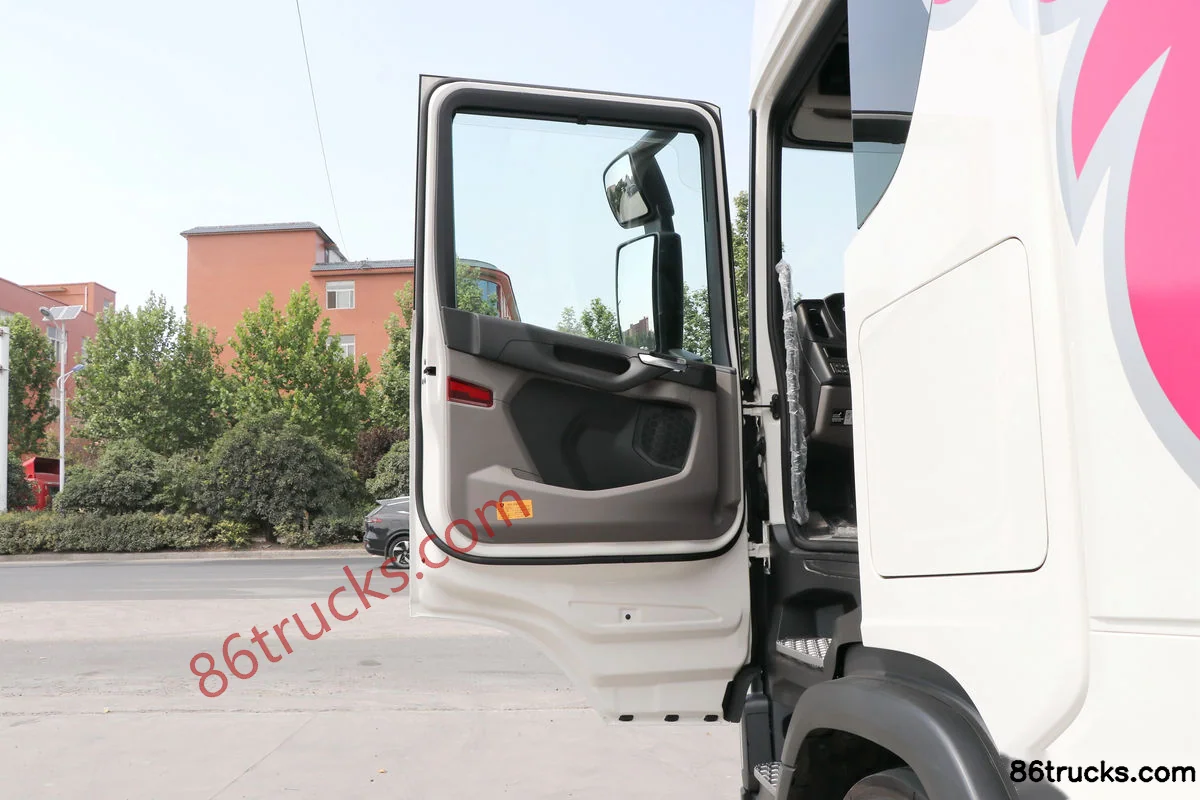

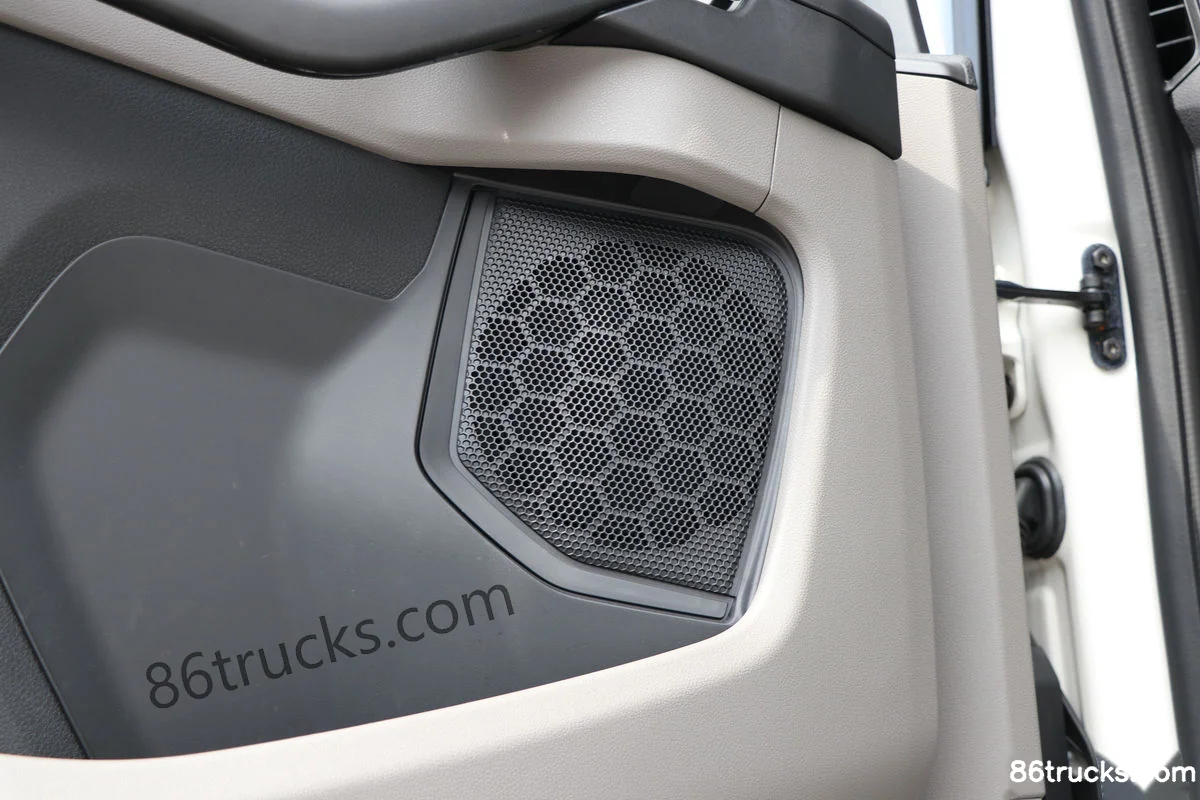

Cab3

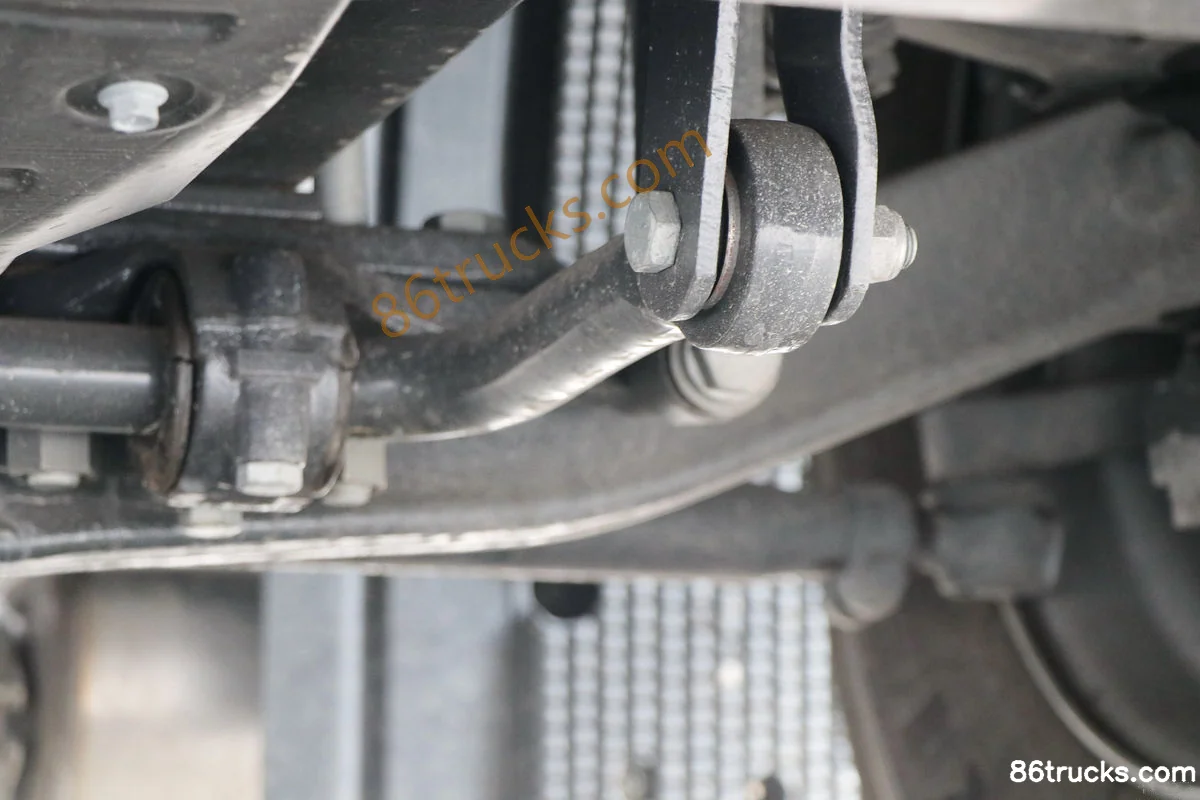

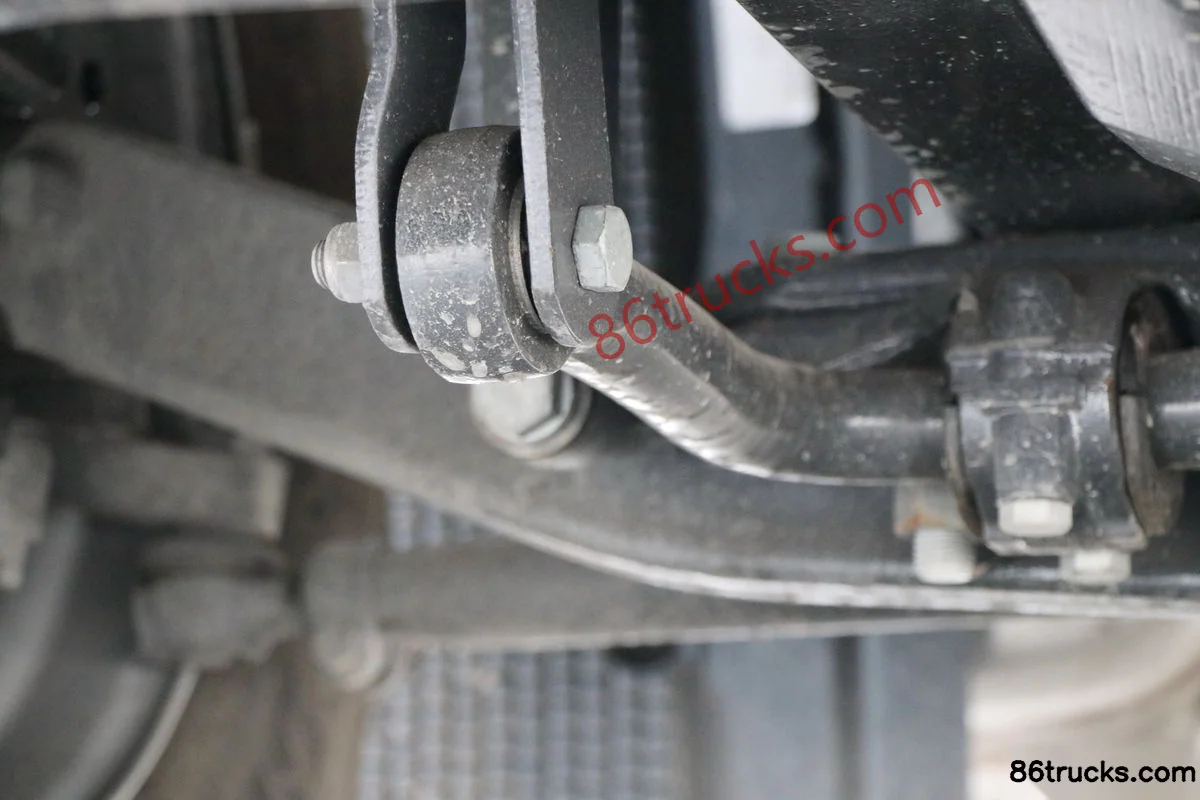

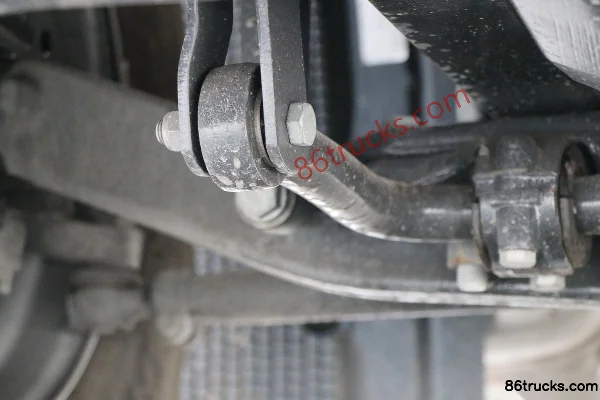

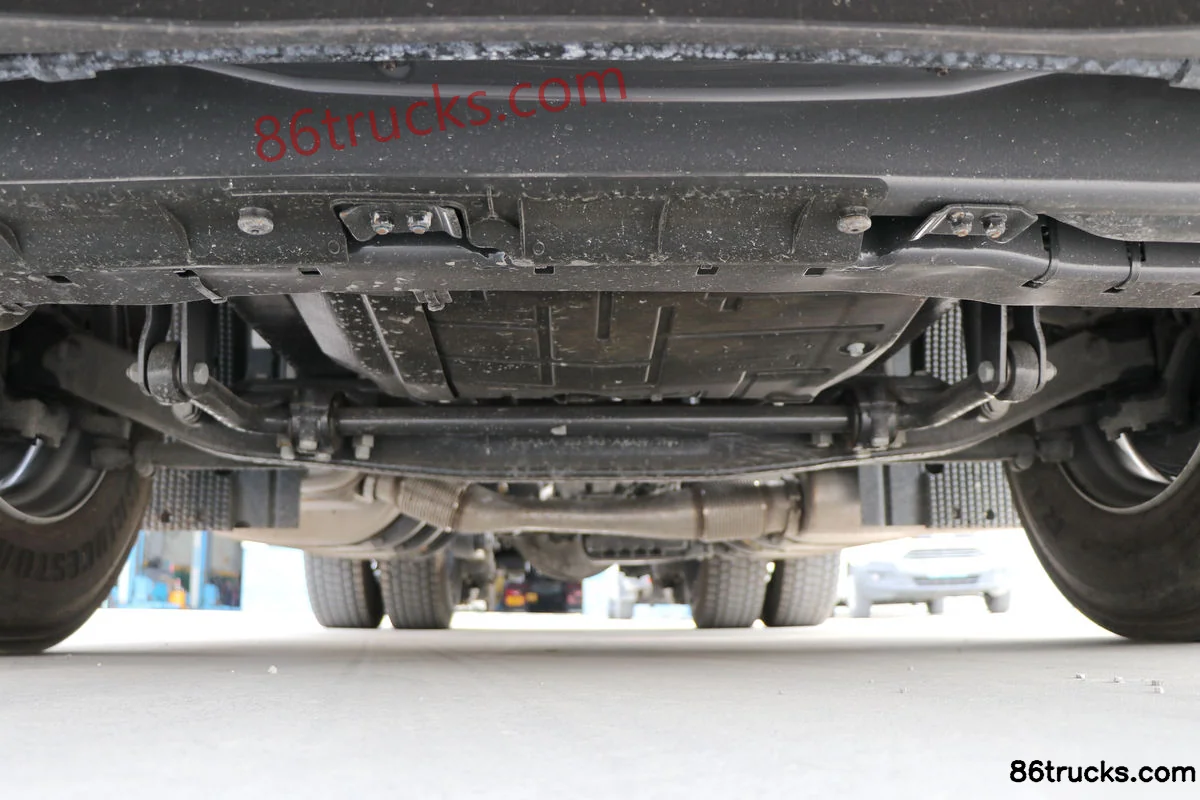

Chassis3

9 photos

FAQ

What emission standard does Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels)) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels))?

Key specs of Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels)): Drive: 6x2R; Horsepower: 500 hp; Emission: China VI; Fuel: Diesel; Transmission: Scania. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels)) suited for?

Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels)) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels)) differ from other variants in the same series?

Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels)) belongs to Scania New R Series Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels))?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Scania New R-Series 500 hp 6X2R Tractor Truck (White) (Model R500 6x2(8 wheels))?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
