XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI)

Export reference
From $21,944
MSRP ¥15.8M CNY
Horsepower: 150
Emission: China VI
Fuel: Diesel
Engine: Yunnei Power2.5L
Transmission: Xingrui
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) is a Light Truck featuring 4.15m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. On the powertrain side, it comes with a Yunnei Power2.5L engine, 150 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): XGA5040CCYD6EA
Type: stake truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
engine: Yunnei PowerD25TCIF1
transmission: Xingrui ML646C
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.18/2.2/2.22/2.28m
Cab height: 3.21m
Front track width: 1600mm
rear track: 1560mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Xuzhou, Jiangsu
tonnage class: Light Truck
Approach angle: 19°
departure angle: 16°
Remarks: Optional 4.875 ratio
Front/rear suspension: 1.13/1.5m
Version: Tianwangxing
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIF1
Engine info: Yunnei Power2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.5L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 400N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Xingrui ML646C
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.15m
Cargo box width: 2.1m
*Cargo box interior width: 2.1
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 100L
Chassis Specs
Front axle description: Qingte/Hande
Front axle allowable load: 1700kg
rear axle description: Qingte/Hande 4t
rear axle allowable load: 2795kg
Axle ratio: 4.33
Leaf spring count: 4/4+2
Aluminum wheels:
Suspension (front/rear): Longitudinal steel leaf spring
clutch: Φ325
Tire
Tire Size: 7.00R16LT 8PR
Tire Type: Low rolling resistance
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Diesel primary filter heating:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
smart configuration
Cruise control (CCS):

Photos

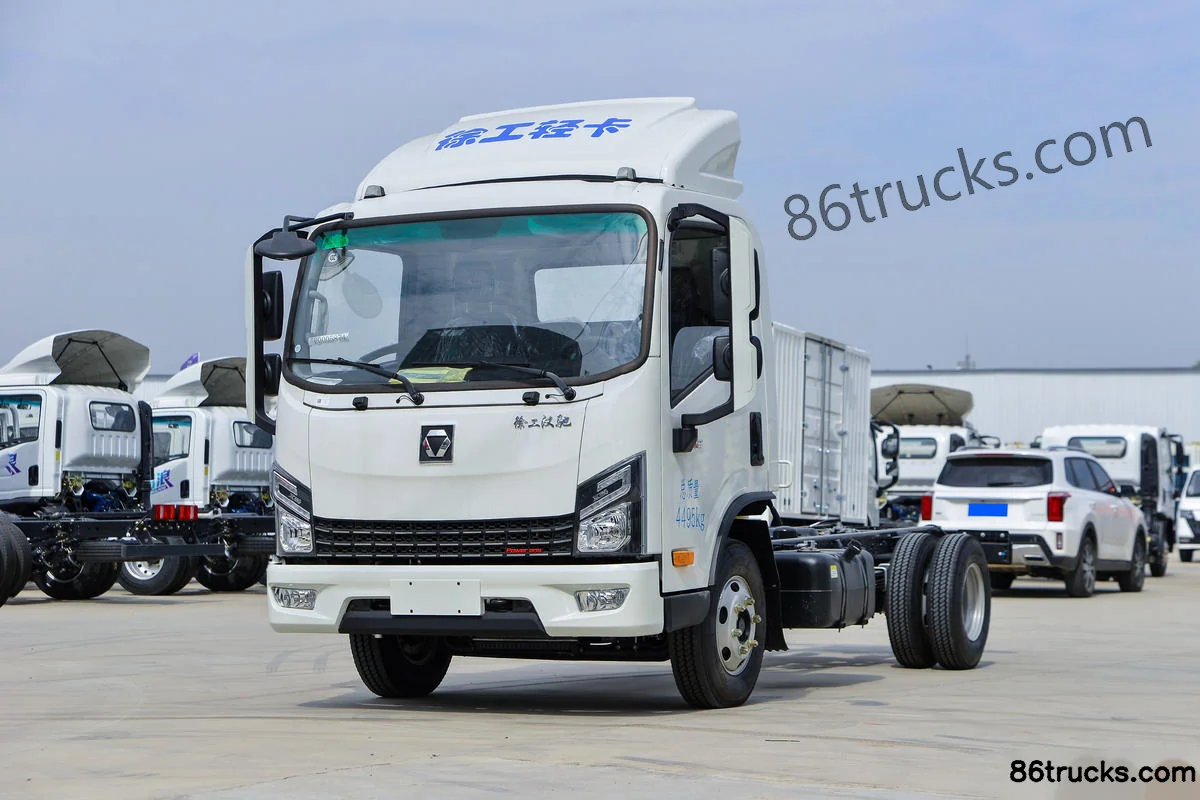

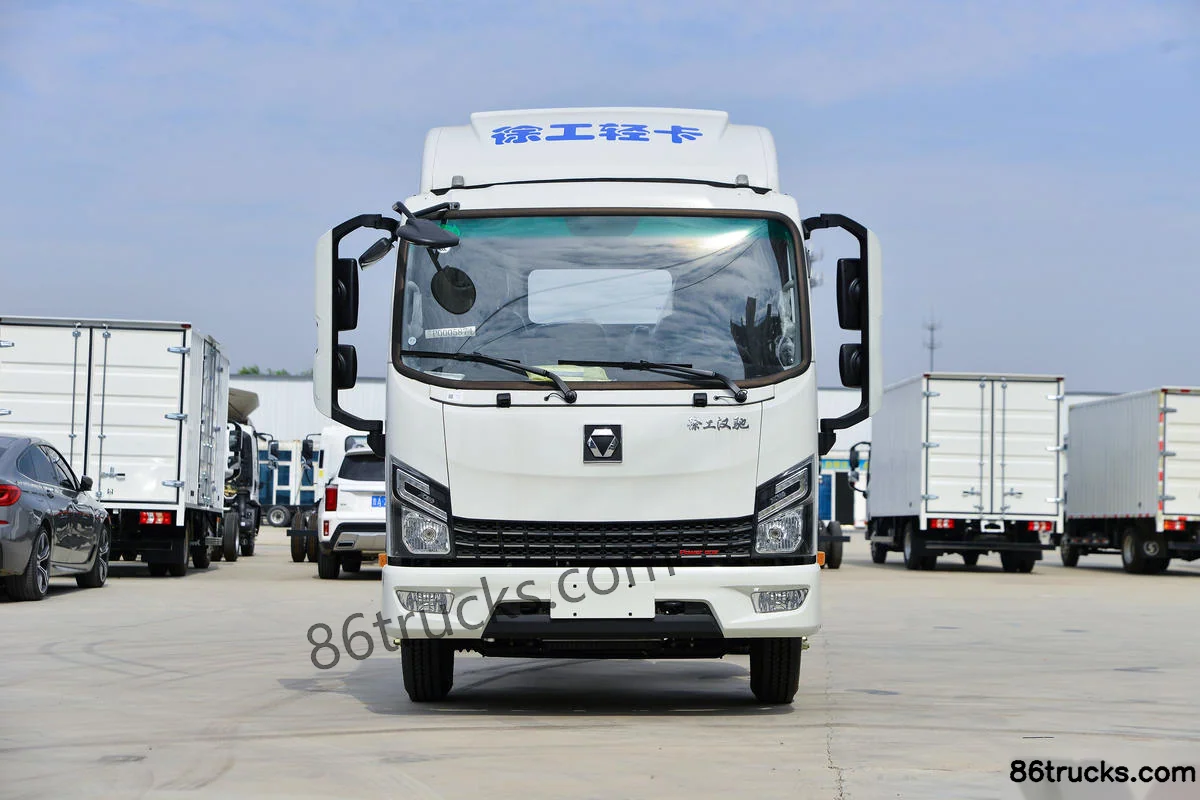

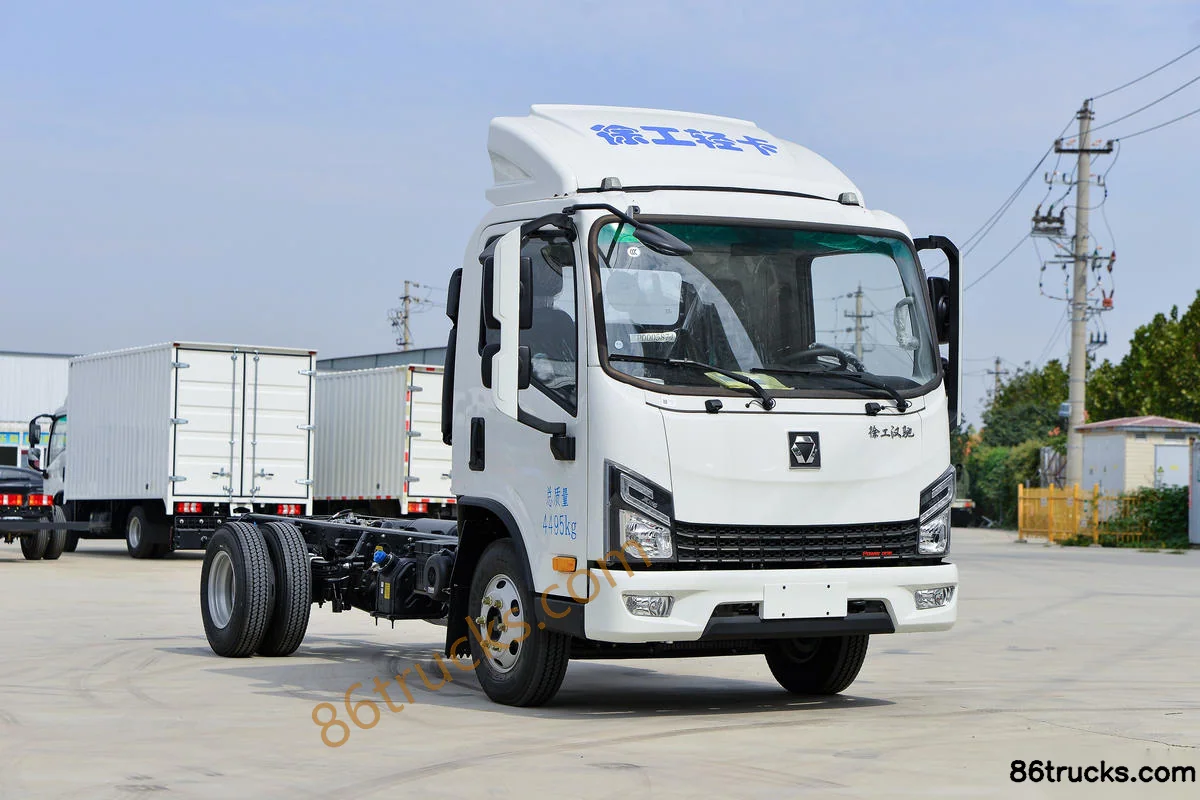

Exterior3

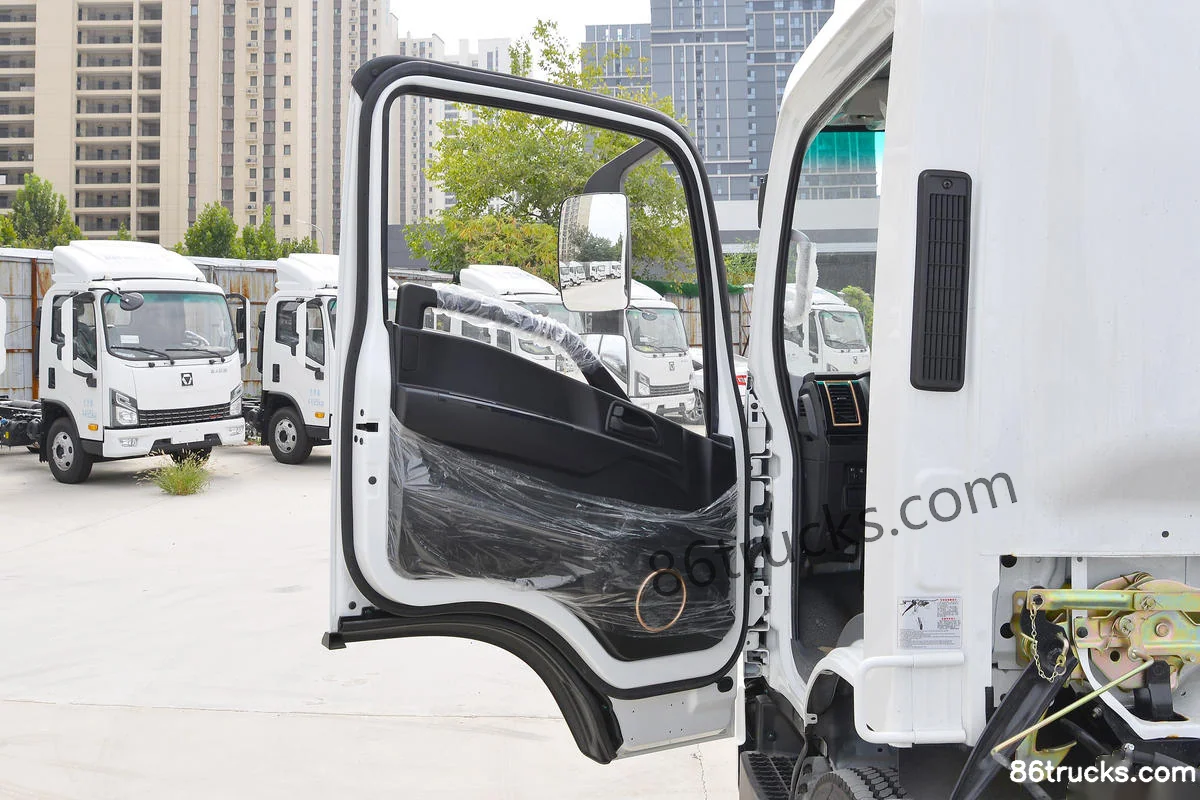

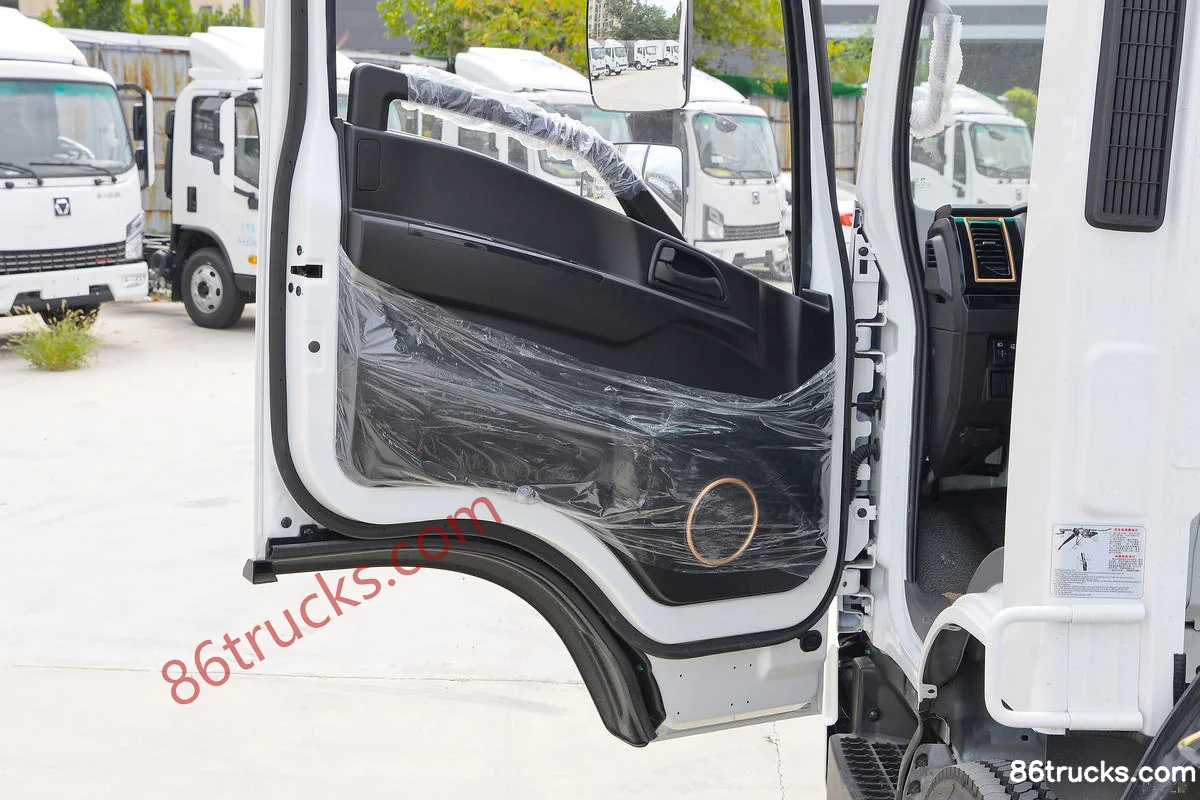

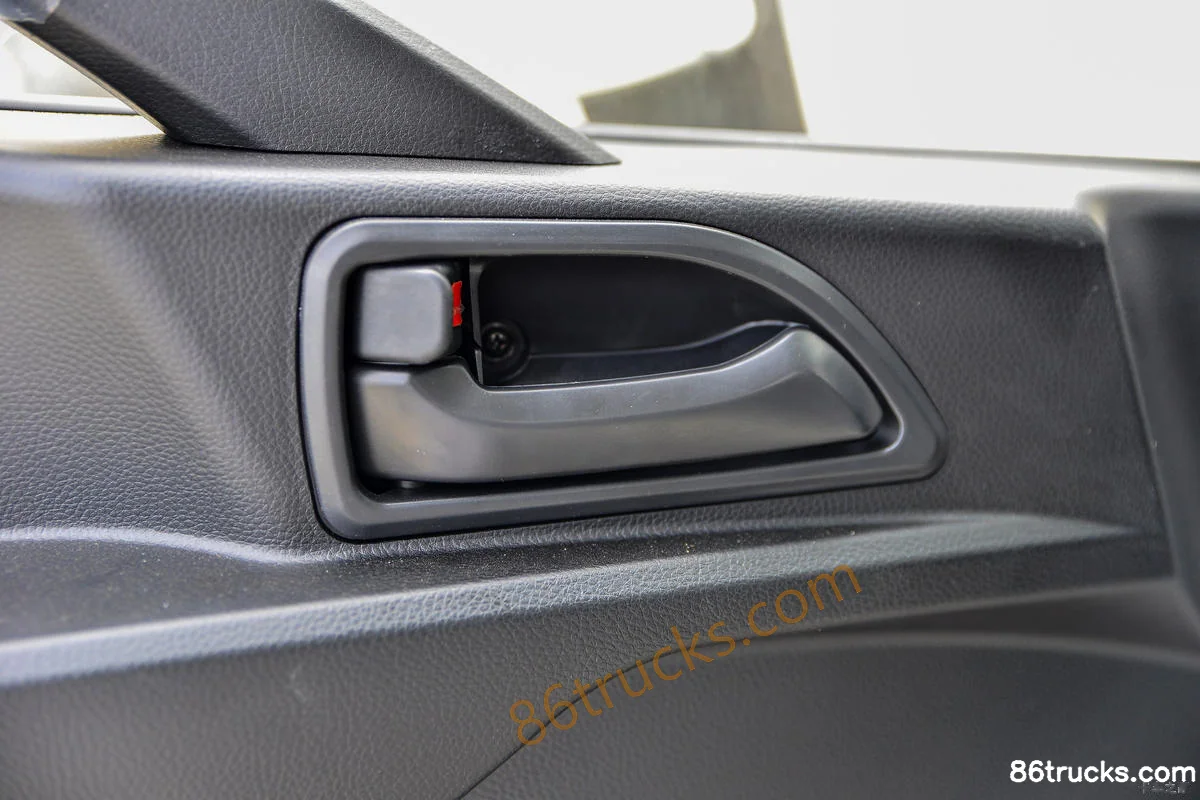

Cab3

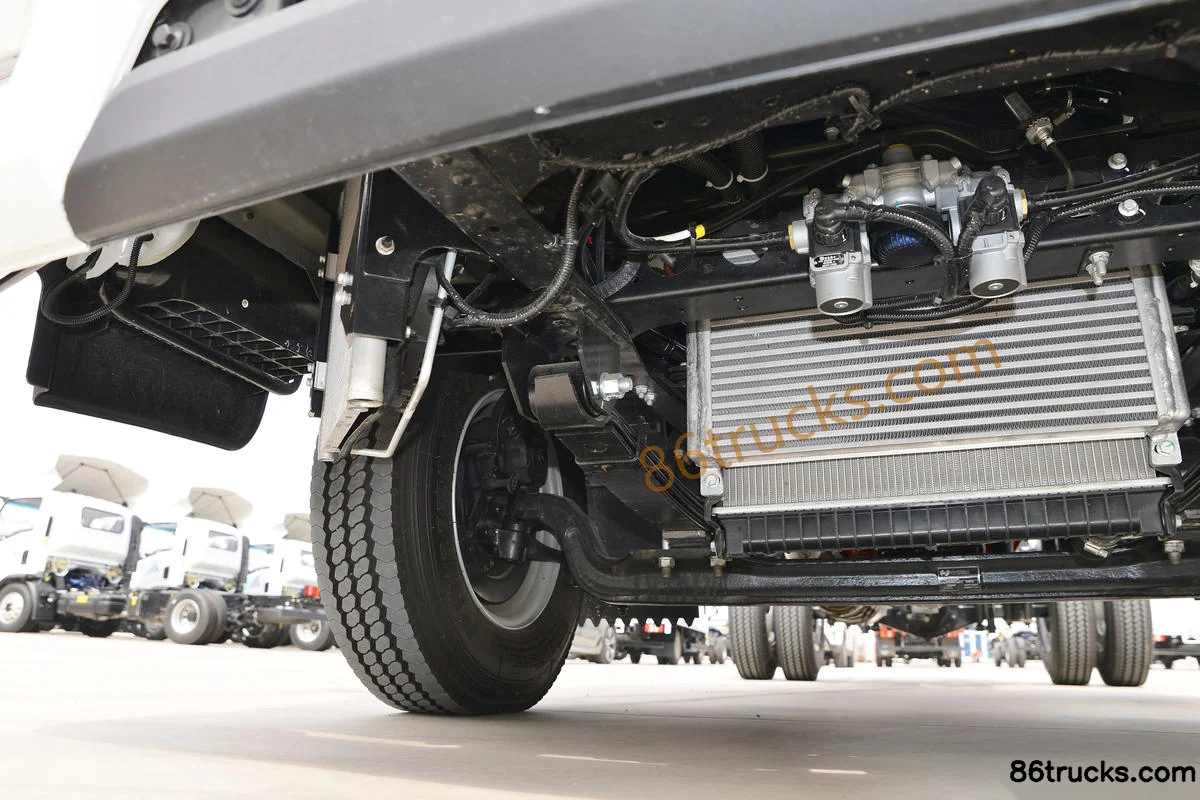

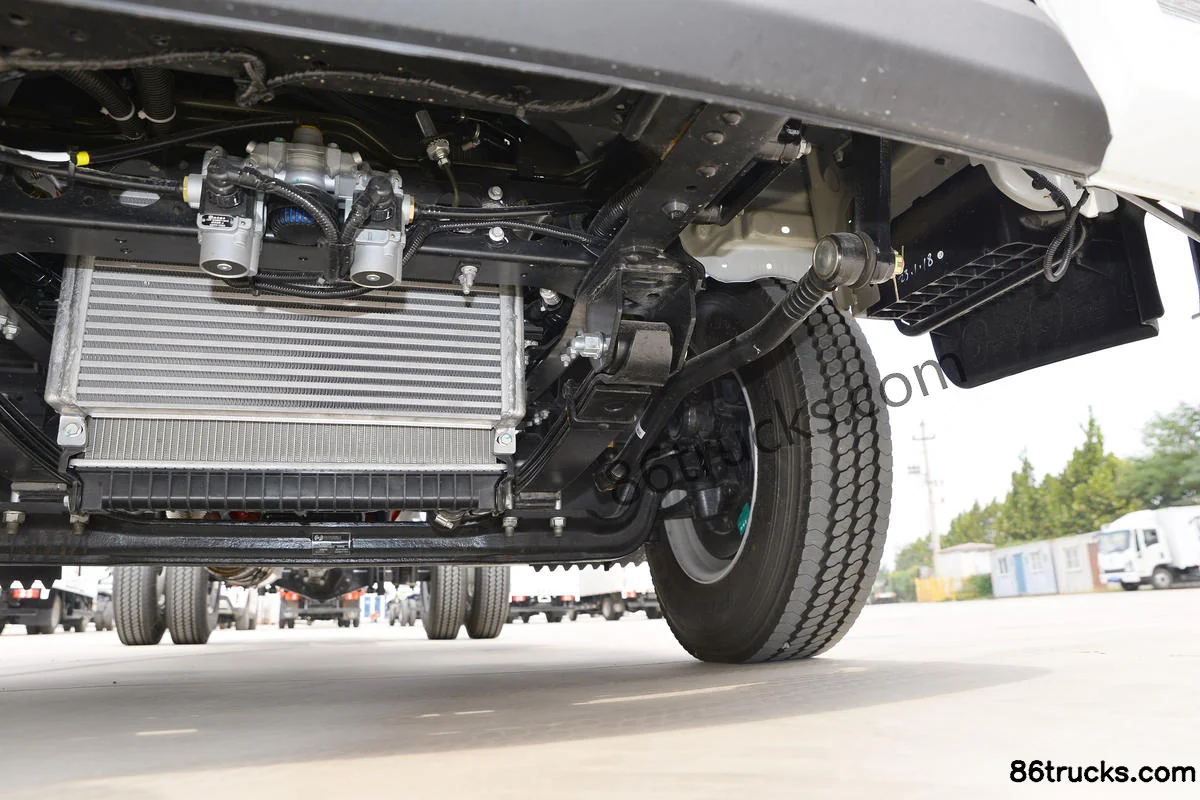

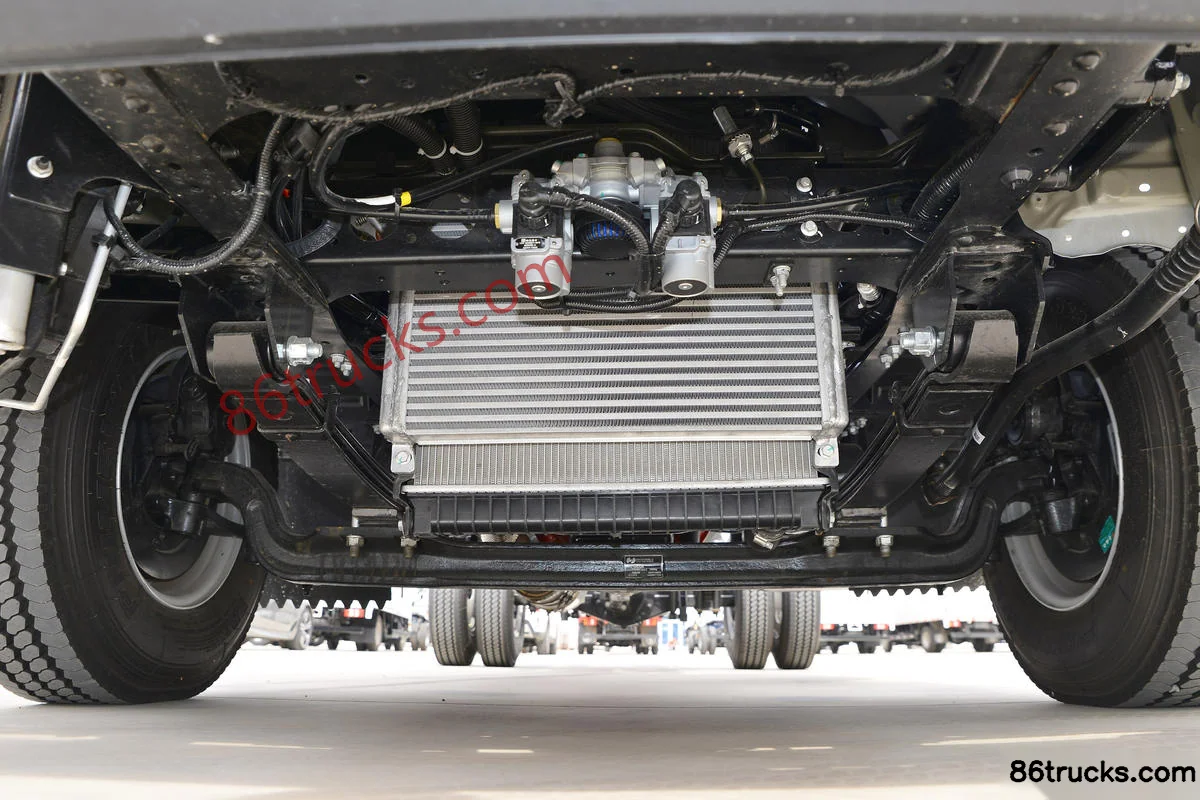

Chassis3

9 photos

FAQ

What is the export price of XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI), and what does it include?

XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) export reference is about From $21,944; MSRP is ¥15.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI)?

Key specs of XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI): Drive: 4x2; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel; Engine: Yunnei Power2.5L; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) suited for?

XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) differ from other variants in the same series?

XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI) belongs to XCMG Hanchi (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Hanchi Tianwangxing 150 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
