Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck

Export reference
From $20,014
MSRP ¥14.41M CNY
Fuel: Diesel
Gross Trailer Weight:: 24.4ton
Wheelbase:: 3500mm
Tire Size:: 10R22.5 16PR
Front axle allowable load:: 4200kg
Displacement:: 4.75L
Drive 4X2 (6 wheels)
Horsepower 240
Emission China VI
Transmission Fast Gear

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 240 hp, 12.49t GVW and China VI emissions. Its segment focus covers Port transport, matching those duty cycles. On the powertrain side, it comes with a DongfengDDi47E240-60 engine, Fast Gear transmission and Diesel fuel.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH4120E
Drive type: 4X2
Wheelbase: 3500mm
engine: DongfengDDi47E240-60
transmission: Fast Gear8JS95TE-C
Rear Axle Ratio: 3.91
Cab length: 5.98m
Cab width: 2.524m
Cab height: 2.97m
Front track width: 1820mm
Gross Trailer Weight: 24.4ton
rear track: 1840mm
Curb Weight: 5ton
GVWR: 12.49ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck
market segment: Port transport
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DDi47E240-60
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.75L
Emission standard: China VI
Max output power: 177kW
Max hp: 240Horsepower
Transmission Parameters
Transmission Model: 8JS95TE-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: steel
Fuel tank capacity: 280L
Cab parameters
Cab: Flat roof single sleeper
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Fifth wheel: 50#
Front axle allowable load: 4200kg
Frame Dimensions: 280X80X8+0mm
rear axle description: DF365
rear axle allowable load: 8290kg
Axle ratio: 3.91
Leaf spring count: 3/4+3
Tire
Tire Size: 10R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

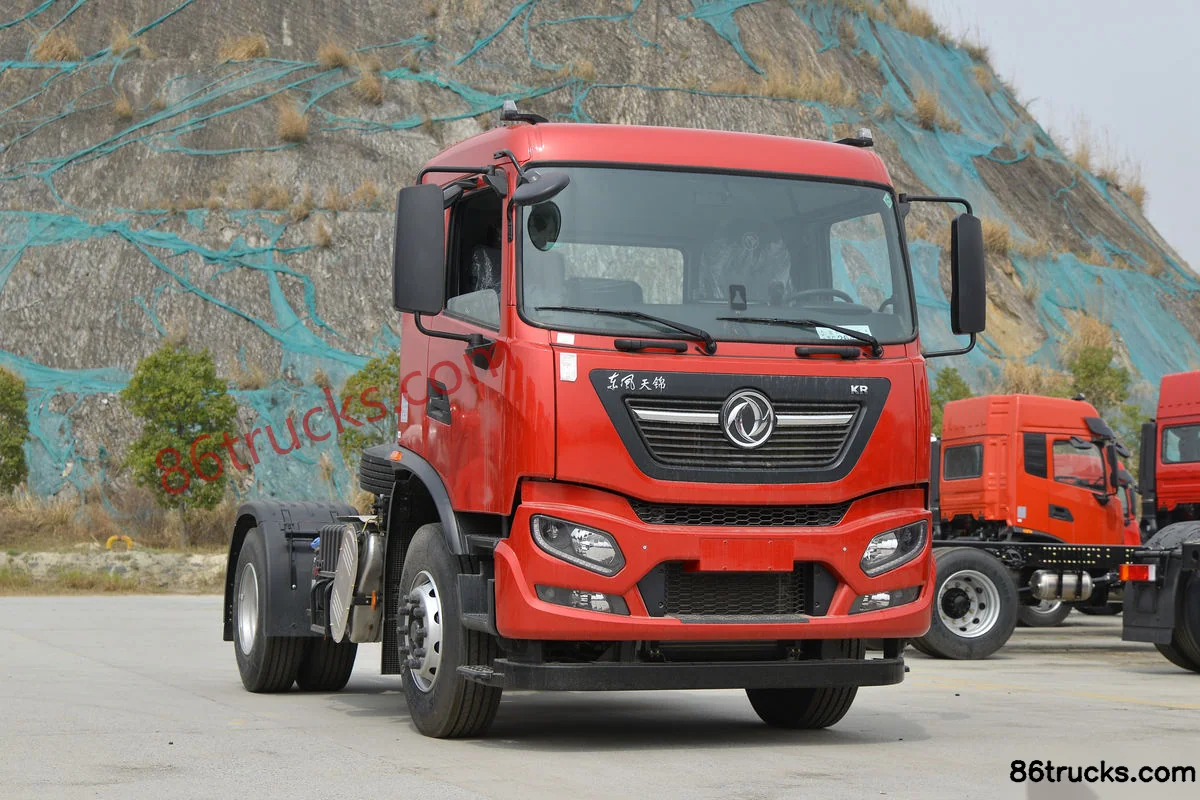

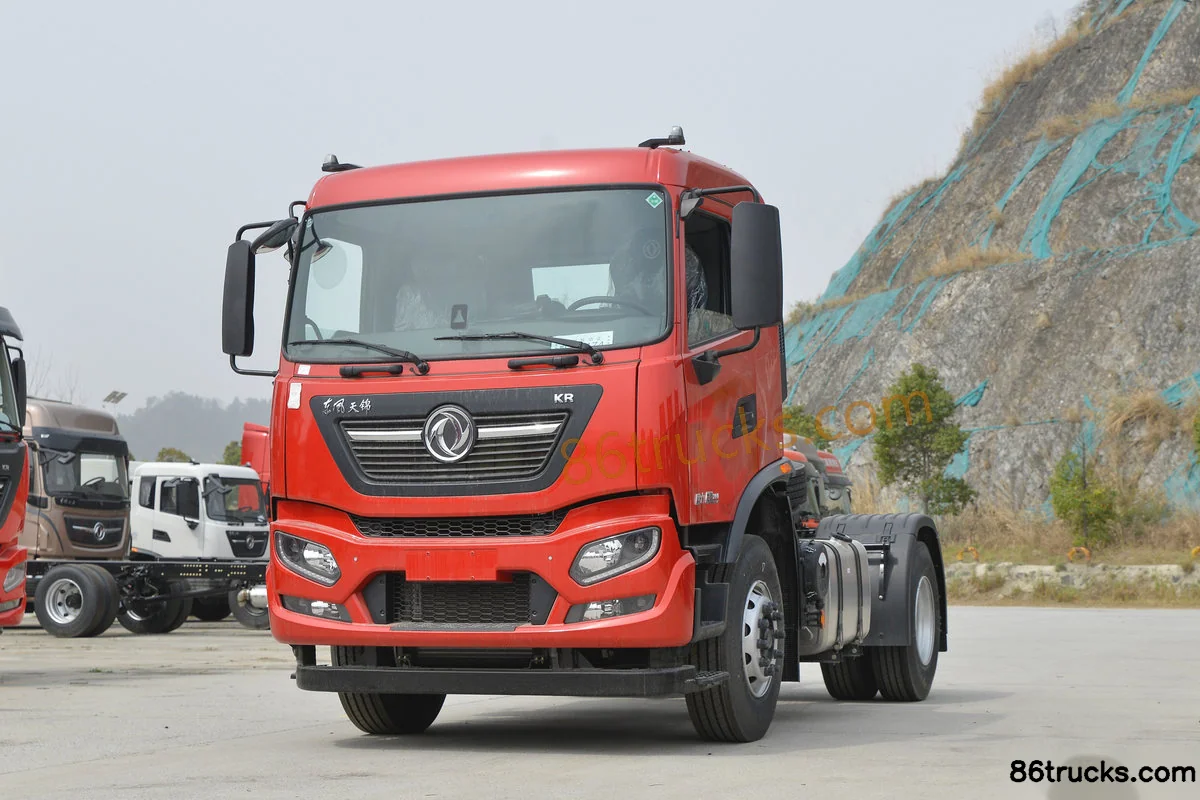

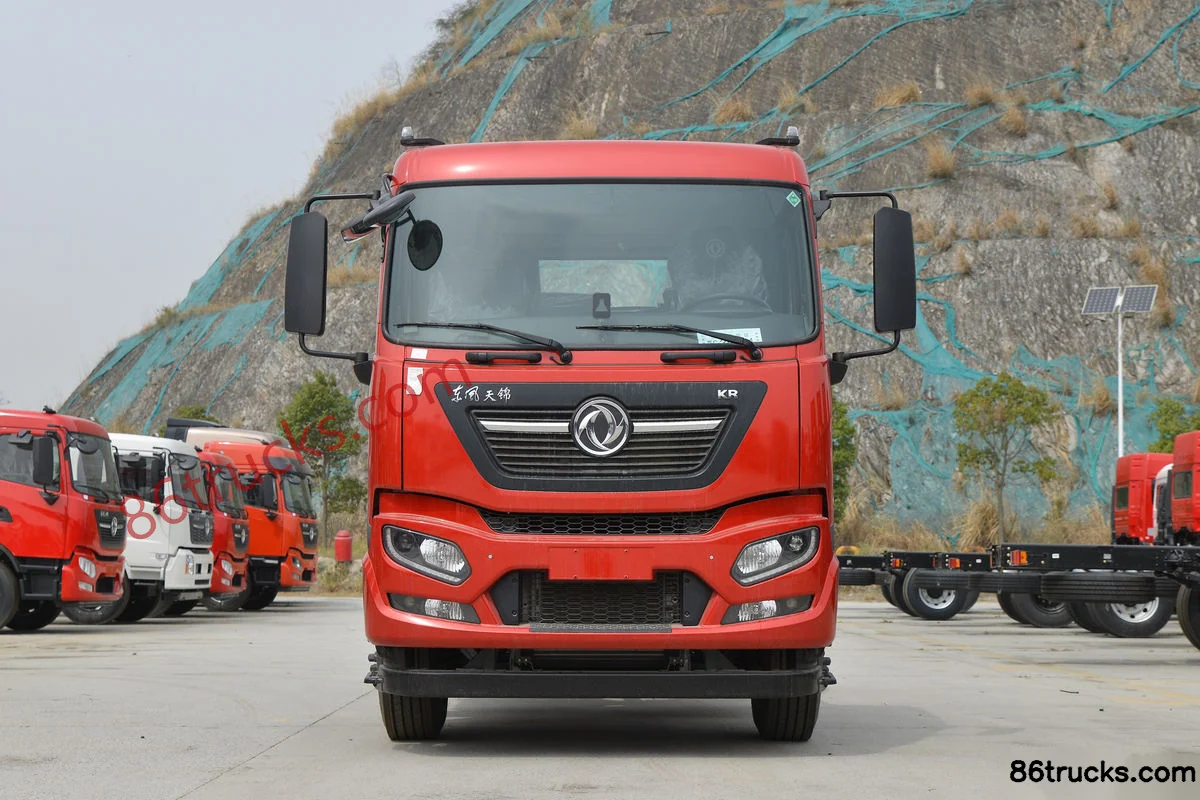

Exterior3

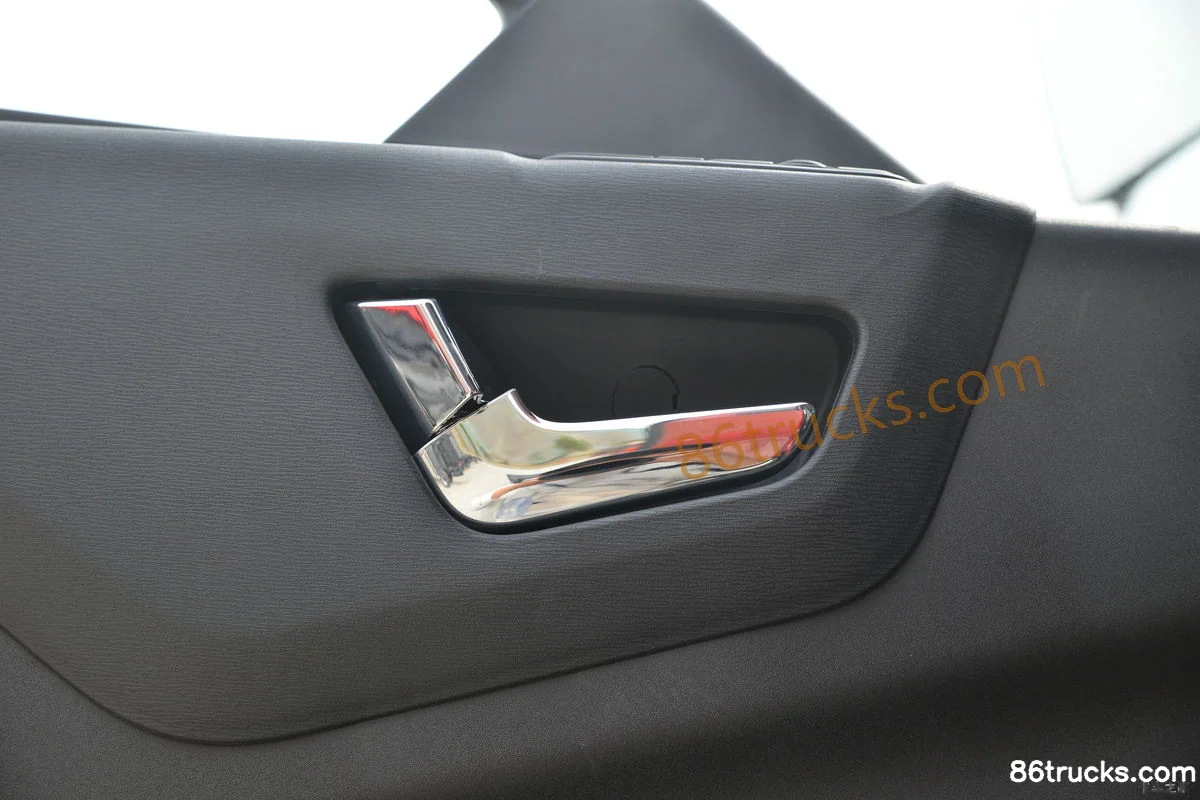

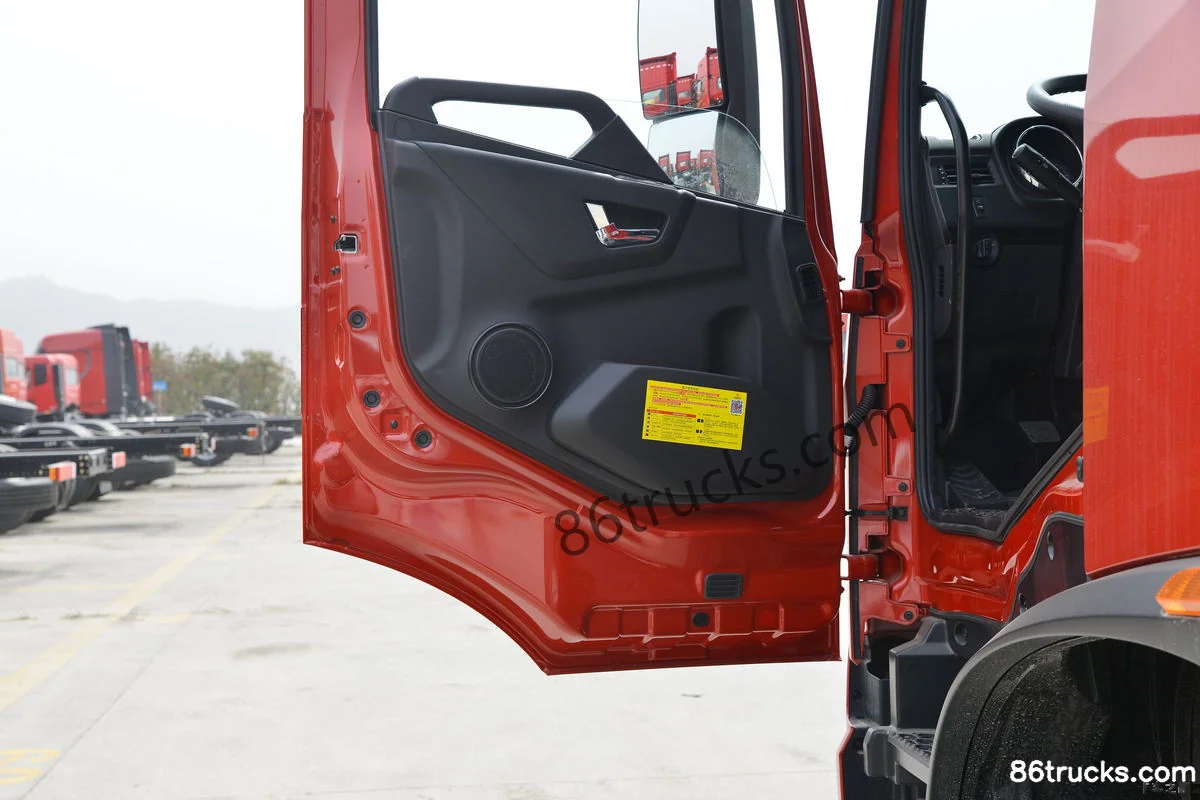

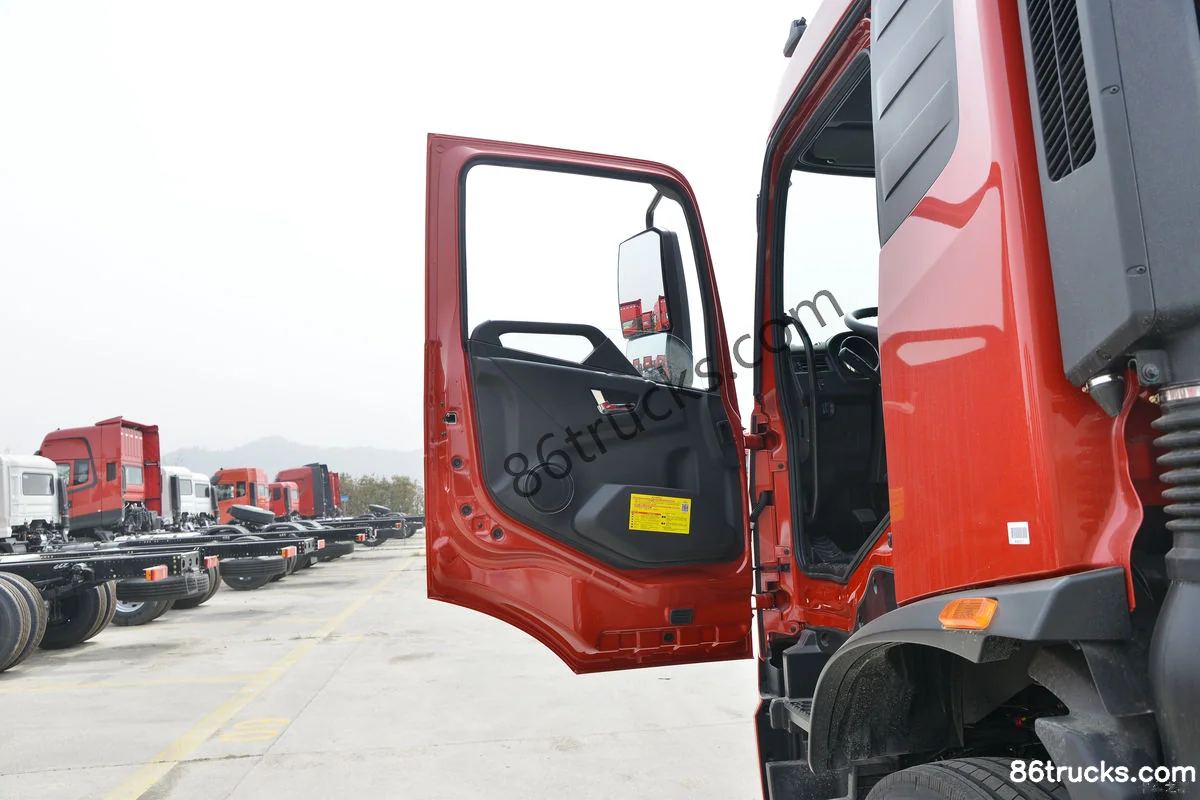

Cab3

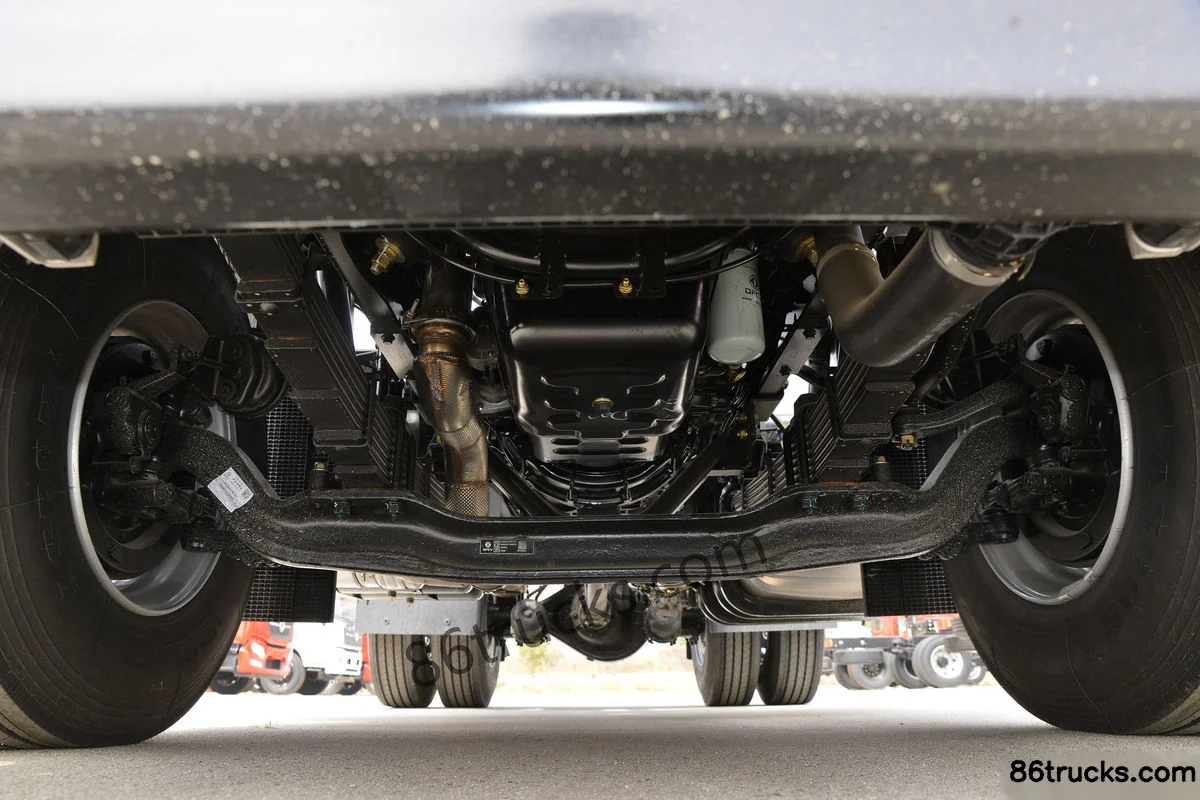

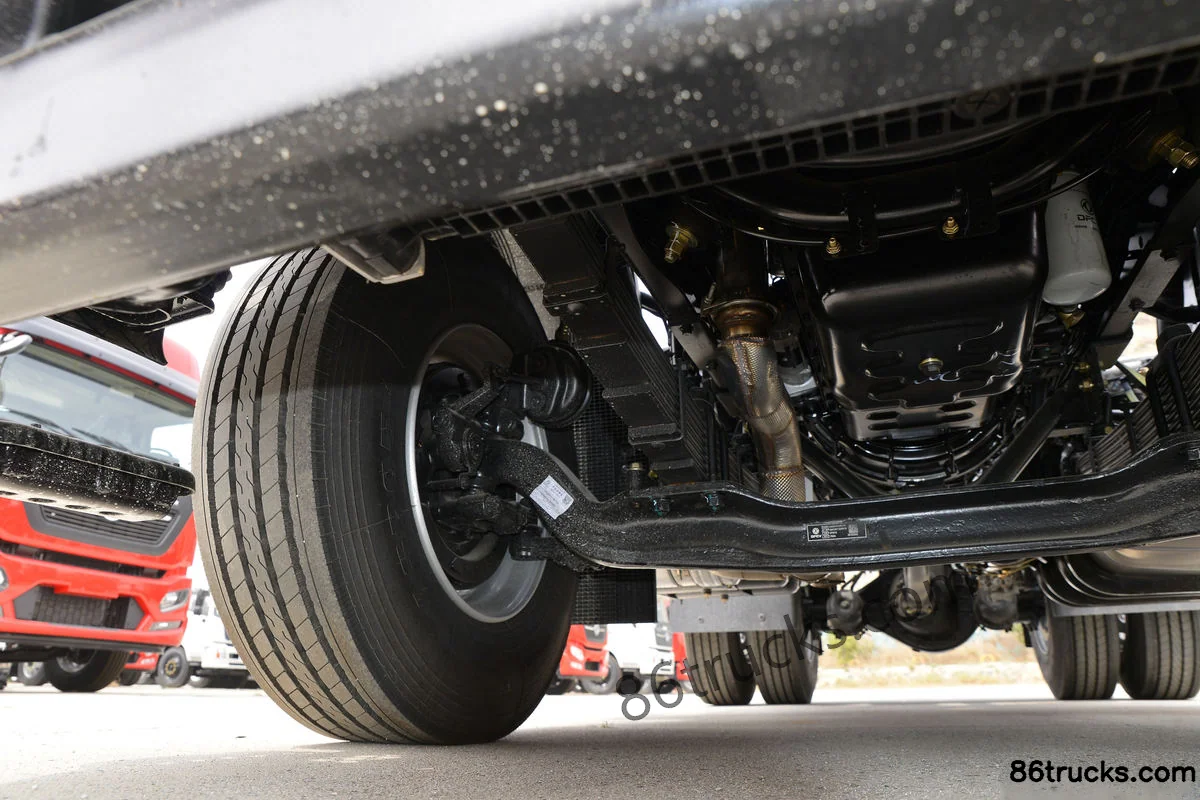

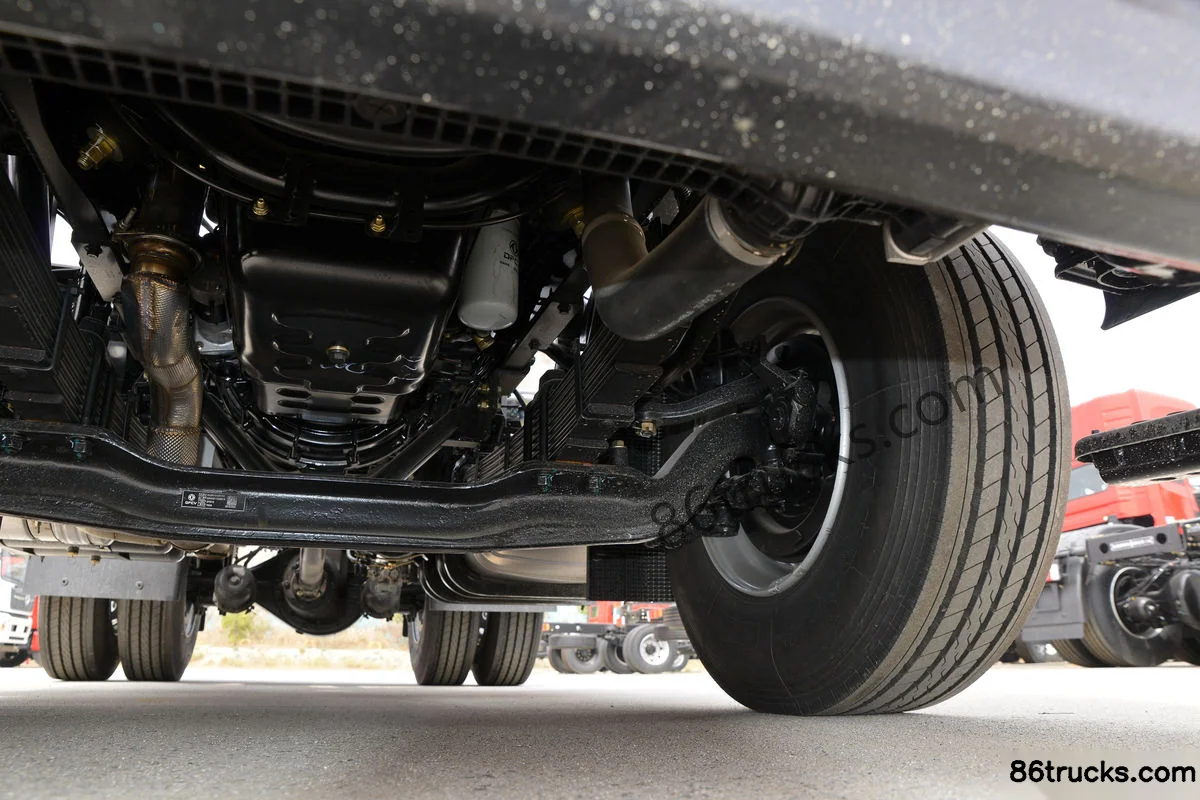

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck, and what does it include?

Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck export reference is about From $20,014; MSRP is ¥14.41M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck?

Key specs of Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck suited for?

Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck differ from other variants in the same series?

Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck belongs to Dongfeng Tianjin KR (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianjin KR 4.8L Diesel 240 hp 4X2(6 wheels) Fast Gear 8-speed Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
