Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh

Export reference
MSRP N/A
Origin:: Chengdu, Sichuan
tonnage class:: Heavy truck
Energy Type:: Hybrid
total rated power:: 280kW
Peak power:: 410kW
Battery capacity:: 140kWh
Drive 6X4 (10 wheels)
Battery type: Lithium Iron Phosphate Battery
Motor 1 Brand: Sinotruk
Front axle allowable load: 7000kg

Overview

The Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh is a Heavy truck featuring Lithium Iron Phosphate Battery battery/range, Sinotruk motor, 6X4 (10 wheels) drive and 7000kg payload. On the powertrain side, it comes with 4-speed EMT transmission.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 6X4
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Sinotruk
Motor 1 Model: TZ370XSCDW03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
Motor 1 Peak Power: 410kW
Number of drive motors: Single motor
Battery/Charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 140kWh
Transmission Parameters
Transmission Model: 4-speed EMT
Cab parameters
Cab: High-roof double bunk
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: 12T Drum Dual Rear Axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.29
Tire
Tire Size: 12R22.5
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:

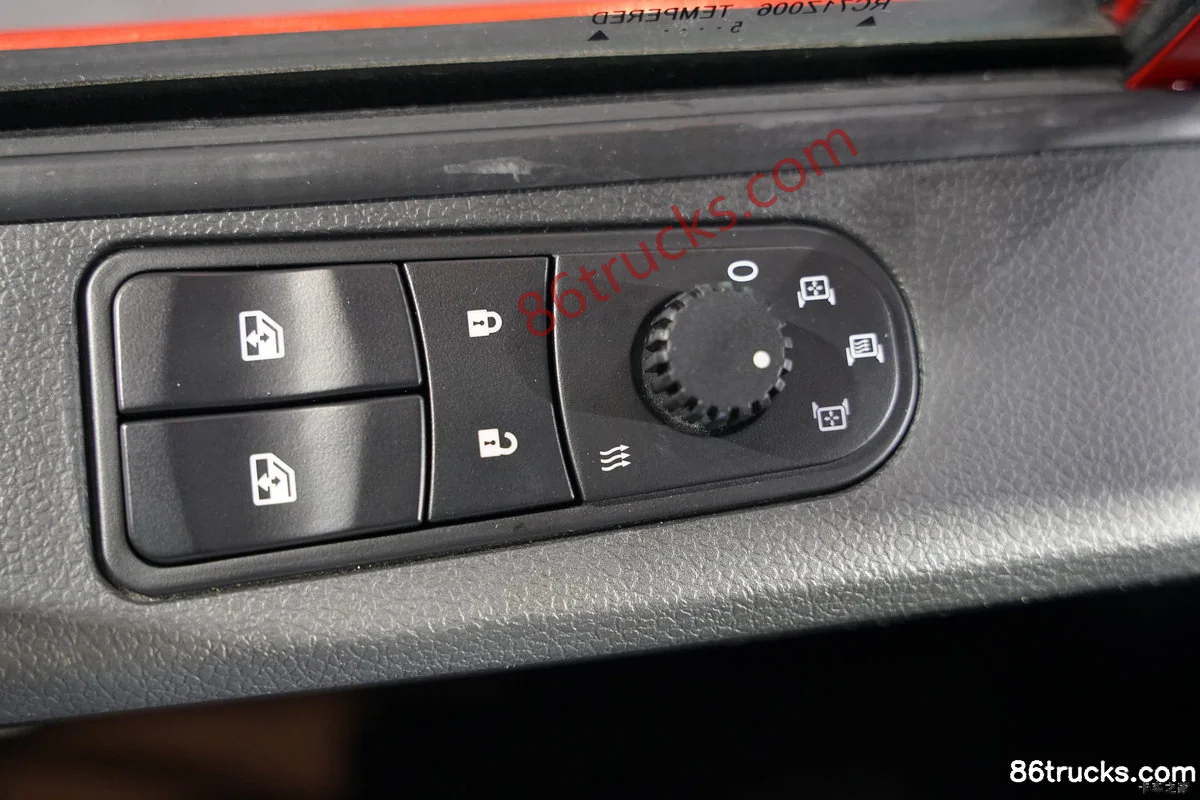

Power Windows:

Photos

Exterior3

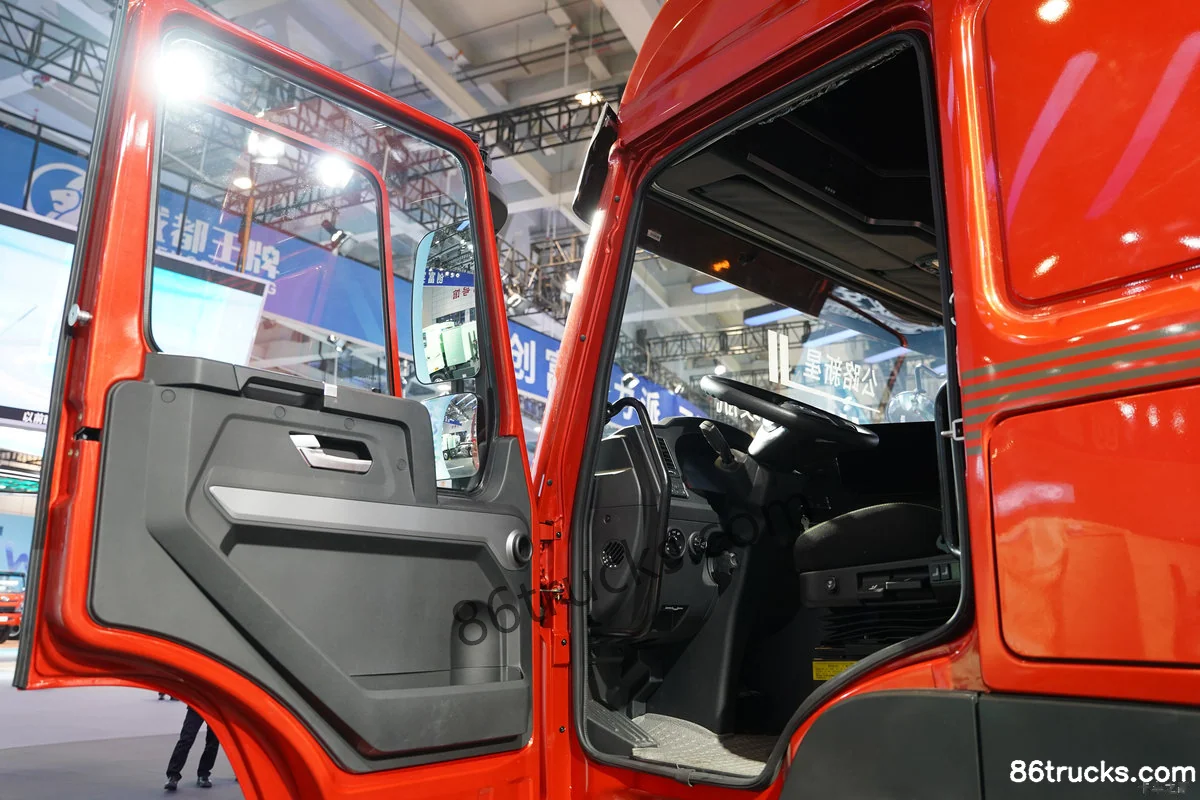

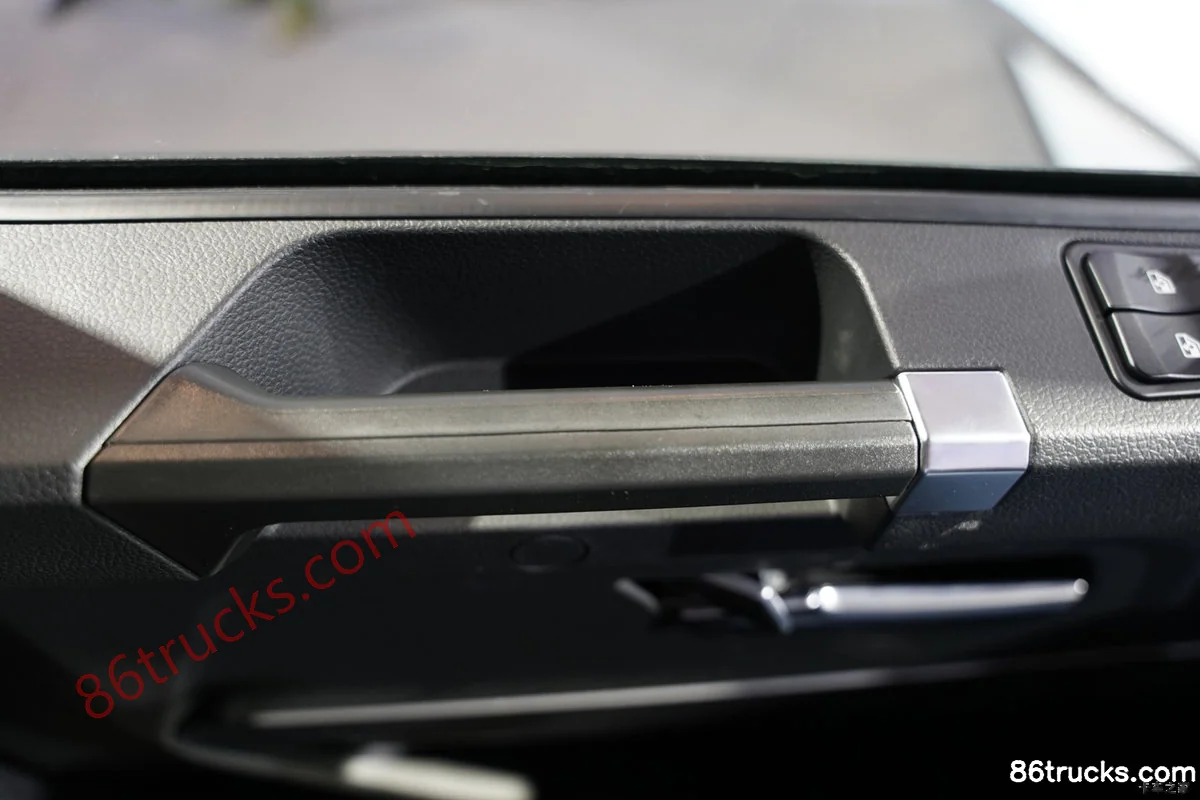

Cab3

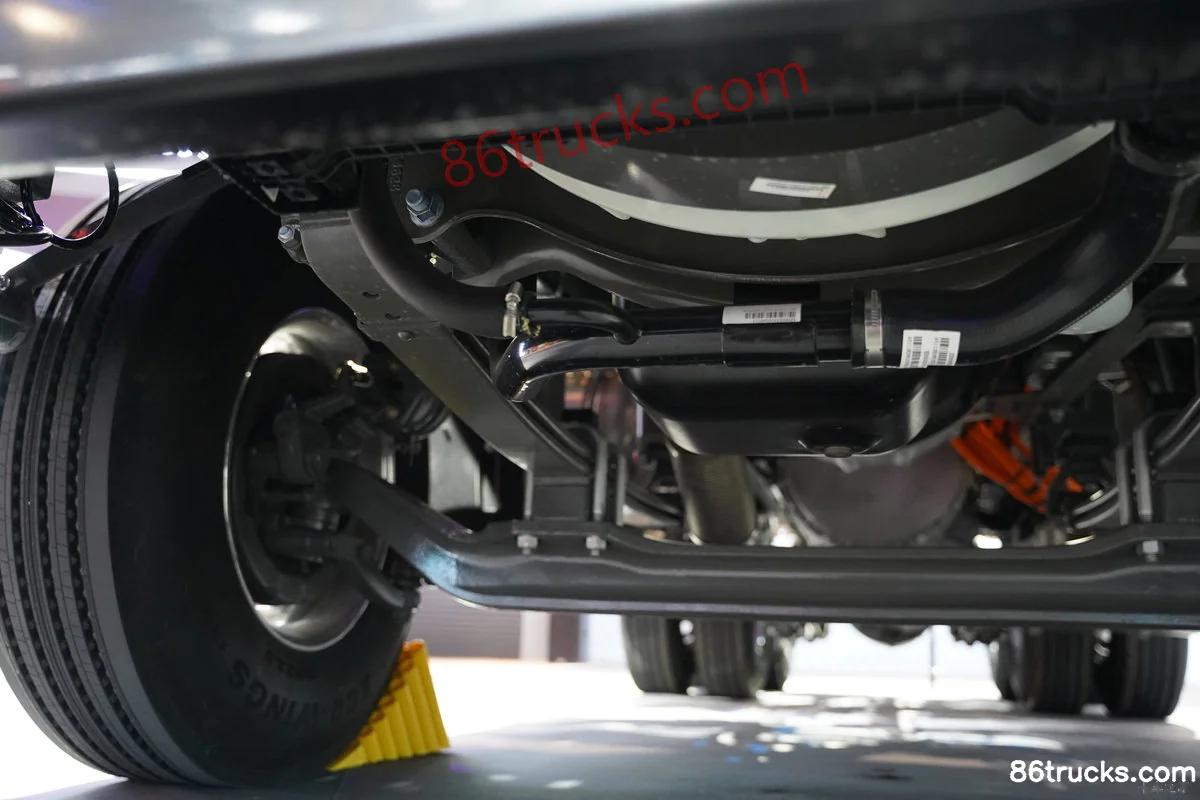

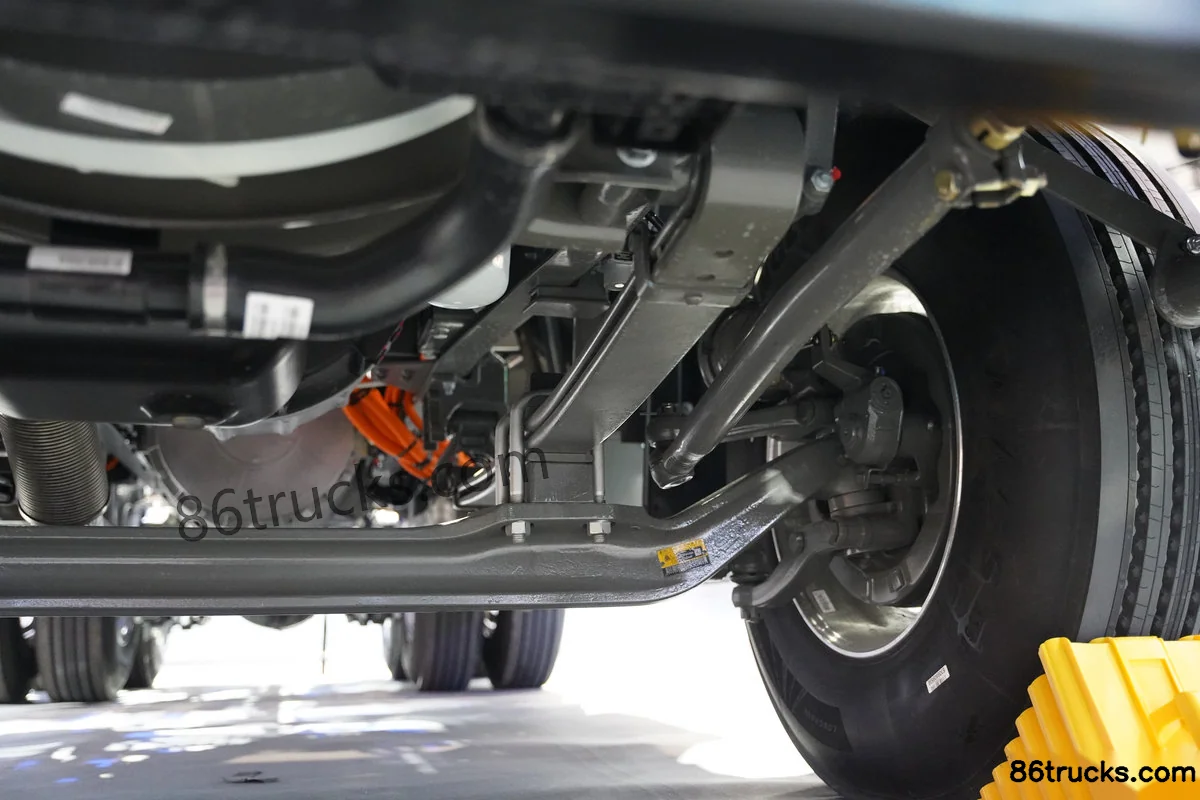

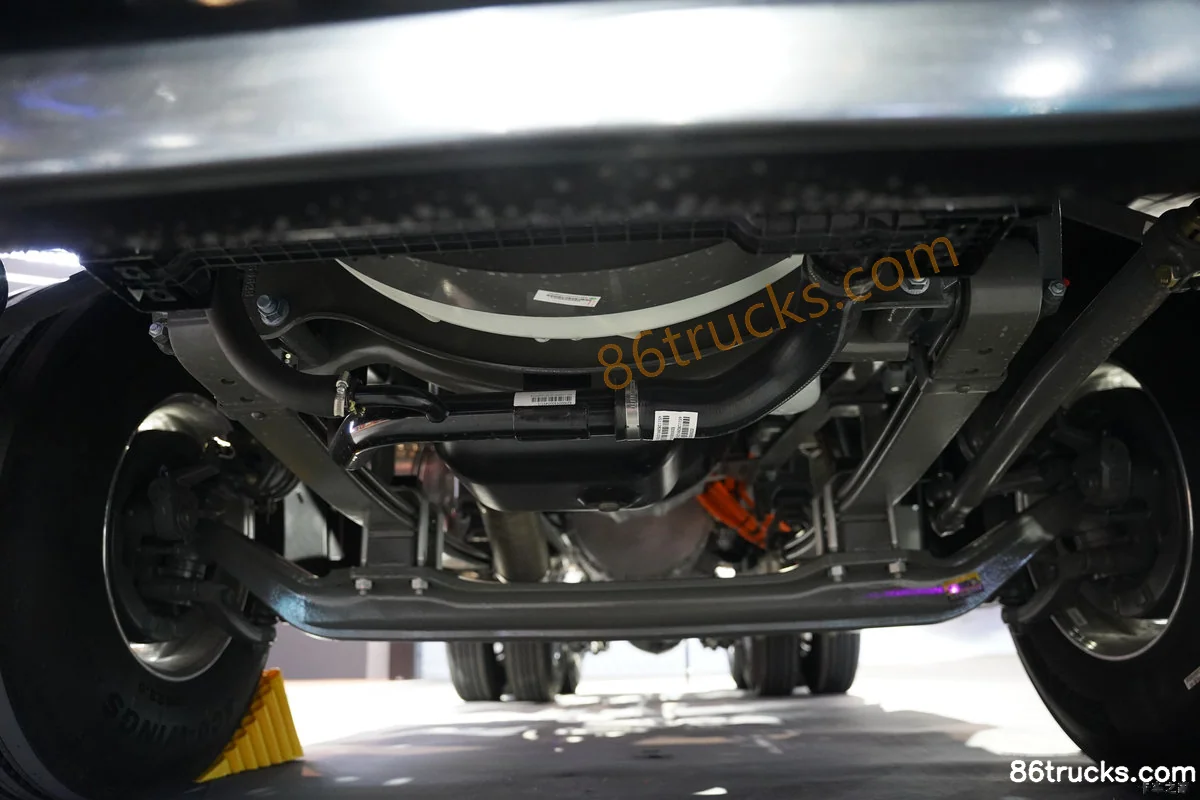

Chassis3

9 photos

FAQ

What are the key specs of Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh?

Key specs of Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh suited for?

Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh differ from other variants in the same series?

Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh belongs to SinotrukHOWOV7-X (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V7-X 6X4(10 wheels) Range-Extender Hybrid Tractor Truck 140kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
