Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck

Export reference
From $45,556
MSRP ¥32.8M CNY
Horsepower: 460
Emission: China VI
Fuel: Diesel
Engine: Sinotruk11.1L
Transmission: Sinotruk
Curb Weight:: 12.08ton
seating capacity: 2Personnel
Rated payload: 18.79ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck is a Heavy truck featuring 9.6m cargo length, Stake type cargo body, 2Personnel volume and 18.79t payload. On the powertrain side, it comes with a Sinotruk11.1L engine, 460 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 460 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5317CCYV446KF1
Type: stake truck
Drive type: 8X4
Wheelbase: 1950+4600+1400mm
Box length class: 9.6m
engine: SinotrukMC11H.46-61
transmission: Sinotruk 12-speed
Cab length: 12m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2041/2041mm
rear track: 1860/1860mm
Curb Weight: 12.08ton
Rated payload: 18.79ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Jining, Shandong
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 16°
Front/rear suspension: 1.465/2.585m
Version: Wozun Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: MC11H.46-61
Engine info: Sinotruk11.1L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.05L
Emission standard: China VI
Max output power: 341kW
Max hp: 460Horsepower
Max torque: 2200N·m
Rated speed: 1900rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: 12-speed transmission
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.46m
Cab parameters
Cab width: 2310mm
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle allowable load: 17500 (two-axle group)kg
Leaf spring count: 3/3/4
Aluminum wheels:
Tire

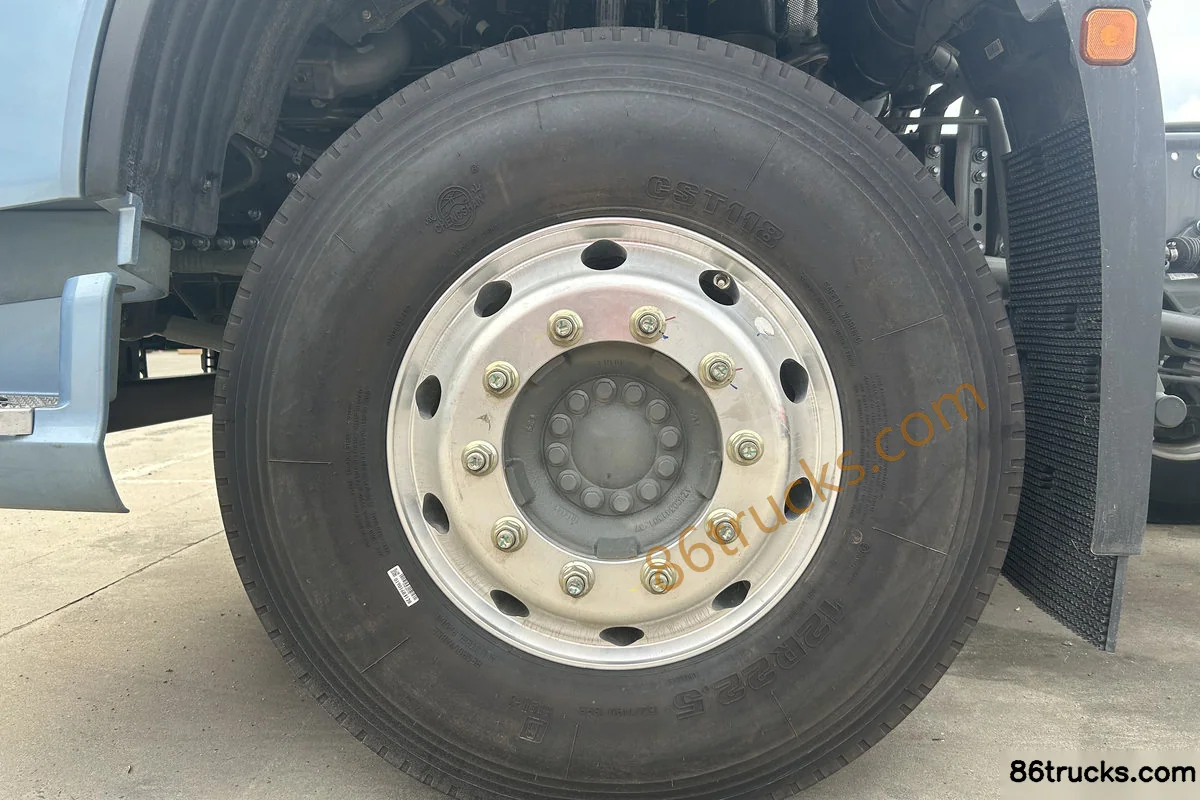

Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

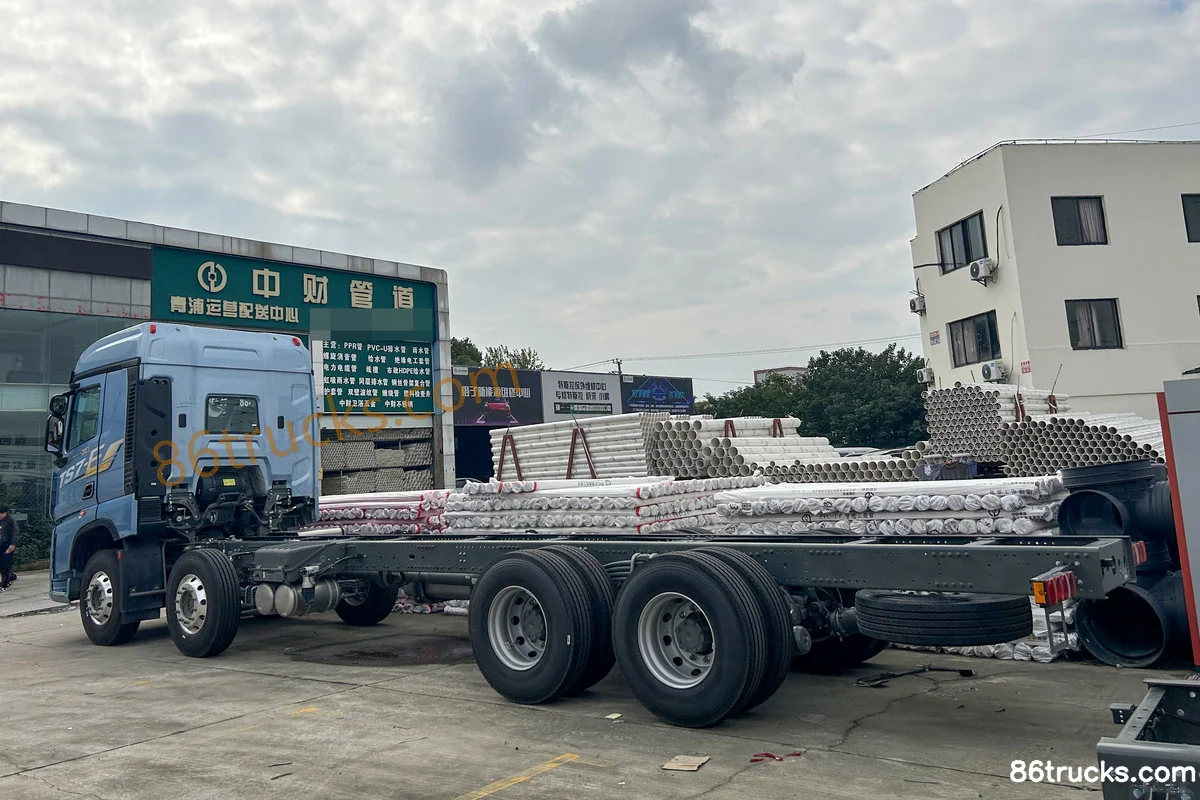

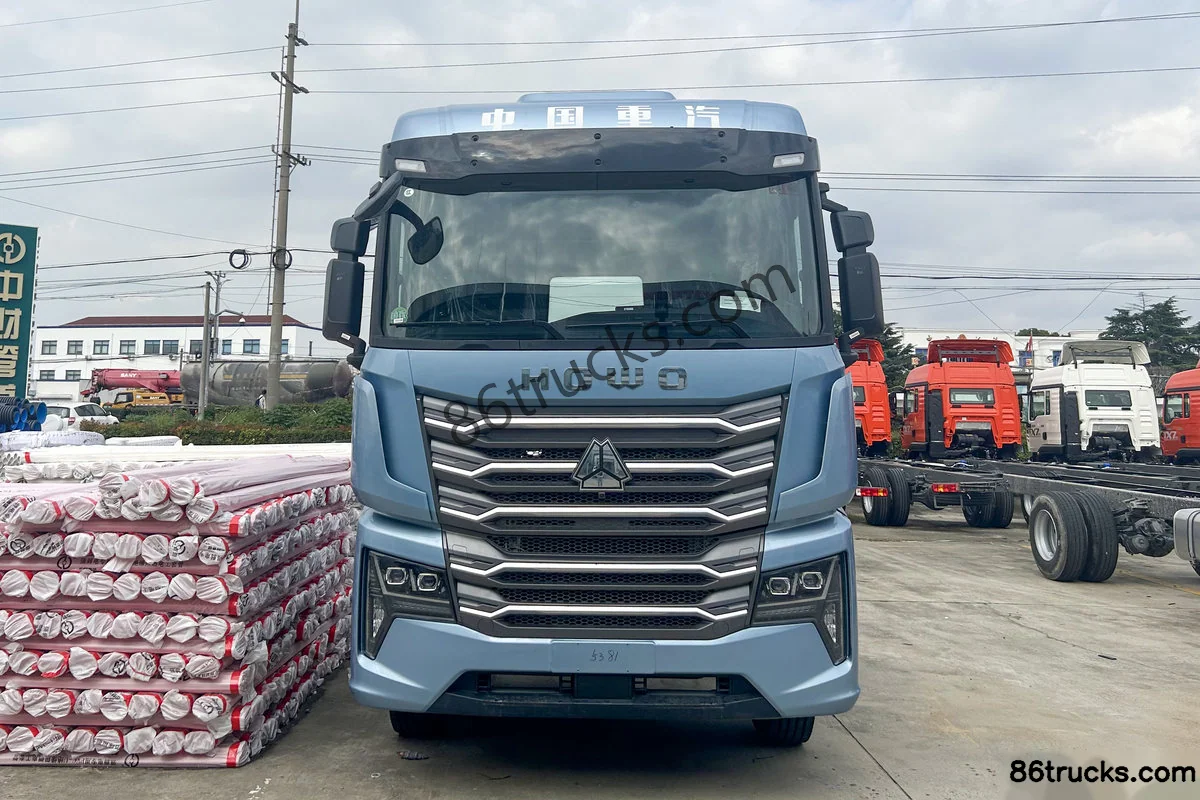

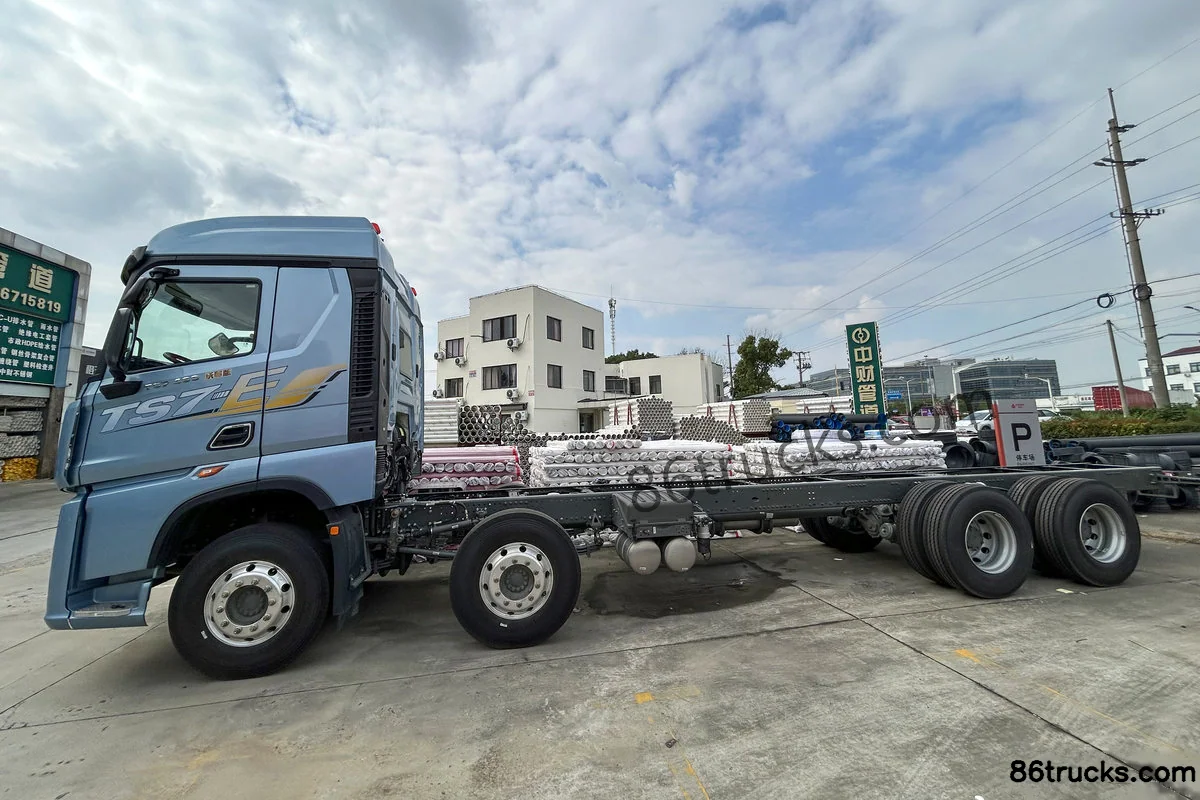

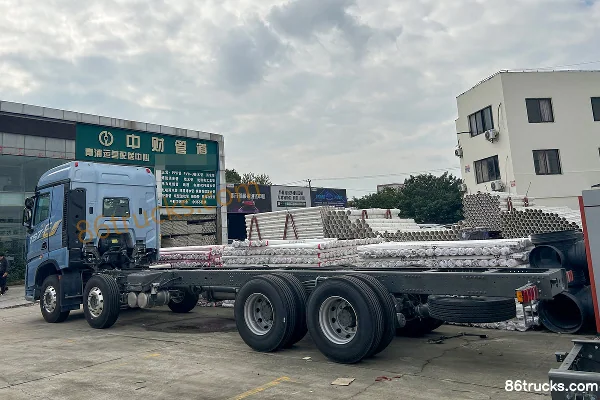

Exterior3

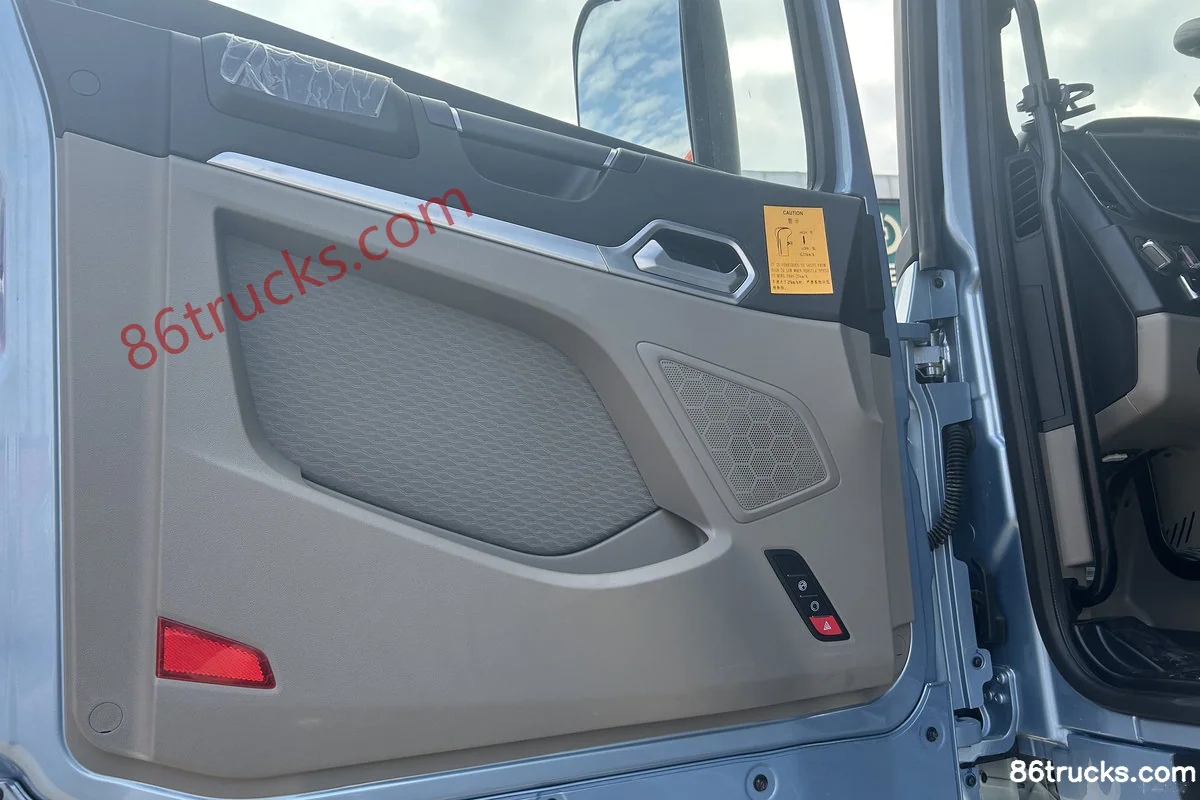

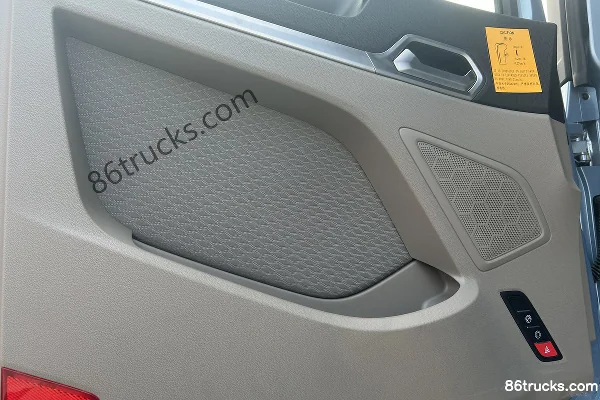

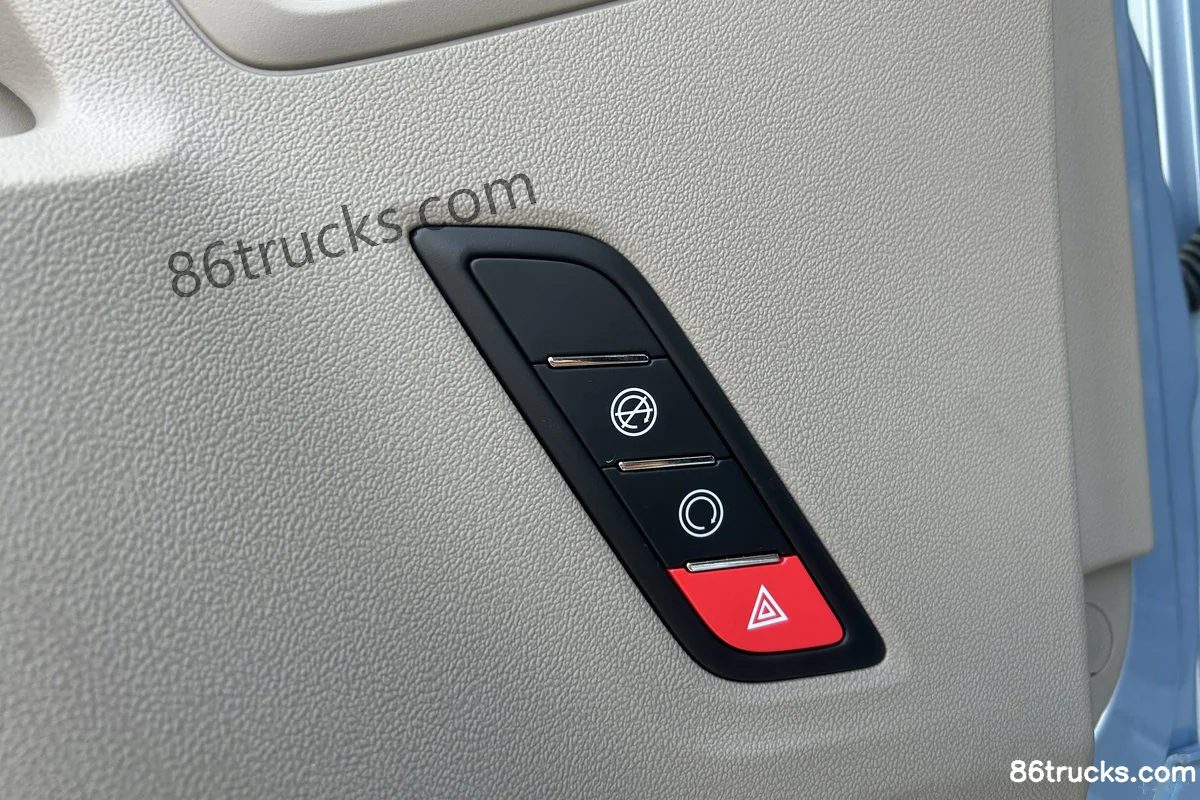

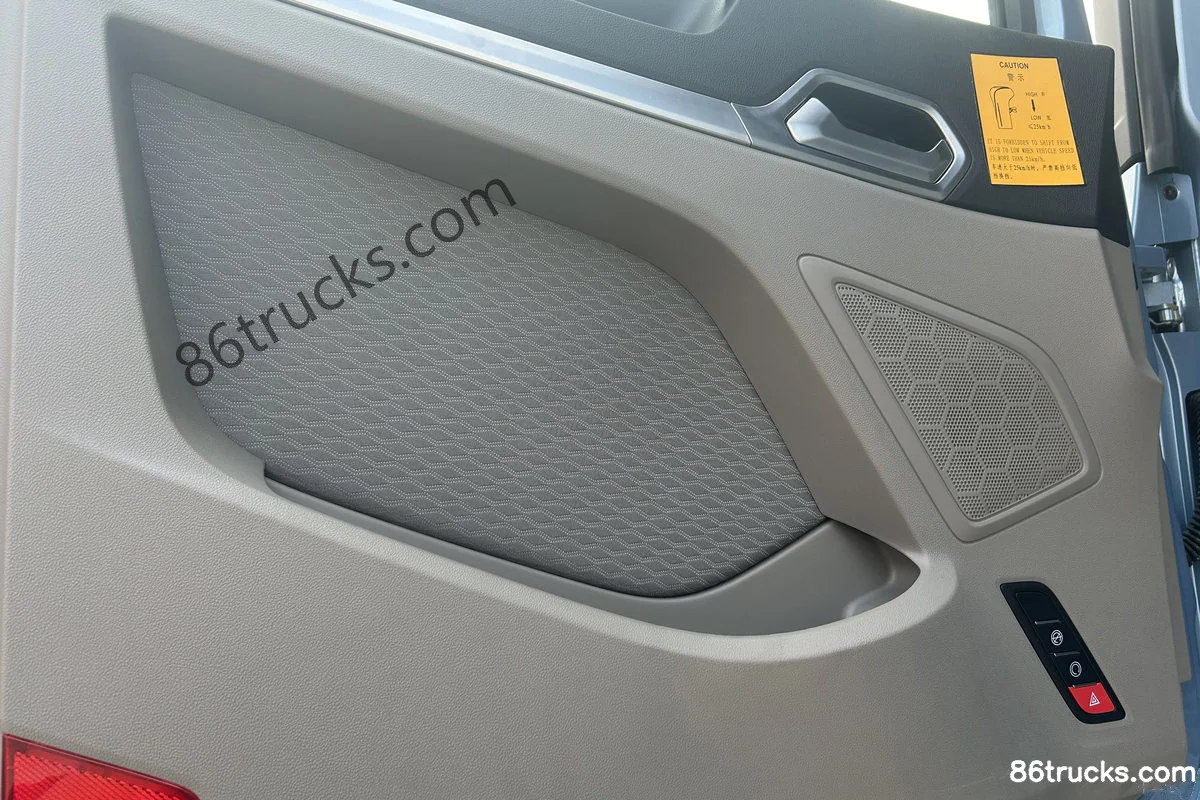

Cab3

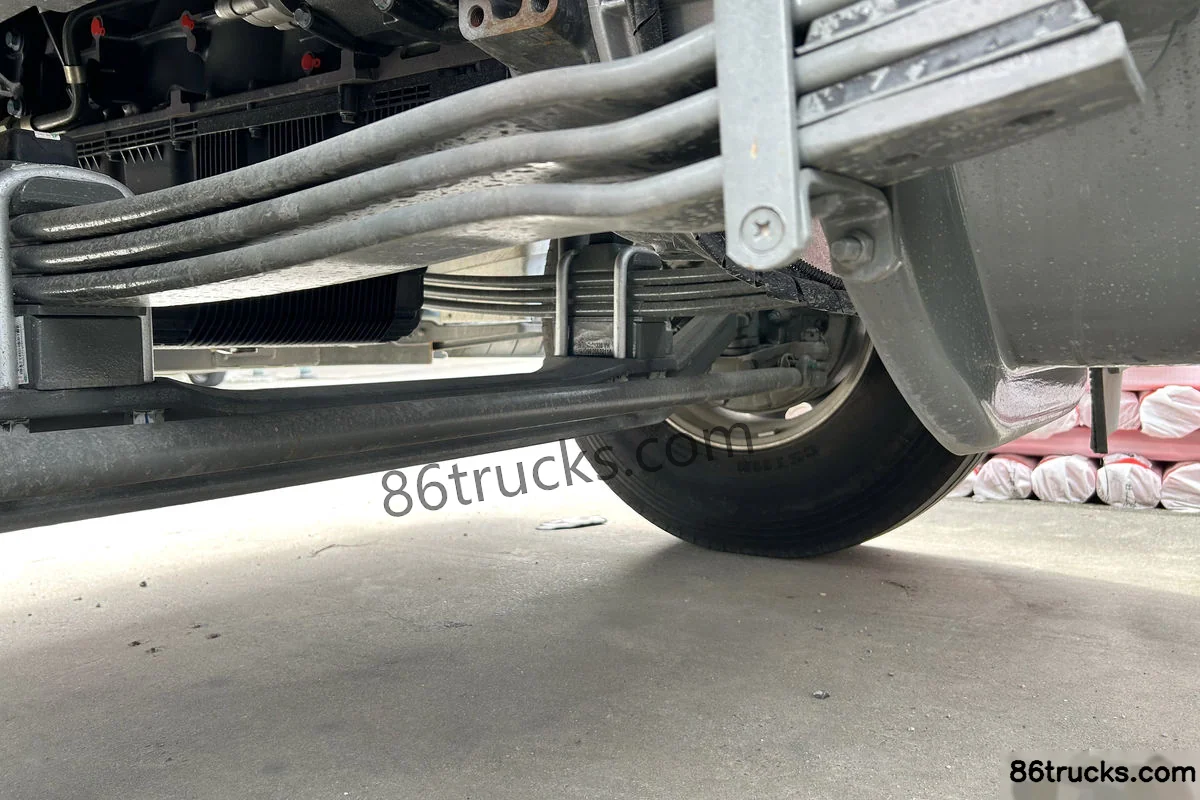

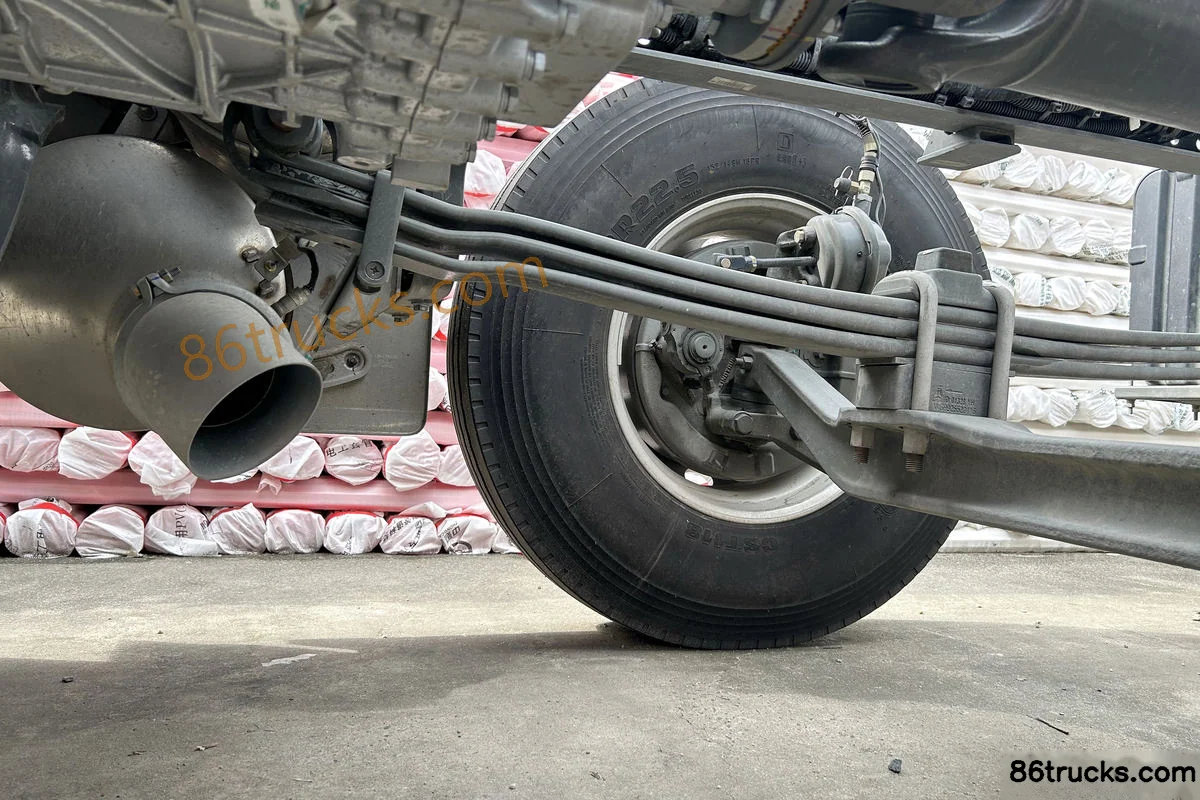

Chassis3

9 photos

FAQ

What is the export price of Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck, and what does it include?

Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck export reference is about From $45,556; MSRP is ¥32.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck?

Key specs of Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck: Drive: 8x4; Horsepower: 460 hp; Emission: China VI; Fuel: Diesel; Engine: Sinotruk11.1L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck suited for?

Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck differ from other variants in the same series?

Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck belongs to SinotrukHOWO TS7 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO HOWO TS7 Wozun Edition 11.1L Diesel 460 hp 8X4(12 wheels) Sinotruk 12-Speed 9.6m Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
