Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck

Export reference
From $19,722
MSRP ¥14.2M CNY
Horsepower: 170
Emission: China VI
Fuel: Diesel
Engine: Yunnei Dewei D40
Transmission: WLY
Curb Weight:: 3.95ton
seating capacity: 3Personnel
Rated payload: 7.775ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck is a Medium-duty truck featuring 5.15m cargo length, stake body cargo body, 3Personnel volume and 7.775t payload. On the powertrain side, it comes with a Yunnei Dewei D40 engine, 170 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1128VGJFD-AC1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.2m
engine: Yunnei PowerD40TCIF2
transmission: WLYWLY6TS55
Rear Axle Ratio: 4.333
Cab length: 7.495m
Cab width: 2.47m
Cab height: 2.505m
Front track width: 1705mm
rear track: 1800mm
Curb Weight: 3.95ton
Rated payload: 7.775ton
GVWR: 11.92ton
Max. speed: 110km/h
Origin: Beijing Changping
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 11°
Front/rear suspension: 1.13/2.065m
Version: MINI version
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD40TCIF2
Engine info: Yunnei Dewei D40
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1200-1900rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.15m
Cargo box width: 2.3m
Cargo box height: 0.55m
*Cargo box interior width: 2.3
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 4120kg
rear axle allowable load: 7800kg
Axle ratio: 4.333
Leaf spring count: 3/8+6
Tire
Tire Size: 9.5R17.5 16PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual

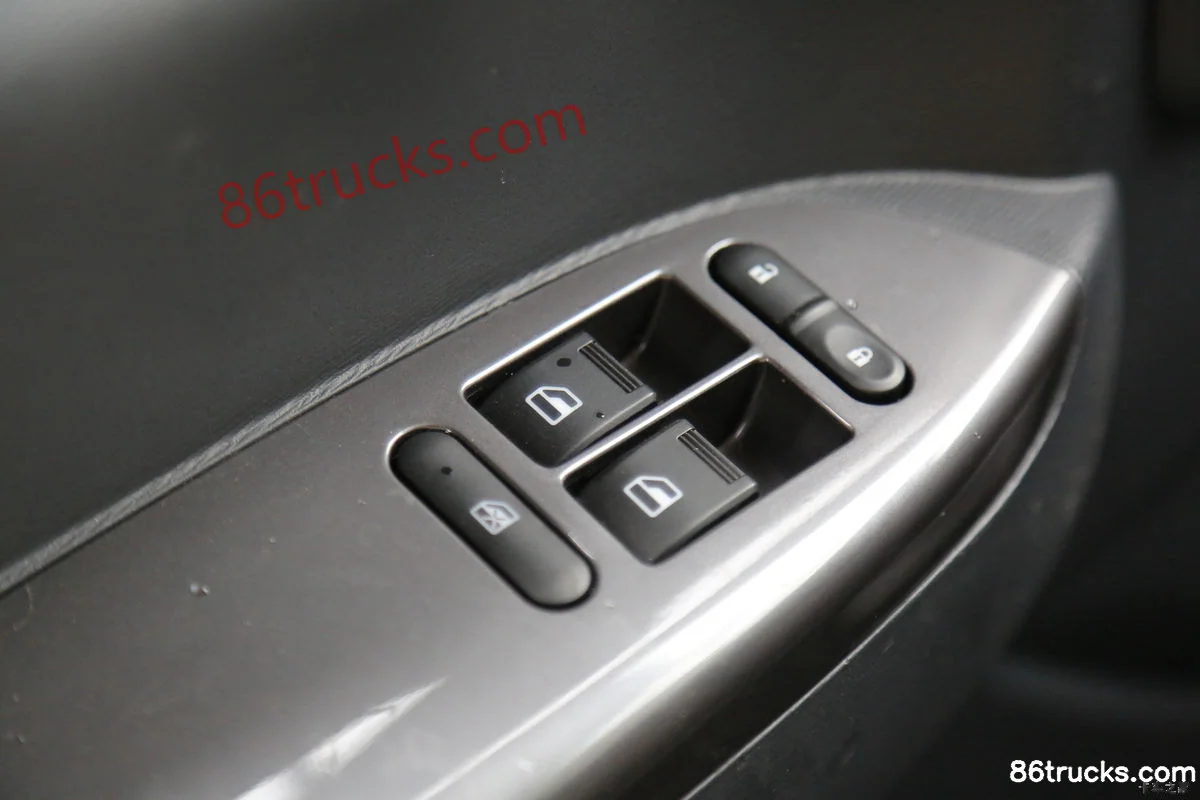

Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Radio:
standard instrument cluster:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

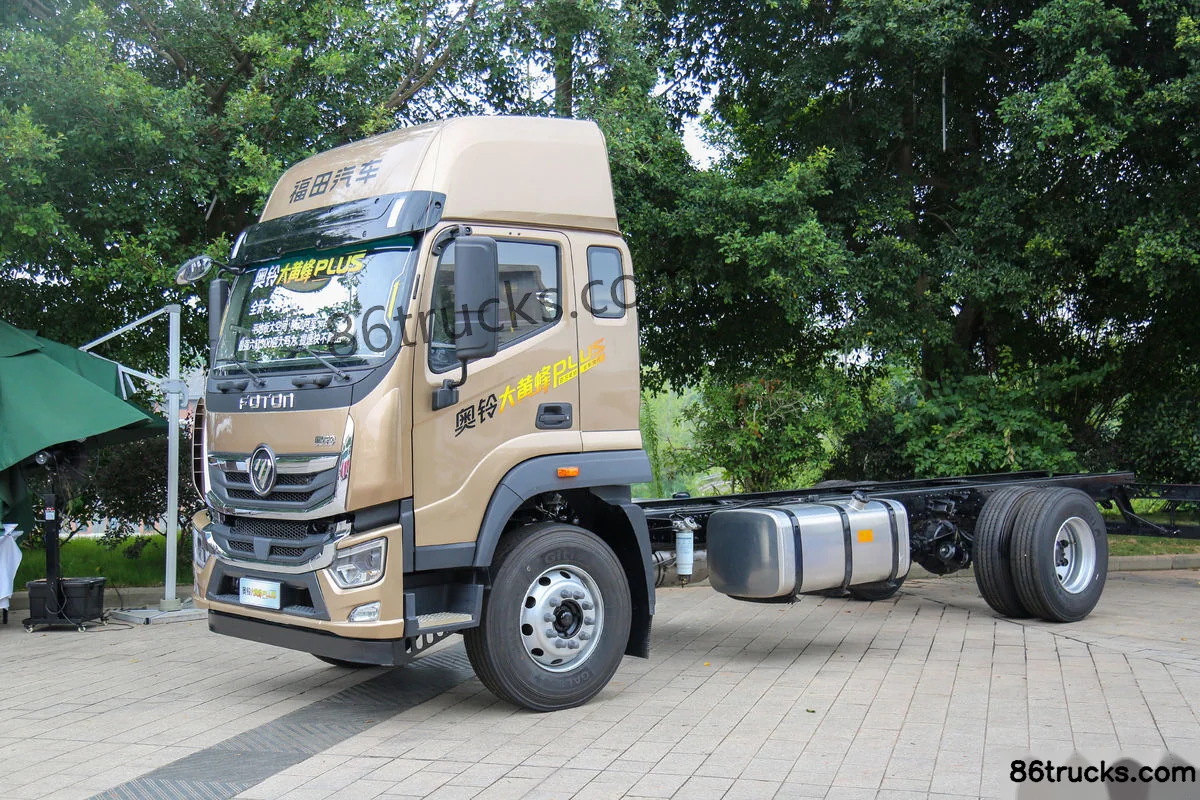

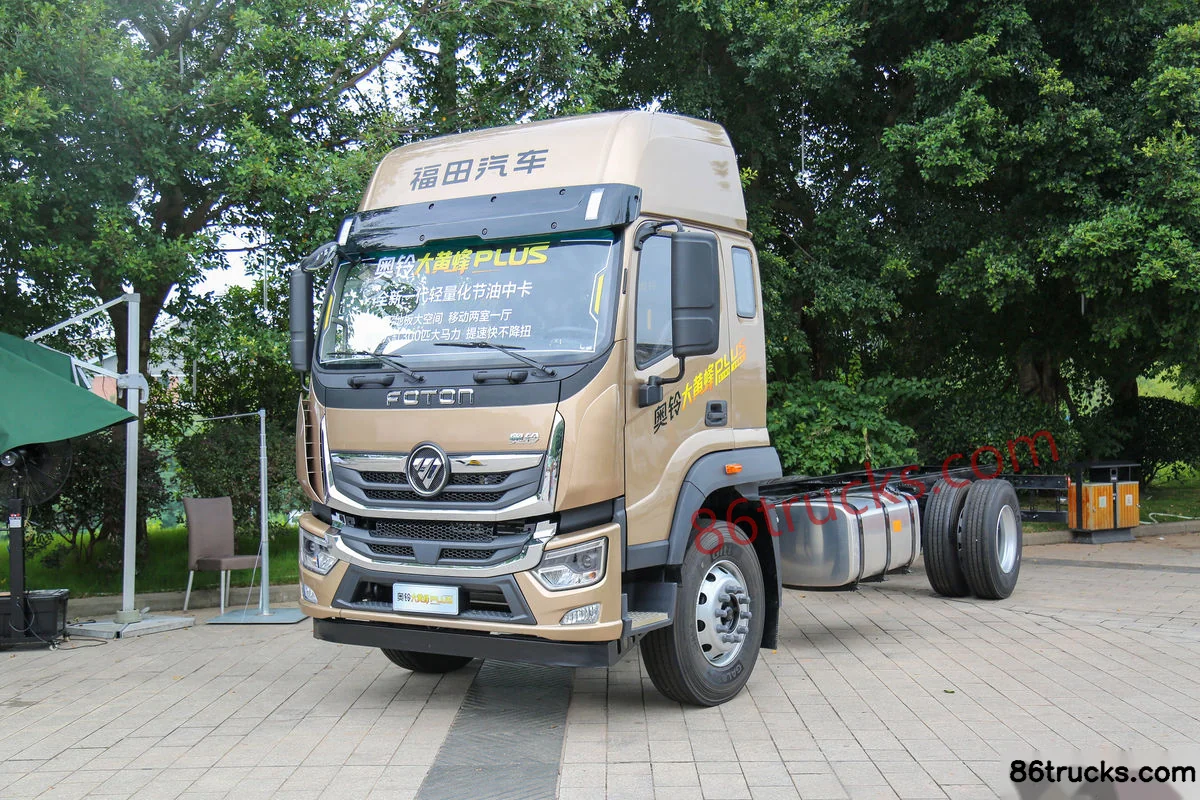

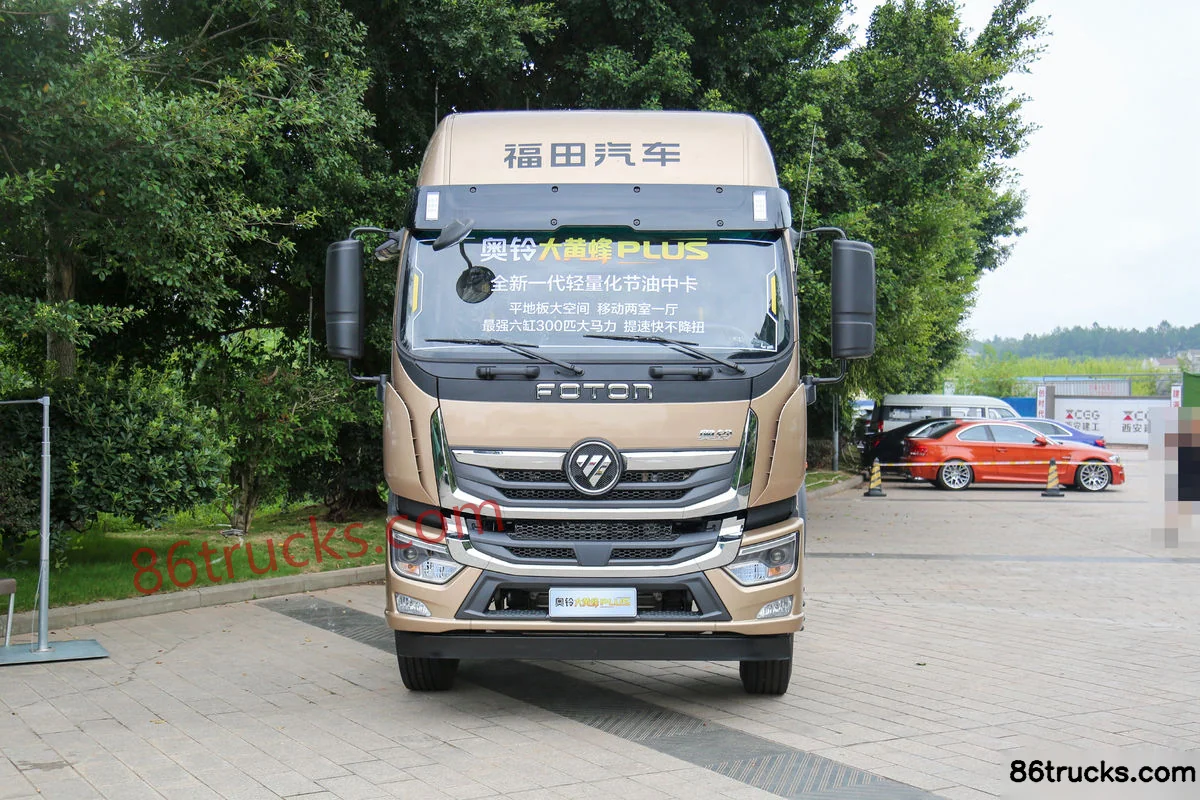

Exterior3

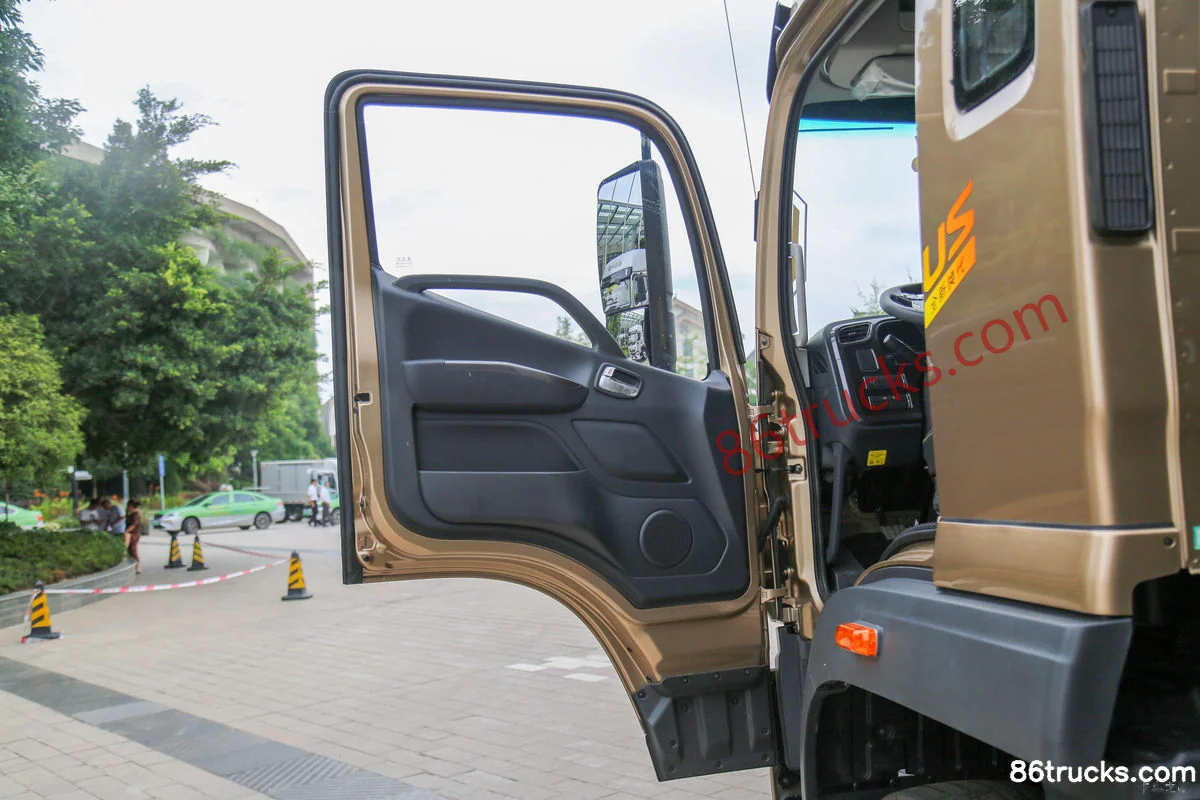

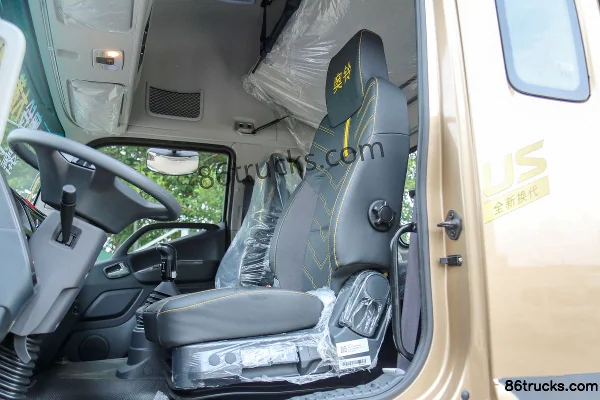

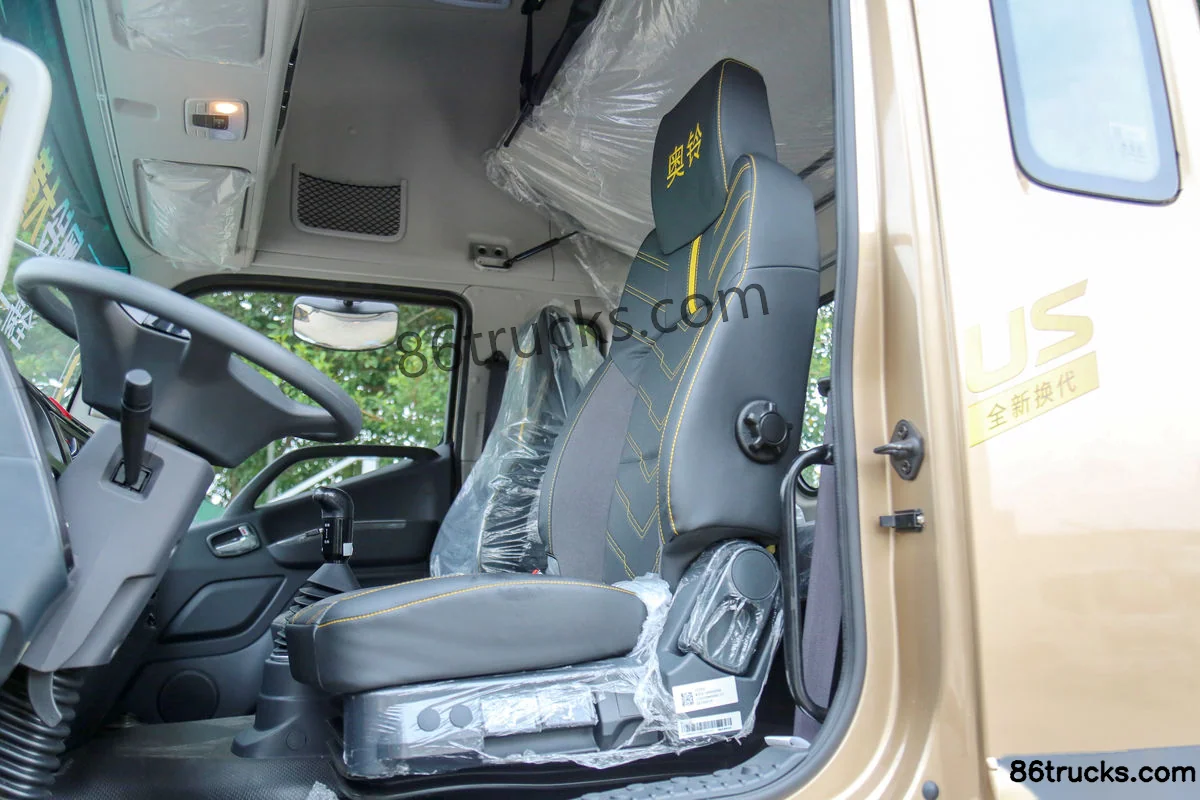

Cab3

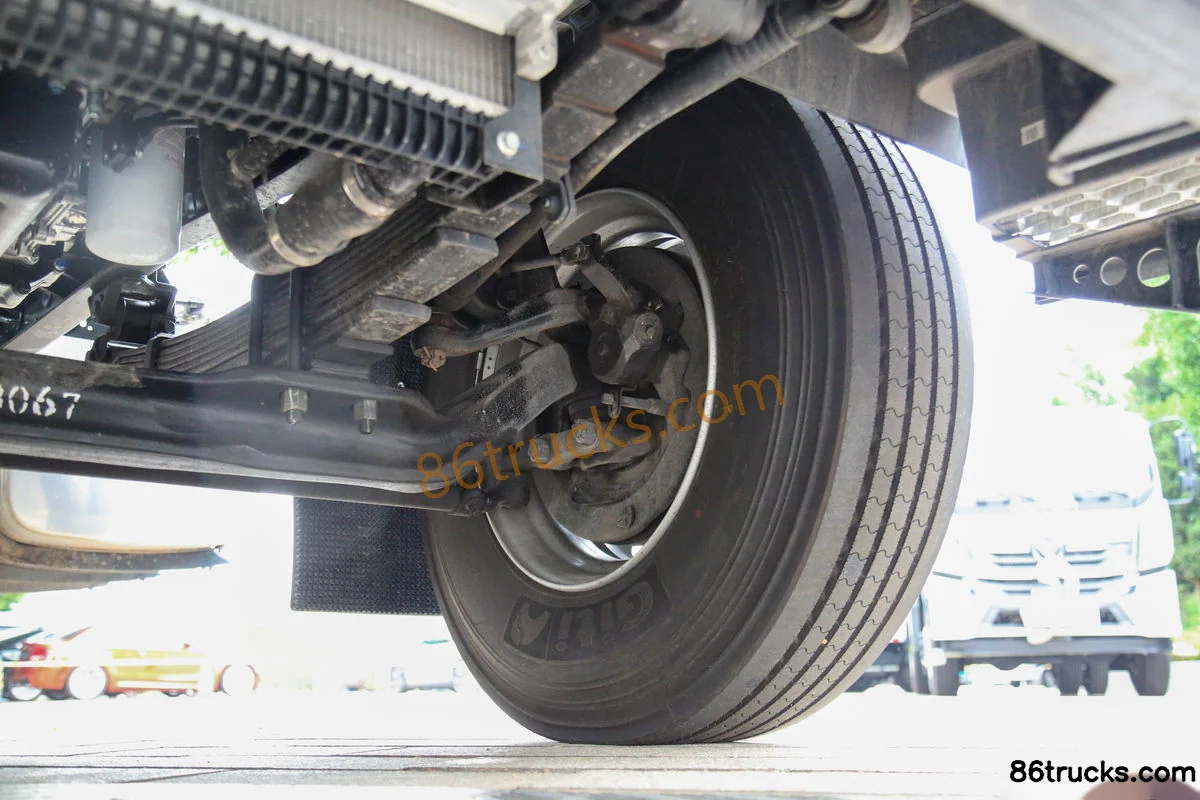

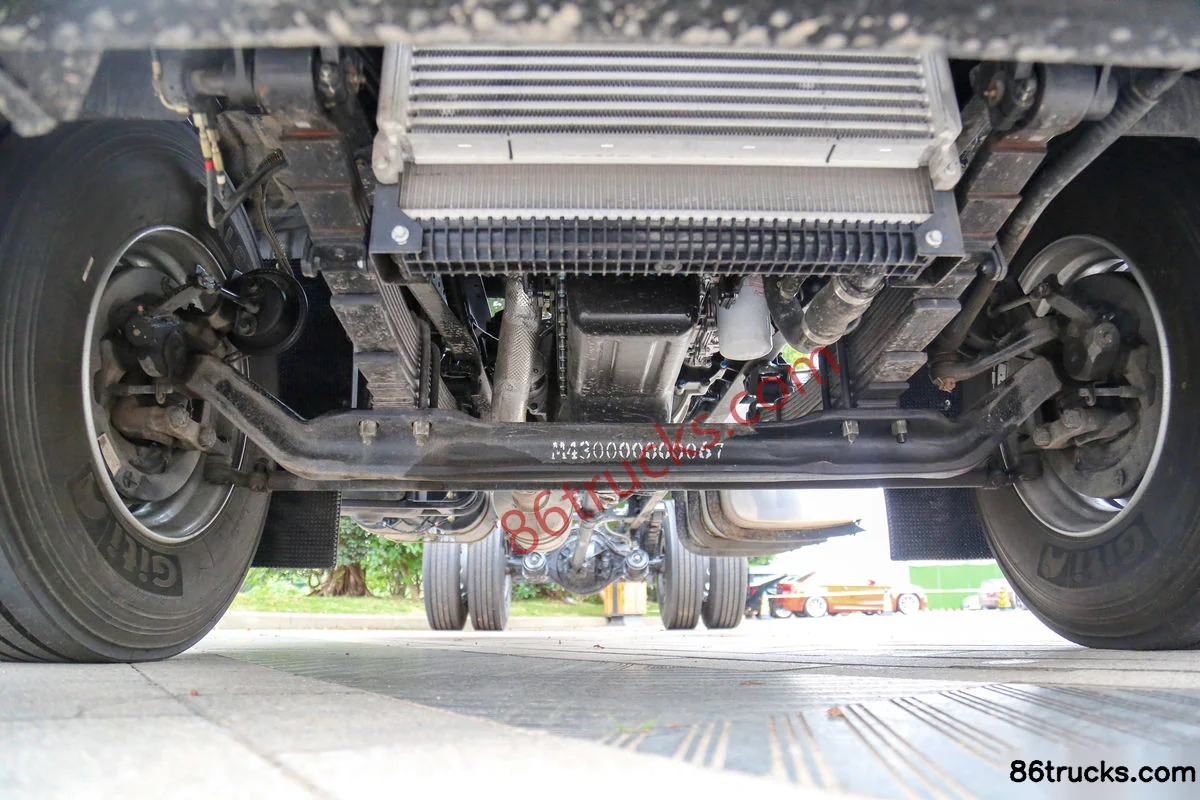

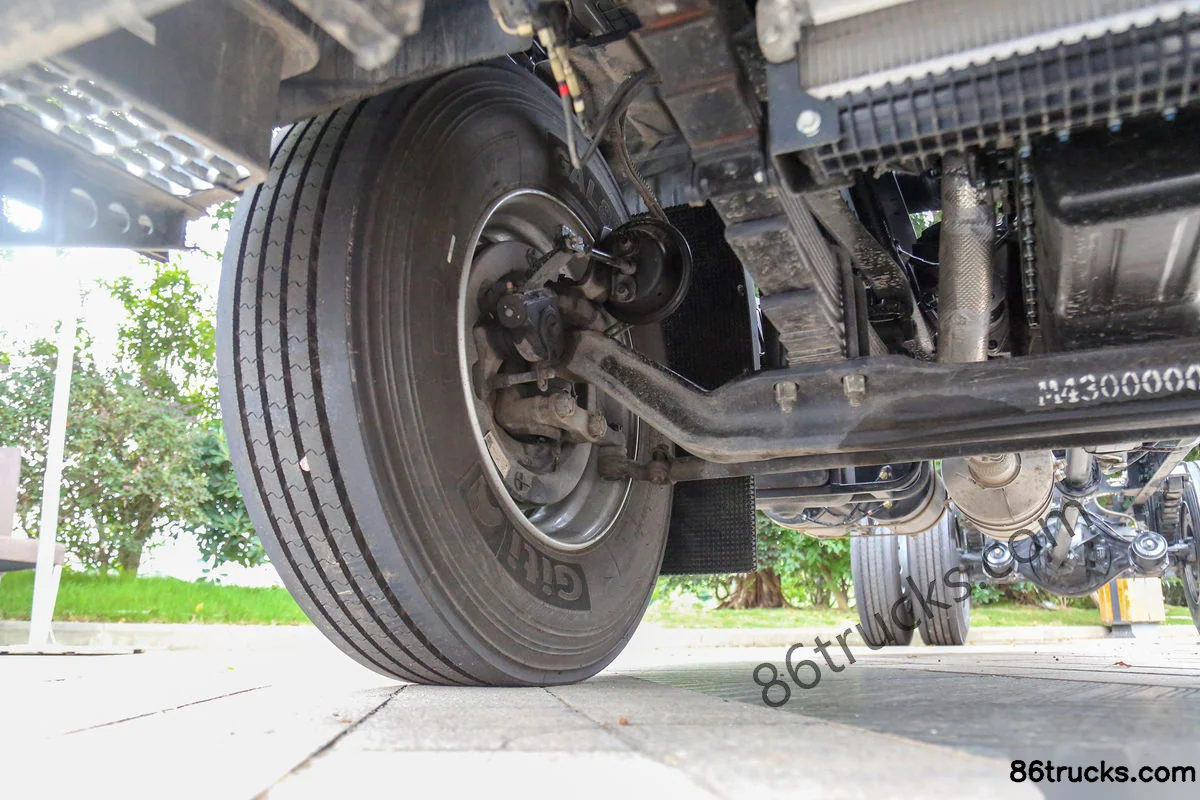

Chassis3

9 photos

FAQ

What is the export price of Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck, and what does it include?

Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck export reference is about From $19,722; MSRP is ¥14.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck?

Key specs of Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Engine: Yunnei Dewei D40; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck suited for?

Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck differ from other variants in the same series?

Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck belongs to Foton Bumblebee Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling Big Hornet MINI Edition 170hp 4X2(6 wheels) 5.15m Single-row Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
