SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.165ton
Wheelbase:: 3300mm
Cargo box type:: Van body
Model code (announced):: YTQ5042XXYJEEV336
Type:: enclosed cargo truck
Box length class:: 4.2m
SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: Wolong ZF
Curb Weight: 3.2ton

Overview

The SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) is a Light Truck featuring 260km battery/range, Wolong ZF motor, 4X2 (6 wheels) drive and 1.165t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): YTQ5042XXYJEEV336
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.99m
Cab width: 2.18m
Cab height: 3.21m
CLTC range: 260km
Curb Weight: 3.2ton
Rated payload: 1.165ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Shandong Yantai
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Wolong ZF
Motor 1 Model: TZ280XS-HD001
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
Battery/Charging
Battery Brand: Wolong
Battery capacity: 98.04kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.18m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab: mid-body single row
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1890kg
rear axle description: Rated load 5T/13.52 Hande maintenance-free rear axle
rear axle allowable load: 2605kg
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Reverse Camera:
Multimedia features
Bluetooth / hands-free calling:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior3

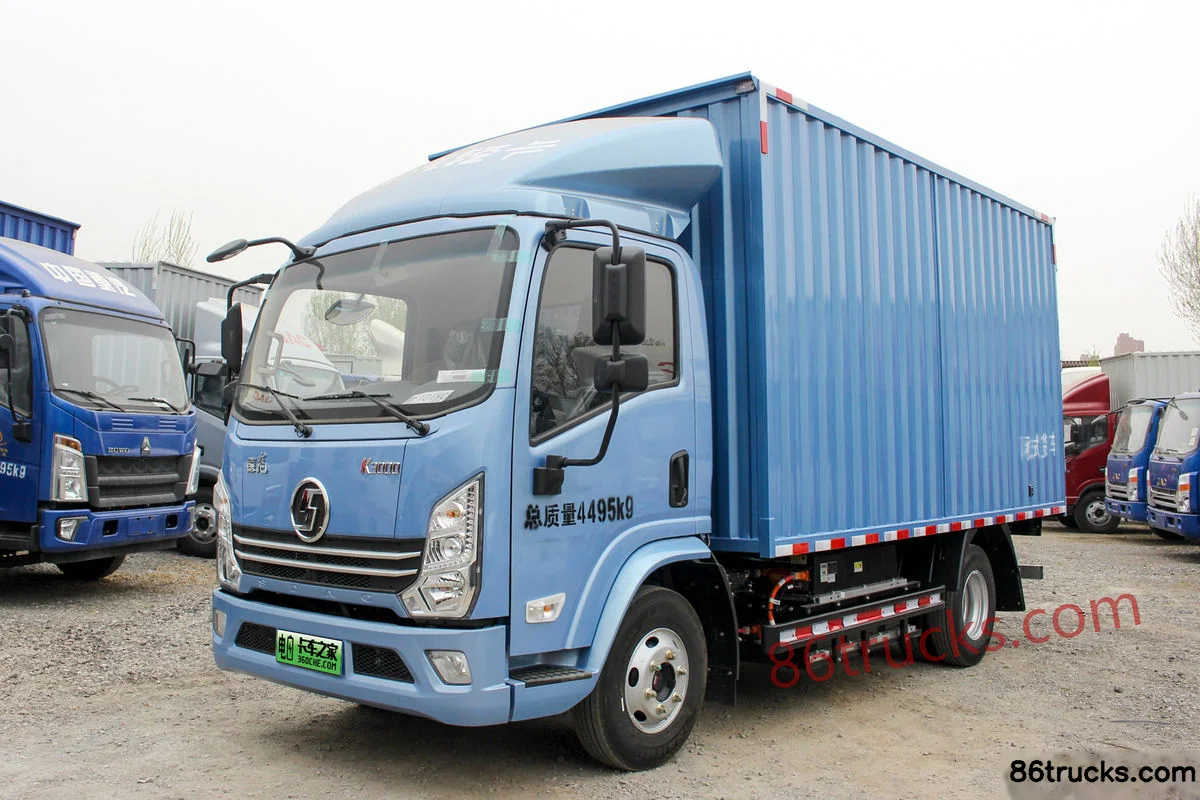

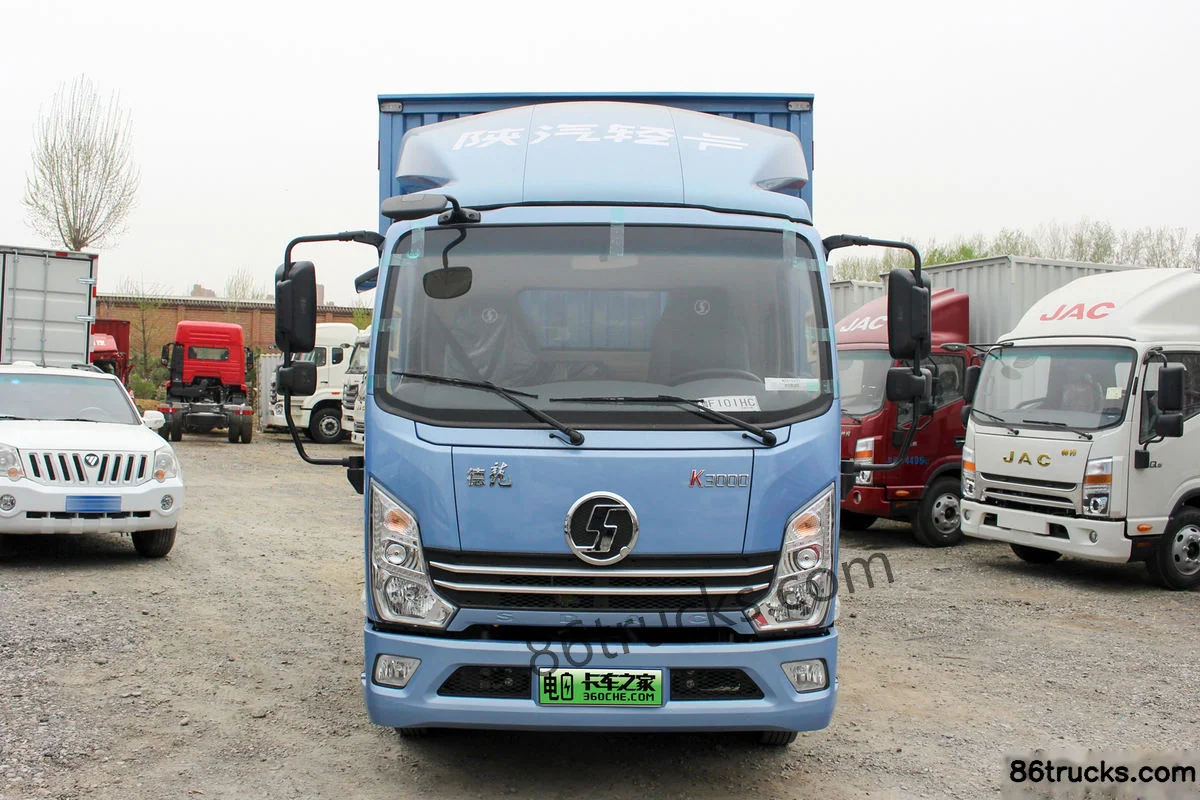

SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Exterior (1) | 86Trucks SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Exterior (2) | 86Trucks SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Exterior (3) | 86Trucks

Interior3

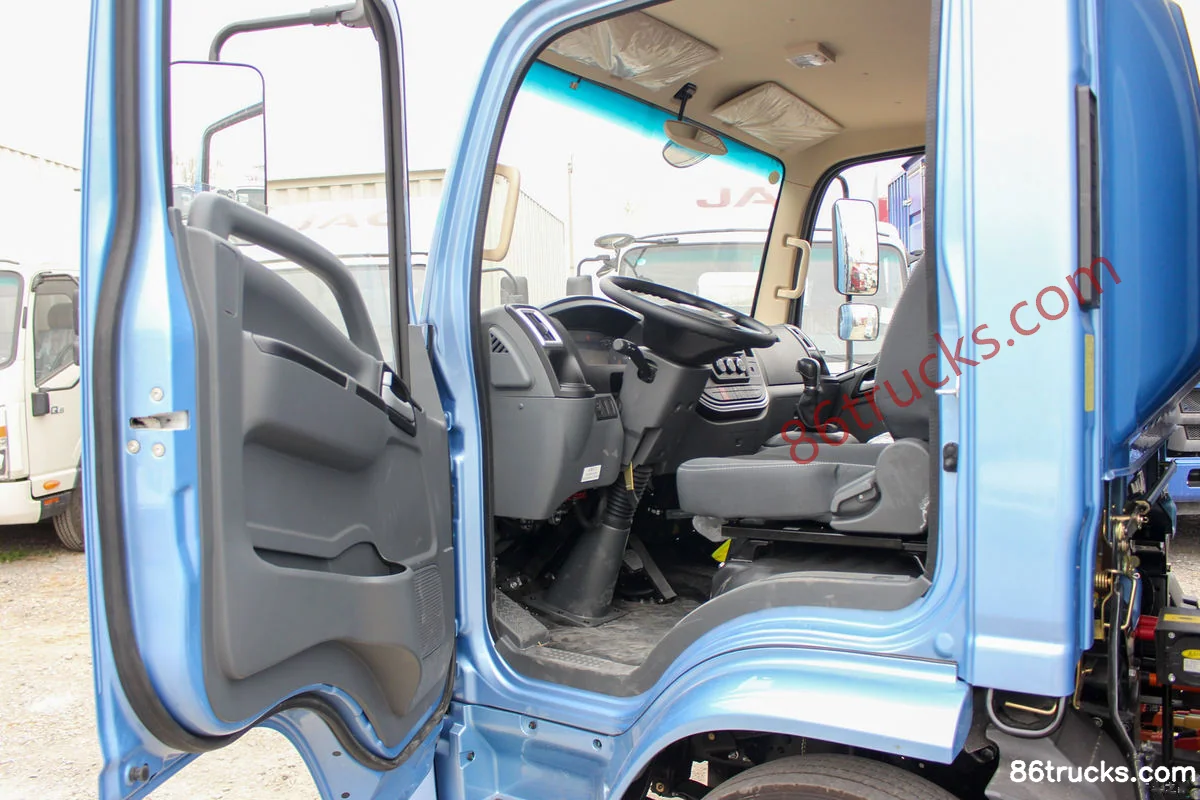

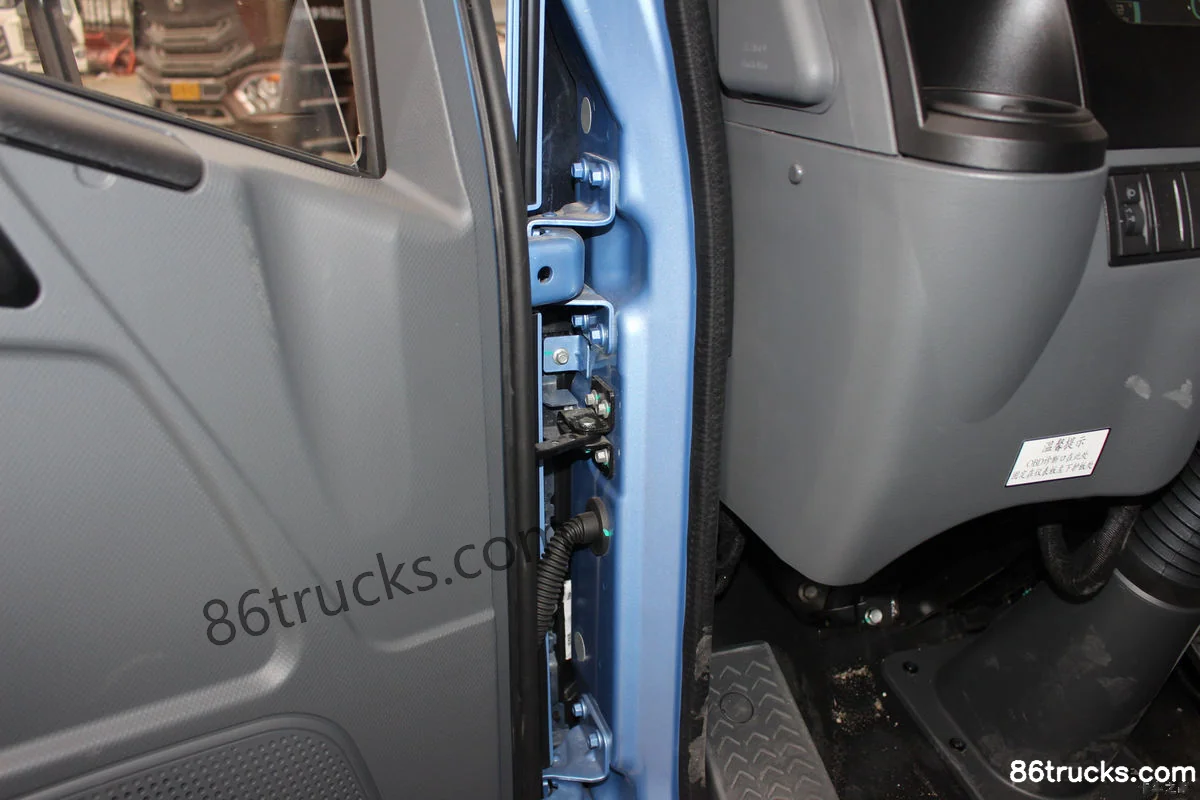

SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Interior (1) | 86Trucks SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Interior (2) | 86Trucks SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Interior (3) | 86Trucks

Chassis3

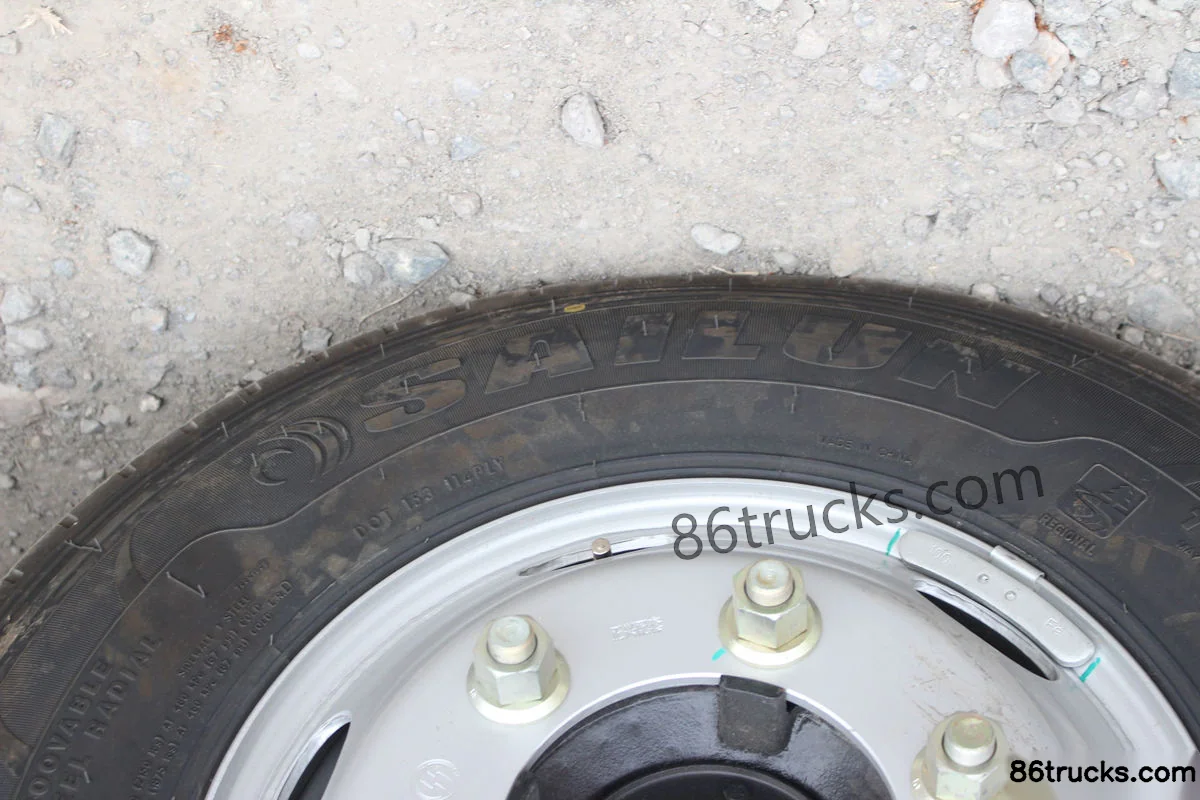

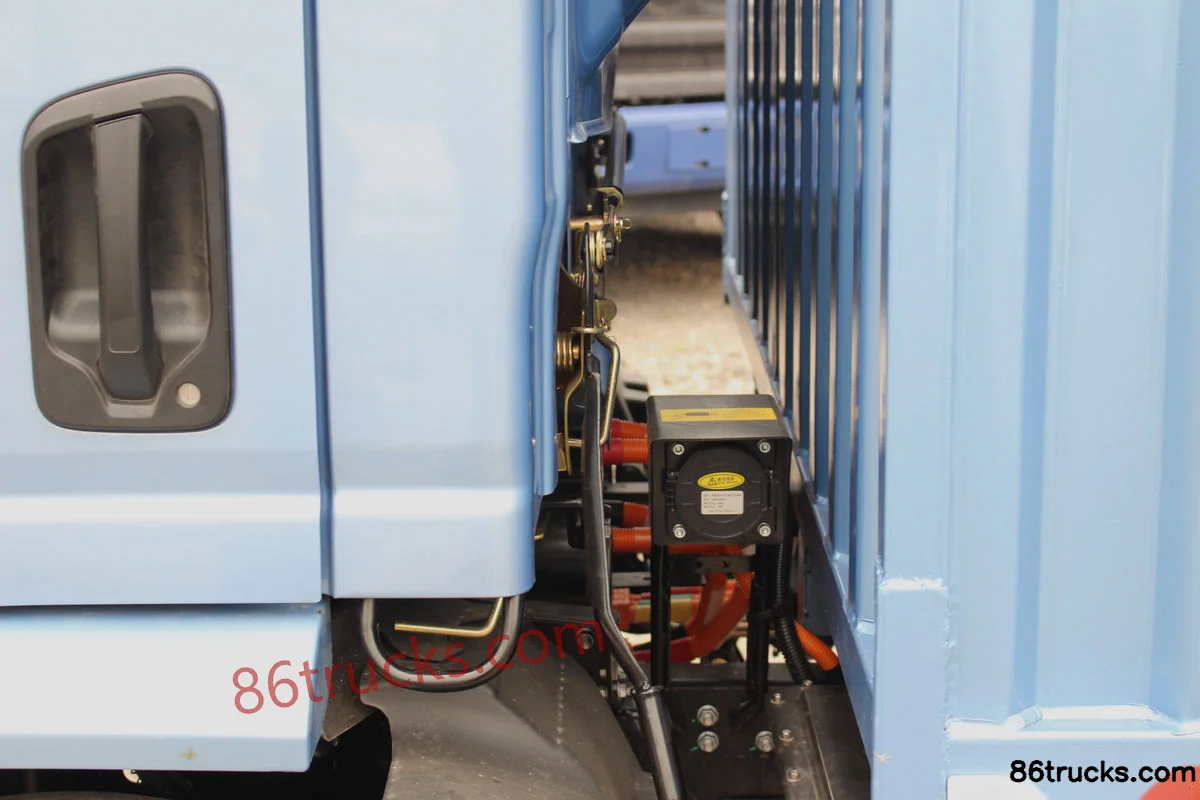

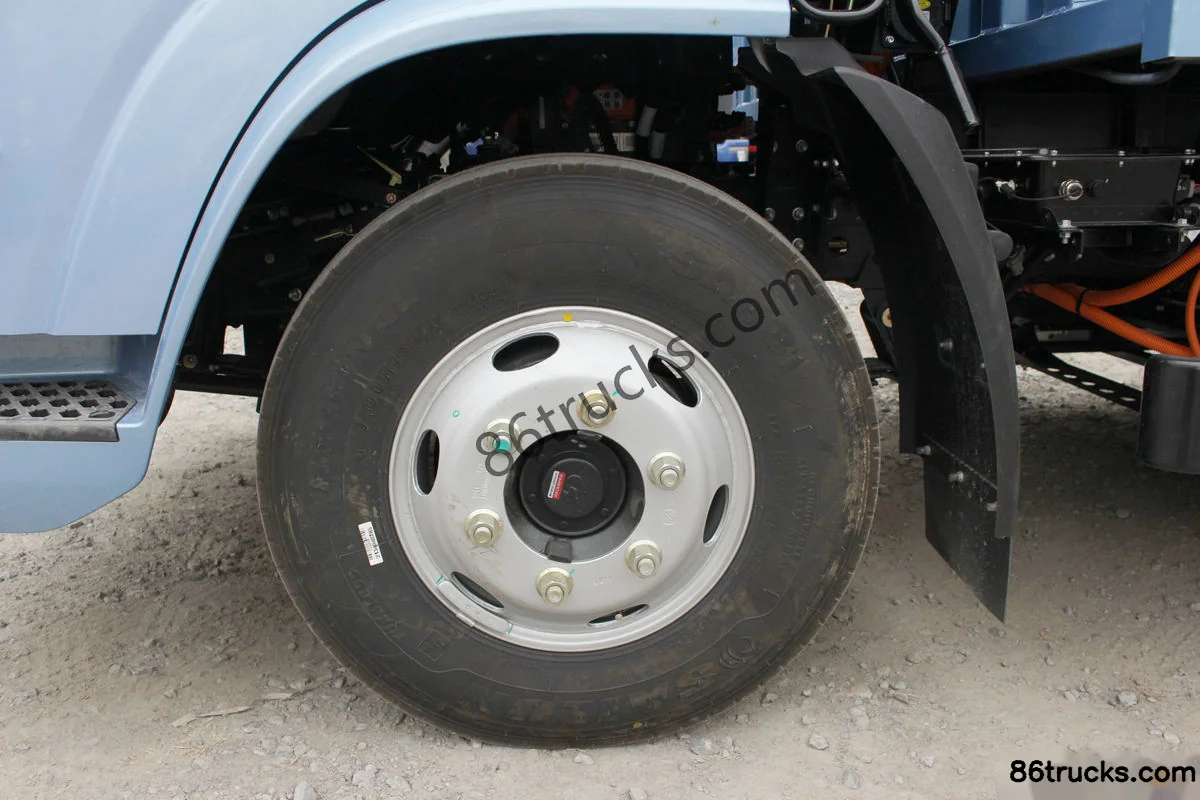

SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Chassis (1) | 86Trucks SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Chassis (2) | 86Trucks SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Chassis (3) | 86Trucks

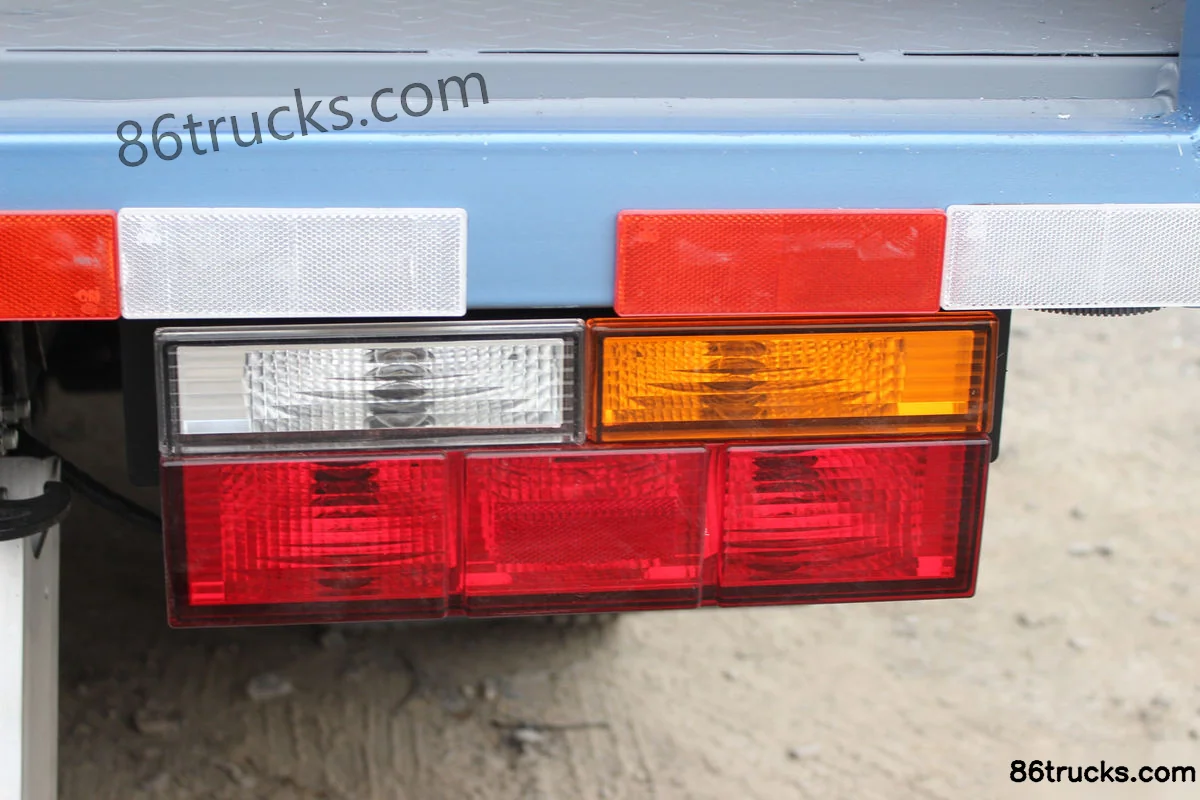

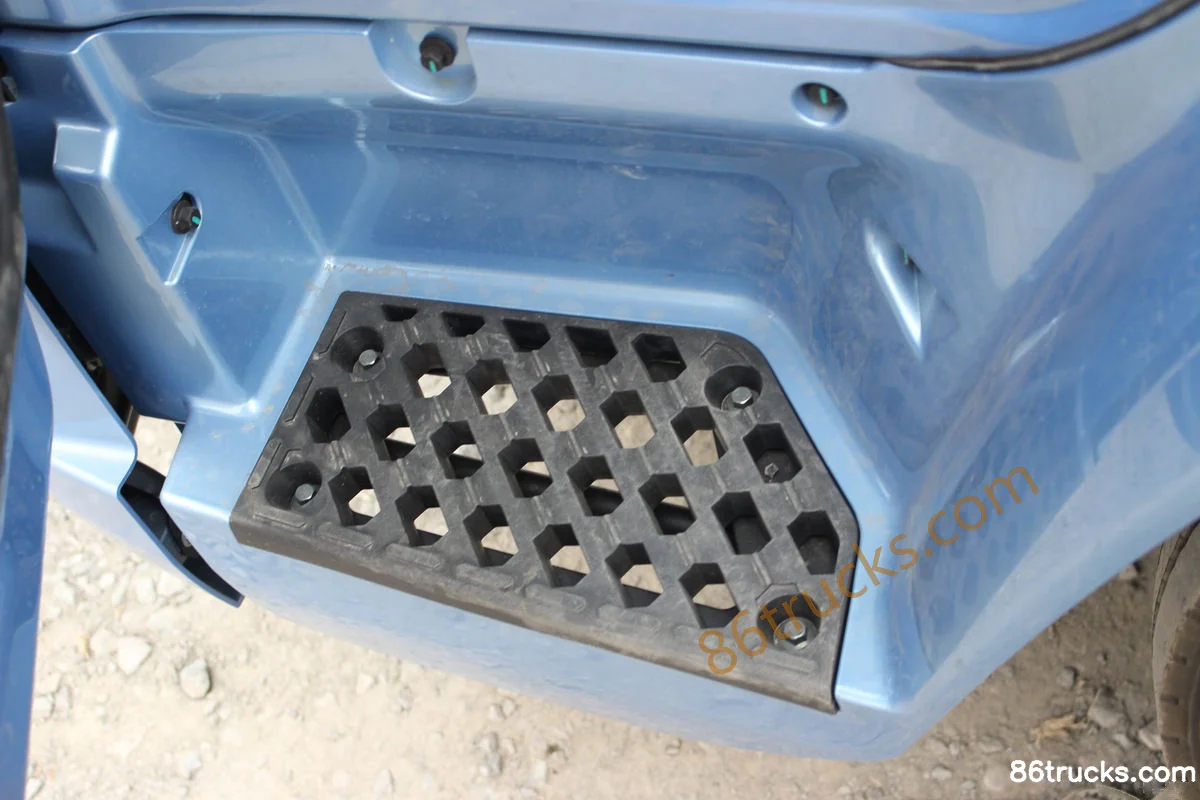

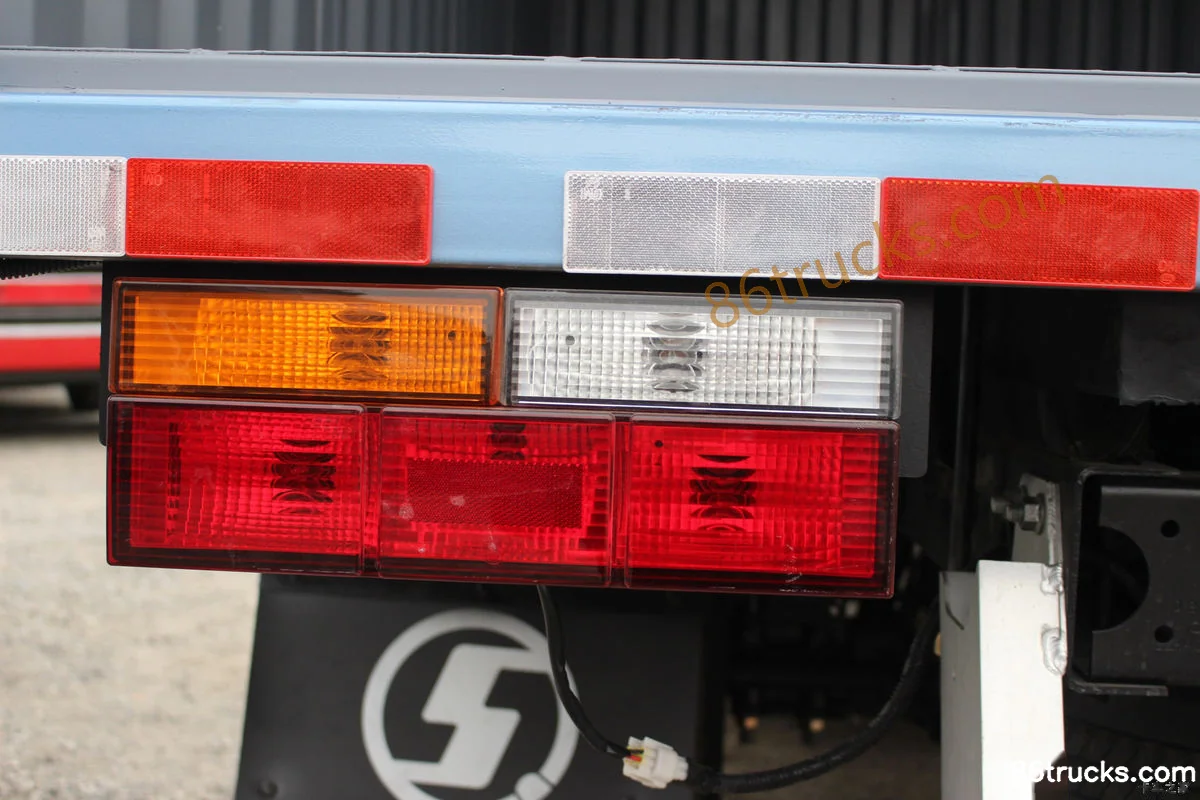

Body3

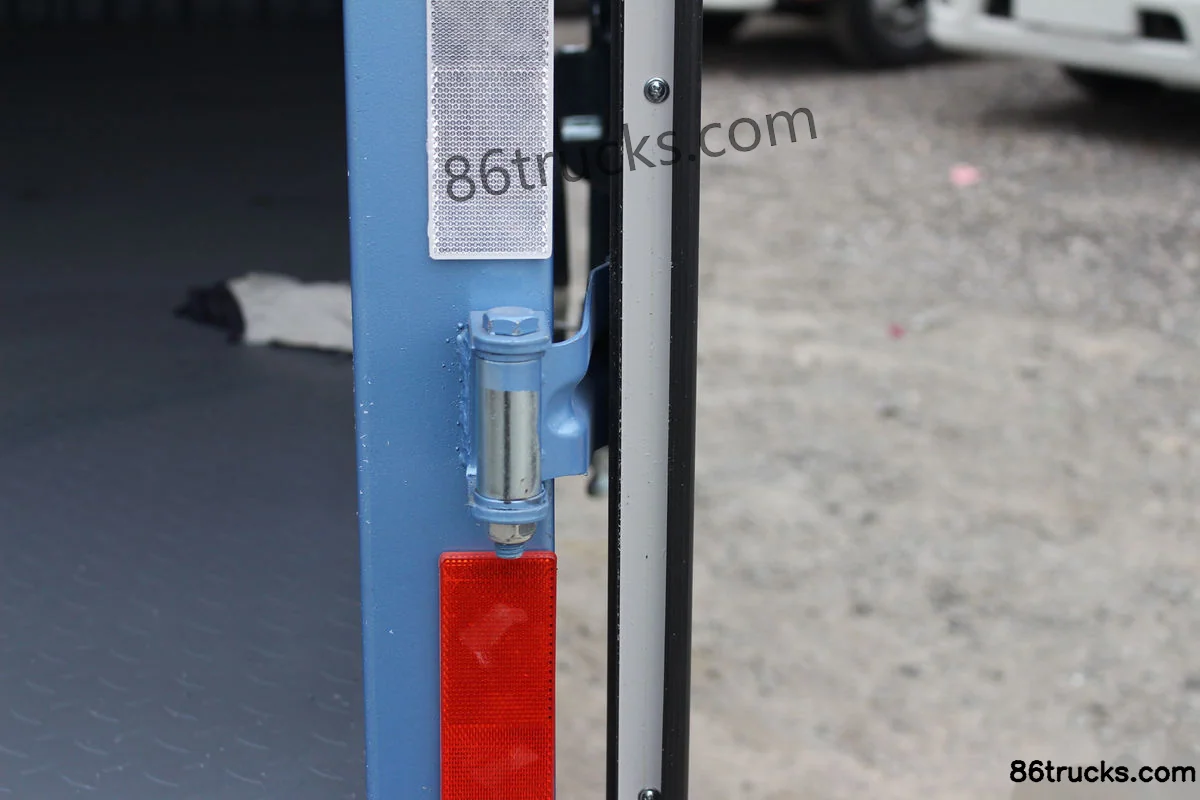

SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Body (1) | 86Trucks SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Body (2) | 86Trucks SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels)?

Key specs of SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) suited for?

SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) differ from other variants in the same series?

SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels) belongs to SHACMAN Delong K3000 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Light Truck Delong K3000 4.18m Van Electric Light Truck 98.04kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
