Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.565ton
Wheelbase:: 3360mm
Cargo box type:: stake body
Model code (announced):: QL1041BEVECHA1
Type:: Cargo Trucks
Box length class:: 4.3m
Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels) exterior
View more photos (1)
Drive 4X2 (6 wheels)
CLTC range: 230km
Motor 1 Brand: SAIC Motor
Curb Weight: 2.8ton

Overview

The Qingling Isuzu Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels) is a Light Truck featuring 230km battery/range, SAIC Motor motor, 4X2 (6 wheels) drive and 1.565t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QL1041BEVECHA1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.3m
Cab length: 5.995m
Cab width: 2.09m
Cab height: 2.32m
CLTC range: 230km
Curb Weight: 2.8ton
Rated payload: 1.565ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Chongqing
tonnage class: Light Truck
Version: YouXiang Edition
Energy Type: Electric
electric motor
Motor 1 Brand: SAIC Motor
Motor 1 Model: YTD060W23
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 110kW
total peak torque: 360N·m
total rated torque: 170N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 86.55kWh
Energy Density: 150.01
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.275m
Cargo box width: 1.98m
Cargo box height: 0.38m
Cab parameters
Cab: Single Row
Cab width: 1880mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1805kg
rear axle allowable load: 2690kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior1

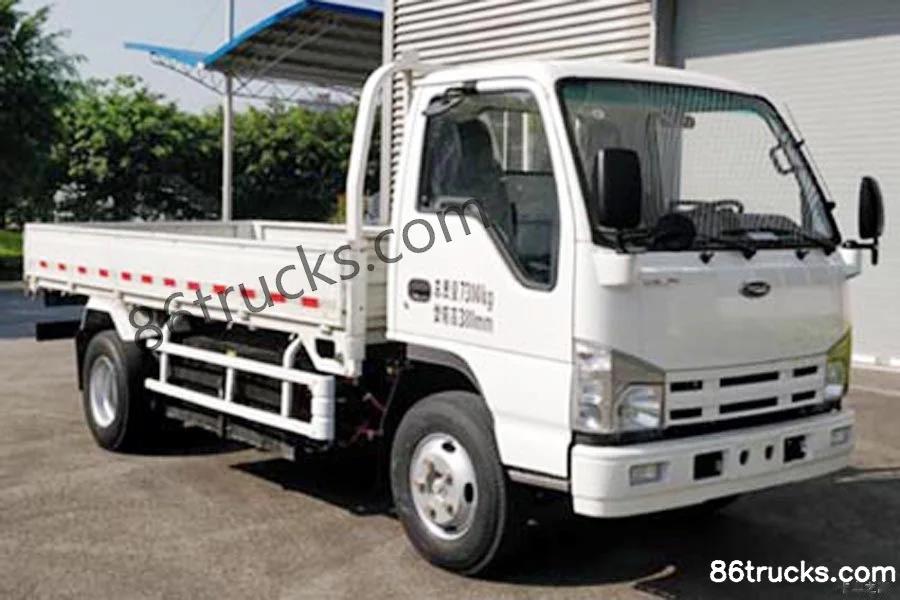

Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels) Exterior (1) | 86Trucks

1 photos

FAQ

What are the key specs of Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels)?

Key specs of Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels) suited for?

Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels) differ from other variants in the same series?

Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels) belongs to Qingling Isuzu EV100 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Isuzu EV100 Premium Edition 4.5T 4.275m Single Row Pure Electric Flatbed Light Truck 86.55kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
