SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels)

Export reference
From $7,347
MSRP ¥5.29M CNY
Rated payload:: 0.415ton
Wheelbase:: 2500mm
Cargo box type:: Stake type
Model code (announced):: JKC5021CCYD0X0BEV
Type:: stake truck
Box length class:: 2.5m
Drive 4X2 (6 wheels)
CLTC range: 160km
Motor 1 Model: TZ155XZ3C4
Curb Weight: 1.065ton

Overview

The SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels) is a mini truck featuring 160km battery/range, TZ155XZ3C4 motor, 4X2 (6 wheels) drive and 0.415t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5021CCYD0X0BEV
Type: stake truck
Drive type: 4X2
Wheelbase: 2500mm
Box length class: 2.5m
Cab length: 4.25m
Cab width: 1.5m
Cab height: 2.3m
CLTC range: 160km
Curb Weight: 1.065ton
Rated payload: 0.415ton
GVWR: 1.61ton
Max. speed: 80km/h
Origin: Chongqing
tonnage class: mini truck
Remarks: Vehicle monitoring system terminal, low-speed pedestrian warning system, EBD, hill-start assist, energy recovery
Energy Type: Electric
electric motor
Motor 1 Model: TZ155XZ3C4
Max torque: 110N·m
Fuel Type: Electric
total rated power: 15kW
Peak power: 30kW
Battery/Charging
Battery Brand: Jiangxi Ganfeng
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 16.8kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 2.44m
Cargo box width: 1.41m
Cab parameters
Cab: Single Row
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 580kg
rear axle allowable load: 1030kg
Tire
Tire Size: 165/70R13C
Number of tires: 4pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

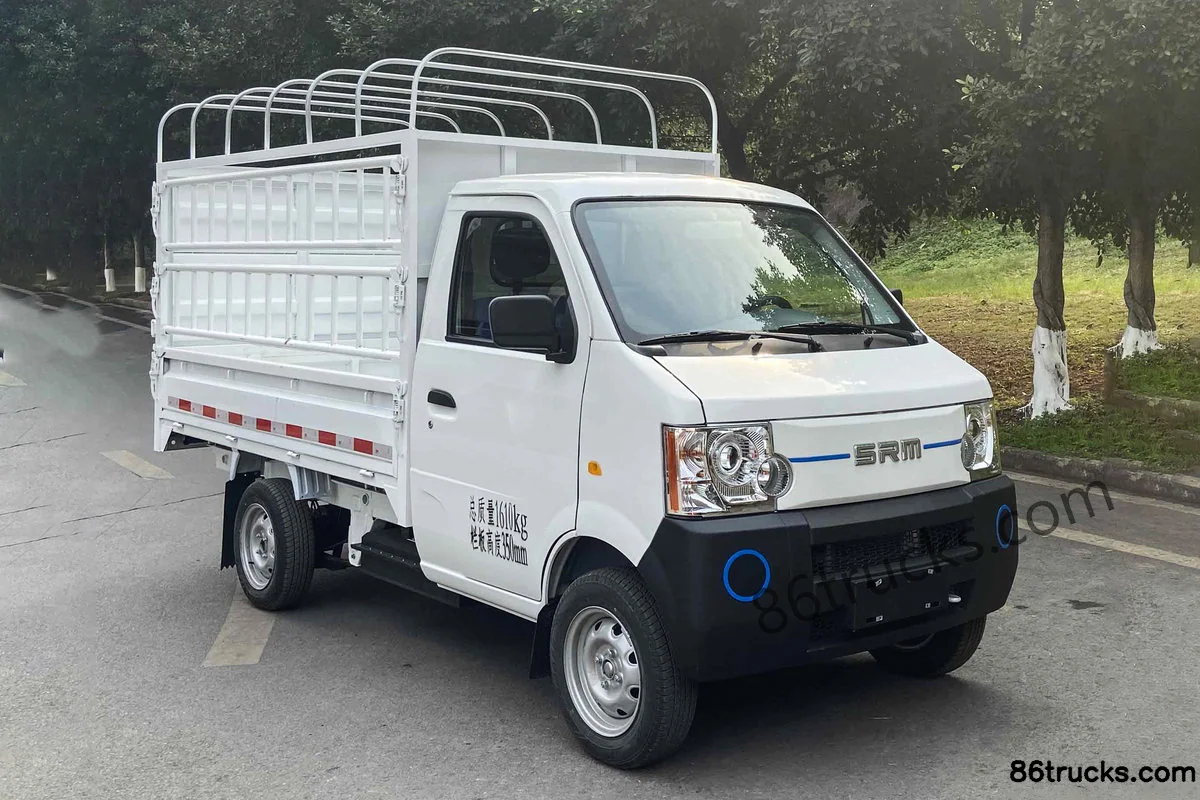

Exterior1

1 photos

FAQ

What is the export price of SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels), and what does it include?

SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels) export reference is about From $7,347; MSRP is ¥5.29M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels)?

Key specs of SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels) suited for?

SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels) differ from other variants in the same series?

SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels) belongs to SRM Xinyuan New Energy T1L EV (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan T1LEV 1.6T 2.44m Single-row Pure Electric Grating Micro Truck 16.8kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
