Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh

Export reference
From $18,861
MSRP ¥13.58M CNY
Wheelbase:: 2800mm
Model code (announced):: ZQ5030XXYZC1BEV
Cab length:: 4.43m
GVWR:: 2.6ton
Max. speed:: 81km/h
Energy Type:: Electric
CLTC range: 345km
Motor Type: Permanent magnet synchronous motor
Curb Weight: 1.39ton
Rated payload: 1.08ton

Overview

The Haima New Energy Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh is a Electric Panel Van featuring 345km battery/range, Permanent magnet synchronous motor motor, 1.08t payload and 2.6t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZQ5030XXYZC1BEV
Wheelbase: 2800mm
Cab length: 4.43m
Cab width: 1.626m
Cab height: 1.95m
CLTC range: 345km
Curb Weight: 1.39ton
Rated payload: 1.08ton
GVWR: 2.6ton
Max. speed: 81km/h
Energy Type: Electric
electric motor
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 25kW
Peak power: 60kW
total rated torque: 350N·m
Battery/Charging
Battery type: NMC lithium battery pack
Battery capacity: 41.1kWh
Battery rated voltage: 321.2V
Body Parameters
Seat count: 2Seats
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake

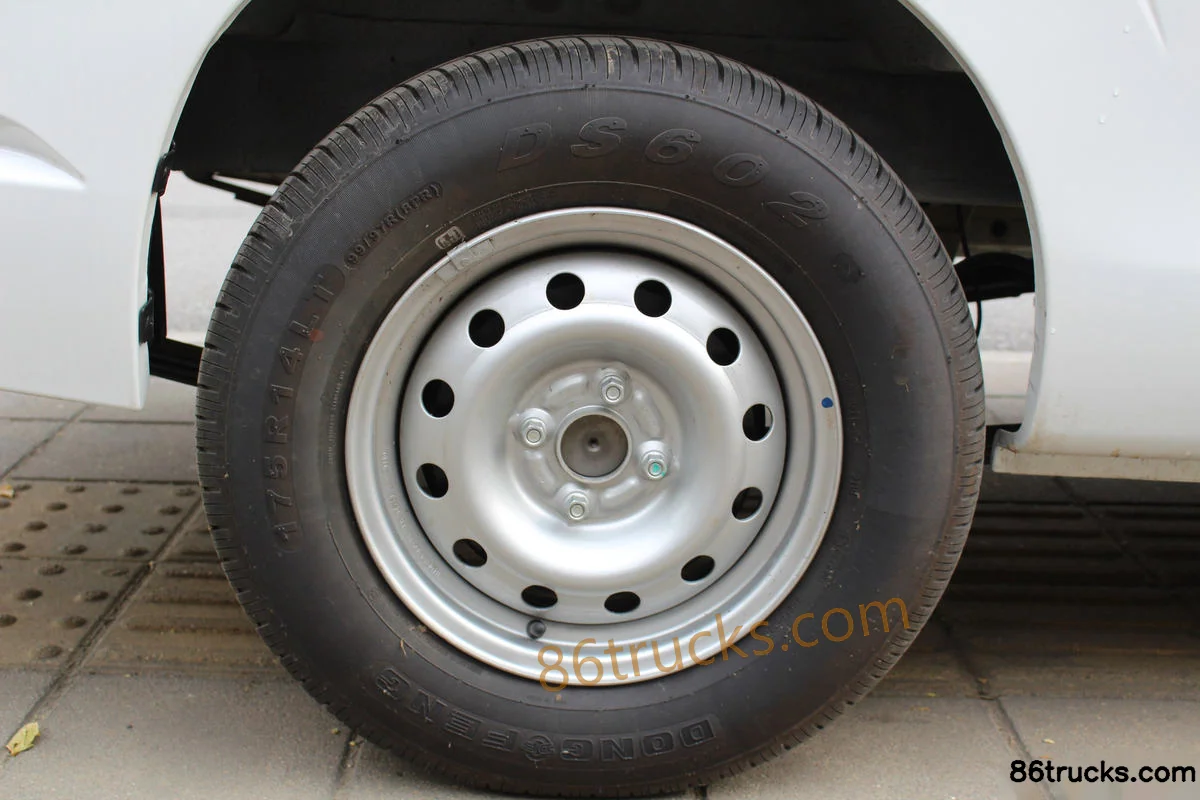

Front tire specification: 175R14LT
Rear Wheel Specification: 175R14LT

Photos

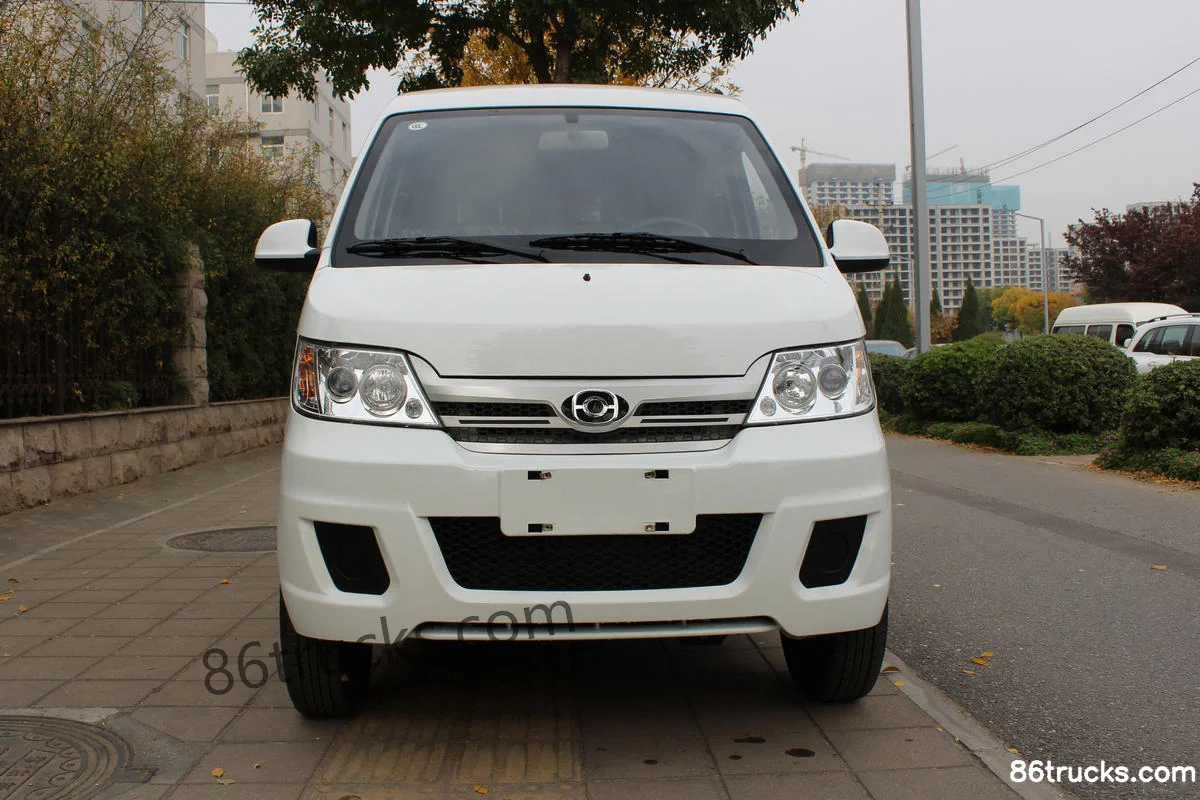

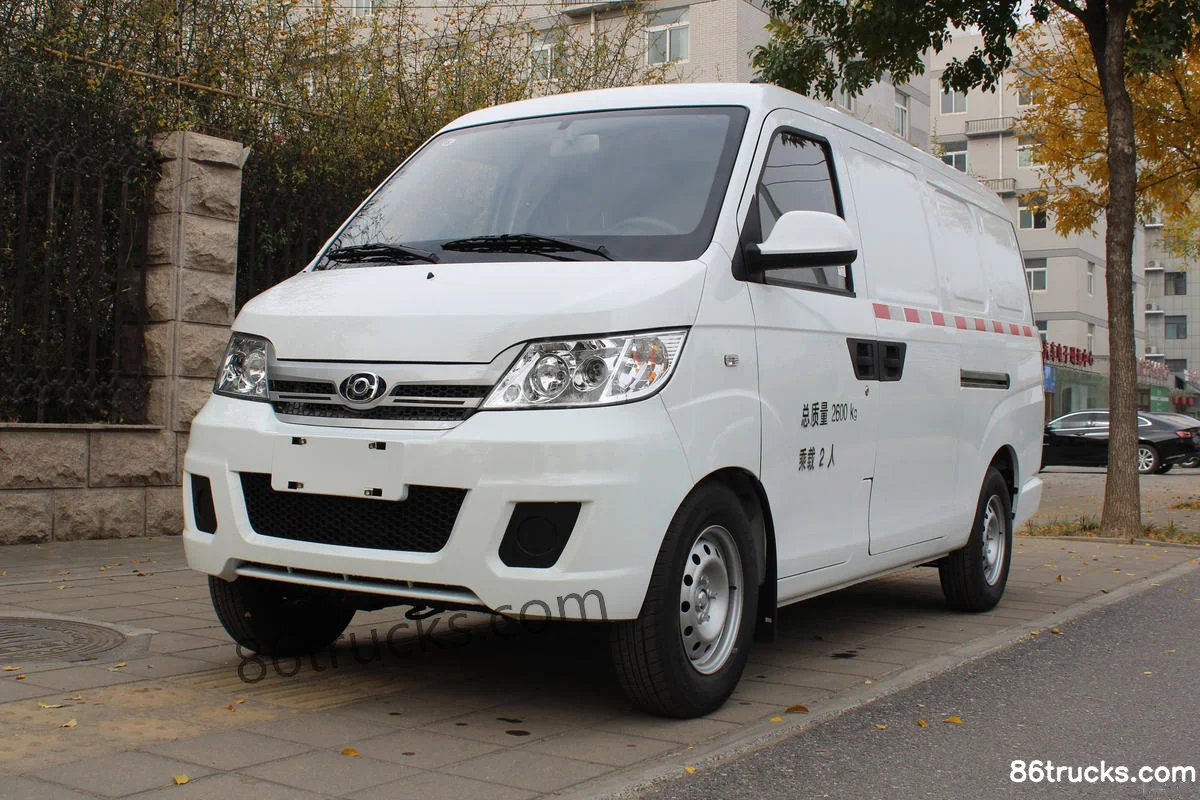

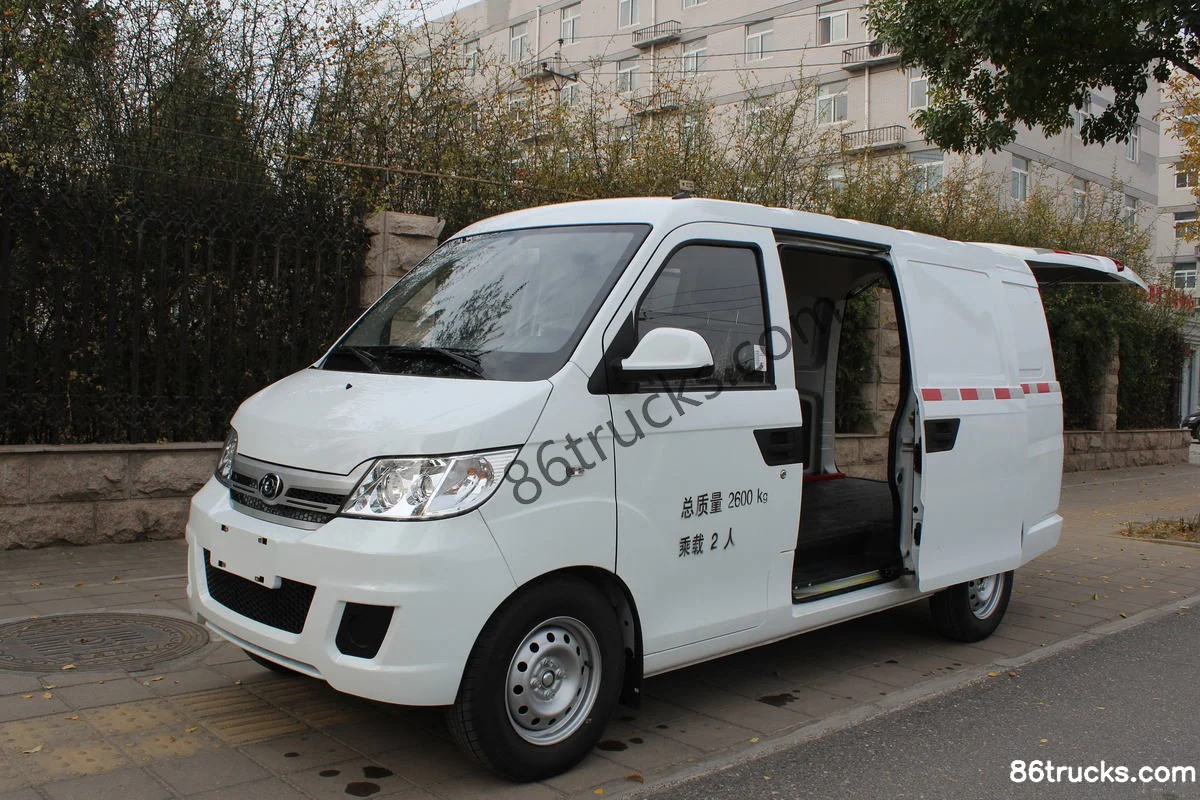

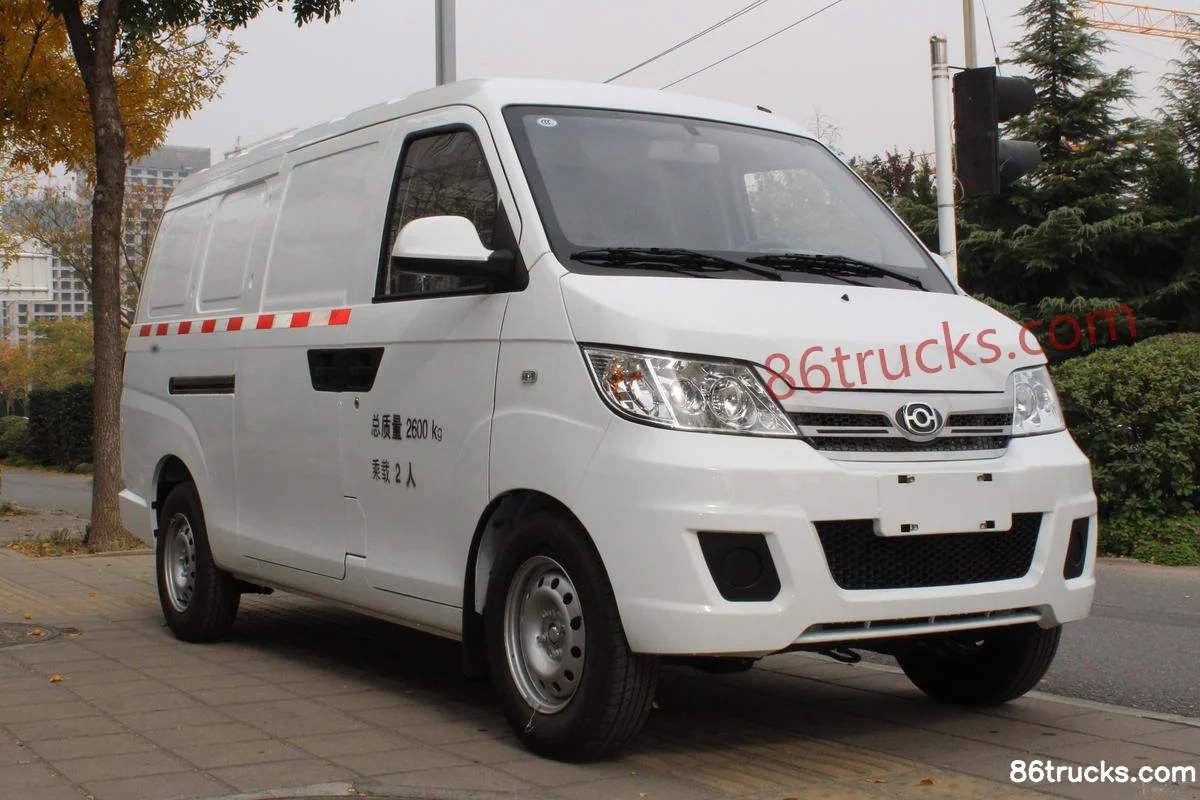

Exterior3

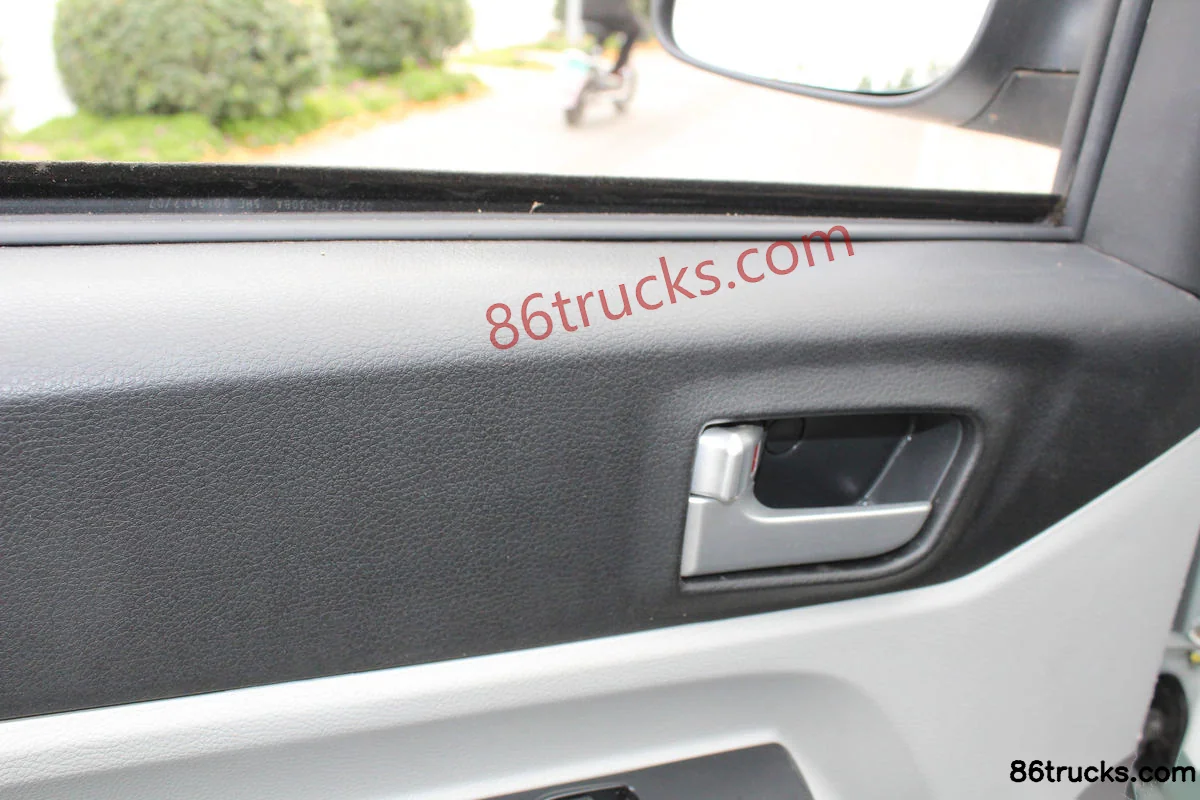

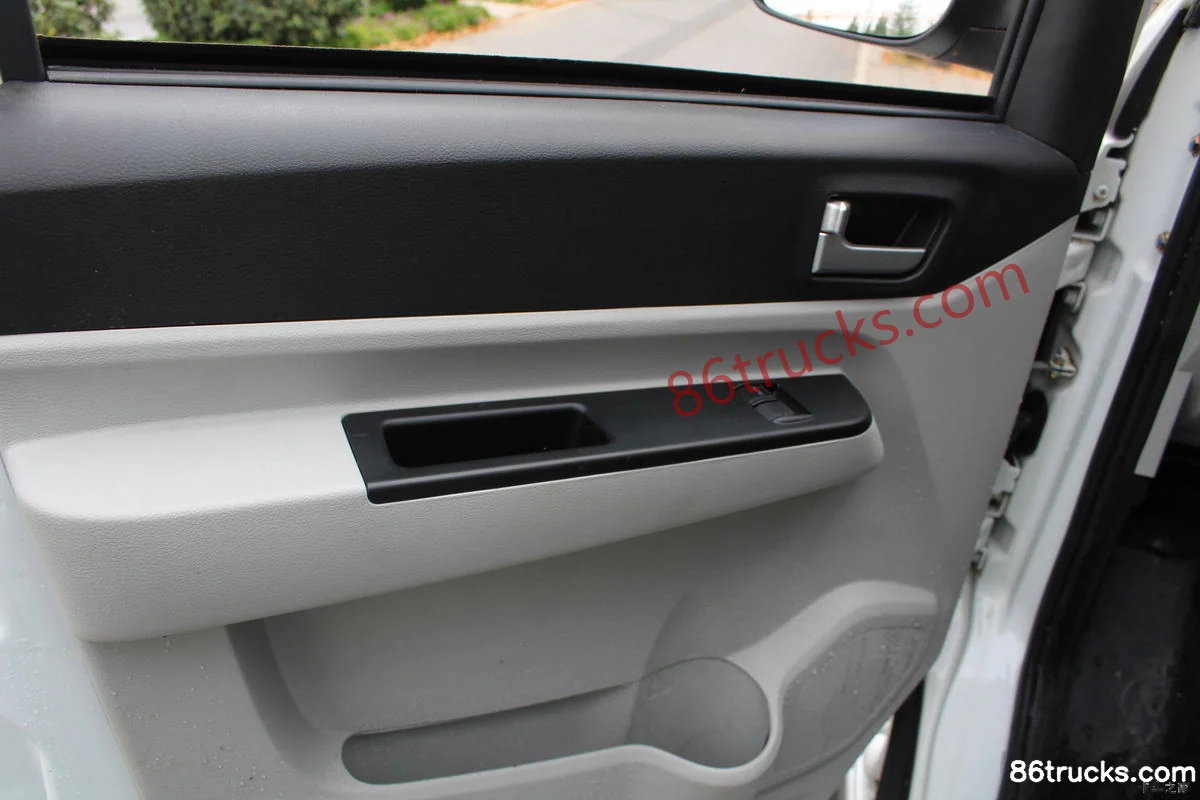

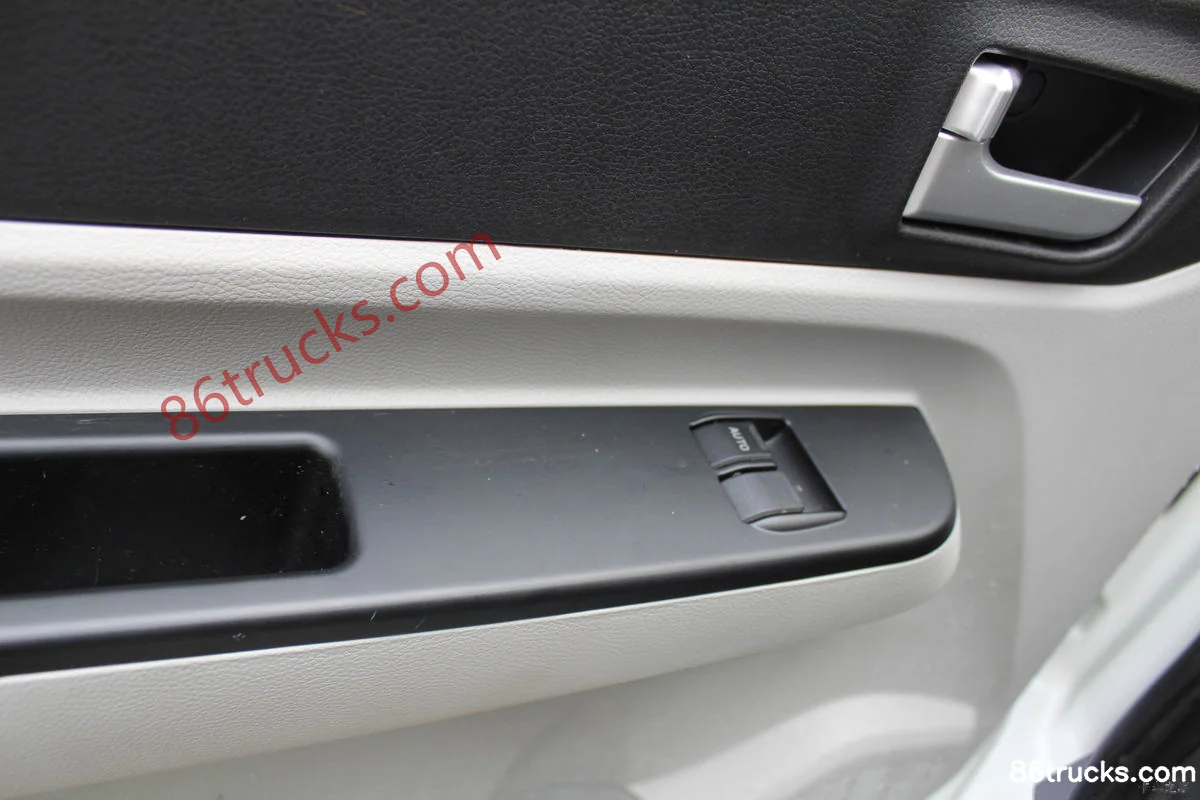

Cab3

Chassis1

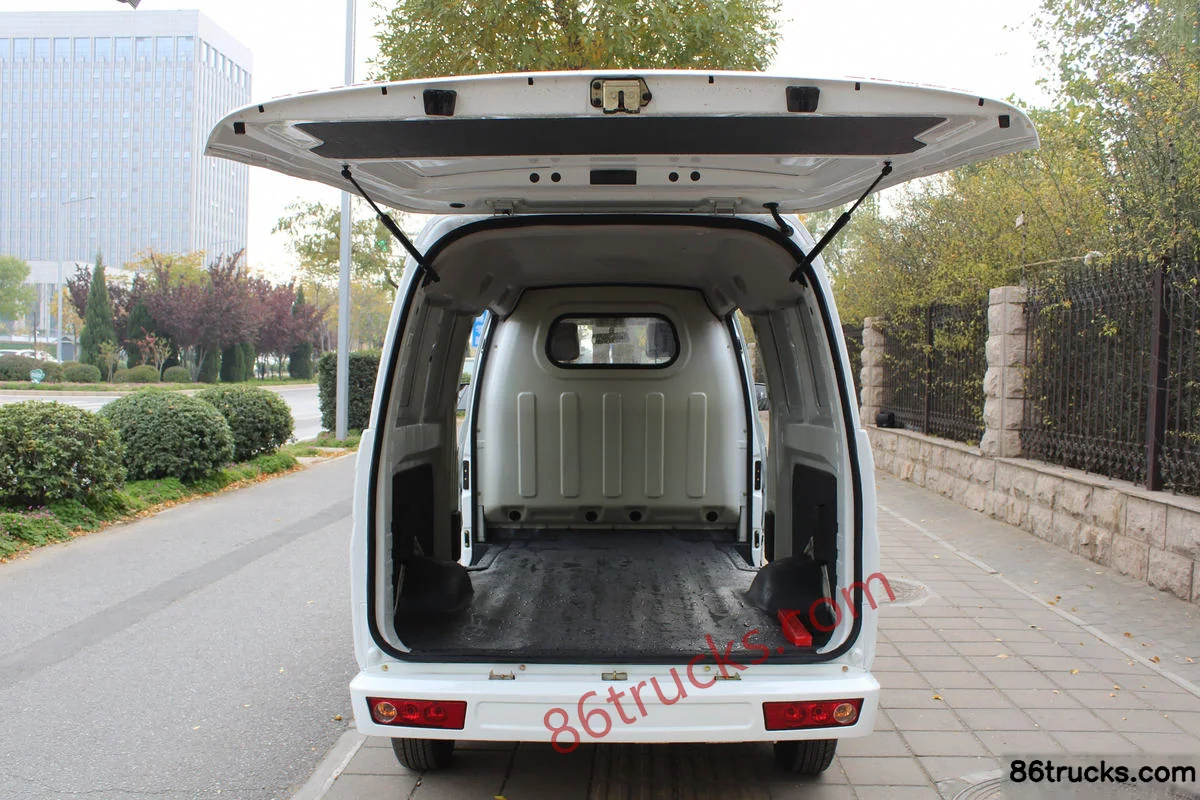

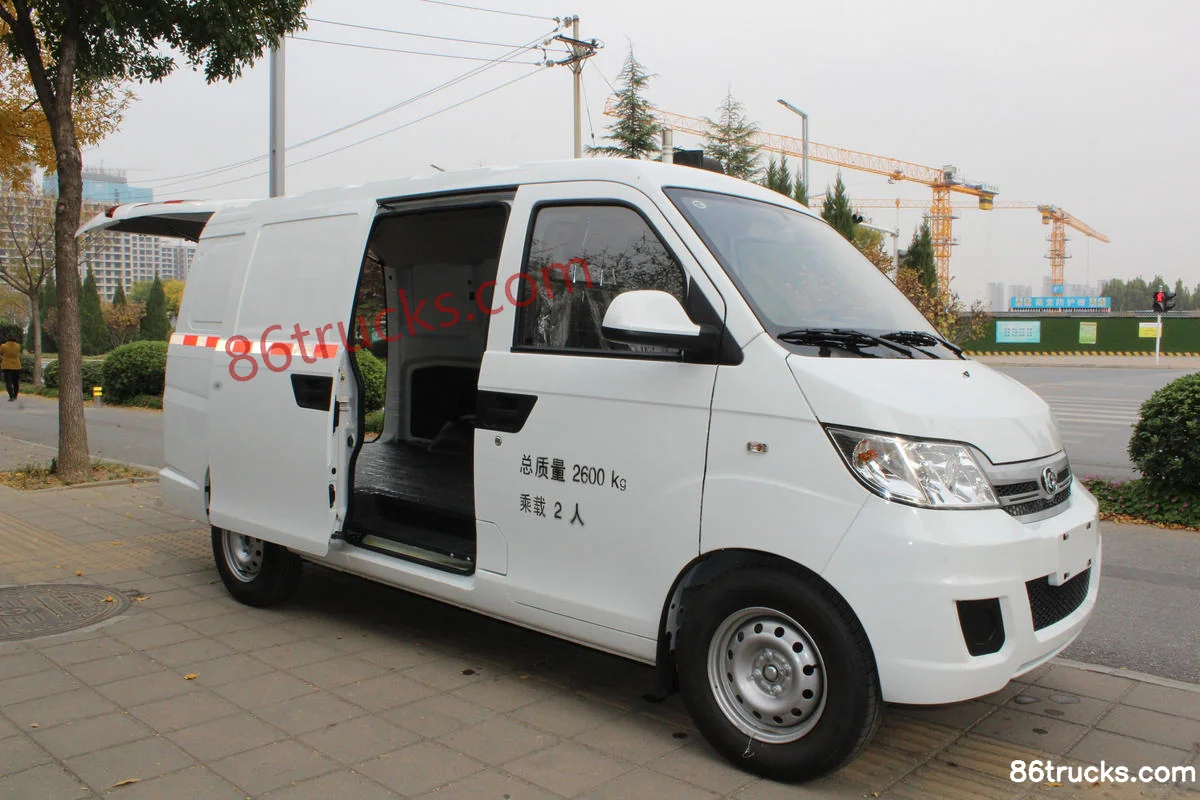

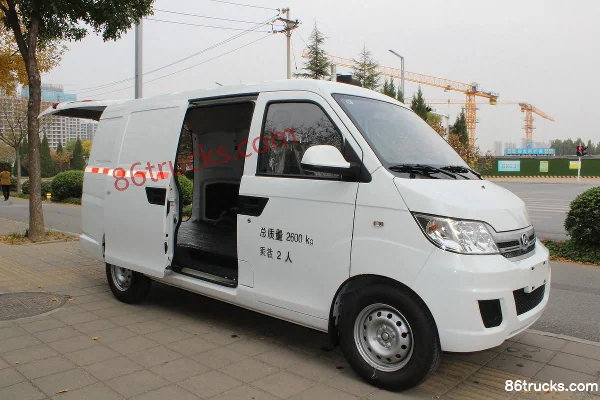

Cargo Box3

10 photos

FAQ

What is the export price of Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh, and what does it include?

Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh export reference is about From $18,861; MSRP is ¥13.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh suited for?

Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh differ from other variants in the same series?

Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh belongs to Zhongdian 360 Electric Enclosed Cargo Truck (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Haima Zhongdian 360 4.43m Electric Panel Van 41.1kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
