Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck

Export reference
From $20,278
MSRP ¥14.6M CNY
Horsepower: 161
Fuel: Diesel
Engine: Isuzu2.5L
Transmission: Isuzu
Curb Weight:: 2.72ton
Wheelbase:: 3360mm

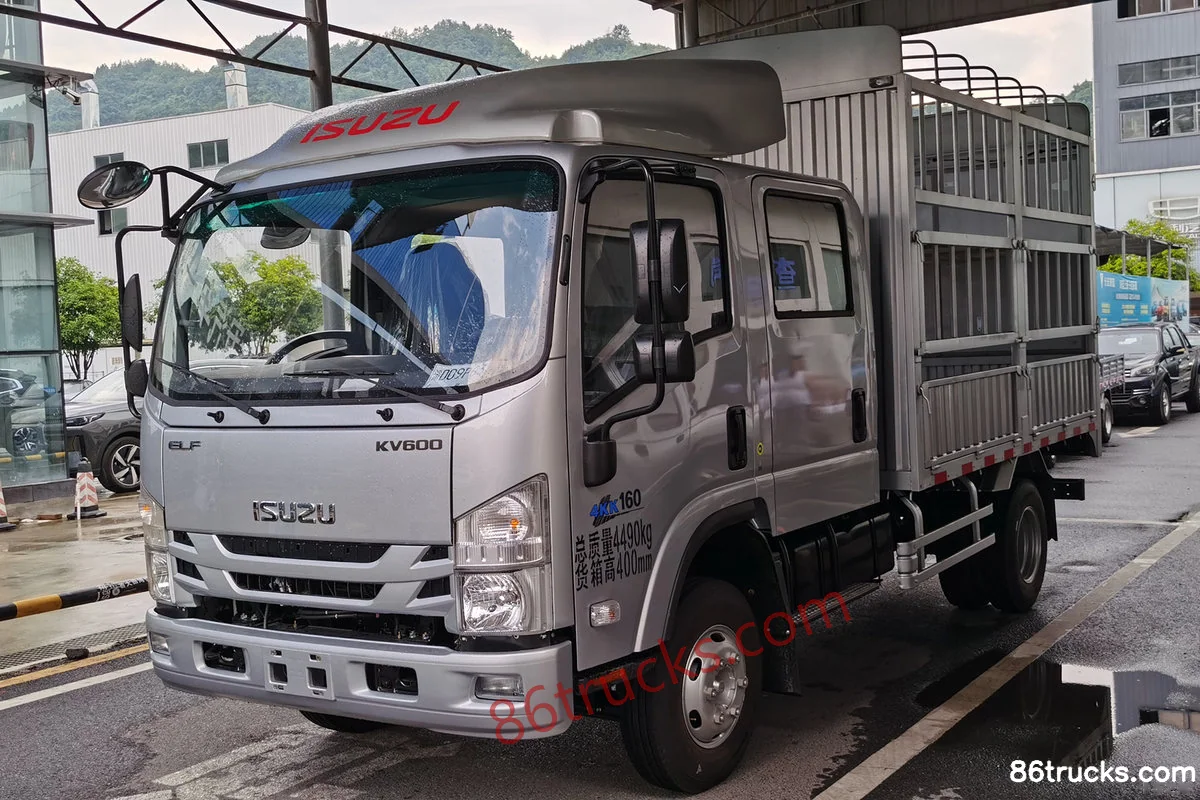

Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck exterior
View more photos (2)
seating capacity: 6Personnel
Rated payload: 1.38ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck is a Light Truck featuring 3.13m cargo length, Stake type cargo body, 6Personnel volume and 1.38t payload. On the powertrain side, it comes with a Isuzu2.5L engine, 161 hp, 4X2 (6 wheels) drive and Isuzu transmission.

161 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QL5043CCYFMHW
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.1m
engine: Qingling Isuzu4KK1N6HD
transmission: IsuzuMYY6
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.1m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 2.72ton
Rated payload: 1.38ton
GVWR: 4.49ton
Max. speed: 115km/h
Origin: Jiulongpo, Chongqing
tonnage class: Light Truck
Approach angle: 19°
departure angle: 16°
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: 4KK1N6HD
Engine info: Isuzu2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Max output power: 118kW
Max hp: 161Horsepower
Transmission Parameters
Transmission Model: IsuzuMYY6
Transmission Brand: Isuzu
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.13m
Cargo box width: 2.1m
*Cargo box interior width: 2.1
Cab parameters
seating capacity: 6Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1750kg
rear axle allowable load: 2740kg
Axle ratio: 5.571
Leaf spring count: 3/3+2
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
steering wheel adjustment:
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Seat material: Fabric
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight height adjustment:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior2

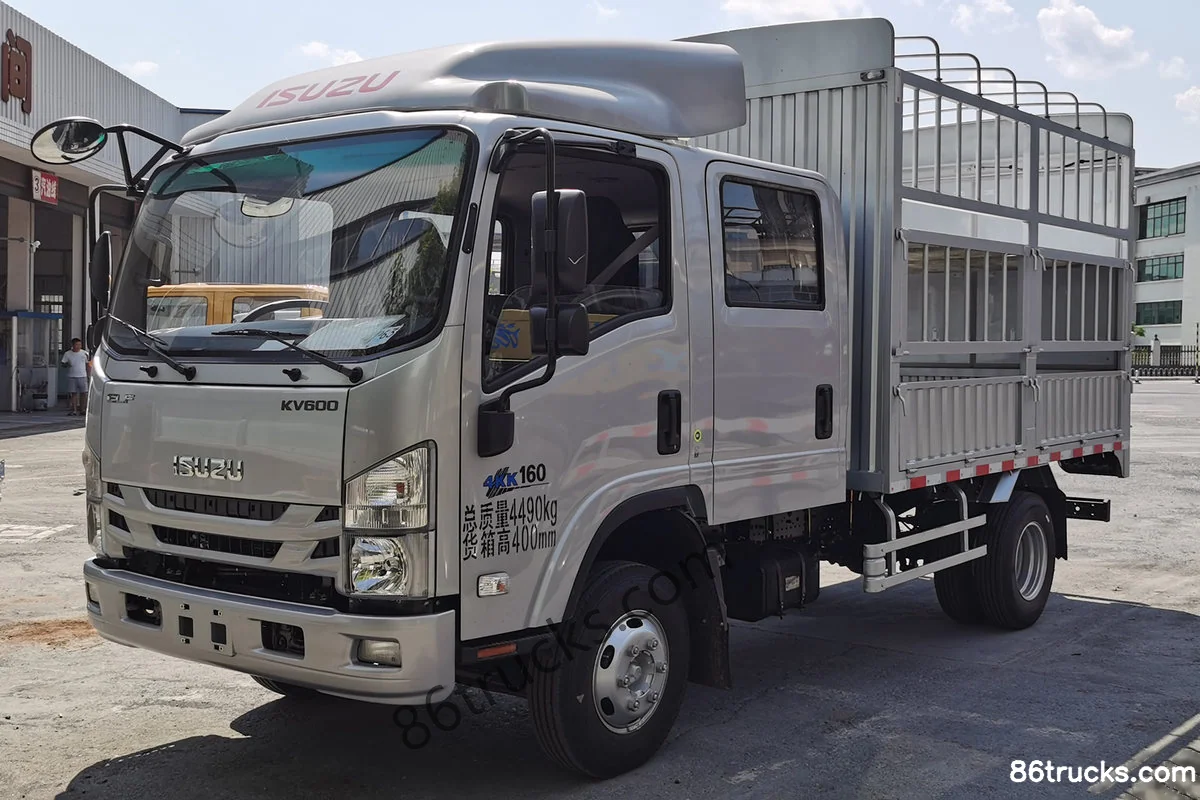

Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck Exterior (1) | 86Trucks Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck Exterior (2) | 86Trucks

2 photos

FAQ

What is the export price of Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck, and what does it include?

Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck export reference is about From $20,278; MSRP is ¥14.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck?

Key specs of Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck: Drive: 4x2; Horsepower: 161 hp; Fuel: Diesel; Engine: Isuzu2.5L; Transmission: Isuzu. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck suited for?

Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck differ from other variants in the same series?

Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck belongs to Qingling IsuzuKV600 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu KV600 2.5L diesel 161 hp 4X2(6 wheels) Isuzu 6-speed 3.13m double-row stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
